USER MANUAL BTBS 8501 E EINHELL

Original operating instructions Belt Grinder/Sander

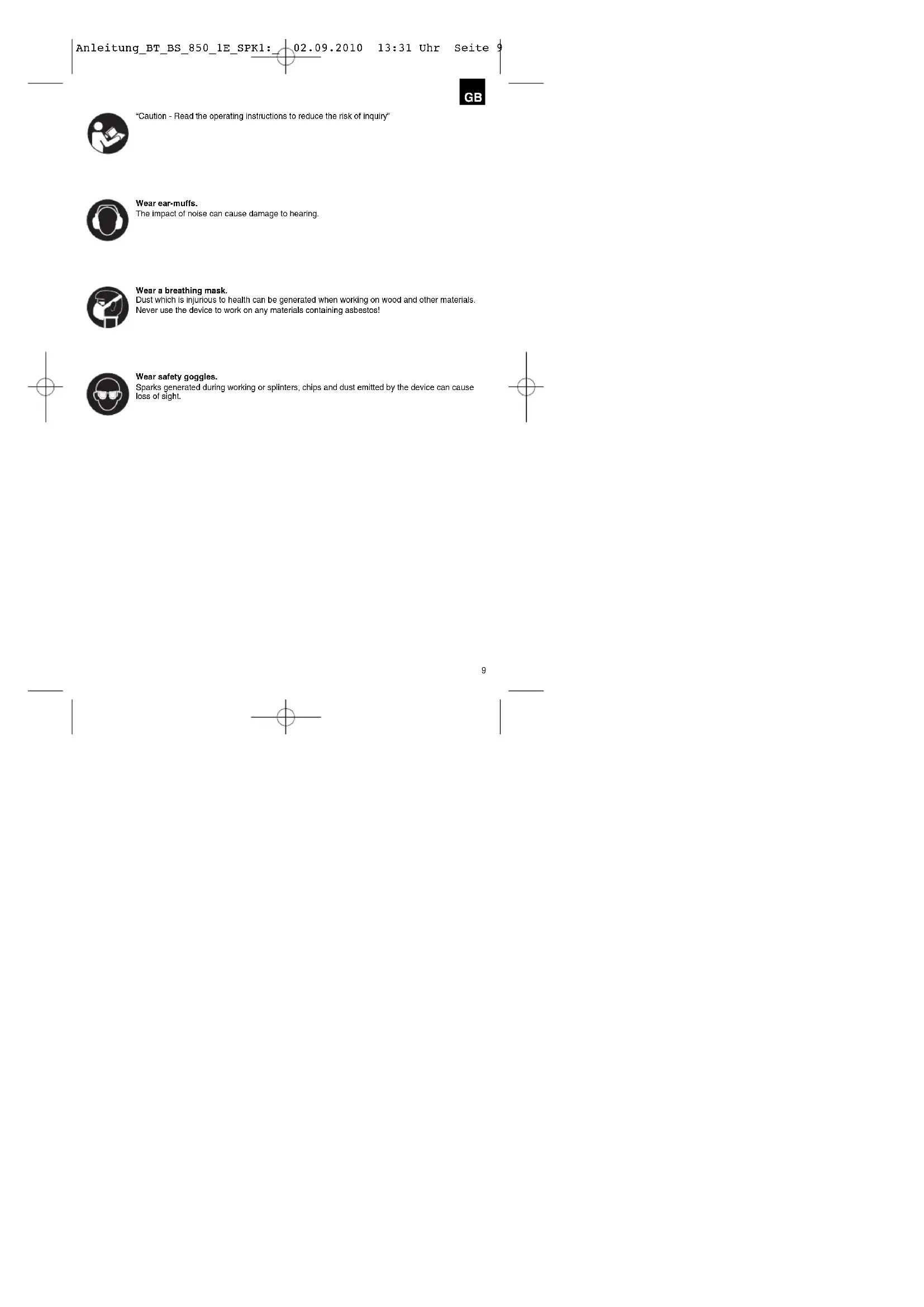

“Caution - Read the operating instructions to reduce the risk of inquiry” Wear ear-muffs. The impact of noise can cause damage to hearing. Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight. Anleitung_BT_BS_850_1E_SPK1:_ 02.09.2010 13:31 Uhr Seite 910

Important! When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well. We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

1. Safety information

Please refer to the booklet included in delivery for the safety instructions. CAUTION! Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

1. Additional handle

2. Setting for sanding/grinding belt adjustment

3. Setting wheel for belt speed

6. Connection for dust bag

10. Clamping lever for sanding/grinding belt

11. Sanding/Grinding belt

Open the packaging and take out the equipment with care. Remove the packaging material and any packaging and/or transportation braces (if available). Check to see if all items are supplied. Inspect the equipment and accessories for transport damage. If possible, please keep the packaging until the end of the guarantee period. IMPORTANT The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating! Original operating instructions Safety instructions Belt Grinder/Sander Sanding/Grinding belt Dust bag

The belt sander/grinder is designed for sanding/grinding wood, iron, plastic and similar materials using the appropriate sanding/grinding belt. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Mains voltage: 230 V~ 50 Hz Power input: 850 W Belt speed: 0-380 m/min Sanding/Grinding belt size: 76 x 533 mm Protection class: II / 쓑 Weight: 3.5 kg Sound and vibration Sound and vibration values were measured in accordance with EN 60745.

Wear ear-muffs. The impact of noise can cause damage to hearing. Total vibration values (vector sum of three directions) determined in accordance with EN 60745. Vibration emission value a

Additional information for electric power tools Warning! The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances. The specified vibration value can be used to compare the equipment with other electric power tools. The specified vibration value can be used for initial assessment of a harmful effect. Keep the noise emissions and vibrations to a minimum. Only use appliances which are in perfect working order. Service and clean the appliance regularly. Adapt your working style to suit the appliance. Do not overload the appliance. Have the appliance serviced whenever necessary. Switch the appliance off when it is not in use. Wear protective gloves. Residual risks Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

2. Damage to hearing if no suitable ear protection is

3. Health damage caused by hand-arm vibrations if

the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data. Always pull the power plug before making adjustments to the equipment.

Slide the dust bag (12) on to the connection for the dust extractor (6). Follow the instructions above in reverse order to remove the dust bag. The dust is extracted straight from the sanding/grinding belt into the dust bag. Important. For health safety reasons it is imperative that you use a dust bag.

5.2 Changing the sanding / grinding belt

(Fig. 4-5/Item 11) Pull the clamping lever (10) to the outside to relieve the tension in the sanding/grinding belt. Pull the used sanding/grinding belt off the drive rollers. Slide the new sanding/grinding belt on to the drive rollers. Ensure that the direction of the sanding/grinding belt (arrows on the inside of the sanding/grinding belt) is identical to the direction of the belt sander/grinder (arrow over the rear drive roller). Press the clamping lever (10) to the rear to tension the sanding/grinding belt.

5.3 Adjusting the position of the belt

(Fig. 6/Item 2) Hold the belt sander/grinder with the sanding/grinding plate at the top. Switch on the belt sander/grinder. By turning the setting screw (2) the belt position should be set so that the sanding/grinding belt is at the center of the two drive rollers. Anleitung_BT_BS_850_1E_SPK1:_ 02.09.2010 13:31 Uhr Seite 1112

To switch on: Press the ON/OFF switch (5). Continuous operation: Secure the switch (5) with the locking button (4). To switch off: Press the ON/OFF switch (5) briefly. The machine can be operated on a temporary or permanent setting.

6.2 Setting the belt speed (Fig. 8/Item 3)

You can select the belt speed by turning the setting knob (3). PLUS direction: Increase belt speed MINUS direction: Reduce belt speed

6.3 Instructions for use

Important. Never hold the workpiece you wish to sand/grind in your hands. Secure the workpiece on a sturdy surface or using a vise. Allow the belt sander/grinder to start before you place it on the workpiece. Do not switch off the belt sander/grinder as long as the sanding/grinding belt is in contact with the workpiece. Always hold the belt sander/grinder with both hands whilst it is in use. Always sand wood in the direction of the grain.

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after- sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering

of spare parts Always pull out the mains power plug before starting any cleaning work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. We recommend that you clean the device immediately each time you have finished using it. Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be rep laced by anyone but a qualified electrician.

There are no parts inside the equipment which require additional maintenance.

8.4 Ordering replacement parts

Please quote the following data when ordering replacement parts: Type of machine Article number of the machine Identification number of the machine Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging. Anleitung_BT_BS_850_1E_SPK1:_ 02.09.2010 13:31 Uhr Seite 1213
