USER MANUAL Auto+ 200XL REXEL

Exterior view of a Rexel air fryer with control panel and glass jar (no visible text or symbols)

Three-step illustration showing a printer being inserted into a device, then being connected to a cable (no text or symbols present)

2min 1

Illustration showing four steps of a computer control interface with labeled buttons and hand gestures, including a close-up of the button.

AUTO+ SHREDDERS

FEATURE COMPARISON	LIGHT USE			EVERYDAY USE				HEAVY USE
Model	60X	80X	100X	100M	200X	300X	300M	500X	500M	750X	750M
Security level	P3		P3	P5	P3	P3	P5	P4	P5	P4	P5
Bin Capacity (sheets)	100	150	150	280	325	450	670	850	1100	1250	1400
Users	1		1-2		1-5	5-10		10-20		20+
HANDS FREE SHREDDING
Sheet Capacity	60	80	100	100	200	250	250	500	500	750	750
Staples and Paper Clips	√	√	√	√	√	√	√	√	√	√	√
Intelligent Jam Clearance		√	√	√	√	√	√	√	√	√	√
Lockable Chamber					Optional	√	√	√	√	√	√
MANUAL FEED SHREDDING
Manual feed sheet capacity	5	6	6	6	7	8	8	10	9	12	10
Jam Free Technology						√	√	√	√	√	√
Bin Capacity (Litres)	15L	20L	26L	26L	32L	40L	40L	80L	80L	115L	115L
Shreds Credit Cards	√	√	√	√	√	√	√	√	√	√	√
IntelligentTM Power Save		√	√	√	√	√	√	√	√	√	√
Bin Full Indicator		√	√	√	√	√	√	√	√	√	√
Illuminated Status Symbols			√	√	√	√	√	√	√	√	√
Shreds CDs					√	√	√	√	√	√	√
Castors for Mobility					√	√	√	√	√	√	√
IntelligentTM SelfOilTM								√	√	√	√
Continuous operation								√	√	√	√

Exterior view of a black Boxet printer with open lid and internal compartments filled with paper feed (no visible text or symbols)

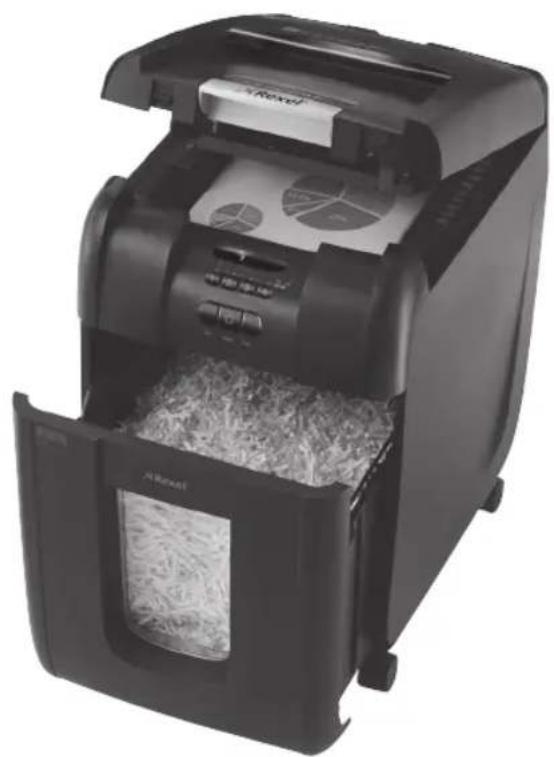

AUTO+200X&200XL™ SHREDDERS

GB instruction manual 6
F manuel d'utilisation 14
D bedienungsanleitung 22
I manuale d'istruzioni 30
NL gebruiksaanwijzing 38
E manual de instrucciones 46
P manual de instruções 54
TR kullanım kılavuzu 62
GR οδηγίες 70
DK brugsvejledning 78
FI käyttöopas 86
NO bruksanvisning 94
s bruksanvisning 102
PL instrukcja obsługi 110
cz návod k obsluze 118
H használati útmutató 126
RUS руководство по эксплуатации 134

GB

autofeed technology

The Auto+ 200X/200XL has been designed to automatically shred up to 200 sheets from the auto-feed chamber and up to 7 sheets through the manual feed slot. The auto-feed mechanism has been designed to handle paper fastened with staples and paper clips and to only pull a few sheets of paper into the cutting mechanism to minimise the risk of paper jams.

To guard against injury, the following basic safety precautions must be observed in the set-up of this product.

• Ensure the machine is plugged into an easily accessible power outlet, and ensure the cable is not likely to trip up a passer by.
• Any attempt to repair this unit by unqualified personnel will invalidate the warranty. Please return to supplier.
• Unplug your shredder before moving it or when it is not in use for an extended period of time.
• Do not operate with a damaged power supply cord or plug, after it malfunctions, or after it has been damaged in any manner.
• Do not overload electrical outlets beyond capacity as this can result in fire or electrical shock.
• The socket-outlet should be installed near the equipment and shall be easily accessible.
• Do not alter the attachment plug. The plug is configured for the appropriate electrical supply.
• Do not use near water.
• Do not use aerosol dusters or cleaners.
• Do NOT spray anything into the shredder.
• Do NOT load the autofeed chamber with junk mail, magazines, bound documents etc.

Although this shredder has been designed to comply with UL 60950-1 EN 60950-1 safety standards including the "probe accessibility tests", do not operate the shredder near children or pets.

warning symbols

Safety First

This means you should be careful because long hair can become entangled in the cutting head.

This means be careful of ties and other loose clothing which could become entangled in the cutting head.

This means be careful of loose jewellery which could become entangeld in the cutting head.

This means don't reach into the feed opening of the cutting head.

This means keep children away from shredder.

This means no aerosols.

Sheet capacity of manual feed entry slot.

This means the shredder can accept small staples.

This means the shredder can accept small paperclips.

This means the shredder can accept credit cards.

This means no oil lubrication, use Rexel oil sheets only.

control panel and indicators

Continuous Jam BoostReverse

Paper Loading Door/Bin Door Open indicator –

This means either:

• Loading door is open
• Bin is open

Bin Full indicator – This means the bin is full.

Lock indicator – This means the paper loading door is locked (during shredding).

Cool Down indicator – This means the machine is cooling down.

Paper jam indicator – This means there is a paper jam in the auto feed chamber.

If this symbol is flashing the shredder is attempting to clear a paper jam automatically.

If this symbol is permanently illuminated red please follow the instructions under 'Rare Occasion of Jamming'.

Loading Door Locking Mechanism – PIN Password Buttons – Enter a four digit code to lock the loading door during shredding.

GB

Auto+ 200X/200XL shredding capability

Auto+ 200X/200XL CAN shred the following:

• 200 sheets
• Stapled paper, 25mm within the corner
• 26/6 and 24/6 or smaller staples
- Small sized paper loaded centrally

• 200 sheets
• Paper clip paper, 25mm within the corner
- Capable of shredding small/medium paper clips (max. wire thickness = 0.9 mm)
- >80/100gsm paper (through manual feed slot ONLY)

• A3 folded in half max. 2 sheets
- 200 sheets
- 80 gsm paper

-A4-210mm×297mm
- A5 - 148mm x 210mm
- A3 single sheet folded in half to make A4

Auto+ 200X/200XL CAN shred (through the manual feed slot):

THICK PAPER

Thick paper or card.

Multiple folded sheets (e.g. A3 sheets folded in half).

UNOPENED MAIL

Unopened mail (e.g. junk mail).

GLOSSY SHEETS

Glossy paper or a sheet covered with print on both sides.

Auto+ 200X/200XL CANNOT shred the following:

Heavy duty staples. Check the staple leg length is not greater than 6mm.

Large clips. Check the length of the paperclip is not longer than 32mm.

Plastic sheets, laminated documents, plastic folders.

Bulldog clips

Bound documents

Adhesive labels.

Magazines or other documents bound by multiple staples or clips.

bin or loading door open safety function

As a safety precaution, if the bin or loading door is opened during shredding, the shredder will stop and the bin full indicator will illuminate (☐).

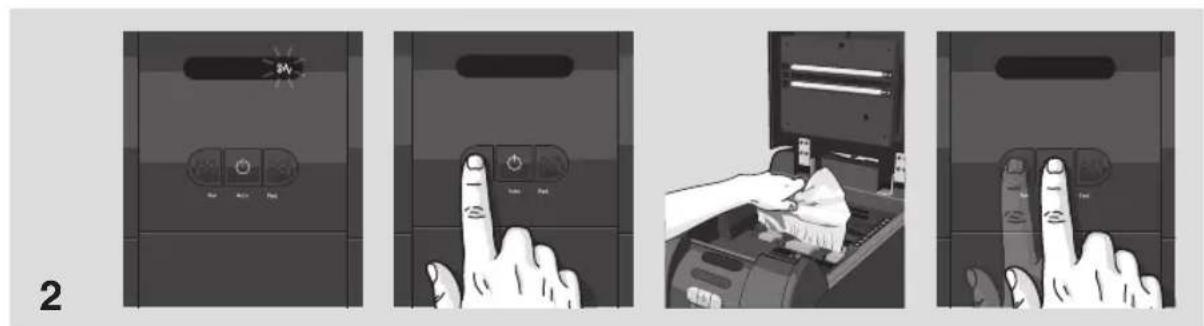

intelligent help

1 In the unlikely event of the shredder jamming, the Auto+ 200X & 200XL will stop shredding, and the jam icon will blink in orange.
2 The shredder will illuminate the FWD (▶) and REV (◀) buttons in the sequence necessary to clear the jam.
3 If the jam cannot be intelligently cleared, the jam icon (8v) will illuminate in red. At this point open the auto feed chamber to clear any jammed material.

automatic jam clearance

Intelligent Jam Clearance: In the unlikely event of the shredder jamming, the Auto+ 200X & 200XL will automatically reverse and forward the engine three times to clear a jam. During this operation the Paper Jam indicator will flash (8V).

\*\* 200XL only locking the paper loading door

For additional security the paper loading door can be locked during the shredding of confidential material.

To lock shredder:

1 Place documents in tray. Close paper loading door.
2 Press any 4 digits. REMEMBER YOUR CODE!

Shredder unlocks automatically when:

• 4 digit code is re-entered.
- Shredding is complete.
- Shredder is inactive for 30 minutes (but documents remain in tray)

GB

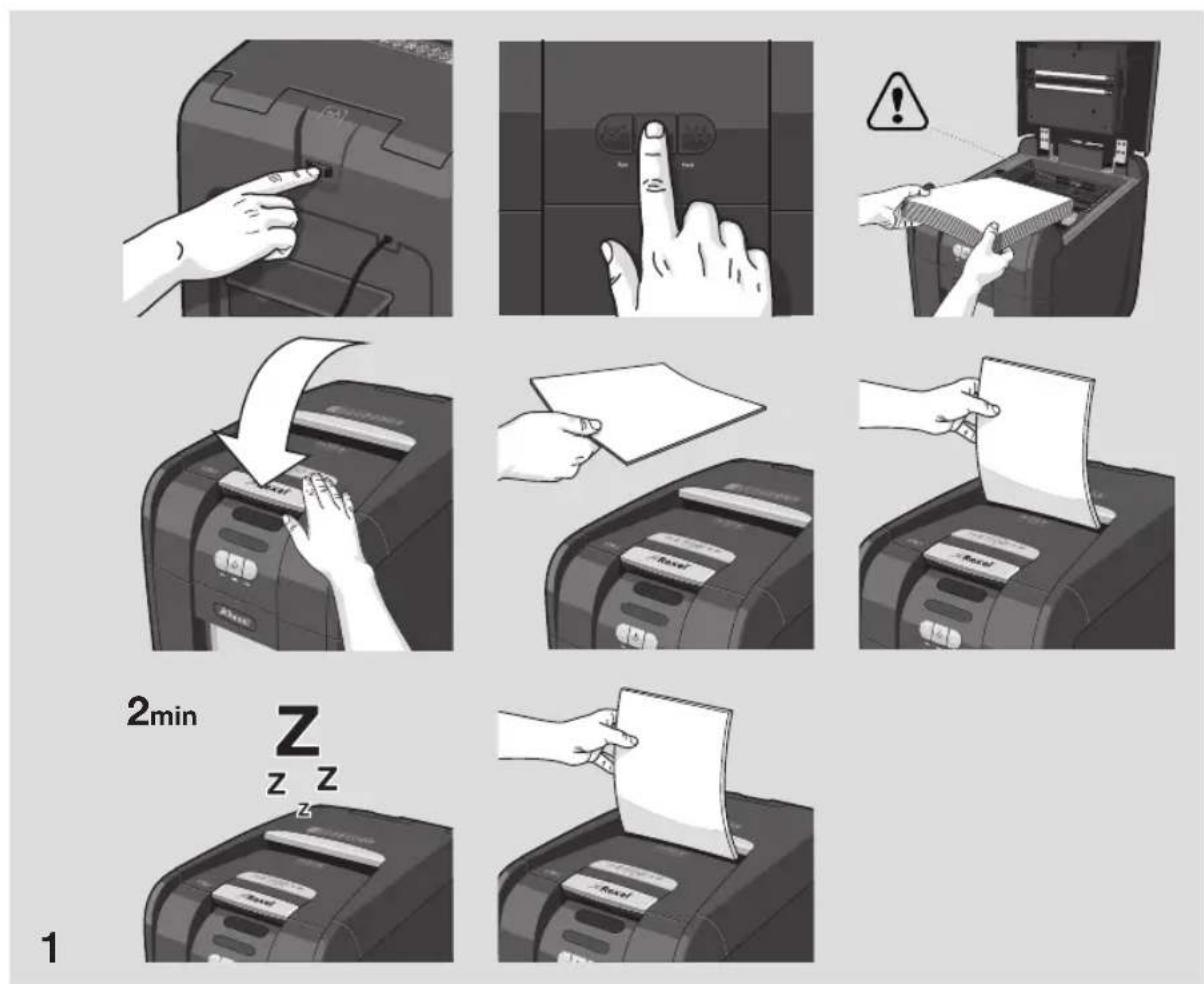

1. operation

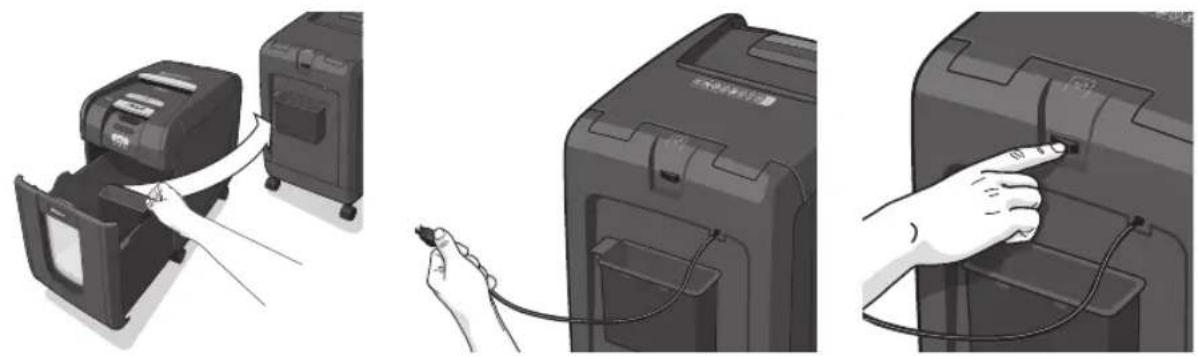

1 Unpack the product.
2 Connect the shredder to mains supply.
3 Ensure the ON/OFF button on the back of the machine is in the ON position, which will illuminate the blue standby symbol (☐).
4 To commence shredding, press the Auto button (☐), which sets the shredder into auto mode. You are now ready to shred.
5 To load the shredder, simply lift the loading door handle to open the loading door and insert documents. You can open the door further to 90 degrees for easier access if required Load up to 200 sheets at a time into the feed chamber. Do not fill above the 200 MAX level, this could damage the shredder.
6 The shredder will start the shredding cycle automatically ONLY after closing the loading door. If there is still paper in the Autofeed chamber after first attempt open and reclose the paper loading door a second time.

200XLonly

Attention: If required you can now lock the loading door by entering a 4 digit code (see Locking the Paper Loading Door section).

7 If you only have up to 7 sheets to shred, you can use the manual feed slot, provided the auto feed chamber is empty.
8 Insert paper to be shredded into the feed area. The shredder will detect the paper and start automatically.
9 If the shredder is left in auto mode for more than 2 minutes without being used, the shredder will automatically turn back to standby mode in order to save power.
10 The shredder will automatically 'wake up' from sleep mode when paper is inserted into the shred mouth or you open the loading door. There is no need to press the Auto button (💡).

2. reverse function

1 Should you wish to reverse paper out whilst shredding, a reverse button (◀◀) has been fitted for your convenience.
2 Reverse the paper out then turn the machine off using the ON/OFF switch at the rear of the shredder. Remove the paper from the manual feed slot (if being used) or open the loading door, remove the remaining stack of paper, then pull the jammed paper free of the cutting mechanism.
3 To resume shredding, turn the shredder on using the ON/OFF switch at the rear of the shredder. Return the switch to the auto position ( ⏻ ).

3. CD/DVD shredding

A separate CD/DVD tray is provided to collect the shredded CD/DVD shards, ensure that this is correctly mounted onto the bin before shredding.

1 Lift up the paper loading door.
2 Always insert CDs/DVDs in the CD/DVD slot. Only shred one CD/DVD at a time.
3 Close the paper loading door.
4 Empty the CD/DVD bin after 8 CDs/DVDs to avoid waste spilling over into the paper waste bin.
5 Remove the CD/DVD tray before recommencing to shred paper.

4. credit card shredding

1 Lift up the paper loading door.
2 Insert the credit card into the roller as shown. Only shred one credit card at a time.
3 Close the paper loading door.

Rexel encourages customers to recycle shredded paper.

Please note that shredded paper cannot be recycled if mixed with credit card shards. If recycling, please separate shredded paper and credit cards.

5. bin full

The shredder will not function when the bin is full and the bin full symbol ( ) is illuminated. You should empty the bin.

• Pull open the bin slowly to empty.
• Push the empty bin back into place and press the auto button to resume shredding.

over heating

If the Auto+ 200X & 200XL is used continuously for over 10 minutes the shredder may overheat and the cool down indicator will flash red ( ). Please allow the shredder to cool down. When the shredder is ready to be used the thermometer symbol will no longer illuminate. If the shredder needs to cool down while shredding, no action is needed. The shredder will automatically restart shredding paper once it has cooled down after periods of continuous use. All you need to do is ensure paper is loaded into the chamber and the bin is empty when the machine is cooling down.

6. self-cleaning cutters

After emptying and replacing a full bin, the shredder will run in forward for 4 seconds, stop for 2 seconds and then reverse for 4 seconds to clear away any remaining paper from the cutter mechanism. This unique 'self-cleaning' mechanism is additional jam prevention technology from Rexel.

GB

lubrication of the shredder

Only use Rexel Oil Sheets (2101948 & 2101949) to lubricate. ACCO Brands Europe accepts no liability for product performance or safety when other types or brands of lubricants are used on any part(s) of this machine. Rexel recommend using an oil sheet after the bin has been emptied three times (and for on-going three bin cycle thereafter). Insert the oil sheet into the manual feed slot and NOT in the auto-feed chamber. Using an oil sheet in the auto-feed chamber will contaminate the feed rollers preventing the auto-feed mechanism shredding. Follow the maintenance instructions if the rollers become contaminated.

7. maintenance

The rollers on the auto-feed mechanism may become dirty over time, please wipe clean with a dry cloth to maintain maximum product performance.

The auto-start infra-red sensor, located in the paper feed entry-slot, can occasionally become covered in paper-dust causing the shredder to run despite no paper being fed into the machine. Switch the shredder off at the rear of the machine and carefully clean the sensor using a cotton-swab.

service

We recommend these machines are serviced every 6 to 12 months by a Rexel service engineer – see back of this booklet for the contact details of your local service centre and for enquiries about maintenance contracts.

shredder accessories

We recommend that a paper waste sack for recycling shredded paper is used on all models.

Accessory Part Number Box Quantity
Recycling Waste Sack	1765031EU	20
Plastic Waste Sack	40060	100
Oil Sheets	2101949	20
	2101948	12

technical specifications

Rexel Auto+ 200X/200XL

Sheet capacity:Manual feed slot	7 sheets (80gsm)
Sheet capacity:Autofeed chamber	200 sheets (80gsm)
Duty Cycle 10 min ON / 40 min OFF
Run time from cold 14 minutes
Volts / Hz 230V / 50Hz
Amperage 1.2 Amps
Motor Watts 270 Watts

guarantee

ACCO Brands Europe (ACCO) warrants its products and their parts against defects in materials and workmanship under normal use for a period of 24 months from the original date of purchase.

During this period we will repair or replace a defective product or part subject to the following warranty conditions:

The warranty applies only to defects in materials and workmanship under normal use and does not extend to damage to the Product or parts which result from:-

• alteration, repair, modification or service carried out by anyone other than an authorised ACCO service centre.
• accident, neglect, abuse or misuse owing to failure to comply with the normal operating procedures for a product of this type.

Depending on the diagnostics and the model type, we will either arrange a service call by an engineer or arrange with you return of the product to ACCO. ACCO will, at its discretion, in accordance with law, either

• repair the shredder using either new or refurbished parts, or
• replace the shredder with a new or refurbished shredder that is equivalent to the shredder being replaced.

Nothing in this Warranty shall have the effect of excluding the liability of ACCO in respect of death and personal injury caused by the negligence of ACCO. This Warranty is offered (subject to these terms and conditions) in addition to, and does not affect, your statutory rights.

If you experience a technical fault, please contact the ACCO customer helpdesk (see back cover)

Additional Guarantee

ACCO Brands Europe guarantees the cutting blades of the shredder to be free from defects in material and workmanship for 10 years from the date of purchase by the original consumer.

*Please note that the cutter blades will be progressively worn down by shredding fastened sheets (staples and paperclips) - this is not covered in the warranty. The Auto+ 200X/200XL has been design to shred up to 50 credit cards in the standard 2 year warranty period. Any excessive credit card shredding will invalidate the extended cutter warranty.

These conditions shall in all respects be governed and construed in accordance with English Law and subject to the exclusive jurisdiction of the English Courts.

Australian Customers

This guarantee does not apply to Australian customers.

See warranty on page 144.

F

• laaddeur is open
• afvalbak is open

Kontinuerlig foroverRevers

AUS Pelikan Artline Pty Ltd, 2 Coronation Avenue, Kings Park, NSW, Australia 2148 Tel: [phone] Fax: [phone] [e-mail]

B ACCO Brands Benelux B.V., Peppelkade 64, 3992AK Houten, Nederland/Les Pays-Bas Tel: [phone] Fax: [phone] [e-mail] www.accobenelux.be

BD ACCO Brands Asia Pte Ltd, 47 Ayer Rajah Crescent, #05-08/17, Singapore 139947 Tel: [phone] Fax: [phone] [e-mail]

CH ACCO Brands Schweiz GmbH, Gewerbestrasse 8, CH-8212 Neuhausen a. Rheinfall Tel: [phone] Fax: [phone] [e-mail]

CZ XERTEC a.s., Kloknerova 2278/24 (vchod z ulice Koštiřova, budova CeWe Color - Fotolab), 148 00 Praha 4 - Chodov Tel: [phone] Fax: [phone] [e-mail] http://www.xertec.cz

D ACCO Deutschland GmbH & Co. KG, Arnoldstrasse 5, 73614 Schorndorf, Germany Tel: [phone] Fax: [phone] [e-mail]

DK ACCO Brands Nordic AB, Makadamgatan 5, 254 64 Helsingborg, Sweden Tel: [phone] Fax: [phone] [e-mail]

E ACCO Brands Iberia SL, P Isaac Peral 19, 28820 Coslada (Madrid) Tel: [phone] ext. 2 Fax: [phone] [e-mail]

EST ACCO Brands Nordic AB, Makadamgatan 5, 254 64 Helsingborg, Sweden Tel: [phone] Fax: [phone] [e-mail]

F Acco Brands France SAS, Service après-vente, ZAC Excellence 2000, 6 rue Robert Schuman, 21800 Chevigny Saint Sauveur Tel: [phone] Fax: [phone] [e-mail]

GB ACCO Service Division, Hereward Rise, Halesowen, West Midlands, B62 8AN Tel: [phone] Fax: [phone] www.acco.co.uk/service

H OPI Customer Service Tel.: [phone] [e-mail]

ACCO Brands Italia Srl, Servizio post-vendita, Via Oberdan, 33, 28070 Tornaco (NO) Tel: [phone] Fax: [phone] [e-mail]

IND ACCO Brands Asia Pte Ltd, 47 Ayer Rajah Crescent, #05-08/17, Singapore 139947 Tel: [phone] Fax: [phone] [e-mail]

IRL ACCO-Rexel Ltd, Clonshaugh Business & Technology Park, Clonshaugh, Dublin 17, Ireland Tel: [phone] Fax: [phone] [e-mail] www.accorexel.ie

IS ACCO Brands Nordic AB,

Makadamgatan 5, 254 64 Helsingborg, Sweden

Tel: [phone] Fax: [phone] [e-mail]

JPN GBC-Japan K.K.,

14F Harmony Tower, 1-32-2 Honcho, Nakano-ku, Tokyo 164-8721

Tel: [phone] Fax: [phone] [e-mail] www.gbc-japan.co.jp

LT ACCO Brands Nordic AB,

Makadamgatan 5, 254 64 Helsingborg, Sweden

Tel: [phone] Fax: [phone] [e-mail]

LUX ACCO Brands Benelux B.V.,

Peppelkade 64, 3992AK Houten, Nederland/Les Pays-Bas

Tel: [phone] Fax: [phone] [e-mail] www.accobenelux.be

LV ACCO Brands Nordic AB,

Makadamgatan 5, 254 64 Helsingborg, Sweden

Tel: [phone] Fax: [phone] [e-mail]

N ACCO Brands Nordic AB,

Makadamgatan 5, 254 64 Helsingborg, Sweden

Tel: [phone] Fax: [phone] [e-mail]

NL ACCO Brands Benelux B.V.,

Peppelkade 64, 3992AK Houten, Nederland/Les Pays-Bas

Tel: [phone] Fax: [phone] [e-mail] www.accobenelux.nl

P ACCO Brands Iberia SL,

P Isaac Peral 19, 28820 Coslada (Madrid)

Tel: [phone] ext. 2 Fax: [phone] [e-mail]

PAK ACCO Brands Asia Pte Ltd,

47 Ayer Rajah Crescent, #05-08/17, Singapore 139947

Tel: [phone] Fax: [phone] [e-mail]

PL ACCO Polska Sp. z o.o,

Al. Jerozolimskie 184, 02-486 Warszawa

Tel.[phone] fax [phone] www.acco.pl

S ACCO Brands Nordic AB,

Makadamgatan 5, 254 64 Helsingborg, Sweden

Tel: [phone] Fax: [phone] [e-mail]

SK XERTEC a.s.,

Kloknerova 2278/24 (vchod z ulice Koštiřova, budova CeWe Color - Fotolab), 148 00 Praha 4 - Chodov

Tel: [phone] Fax: [phone] [e-mail] http://www.xertec.cz

UA DataLux Distribution Company,

ZA Rexel Office Products (PTY) Ltd,

Crusher Road, Crown Ext.3, PO Box 102, Crown Mines, Johannesburg 2025, South Africa

Tel: [phone] [e-mail]

warranty (in Australia)

ACCO Australia warrants its products and their parts against defects in materials and workmanship under normal use for a period of 24 months from the original date of purchase (please retain proof of purchase). During this period we will repair or replace a defective product or part subject to the following warranty conditions:

The warranty applies only to defects in materials and workmanship under normal use and does not extend to damage to the Product or parts which result from:-

• Alteration, repair, modification or service carried out by anyone other than an authorised ACCO service centre.
- Accident, neglect, abuse or misuse owing to failure to comply with the normal operating procedures for a product of this type.

Nothing in this warranty shall have the effect of excluding the liability of ACCO in respect of death and personal injury caused by the negligence of ACCO. This Warranty is offered (subject to these terms and conditions) in addition to, and does not affect your rights and remedies under the Australian Consumer Law and other laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

For any questions relating to your warranty, please contact your local service agent.

Additional Guarantee

ACCO Australia guarantees the cutting blades of the shredder to be free from defects in material and workmanship for an extended warranty period from the date of purchase by the original consumer. Please refer to the table below for the cutter warranty period applicable to your shredder model.

Shredder Models Extended Cutter	Warranty Period
Style, Style+, V35WS, V30WS, Alpha 3
Auto+50, Auto+60 5
Promax V65WS, Promax V60WS, Prostyle, Prostyle+, RES1223, REX1023, REM723, SC170, CC175, Auto+80	7
V120, V125, P180CD, P185, RSS2030, RSX1630, RSS2232, RSX1632, RSM1130, Auto+100, Auto+175, Auto+200	10
RDS2250, RDX1850, RDSM750, RDM1150, RDS2270, RDX2070, RDSM770, RDM1170, Auto+250, Auto+300, Auto+500, Auto+750, RLS32, RLX20, RLM11, RLSM9, RLWX19, RLWX30, RLWSFM9, RLWM26, RLWX39, RLWS47, RLWX25, RLWS35	20

*Please note that the cutter blades will be progressively worn down by shredding fastened sheets (staples and paperclips)- this is not covered by this warranty. Excessive credit card and CD shredding will also invalidate the extended cutter warranty. Some shredder models are NOT designed to shred CDs. Any attempt to do so will invalidate the warranty.

How to Make a Claim

To make a claim under this warranty, contact the ACCO Australia Customer Service Team with your proof of original purchase handy:

ACCO Australia

Level 2, 8 Lord St

Botany NSW 2019

Ph: 1300 366 376

E: [e-mail]

F: 1300 360 944

The customer service team member will advise whether your product should be repaired, replaced or returned and advise the next step for you to take. If the product is validated as still under warranty and deemed faulty, ACCO will bear costs involved with the warranty process. To claim expenses incurred in making a claim under this warranty, contact our Customer Service Team on the details above.

Simple line drawing of a printer or printer with no text or symbols

Simple line drawing of a closed box with red straps, no text or symbols present

Rexel Shredding / Destructeurs / Aktenvernichter

Illustration of a traditional typewriter or typewriter device with no visible text or symbols on its body.

GBC Binding / Perforelieuses / Bindegeräte

Line drawing of a stapler or roll stacker on a red background (no text or symbols)
