Cascade 4 - Tent WOODS - Free user manual and instructions

Product type	4-person camping tent
Brand	WOODS
Model	Cascade 4
Capacity	4 persons
Floor dimensions	7 ft 10 in × 7 ft 3 in (2.4 × 2.2 m)
Center height	4 ft 5 in (1.3 m)
Number of doors	2
Pole material	Aluminum PoweLite
Total weight	9 lb 4 oz (4.2 kg)
Fire resistance	Flame-resistant fabric compliant with CPAI-84
Waterproofness	Water resistant, not waterproof; apply seam sealer
Assembly	Recommended for two people; follow step-by-step instructions
Warranty	7 days for inspection, 1 year on parts
Maintenance	Clean with soft brush, dry completely before storage; do not machine wash
Usage	Recreational use only; do not use combustion appliances inside
Troubleshooting	Condensation: ventilate; leaks: sealant; mold: clean and dry; tears: repair kit; zipper: self-repairing

Frequently Asked Questions - Cascade 4 WOODS

How to assemble the Cascade 4 tent?

Lay the tent flat, insert the main poles (A) into the sleeves, then the rainfly poles (B). Attach the plastic clips. Two-person assembly is recommended. Refer to the complete instructions in the manual.

What to do about condensation inside?

Condensation is normal when warm interior air meets cold exterior air. Avoid touching the walls. Open doors and windows to improve ventilation and reduce humidity.

How to repair a leak at the seams?

Apply a generous coat of seam sealant to the inside of the seams. You can find this product at any sporting goods retailer.

Is the tent waterproof?

The tent is water resistant but not waterproof. Heavy or continuous rain may cause leaks. Avoid contact of interior objects with the walls. In case of leaks, use a seam sealer.

Can I use a stove or lantern inside?

No, combustion appliances (stoves, lanterns, candles) produce carbon monoxide and consume oxygen. Their use can cause asphyxiation, carbon monoxide poisoning, and death. Keep the tent away from any source of flames and heat.

How to maintain the tent after use?

After rain, let the tent dry then brush it lightly. For stains, spray water and wipe gently. Do not machine wash. Make sure the tent is completely dry before storing to prevent mold. Apply a waterproofing treatment to interior seams each year.

Is the tent warranted?

Yes, the tent has a 7-day replacement warranty for manufacturing defects and a one-year warranty on parts. Damage from normal wear, misuse, or weather is not covered.

How to clean mold on the tent?

Clean with a soft bristle brush or sponge and mild dish soap. Let the tent dry completely. You can then apply a sealant if needed.

Are the zippers repairable?

Yes, the zippers are self-repairing. If they separate, move the slider to the start of the tape and rework the zipper.

What is the weight of the Cascade 4 tent?

The total weight is 9 lb 4 oz (4.2 kg).

USER MANUAL Cascade 4 WOODS

Stoves, lanterns, candles, grills, heaters and other fuel-burn

produce carbon monoxide and will consume the available

oxygen in

the tent. Use of such devices in a tent may cause asphyxia

tion,

carbon monoxide poisoning, and death or serious and

permanent

#

KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS

FABRIC.

This product is made with flame-resistant fabric, which meet

CPA1-84

specifications. IT IS NOT FIREPROOF! The fabric will burn if

left in

continuous contact with any flame source. The application

of any

foreign substance to the fabric may render the flame-resis

tant

properties ineffective.

• Anchor properly at all times and carefully consider campsite

choice.

Be aware of possible falling rocks or tree limbs, lightning

---

manufacturer

be liable for any incidental or consequential damages.

1

The tent is water-repellent. It is not waterproof. During he

or

continuous rain, some leakage may occur. Avoid contact

between

objects and the inside of the tent, as this may result in less

age at

points of contact. In the event of seam leakage, apply

a seam-sealer compound.

Although our products are manufactured according to

rigorous

Specifications, periods of wind or rain may loosen the stall

and

cause the frame to sink into the ground. This will weaken

structure's overall rigidity. Puddles may also form on the

if

the unit has not been assembled tightly. If pooling should

occur,

it is advisable to drain the fly to avoid possible damage to

frame

and fabric. Adjustment of guy lines may be necessary. In case

Cascade 4 Tent

Cascade 4 Tent

Step 3: Spread tent, attach pole clips, stake at one end

1. Spread out the tent flat, floor side down

Step 4: Raise the tent:

1) Start both ends of one pole and insert the pole into an arc and attach into the opposite corner.

webbing grommet.

2) Attach the pole clips to the arched pole.
3) Repeat this procedure with the other cross pole. Your inner tent is now free standing.

( x - 2x) t - xy^2 = ( x - 2x) f^ t

Cascade 4 Tent

Step 2: Assemble poles

Aluminum Poles: 4 each

(A) Main 2 each (B) Fly Ridge
(A) Main 2 each

Step 1: Verify package contents

□

"V" Aluminum Stakes: 12 each

Rainfly: 1 each

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

SPECIFICATIONS: CASCADE 4 Accomodation: 4 Floor Size: 7' 10" x 7' 3" (2.4 x 2.2 m) Center Height: 4' 5" (1.3 m) Vestibules: 2 Doors: 2 Poles: PowerLite Aluminum 2 x 8.5 mm (Body) 2 x 9.5 mm (Fly) Weight: 9 lb 4 oz (4.2 kg)

KEY QTY	DESCRIPTION
A	Aluminum - Main	2
B	Aluminum - Rainfly	2

TROUBLESHOOTING GUIDE
PROB- SOLU-
CONDENSATION	Condensation occurs when warm, moist air inside tent comes in contact with cooler outside air. Avoid touching walls to reduce contact leakage. Vent- ing doors and
SEAM LEAKAGE	Apply a generous amount of seam-sealer on inside seams. Seam-sealer may be purchased at any local sporting goods store.
MILDEW	To avoid mildew, store tent/screen house ONLY when thoroughly dry. However, if mildew occurs, use a soft-bristle brush or sponge with mild dish- washing soap to clean. Let dry thoroughly, and a tent-approved, water-repellent compound may be applied.
REPAIRING A TEAR	For small tears, use a self-adhesive patch kit. We recommend a canvas or awning repair shop for larger tears.
FAULT ZIPPER	Zippers are self-repairing. If the zipper separates, you can move the slider to the beginning of the zipper tape and rework the zipper.
FADING FABRIC	Do not leave up in direct sunlight longer than necessary. If left in sunlight for prolonged periods of time, fabric will fade and weaken.
FLOOR CONDENSATION	A ground cloth under the floor helps prolong its life and provides additional insulation and moisture protection. The cloth should be smaller than the floor to prevent rain

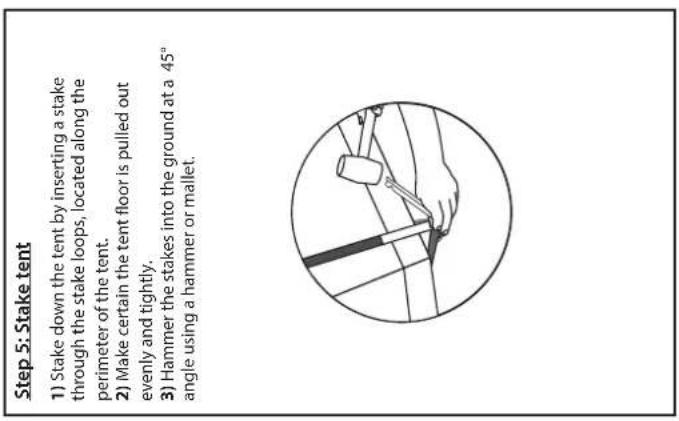

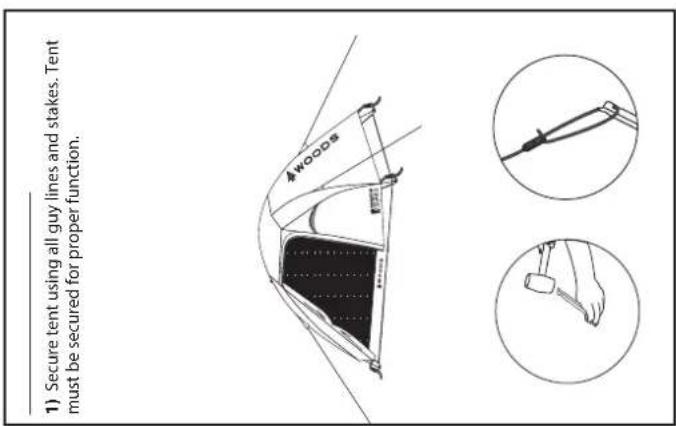

USE OF STAKES	Stakes should be installed at a 45° using a hammer or mallet. Stake loops should be kept taut without over-stretching fabric or webbing. This could cause tears or
