Product Type	Iron
Brand	Hamilton Beach
Model	Steam Elite 14010
Power Supply	120 V, 60 Hz
Power	1500 W (estimated)
Water Tank Capacity	300 ml (estimated)
Main Functions	Dry ironing, steam ironing, steam burst, spray, vertical ironing
Safety	Automatic shut-off with motion and position sensor, polarized plug
Automatic Shutoff	30 seconds in horizontal or side position, 15 minutes on heel
Soleplate Type	Smooth soleplate (material not specified)
Maintenance	Empty the tank after each use, clean soleplate with a damp cloth
Self-Cleaning	Built-in self-cleaning function for steam vents
Warranty	1 year (parts and labor)

Frequently Asked Questions - Steam Elite 14010 HAMILTON BEACH

Why doesn't the iron heat up?

Check that the iron is plugged in and the outlet works. Make sure the temperature dial is set to a position other than OFF. If the automatic shut-off indicator is flashing, move the iron to reset it.

Why is water leaking from the iron?

Do not fill the tank beyond the MAX line. For steam ironing, ensure the steam control and temperature are set correctly and the iron has preheated. For dry ironing, set the steam control to 0. If leaks persist, perform a self-cleaning cycle.

The iron does not produce steam, what to do?

Check the water level in the tank. Make sure the steam control is set to steam and the iron has heated sufficiently (about 2 minutes). The anti-drip system prevents steam if the temperature is set to DRY.

How to clean the soleplate?

Wipe the soleplate with a damp soapy cloth. Do not use abrasive cleaners or scouring pads. For stubborn residue, run a self-cleaning cycle.

How to use the vertical steam function?

Follow the steam ironing steps (fill, heat, set). Hang the garment at a distance, hold the iron about 15 cm away, then press the steam burst button intermittently. Wait 5 seconds between each press.

What does the flashing red light mean?

The red light flashes when the position sensor is activated, indicating the iron is in auto shut-off mode. Move the iron and place it on its heel to reset.

How to empty the water tank?

After use, unplug the iron and hold it over the sink, tip down. Water will drain through the fill opening. Always store the iron empty on its heel.

Can I use distilled water?

Yes, if tap water is very hard, alternate between tap water and distilled water. Do not use demineralized water continuously, as it may reduce steam efficiency.

How to perform self-cleaning?

Fill the tank halfway (or to MAX). Set steam to 0 and temperature to maximum. Let heat for 2 min, then unplug. Hold the iron over the sink, soleplate down, and press and hold the self-cleaning button until water flows out.

What to do if the cord is twisted?

Unplug the iron and let it cool. Hold the cord in the middle and let the plug hang freely until it unwinds completely. This extends the cord life.

USER MANUAL Steam Elite 14010 HAMILTON BEACH

840182701 ENV02.qxd:840144500 ENV02.qxd 2/4/11 3:28 PM Page

Hamilton Beach.

Irons

READ BEFORE USE

Fer à repasser

English....2

USA: 1-800-851-8900

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Français....15

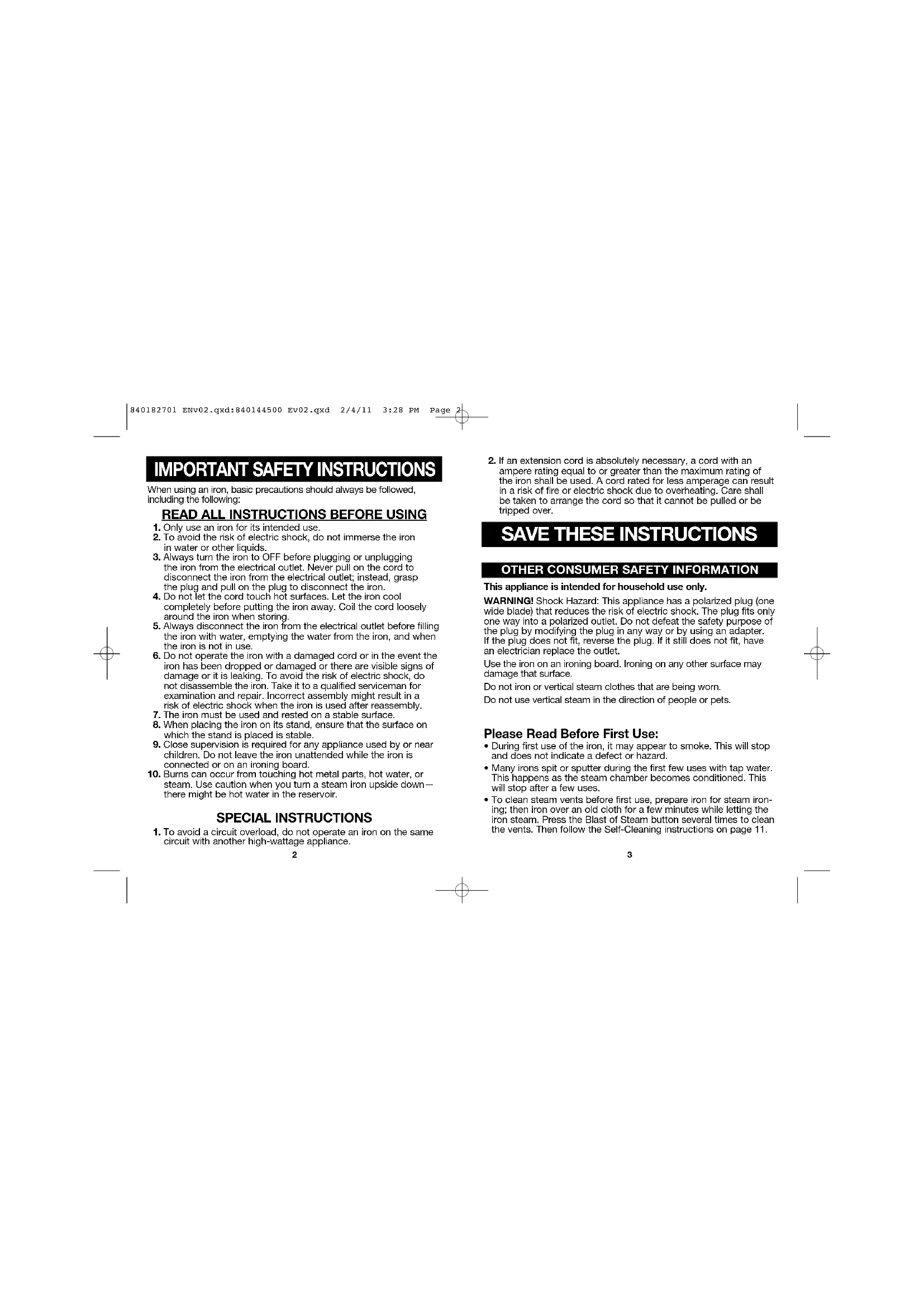

IMPORTANT SAFETY INSTRUCTIONS

When using an iron, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Only use an iron for its intended use.
2. To avoid the risk of electric shock, do not immerse the iron in water or other liquids.
3. Always turn the iron to OFF before plugging or unplugging the iron from the electrical outlet. Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.
4. Do not let the cord touch hot surfaces. Let the iron cool completely before putting the iron away. Coil the cord loosely around the iron when storing.
5. Always disconnect the iron from the electrical outlet before filling the iron with water, emptying the water from the iron, and when the iron is not in use.
6. Do not operate the iron with a damaged cord or in the event the iron has been dropped or damaged or there are visible signs of damage or it is leaking. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect assembly might result in a risk of electric shock when the iron is used after reassembly.
7. The iron must be used and rested on a stable surface.
8. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
9. Close supervision is required for any appliance used by or near children. Do not leave the iron unattended while the iron is connected or on an ironing board.
10. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down—there might be hot water in the reservoir.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate an iron on the same circuit with another high-wattage appliance.

2. If an extension cord is absolutely necessary, a cord with an ampere rating equal to or greater than the maximum rating of the iron shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.

SAVE THESE INSTRUCTIONS

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.

Use the iron on an ironing board. Ironing on any other surface may damage that surface.

Do not iron or vertical steam clothes that are being worn.

Do not use vertical steam in the direction of people or pets.

Please Read Before First Use:

• During first use of the iron, it may appear to smoke. This will stop and does not indicate a defect or hazard.
• Many irons spit or sputter during the first few uses with tap water. This happens as the steam chamber becomes conditioned. This will stop after a few uses.
• To clean steam vents before first use, prepare iron for steam ironing; then iron over an old cloth for a few minutes while letting the iron steam. Press the Blast of Steam button several times to clean the vents. Then follow the Self-Cleaning instructions on page 11.

Parts and Features

Sensor Control

This iron is equipped with a position/motion sensor. This means that if the iron is left motionless it will turn off automatically and cool to room temperature.

To restart iron, simply move the iron and allow it to reheat on heel position.

The iron will reheat to the previously selected setting.

Position Sensing

The iron will turn off automatically when left in the following positions.

The auto off time varies based on the iron's position.

Iron Position	Motionless Time
Resting on soleplate	30 seconds
Resting on either side	30 seconds or 15 minutes depending on exact orientation
Resting on heel	15 minutes

Auto Shutoff Reset Light

After 30 seconds of no movement in the horizontal position, the iron will automatically shut off and the red light will blink. Move iron upright to vertical position to turn back on.

Fabric Care Label Symbols

Fabric care labels on garments have symbols that show ironing instructions and recommended temperature settings. These symbols are shown below along with their meaning.

Iron

High Temp Setting

Med Temp Setting

Low Temp Setting

Do Not Iron

Do Not Use Steam

DRY IRON: Synthetics, Silk/Wool (reverse side of fabric)

STEAM IRON: Cotton (while damp; use steam or spray) Linen (while damp on reverse side of fabric)

NOTE: To prevent possible garment damage, we do not recommend ironing fabrics labeled "Dry Clean Only."

To Dry Iron

1. Plug the iron into outlet.
2. Set Adjustable Steam Control to 0 (Dry Iron).
3. Turn Temperature Control Dial to desired temperature. Allow 2 minutes for iron to reach desired temperature.
4. To turn iron off, turn Temperature Control Dial to OFF and unplug iron.

To Steam Iron

1. Unplug iron. Set Adjustable Steam Control to 0 (Dry Iron). Hold iron with soleplate parallel to the ground.
2. Using a cup, slowly pour tap water into water fill opening until MAX fill line is reached. Do not fill iron directly from the faucet.
3. Plug iron into outlet.
4. Turn Temperature Control Dial to desired fabric setting in the steam range.
5. Allow 2 minutes for the iron to reach desired temperature.
6. Set Adjustable Steam Control to desired steam setting.
7. To turn iron off, set Set Adjustable Steam Control to 0 (Dry Iron). Turn the Temperature Control Dial to OFF. Unplug iron.
8. Empty water from the iron following directions in "Care and Cleaning."

Water: Please use ordinary tap water. If you have extremely hard water, alternate between tap water and distilled water for use in the iron.

To Vertical Steam

1. Follow Steps 1 through 5 in "To Steam Iron."
2. Hang garment in a location that is not susceptible to damage from heat or moisture. Do not hang in front of wallpaper, window, or mirror.
3. Hold iron about 6 inches (15 cm) away from garment and press and release the Blast of Steam Button to steam out wrinkles. Do not press Blast of Steam Button more than once every 5 seconds
4. To turn iron off, turn Temperature Control Dial to OFF. Unplug iron.
5. Empty water from the iron following directions in "Care and Cleaning."

NOTICE: Do not allow hot soleplate to touch delicate garments.

Features

Blast of Steam Button

Push Blast of Steam Button for an extra blast of steam.

Adjustable Steam Control

This control adjusts the steam to desired steam level.

Power On Light

The red light stays on even
if Temperature Control Dial
is turned to OFF. Light flashes
if position sensor is activated.

Features (cont.)

Spray Trigger

Press Spray Trigger to release a fine spray of water for difficult wrinkles in cotton or linen.

Care and Cleaning

Iron Storage

1. The water tank of your iron should be emptied after each use. Turn Temperature Control Dial to OFF. Unplug the iron and hold over a sink. Slowly tilt pointed end of iron down over sink. Water will run out of water fill opening.
2. After iron has completely cooled, wrap cord loosely around iron and store in an upright position. Do not store iron laying flat on soleplate.

Soleplate

1. Never iron over zippers, pins, metal rivets, or snaps, since these may scratch the soleplate.
2. To clean occasional buildup on the soleplate, wipe with a sudsy cloth. Do not use abrasive cleansers or metal scouring pads.
3. Always store iron upright in the heel rest position.

Caring and Cleaning (cont.)

Self-Clean

To keep the steam vents clear of any buildup, follow these instructions each time you iron using steam.

1. Set Temperature Control Dial to OFF. Fill iron with water to 1/2 of its maximum capacity.
2. Set Adjustable Steam Control to 0 (Dry Iron). Set Temperature Control Dial to High temperature setting and let iron heat for 2 minutes.
3. Set Temperature Control Dial to OFF. Unplug iron and hold over a sink with soleplate facing down.
4. Press and hold the Self-Clean Button. Boiling water and steam will flow out of steam vents. Allow all water to drain from iron.
5. Gently move iron front to back to allow water to clean entire soleplate area.
6. If water still remains inside of soleplate, reheat iron as indicated in Step 2. Boiling water and steam could still flow out of steam vents.

Troubleshooting

PROBLEM	THINGS TO CHECK
Iron won't heat	Is the iron plugged in and the outlet working?Check the outlet by plugging in a lamp.Is the Temperature Control Dial turned to a High, Medium, or Low setting?If automatic shutoff model, is the Auto Shutoff Light flashing? Move the iron to reset.
Water is leaking	Do not overfill the water tank.If steam ironing, is Adjustable Steam Control in a steam position, the Temperature Control Dial in the steam range, and did the iron have enough time to preheat?If dry ironing, make sure the Adjustable Steam Control is in the 0 (Dry Iron) position.If using the Blast of Steam Button, push button less frequently.Follow the self-cleaning instructions one or two times with tap water (not distilled) to “condition” the iron.
Iron won’t steam	Check the water level.Is Adjustable Steam Control in Steam position?Has the iron had enough time to preheat?Anti-drip feature will not allow steam when temperature setting is in the dry range.
Leaves spots	ALWAYS empty the water tank of the iron after using. Water left in the tank may discolor clothing and soleplate.
Twisted cord	If the iron cord should become twisted, unplug iron and let cool. Hold iron cord in the middle of entire length. Let plug and iron dangle freely until cord uncoils. This will extend the life of your iron cord.
Wrinkles are not removed	Check Temperature Control Dial is set to correct fabric.

Troubleshooting (cont.)

PROBLEM	THINGS TO CHECK
Iron is too hot/not hot enough	• Check Temperature Control Dial and adjust to desired setting level. Let iron cool down 5 minutes before continuing.

Fabric Setting Chart

Steam Setting	To Iron	Ironing Instructions
[6027]	Off
	Nylon	Dry iron on the wrong side of the fabric.
	Acrylic	Dry iron on the wrong side of the fabric.
	Silk	Dry iron on the wrong side of the fabric.
[87X1]	Polyester	Iron with fabric still damp.
	Rayon	Iron on the wrong side of fabric.
	Wool	Steam iron on the wrong side of fabric.
	Cotton	Iron while still damp using steam and/or spray.
	Linen	Iron on wrong side of fabric while still damp.

NOTE: To prevent possible garment damage, we do not recommend ironing fabrics labeled "Dry Clean Only."
