| Product type | Laminating machine |
| Brand | Olympia |
| Model | A 296 Plus |
| Dimensions (L x W x H) | 340 x 159 x 70 mm |
| Weight | Approximately 1.25 kg |
| Power supply | 220 - 240 V, 50 Hz |
| Power consumption | 260 W |
| Maximum useful width | 230 mm (A4) |
| Max. pouch thickness | 75 to 175 microns |
| Laminating speed | 300 mm/min |
| Laminating system | 2 heating rollers |
| Warm-up time | Approximately 5 minutes |
| Cold lamination | Yes, after cooling (max. 30 min) |
| LED indicators | Yes (COLD, pouch thickness) |
| Automatic shut-off | Yes, in case of overheating |
| Anti-jam function | Yes, "Jam Release" unlock button (ABS) |
| Roller cleaning | With a folded sheet of paper |
| Warranty | Return in original packaging with proof of purchase |
| Safety instructions | Do not use near water, do not insert metal objects, keep clothing and hair away |
Frequently Asked Questions - A 296 Plus OLYMPIA
User questions about A 296 Plus OLYMPIA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Laminating machine in PDF format for free! Find your manual A 296 Plus - OLYMPIA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. A 296 Plus by OLYMPIA.
USER MANUAL A 296 Plus OLYMPIA
Important Safety Information....12
Exemption from Liability....13
Intended Use ....13
Features 14
Hot Lamination....14
Cold Lamination....15
Clearing Foil Jams....16
Cleaning and Servicing ....16
Troubleshooting....17
Disposal 17
Guarantee....17
Français FR BE CH


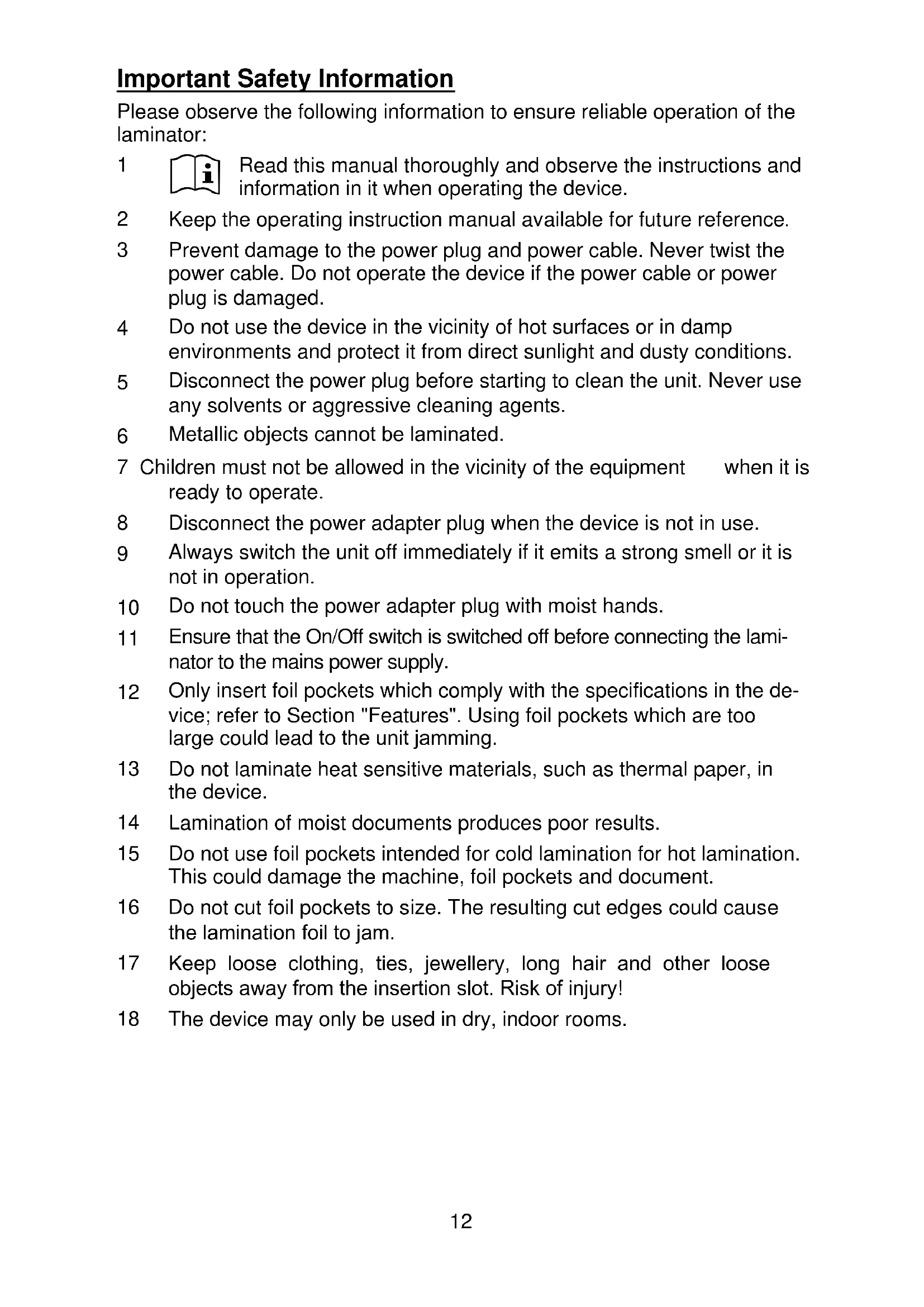

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)Please observe the following information to ensure reliable operation of the laminator:
1 Read this manual thoroughly and observe the instructions and information in it when operating the device.
2 Keep the operating instruction manual available for future reference.
3 Prevent damage to the power plug and power cable. Never twist the power cable. Do not operate the device if the power cable or power plug is damaged.
4 Do not use the device in the vicinity of hot surfaces or in damp environments and protect it from direct sunlight and dusty conditions.
5 Disconnect the power plug before starting to clean the unit. Never use any solvents or aggressive cleaning agents.
6 Metallic objects cannot be laminated.
7 Children must not be allowed in the vicinity of the equipment when it is ready to operate.
8 Disconnect the power adapter plug when the device is not in use.
9 Always switch the unit off immediately if it emits a strong smell or it is not in operation.
10 Do not touch the power adapter plug with moist hands.
11 Ensure that the On/Off switch is switched off before connecting the laminator to the mains power supply.
12 Only insert foil pockets which comply with the specifications in the device; refer to Section "Features". Using foil pockets which are too large could lead to the unit jamming.
13 Do not laminate heat sensitive materials, such as thermal paper, in the device.
14 Lamination of moist documents produces poor results.
15 Do not use foil pockets intended for cold lamination for hot lamination. This could damage the machine, foil pockets and document.
16 Do not cut foil pockets to size. The resulting cut edges could cause the lamination foil to jam.
17 Keep loose clothing, ties, jewellery, long hair and other loose objects away from the insertion slot. Risk of injury!
18 The device may only be used in dry, indoor rooms.
Exemption from Liability
We cannot guarantee that the information which relates to the technical properties of the product or to the product itself contained in this document is correct. The product and, where applicable, its accessories, described in this document are subject to constant improvement and further development. For this reason, we reserve the right to modify components, accessories, technical specifications and related documentation of the product described herein at any time without notice.
Intended Use
This laminator has been designed for use with hot and cold laminating foil. It is possible to laminate pictures, maps, documents and paper in the corresponding size up to a total thickness of 0.4 mm. Insert the document to be laminated in the foil pocket so that there is a margin of approx. 3 - 5 mm to the edge of the foil on all sides.
If the document to be laminated deviates from the standard paper sizes, place an insert complying with the corresponding standard paper size in the lamination foil together with the document to be laminated.
Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted.
Lamination of unsuitable materials and unsuitable material thicknesses or sizes annuls all rights to claims under the terms of guarantee.
Safety note:
The power socket must be in the immediate vicinity of the device and easily accessible. This enables you to disconnect the device from the power supply quickly in an emergency.
Features
Protection and refinement of your documents.
Laminate photos, documents, graphics, ID cards etc. up to A4/A3 size. The device operates using 2 heating rollers, has a quick warm-up phase and laminates without a carrier.
• LEDs indicate the operating status
• Automatic switch-off in the event of overheating
• High quality heating system prevents smudging and blistering
• Warm-up phase, approx. 5 minutes
- Cool down phase to room temperature, approx. 30 minutes.
• Foil thickness, minimum 75 μm and maximal 175 μm
| A 296 Plus | A 396 Plus | |
| Laminating system: | Hot roller technology | |
| Maximum foil thickness: | 75 - 175 micron | |
| Laminating speed: | 300 mm/min | |
| Power supply: | 220 - 240 Volt, 50 Hz | |
| Working width: | 230 mm (A4) | 330 mm (A3) |
| Power consumption: | 260 W | 350 W |
| Dimensions (LxWxH): | 340 x 159 x 70 mm | 434 x 159 x 70 mm |
| Weight: | Approx. 1.25 kg | Approx. 1.6 kg |
Hot Lamination
1 Connect the power cable to an easily accessible, properly installed power socket.
Attention: Check that the voltage specifications of the machine correspond to that of your power supply network (220 - 240 V, 50 Hz).
2 Switch on the On/Off switch on the right-hand side of the unit (I). The "COLD" LED lights up and the drive motor for the transport rollers starts up.
3 Press the foil thickness switch on the device until the LED (75 mic, 125 mic or 175 mic) corresponding to the foil pocket thickness to be used flashes.
4 The correct operating temperature is reached after about 5 minutes or as soon as the foil thickness indicator LED lights up continuously.
5 Insert the document to be laminated in the foil pocket so that there is a margin of approx. 3 - 5 mm to the edge of the foil on all sides.
Attention: Only use hot laminating foils.
6 Insert the foil pocket containing the document in the insertion slot on the rear of the laminator. Insert the ready closed side of the foil pocket first.
Note: To prevent the laminating foil from creasing, never feed the open side of the foil pocket first in the insertion slot of the laminator. The laminating process occurs automatically.
Attention: The foil is very hot and soft when ejected following lamination. Therefore, handle the laminated product with extreme care.
Note: To flatten the laminated product, place a book or similar heavy, flat object, on it.
Cold Lamination
1 Connect the power cable to an easily accessible, properly installed power socket.
Attention: Check that the voltage specifications of the machine correspond to that of your power supply network (220 - 240 V, 50 Hz).
2 Switch on the On/Off switch on the right-hand side of the unit (I).
3 The "COLD" LED lights up and the drive motor for the transport rollers start up.
Attention: If you have just finished using the laminator for hot laminating, you must let the laminator cool down. The cool down phase can take up to 30 minutes.
4 Remove the protective foil from the foil pocket.
5 Insert the document to be laminated in the foil pocket so that there is a margin of approx. 3 - 5 mm to the edge of the foil on all sides.
6 Insert the foil pocket containing the document in the insertion slot on the rear of the laminator. Insert the ready closed side of the foil pocket first.
Note: To prevent the laminating foil from creasing, never feed the open side of the laminating pocket first in the insertion slot of the laminator. The laminating process occurs automatically.
Clearing Foil Jams
The laminator is provided with the "Jam Release" function in order to clear foil jams quickly.
1 If the foil pocket jams, switch the laminator off and actuate the "ABS" switch on the rear of the unit.
2 Hold the laminator firmly and pull the foil pocket together with the document to be laminated out of the laminator's insertion slot.
3 It will probably be necessary to then clean the device several times as described in the Section "Cleaning and Servicing".
4 If foil pockets jam repeatedly or jammed foil cannot be removed from the laminator, please contact the sales outlet where you purchased the device.
Cleaning and Servicing
Deposits and residual adhesive on the transport rollers can influence the results of the laminating process. Therefore, the transport rollers must be cleaned periodically after use:
To do this, insert a folded piece of paper in the insertion slot. Residual adhesive is removed and taken up by the paper when ejected. Repeat the process several times.
Always disconnect the power plug before starting to clean the device housing with a damp cloth. If necessary, the housing can be cleaned using a cloth moistened with clean water with a little mild soap applied. Never use any solvents or aggressive cleaning agents.
Troubleshooting
| Fault | Corrective measures |
| LED does not light upDevice does not respond | Check that the power cable has been correctly plugged into the power socket and that the On/Off switch is switched to I.If the fault cannot be cleared, please contact the sales outlet where you purchased the device. |
| Foil jam | Check the foil pockets being used are the correct size.Only use foil pockets of the sizes prescribed.Ensure that the foil pocket has been inserted correctly in the unit.To clear the fault, follow the instructions in the Section "Clearing Foil Jams". |
| Laminated foil is not completely transparent | Laminate the same foil again to improve the lamination result. |
Conformity of the equipment to the EU directives is confirmed by the CE symbol.
Disposal
This symbol
(crossed out waste bin) indicates that the product must be returned to an authorised recycling centre or collection point when it has reached the end of its service life. The symbol only applies to states within the EEA. EEA = European Economic Area, which is comprised of the member states of the EU plus Norway, Island and Liechtenstein.
Guarantee
Dear Customer,
we are pleased that you have chosen this equipment.
In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.
Estimado cliente,
GB Declaration of conformity
To view the complete Declaration of Conformity, please refer to the free download available on our website www.go-europe.com.
