AlaskaVigo A3 - Laminating machine Pavo - Free user manual and instructions

Product type	Laminating machine
Brand	Pavo
Model	AlaskaVigo A3
Power supply	220-240 V / 50 Hz
Rated current	5.6 A
Power	1300 W
Maximum entry width	320 mm (A3 format)
Maximum laminating thickness	0.6 mm (document and pouch)
Compatible pouch thicknesses	75, 100, 125, 250 μm
Laminating speed	300 mm/min
Number of rollers	4
Lamination	Cold and hot
Preheating time (75 μm)	Approximately 60 seconds
Auto shut-off	Yes, after 60 minutes of inactivity
Jam release	Automatic (reverse button)
Intended use	Indoor, home and office
Warranty	2 years limited
Cleaning	After cooling, external surface
Safety	Do not open during use, unplug if not in use

Frequently Asked Questions - AlaskaVigo A3 Pavo

How to turn on the AlaskaVigo A3 laminator?

Plug in the device, then press the power switch and the Mode button. The power LED flashes red, then turns green when the device is ready.

How to choose the pouch thickness for hot lamination?

Press the Mode button to select the thickness (75, 100, 125, 250 μm). The corresponding indicator flashes red, then becomes solid green when the temperature is reached.

What to do in case of a jam?

Use the Reverse button to activate the automatic release. The stuck pouch will be removed automatically.

Can I use cold lamination after hot lamination?

No, wait for the device to cool down completely. Turn off the machine and let it reset before using cold mode.

How to clean the laminator?

Make sure the device is turned off and cold. Clean the external surface with a soft cloth. Do not use wet products.

What is the required power supply voltage?

The machine requires a power supply of 220-240 V / 50 Hz. Use it only indoors.

What types of pouches can I use?

Cold and hot lamination pouches of 75, 100, 125, and 250 μm are compatible, from business card size up to A3.

What is the preheating time?

At room temperature, the preheating time is approximately 60 seconds for a 75 μm pouch. It may be longer if the pouch is thicker.

How to know if the machine is ready?

The power LED and thickness indicator become solid green, indicating that the operating temperature has been reached.

What to do if the machine does not turn on?

Check that the plug is properly inserted and the switch is in the On position. If the indicator does not light up, unplug the device and contact customer service.

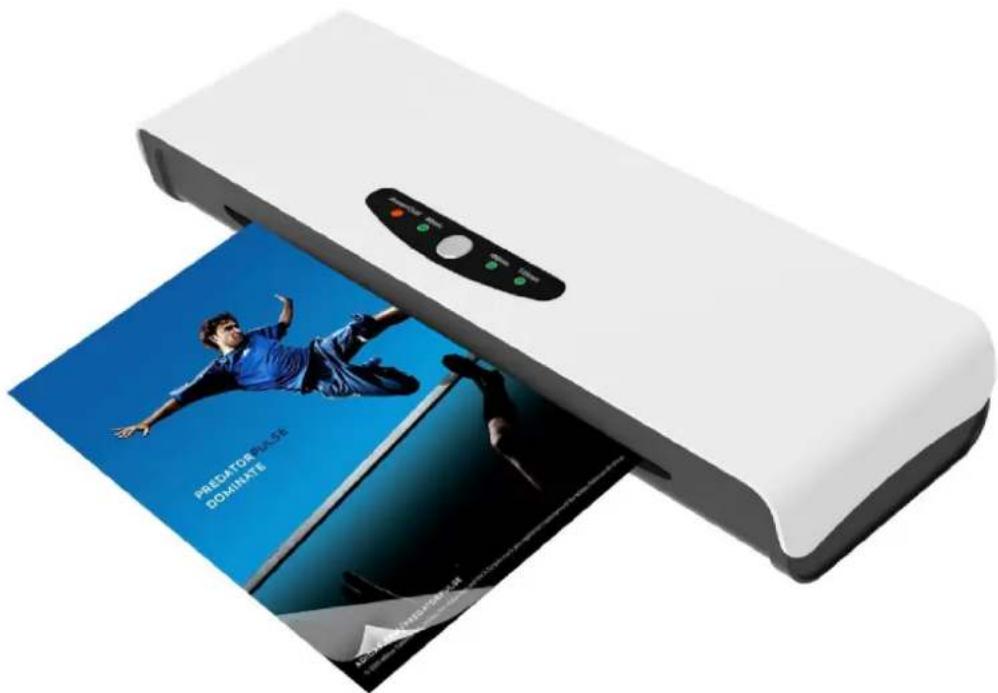

USER MANUAL AlaskaVigo A3 Pavo

Read this manual carefully before use. Keep it in safe for reference in need.

Thank you for buying this high-performance laminator! This laminator features a slim and compact design. It accepts pouches ranging from cold,

75Mic, 100Mic, 125mic and 250mic with size from name card to A4/A3.

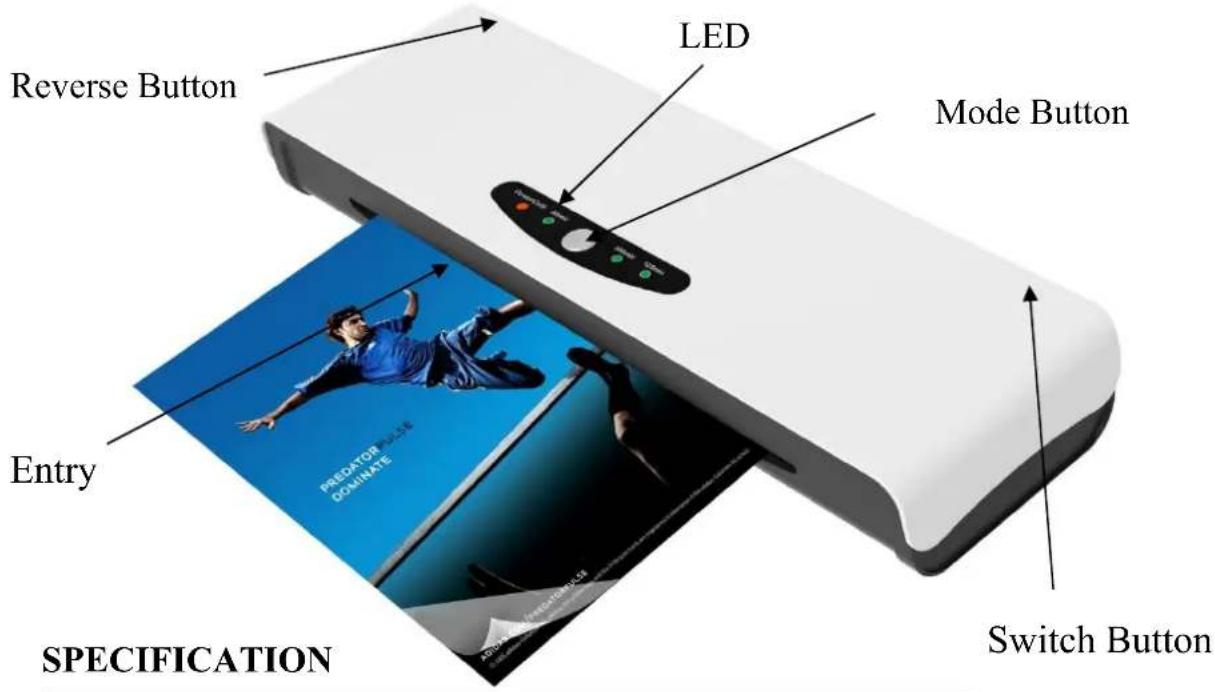

PRODUCT DESCRIPTION

Voltage: 220-240V	50Hz Power: 4A/850W Model A4		5.6A/1300W Model A3
Ready time:	60 sec/75mic in 25°C room temperature	Max Entry width:	30 mm Model A4 320 mm Model A3
Max thickness: 0.6	mm (paper & pouch) Best for	pouch: Cold/75/100	/125/250 Micron
Laminating speed:	300mm/Min No. of Rollers:	4

SAFETY NOTES

1. This laminator should be horizontally displayed in a flat plane with good ventilation.
2. This laminator should only use power 220 - 240V / 50Hz and be used indoors only.
3. This laminator is for home and office use only.
4. NEVER OPEN THIS LAMINATOR WHILE IN USE.

UTILITY

It laminates both cold and hot pouches from name card size to A4/A3 size. It provides best lamination for hot pouches of 75Mic, 100Mic, 125mic and 250mic. It preserves your photo, document and card, etc. in its original color against aging from prolonged time.

OPERATION

POWER ON and OFF

Connect the plug to mains power, press "Switch Button" and "Mode Button" to turn on the machine. The "Power/Cold LED" would turn into Red firstly and flash, it will turn into green when ready.

To turn off this laminator, press "Switch Button" back to "Off" position, power will be cut off and laminator is shut off.

COLD LAMINATION

Please make sure the machine is cool when you use cold lamination. Do not use cold lamination if you just finish the job of hot lamination. Please switch the power off and the machine will reset itself.

When "Power/Cold LED" turns into green and stays steady, please insert the paper into the cold pouch, and insert the pouch into laminator through lamination entry.

HOT LAMINATION

You could press down the "Mode Button" to select the pouch thickness (75mic, 100mic, 125mic and 250mic), the correspondent LED would turn into Red and flash, when it turns into Green and stays steady, please insert the paper into pouch, and insert the pouch into the laminator through the lamination entry.

Note:

1. If the room temperature is cold, the warm up time would be a bit longer.
2. The warm up time for thicker pouch would be longer than 75 micron pouch.

CLEAR THE JAMMED POUCH

This laminator is designed with an auto jam release device to clear the jammed pouch. When a misfeed or jam occurs, press down "reverse button", The jammed pouch will be pulled out automatically.

AUTO STOP

To save precious energy, this machine is designed to be shut off automatically when not be used over 60 minutes. When the machine shut off automatically, all LEDs turn off. Under this condition, there's still weak electric current inside, if you do not use this machine in a certain period, please pull out the plug from the socket-outlet to shut it off completely.

In case machine is shut off automatically, to start machine again, please press "Mode" button to turned on the machine again.

MAINTENANCE AND WARNING

1. To clean or move around, make sure that this laminator is turned off.
2. Do not laminate dirty pouches, clean it before lamination.
3. Do not use this laminator in damp conditions.
4. Do not laminate anything that is more than 0.6mm thickness for best seal.
5. Do not laminate heat sensitive paper.
6. Do not insert open side of pouch into Lamination Entry, it may lead to jamming or curling inside.

WARRANTY

This product comes with two years limited warranty.
