AlaskaVigo A4 - Laminating machine Pavo - Free user manual and instructions

Product type	Laminating machine (laminator)
Brand	Pavo
Model	AlaskaVigo A4
Maximum format	A4
Power supply	220-240 V / 50 Hz, 4A / 850 W
Maximum entry width	230 mm
Maximum thickness (document + pouch)	0.6 mm
Supported pouch types	Cold, 75 μm, 100 μm, 125 μm, 250 μm
Laminating speed	300 mm/min
Number of rollers	4
Warm-up time (for 75 μm at 25 °C)	Approximately 60 seconds
Automatic shutdown	Yes, after 60 minutes of inactivity
Jam release	Rear button for automatic removal
Cold lamination	Yes
Hot lamination	Yes
Safety	Use only indoors, on a flat, well-ventilated surface
Maintenance	Clean with device off and cold
Warranty	2-year limited
Intended use	Home and office

Frequently Asked Questions - AlaskaVigo A4 Pavo

How to turn on the AlaskaVigo A4 laminator?

Plug in the device, then press the power switch and the Mode button. The LED indicator flashes red then becomes steady green.

How to laminate cold?

Make sure the device is cold. Wait until the LED indicator turns solid green, then insert the pouch into the entry.

How to choose the pouch thickness for hot lamination?

Press the Mode button to select the thickness (75, 100, 125 or 250 µm). The indicator flashes red then becomes steady green when ready.

What to do if a pouch gets stuck in the machine?

Press the Rear button to activate the automatic release. The stuck pouch will be removed automatically.

The laminator turns off by itself, is that normal?

Yes, the device has an automatic shutdown after 60 minutes of inactivity to save energy. To restart, press the Mode button.

What types of pouches are compatible?

Cold and hot pouches of 75, 100, 125 and 250 µm, from business card size up to A4.

What is the maximum thickness the machine can laminate?

The maximum thickness of document and pouch together is 0.6 mm.

Can I laminate heat-sensitive documents?

No, do not use heat-sensitive paper. Hot lamination could damage them.

How to clean the laminator?

Make sure the device is off and cold before cleaning. Use a soft, dry cloth.

What is the warranty of this device?

The Pavo AlaskaVigo A4 laminator comes with a 2-year limited warranty.

USER MANUAL AlaskaVigo A4 Pavo

White portable printer with a blue screen displaying 'PREDATOR PULSE DOMINATE' and action shots, no visible text or symbols on the device itself.

Model: A3 / A4 AlaskaVigor

Read this manual carefully before use. Keep it in safe for reference in need.

Thank you for buying this high-performance laminator! This laminator features a slim and compact design. It accepts pouches ranging from cold, 75Mic, 100Mic, 125mic and 250mic with size from name card to A4/A3.

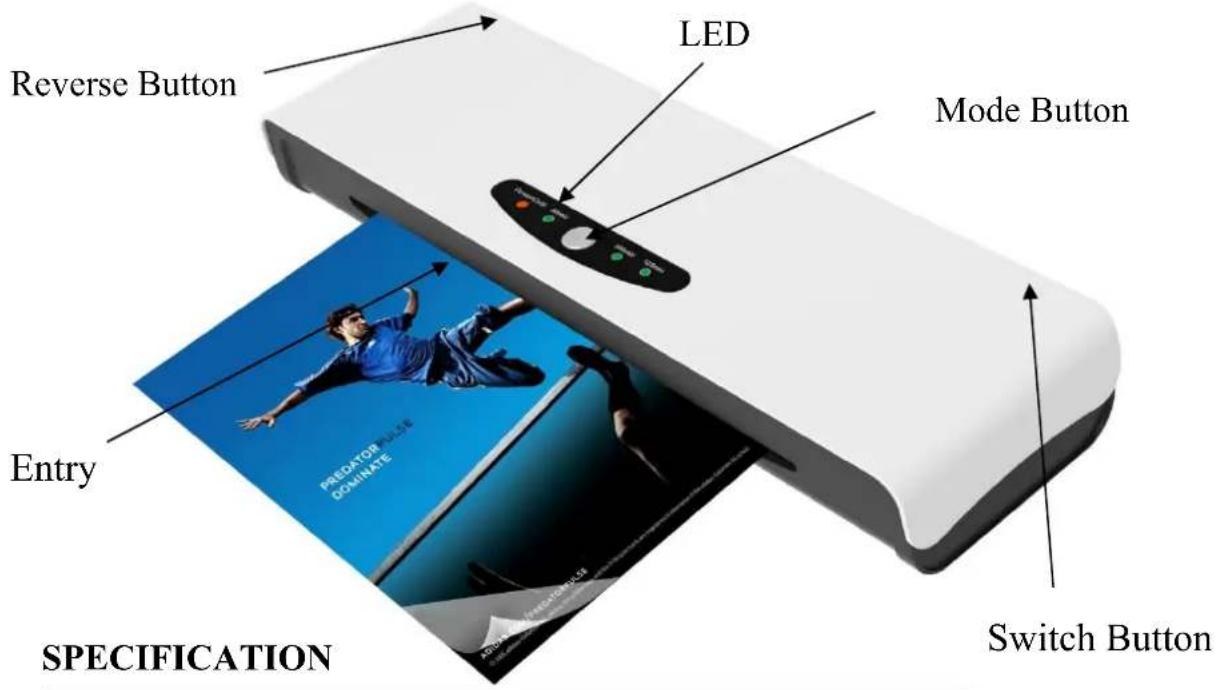

PRODUCT DESCRIPTION

LED Mode Button Reverse Button Entry SPECIFICATION Switch Button

Voltage: 220-240V/	50Hz Power: 4A/850W Model A4		5.6A/1300W Model A3
Ready time:	60 sec/75mic in 25°Croom temperature	Max Entry width: 2	30 mm Model A4320 mm Model A3
Max thickness: 0.6	mm (paper & pouch) Best for pouch: Cold/75/100		125/250Micron
Laminating speed:	300mm/Min No. of Rollers:	4

SAFETY NOTES

1. This laminator should be horizontally displayed in a flat plane with good ventilation.
2. This laminator should only use power 220-240V/50Hz and be used indoors only.
3. This laminator is for home and office use only.
4. NEVER OPEN THIS LAMINATOR WHILE IN USE.

UTILITY

It laminates both cold and hot pouches from name card size to A4/A3 size. It provides best lamination for hot pouches of 75Mic, 100Mic, 125mic and 250mic. It preserves your photo, document and card, etc. in its original color against aging from prolonged time.

OPERATION

POWER ON and OFF

Connect the plug to mains power, press "Switch Button" and "Mode Button" to turn on the machine. The "Power/Cold LED" would turn into Red firstly and flash, it will turn into green when ready.

To turn off this laminator, press "Switch Button" back to "Off" position, power will be cut off and laminator is shut off.

COLD LAMINATION

Please make sure the machine is cool when you use cold lamination. Do not use cold lamination if you just finish the job of hot lamination. Please switch the power off and the machine will reset itself.

When "Power/Cold LED" turns into green and stays steady, please insert the paper into the cold pouch, and insert the pouch into laminator through lamination entry.

HOT LAMINATION

You could press down the "Mode Button" to select the pouch thickness (75mic, 100mic, 125mic and 250mic), the correspondent LED would turn into Red and flash, when it turns into Green and stays steady, please insert the paper into pouch, and insert the pouch into the laminator through the lamination entry.

Note:

1. If the room temperature is cold, the warm up time would be a bit longer.
2. The warm up time for thicker pouch would be longer than 75 micron pouch.

CLEAR THE JAMMED POUCH

This laminator is designed with an auto jam release device to clear the jammed pouch. When a misfeed or jam occurs, press down "reverse button", The jammed pouch will be pulled out automatically.

AUTO STOP

To save precious energy, this machine is designed to be shut off automatically when not be used over 60 minutes. When the machine shut off automatically, all LEDs turn off. Under this condition, there's still weak electric current inside, if you do not use this machine in a certain period, please pull out the plug from the socket-outlet to shut it off completely.

In case machine is shut off automatically, to start machine again, please press "Mode" button to turned on the machine again.

MAINTENANCE AND WARNING

1. To clean or move around, make sure that this laminator is turned off.
2. Do not laminate dirty pouches, clean it before lamination.
3. Do not use this laminator in damp conditions.
4. Do not laminate anything that is more than 0.6mm thickness for best seal.
5. Do not laminate heat sensitive paper.
6. Do not insert open side of pouch into Lamination Entry, it may lead to jamming or curling inside.

WARRANTY

This product comes with two years limited warranty.

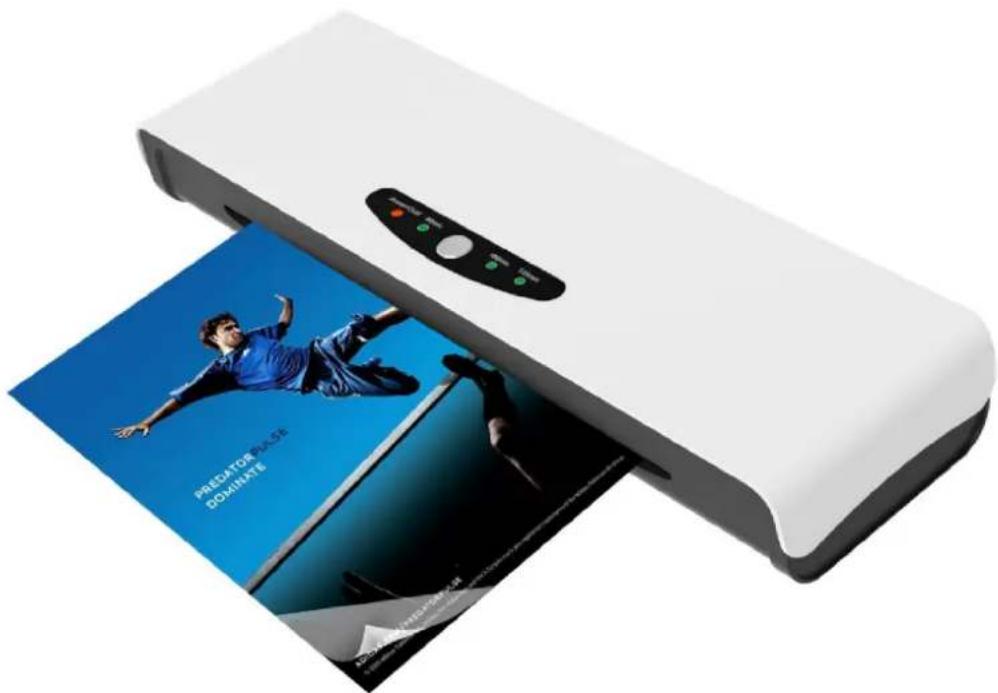

Mode d'emploi
