USER MANUAL IDC60 IBERNA

Empty gray square with corner markers and no text or symbols

Empty gray rectangle with corner markers and no text or symbols

1 SUPPLY CORD AIR INLET VENTS AIR OUTLETS IN BASE

Illustration of hands assembling or adjusting a mechanical component (no text or symbols visible)

Line drawing of a hand holding a circular object with a small square and number 2, no text or symbols present

Line drawing of hands holding a rectangular object with a shaded triangular section, no text or symbols present

Line drawing of a person's hand placing a component into a car interior (no text or symbols)

Line drawing of a hand pressing down on a wall-mounted device (no text or symbols)

Line drawing of a hand holding a rectangular electronic device with a circular component, no text or symbols present

Line drawing of a hand holding a small object over a wooden surface, with no text or symbols present.

9

Hand placing a component into a device with three buttons (no text or symbols visible)

Line drawing of a faucet with water spray and a cup, no text or symbols present

12 1 2 3 a 4 5 6 5 Kg Reverse Action iberna_ IDC 60

ENGLISH

Safety reminders

User's manual. This machine should only be used for its intended purpose as described in this manual. Ensure that it is fully understood before operating.

Installation. Never install the dryer against curtains and be sure to prevent items from falling behind or collecting beneath the dryer. If the floor is carpeted stand the machine on a piece of hardboard.

Ventilation. Check regularly that the air flowing through the dryer is not restricted:

Check the fluff filter after use, and clean, if necessary.

The inlets and outlets should be kept free from obstructions.

If the dryer is used frequently the period between checks should be reduced accordingly.

Water container. Empty the container after every drying cycle. Use both hands when carrying a full water container.

Dryness. Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should NOT be put into the dryer.

Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

Foam plastic, foam rubber and rubber-like material are not suitable for tumble drying. Articles made from these materials MUST NOT be placed in the dryer.

Glass fibre curtains should never be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

Garments treated with flammable cleaning sprays or liquids such as petrol, must not be put in this machine.

Lint or fluff must not be allowed to collect on the floor around the outside or beneath the machine.

Cool down period. The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

Faults. Do not continue to use this machine if it appears to be faulty.

After use. Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.

Supply cord. If the supply cord on this appliance is damaged, it must be replaced by a special cord which is only available from Service or an authorised Dealer.

Service. To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised service engineer.

ENGLISH

Safety reminders 6

Electrical requirements 7

Installation requirements 8

Preparing the load 8

Clothes preparation 8

Maximum drying weight 8

Sorting the load 8-9

Do not tumble dry 9

Energy saving 9

Opening the door 9

Filter 9

Water container 10

Condenser 10

Drying guide 11

Controls & indicators 12

Operation 13

Cleaning the dryer 14

Technical specification 14

European directive 2002/96/EC 14

Trouble shooting 15

PLEASE READ THESE INSTRUCTIONS THOROUGHLY

This appliance must be operated in accordance with the instructions given in this manual. It is for domestic use only in drying household textiles and garments where a water solution has been used in the cleaning process. It MUST NOT be used with dry cleaning fluids. For your safety, this dryer must be correctly installed.

If there is any doubt about installation, call the national Service number for advice.

Before using the tumble dryer for the first time:

• please read this instruction book thoroughly.
• remove all items packed inside drum.
• wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

IMPORTANT: This dryer must only be used for drying household textiles and garments where a water solution has been used for the cleaning process.

DO NOT tumble dry fabrics treated with dry cleaning fluids.

Electrical requirements

WARNING!

ELECTRICITY CAN BE

THIS APPLIANCE MUST BE

EARTHED.

This appliance is fitted with a moulded-on non-rewireable plug.

The plug should be accessible for disconnection after the appliance has been installed.

IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:

Blue - NEUTRAL

Brown - LIVE

Green-and-yellow - EARTH

If the supply cord on this appliance is damaged, it must be replaced by a special cord which is only available from Service or an authorised Dealer.

ENGLISH

Installation requirements

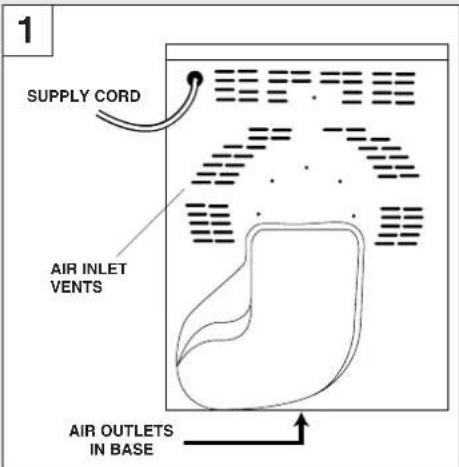

IMPORTANT: This dryer must be installed such that the air inlets and outlets are not restricted (fig. 1).

1 - Supply cord
2 - Air inlets
3 - Air outlets

There should be a gap of at least 12 mm (0.5 inches) between the sides, rear and base of the machine and the surrounding walls, cabinets and floor.

To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.

NEVER install the dryer up against curtains.

Prevent items from falling or collecting behind and beneath the dryer as these may obstruct the air inlets and outlets.

Preparing the load

Before using the dryer for the first time wipe the inside of the drum and door with a damp cloth.

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Clothes preparation

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do not overload the drum, particularly when drying large items, otherwise, the laundry may stick to the drum and not dry evenly.

Maximum drying weight

● Cottons Max. 6 kg
● Synthetics Max. 3 kg

Sort the load as follows:

A) By care symbols

On the collar or inside seam:

Suitable for tumble drying.
Tumble drying at high temperature.
Tumble drying at low temperature only.
Do not tumble dry.

B) By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

ENGLISH

C) By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

D) By drying level

• Sort into: iron dry, cupboard dry, etc.
• For delicate articles press the HEAT SETTING button to select low drying temperature (变)
  ● For airing or drying very delicate articles select the airing option button

Do not tumble dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

Energy saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS try to dry the maximum weight of laundry, this will save time and electricity.

NEVER exceed the maximum weight, this will waste time and electricity.

ALWAYS check that the filter is clean before every drying cycle as this aids efficiency.

NEVER put dripping wet items into the tumble dryer, this may damage the appliance and waste time and efficiency.

Opening the door

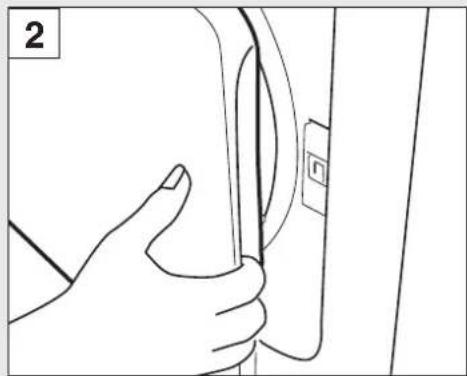

Pull on handle to open the door (fig. 2). This is a safety feature to prevent entrapment of minors in the drum.

WARNING!

WHEN THE TUMBLE DRYER IS IN USE THE DRUM AND DOOR MAY BE VERY HOT.

To restart the dryer, close the door and press the ON button ⏻

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

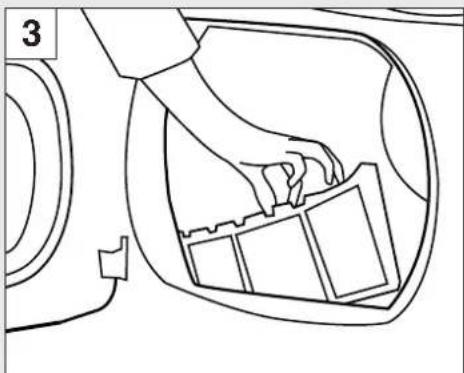

1. Pull the filter upwards (fig. 3).

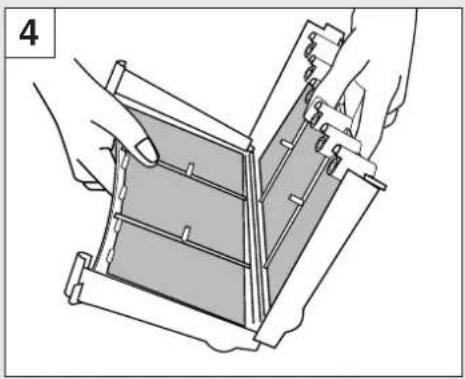

2. Open filter as shown (fig. 4).
3. Gently remove lint using a soft brush or your fingertips.
4. Snap the filter together and push back into place.

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

ENGLISH

Water Container

The water removed from the laundry during the drying cycle is collected in a container at the bottom of the dryer.

When the container is full the EMPTY WATER indicator ( ^1 ) on the control panel will light and the container MUST be emptied.

Note: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

We recommend that the container be emptied after each drying cycle.

To empty the water container:

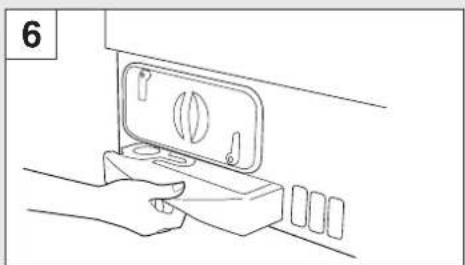

1. ENSURE THE MACHINE IS SWITCHED OFF. Gently pull the bottom of the kickplate so that it unclips from the dryer. The top section can then be unhinged allowing the kickplate to be completely removed (fig. 5).

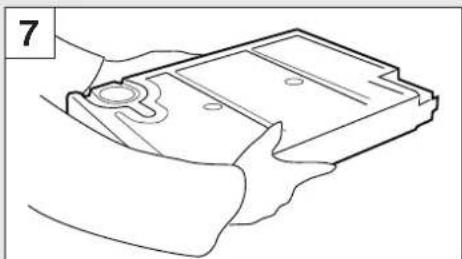

2. Pull firmly on the drawer front handgrip and slide the water container out of the dryer (fig. 6). Support the container with both hands. When full, the water container will weigh about 4 kg (fig. 7).

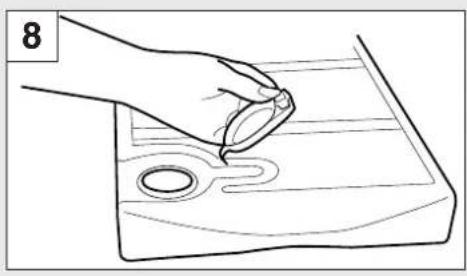

3. Open the lid located on the top of the container and empty the water (fig. 8).
4. Refit the lid and slide the water container back into position. PUSH FIRMLY IN PLACE.

Condenser

IMPORTANT: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer regularly check that the condenser is clean.

To remove the condenser:

1. Remove the kickplate (fig. 5).

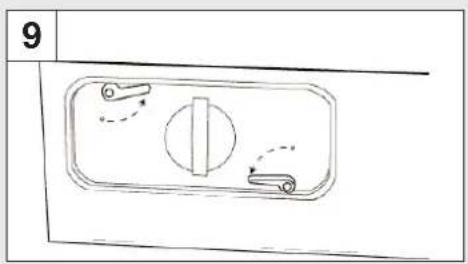

2. Turn the two locking levers anti-clockwise (fig. 9).

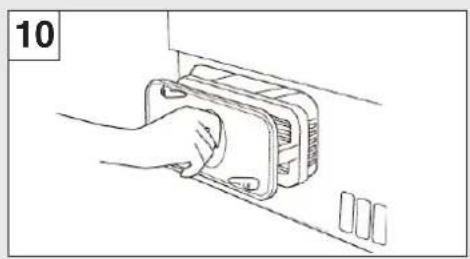

3. Pull out the condenser unit (fig. 10).

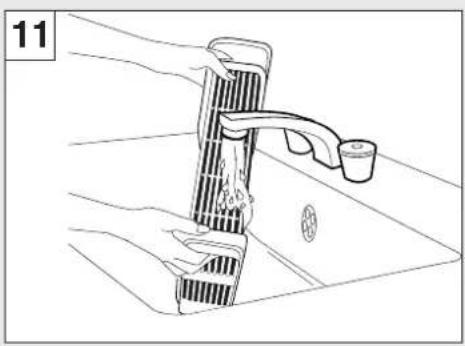

4. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap (fig. 11) turning it so that water flows between the plates, to remove any dust or fluff.
5. Refit the condenser ensuring it is pushed firmly into place. Lock the two levers by turning them clockwise.
6. Refit the kickplate.

ENGLISH

Drying guide

The table shows approximate drying times, depending on the type of fabric and dampness of the clothes.

HEAT SETTING HEAVY LOAD MEDIUM LOAD LIGHT LOAD

COTTON HIGH 125-135 Min 70-80 Min 50-65 Min

SYNTHETICS LOW 70-85 Min 55-65 Min 40-55 Min

ACRYLIC LOW 50-65 Min 40-50 Min 30-40 Min

PRE-IRON PROGRAM: RELAXES CREASES – EASIER TO IRON

For delicate fabrics select the LOW HEAT SETTING button for all Drying Programmes. This reduces the drying temperature to protect your garments.

REMEMBER: During the last 10 minutes the load is always tumbled in cool air.

ENGLISH

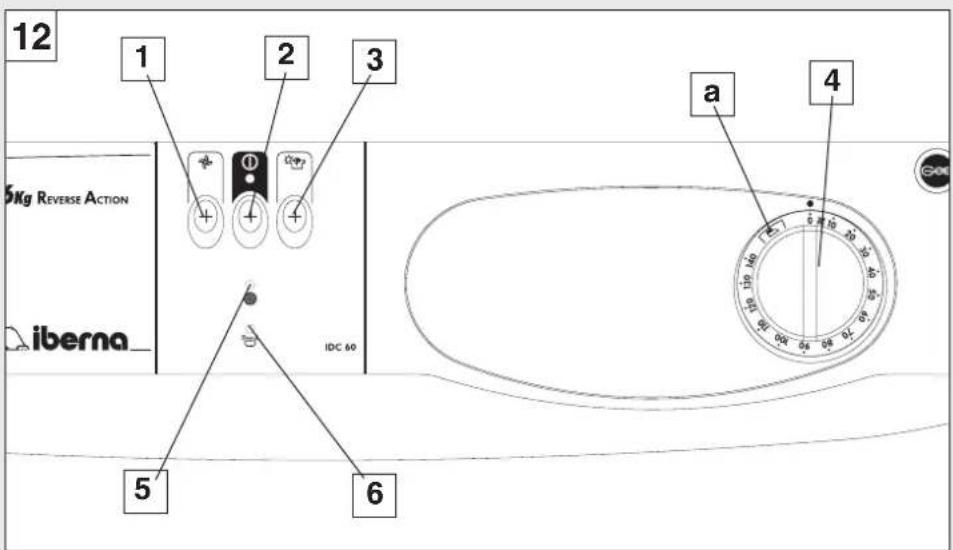

Control panel and indicator lights (fig. 12)

1. AIRING – by selecting this option button, the heating phase of the drying cycle is eliminated allowing delicate articles to be dried by cool air. This option allows clothes to be dried and/or 'aired' according to your desired set time.

2. ON button and indicator Ⓐ – press to switch on, the indicator will light.

3. HEAT SETTING button – press to reduce the heat level for delicate items, press again to select high temperature.

HIGH Heat setting

LOW Heat setting

1. DRYING TIME dial – selects drying time or pre-ironing option (a).

2. FILTER CARE indicator - lights when filter needs cleaning.

3. EMPTY WATER indicator - lights when water container is full.

ENGLISH

Operation

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. If drying delicate items press the button or the button to reduce the heat level. Press again on completion, to reset the option.

D HIGH Heat setting or airing not selected

LOW Heat setting or airing selected

1. Turn DRYING TIME dial until the required drying time aligns with the symbol.

The Pre-ironing setting shown by the symbol on the DRYING TIME dial provides a conditioning and anti-crease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. The pre-ironing process relaxes the creases in the fabric making ironing quicker and easier.

1. Gently close the door pushing it slowly until you hear the door 'click' shut.

2. Press the button. The indicator will light and the drying cycle begins.

3. The load is dried by tumbling in thermostatically controlled warm air. Cool air is used for the last 10 minutes to reduce creasing and cool the load ready for handling.

4. When the program is fully completed the drum will stop rotating and the dial will point to the symbol.

WARNING!

THE DRUM, DOOR AND LOAD

MAY BE VERY HOT.

Open the door and remove the load.

1. Clean the filter and empty the water container after every drying cycle to ensure maximum dryer efficiency. (See 'Filter' and 'Water Container' sections.)
2. Clean the condenser after approximately every 10 drying cycles to ensure maximum dryer efficiency. (See 'Condenser' section.)

ENGLISH

Cleaning the dryer

IMPORTANT: Always switch off and remove the plug from the electricity supply before cleaning this appliance.

Clean the filter and empty the water container after every drying cycle.

Regularly clean the condenser.

After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.

Wipe the outside of the machine and the door with a soft cloth.

DO NOT use abrasive pads or cleaning agents.

To prevent the door sticking, periodically clean the door gasket with a 'non-scratch cream cleaner.'

Technical specifications

Drum capacity 115 litres

Maximum load 6 kg

Height 85 cm

Width 60 cm

Depth 60 cm

Energy Label Band C

Note: For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

European directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

ENGLISH

Trouble shooting

Should your dryer operate incorrectly, check the following points before calling for a service engineer.

Drying time is too long/clothes are not dry enough:

● Have you selected the correct drying time/programme? Go to page 11.
● Were the clothes too wet? Were the clothes thoroughly wrung or spin-dried?
- Does the filter need cleaning? Go to page 9.
- Does the condenser need cleaning? Go to page 10.
● Is the dryer overloaded? Go to page 8.
● Are the inlets, outlets and base of the dryer free from obstructions?
● Has the or button been selected from a previous cycle? Go to page 12.

The dryer does not operate:

● Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
● Is the plug properly connected to the mains supply?
● Is there a power failure?
● Has the fuse blown?
● Is the door fully closed? Go to page 9.
● Is the dryer switched on, both at the mains supply and at the machine? Go to page 12.
● Has the drying time or the programme been selected? Go to page 12.
● Has the machine been switched on again after opening the door? Go to page 9.

● Has the dryer stopped operating because the water tray is full and needs emptying? Go to page 10.

Filter Care Indicator on

- Does the filter need cleaning? Go to page 9.

Empty Water Indicator on

- Does the water container need emptying? Go to page 10.

If the supply cord on this appliance is damaged, it must be replaced by a special cord which is only available from Service or an authorised Dealer.

Should there still be a problem with your dryer after completing all the recommended checks, please call Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

● Is found to be in working order.
● Has not been installed in accordance with the installation instructions.
● Has been used incorrectly.

FRANÇAIS

Rappels de sécurité

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

FRANÇAIS

Dépistage de pannes

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

DEUTSCH

Fehlerbehebung

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

ITALIANO

Ricerca guasti

Empty gray square with corner markers and no text or symbols

Empty white rectangle with corner markers, no text or symbols present
