USER MANUAL 70222 KENMORE

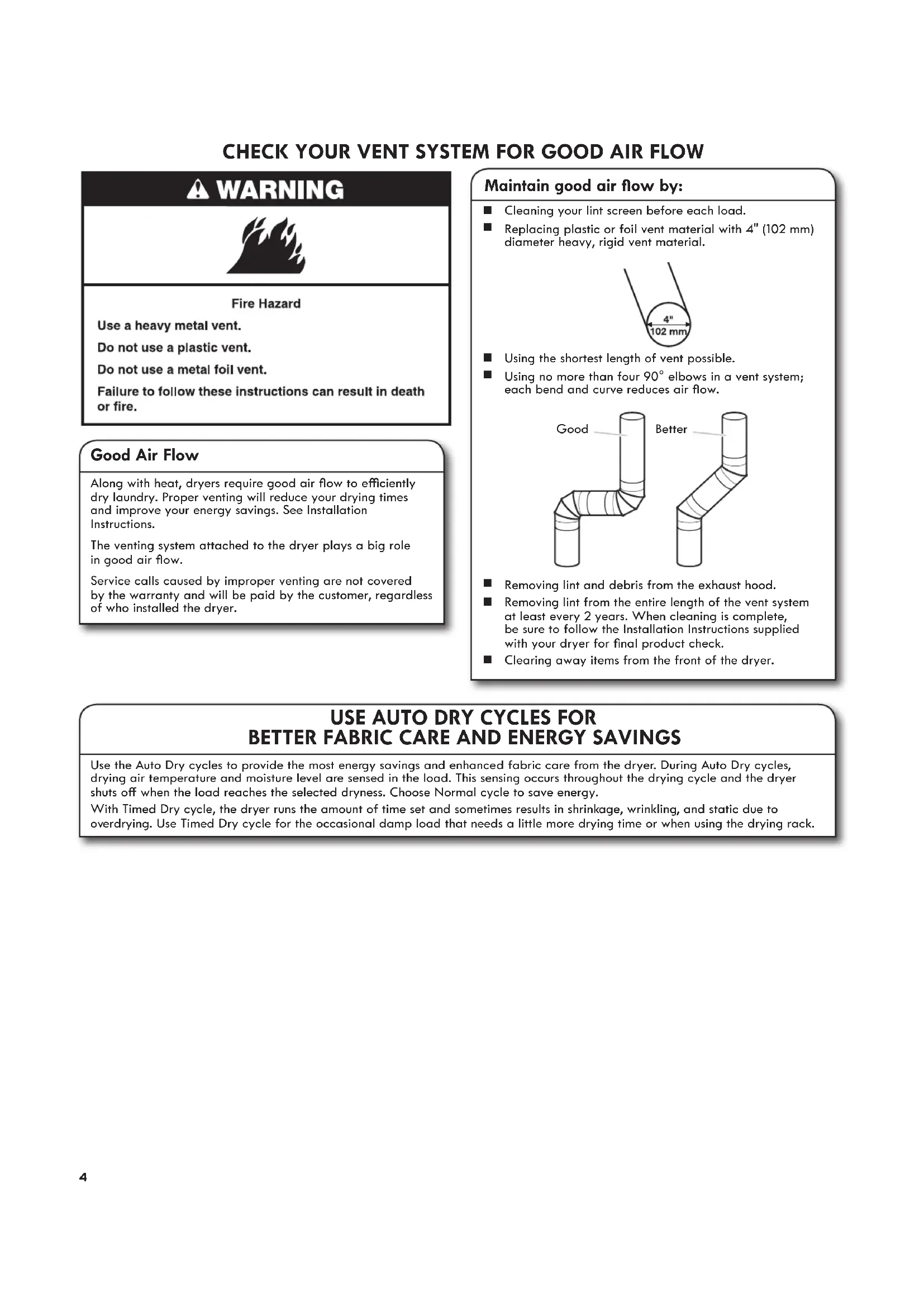

IMPORTANT: When discarding or storing your old clothes dryer, remove the door.34 CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW

Use the Auto Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During Auto Dry cycles, drying air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts o when the load reaches the selected dryness. Choose Normal cycle to save energy. With Timed Dry cycle, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to overdrying. Use Timed Dry cycle for the occasional damp load that needs a little more drying time or when using the drying rack. Maintain good air ow by:

Cleaning your lint screen before each load.

Replacing plastic or foil vent material with 4" (102 mm) diameter heavy, rigid vent material.

Using the shortest length of vent possible.

Using no more than four 90° elbows in a vent system; each bend and curve reduces air ow.

Removing lint and debris from the exhaust hood.

Removing lint from the entire length of the vent system at least every 2 years. When cleaning is complete, be sure to follow the Installation Instructions supplied with your dryer for nal product check.

Clearing away items from the front of the dryer. Good Air Flow Along with heat, dryers require good air ow to eciently dry laundry. Proper venting will reduce your drying times and improve your energy savings. See Installation Instructions. The venting system attached to the dryer plays a big role in good air ow. Service calls caused by improper venting are not covered by the warranty and will be paid by the customer, regardless of who installed the dryer. Good Better5 Not all features and options are available on all models. Appearance may vary.

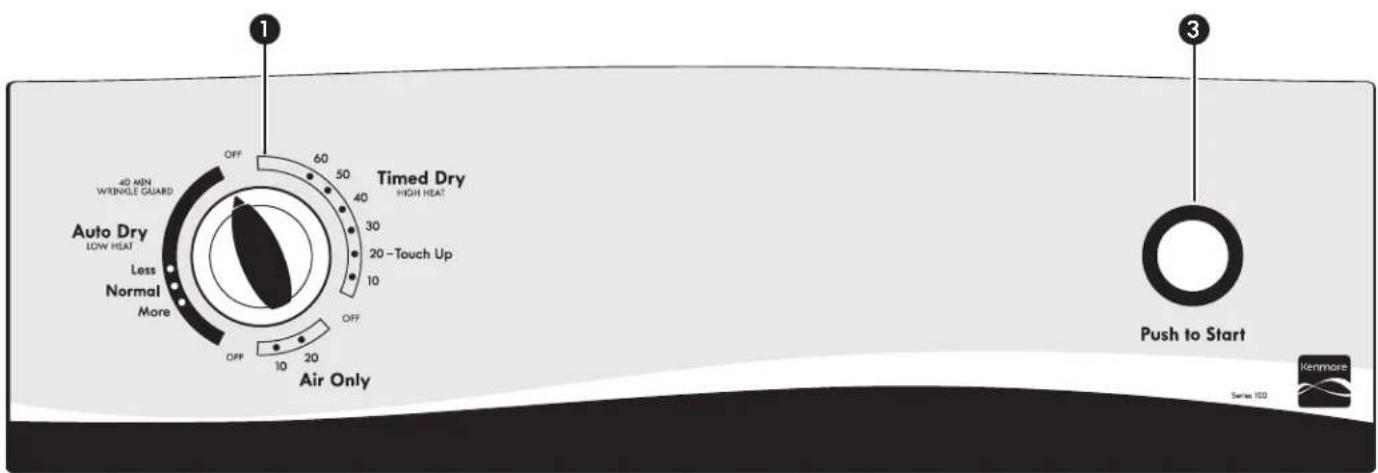

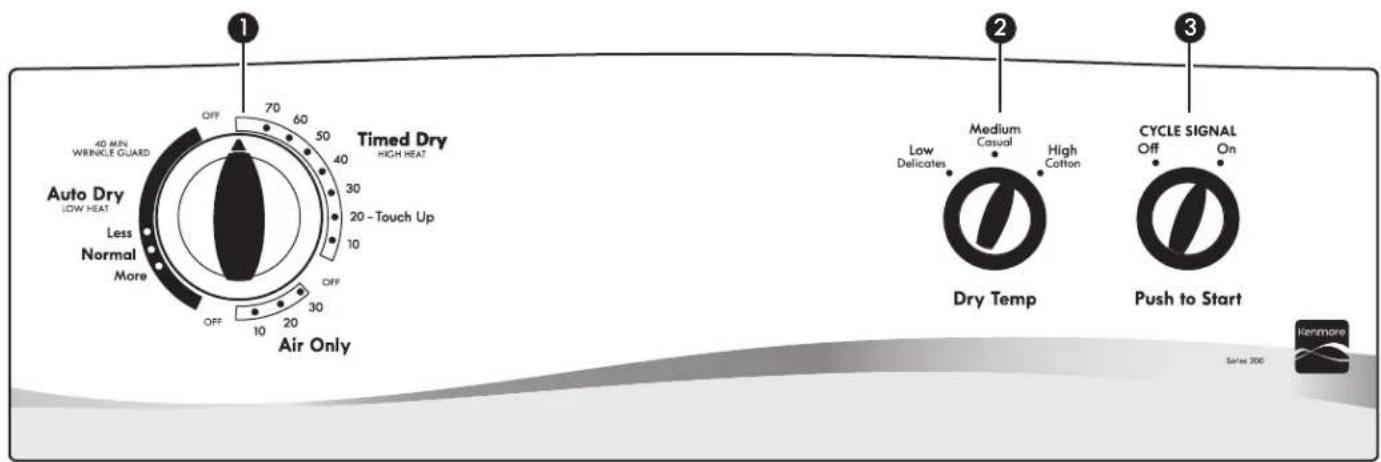

Turn the knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles. Timed Dry Will run the dryer for the specied time on the control. On models with a selectable temperature knob, you may choose a setting based on the fabrics in your load. Drying time and temperature will depend on your dryer model. Auto Dry Auto Dry cycles give the best drying in the shortest time. Drying time will vary based on fabric type, load size, and dryness setting. Air Only Use the Air Only setting to dry foam, rubber, plastic, or heat-sensitive fabrics. Wrinkle Guard™ function (on some models) When you are unable to remove a load of clothes from the dryer as soon as it stops, wrinkles can form. The Wrinkle Guard™ function periodically tumbles, rearranges, and us the load without heat to help keep wrinkles from forming, for up to 40 minutes at the end of a cycle.

Dry Temp (on some models) Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. See “Cycle Guide.” Cycle Signal/Push to Start The Cycle Signal produces an audible sound when the drying cycle is nished. On some models, this knob is combined with the Push to Start button. Promptly removing clothes at the end of the cycle reduces wrinkling. Turn the CYCLE SIGNAL knob to select the desired setting (On or O). With combined buttons, press and hold the CYCLE SIGNAL/PUSH TO START button to start the dryer. On models without the cycle signal, press the PUSH TO START button to start the dryer. NOTE: During the Wrinkle Guard™ function and when the Cycle Signal is on, the tone will sound every 5minutes until the clothes are removed or the Wrinkle Guard™ function ends.

NOTE: If loads do not seem as dry as you would like, select More next time you dry a similar load. If loads seem drier than you like, select Less next time you dry a similar load.

CYCLE GUIDE – AUTO DRY CYCLES

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle. AUTO DRY – Senses moisture in the load or air temperature and shuts o when the load reaches the selected dryness level. Depending on model, temperature may be selected on cycle knob or be a separate control. Choose Normal to save energy.

CYCLE GUIDE – TIMED DRY CYCLES

Not all cycles and settings are available on all models. TIMED DRY – Will run the dryer for the specied time on the control. Depending on model, temperature may be selected on cycle knob or be a separate control. Setting the Drying Temperature If your dryer has multiple temp settings: A High Cotton temp setting may be used for drying heavyweight items such as towels and work clothes. A Low Delicates or Medium Casual temp setting may be used for drying medium-weight items such as sheets, blouses, dresses, underwear, permanent press fabrics, and some knits. Use a Air Only (no heat) setting for foam, rubber, plastic, or heat-sensitive fabrics. Line dry bonded or laminated fabrics. NOTE: If you have questions about drying temperatures for various loads, refer to the care label directions. Items to dry: Dry Temp: Dryness Level: Available Options: Cycle Details: Jeans, heavy work clothes, towels High Cotton More Normal Less Cycle Signal Dry Temp Automatic cycles give the best drying in the shortest time. Drying time varies based on load size and dryness setting. Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. Work clothes, medium weight fabrics, sheets Medium Casual More Normal Less Cycle Signal Dry Temp Casual, shirts, pants, lightweight items, synthetics, delicates, athletic wear Low Delicates More Normal Less Cycle Signal Dry Temp Items to dry: Cycle: Dry Temp: Available Options: Cycle Details: Any load Timed Dry High Heat Dry Temp (on some models) Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting. Any load Touch up Any N/A This is the last step in a cycle that uses heat. The load is cooled slowly to reduce wrinkling and make it easier to handle. Use this cycle to smooth wear or packing wrinkles. Rubber, plastic, heat sensitive fabrics Air Only No heat Time Adjustment Use a Air Only (no heat) setting for foam, rubber, plastic, or heat-sensitive fabrics.7

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen out of its holder. Roll lint o the screen with your ngers. Do not rinse or wash screen to remove lint. Push the lint screen rmly back into place. For additional cleaning information, see “Dryer Care.”

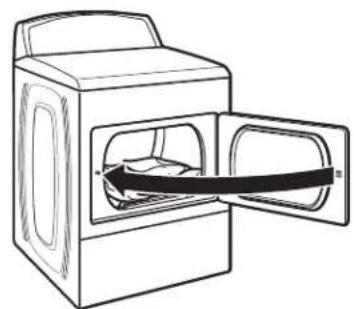

Place laundry in the dryer. Close the door. Do not tightly pack the dryer; clothes should be able to tumble freely. NOTE: Your model may have a dierent door than the one shown. Some models have drop down doors.

WARNING: To reduce the risk of fire, electric shock, or injury

to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

to begin cycle Press and hold the PUSH TO START button to begin the cycle. Promptly remove garments after cycle has completed to reduce wrinkling. The Wrinkle Guard™ function at the end of the cycle avoids wrinkling when you are unable to remove a load from the dryer as soon as it stops.

4. Set temperature (on some models)

Turn the DRY TEMP knob to change the drying temperature setting. See “Setting the Drying Temperature.”

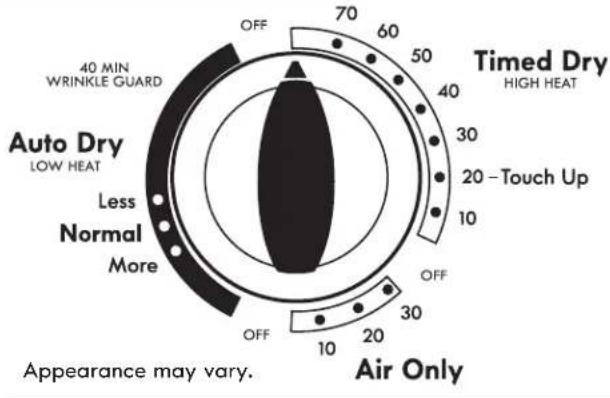

3. Select the desired cycle

Select the desired cycle for your load. See the “Cycle Guide” for more information about each cycle. Auto Dry cycles You can select a dierent dry level, depending on your load, by turning the knob to More, Normal, or Less. Selecting More, Normal, or Less automatically adjusts the dryness level at which the dryer will shut o. Once a dry level is set, it cannot be changed without stopping the cycle. Auto Dry cycles give the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting. NOTE: More Dry removes more load moisture. Normal Dry is used for a starting point for Auto Dry cycles. Choose normal to save energy. Less Dry removes less moisture and is used for loads you may want to put on a hanger to complete drying.

5. Select Cycle Signal, if desired

(on some models) Turn the CYCLE SIGNAL knob to select the desired setting (On or O). The Cycle Signal produces an audible sound when the drying cycle is nished. Promptly removing clothes at the end of the cycle reduces wrinkling. NOTE: During the Wrinkle Guard™ function and if the Cycle Signal is on, the tone will sound every 5minutes until the clothes are removed or the Wrinkle Guard™ function ends. Appearance may vary. Appearance may vary.9 DRYER CARE Keep dryer area clear and free from items that would block the air ow for proper dryer operation. This includes clearing piles of laundry in front of the dryer. Cleaning the lint screen Every load cleaning The lint screen is located in the dryer. A screen blocked by lint can increase drying time. To clean:

1. Pull the lint screen out of its holder. Roll lint o

the screen with your ngers. Do not rinse or wash screen to remove lint.

2. Push the lint screen rmly back into place.

Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.

If lint falls o the screen into the dryer during removal, check the exhaust hood and remove the lint. See “Venting Requirements” in the Installation Instructions. As needed cleaning Laundry detergent and fabric softener residue can build up on the lint screen. This buildup can cause longer drying times for your clothes or cause the dryer to stop before your load is completely dry. The screen is probably clogged if lint falls o while the screen is in the dryer. Clean the lint screen with a nylon brush every 6 months, or more frequently, if it becomes clogged due to a residue buildup. To wash:

1. Roll lint o the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel. Reinstall

screen in dryer. Cleaning the dryer interior To clean dryer drum

1. Apply a liquid, nonammable household cleaner to the

stained area of the drum and rub with a soft cloth until stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry these items inside out to avoid drum staining. Removing accumulated lint From Inside the Dryer Cabinet Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualied servicer. From the Exhaust Vent Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning the dryer location10 Changing the drum light (on some models)

1. Unplug dryer or disconnect power.

2. Open the dryer door. Locate the light bulb cover on the

back wall of the dryer. Using a Phillips head screwdriver, remove the screw located in the lower right-hand corner of the cover. Remove the cover.

3. Turn bulb counterclockwise. Replace the bulb with

a 10-watt appliance bulb only. Replace the cover and secure with the screw.

4. Plug in dryer or reconnect power.

Vacation, storage, and moving care Non-Use or Storage Care Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:

1. Unplug dryer or disconnect power.

2. (For gas dryers only): Close shut-o valve to gas

3. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Make sure leveling legs are secure in dryer base.

3. Use tape to secure dryer door.

For direct-wired dryers:

1. Turn o power at fuse or breaker box.

2. Disconnect wiring.

3. Make sure leveling legs are secure in dryer base.

4. Use tape to secure dryer door.

1. Unplug or disconnect power to dryer.

2. Close shut-o valve to gas supply line and disconnect.

3. Make sure leveling legs are secure in dryer base.

4. Use tape to secure dryer door.

Reinstalling the Dryer Follow the Installation Instructions to locate, level, and connect the dryer.11 First try the solutions suggested here for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Clothes are not drying satisfactorily, drying times are too long Lint screen clogged with lint. Lint screen should be cleaned before each load. The Air Only cycle has been selected. Select the right cycle for the types of garments being dried. See “Cycle Guide.” Load too large and heavy to dry quickly. Separate the load to tumble freely. Exhaust vent or outside exhaust hood clogged with lint, restricting air movement. Run the dryer for 5–10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel air movement, clean exhaust system of lint or replace exhaust vent with heavy metal or exible metal vent. Make sure vent is not crushed or kinked. See Installation Instructions. Fabric softener sheets blocking the grille. Use only one fabric softener sheet, and use it only once. Exhaust vent not the correct length. Check that the exhaust vent is not too long or has too many turns. Long venting will increase drying times. Make sure vent is not crushed or kinked. See Installation Instructions. Exhaust vent diameter not the correct size. Use 4" (102mm) diameter vent material. Dryer located in a room with temperature below 45ºF (7ºC). Proper operation of dryer cycles requires temperatures above 45ºF (7ºC). Dryer located in a closet without adequate openings. Closet doors must have ventilation openings at the top and bottom of the door. The front of the dryer requires a minimum of 1" (25mm) of airspace, and, for most installations, the rear of the dryer requires 5" (127mm). See Installation Instructions. Dryer will not run Door not closed completely. Make sure the dryer door is closed completely. PUSH to START button not pressed rmly or held long enough. Press and hold the PUSH TO START button until you hear the dryer drum moving. Household fuse is blown or circuit breaker has tripped. Electric dryers use 2 household fuses or circuit breakers. The drum may be turning, but you may not have heat. Replace both fuses or reset the circuit breaker. If the problem continues, call an electrician. Incorrect power supply. Electric dryers require 240-volt power supply. Check with a qualied electrician. Wrong type of fuse. Use a time-delay fuse. Unusual sounds Dryer had a period of non-use. If the dryer hasn’t been used for a while, there may be a thumping sound during the rst few minutes of operation. A coin, button, or paper clip is caught between the drum and front or rear of the dryer. Check the front and rear edges of the drum for small objects. Clean out pockets before laundering. It is a gas dryer. The gas valve clicking is a normal operating sound. The four legs are not installed, and the dryer is not level front to back and side to side. The dryer may vibrate if not properly installed. See Installation Instructions. Clothing knotted or balled up. When balled up, the load will bounce, causing the dryer to vibrate. Separate the load items and restart the dryer. No heat Household fuse is blown or circuit breaker has tripped. The drum may be turning, but you may not have heat. Electric dryers use 2 household fuses or circuit breakers. Replace both fuses or reset the circuit breaker. If the problem continues, call an electrician. Supply line valve not open. For gas dryers, be sure the valve on the supply line is open. Incorrect power supply. Electric dryers require 240-volt power supply. Check with a qualied electrician. TROUBLESHOOTING12 First try the solutions suggested here for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Cycle time too short Automatic cycle ending early. The load may not be contacting the sensor strips. Level the dryer. Use Timed Dry for very small loads. Change the dry level setting on Auto Dry cycles. Increasing or decreasing the dry level setting will change the amount of drying time in a cycle. Lint on load Lint screen clogged. Lint screen should be cleaned before each load. Stains on load or drum Dryer fabric softener not properly used. Add dryer fabric softener sheets at the beginning of the cycle. Fabric softener sheets added to a partially dried load can stain your garments. Drum stains are caused by dyes in clothing (usually blue jeans). These will not transfer to other clothing. Loads are wrinkled The load was not removed from dryer at the end of the cycle. The Wrinkle Guard

function tumbles the load without heat for 40 minutes at the end of the cycle to avoid wrinkling. Dryer tightly packed. Dry smaller loads that can tumble freely to reduce wrinkling. Odors You have recently been painting, staining, or varnishing in the area where your dryer is located. If so, ventilate the area. When the odors or fumes are gone from the area, rewash and dry the clothing. The electric dryer is being used for the rst time. The new electric heating element may have an odor. The odor will be gone after the rst cycle. Load is too hot Laundry items were removed from the dryer before the end of the cycle. Allow Cool Down to nish before removing laundry from dryer. All cycles are cooled slowly to reduced wrinkling and make it easier to handle. Items removed before Cool Down may feel very warm. A high temperature cycle was used or the Dry Temp was set on high. Select a lower temperature, and use an automatic drying cycle. These cycles sense the temperature or the moisture level in the load and shut o when the load reaches the selected dryness. This reduces overdrying. TROUBLESHOOTING13

KENMORE APPLIANCE WARRANTY

PROTECTION AGREEMENTS Master Protection Agreements Congratulations on making a smart purchase. Your new Kenmore

product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation. The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes: Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage—real protection. Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can trust will be working on your product. Unlimited service calls and nationwide service, as often as you want us, whenever you want us. – replacement of your covered product if four or more product failures occur within twelve months. Product replacement if your covered product can’t be xed. Annual Preventive Maintenance Check at your request – no extra charge. Fast help by phone – we call it Rapid Resolution – phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.” Power surge protection against electrical damage due to power uctuations. Rental reimbursement if repair of your covered product takes longer than promised. 25% discount o the regular price of any non-covered repair service and related installed parts. Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online. The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today! Some limitations and exclusions apply. For prices and additional information in the U.S.A., call 1-800-827-6655. *Coverage in Canada varies on some items. For full details, call Sears Canada at 1-800-361-6665. Sears Installation Service For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada, call 1-800-4-MY-HOME

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated, and maintained according to all supplied instructions. WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option of seller. For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty. This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if this appliance is ever used for other than private household purposes. This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including

but not limited to lters, belts, bags, or screw-in base light bulbs.

2. A service technician to clean or maintain this appliance, or to

instruct the user in correct appliance installation, operation, and maintenance.

3. Service calls to correct appliance installation not performed

by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.

4. Damage to or failure of this appliance resulting from

installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas, or plumbing codes.

5. Damage to or failure of this appliance, including discoloration

or surface rust, if it is not correctly operated and maintained according to all supplied instructions.

6. Damage to or failure of this appliance, including discoloration

or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.

7. Damage to or failure of this appliance, including discoloration

or surface rust, caused by the use of detergents, cleaners, chemicals, or utensils other than those recommended in all instructions supplied with the product.

8. Damage to or failure of parts or systems resulting from

unauthorized modications made to this appliance.

9. Service to an appliance if the model and serial plate is missing,

altered, or cannot easily be determined to have the appropriate certication logo.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION

OF REMEDIES Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or tness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or tness, so these exclusions or limitations may not apply to you. This warranty applies only while this appliance is used in the United States or Canada*. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.

• In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and transportation expenses if this product is located in a remote area (as dened by Sears Canada Inc.) where an authorized servicer is not available. Sears Brands Management Corporation Homan Estates, IL 60179 Sears Canada Inc. Toronto, Ontario, Canada M5B 2C3 10/201414
