Treviso-UG-LIVE.book Page 6 Wednesday, September 2, 2009 8:31 AMGetting started

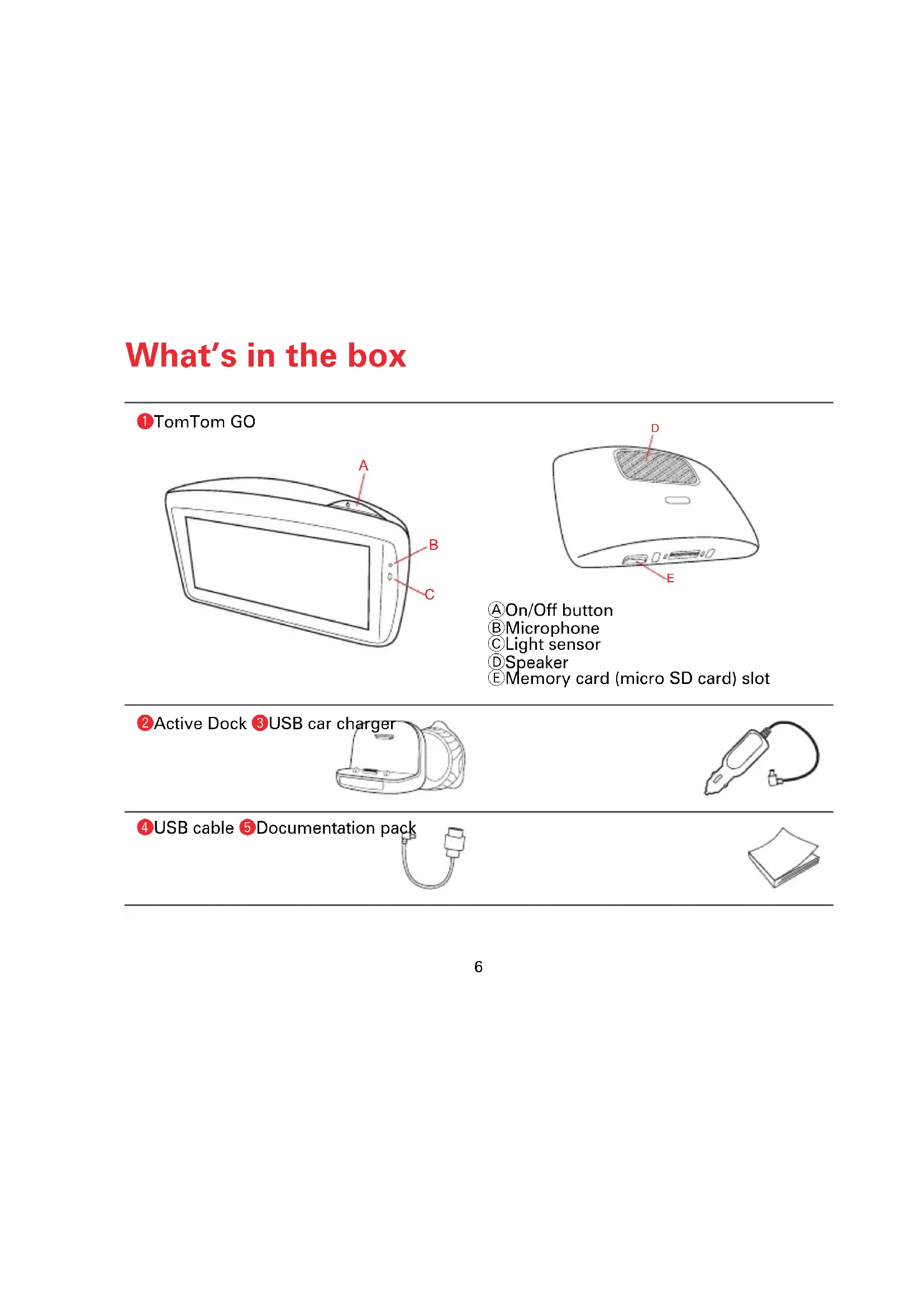

Getting started Switching on and off Install your TomTom GO navigation device in your car following the instructions in the installation section at the start of this book. To switch on your navigation device, press and hold the On/Off button until you see the start-up screen. The first time you switch on your device, it may take a short time to start. Setting up When you first switch on your device, you have to answer a few questions to set up the device. Answer the questions by tapping the screen. You are asked whether you make regular trips to the same locations. If you tap YES, you can enter these destinations as your favourite destinations. Every time you switch on your device, you can immediately select one of these locations as your desti- nation. To change these destinations or select a new destination, tap Start-up preferences in the Preferences menu, then select Ask for a destination. Device not starting In rare cases, your TomTom GO navigation device may not start correctly or may stop responding to your taps. First, check that the battery is properly charged. To charge the battery, connect your device to the car charger. It can take up to 2 hours to fully charge the battery. If this does not solve the problem, you can reset the device. To do this, press and hold the On/Off button for 15 seconds and release the button when your device begins to restart. Treviso-UG-LIVE.book Page 7 Wednesday, September 2, 2009 8:31 AMGetting started

Battery notes The battery in your TomTom GO navigation device charges when you connect it to the car charger or to your computer. When you connect your device to a compu- ter, you are asked if you want to connect to the computer. If you select No and then do not tap the screen within three minutes, the device will automatically switch off. This happens so that the battery can charge faster. Note: You should plug the USB connector di- rectly into a USB port on your computer and not into a USB hub or USB port on a keyboard or monitor. GPS reception When you first start your TomTom GO nav- igation device, the device may need a few minutes to determine your GPS position and show your current position on the map. In future, your position will be found much faster, usually within a few seconds. To ensure good GPS reception, you should use your device outdoors. Large objects such as tall buildings can sometimes inter- fere with reception. The TomTom GO 950 includes Enhanced Positioning Technology or EPT. EPT auto- matically estimates your position when the GPS signal is lost while you are driving, such as when you are in a tunnel. When EPT is in use, the EPT symbol is shown in the Driving View. Treviso-UG-LIVE.book Page 8 Wednesday, September 2, 2009 8:31 AMSafety

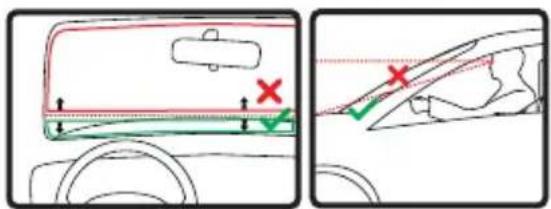

Safety Positioning the dock Consider carefully where to attach the dock in your car. The dock should not block or interfere with any of the following:

• Your view of the road

• Any of the controls in your car

• The airbag When your navigation device is in the dock, you should be able to reach the device eas- ily without leaning or stretching. The dia- grams show where you can safely attach the dock. You can attach the dock to the windscreen, side window or use a Dashboard Mount Disk to attach the dock to your dashboard. TomTom also offers alternative mounting solutions for your TomTom navigation device. For more information about Dash- board Mount Disks and alternative mount- ing solutions, go to tomtom.com/ accessories. Installing the Active Dock Make sure that both the Active Dock and your window are clean and dry.

1. Press the suction cup firmly against the

window on an area where the glass is flat.

2. Twist the rubber grip near the base of the

Active Dock in a clockwise direction until you hear a click. The Active Dock is now installed. Treviso-UG-LIVE.book Page 9 Wednesday, September 2, 2009 8:31 AM10 Making your first journey Making your first journey Planning a route with your TomTom GO navigation device is easy. To plan a route, follow the steps below. Important: For safety reasons, you should always plan a route before you start your journey.

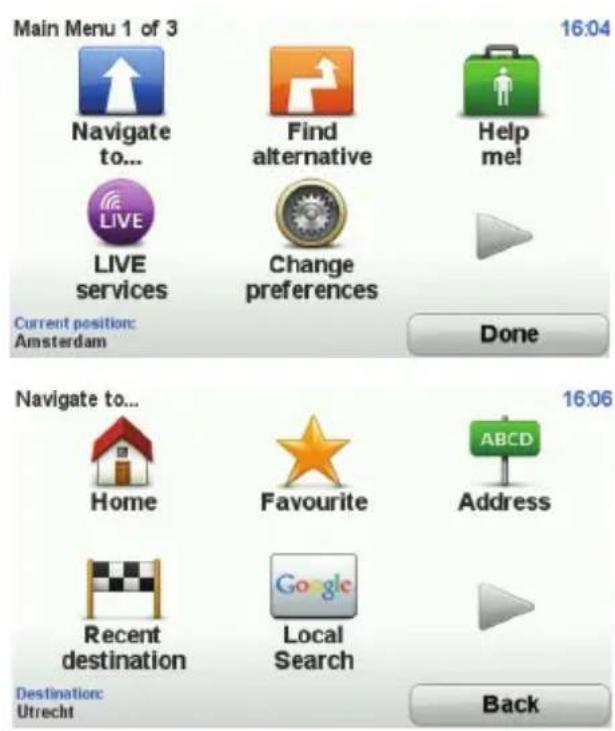

1. Tap the screen to bring up the Main

Menu. Note: The buttons on your navigation device are shown in full colour unless a button is cur- rently unavailable.

2. Tap Navigate to...

In this example, we will enter an address. Treviso-UG-LIVE.book Page 10 Wednesday, September 2, 2009 8:31 AM11 Making your first journey

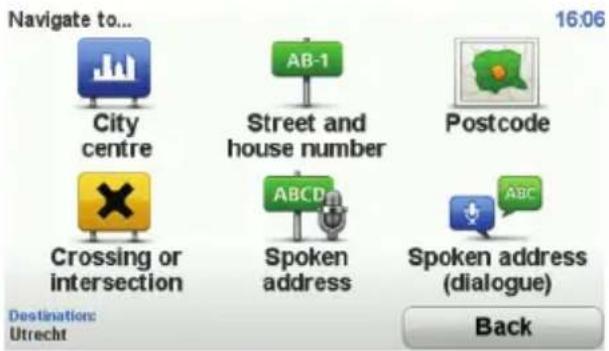

4. Tap Street and house number.

Note: When planning a trip for the first time your navigation device asks you to choose a state or country. Your choice is saved and used for all routes you plan. You can change this setting at any time by tap- ping the flag.

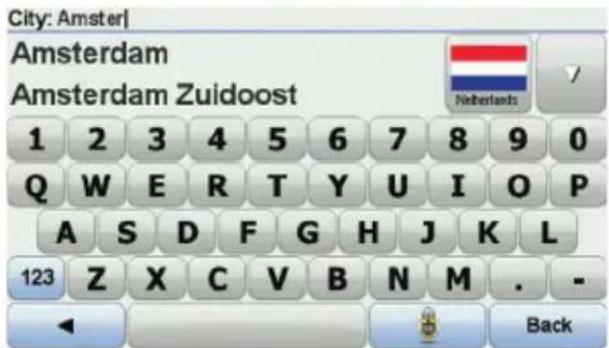

5. Start to type the name of the town where

you want to go. Tap the name when it is shown in the list. Tip: Instead of typing the name, tap this button to say the ad- dress by speaking to your navi- gation device.

6. Start to type the street name. Tap the

name when it is shown in the list. Treviso-UG-LIVE.book Page 11 Wednesday, September 2, 2009 8:31 AM12 Making your first journey

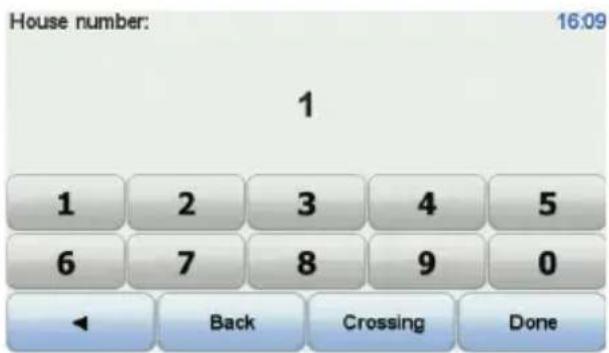

7. Enter the house number and then tap

8. Your navigation device asks if you need

to arrive at a particular time. For this ex- ercise, tap NO. The route is calculated by your device using IQ Routes

IQ Routes is used to plan the best possi- ble route using information about the average speeds measured on the roads. When the route has been calculated, tap Done. Your TomTom GO navigation device warns you about any traffic delays and begins to guide you to your destination. Treviso-UG-LIVE.book Page 12 Wednesday, September 2, 2009 8:31 AM13 Making your first journey

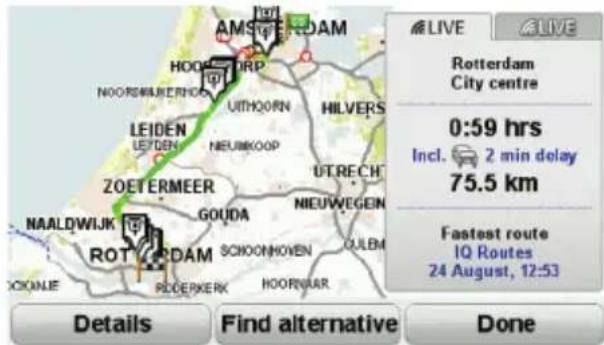

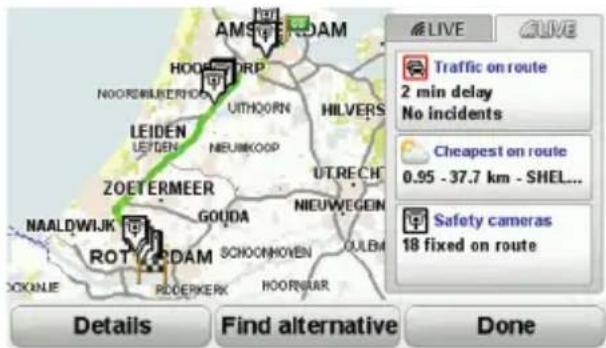

Route summary After planning a route, you see a summary of your route. The route summary shows an overview map of your route and the total journey time including delays caused by both incidents and busy roads. You can see the route summary at any time by tapping the right side of the status bar. LIVE snapshot LIVE snapshot shows an overview of the information provided by LIVE services for your planned route. To explore LIVE snap- shot, open the LIVE tab on the route sum- mary screen, then tap each panel for more detailed information. Note: Not all services are available in all coun- tries or regions. Go to tomtom.com/services to check which services are available where you live. Treviso-UG-LIVE.book Page 13 Wednesday, September 2, 2009 8:31 AMDriving View

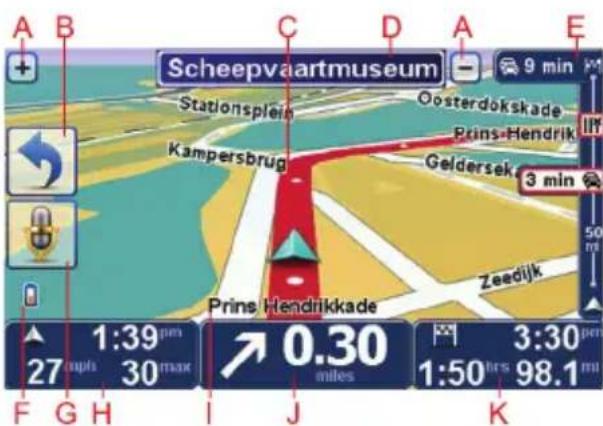

Driving View When your TomTom GO starts, you are shown the Driving View along with detailed information about your current position. Tap the centre of the screen at any time to open the Main Menu. Note: The Driving View is shown in black and white until your GO locates your current posi- tion. A Tap + and - to zoom in and out. B Quick menu - you can enable the quick menu in the Preferences menu. C Your current position. D Road sign information or the next street name. E Traffic sidebar. F Battery level indicator. G Microphone button for voice command and control. H The time, your current speed and the speed limit, if known. Tap this part of the status bar to change the volume and hear the next spoken instruction. I The name of the street you are on. Treviso-UG-LIVE.book Page 14 Wednesday, September 2, 2009 8:31 AMDriving View

J Navigation instruction for the road ahead. Tap this part of the status bar to change between 2D and 3D views of the Driving View. K The remaining journey time, the remain- ing distance and your estimated arrival time. Tap this part of the status bar to open the route summary screen. To change the information shown in the sta- tus bar, tap Status bar preferences in the Preferences menu. Driving view symbols Several symbols are shown in the bottom left hand corner of the Driving View. Here are a few examples: Battery - this symbol shows the bat- tery level. When the battery is low and requires charging, the battery symbol is empty. You should charge your navigation device as soon as possible. EPT - this symbol is shown when your device is using EPT to esti- mate your current location. EPT is only used when you have no GPS reception. Note: EPT is not supported on all devices. Sound off - this symbol is shown when the sound is switched off. To switch on the sound, open the preferences menu and tap Turn on sound. For more information, see the Reference Guide. Treviso-UG-LIVE.book Page 15 Wednesday, September 2, 2009 8:31 AMLIVE Services

LIVE Services Regional availability Note: As well as using LIVE services in your own country, you may also be able to use LIVE services when travelling abroad. Not all LIVE services are available in all countries. For more information on available services, go to tom- tom.com/services. Safety Notice Your TomTom navigation device contains a GSM/GPRS module which can interfere with electrical devices such as cardiac pacemak- ers, hearing aids and aviation equipment. Interference with these devices may endan- ger the health or life of others. Do not use near unprotected electrical units nor in areas where the use of mobile tele- phones is prohibited, such as hospitals and airplanes. TomTom HD Traffic HD Traffic is a unique Tom- Tom LIVE Service for receiv- ing up-to-date traffic information. For more infor- mation about services and subscriptions, go to tomtom.com/services. In combination with IQ Routes, HD Traffic helps you plan the best possible route to your destination taking into account the lat- est traffic information. Treviso-UG-LIVE.book Page 16 Wednesday, September 2, 2009 8:31 AMLIVE Services

Using TomTom HD Traffic The traffic sidebar is shown on the right side of the Driving View. It warns you about traf- fic incidents on your planned route. The top of the traffic side- bar represents your desti- nation and shows the total delay time for any inci- dents on your route. The central section of the traffic sidebar shows indi- vidual traffic incidents in the order they occur on your route. The bottom of the traffic sidebar represents your current position and shows the distance to the next incident. Taking the fastest route Your device constantly looks for a faster route to your destination, as the traffic situ- ation changes. If it finds one, it asks you if you want to change to that route. You can set your navigation device to always change to the fastest route without asking you in the Traffic preferences in the Traffic menu. Open the Traffic menu by tap- ping the traffic sidebar. Fuel Prices The Fuel Prices service sends up-to-date informa- tion about fuel prices directly to your device or via TomTom HOME when the device is con- nected to your computer. Treviso-UG-LIVE.book Page 17 Wednesday, September 2, 2009 8:31 AMLIVE Services

Search for the best fuel prices To search for the cheapest fuel prices, do the following. In this example, you plan a route to the cheapest petrol station nearby.

1. Tap the screen to bring up the Main

3. Select the type of fuel used in your vehi-

4. Tap Cheapest nearby, then tap the name

at the top of the list. The location is shown on the map.

You are asked if you want to navigate to the petrol station.

You are asked if you need to arrive at a particular time, if this option is enabled. The route is planned and a summary of the route is shown on the map. TomTom local search with Google Using local search, you can search the Google listings to find shops and businesses, then plan a route to the destina- tion you choose. Using local search To find a location using local search and plan a route there, follow the steps below. In this example, you search for a supermarket near to your current position.

1. Tap the screen to bring up the Main

3. Tap Search near you.

4. Type ’supermarket’ then tap OK.

The locations that match your search are shown in a list. Treviso-UG-LIVE.book Page 18 Wednesday, September 2, 2009 8:31 AMLIVE Services

5. Tap one of the locations in the list.

The location is shown on the map. Tap Details to see more information about this location.

6. Tap Navigate there to plan a route to the

location. Your TomTom GO plans a route to the loca- tion you selected. TomTom Safety Alerts The TomTom Safety Alerts service warns you about a variety of locations includ- ing:

• Safety camera locations.

• Accident blackspot locations.

• Mobile safety camera locations.

• Average speed camera locations.

• Toll road camera locations.

• Traffic light camera locations. Important: Regularly connect your naviga- tion device to TomTom HOME to update the list of locations for all types of safety alerts. The locations of mobile cameras are sent di- rectly to your device. When a safety camera location is shown on the map, a warning sound is played to warn you that you are approaching an area where a safety camera is located. If you discover a location that has a safety camera but you receive no warning, you can report the new location to TomTom using your GO. Treviso-UG-LIVE.book Page 19 Wednesday, September 2, 2009 8:31 AMLIVE Services

Other services The following services are also available on your TomTom GO: TomTom Weather TomTom Weather gives you five-day weather reports for any location on your map. QuickGPSfix

Treviso-UG-LIVE.book Page 34 Wednesday, September 2, 2009 8:53 AMLIVE-services

Treviso-UG-LIVE.book Page 38 Wednesday, September 2, 2009 9:04 AMPour commencer

Treviso-UG-LIVE.book Page 50 Wednesday, September 2, 2009 9:04 AMLIVE Services

Important Safety Notices and Warnings Global Positioning System The Global Positioning System (GPS) is a satellite-based system that provides location and timing information around the globe. GPS is operated and controlled under the sole responsibility of the Government of the United States of America which is responsible for its availability and accuracy. Any changes in GPS availability and accuracy, or in environmental conditions, may impact the operation of your TomTom device. TomTom does not accept any liability for the availability and accuracy of GPS. Use with Care Use of a TomTom device for navigation still means that you need to drive with due care and attention. Aircraft and Hospitals Use of devices with an antenna is prohibited on most aircraft, in many hospitals and in many other locations. A TomTom device must not be used in these environments. Battery This product uses a Lithium-Polymer battery. Do not use it in a humid, wet and/or corrosive environment. Do not put, store or leave your product in or near a heat source, in a high temperature location, in strong direct sunlight, in a microwave oven or in a pressurized container, and do not expose it to temperatures over 60 C (140 F). Failure to follow these guidelines may cause the Lithium-Polymer battery to leak acid, become hot, explode or ignite and cause injury and/or damage. Do not pierce, open or disassemble the battery. If the battery leaks and you come into contact with the leaked fluids, rinse thoroughly with water and seek medical attention immediately. For safety reasons, and to prolong the lifetime of the battery, charging will not occur at low (below 0 C/32 F) or high (over 45 C/113 F) temperatures. Temperatures: Standard operation: -10 C (14 F) to +55 C (131 F); short period storage: -20 C (-4 F) to + 60 C (140 F); long period storage: -20C (-4F) to +25C (77F).

THE LITHIUM-POLYMER BATTERY CONTAINED

IN THE PRODUCT MUST BE RECYCLED OR

DISPOSED OF PROPERLY. USE YOUR TOMTOM

CE Marking This equipment complies with the requirements for CE marking when used in a residential, commercial, vehicular or light industrial environment. R&TTE directive Hereby, TomTom declares that this personal navigation device is in compliance with the essential requirements and other relevant provisions of the EU Directive 1999/5/EC. The declaration of conformity can be found here: www.tomtom.com/legal. WEEE directive This symbol on the product or its packaging indicates that this product shall not be treated as household waste. In line with EU Directive 2002/ 96/EC for waste electrical and electronic equipment (WEEE), this electrical product must not be disposed of as unsorted municipal waste. Please dispose of this product by returning it to the point of sale or to your local municipal collection point for recycling. Connected networks Devices that contain a GSM module are intended for connection to the following networks: GSM/GPRS 900/1800/1900 This Document Great care was taken in preparing this manual. Constant product development may mean that some information is not entirely up to date. The information in this document is subject to change without notice. TomTom shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the performance or use of this material. This document contains information protected by copyright. No part of this document may be photocopied or reproduced in any form without prior written consent from TomTom N.V.
