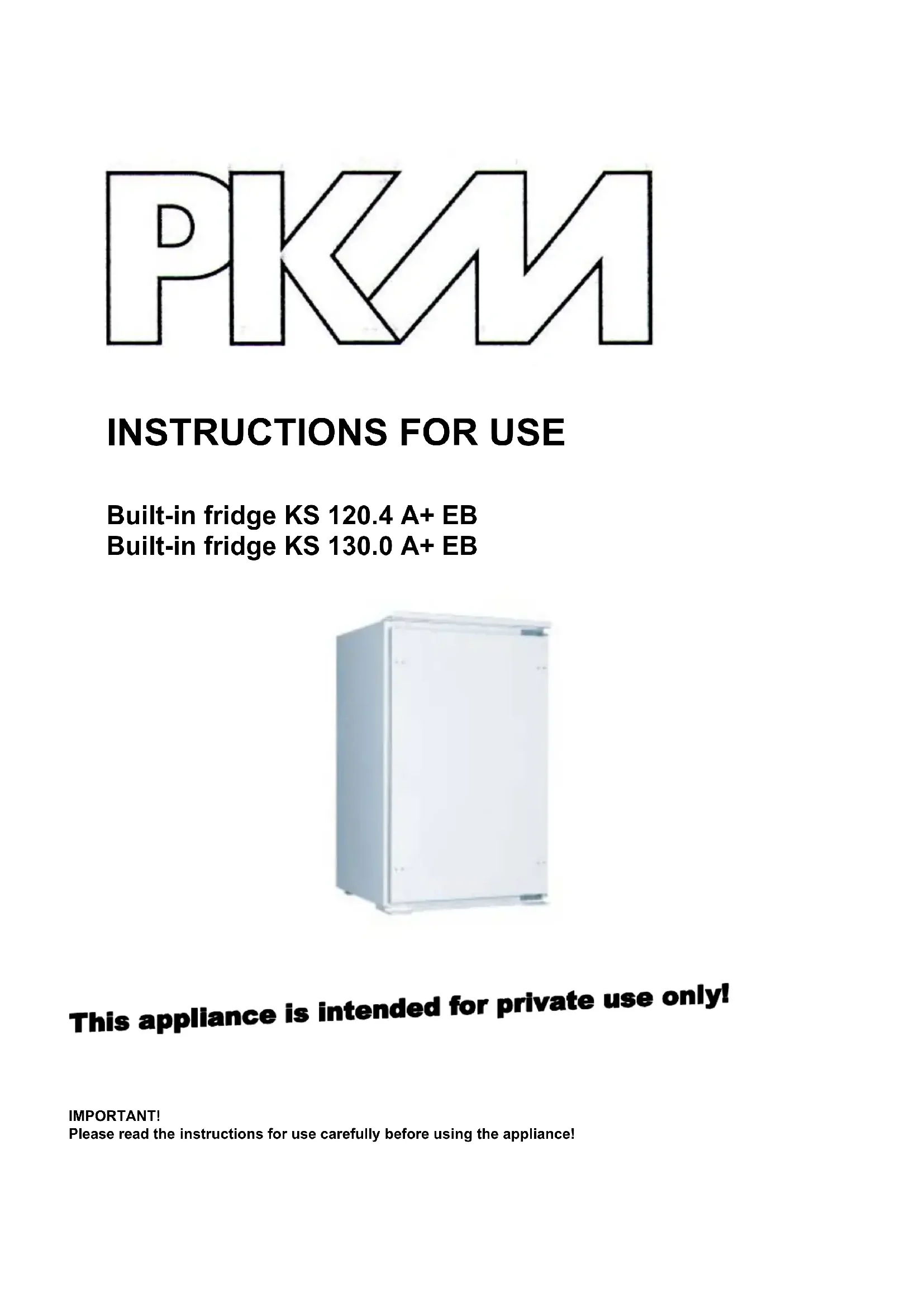

USER MANUAL KS 120.4 PKM
Built-in fridge KS 120.4 A+ EB
Built-in fridge KS 130.0 A+ EB
This appliance is intended for private use only!
Table of contents:
Page 1 Contents
Page 2 Environmental aspects
Page 3 Important notes and information
Page 4 Technical data built-in fridge KS 120.4A+ EB
Page 5 Technical data built-in fridge KS 130.0A+ EB
Page 6 Installation in corners
Page 9 Temperature control
Defrosting/Cleaning
Page 10 Reversing doors
Reversing freezer door (only for KS 120.4A+ EB)
Page 11 Troubleshooting
Page 12 Important supplement to instructions for use
Environmental aspects
PLEASE SUPPORT OUR ENVIRONMENT BY DISPOSING OF YOUR OLD APPLIANCE AND PACKAGING IN ACCORDANCE WITH STATUTORY REQUIREMENTS.
Old appliances are not unusable waste. Many valuable raw materials can be recovered by environmentally-friendly disposal.
Before disposing of your old appliance, it must be rendered unusable!
Pull the plug out of the socket, cut the connecting lead off and dispose of the plug together with the remaining lead in an environmentally-friendly manner!
Any appliances with snap-catch or lock, e.g. dryers, washing machines, etc., should also be rendered unusable prior to disposal, this will prevent small children playing with these and endangering their lives by locking themselves in!
Refrigerators contain refrigerant and gases in their cooling systems and insulation, which must be disposed of in a proper manner. It is important not to damage the cooling fins and tubes prior to proper disposal (refrigerant spillage poses a fire risk).
Packaging materials are not toys for children! The wrapping, boxes and insulating materials can cause suffocation!
The specified valuable materials are environmentally compatible and recyclable.
It also applies here that packaging must be disposed of in an environmentally-friendly manner.
Further information is available from your retailer or appropriate authorities.
Important notes and information
The fridge is intended for domestic use and complies with current requirements and is CFC-free.
This fridge is a climatic class N appliance and is suitable for domestic use and operates reliably at ambient temperatures of 16^ - 32^ .
This appliance contains environmentally-friendly refrigerant Isobutan R600a. This natural gas is environmentally-friendly, however flammable.
It is therefore ABSOLUTELY essential that no refrigerating system parts are damaged during operation or transport.
If part of the system should be damaged, the appliance should be kept away from fire, naked flames and sparks and the customer service centre should be notified.
These instructions for use should be read carefully before using the appliance in order to utilise its full potential.
Keep children away from the appliance!
The mains plug must be disconnected or the appliance isolated from the supply before any work is carried out on the same.
The manufacturer of the product(s) shown on the front page of these instructions for use herewith declares on his sole responsibility that the appliance(s) so far as provided with the CE mark on the appliance nameplate, to which this declaration refers, complies with the pertinent health and safety requirements, applicable EC Directives and relevant documents, in particular the EC Declaration of Conformity correctly issued by the manufacturer or his authorised

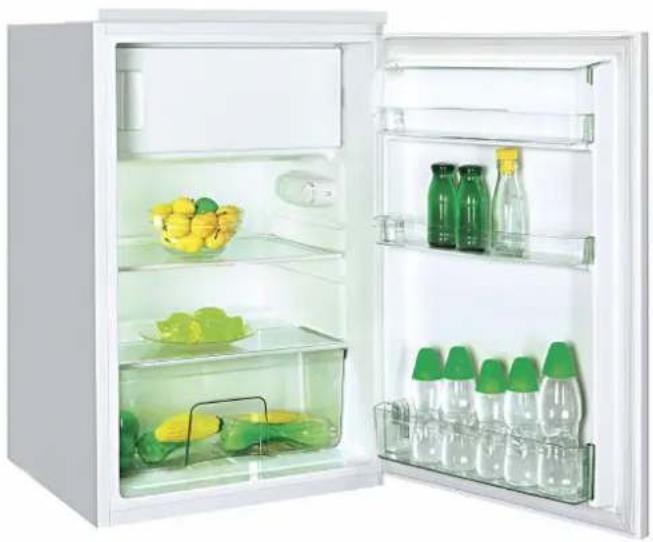

Built-in fridge with 4 star freezer compartment (-18^) climatic class N
Net capacity: 120 litres
Net capacity: 105 litres (of which 15 litres freezer compartment)
Freezer capacity: 2kg / 24h
Energy class: A+
CFC-free (foam + refrigerant = 100%)
Refrigerant R600a/20 g
Reversible doors, right or left
Automatic defrost in freezer manual defrost in freezer
Thermostat control
1 height adjustable glass shelf (unbreakable)
1 unbreakable glass shelf as cover for vegetable compartment
1 vegetable drawer
Door shelves: 1x bottle rack, 2x universal shelves
Interior light
☑ Installed load: 90 W
Operating voltage: 220-240 V ~50 Hz
Sound level: about 39 dB(A)
Dimensions: 88 × 54 × 54 (H × W × D in cm)
- Packaging dimensions: 94 × 57 × 57( H × W × D. in cm)
Net weight: 31 kg
Gross weight: 34 kg

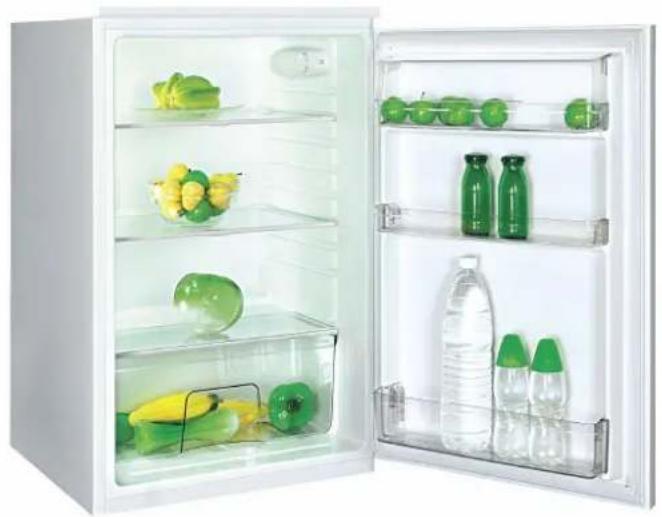

PKM built-in fridge KS 130.0A+ EB
Built-in fridge (climatic class N)
Net capacity: 130 litres
Energy class: A+
CFC-free (foam + refrigerant = 100%)
Refrigerant R600a/15 g
Reversible doors, right or left
Automatic defrost
Thermostat control
2 height adjustable glass shelves (unbreakable)
1 unbreakable glass shelf as cover for vegetable compartment
1 vegetable drawer
Door shelves: 1x bottle rack, 2x universal shelves
Interior light
☑ Installed load: 90 W
Operating voltage: 220-240 V ~50 Hz
Sound level: about 39 dB(A)
Dimensions: 88 × 54 × 54 (H x W x D in cm)
- Packaging dimensions: 94 × 57 × 57( H × W × D in cm )
Net weight: 31 kg
Gross weight: 34 kg
Installation
Before connecting the appliance, a check must be made to ensure that the appliance and mains leads are not damaged through transport.
The plugs of the mains leads must be connected only to a properly earthed socket.
Do not use any extension leads or trailing sockets for 230V/50 Hz mains operation!
Damaged mains leads must be replaced only by a qualified person. Refer other work and repairs ONLY to an authorised TechnikService24-specialist.
Ensure that the fridge stands horizontal on a firm surface to ensure perfect operation. A check can be made by placing a spirit level on top of the appliance.
The fridge should be installed in a dry and well ventilated room. The appliance is not suitable for outdoor use. The appliance must be protected from direct sunlight and should not be installed near to heat sources (oven, radiators, etc.).
To avoid a risk of fire, do not place any electric heating appliances on the fridge. Do not place any kettles on the fridge as spilt boiling liquids can damage the electrical insulation.

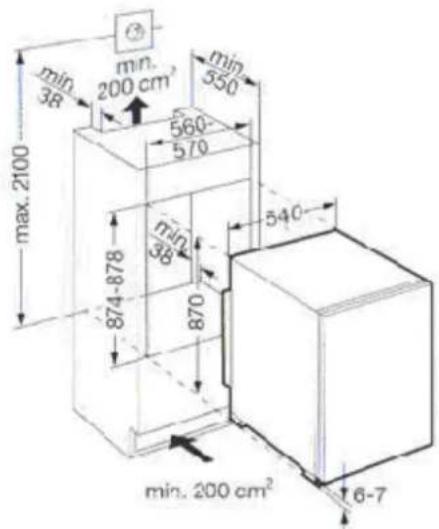

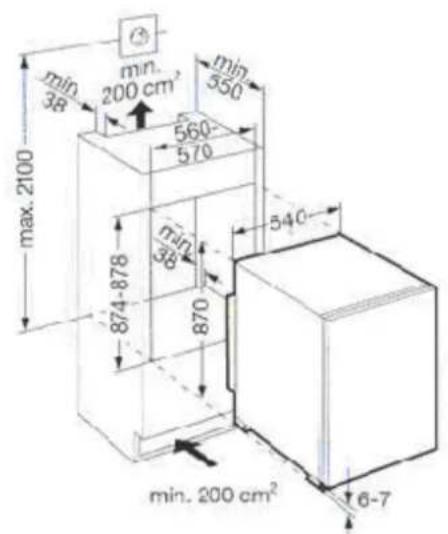

Installation in corners
Push the appliance carefully into the corner and ensure that the fridge stands correctly aligned in the corner.

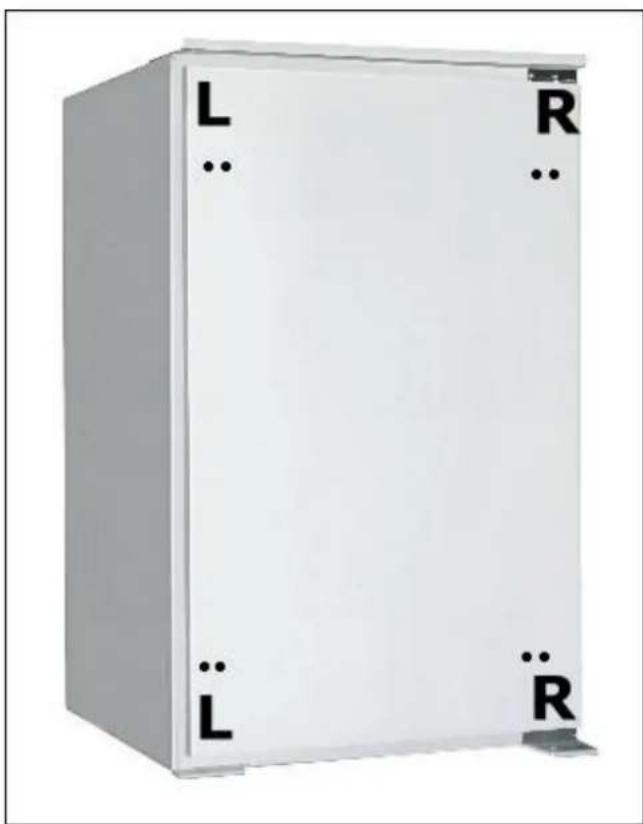

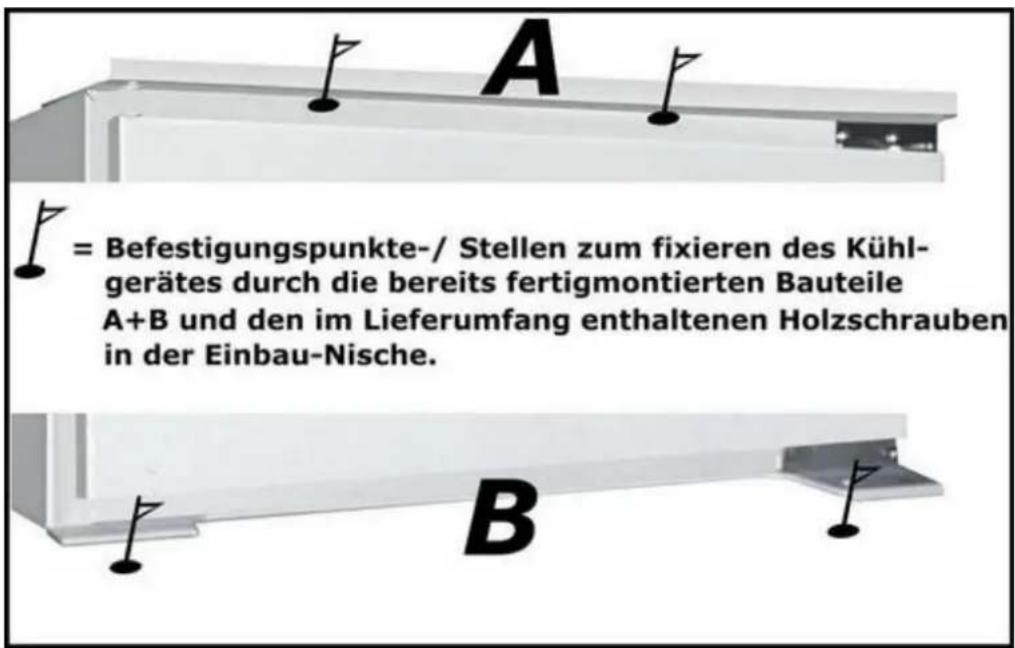

Fix the appliance in position at the designated fixing points using the 4 wooden screws as shown in the diagram below.
= Points of attachment for fixing the fridge using the already fitted components A+B and the supplied wood screws in the installation corner.

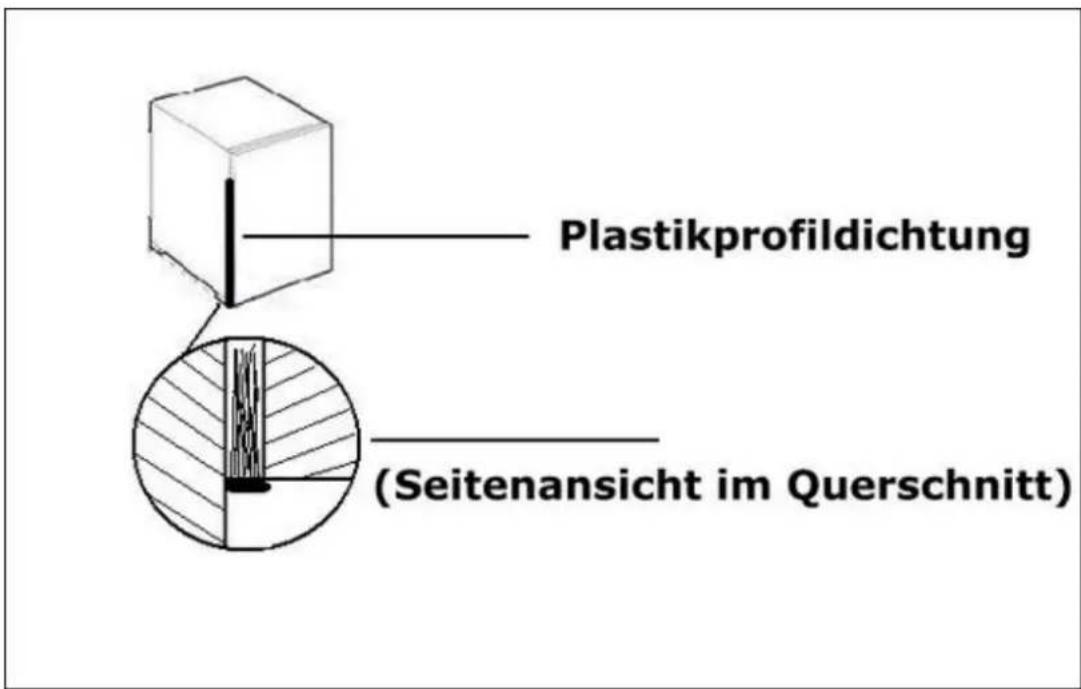

The space between the installation corner and fridge can be compensated by using the plastic profile seal supplied with the fridge.
Plastic profile seal
(Side view in cross-section)
The procedure for fitting the mechanism for opening and closing the door is as follows:

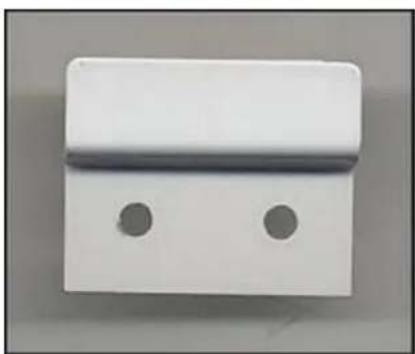

Fix the two small hinges using the supplied screws.
The door can be mounted for left or right opening.

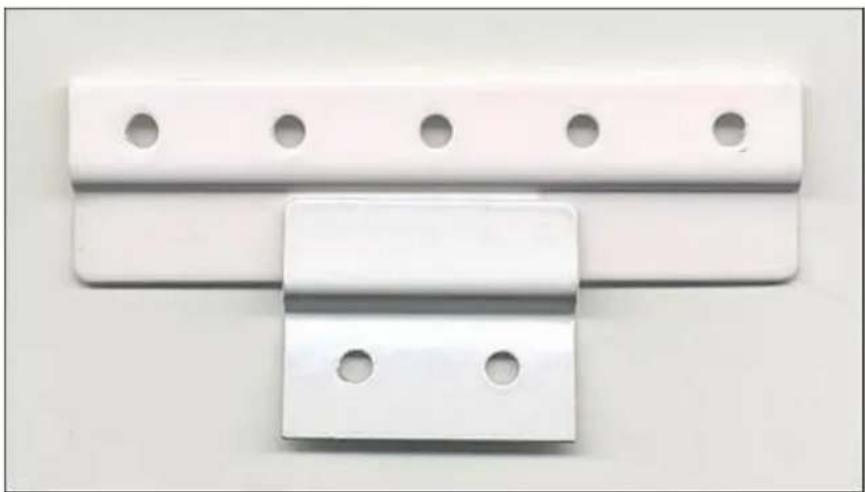

Fix the long hinge to the inside of the cupboard door. Refer to the diagram for the correct size, and fix the hinges as shown.

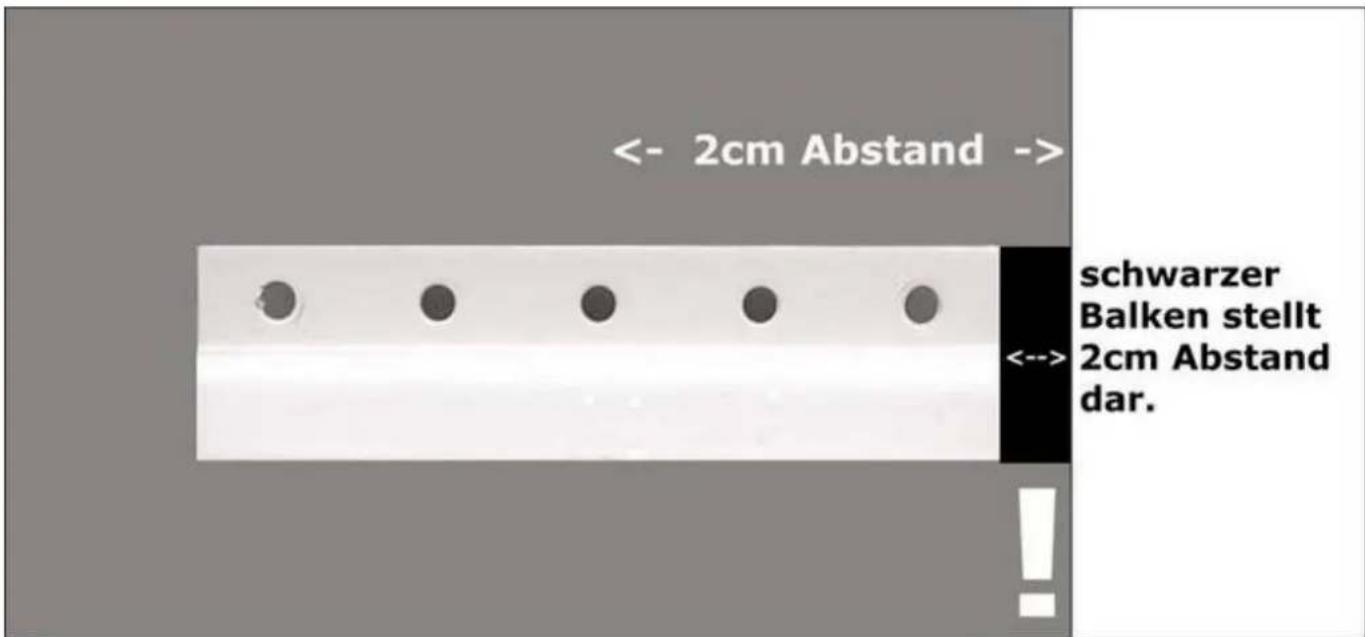

For subsequent alignment, ensure that the outside part of the long hinge is at a distance of about 2 cm from the outside of the cupboard door. Fix the hinge with the supplied screws to complete fitting of the mechanism.
Distance of 2cm
Black bar represents a distance of 2cm
Temperature control
After switching on the fridge, set the thermostat to the normal temperature setting 3. The fridge will reach operating temperature after about 5 hours and is then ready to use.

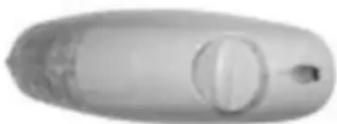

(Fig. Thermostat switch)
If a higher (warmer) temperature is required, set the thermostat switch from 3 to 2 or lower if required.
During the summer months, the thermostat switch should be set from 3 to 4 or higher if required in order to increase the cooling temperature.
If frost should form on the back due to a high thermostat setting, it is recommended to select a lower setting.
Defrosting/Cleaning
The mains plug must disconnected or the appliance isolated from the supply before carrying out any work on the appliance!
DEFROST (automatic) for appliance KS-130.0A+ EB
Defrosting the fridge:
Defrosting the evaporator takes place automatically. The defrost water flows into a container arranged on the compressor.
DEFROST (automatic/manual) for appliance KS-120.4A+ EB
Defrosting the fridge:
Defrosting the evaporator takes place automatically. The defrost water flows into a container arranged on the compressor.
Defrosting the freezer:
Remove all products and place for example in a freezer box.
Switch off the fridge by turning the thermostat control to "0" and subsequently disconnect the mains plug.
Subsequently remove the condensate water in the freezer compartment using a dry and soft cloth.
When the ice in the freezer compartment starts to melt, line the freezer compartment with cloths to absorb the defrost water. Remove any large and small pieces of ice from the freezer compartment and wipe dry with a soft cloth.
DO NOT USE ANY MECHANICAL OBJECTS TO REMOVE ICE.
GENERAL NOTES for cleaning:
When cleaning the fridge:
- Remove all products from the fridge/freezer.
- Switch off the fridge and isolate from the supply.
- Wash out the fridge with warm water or a mild soapy solution. Never clean the appliance with hot water! Do not use abrasive agents or chemicals.
After cleaning the fridge, the doors must remain open for a while for ventilation.
The fridge can subsequently be restarted, see Page 6.
ATTENTION:
Do not refreeze defrosted or slightly defrosted products!

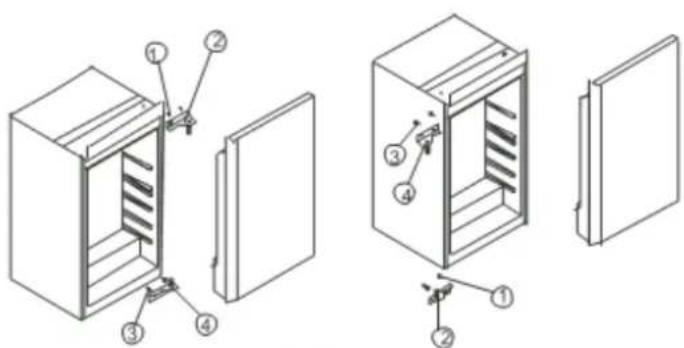

Reversing door
- Loosen and remove the two screws (1 + 2) and subsequently remove the complete top hinge.
- Move the door upwards until it lifts out of the bottom hinge, put the door down carefully.
-
Loosen and remove the screws (3 + 4) from the bottom hinge and remove it from the appliance.
-
Fit the former top hinge at the bottom of the fridge using the two screws and carry out the aforementioned steps in reverse order.
- Finally, check that the door is exactly aligned and closes easily.

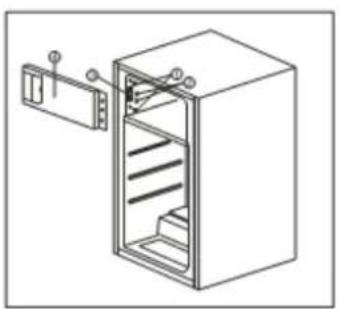

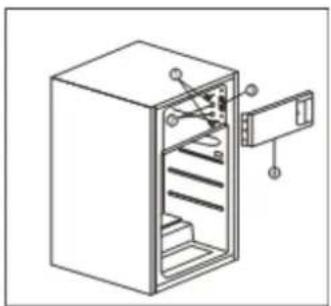

Reversing freezer door (only for appliance KS-120.4A+ EB)
- Loosen and remove the two screws (1) on the left side.
- Remove the 2 screw covers (2) and door closing mechanism (3).
- Remove the freezer door (4) and subsequently refit all parts in reverse order.
Troubleshooting
| Fault | Possible cause and remedy |
| The fridge does not work | - Check whether there is power at the socket;- Plug is not connected, check;- Check house fuse |
| The normal noise when closing the fridge door has changed | - Door seal soiled. Clean door seal with a soft cloth and soapy water. |
| The fridge is loud | - The appliance is not horizontal, align! |
| The interior lighting does not work | - Plug is not connected to socket-outlet;- Check house fuse;- Light bulb faulty, check and replace if necessary. |
If the faults shown in the table cannot be remedied, please contact your authorised customer service centre.
Important supplement to these instructions for use:
Before connecting and using the appliance the following safety information should be observed!
The following checks should be made!
Are all cables or leads leading to the appliance intact?
Are they old and no longer suitable for the appliance rating?
All connections old and new must be checked by a qualified person!
All leads and cables or other energy supplying components (also cables in walls) must be checked by a specialist. All appliance connections must be undertaken by a specialist without exception!
