Product type	Electric cooker
Brand	Gorenje
Model	K66342AW
Colour	White
Power supply	Electric, 230 V, 50 Hz
Total power	Approximately 3.0 kW
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	Approximately 52 kg
Hob type	Ceramic glass hob
Number of cooking zones	Not specified, typically 4
Oven type	Multifunction electric oven
Oven capacity	Approximately 65 L
Programmer	Electronic with touch controls
Cooking functions	Conventional cooking, fan-assisted, grill, etc.
Timer	Yes, with automatic shut-off
Display	LED, adjustable brightness
Audible signal	Yes, adjustable volume
Child safety	Yes, programmer lock
Maintenance and cleaning	Manual cleaning, easy-clean enamel interior
Spare parts available	Yes, via Gorenje after-sales service
Repairability	Repairability index not communicated, typically 7/10
Energy class	A (estimate)

Frequently Asked Questions - K66342AW GORENJE

How to set the clock of the K66342AW oven?

Touch the sensitive key A repeatedly until the icon (4) is selected. Use keys B (minus) and C (plus) to set the time. Confirm by touching key A again.

How to use the cooking timer?

Select icon (1) with key A, set the duration with B and C (max 10 h). Turn on the oven; at the end, a beep sounds and the oven stops automatically.

What to do if the oven does not heat up?

Check that the clock is set (after a power cut, the clock flashes). Ensure that the mode and temperature are selected. If the problem persists, contact after-sales service.

How to activate the child lock?

Touch key A to select icon (5), then press B or C until 'ON' is displayed. Confirm with A. To deactivate, repeat the same procedure until 'OF'.

How to set the end cooking time?

First set the clock. Select icon (2) with A, set the end time with B and C. Turn on the oven; it will stop automatically at the set time.

How to program delayed cooking?

First set the cooking duration (icon 1), then the end time (icon 2). Both icons light up. Turn on the oven; it will start automatically to finish at the chosen time.

How to clean the cooker?

Use a soft cloth with soapy water for the ceramic glass surfaces. For the oven interior, let it cool down then clean with a suitable product. Avoid abrasives.

What to do if the display flashes?

A flashing display often indicates that the clock is not set. Set the time as explained. If the display persists, a brief power cut may be the cause; wait 2 minutes or reset the appliance.

How to cancel all programmer settings?

Touch both B and C keys simultaneously for 3 seconds. All current programs are cancelled and the clock reappears.

How to adjust the volume of the beep?

Ensure no function is active. Touch key B for 3 seconds: a volume indicator appears. Select the level with B (from 'o' to 'oooo') and confirm with A.

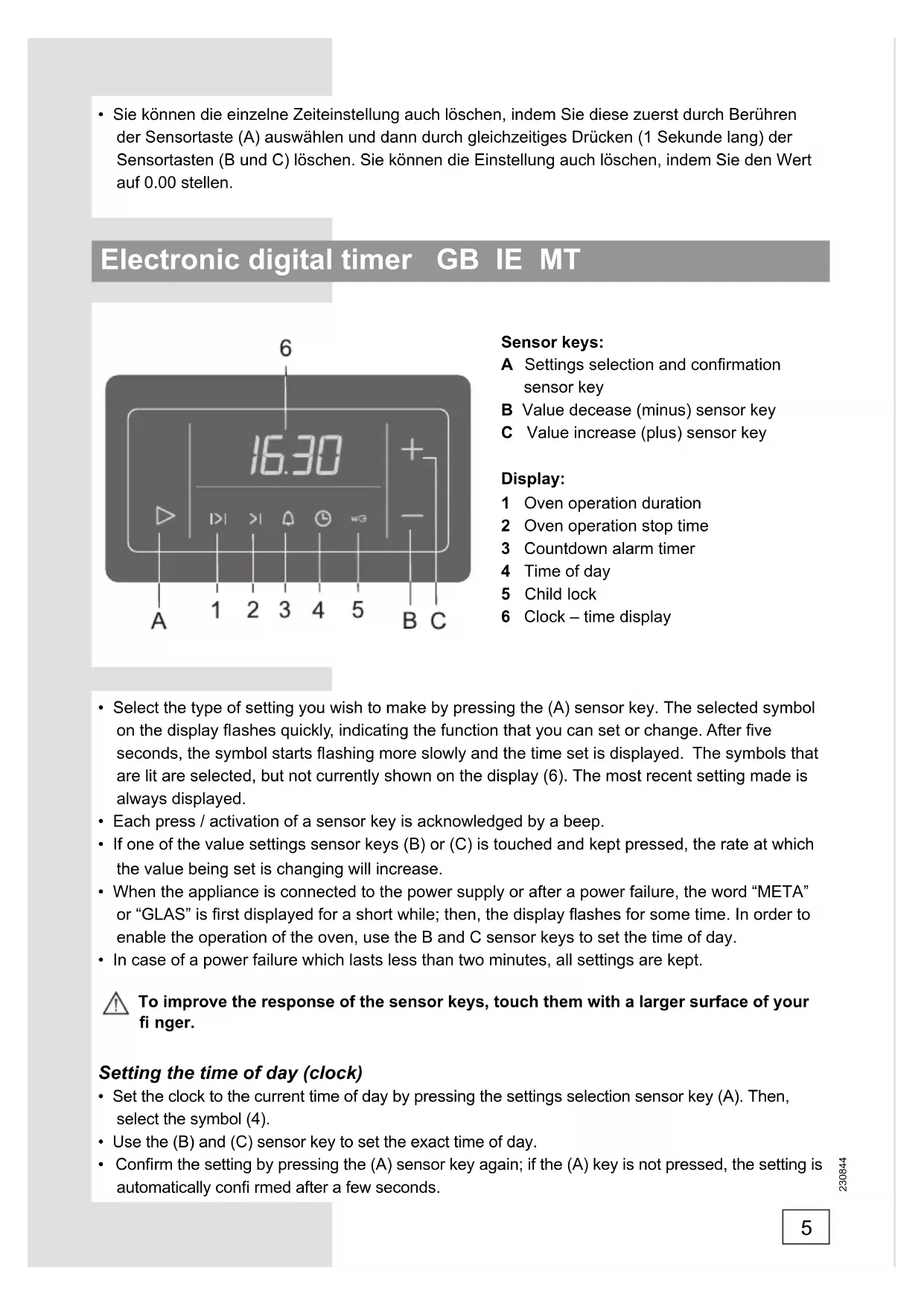

USER MANUAL K66342AW GORENJE

A Settings selection and confirmation sensor key B Value decrease (minus) sensor key C Value increase (plus) sensor key

Display:

1 Oven operation duration 2 Oven operation stop time 3 Countdown alarm timer 4 Time of day 5 Child lock 6 Clock-time display

• Select the type of setting you wish to make by pressing the (A) sensor key. The selected symbol on the display flashes quickly, indicating the function that you can set or change. After five seconds, the symbol starts flashing more slowly and the time set is displayed. The symbols that are lit are selected, but not currently shown on the display (6). The most recent setting made is always displayed. Each press / activation of a sensor key is acknowledged by a beep.
• If one of the value settings sensor keys (B) or (C) is touched and kept pressed, the rate at which the value being set is changing will increase.
• When the appliance is connected to the power supply or after a power failure, the word "META" or "GLAS" is first displayed for a short while; then, the display flashes for some time. In order to enable the operation of the oven, use the B and C sensor keys to set the time of day.
• In case of a power failure which lasts less than two minutes, all settings are kept.

To improve the response of the sensor keys, touch them with a larger surface of your finger.

Setting the time of day (clock)

• Set the clock to the current time of day by pressing the settings selection sensor key (A). Then, select the symbol (4).
• Use the (B) and (C) sensor key to set the exact time of day.
• Confirm the setting by pressing the (A) sensor key again; if the (A) key is not pressed, the setting is automatically confirmed after a few seconds.

The program timer can be used to program the oven operation in three ways:

• Cooking time setting - immediate start of oven operation; after a set period of time, the oven is turned off automatically.
• Cooking end time setting - the time at which oven operation is to end is set.
• Delayed start setting - automatic start and end of oven operation at a selected time.

Setting the cooking time

With this program mode, the duration of oven operation is set (cooking time). Maximum setting allowed is 10 hours.

• Press the (A) sensor key to select the symbol (1). Use the (B) and (C) sensor keys to set the duration / cooking time.
• Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). After the expiration of the set time, the oven will automatically stop operating (end of cooking time). An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.
• The symbol (1) and the sign (_ _ _) will flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the cooking end time

This mode allows you to set the time at which the oven should stop operating. Maximum setting allowed is 10 hours relative to the current time of day.

• Make sure the current time of day is set correctly.
• Use the (A) sensor key and select the symbol (2). The current time of day is indicated on the display. Press the (B) and (C) sensor keys to set the cooking end time.
• Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). The oven starts to operate immediately and stops operation at the set time. An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.
• The symbol (1) and the sign (_ :_ _ will flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the oven delayed start

With this operation mode, two settings have to be made: cooking time (duration of oven operation) and cooking end time (tie at which the operation should stop).

Cooking end time can be delayed by a maximum of 24 hours relative to the current time of day.

• Make sure the current time of day is set correctly.
• First, set the cooking time: Press the (A) sensor key to select the symbol (1). Use the (B) and (C) sensor keys to set the duration / cooking time.
• Then, set the cooking end time: Use the (A) sensor key and select the symbol (2). (A sum of the current time of day and the oven operation time is automatically shown on the display). Press the (B) and (C) sensor keys to set the cooking end time.
• The timer will wait for the start of the cooking - both symbols (1 and 2) are lit.
• Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). At the corresponding time, the oven starts operating automatically (the symbol (2) goes off upon the start of operation), and switches off when the set cooking time has elapsed. An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.
• The symbol (1) and the sign (_ _ _) will flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the alarm timer

The clock can also be used independently of the oven operation, as an alarm timer that sounds an alarm after the expiration of a preset time.

• Use the (A) sensor key to select the symbol (3). Then, use the (B) and (C) sensor keys to set the time before the alarm sounds. Maximum setting allowed is 10 hours.
• When the set time has elapsed, an intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute. The symbol (3) will go off.

The last minute of the timer countdown is displayed in second intervals.

Setting the beep volume (loudness)

The alarm volume can be set when no timer function is activated (only current time of day is displayed).

• Press the (B) sensor key and hold it for approximately three seconds; a volume indicator will appear, and the corresponding sample sound will sound. "ooo" indicates maximum volume, and "o" indicates minimum volume. Use the (B) sensor key to select among the four loudness levels.
• Confirm the selected volume level by pressing the (A) sensor key; if the (A) sensor key is not pressed, the setting will be confirmed and stored automatically after a few seconds.

Setting the child lock

The clock may be locked only after one of the time functions had been previously set (period of operation, end of operation, or alarm). The oven will function normally, but you will not be able to change settings.

Activation: Press the (A) sensor key to select the symbol (5). Use the (B) and (C) sensor keys to activate the child lock; the display will read "ON". Confirm the setting by pressing the (A) sensor key.

Deactivation: Press the (B) or (C) sensor to deactivate the child lock; "OFF" is displayed.

The setting must be confirmed by pressing the (A) sensor key.

Display dimmer

One minute after the appliance is turned off, the display will be dimmed.

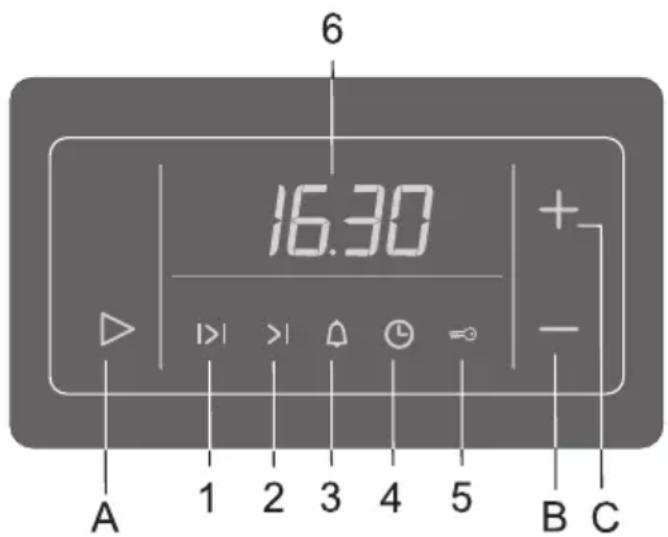

Deleting the timer settings

• All timer settings can be deleted at any time by pressing the (B) and (C) sensor keys simultaneously and holding them for three seconds. The set programs are automatically interrupted and the timer switches to display of the current time of day.
• Any timer setting can also be deleted in the following way: select it using the (A) sensor key, then press the (B) and (C) sensor keys simultaneously. Another way to delete a setting is by setting the timer value to "0.00".

1 Daily operation of the oven 2 Cooking time 3 Time delay for automatic start 4 End time 5 Child safety lock 6 Clock - time display

Set delayed start

Symbol (1) and symbol ( ) are used to understand the display. If you need to repeat the cooking process, press the sensor (A) and set a new time interval.

Setting the oven

The oven can also be used independently of the oven function, as a timer that emits an audible signal after the set time has elapsed.

• Press the sensor (A) and select the symbol (3). Then use the sensors (B) and (C) to set the oven time. The maximum setting is 10 hours. When the set time has elapsed, an audible signal sounds, which can be silenced by pressing any button. If no button is pressed, the audible signal will repeat after one minute. Symbol (3) will flash.

The last minute of the countdown will be indicated by a one-second interval.

Setting the volume of the audible signal

The volume of the audible signal can be set when the timer function is not active (only the current time is displayed).

Setting the child lock

The oven can be locked only after one of the timer functions has been set (cooking time, end of cooking time, or oven function).

The oven will operate normally, but you will not be able to change the settings.

Activation: Press the sensor (A) and select the symbol (5). Use the sensors (B) and (C) to activate the child lock; the display will show "ON". To confirm the setting, press the sensor (A).

Deactivation: To deactivate the child lock, press the sensor (B) or (C); the display will show "OFF".

The setting must be confirmed by pressing the sensor (A).

After a few minutes, the display will turn off.

To cancel the set timer

• All timers will be canceled at any time if you press sensors (B) and (C) simultaneously and hold them for three seconds. The set program is automatically checked and the timer displays only the remaining time.
• Any timer can also be canceled in the following way: select it using sensor (A), then press sensors (B) and (C) simultaneously. To cancel the setting, set the timer to "0.00".

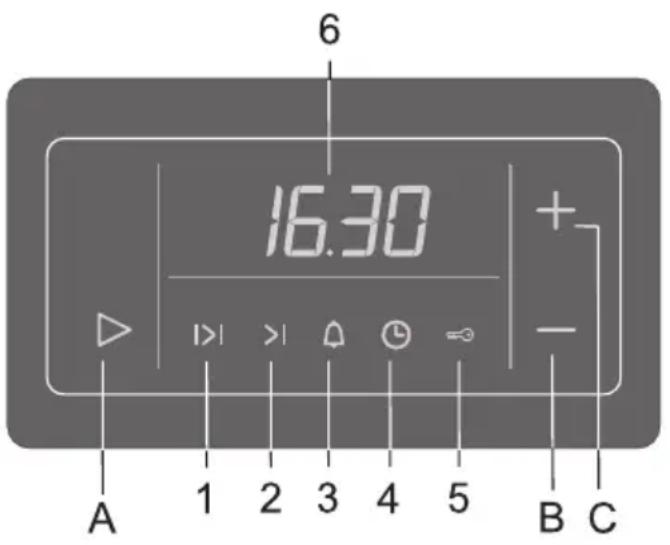

Electric programmer

After the first connection of the appliance to the power supply and in the event of a power outage, it is necessary to set the current time.

Without setting the current time, using the oven is impossible.

Heating elements can operate with the oven door open if the appliance is not equipped with a built-in oven switch. Fire hazard!

Sensors:

A Sensor for selecting and confirming functions, B Sensor "-", C Sensor "+"

Indicators:

1 Cooking duration 2 End of cooking 3 Buzzer (function) 4 Clock 5 Child lock 6 Digital display

- To select the desired function, press sensor A. The selected function symbol will start flashing quickly; now you can set or change the function parameter. After 5 seconds, the symbol will flash more slowly, and the set function time will be displayed on the display. - The backlight indicates that the function is selected, but its time is not shown on the display. The last function you set is displayed. Each press on the sensor is confirmed with a short sound signal. - If sensor "-" or "+" is held, the value will change faster (increase or decrease respectively). - After connecting the oven to the power supply or in the event of a power outage, the display will show the message META or GLAS for a few seconds, then the display will flash for some time. To operate the oven, it is necessary to set the current time using sensors B and C. - If the power outage lasts less than 2 minutes, all programmer settings are retained, and the oven automatically continues operation (if it was on).

For the sensors to work properly when pressed, the surface of the control panel must be clean.

Set the current time

- To set the current time, use sensor A to select the symbol 4. - Use sensors B «-» and C «+» to set the exact time. - Confirm the displayed time by pressing sensor A again; after a few seconds, the setting is saved automatically.

Programming the cooking time

The programmer allows you to program the cooking time in 3 ways:

• Cooking duration: the oven starts working immediately and turns off after the set time.
• Cooking end: the oven turns off at the set time.
• Start delay: at a set time, the oven turns on and off automatically at the time you set.

Cooking duration

The cooking end can be programmed no later than 24 hours from the moment of setting the function!

• Check that the exact time of day is set.
• Set the cooking duration. Use sensor A to select symbol 1. Use sensors B «-» and C «+» to set the cooking duration.
• Set the cooking end. Use sensor A to select symbol 2. The display shows the sum of the current time of day and the cooking duration. Use sensors B «-» and C «+» to set the cooking end time.
• The programmer starts the cooking start. The symbols 1 and 2 light up on the display. Turn on the oven (select the heating mode and temperature). The oven turns on automatically at the set time (symbol 2 flashes) and turns off at the set time. An intermittent sound signal sounds, which can be turned off by pressing any sensor, or after 1 minute the signal turns off automatically. The display shows symbol 1 and the indication «:». If cooking needs to be continued, press sensor A and, if necessary, set a new cooking duration.

Manual mode

You can use the oven without setting functions that program the cooking time. To do this, place the food in the oven, close the door, set the heating mode and temperature, and the oven will start working.

To switch the iron to manual mode after the timer program has finished, press sensor A.

In this mode, the iron will not turn off automatically. Watch the cooking!

Timer

The programmer is equipped with a timer function that signals when the set time has elapsed and does not turn off the iron. The timer can be used independently of the iron's operation.

The maximum time setting is 10 hours!

• Using sensor A, select symbol 3. Use sensors B «—» and C «++» to set the timer time.
• When the set time has elapsed, an intermittent audible signal will sound, which can be turned off by pressing any sensor, or after 1 minute the signal will turn off automatically. Symbol 3 goes out.

During the last minute, seconds are displayed on the display.

Setting the volume of the audible signal

To adjust the volume of the signal, the functions that program the iron's operating time must be turned off. Only the current time is displayed on the display.

• Press and hold sensor B «—» until the symbols «0000» (maximum volume) or «0» (minimum volume) appear on the display and an audible signal sounds. Pressing sensor B «—» adjusts the volume level.
• Confirm the set volume level by pressing sensor A, or after a few seconds the setting will be saved automatically.

Safety lock

The safety lock can be activated only if one of the functions that programs the iron's operating time (cooking duration, cooking end, or timer) is turned on. The iron will continue to work, but it will be impossible to change the settings.

Activation

Press and hold the sensor marked with symbol 5. Using sensor «-» or «+», enable the locked mode. The display will show ON. Confirm the activation by pressing sensor A.

Disabling

Using sensor «-» or «+», disable the locked mode. The display will show OFF. Confirm the disabling by pressing sensor A.

Decreasing display brightness

One minute after the appliance is turned off, the display brightness will decrease.

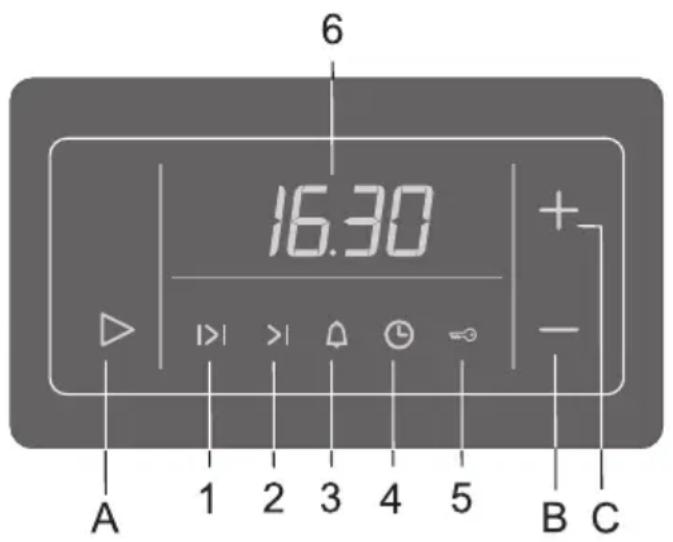

Canceling functions

To cancel all programmer functions, simultaneously press and hold sensors «-» and «+». The execution of the set programs and automatic cooking will stop. The display will show the current time. To cancel an individual function, select that function with sensor A and then simultaneously press and hold sensors «-» and «+». The function can also be canceled by setting the value to «0.00».

Sensors:

A Sensor for selection and confirmation B Sensor for increase (minus) C Sensor for decrease (plus)

Display:

1 Cooking duration 2 End of cooking time 3 Timer with countdown 4 Current time 5 Lock 6 Clock - visual indication of current time

• Select the function you wish to set by touching the sensor (A). The selected symbol will flash on the display, indicating that the function is selected for adjustment. The symbol will flash and the current time will be displayed (b). After the set adjustment, the display will show the new value. Each touch of the sensor is accompanied by a sound.
• If you touch and hold sensors (B) and (C), the speed at which the value changes will increase. When you connect the device to the mains or during a temporary power interruption, the display will show the symbol "META" or "GLAS", after which the appliance will start. To operate with the cooking function, it is necessary to set the current time. Use sensors (B) and (C) to set the clock. In case of a temporary power interruption lasting more than one minute, all settings will be lost.

For the sensors to work properly, touch them with a larger surface of the finger, etc.

Setting the current time (clock)

• Press and hold sensor (A), then select the symbol (4).
• Use sensors (B) and (C) to set the time.
• Confirm the setting by pressing sensor (A) again. If you do not press sensor (A), the setting will be saved automatically after a few seconds.

The device can now be used for programming in three ways:

• Setting the operating time - the burner will start automatically after a delay; setting a period of time after which the burner will stop automatically.
• Setting the end time of operation - setting the hour at which the burner will stop working.
• Delayed start of the burner - automatic start of the burner at a set time.

Setting the operating time (period)

With this setting you set the duration of the burner operation (heating time). The maximum value is 10 hours.

- Press sensor (A) and select symbol (1). Use sensors (B) and (C) to select the duration of the heating time. Turn on the burner (use the corresponding buttons to select the mode and temperature). After the set time has elapsed, the burner will stop automatically (end of heating). A beep will sound to remind you that the burner has stopped; the sound can be turned off by pressing the button or the sensor; if you do not press the sensor, the signal will stop after one minute. - Symbols (1) and (2) will light up. If you want to extend the heating, press sensor (A) and set a new duration, if necessary.

Setting the end time of the burner operation

With this option you can set the hour at which the burner will stop working. The maximum time for selection is 10 hours from the current time.

• Make sure the clock is set to the correct current time.
• Press the sensor (A) and select the symbol (2). The current time is displayed on the screen. Press the sensors (B) and (C) to set the time at which the oven should stop working. Turn on the oven (use the corresponding knobs to select the mode and temperature). The oven will start working immediately and will stop at the set time. This is announced with an audible signal, which can be turned off by pressing the sensor, or it will turn off automatically after one minute. The symbols (1) and (2) will light up. If you wish to continue cooking, press the sensor (A) and set a new duration, if necessary.

Delayed start setting

To use this function, two settings must be made: the cooking time setting and the end of cooking time setting for the oven.

The start of the oven's operation can be delayed by a maximum of 24 hours from the corresponding time at the moment of setting.

• Make sure the timer is set with the correct current time.
• First, set the cooking time: Press the sensor (A) and select the symbol (1). Use (B) and (C) to select the duration - cooking time. After this, set the end time for the oven's operation. Use the sensor (A) and select the symbol (2). The current time is displayed on the screen. Press the sensors (B) and (C) to set the time at which the oven should stop working. The timer will now count down to the oven's activation - both symbols (1 and 2) are lit. Turn on the oven (use the corresponding knobs to select the mode and temperature. At the corresponding time (the timer calculates the hours at which the oven should turn on) the oven turns on automatically (symbol (2) turns off at the moment of

starting) and will stop working at the preset time. This is announced with an audible signal, which can be turned off by pressing the sensor, or it will turn off automatically. The symbols (1) and (2) will light up. If you wish to continue cooking, press the sensor (A) and set a new duration, if necessary.

Kitchen timer setting

The timer can be used independently of the oven's operation, as an alarm that emits an audible signal after a set period of time.

• Use the sensor (A) and select the symbol (3). Then, use the sensors (B) and (C) to select the time period before the alarm is activated. The maximum time is 10 hours. When the set time has elapsed, an audible signal is emitted, which can be turned off by pressing the sensor, or it will turn off automatically after one minute. The symbol (3) disappears from the display.

The last minute of the time interval is displayed in intervals of seconds.

Setting the volume of the audible signal

The volume of the audible signal can be adjusted only when there are other active settings on the timer (only the current time is displayed).

Press sensor (B) and hold for about three seconds. The display will show the sound level indicator and you will hear a test sound signal. "OOOO" indicates maximum sound level, and "O" indicates minimum sound level. Use sensor (B) to select between four sound level levels. Confirm the selected sound level by pressing sensor (A); if you do not press it, the setting will be confirmed automatically after a few seconds.

Lock setting

The timer can be locked only after one of the setting times has been set (duration of the delay, end of delay or alarm). The function will operate normally, but you will not have the ability to change the settings.

Activation: Press sensor (A) and select the symbol (5). Use sensors (B) and (C) to activate the lock, the display will show "ON". Confirm the setting by pressing sensor (A).

Deactivation: Press sensors (B) or (C) to deactivate the lock; the display will show "OFF". Confirm by pressing sensor (A).

Adjusting the brightness of the indicator lights

One minute after the device is switched off, the display will turn off.

Deleting the timer settings

All timer settings can be deleted at any time by pressing sensors (B) and (C) simultaneously and holding for three seconds. All set programs are automatically deleted and the display will show the current time. - Any timer setting can be deleted in the following way: select the setting with sensor (A), then press sensors (B) and (C) simultaneously. Another way to delete a setting is by programming the timer with the value "0.00".
