USER MANUAL CE6VP5 HOTPOINT

Operating Instructions COOKER AND OVEN

Contents

Operating Instructions,1

WARNING,2

Description of the appliance-Overall view,7

Description of the appliance-Control Panel,8

Installation,9

Start-up and use,11

Cooking modes,15

Using the hob,15

Precautions and tips, 16

Care and maintenance, 17

Assistance,17

GR

Ελληνικά

Οδηγίες χρήσης

ΚΟΥΖΙΝΑ ΚΑΙ ΦΟΥΡΝΟΣ

Περιεχόμενα

Οδηγίες χρήσης,1

ΠΡΟΣΟΧΗ,2

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

The internal surfaces of the compartment (where present) may become hot.

Never use steam cleaners or pressure cleaners on the appliance.

Remove any liquid from the lid before opening it.

Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

WARNING: Danger of fire: do not store items on the cooking surfaces.

WARNING: If the surface in glass-ceramic is cracked, switch off the appliance to avoid the possibility of electric shock.

GB Description of the appliance Overall view

1. Glass ceramic hob
2. Control panel
   3.Sliding grill rack
3. DRIPPING pan
4. Adjustable foot
   6.GUIDE RAILS for the sliding racks
   7.position 5
   8.position 4
   9.position 3
   10.position 2
   11.position 1

Description of the appliance Control panel

1. SELECTOR knob
   2.THERMOSTAT knob
   3.THERMOSTAT indicator light
   4.Electronic cooking programmer*
   5.ELECTRIC HOTPLATE indicator light
   6.Electric HOTPLATE control knob

GR

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe installation and operation of the appliance.
! Please keep these operating instructions for future reference. Make sure that the instructions are kept with the appliance if it is sold, given away or moved.
! The appliance must be installed by a qualified professional according to the instructions provided.
! Any necessary adjustment or maintenance must be performed after the appliance has been disconnected from the electricity supply.

Positioning and levelling

! It is possible to install the appliance alongside cupboards whose height does not exceed that of the hob surface.
! Make sure that the wall in contact with the back of the appliance is made from a non-flammable, heat-resistant material (T 90°C).

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit (not in the bathroom).
• If the top of the hob is higher than the cupboards, the appliance must be installed at least 200 mm away from them.

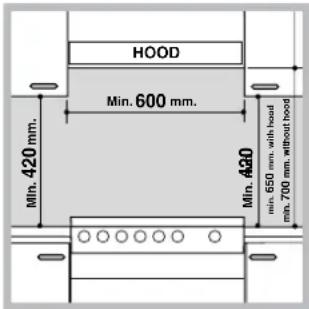

HOOD Min. 600 mm. Min. 420 mm. Min. 420 min. 650 mm, with hood min. 700 mm, without hood

• If the cooker is installed underneath a wall cabinet, there must be a minimum distance of 420 mm between this cabinet and the top of the hob. This distance should be increased to 700 mm if the wall cabinets are flammable (see figure).
• Do not position

blinds behind the cooker or less than 200 mm away from its sides.

- Any hoods must be installed according to the instructions listed in the relevant operating manual.

Simple diagram showing a gray rectangle with a white top and a black arrow pointing to the bottom-right corner (no text or symbols)

Levelling

If it is necessary to level the appliance, screw the adjustable feet* into the places provided on each corner of the base of the cooker (see figure).

Mechanical component diagram showing a cylindrical assembly with an arrow indicating upward motion (no text or symbols)

The legs* provided with the appliance fit into the slots on the underside of the base of the cooker.

Electrical connection

Fitting the power supply cable

Opening the terminal board:

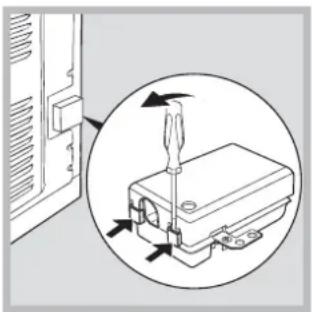

- Using a screwdriver, prise on the side tabs of the terminal board cover;

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction (no text or symbols present)

- Pull open the cover of the terminal board.

To install the cable, proceed as follows:

• unscrew the wire clamp screw and the contact screws
  ! The jumpers are factory-set for a single-phase 230V connection (see figure).

230V \~ H05RR-F 3x4 CEI-UNEL 35363 H05VV-F 3x4 CEI-UNEL 35746

N L 5 3 1 4 2

- to make the electrical connections illustrated in figure, use the two jumpers housed in the box (see figure - reference "P")

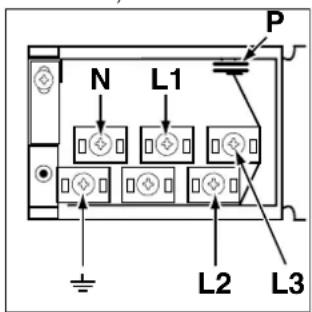

N L1 L2 L3 P

* Only available in certain models.

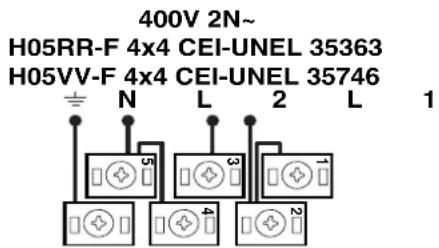

400V 2N~ H05RR-F 4x4 CEI-UNEL 35363 H05VV-F 4x4 CEI-UNEL 35746 ± N L 2 L 1

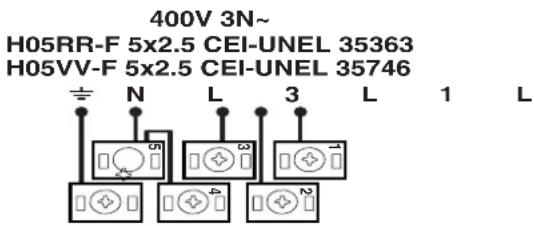

400V 3N~ H05RR-F 5x2.5 CEI-UNEL 35363 H05VV-F 5x2.5 CEI-UNEL 35746

- fasten the supply cable in place with the clamp and close the cover of the terminal board.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate located on the appliance. The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point.

Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated by the data plate.
• The voltage is in the range between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only.
! The manufacturer declines any liability should these safety measures not be observed.

2

TECHNICAL DATA
Oven dimensions (HxWxD)		32x43,5x40 cm
Volume		57 l
Useful measurements relating to the oven compartment		width 42 cm depth 44 cm height 8,5 cm
Power supply voltage and frequency		see data plate
Electric hob
Front left		1700 W
Back left		1200 W
Back right		1700 W
Front right		1200 W
Maximum absorption of the electric hob		5800 W
ENERGY LABEL		Directive 2002/40/EC on the label of electric ovens. Standard EN 50304Energy consumption for Natural convection – heating mode:Traditional mode;Declared energy consumption for Forced convection Class – heating mode:Baking mode.
		EC Directives: 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments - 2002/96/EC.

Data plate, is located inside the flap or, after the oven compartment has been opened, on the left-hand wall inside the oven.

! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away.
! Before operating the product, remove all plastic film from the sides of the appliance.
! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged.

Starting the oven

1. Select the desired cooking mode by turning the SELECTOR knob.
2. Select the recommended temperature for the cooking mode or the desired temperature by turning the THERMOSTAT knob.

A list detailing cooking modes and suggested cooking temperatures can be found in the relevant table (see Oven cooking advice table).

During cooking it is always possible to:

• Change the cooking mode by turning the SELECTOR knob.
• Change the temperature by turning the THERMOSTAT knob.
• Set the total cooking time and the cooking end time (see below).
• Stop cooking by turning the SELECTOR knob to the "0" position.

! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged. Only use position 1 in the oven when cooking with the rotisserie spit.

! Always place cookware on the rack(s) provided.

THERMOSTAT indicator light

When this is illuminated, the oven is generating heat. It switches off when the inside of the oven reaches the selected temperature. At this point the light illuminates and switches off alternately, indicating that the thermostat is working and is maintaining the temperature at a constant level.

Oven light

This is switched on by turning the SELECTOR knob to any position other than "0". It remains lit as long as the oven is operating. By selecting 📁 with the knob, the light is switched on without any of the heating elements being activated.

Cooling ventilation

In order to cool down the external temperature of the oven, some models are fitted with a cooling fan that blows out air between the control panel and the oven door.

! Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently.

Door lock device

Some models are equipped with a "door lock" device situated between the control panel and the oven door. To open the door, push down device "A" indicated in the figure.

3D mechanical component diagram showing a curved pipe with labeled points A and an arrow indicating direction (no text or symbols beyond labels)

Cooking modes

! A temperature value can be set for all cooking modes between 50°C and Max, except for

- BARBECUE (recommended: set only to MAX power level);

• GRATIN (recommended: do not exceed 200°C).

TRADITIONAL OVEN mode

Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only: if more than one rack is used, the heat distribution will be uneven.

BAKING mode

The rear heating element and the fan come on, guaranteeing the distribution of heat delicately and uniformly throughout the oven. This mode is ideal for baking and cooking temperature sensitive foods such as cakes that need to rise and to prepare certain tartlets on 3 shelves simultaneously.

FAST COOKING mode

The heating elements and the fan come on, guaranteeing the distribution of heat consistently and uniformly throughout the oven.

Pre-heating is not necessary for this cooking mode. This mode is especially recommended for cooking pre-packed food quickly (frozen or pre-cooked). The best results are obtained if you use one cooking rack only.

MULTI-COOKING mode

All the heating elements (top, bottom and circular), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time.

PIZZA mode

The heating elements (bottom and circular) and the fan come on. This combination heats the oven rapidly by producing a considerable amount of heat, particularly from the bottom element. If you use more than one rack simultaneously, switch the position of the dishes

* Only available in certain models.

halfway through the cooking process.

BARBECUE mode

The top heating element and the rotisserie (where present) come on. The high and direct temperature of the grill is recommended for food that requires high surface temperature. Always cook in this mode with the oven door closed.

GRATIN mode

The top heating element as well as the fan and the rotisserie (where present) come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven.

This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed.

Electronic timer\*

This function displays the time and works as a timer which counts down to zero.

! All functions will be implemented approximately 7 seconds after they have been set.

Resetting the clock

After the appliance has been connected to the power supply, or after a power cut, the clock display will begin to blink, showing the figure: 0:00

- Press button ⬤ and then buttons - and + to set the exact time. Press and hold the buttons to quicken the count upwards.

Any necessary modifications can be made by repeating the above process.

Timer feature

This function may be accessed by pressing the

button, after which the display will show the symbol ▲. Every time the + button is pressed it corresponds to a time increase of 10 seconds, until it reaches 99 minutes and 50 seconds. After this point, each press of the button represents an increase of one minute, up to a maximum of 10 hours.

Pressing the - button reduces the time.

After the time period has been set, the timer will begin to count down. When the timer reaches zero, the

buzzer will sound (this may be stopped by pressing any button).

The time may be displayed by pressing the ⏻ button, and the ⚠ symbol indicates that the timer function has been set. After approximately 7 seconds, the display will automatically revert to the timer.

Cancelling a time that has already been set

Press the — button until the display shows 0:00.

Adjusting the buzzer volume

After selecting and confirming the clock settings, use the — button to adjust the volume of the alarm buzzer.

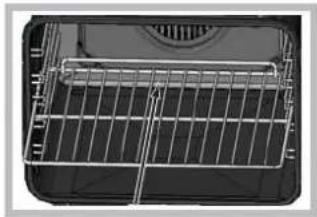

Interior view of an oven with metal grating and ventilation grille (no text or symbols visible)

! When inserting the shelf make sure the backstop is at the rear of the cavity (see image).

Practical cooking advice

! Do not place racks in position 1 and 5 during fan-assisted cooking. Excessive direct heat can burn temperature sensitive foods.

! In the BARBECUE and GRATIN cooking modes, particularly when using the rotisserie, place the dripping pan in position 1 to collect cooking residues (fat and/or grease).

MULTI-COOKING

• Use position 2 and 4, placing the food that requires more heat on 2.
• Place the dripping pan on the bottom and the rack on top.

BARBECUE

• Insert the rack in position 3 or 4. Place the food in the centre of the rack.
• We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on.

PIZZA MODE

• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).
• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.
• The Extra deep Tray should be positioned on the third runner from the bottom, when using the "static/traditional oven" or the "lower heating element function" (where present).

Oven cooking advice table

Cooking modes	Foods Weight	(in kg)	Rack Position	Pre-heating time (minutes)	Recommended temperature	Cooking time (minutes)
Traditional Oven	Duck	1	3	15	200	65-75
	Roast veal or beef	1	3	15	200	70-75
	Pork roast	1	3	15	200	70-80
	Biscuits (short pastry)	-	3	15	180	15-20
	Tarts	1	3	15	180	30-35
Baking Mode	Tarts	0.5	3	15	180	20-30
	Fruit cakes	1	2 or 3	15	180	40-45
	Plum cake	0.7	3	15	180	40-50
	Sponge cake	0.5	3	15	160	25-30
	Stuffed pancakes (on 2 racks)	1.2	2 and 4	15	200	30-35
	Small cakes (on 2 racks)	0.6	2 and 4	15	190	20-25
	Cheese puffs (on 2 racks)	0.4	2 and 4	15	210	15-20
	Cream puffs (on 3 racks)	0.7	1 and 3 and 5	15	180	20-25
	Biscuits (on 3 racks)	0.7	1 and 3 and 5	15	180	20-25
	Meringues (on 3 racks)	0.5	1 and 3 and 5	15	90	180
Fast cooking	Frozen food
	Pizza	0.3	2	-	250	12
	Courgette and prawn pie	0.4	2	-	200	20
	Country style spinach pie	0.5	2	-	220	30-35
	Turnovers	0.3	2	-	200	25
	Lasagne	0.5	2	-	200	35
	Golden Rolls	0.4	2	-	180	25-30
	Chicken morsels	0.4	2	-	220	15-20
	Pre-cooked food
	Golden chicken wings 0.4 2 - 200 20-25
	Fresh Food
	Biscuits (short pastry)	0.3	2	-	200	15-18
	Plum cake	0.6	2	-	180	45
	Cheese puffs	0.2	2	-	210	10-12
Multi-cooking	Pizza (on 2 racks)	1	2 and 4	15	230	15-20
	Lasagne	1	3	10	180	30-35
	Lamb	1	2	10	180	40-45
	Roast chicken + potatoes	1+1	2 and 4	15	200	60-70
	Mackerel	1	2	10	180	30-35
	Plum cake	1	2	10	170	40-50
	Cream puffs (on 2 racks)	0.5	2 and 4	10	190	20-25
	Biscuits (on 2 racks)	0.5	2 and 4	10	180	10-15
	Sponge cake (on 1 rack)	0.5	2	10	170	15-20
	Sponge cake (on 2 racks)	1	2 and 4	10	170	20-25
	Savoury pies	1.5	3	15	200	25-30
Pizza Mode	Pizza	0.5	3	15	220	15-20
	Roast veal or beef	1	2	10	220	25-30
	Chicken	1	2 or 3	10	180	60-70
Barbecue	Soles and cuttlefish	0.7	4	-	Max	10-12
	Squid and prawn kebabs	0.6	4	-	Max	8-10
	Cuttlefish	0.6	4	-	Max	10-15
	Cod filet	0.8	4	-	Max	10-15
	Grilled vegetables	0.4	3 or 4	-	Max	15-20
	Veal steak	0.8	4	-	Max	15-20
	Sausages	0.6	4	-	Max	15-20
	Hamburgers	0.6	4	-	Max	10-12
	Mackerels	1	4	-	Max	15-20
	Toasted sandwiches (or toast)	4 and 6	4	-	Max	3-5
Gratin	Grilled chicken	1.5	2	10	200	55-60
	Cuttlefish	1.5	2	10	200	30-35

! The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.

Cooking zones

The hob is equipped with electric radiant heating elements. When they are in use the following items on the hob become red.

Symmetrical abstract diagram with four concentric circles and labeled points A, B, C (no text or symbols beyond labels)

A. Radiant heating

zones

B. Extendable

cooking zones

C. The residual heat

indicator light: this indicates

that the temperature of the corresponding cooking zone is greater than 60^ C, even when the heating element has been switched off but is still hot.

Switching the cooking zones on and off

Traditional cooking zones

Traditional cooking zones are made up of circular heating elements. They turn red approximately ten seconds after they have been turned on.

Each cooking zone is fitted with a control knob allowing you to select from 12 different temperature settings from a minimum of 1 to a maximum of 12.

Extendable cooking zones

The extendable radiant elements (B) are recognisable by the fact that they have a double heating zone. You can turn on only the smaller internal cooking zone or both the external and internal zones.

The control knob allows you to choose between two power levels, which are both adjustable between a minimum value of 1 to a maximum of 12:

• The lowest power level can be set by turning the knob clockwise from 1 to 12.
• Turn the knob to completely (●) until you hear a slight click, to enable the maximum power level, which in turn can be adjusted between 12 and 1 by turning the knob anticlockwise. To restore the minimum power level, turn the knob and set it back to position 0.

For double cooking zones, the first part of the knob movement activates the smaller cooking zone (internal). To activate both (internal and external), it is necessary to turn the knob completely (●) and then select the desired power level between 12 and 1.

Practical advice on using the hob

To obtain the best results with your hob:

Three diagrams showing cross-shaped symbols on a horizontal line, with no text or labels present.

• Use pans with a thick, flat base to ensure that they adhere perfectly to the cooking zone.
• Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the heat produced.
• Always make sure that the base of the pan is completely clean and dry: this ensures that the pans adhere perfectly to the cooking zones and that both the pans and the hob last for a longer period of time.
• Avoid using the same cookware that is used on gas burners: the heat concentration on gas burners may have warped the base of the pan, causing it not to adhere to the surface correctly.
• Never leave a cooking zone switched on without a pan on top of it, as doing so may cause the zone to become damaged.

Pos.	Radiant hotplate
0	Off
1	Melting butter and chocolate
2	Heating liquids
3
4	Soups and sauces
5
6	Cooking at boiling point
7
8	Pan-roasting
9
10	Boiling large quantities
11
12	Frying
◎	Activation of both cooking zones

! This appliance has been designed and manufactured in compliance with international safety standards.

The following warnings are provided for safety reasons and must be read carefully.

General safety

• These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.
• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet.
• The instruction booklet accompanies a class 1 (insulated) or class 2 - subclass 1 (recessed between 2 cupboards) appliance.
• When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away.
• Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
• The openings used for the ventilation and dispersion of heat must never be covered.
• Do not place unstable or misshapen pans on the electric hotplates; this will help to avoid spills. Position them on the hob with the handles turned towards the centre of the appliance.
• Always use oven gloves when placing cookware in the oven or when removing it.
• Do not use flammable liquids (alcohol, petrol, etc...) near the appliance while it is in use.
• Do not place flammable material in the lower storage compartment or in the oven itself. If the appliance is switched on accidentally, it could catch fire.
• Always make sure the knobs are in the '0' position when the appliance is not in use.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• If the appliance breaks down, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact Assistance.

• Do not rest heavy objects on the open oven door.
• The internal surfaces of the compartment (where present) may become hot.
• Do not let children play with the appliance.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.
  Exhausted appliances may be collected by the public waste collection service, taken to suitable collection areas in the area or, if permitted by current national legislation, they may be returned to the dealers as part of an exchange deal for a new equivalent product.
  All major manufacturers of household appliances participate in the creation and organisation of systems for the collection and disposal of old and disused appliances.

Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning.
• Always keep the oven door closed when using the BARBECUE and GRATIN modes: to attain best results and to save energy (approximately 10%).
• Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding heat dispersion.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.
! Never use steam cleaners or pressure cleaners on the appliance.

• Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.
• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.
• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.
• The accessories can be washed like everyday crockery, and are even dishwasher safe.
• Dirt and grease should be removed from the control panel using a non-abrasive sponge or a soft cloth.
• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse well and dry thoroughly. Any remaining drops of water should also be dried.

Inspecting the oven seals

Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest After-sales Service Centre. We recommend that the oven is not used until the seals have been replaced.

Replacing the oven light bulb

Pure technical line drawing of a mechanical component with no text or symbols

1. After disconnecting the oven from the electricity mains, remove the glass lid covering the lamp socket (see figure).

2. Remove the light bulb and replace it with a similar one: voltage 230 V, wattage 25 W, cap E 14.

3. Replace the lid and reconnect the oven to the electricity supply.

! Do not use the oven lamp as/for ambient lighting

Cleaning the glass ceramic hob

! Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen roll.
• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly.
• To remove more stubborn dirt, use a suitable scraper (this is not supplied with the appliance). Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can obtain excellent results by using a rustproof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.
• If plastic or sugary substances have accidentally been melted on the hob, remove them immediately with the scraper, while the surface is still hot.
• Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance should be carried out while the appliance is warm (not hot) or cold.
• Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes.

Assistance

Please have the following information to hand:

• The appliance model (Mod.).
• The serial number (S/N).

This information can be found on the data plate located on the appliance and/or on the packaging.

Glass ceramic hob cleaners	Available from
Window scraper Razor blade scrapers	DIY Stores
Replacement blades DIY Stores	supermarkets, chemists
COLLO lunetaHOB BRITEHob CleanSWISSCLEANER	Boots, Co-op stores, department stores, Regional Electricity Company shops, supermarkets

GR

Simple diagram showing a cylindrical object with a curved arrow and an upward arrow, next to a gray rectangular area (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with an arrow indicating rotation (no text or symbols)

Οριζοντίωση

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction (no text or symbols present)

3D rendered mechanical component with arrows and label 'A' (no readable text or symbols)

Interior view of a microwave oven with metal grating and ventilation grille (no text or symbols visible)

Three diagrams showing crossed-out electrical symbols on a surface, no text or labels present

Pure technical line drawing of a mechanical component with no text or symbols

εικόνα).

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible

Mechanical component diagram showing a cylindrical assembly with an arrow indicating upward motion (no text or symbols)

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction (no text or symbols present)

3D rendered mechanical component with labeled points A and an arrow indicating direction (no text or symbols beyond labels)

Interior view of a microwave oven with metal grating and ventilation grille (no text or symbols visible)

Symmetrical abstract diagram with four concentric circles and labeled points A, B, C (no text or symbols beyond labels)

Three diagrams showing crossed-out electrical symbols on a surface, no text or labels present

Pure technical line drawing of two circular components with diagonal lines, no text or symbols present

Pure diagram of a mechanical component with no text, numbers, or symbols

Mechanical component diagram showing a cylindrical assembly with a directional arrow indicating motion (no text or symbols)

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction of movement (no text or symbols present)

3D rendered mechanical part with arrows indicating direction and point A (no text or symbols)

Interior view of an oven with metal grating and ventilation grille (no text or symbols visible)

Three schematic diagrams showing crossed-out electrical or mechanical components with no text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Mechanical component diagram showing a cylindrical assembly with an upward arrow indicating motion (no text or symbols)

Diagram showing a screwdriver inserted into a device component, with arrows indicating direction of movement (no text or symbols present)

3D mechanical component diagram showing a curved surface with labeled feature A and directional arrows (no text or symbols beyond labels)

Interior view of an oven with metal grating and ventilation grille (no text or symbols visible)

Pure diagram of four circular shapes labeled A, B, and C with a small symbol inside, no text or symbols present.

A. Kookzone met

stralingselementen.

B. Verlengbare

straalelementen

Pure technical diagram showing two circular components with a pointer arrow, no text or symbols present
