Product Type	Range Hood
Brand	TURBOAIR
Model	Ticino
Use	Domestic
Version	External evacuation or internal recirculation
Minimum safety distance (electric hob)	50 cm
Minimum safety distance (gas hob)	70 cm
Lighting	E14 40W max lamp or G4 12V 20W max halogen (depending on model)
Grease filter	Metallic, washable
Grease filter cleaning	Monthly (dishwasher or manual)
Activated carbon filter	Optional for recirculation version
Charcoal filter replacement	Every 4 months maximum
Suction speeds	Adjustable
Control	Control panel
Electrical connection	Wall socket or circuit breaker
Supply voltage	220-240 V
Safety	Disconnect before maintenance, do not use open flames
Installation	By a qualified technician
Maintenance	Regular cleaning with neutral detergent
Recycling	Compliant with WEEE directive

Frequently Asked Questions - Ticino TURBOAIR

What is the minimum distance between the hood and the cooking surface?

For electric hobs, the minimum distance is 50 cm. For gas or mixed hobs, it is 70 cm. Always follow the instructions of the hob manufacturer.

How to clean the grease filter?

The metal grease filter is cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher at low temperature and quick cycle. Dishwashing may discolor the filter but does not affect its performance.

When should the activated carbon filter be replaced?

The activated carbon filter must be replaced at most every 4 months, especially to maintain deodorizing efficiency. It cannot be cleaned or regenerated.

How to replace the hood bulb?

Unplug the hood. Wait for lamps to cool. Depending on model, remove the lamp cover with a flat screwdriver. Replace with a lamp of the same type: 40W max (E14) or halogen 12V 20W (G4). Do not touch bulbs with hands.

Can I use the hood without a filter?

No, the hood must never be used without the grease filter properly installed. This presents a fire risk and damages the appliance.

Can the hood be used in recirculation mode?

Yes, the hood can operate in recirculation mode. You must then install an activated carbon filter (sold separately). The degreased and deodorized air is blown back into the room.

What to do if the lighting does not work?

First check that the bulbs are correctly inserted into their sockets. If they are defective, replace them with bulbs of the same type. If the problem persists, contact after-sales service.

Is it possible to install the hood yourself?

Installation must be carried out by a qualified technician to ensure electrical safety and the stability of the hood. Walls/ceilings must support its weight.

How to avoid fire risks?

Never flambé food under the hood, avoid open flames, monitor deep-frying, and clean the hood and filters regularly (at least once a month) to prevent grease buildup.

What does the recycling symbol on the appliance mean?

The symbol indicates that the appliance must not be disposed of with household waste. It must be taken to a collection center for recycling of electrical and electronic equipment (WEEE), in accordance with European Directive 2002/96/EC.

USER MANUAL Ticino TURBOAIR

EN Instruction on mounting and use

Technical diagram illustrating a 3D printing or casting process with labeled components and dimension annotations

1 x Ø8mm ≥ 70 cm ≥ 50 cm 2

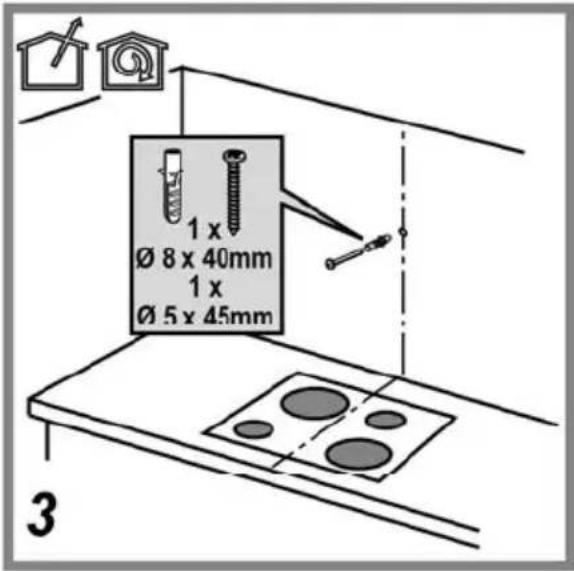

1 x Ø 8 x 40mm 1 x Ø 5 x 45mm 3

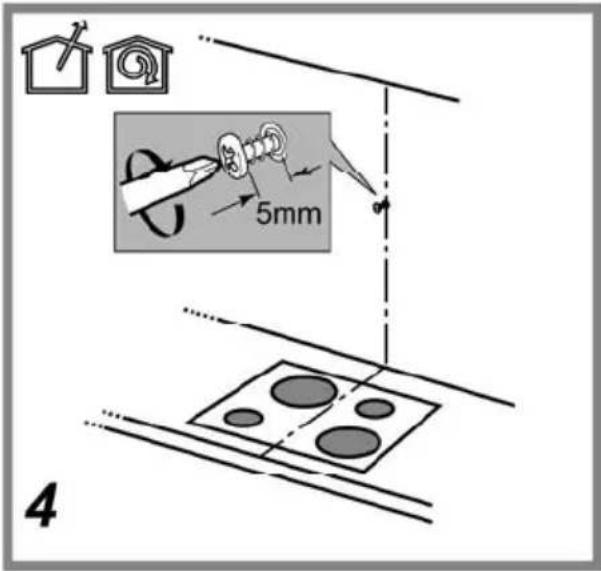

5mm 4

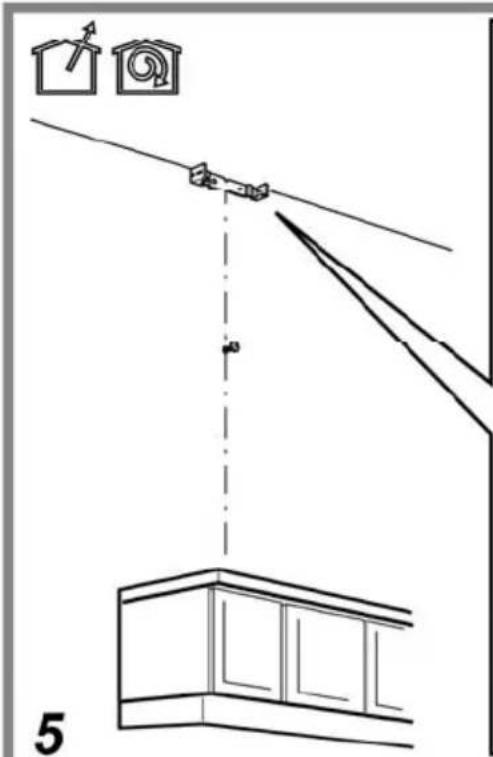

5

2 x Ø 8mm Ø 8 x 40mm 2 x Ø 5 x 45mm

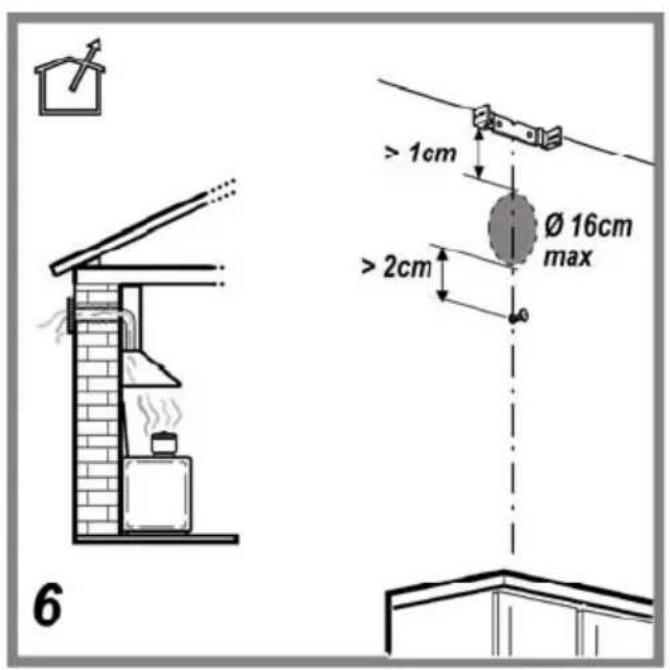

6 > 1cm Ø 16cm max > 2cm

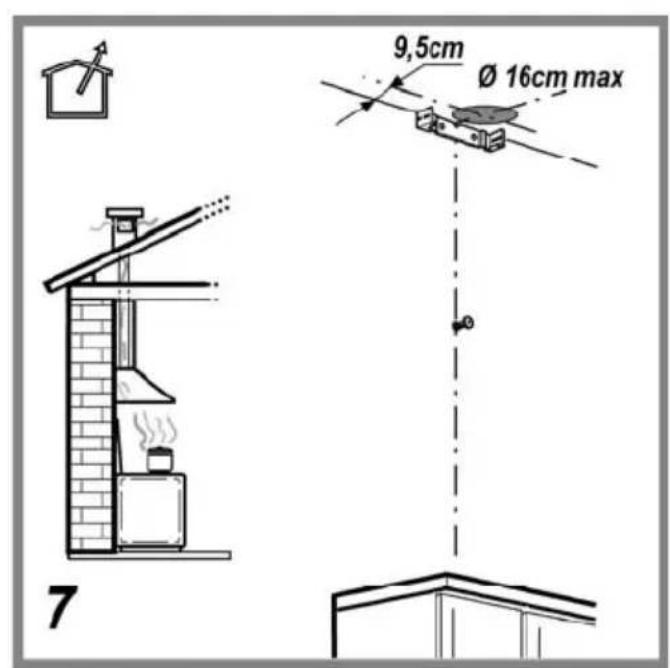

9,5cm Ø 16cm max 7

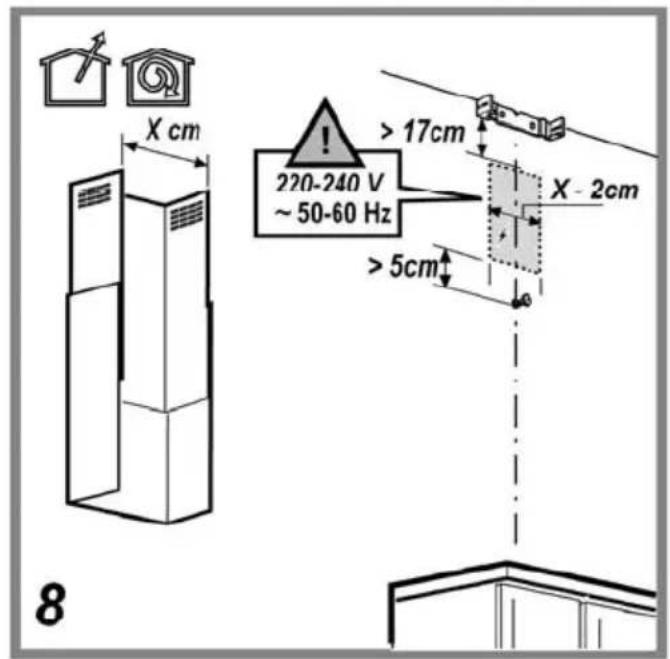

X cm 220-240 V ~ 50-60 Hz > 17cm > 5cm X - 2cm 8

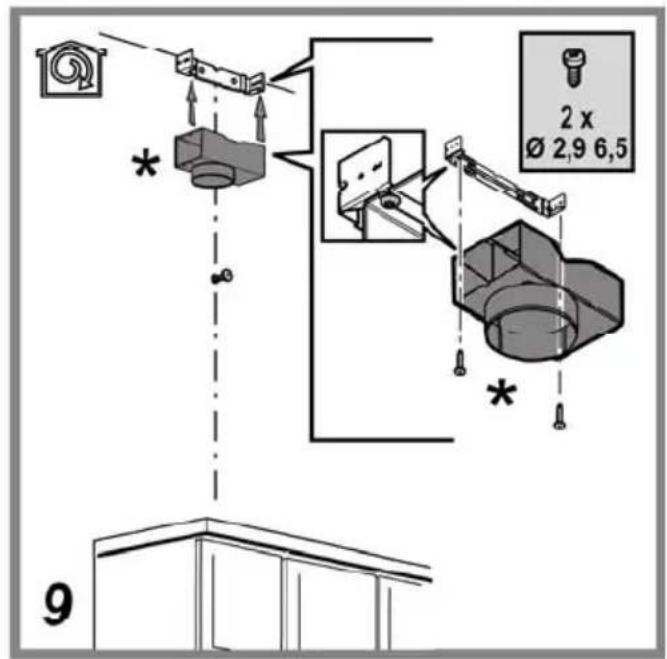

2 x Ø 2,9 6,5 9

Diagram illustrating a device lock mechanism with labeled components and step number 10

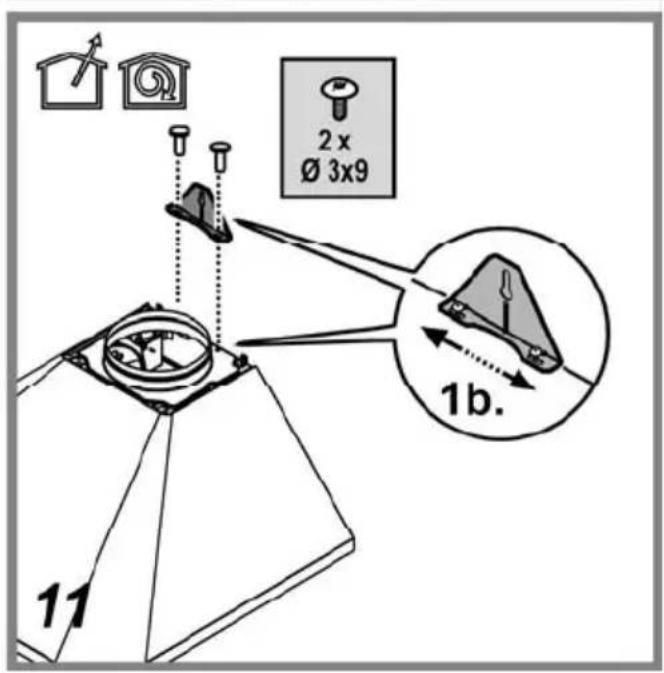

2 x Ø 3x9 1b. 11

1. 2. 3. 12

x 2 13 x 2

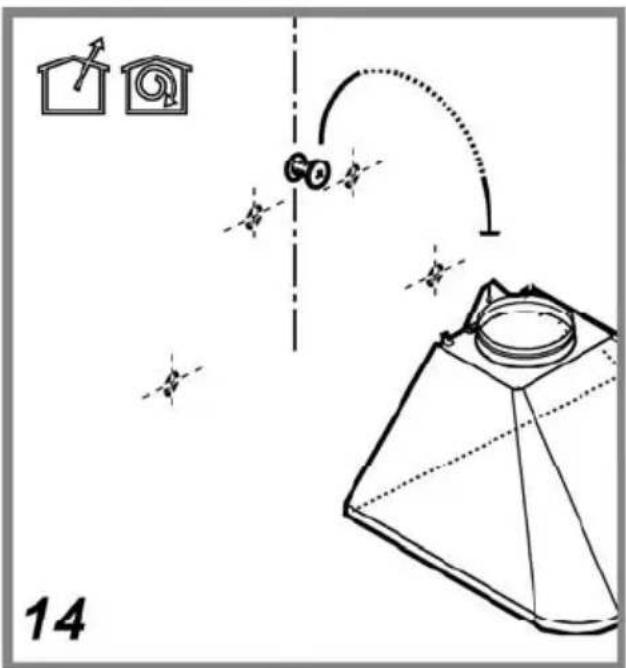

Diagram showing a mechanical assembly with a cam and a gear, no text or symbols present

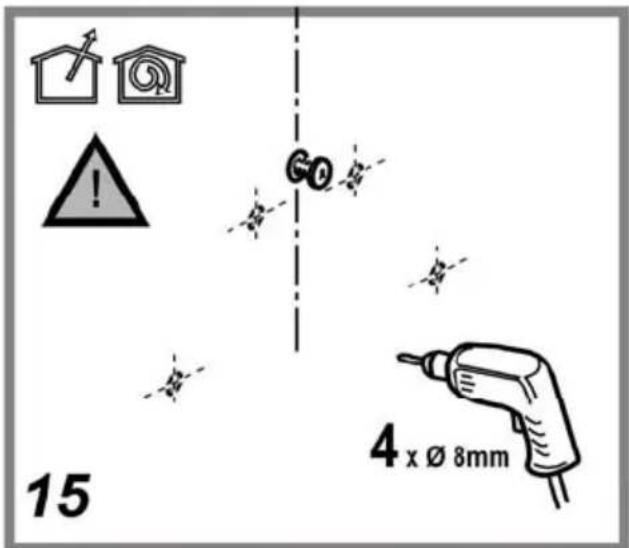

15 4 x Ø 8mm

16 4 x Ø 8 x 40mm

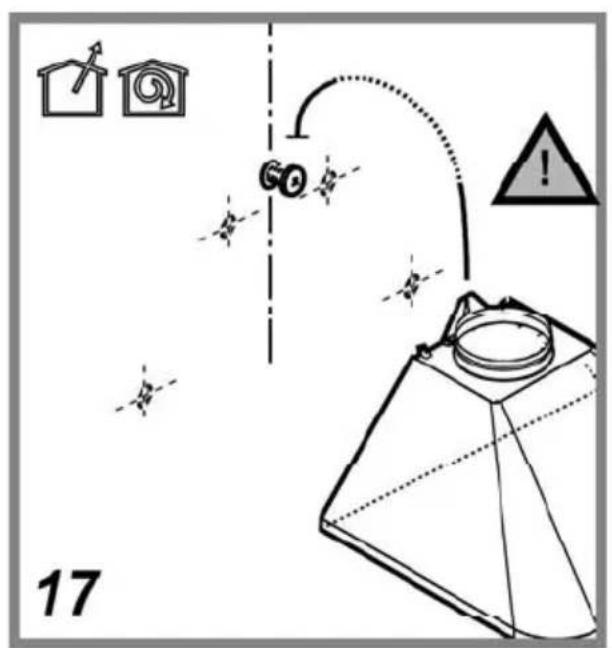

17

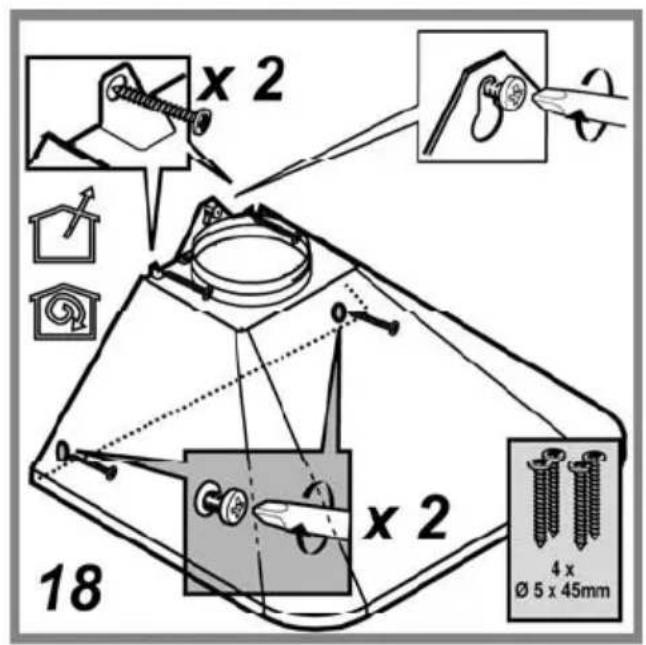

x 2 x 2 4 x Ø 5 x 45mm 18

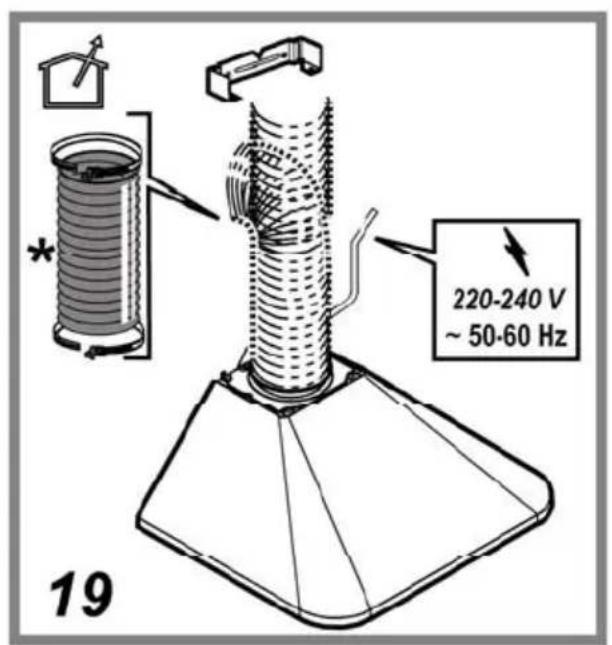

220-240 V ~ 50-60 Hz 19

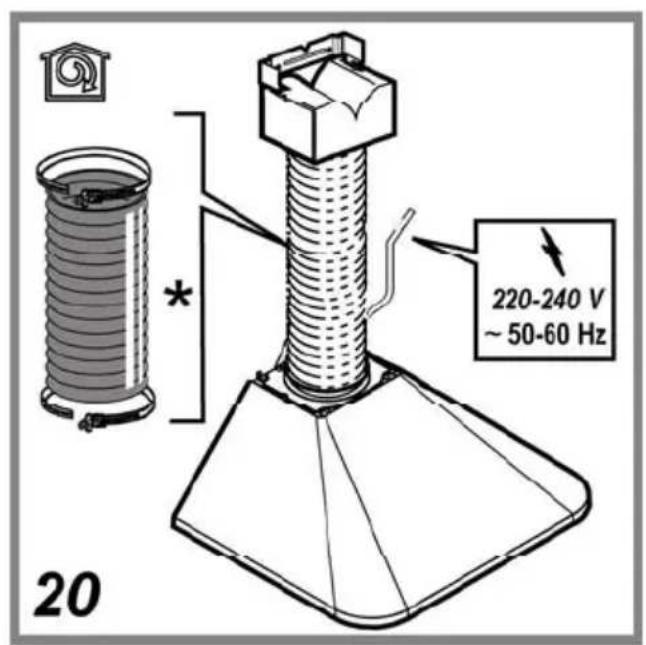

20 * 220-240 V ~ 50-60 Hz 20

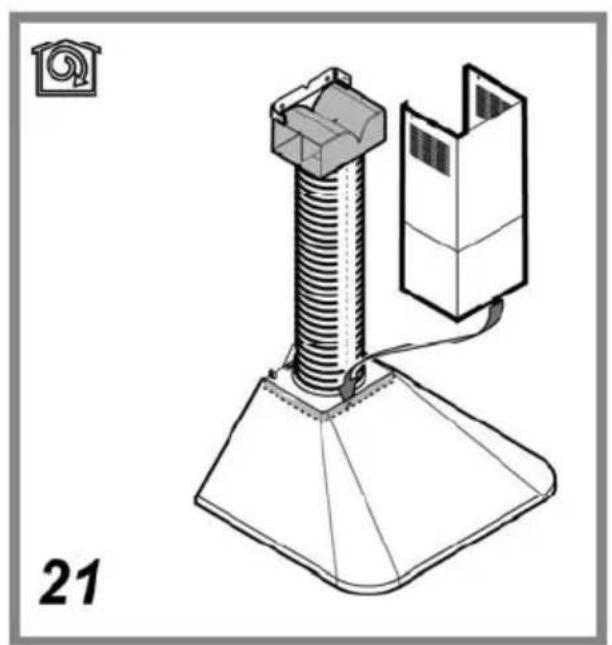

Technical line drawing of a mechanical device with a spring-loaded base and housing (no text or symbols)

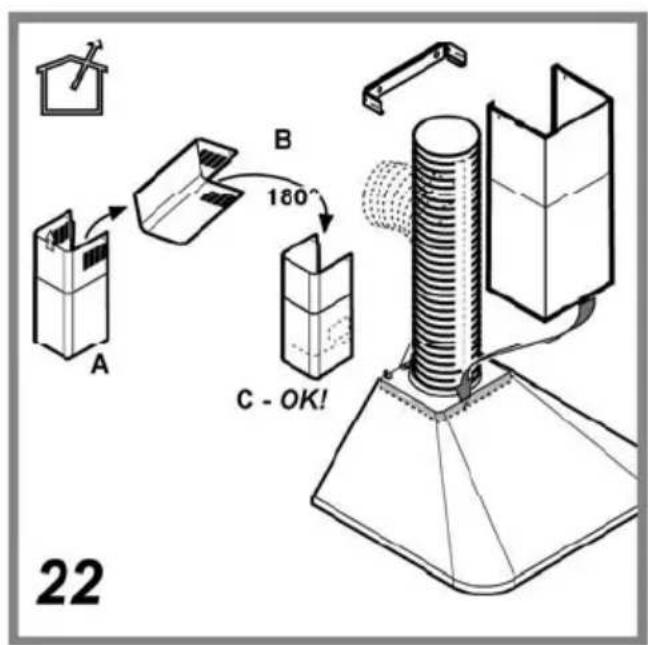

A B 180° C - OK! 22

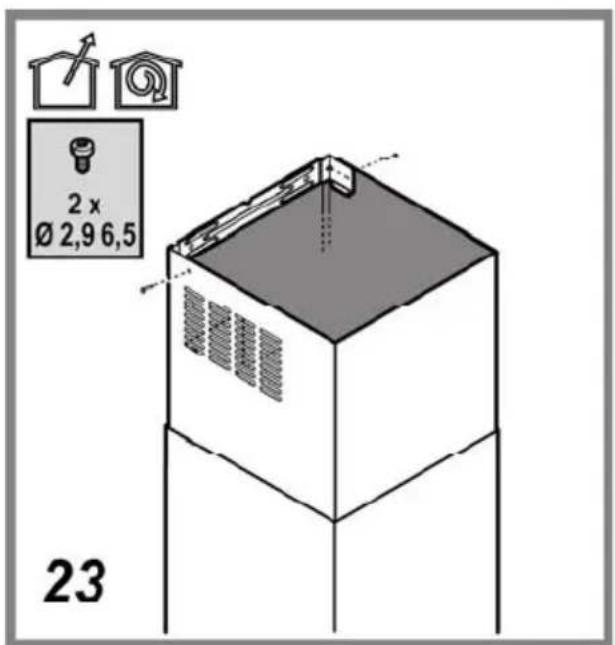

2 x Ø 2,9 6,5 23

24 CLACK! CLACK!

25

26

max 20W 12V (G4) 27

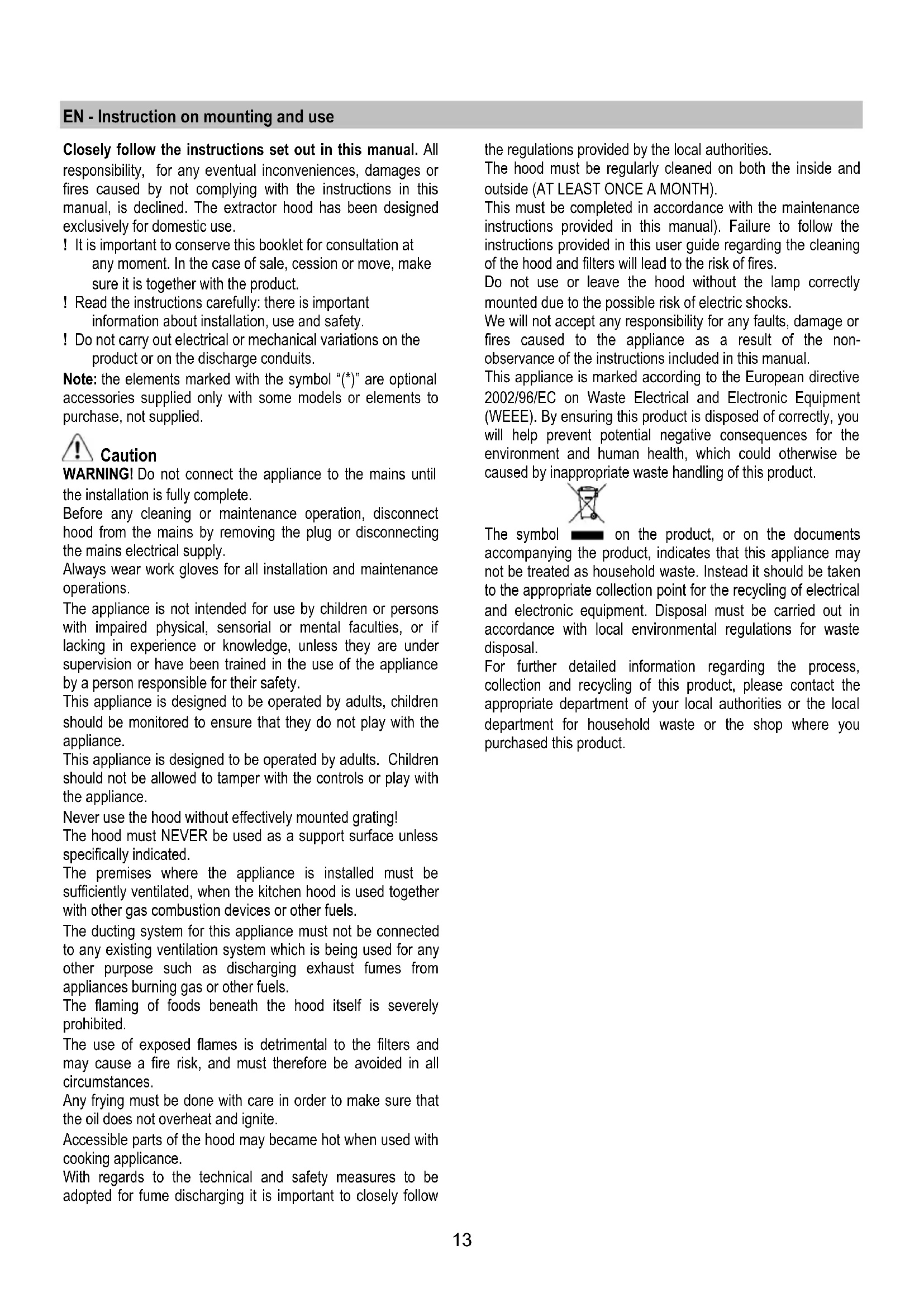

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow

the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! Use a duct with an as smooth as possible inside.
! The duct must be made of certified material.

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

Installation

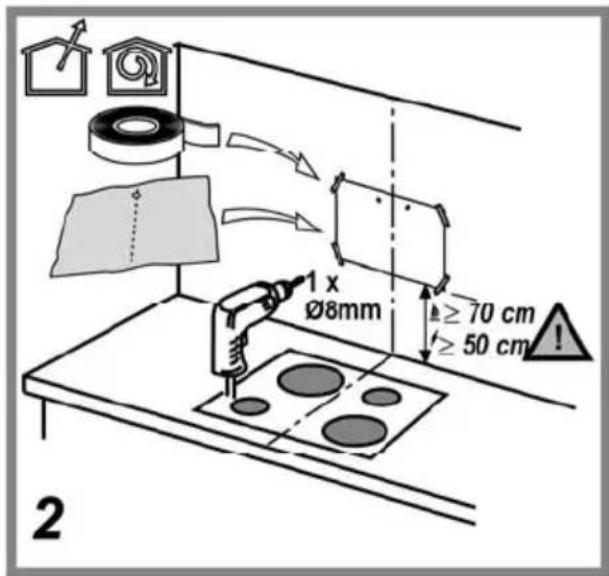

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 70cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Mounting

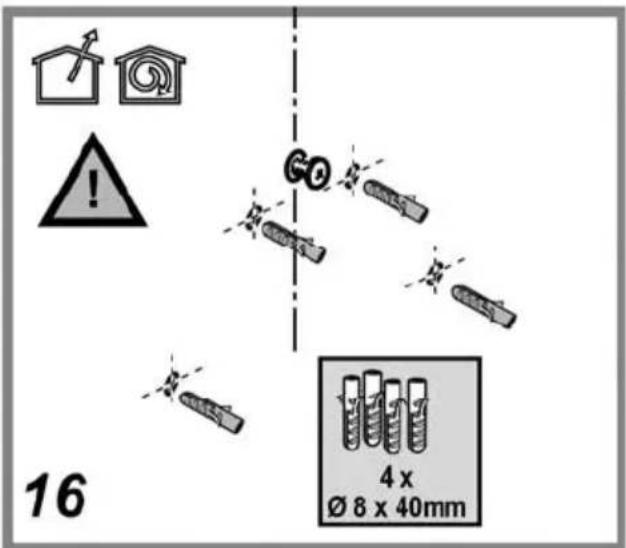

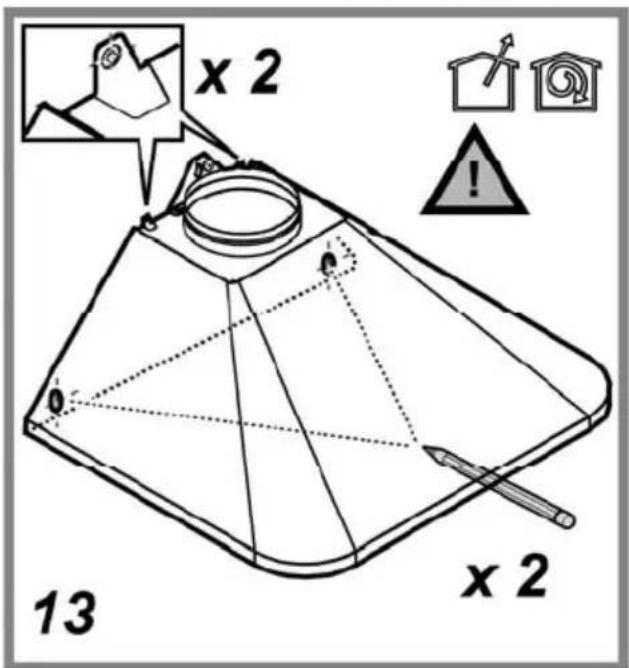

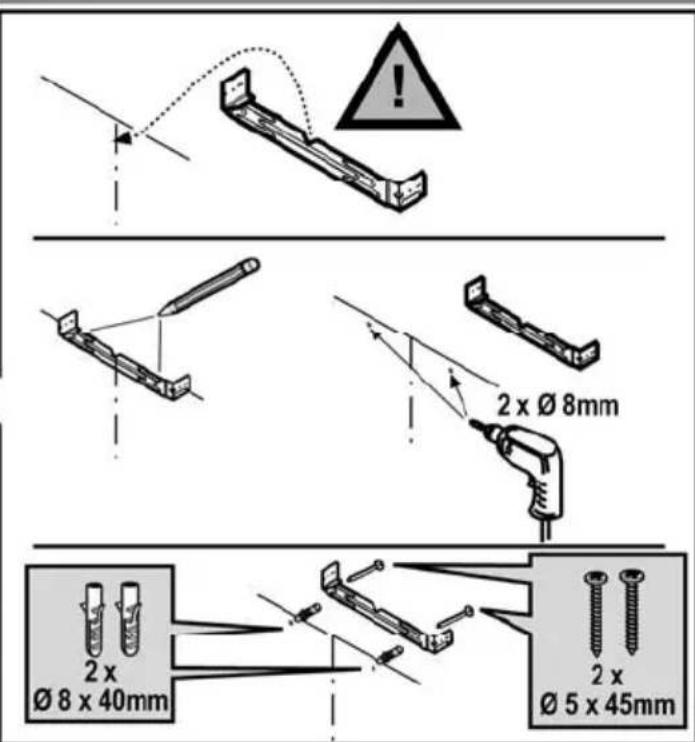

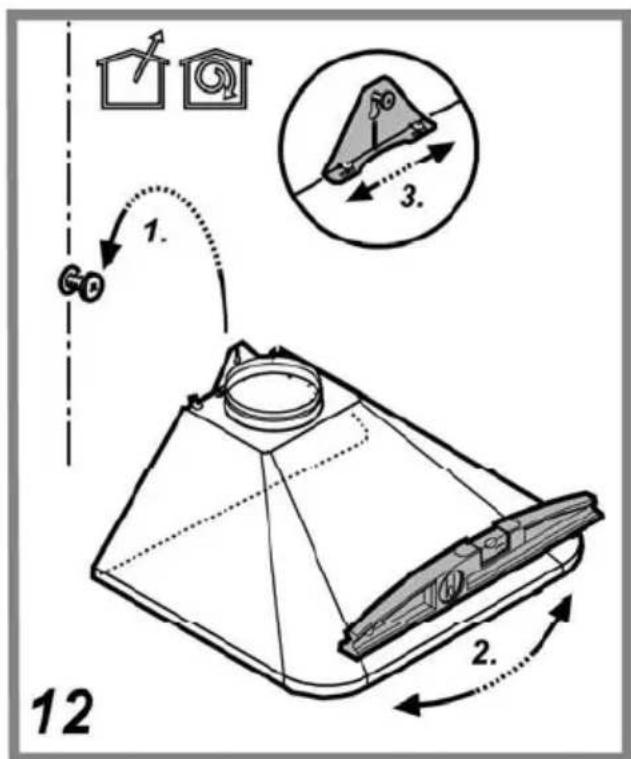

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

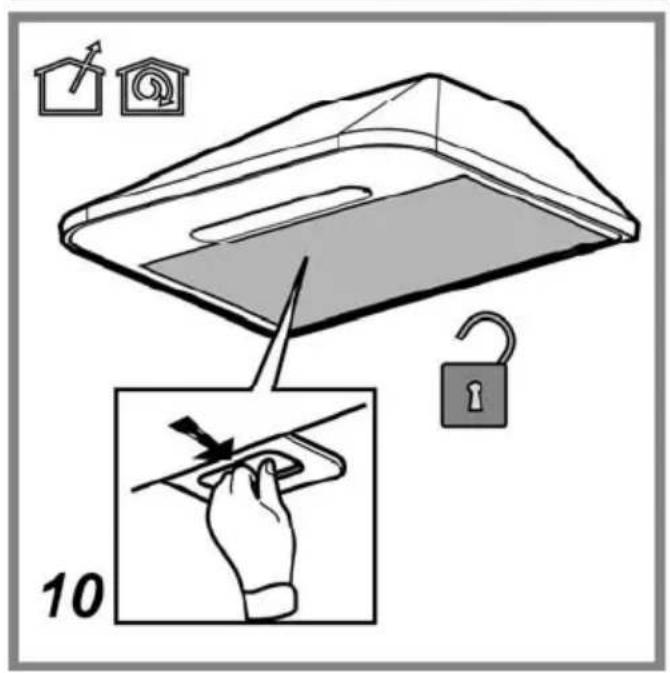

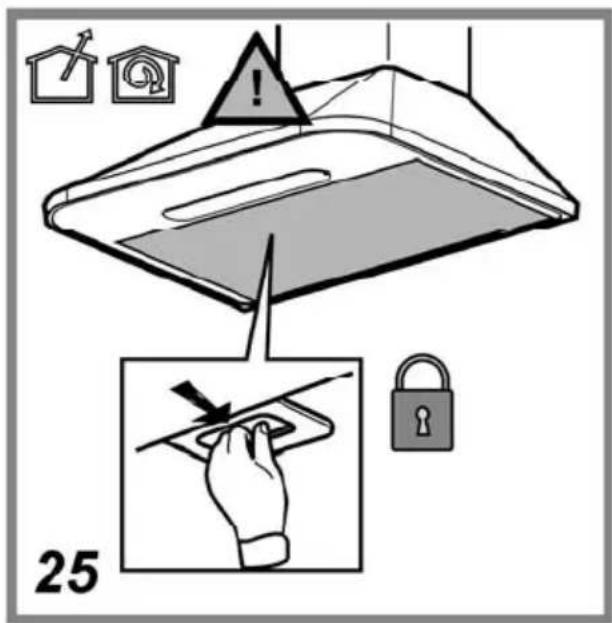

Fig. 10-25

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

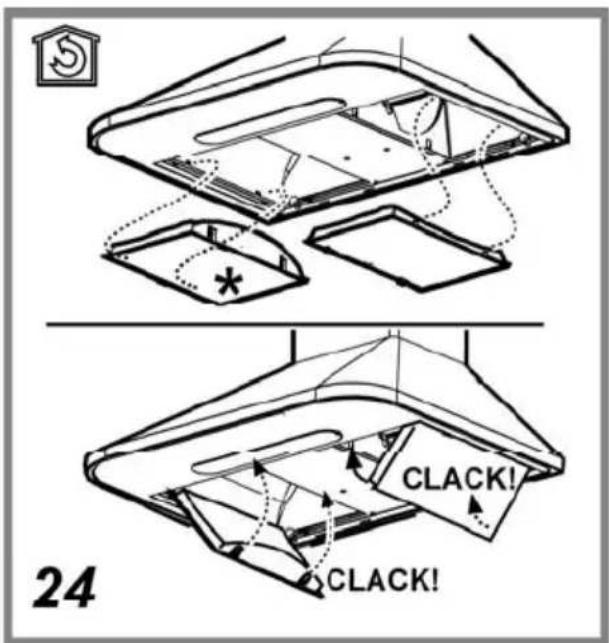

Fig. 24

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Remove grease filter.

Apply a side coal filter and hook in onto the hood.

Put back the grease filter.

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Note: The lamps installed can be one of the types described in this paragraph. Consult the reference pictures and the text below to identify the type of lamp according to the model you have.

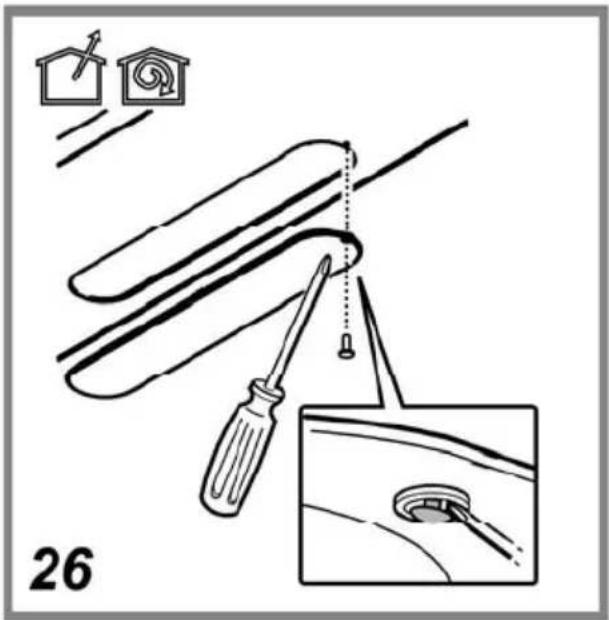

Fig. 26

1. Remove the overhead light levering on the fixing clip with a screwdriver or similar tool.
2. Replace the damaged light bulb.

Only use bulbs of 40W max (E14), making sure you do not touch them with your hands.

1. Close the overhead light again with the clip.

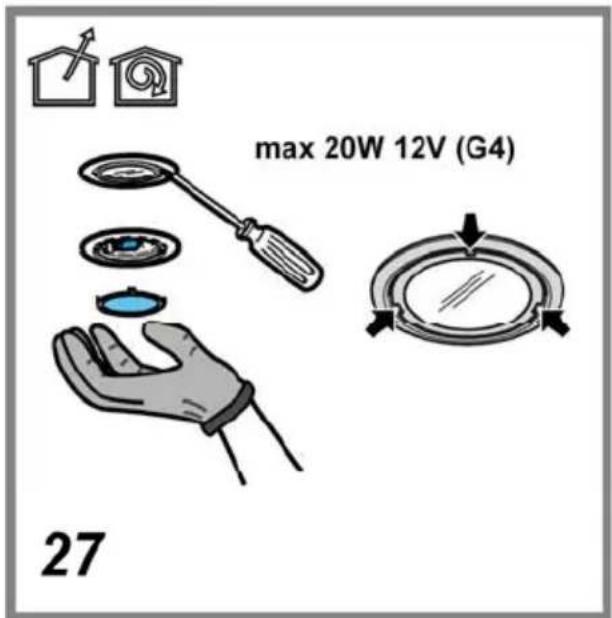

Fig. 27

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
