Product type	Decorative hood
Brand	Gorenje
Model	DVG9546BI
Usage version	Extraction (external evacuation) or recirculation (internal recycling)
Installation type	Wall or ceiling
Number of speeds	4 speeds + intensive
Control	Electronic touch control
Timer	Yes, adjustable (20 min to 5 min depending on speed)
Lighting	LED
Bulb type	LED 12V - 3W max, G4
Grease filter	Metal, dishwasher safe
Activated carbon filter	Optional (for recirculation version)
Minimum distance (electric)	50 cm
Minimum distance (gas)	65 cm
Power supply	220-240 V, 50/60 Hz
Connection	Direct or via accessible wall socket
Material	Not specified
Weight	Not specified
Dimensions (W x D x H)	Not specified

Frequently Asked Questions - DVG9546BI GORENJE

What is the minimum distance between the hood and the cooktop?

The minimum distance is 50 cm for electric cooktops and 65 cm for gas or mixed cooktops. Strictly observe these distances for safe operation.

How to clean the grease filter?

The grease filter should be cleaned once a month. You can wash it by hand with a mild detergent or in the dishwasher at low temperature and quick cycle. Make sure it is completely dry before reinstalling.

Can I use the hood without a charcoal filter?

Yes, if you use the hood in extraction mode (external evacuation), the charcoal filter is not necessary. In recirculation mode (internal recycling), the charcoal filter is mandatory to deodorize the air.

How to replace the LED bulb?

First unplug the hood. Make sure the bulb is cool. Use a small flathead screwdriver to unclip the cover. Replace the bulb with a LED 12V - 3W max, type G4. Do not touch the bulb with your hands. Snap the light cover back into place.

What to do if the hood does not turn on?

First check that the hood is properly plugged in and that the circuit breaker has not tripped. Make sure the bulbs are correctly inserted. If the problem persists, contact customer service.

How to use the timer?

Press the timer button (button 4). The hood will turn off automatically after a delay depending on the speed: 20 min at speed 1, 15 min at speed 2, 10 min at speed 3, 5 min at speed 4. A flashing dot indicates that the timer is active.

Can I install the hood myself?

It is recommended to call a qualified technician for installation, especially for the electrical connection. Make sure the wall/ceiling can support the weight of the hood. Strictly follow the assembly instructions in the manual.

How to switch from extraction mode to recirculation mode?

For recirculation mode, you need to install an activated carbon filter (available from your dealer). Remove the charcoal filter if switching to extraction mode. The instructions are detailed in the manual.

What is the maximum extraction power?

The hood has 4 speeds plus an intensive speed. Use the intensive speed for very high concentration of vapors. For normal use, speeds 1 to 3 are suitable.

How to clean the exterior of the hood?

Use a damp cloth with a neutral liquid detergent. Never use alcohol, abrasive products or solvents. Clean the interior and exterior regularly, at least once a month, to prevent fire hazards.

USER MANUAL DVG9546BI GORENJE

HOOD INSTALLATION, MAINTENANCE AND USAGE

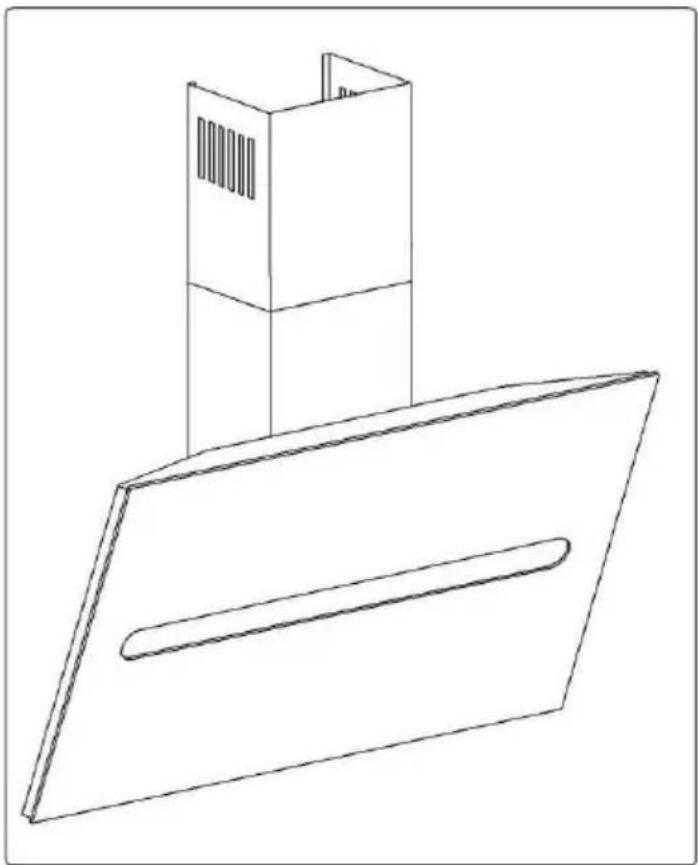

Line drawing of a cabinet with an open lid and ventilation grille (no text or symbols)

gorenje

DVG 6546 BI

DVG 9546 BI

DVG 6540 BI

DVG 9540 BI

gorenje

EN Instruction on mounting and use

Technical diagram showing a kitchen appliance with a magnified view of the door panel and a hand holding a tool, labeled with dimension arrows.

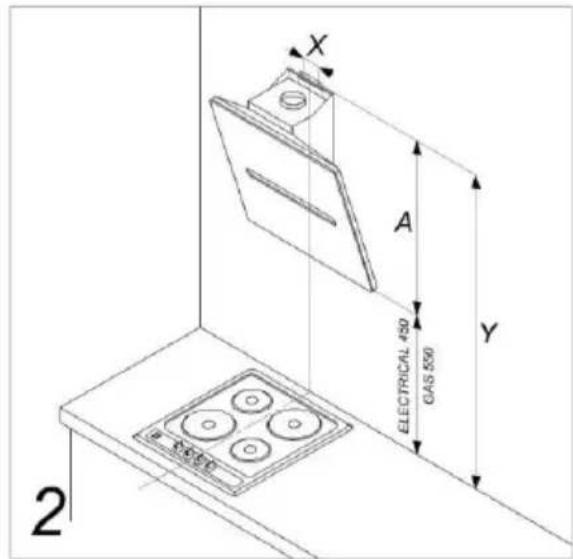

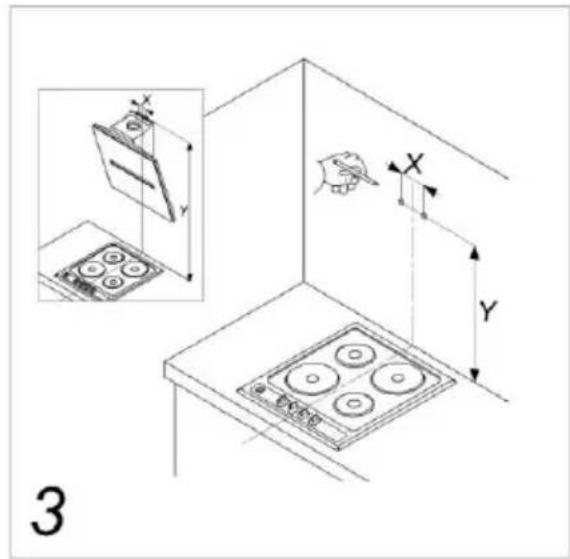

X A ELECTRICAL 450 GAS 550 Y 2

3

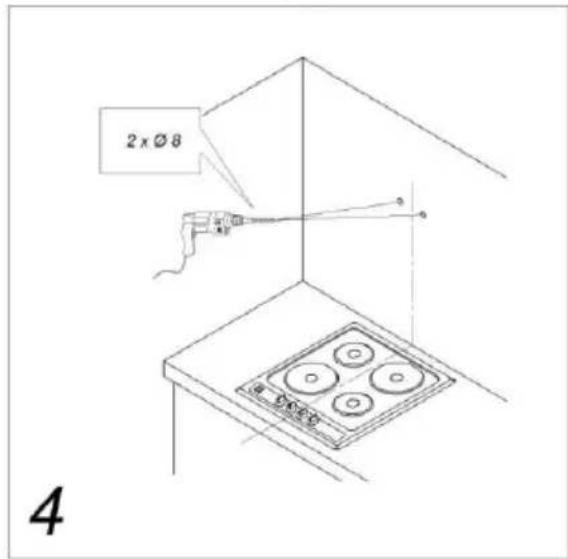

2 x Ø8 4

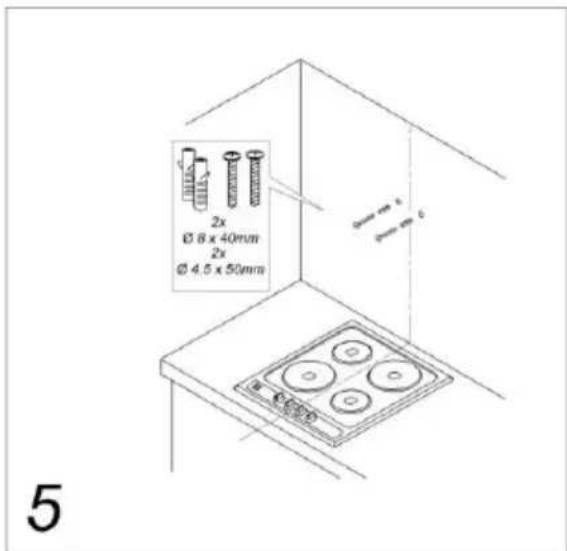

2x Ø 8 x 40mm 2x Ø 4.5 x 50mm 5

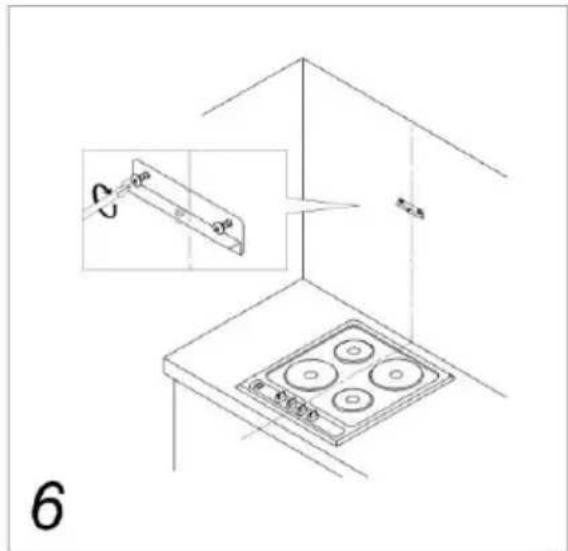

6

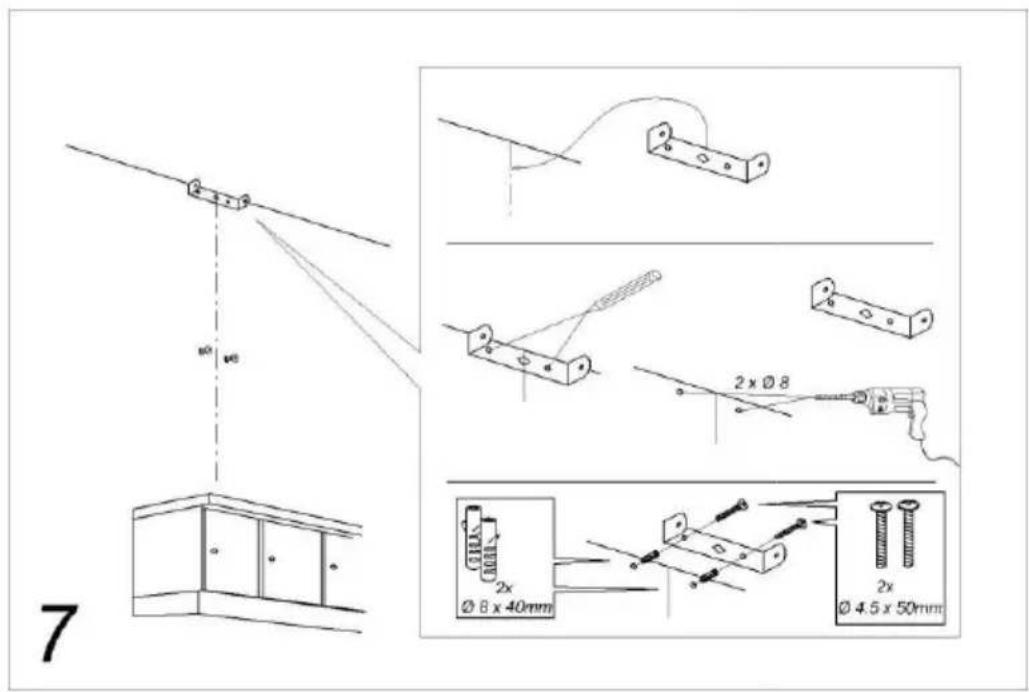

7 80 40 2 x Ø 8 Ø 8 x 40mm 2x Ø 4.5 x 50mm

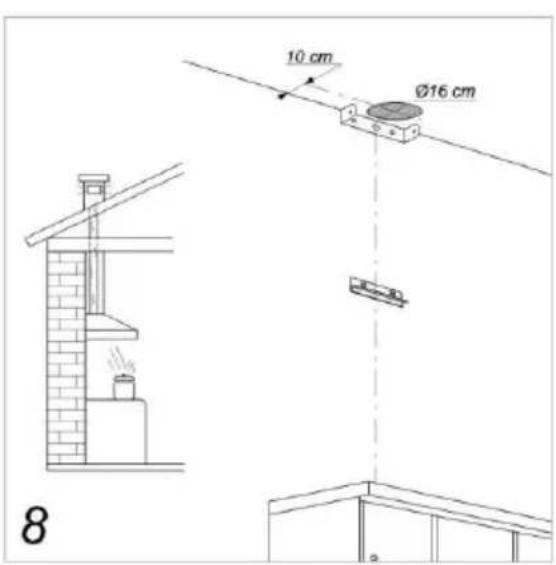

10 cm Ø16 cm 8

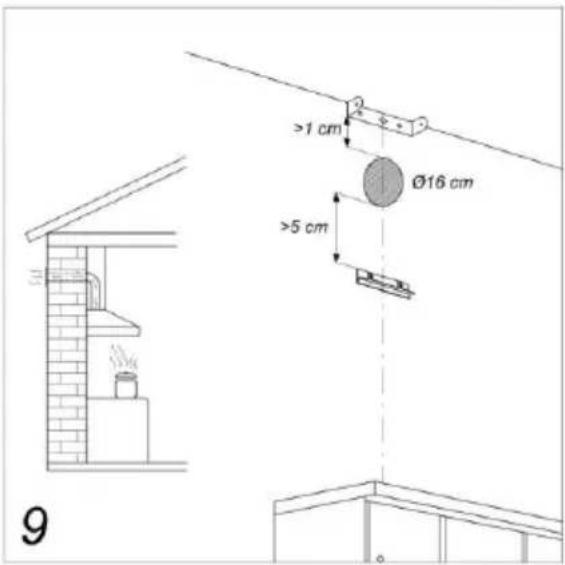

9 >1 cm Ø16 cm >5 cm

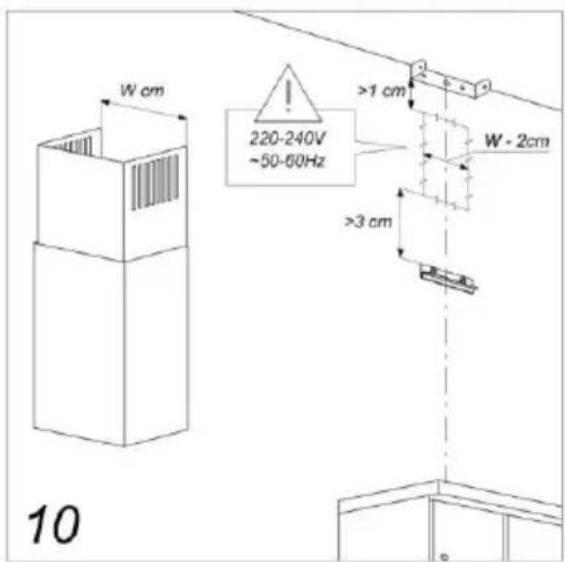

W cm 220-240V ~50-60Hz >1 cm W - 2cm >3 cm 10

11

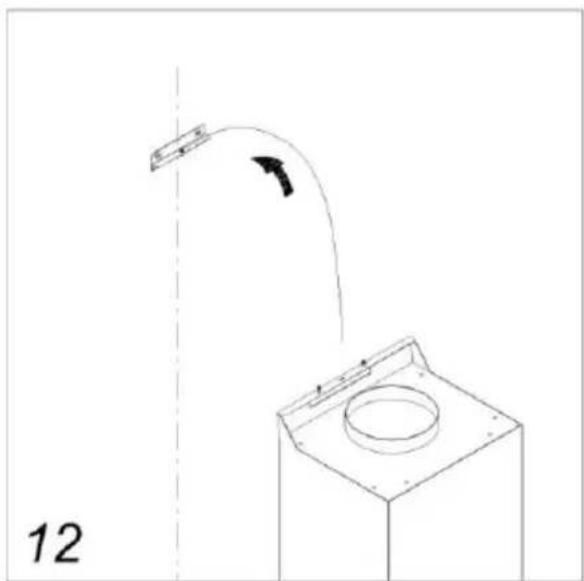

Technical line drawing of a mechanical component with a curved arrow indicating motion or force, labeled '12' at bottom left (no text or symbols on diagram)

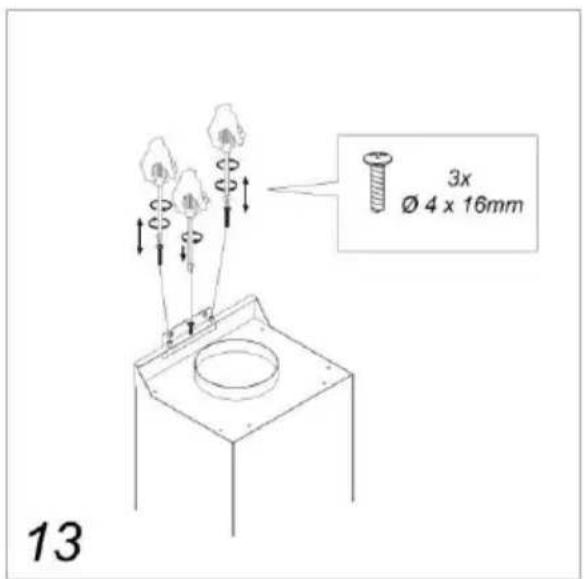

3x Ø 4 x 16mm 13

Technical line drawing of a mechanical assembly with cylindrical components and a labeled section (no text or symbols)

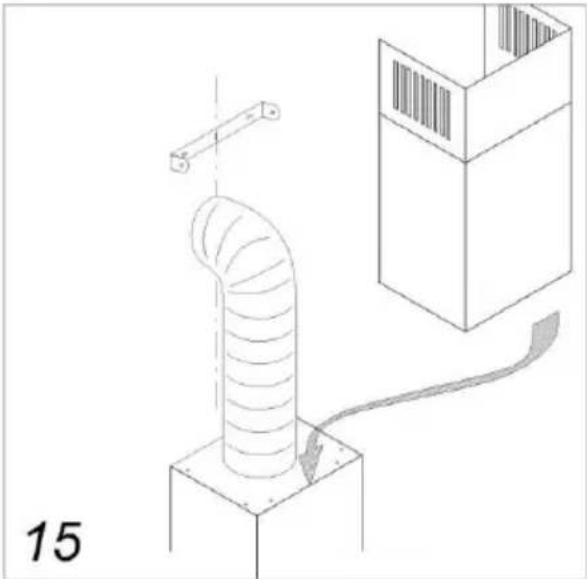

Technical line drawing of a pipe installation with a box and support structure, no text or symbols present

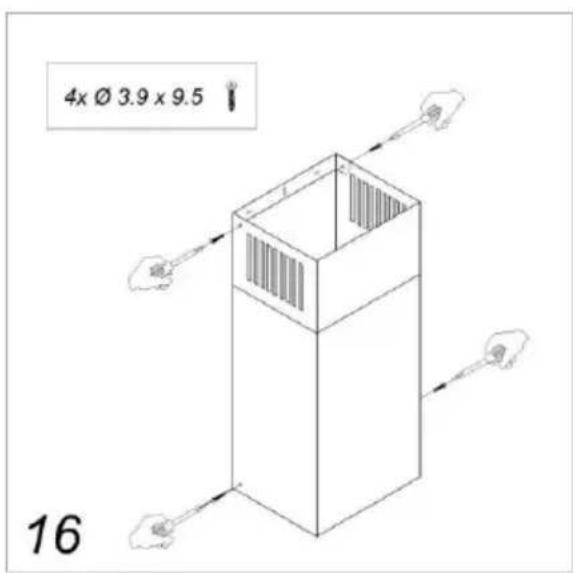

4x Ø 3.9 x 9.5 16

17

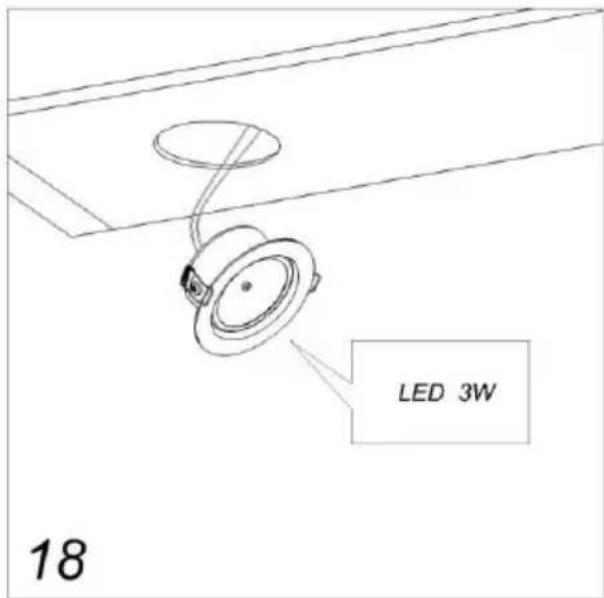

LED 3W 18

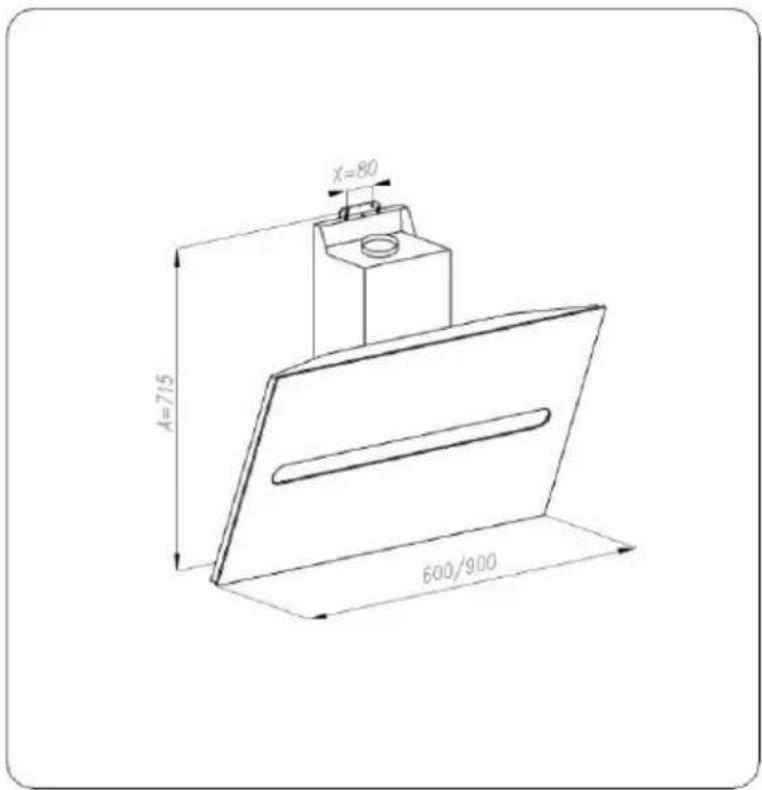

A=715 X=80 600/900

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

! Read the instructions carefully: there is important information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Use

The hood is designed to be used either for exhausting or filter version.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

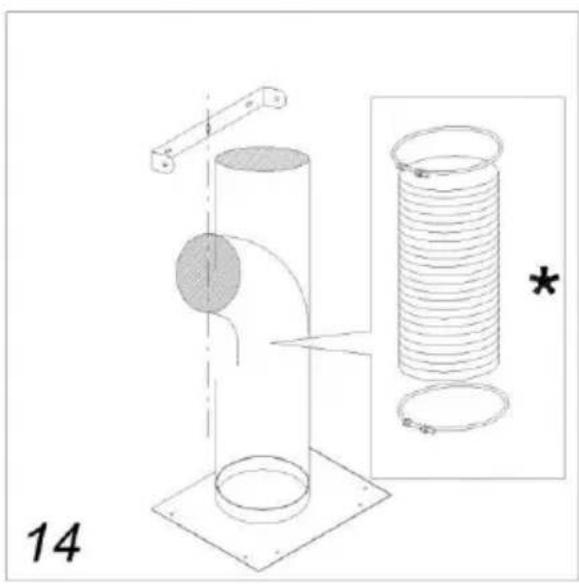

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! Use a duct with an as smooth as possible inside.
! The duct must be made of certified material.

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service.

Mounting

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

1 2 5 4 3 < > 3 -⊥ ⚙

1 OFF motor

Pressing the button during functioning, the hood turns OFF.

2 Speed Increase

Pressing the button the hood passes from the OFF state to speed 1.

Pressing the button (hood in ON state) the motor speed is increased from speed 1 to intensive.

To each speed corresponds the ignition of the respective led.

Speed 1:1

Speed 2: 2

Speed 3:3

Speed 4:4

3 ON/OFF lights

4 Speed timing

5 Function state indicator

Speed Timing

The timing of the speed is enabled by pressing key 4, once the timing expires the hood turns off.

The timing is subdivided as follows:

Speed 1 - 20 minutes (1 fixed, flashing point) Speed 2 - 15 minutes (2 fixed, flashing point) Speed 3 - 10 minutes (3 fixed, flashing point)

Speed 4 - 5 minutes (4 fixed, flashing point)

During time-running, if key 1 or 4 is pressed, the hood turns off; if key 2 is pressed, the hood stops time-running and sets to the selected speed.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

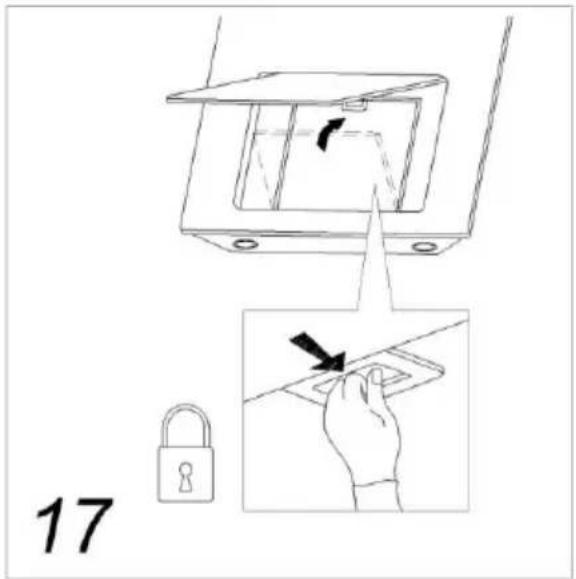

To remove the grease filter, pull the spring release handle.

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12
   Volt, 3 Watt (Maximum) LED light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

Viteza 1 - 20 minute (1 fix, punct intermitent) Viteza 2 - 15 minute (2 fix, punct intermitent) Viteza 3 - 10 minute (3 fix, punct intermitent)

Viteza 4 - 5 minute (4 fix, punct intermittent)
