ZKC92661XA - Range hood ZANKER - Free user manual and instructions

Product type	Cooker hood
Brand	Zanker
Model	ZKC92661XA
Usage	Extraction (external venting) or recirculation (internal recycling)
Number of speeds	3 (minimum, medium, maximum)
Lighting	Halogen lamps 12 V – 20 W max – G4 (suitable for open lighting system)
Type of grease filter	Dishwasher-safe or hand washable (monthly)
Type of charcoal filter	Type 20 LONG LIFE washable (every 2 months) or Type 15 non-washable (replace every 4 months max)
Minimum safety distance	≥ 50 cm for electric hobs; ≥ 65 cm for gas or mixed hobs
Power supply	Mains 220-240 V (estimate compliant with standards)
Exterior cleaning	Damp cloth with neutral liquid detergent; do not use alcohol or abrasives
Filter maintenance	Clean or replace filters at least once a month for the grease filter
Safety instructions	Disconnect before maintenance; wear work gloves; never use without the grid
Electrical installation	Connect to a compliant socket or use a circuit breaker for full disconnection
Environmental protection	Recycle packaging and the product at end of life according to local regulations
Controls	Control panel with light on/off button and speed selector
Recommended use	Turn on 5 minutes before cooking and leave running for 15 minutes after

Frequently Asked Questions - ZKC92661XA ZANKER

How to use the hood in recirculation mode?

To use the hood in recirculation mode, you must install an activated charcoal filter (type 20 washable or type 15 non-washable) and set the appliance to internal recirculation. The air is filtered then returned to the kitchen. Consult the manual for installing the charcoal filter.

How often should the grease filter be cleaned?

The grease filter must be cleaned at least once a month. It can be washed by hand with a mild detergent or in the dishwasher at low temperature on a short cycle. Dishwashing may discolor the filter, but its performance remains unchanged.

How to clean the washable charcoal filter (type 20)?

The type 20 LONG LIFE charcoal filter is cleaned every two months. Wash it with hot water and a suitable detergent or in the dishwasher at 65 °C (without dishes). Remove excess water, then put the inner pad in the oven at 100 °C for 10 minutes to dry completely.

When should the non-washable charcoal filter (type 15) be replaced?

The type 15 charcoal filter cannot be cleaned and must be replaced every 4 months at most, or sooner if usage is heavy. It is essential to replace it to ensure good odor filtration.

What to do if the hood does not turn on?

First check that the hood is properly plugged in and that the main switch is not off. Make sure the bulbs are correctly installed. If the problem persists, unplug the appliance and contact a professional. Do not attempt to repair it yourself.

How to replace the hood bulbs?

Before any intervention, unplug the hood and ensure the bulbs are cold. Only use halogen bulbs 12 V – 20 W max – G4. Do not touch the bulbs with bare hands; use a cloth or gloves.

What is the minimum distance between the hood and the hob?

For an electric hob, the minimum distance is 50 cm. For a gas or mixed hob, it is 65 cm. If the hob manual specifies a greater distance, follow that indication.

Can I use the hood without the filters?

No, never use the hood without the grid and filters properly mounted. Operating without filters can damage the motor and presents a fire risk. Filters also protect the inside of the hood.

Why is my hood making noise?

Abnormal noise may come from a poorly installed filter, a dirty filter, or an object stuck in the turbine. Check filter installation and clean them if necessary. If the noise persists, contact after-sales service.

How to install the hood in extraction version?

For external venting, connect the hood to a smoke extraction duct (do not use a duct already used for another combustion appliance). Respect safety distances and local standards. The duct diameter must be suitable for the hood.

USER MANUAL ZKC92661XA ZANKER

15

16.3-Type 20

⚠️ VEILIGHEIDSVOORSCHRIFTEN

Type 20 LONG LIFE - Wasbaar koolstofffilter

⚠ CONSIGNES DE SÉCURITÉ

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

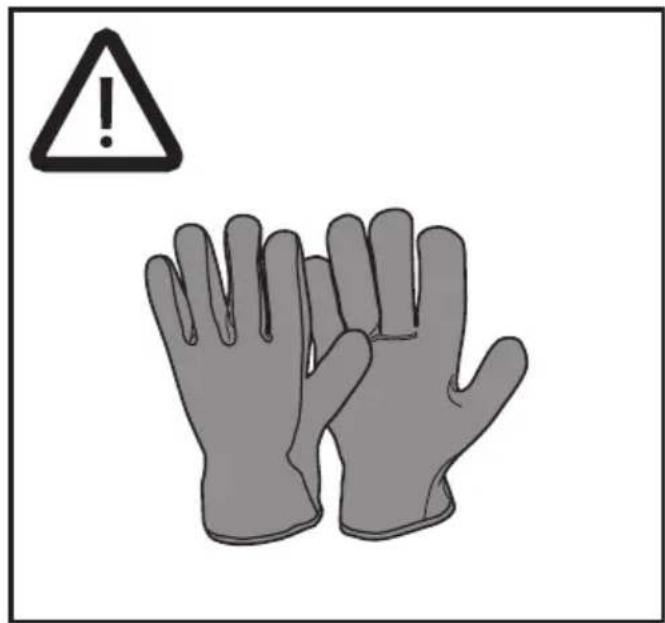

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood

must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

⚠ Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol

Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

USE

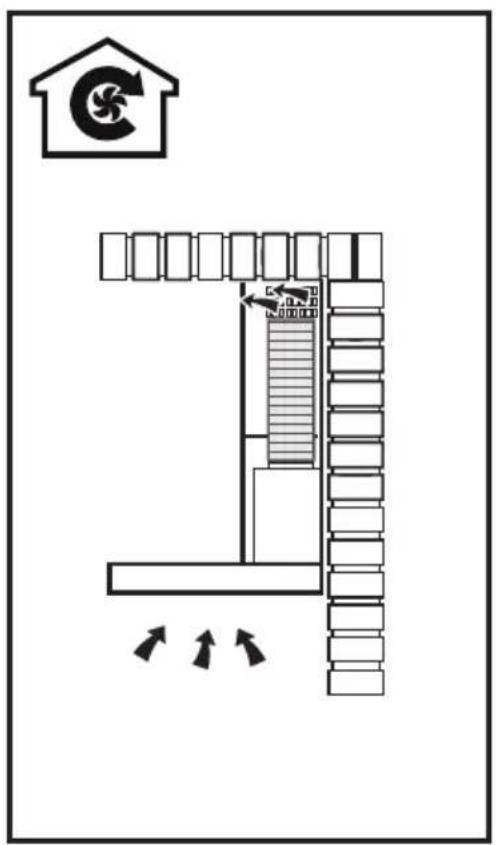

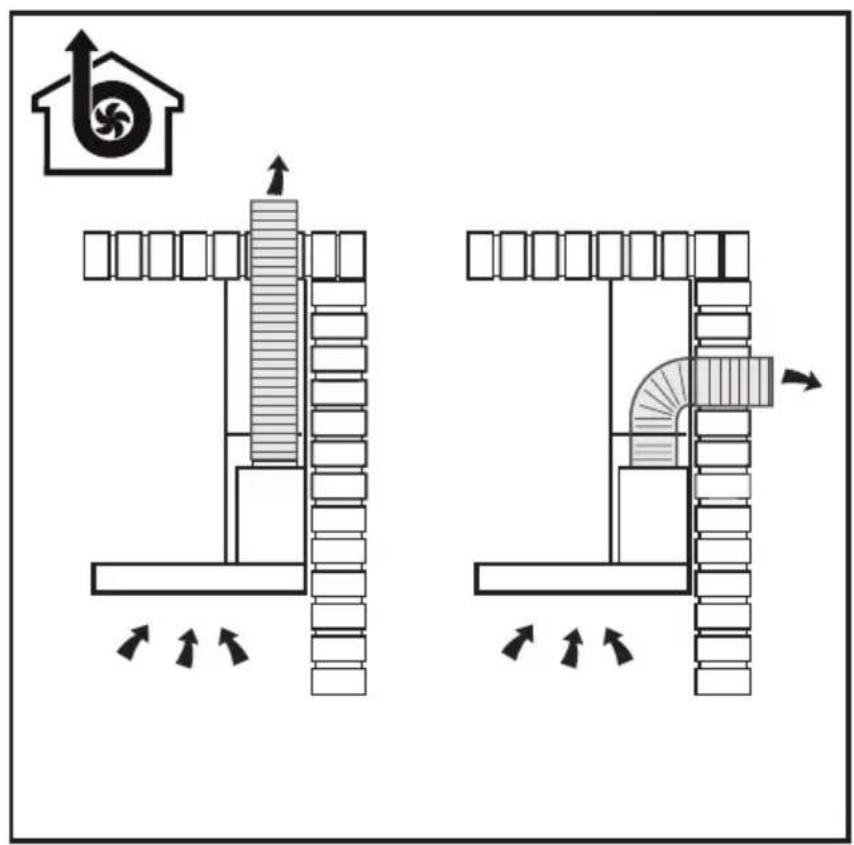

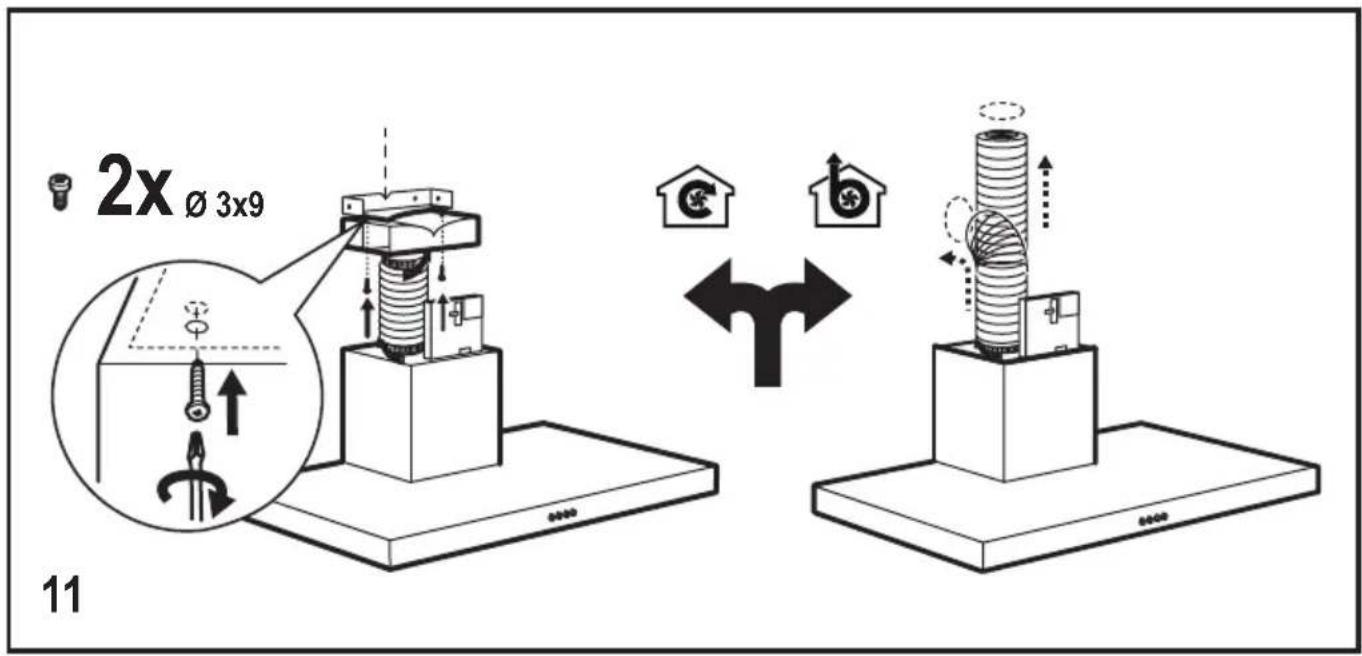

The hood is designed to be used either for

exhausting 📋 or filter version 🌐

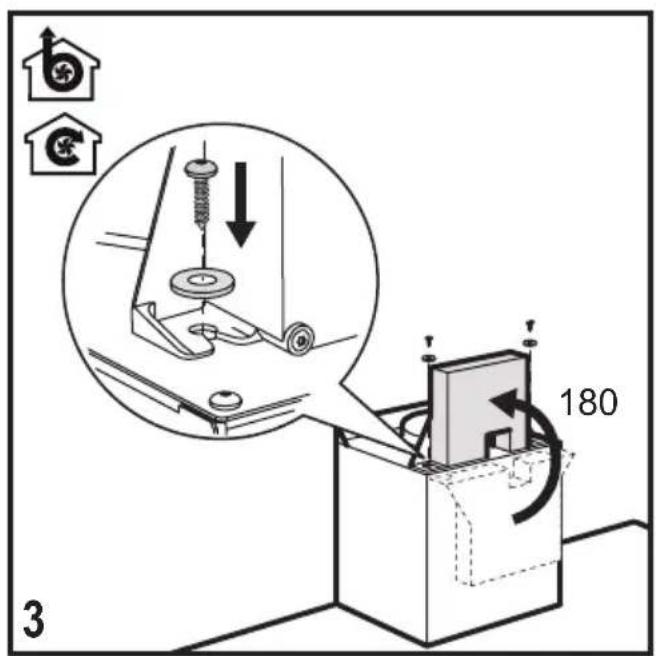

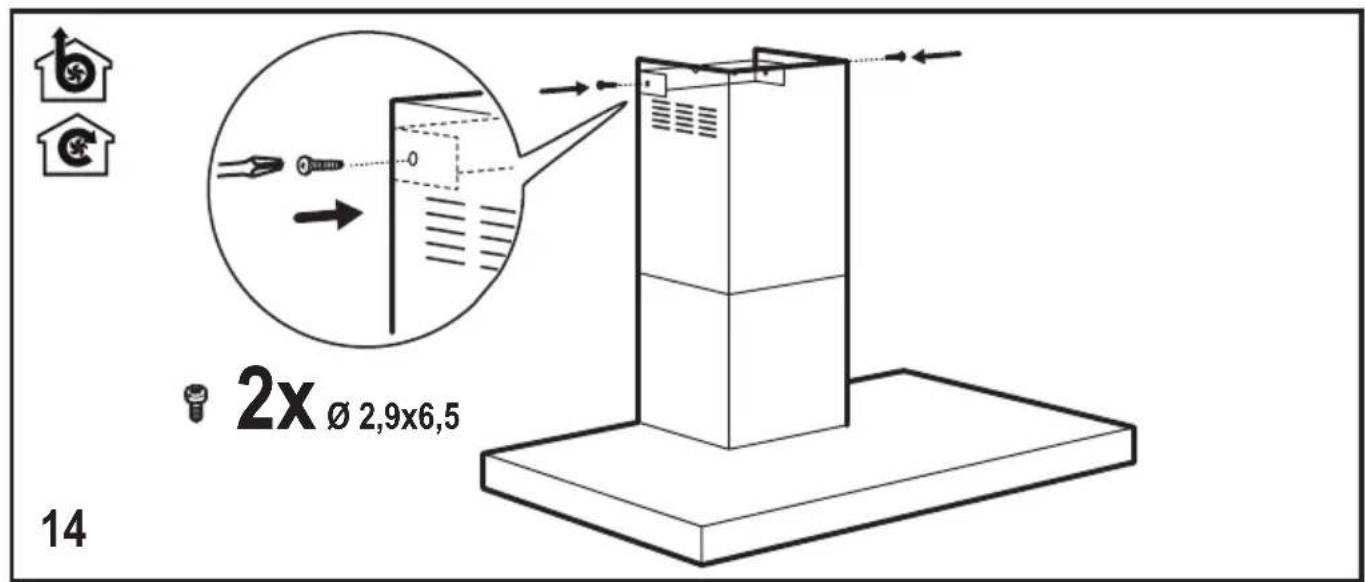

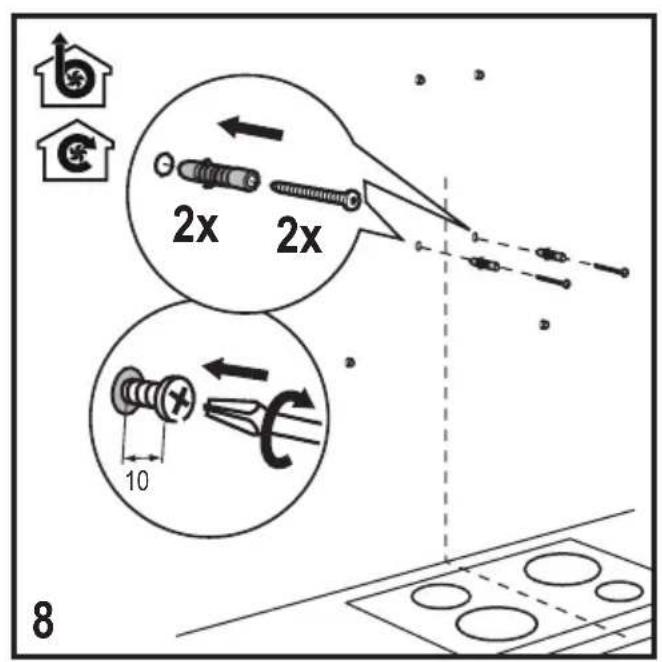

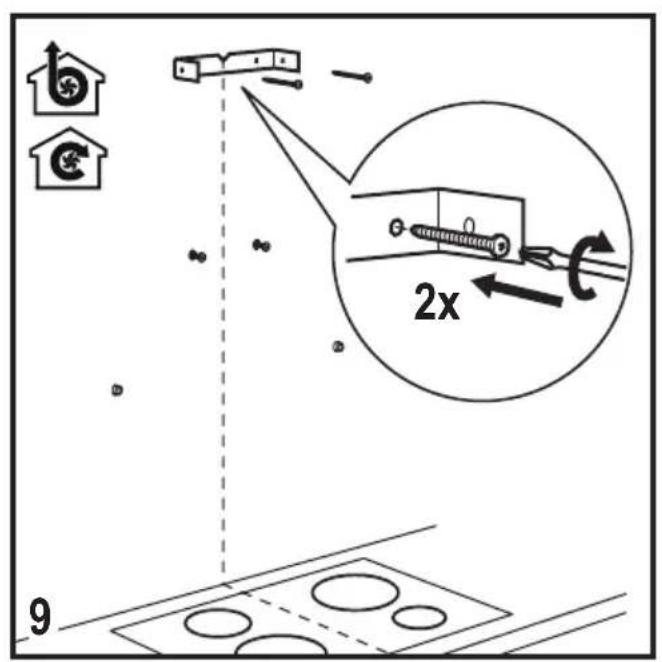

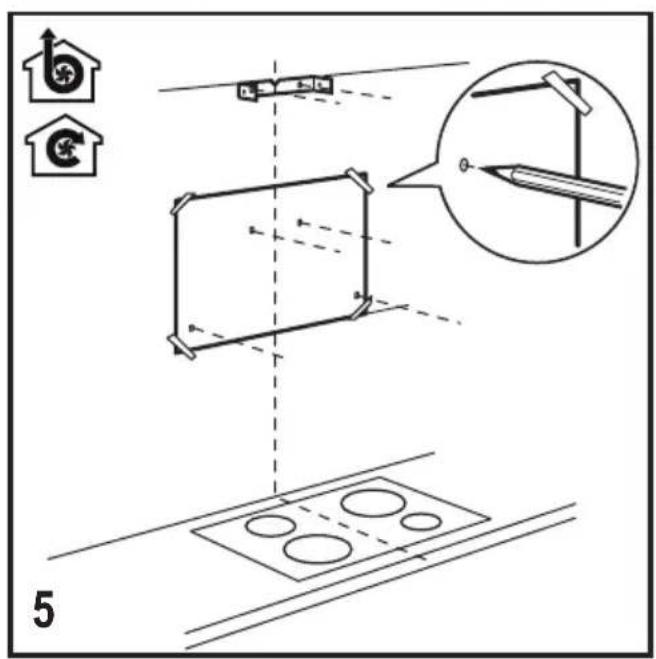

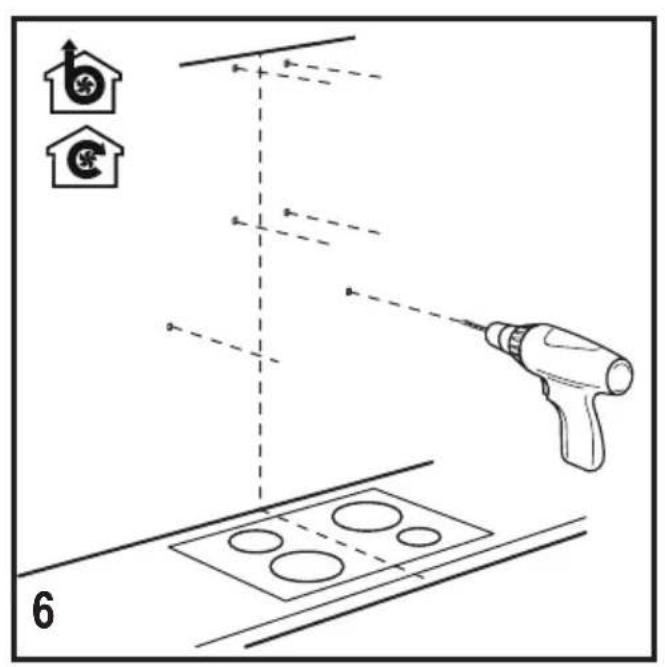

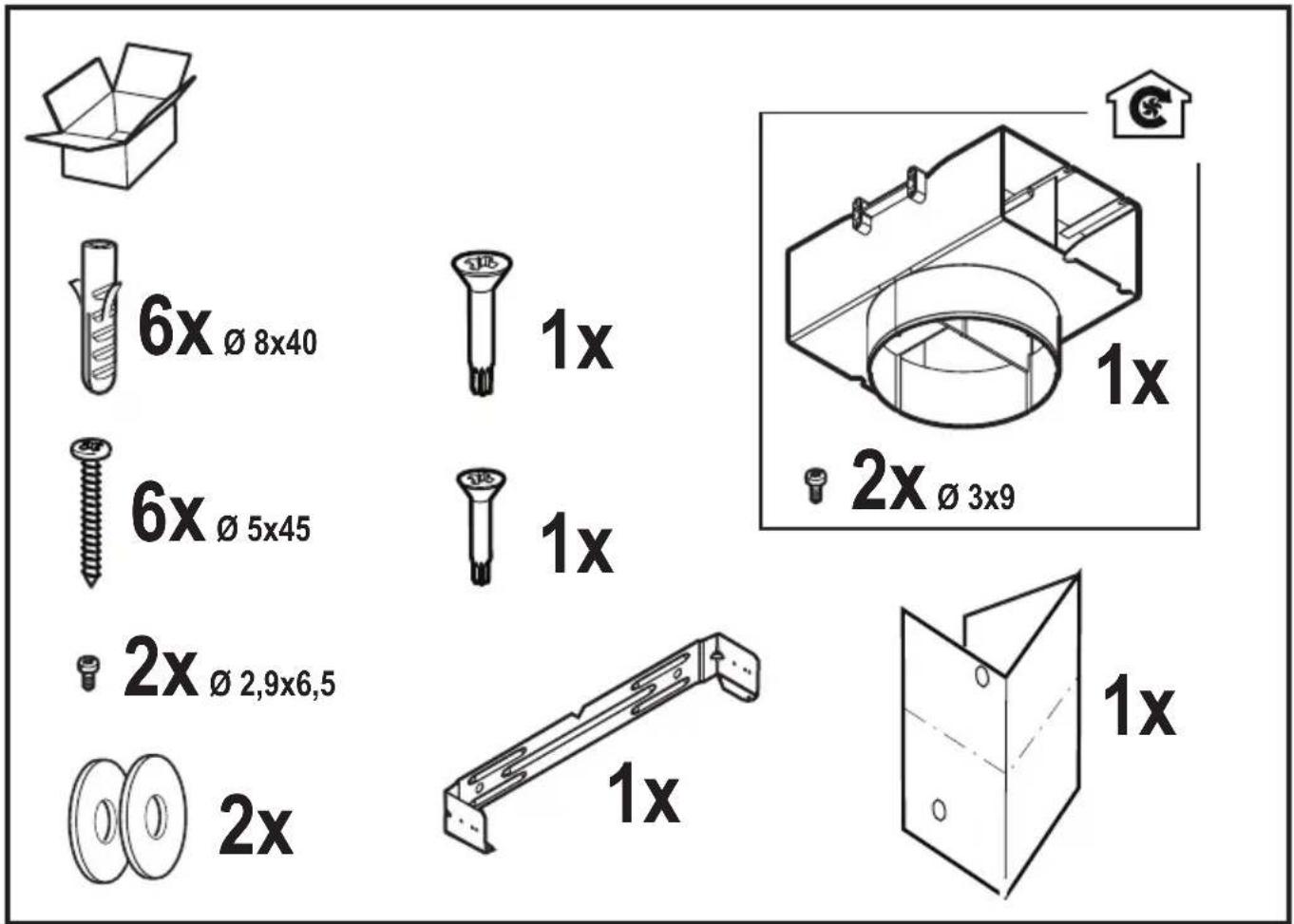

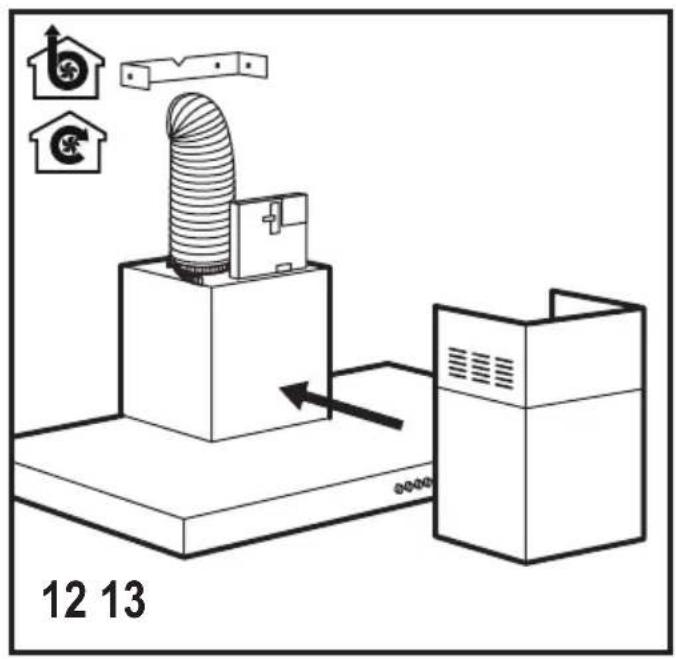

INSTALLATION

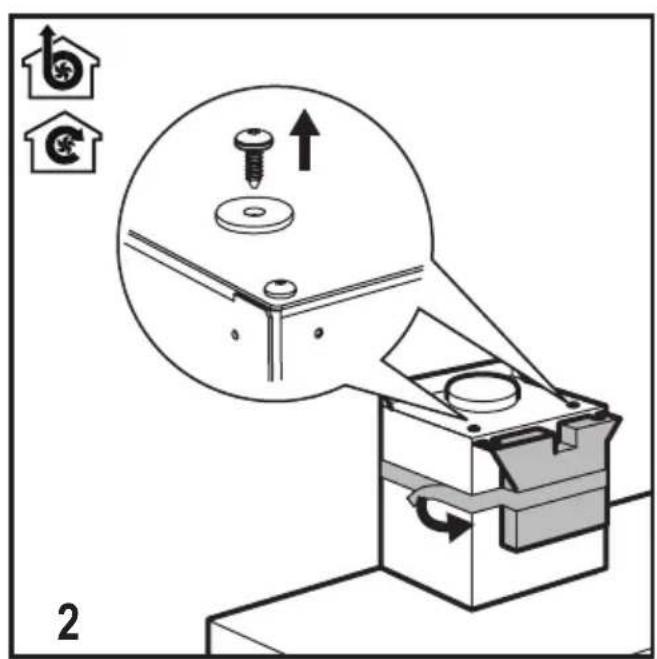

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

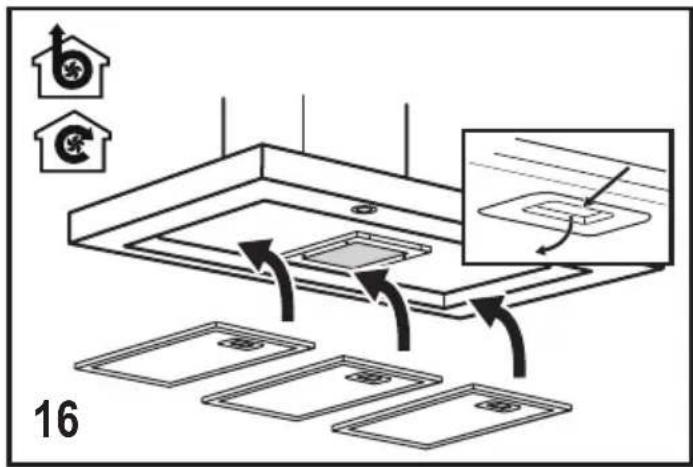

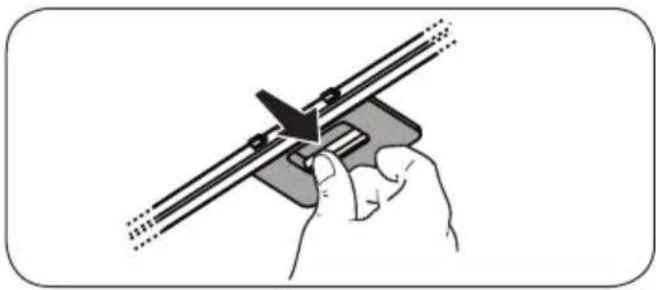

Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

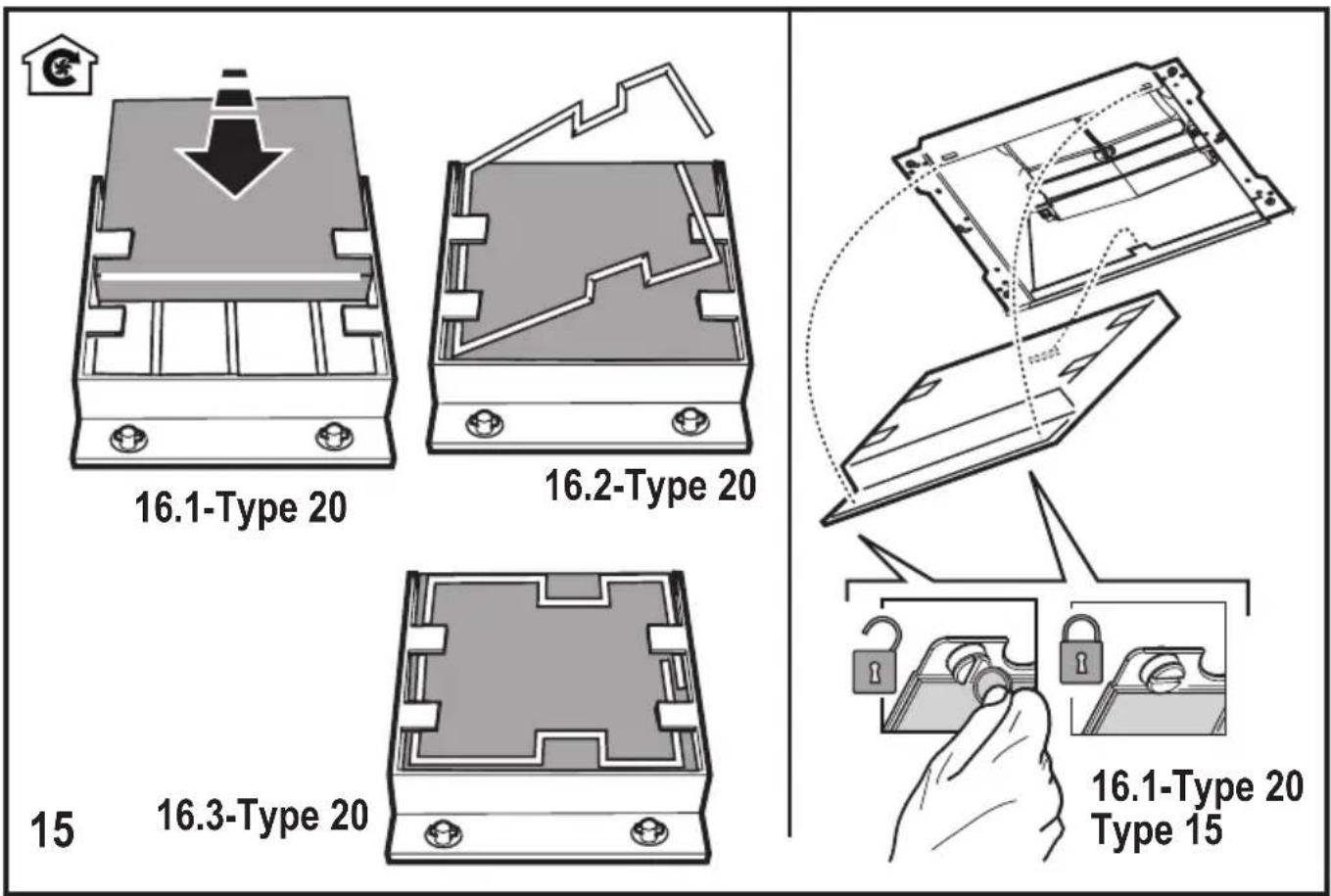

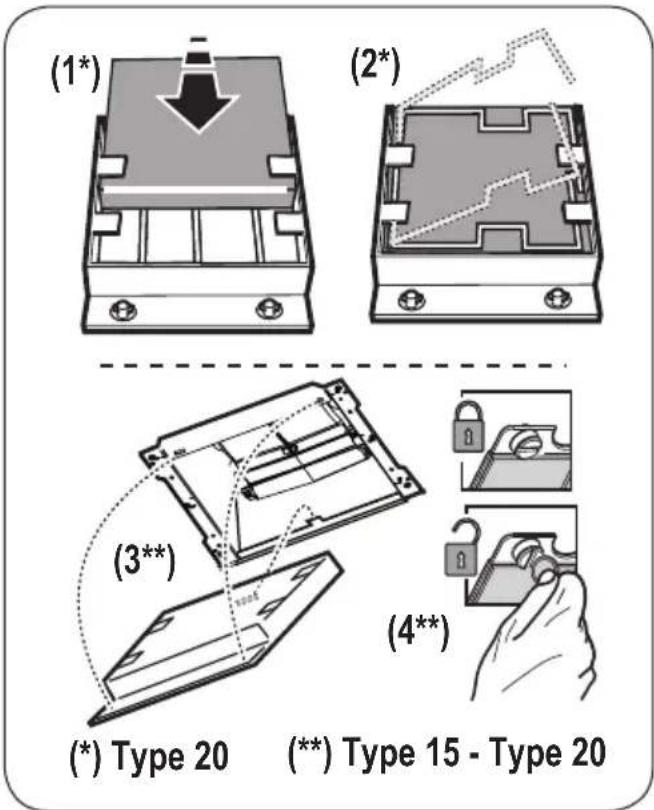

Charcoal filter - Type 20 LONG LIFE - Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65° C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100°C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Type 15 - NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

1. ON/OFF lighting

2. OFF motors

3. • 1. • 1. Minimum suction power (3.), medium (4.), maximum (5.).

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

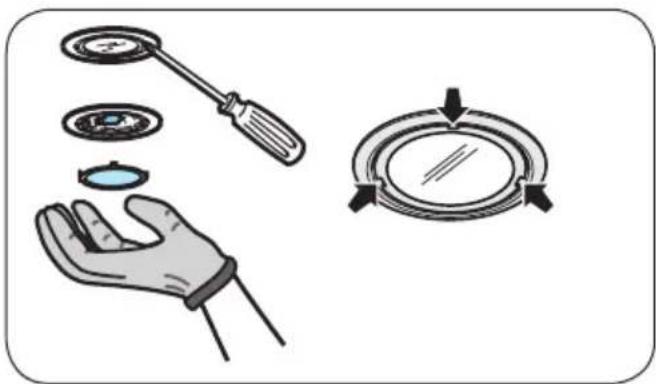

Replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

ZANKER
