USER MANUAL DW32H1G1 WESTINGHOUSE

This Westinghouse product has earned the ENERGY STAR® for meeting U.S. Federal energy efficiency guidelines as set by the Department of Energy and Environmental Protection agency. The ENERGY STAR® program exists to provide energy saving guidelines and help promote energy efficient products and practices. Changes to certain features, settings and functions of this TV can change and/or increase its power consumption. Depending on how settings are changed, power consumption may exceed the limits required for ENERGY STAR® qualification.

CAUTION The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. The symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. To reduce the risk of fire or electric shock, do not expose this Television to rain or moisture.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this Television near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in

accordance with the instructions.

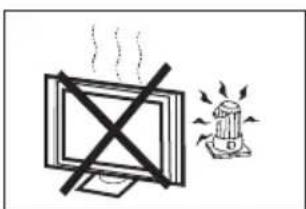

8) Do not install near any heat sources such as

radiations, heat registers, stoves, or other Television (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized

plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the Television.

11) Only use attachments/accessories specified by

12) Unplug this Television during lighting storms or

when unused for long periods of time.

13) Refer all servicing to qualified service personnel.

Servicing is required when the Television has been damaged in any way, such as; power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the Television, the Television has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the

disconnect device shall remain readily operable.

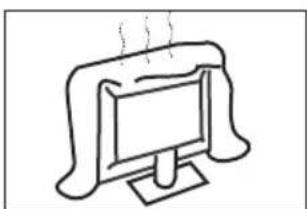

15) The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles,

should be placed on the Television.

17) Attention should be drawn to the environmental

aspects of battery disposal.

18) The use of Television in moderate climate.

19) The Television shall not be exposed to dripping

or splashing and that no objects filled with liquids, such as vases, shall be placed on the Television. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

The excessive sound pressure from earphones and headphones can cause hearing loss.

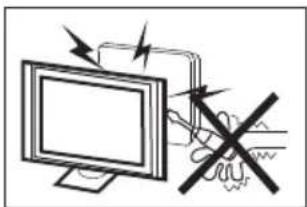

High voltages are used in the operation of this television receiver. Do not the cabinet. Refer servicing to qualified service personnel. open

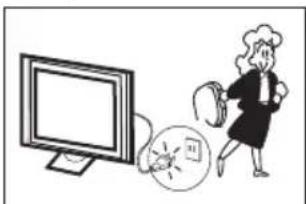

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

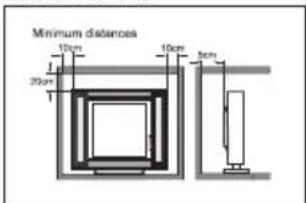

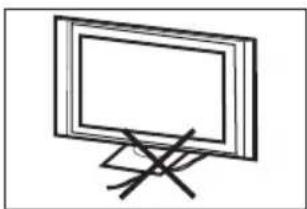

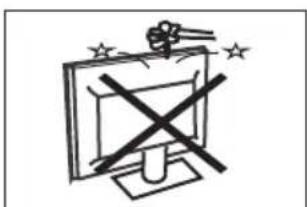

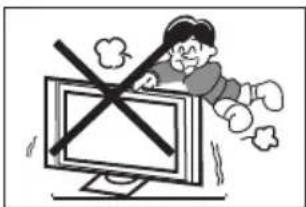

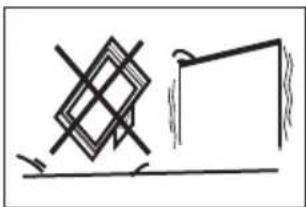

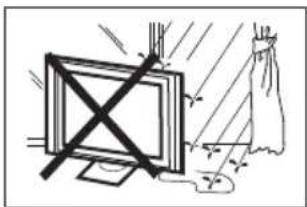

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver. Do not block the ventilation holes on the back cover . Adequate ventilation is essential to prevent failure of electrical components. of the TV Do not trap the power supply cord under the television receiver s .' stand Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls. Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual and damage to the television may result if it falls. /or When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet. Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television. or near Dim:51 5*320 mm(不包 括底座） If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the life of your television, and can also be dangerous.-4- INTRODUCTION Main features Accessories Infrared Remote Control....................

■ Integrated ATSC TV tuner for HDTV broadcast reception ■ High brightness provides a vivid and brilliant picture ■ Deeper blacks and brighter whites with high contrast ■ Wide Screen aspect ratio (wide) for a complete home theater experience ■ HDMI input for true digital connection ■ VGA port for connection to PC ■ Built-in stereo speaker system ■ Full-function Remote Control x 2 Resolution: TV System: Video Signal System: Receiving Channel: Horizontal definition (TV line) 1366 x 768 Normal wide NTSC, PAL Cable :1-135/ Air: 2-69 (ATV&DTV) x 1 High-Definition Multimedia Interface (HDMI) Input Audio Input x 2 Composite Video Input >=350 x 1 YCb(Pb)Cr(Pr) >=400 Video Input >=400 32 inches x 1 AC 100-240V 50/60Hz 2x8W ATSC Digital system and NTSC Analog system Headphone Output x 1 x 1 Coaxial Output Aspect Ratio: Viewing Picture Size (diagonal) Power supply Audio Output Power (THD 7%): YCb(Pb)Cr(Pr) Input Composite Video Input Analog RGB (VGA) Input Power consumption 50W-5- Base Stand Assembly Instruction

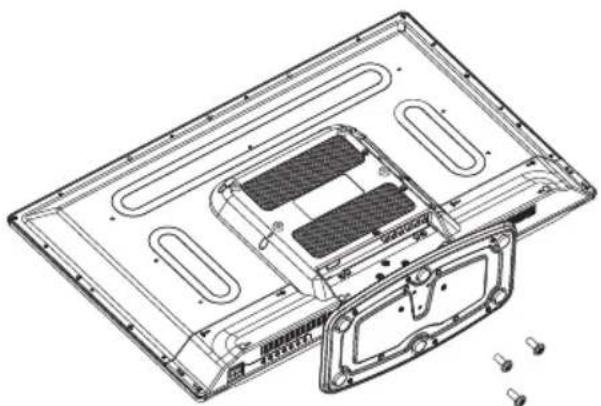

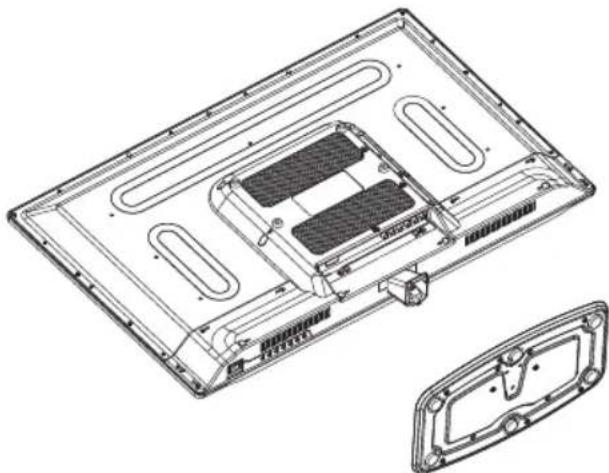

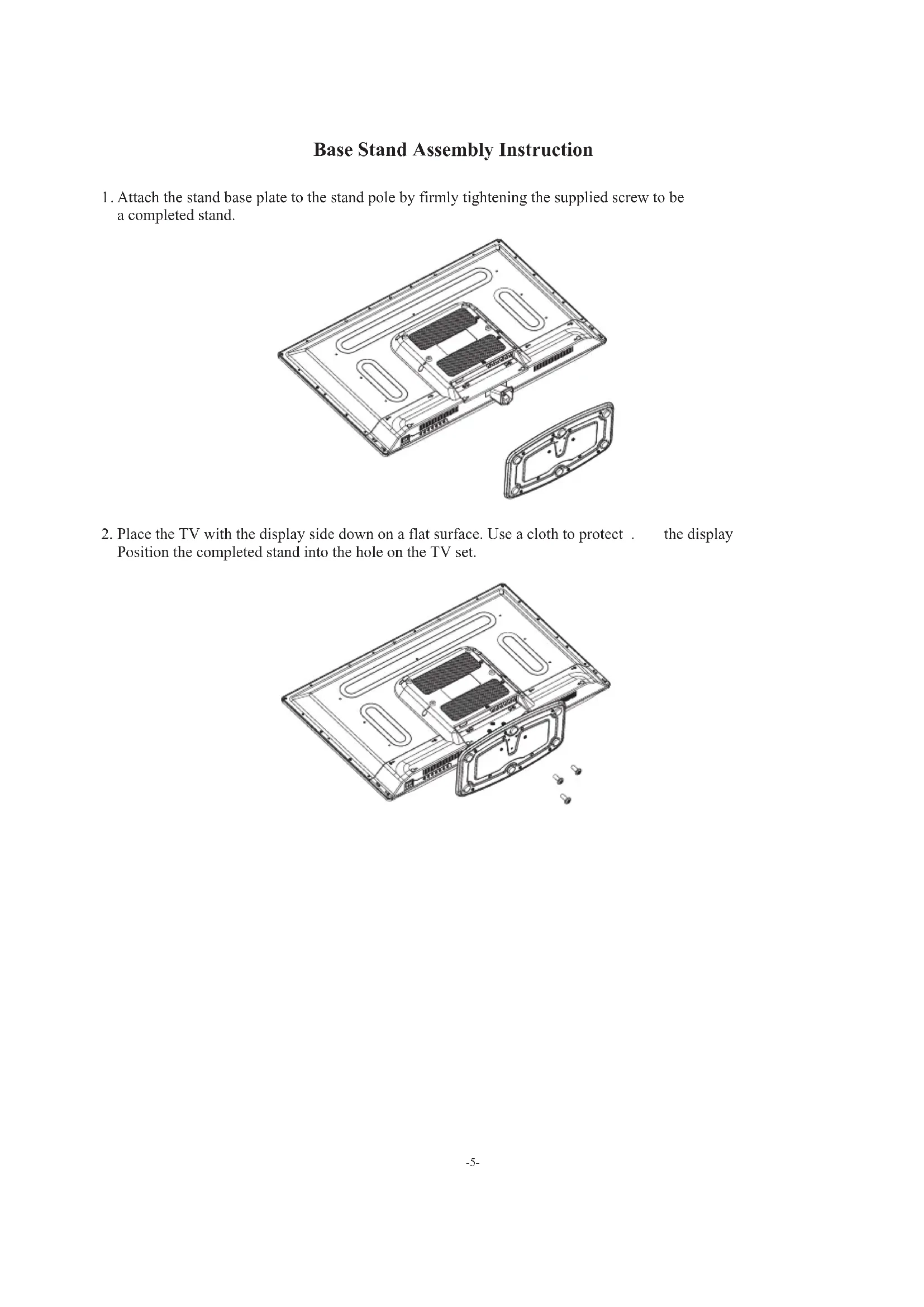

Attach the stand base plate to the stand pole by firmly tightening the supplied screw to be a completed stand.

2. Place the TV with the display side down on a flat surface. Use a cloth to protect .

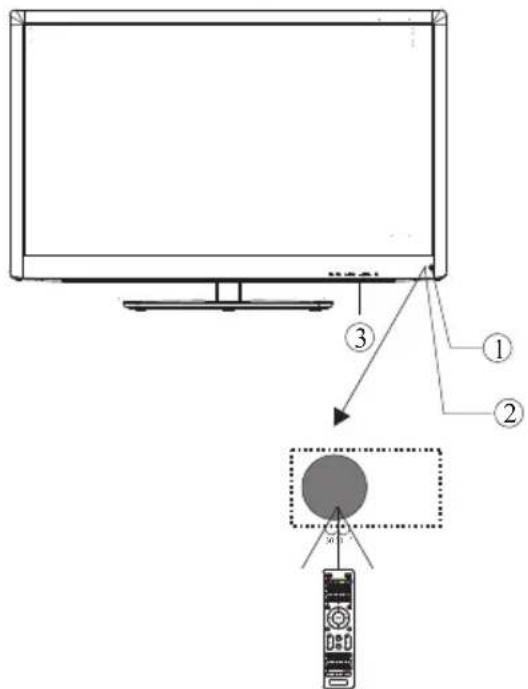

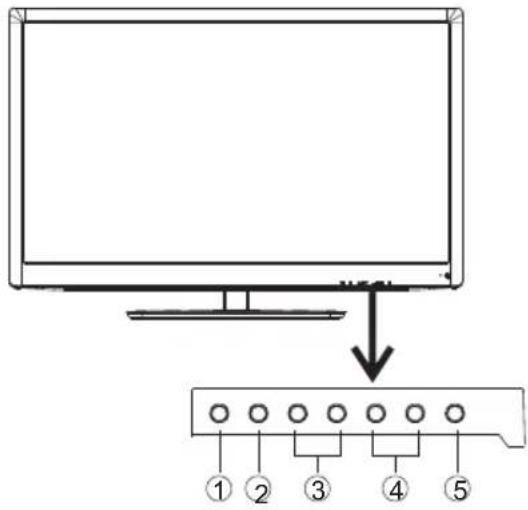

the display Position the completed stand into the hole on the TV set.-6- INSTALLATION Front panel 1: Remote control sensor. 2: Indicator LED: BLUE POWER ON. RED STANDBY. 3: Panel keys1. SOURCE: Display the input source menu.2. MENU: Display main MENU.3. CH+/CH-: In TV mode, press "CH+" or "CH-" to change the channel up and down. In MENU mode, press "CH+" or "CH-" to select items in standby mode, press "CH+" or "CH-" to turn on the TV.4. VOL+/VOL-: Adjust sound level. In MENU mode, press "VOL+ " or "VOL- " to adjust the item that you selected.5. STANDBY: Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY. Side panel REAR Connections All the terminals are (from left to right): POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT Note: AV and YPbPr share one audio channel. SIDE Connections All the terminals are (from left to right): HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF. Note: 1. When HDMI has an input signal coming from a DVI source then the audio input signal must be connected to the PC audio input.

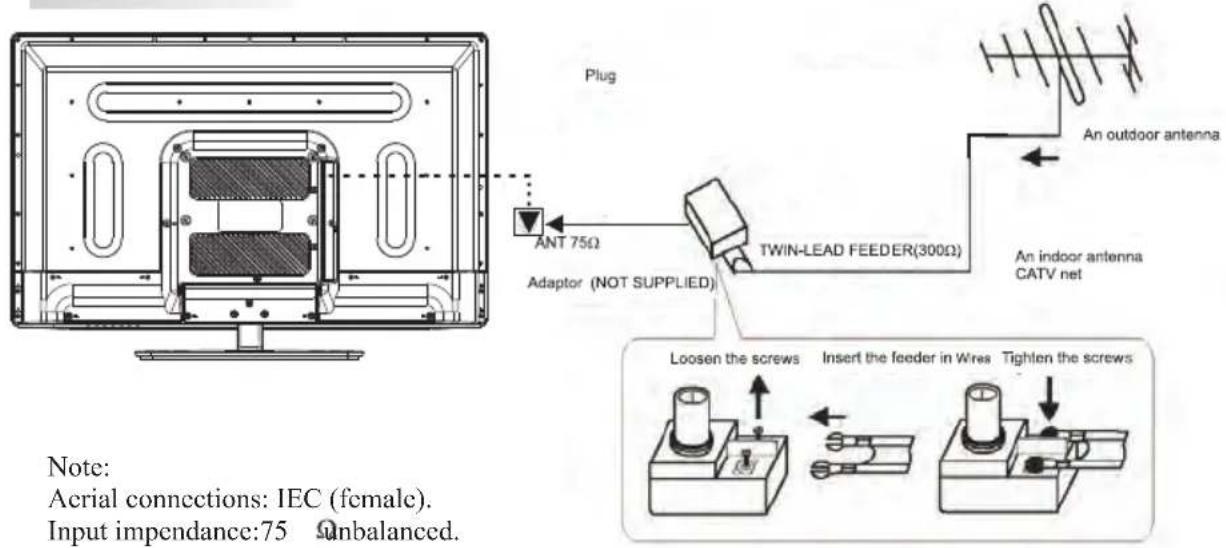

COMPOSITE COMPONENTANTENNA INSTALLATION Note: Aerial connections: IEC (female). Input impendance:75 unbalanced.

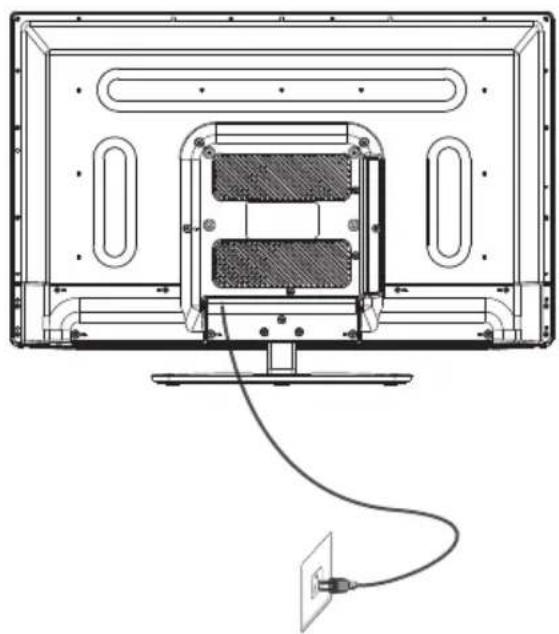

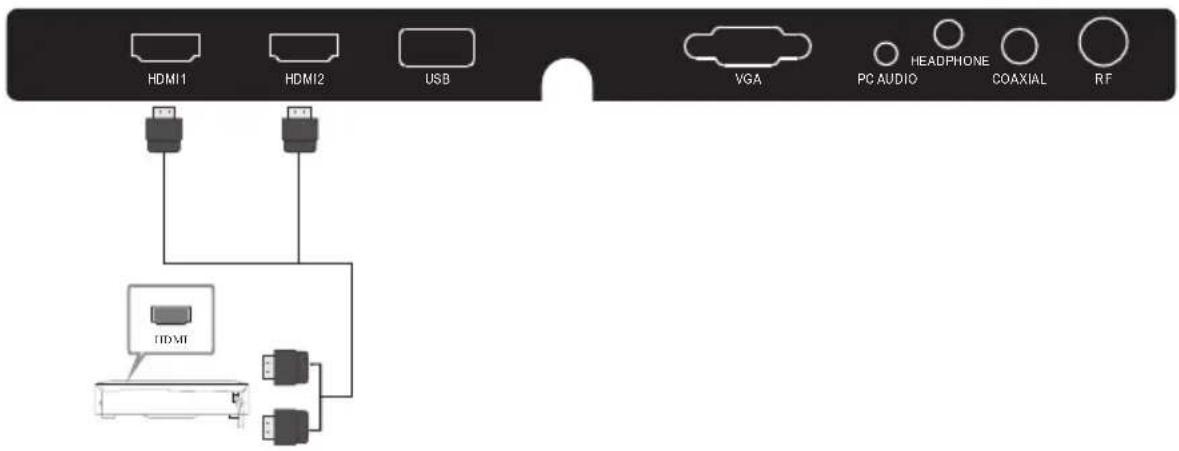

Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC. This sequence is very important. HDMI1 HDMI2 USB VGA PC AUDIOHEADPHON ECOAXIAL R FPC

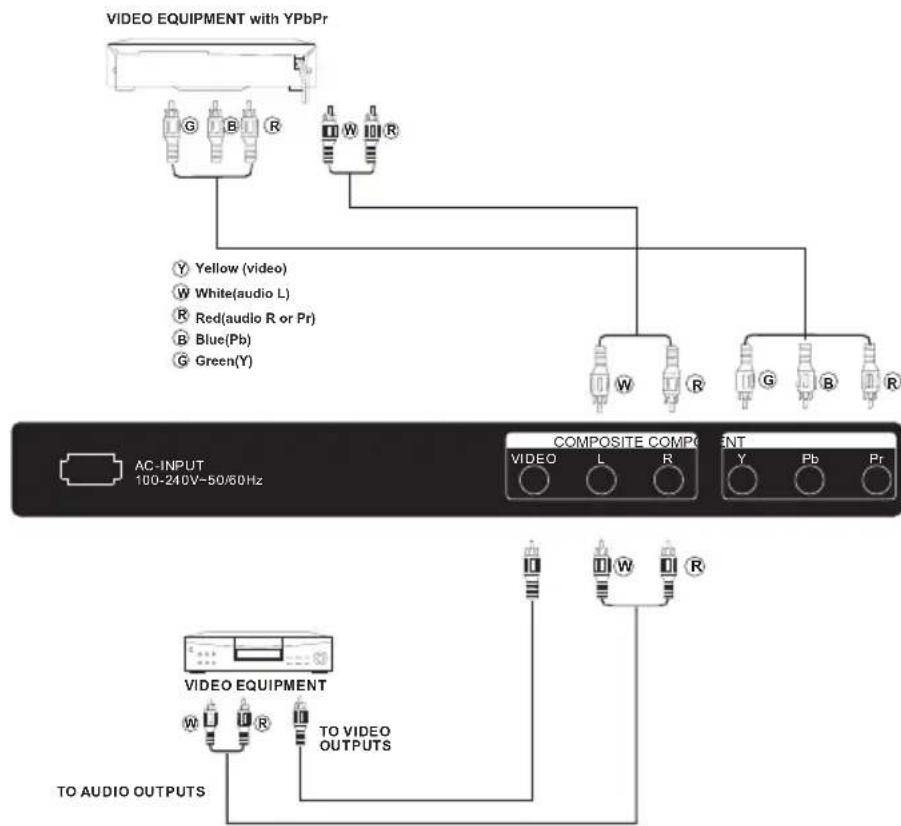

AV EQUIPMENT You can use the input terminals on TV set rear as follows. The television's inputs can be connected to the following types of equipment: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc..... YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i. HDMI Yellow (video)White(audio L)Red(audio R or Pr)

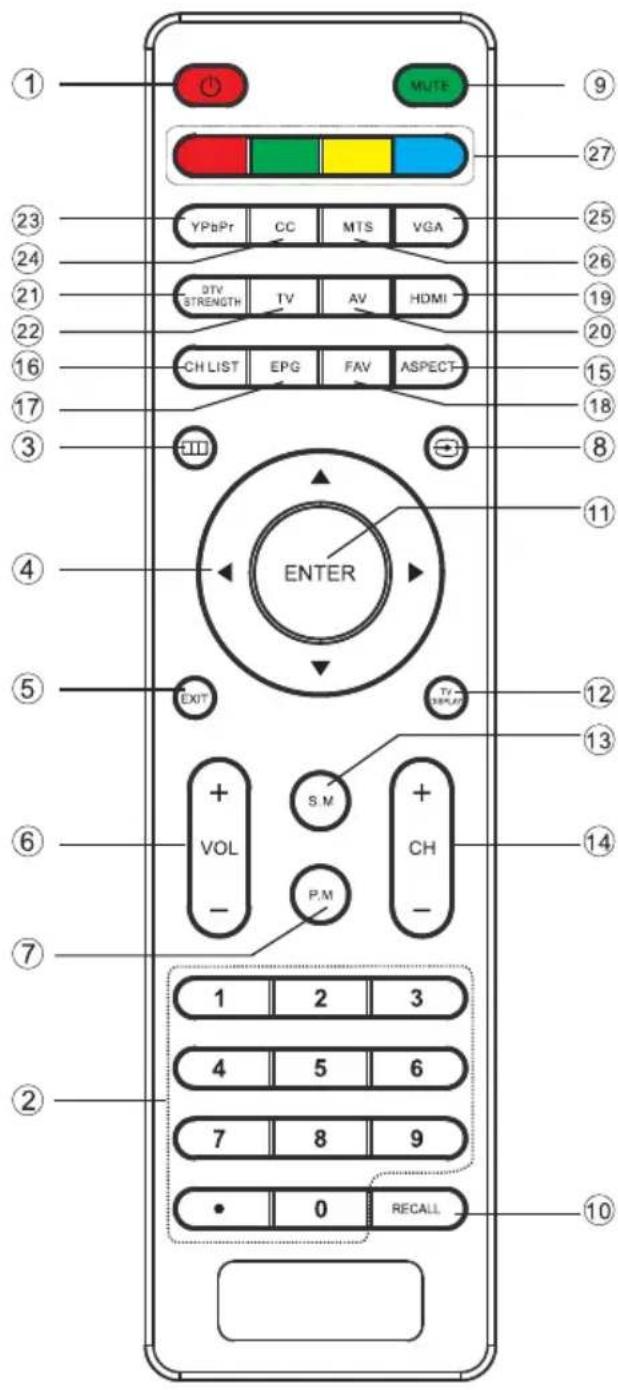

Press to display and select the available video sources. 9: MUTE To disable or enable the sound. 10: RECALL To access the previously viewed channel. 11: ENTER Confirms selection. 12: TV DISPLAY Displays/removes the program information 13: S.M To switch sound mode. 14: CH+/CH- To access the next or previous channel. 15: ASPECT To change picture aspect . 16: CH LIST To display the channel list. 17: EPG To display all the information of DTV programs. 18: FAV To access your favorite channels in digital TV mode. 19: HDMI Hot key to go directly to HDMI source. 20: AV Hot key to go directly to AV source. 21: DTV STRENGTH To display the DTV signal strength menu. 22: TV Hot key to go directly to TV source. 23: YPbPr Hot key to go directly to YPbPr source. 24: CC To enable or disable the CC function. 25: VGA Hot key to go directly to VGA source. 26: MTS To switch the sound stereo. 27: COLOR KEYS Reserved keys channelsOPERATION

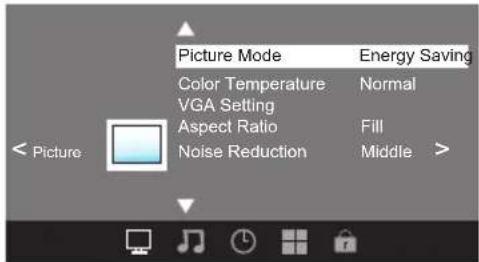

In this menu,you can adjust the picture effect here, such as contrast, brightness, etc. Press to select, press OK to adjust.

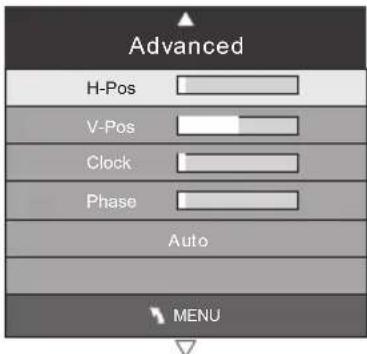

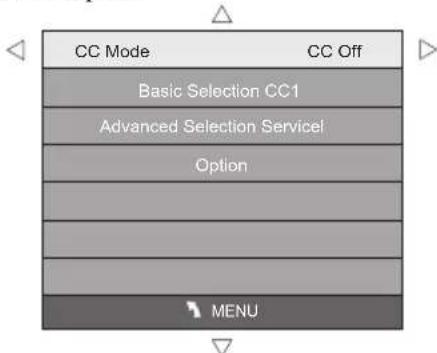

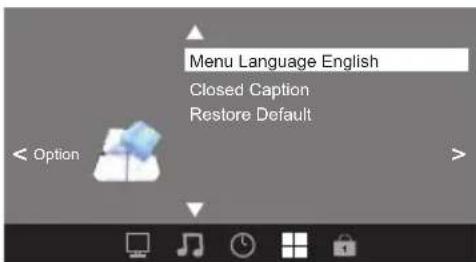

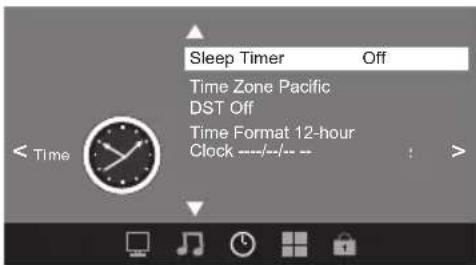

When PC Mode is available. Press OK button to select PC advanced setting 1).H-Pos: Adjust the horizontal position of the screen. 2).V-Pos: Adjust the vertical position of the screen. 3).Clock: Fine tune the screen width. 4).Phase: Fine tune the phase of the screen. Usually don't adjust this item. 5).Auto: Auto adjust to fit the screen. Note: 1).If you want to adjust contrast, brightness, color, and sharpness, the picture mode must return to personal status. 2).Tint is avaliable in NTSC system only. 3).There are three color temperature modes can be selected:Normal,Warm and Cool. 2.AUDIO menu In this menu, you can ajust the sound effect here. Press to select, press OK to adjust. In this menu, you can adjust the sleep timer, time zone, etc. Press to select,press OK to adjust. Note: 1). Time zone, DST and the clock are available in ATSC programming only, and the Clock can't be adjust. 4.OPTION menu In this menu, you can ajust the Menu language, Close Caption, Restore Default etc. Press to select,press OK to adjust.

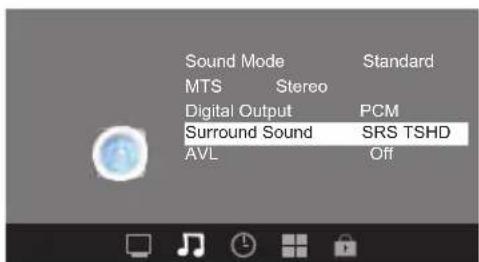

Note: 1). There are five Sound Modes can be selected:Standard,Music,Movie,Sports and Personal 2).Audio language is available in ATSC/TV Programming only. 3).Auto volume is available only when the input signal volume is too large or there is distortion. MENU Advanced H-Pos V-Pos Clock Phase Auto Color Temperature NormalAspect Ratio FillNoise Reduction MiddlePicture Mode Energy Saving PictureVGA Setting MTS StereoDigital Output PCMSurround Sound SRS TSHDAVL OffSound Mode Standard Surround Sound: SRS TSHD: Set the Surround Sound mode to SRS TSHD mode. Off: Turn off the Surround Sound mode.OPERATION

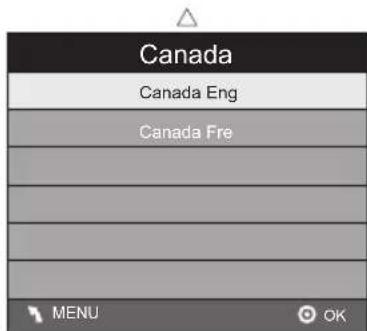

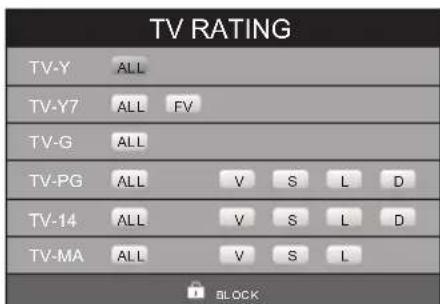

Canada Canada Eng MENUOK Canada Fre And use the ENTER key to switch lock/ unlock feature. Parental Control Rating Content (Fantasy violence) (Violence) (Sexual situation) (Adult language) (Sexually suggestive dialog)Suggested age TV-Y (All children)TV-Y7(Direct to order children)TV-G(General audience) TV-PG(Parental Guidance suggested)TV-14(Parentsstrongly cautioned)TV-MA(Mature audience only)

Content 2).MPAA: Switching the movie-rating control level; N/A, G, PG, PG-13, R, NC-17, X. Rating Description Age G General audiences, All Ages admitted

Parental Guidance suggested. Some material may not be Suitable for children. PG-13 Parents strongly cautioned. Some material .may be Inappropriate for children under 13.

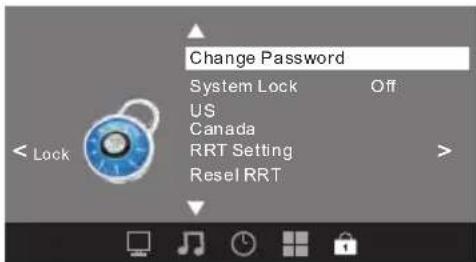

Restrict. Under 17 requires accompanying parent or adult guardian(age varies in some jurisdictions) No one 17 and under admitted. X is an order rating that is unified with NC-17 but may be encoded in the data of order movies. 1): Canada English: Switching the English rating control level: EXEMPT, C, C8+, G, PG, 14+, 18+. 5.LOCK MENU In this menu, you can change the password and adjust the vchip setting. Enter the password, it will go into the lock menu. Factory default password is 6666.

When the System Lock switch is ON, the below options listed below can be adjusted.

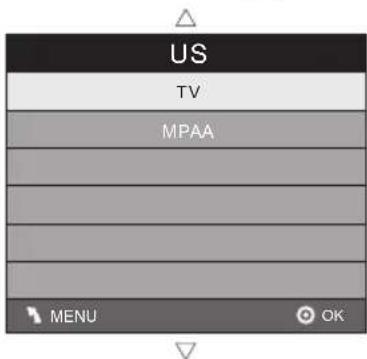

Press OK button the screen will display as follow. 1).TV: Press OK button, the screen will display as follows:

Press OK button, the screen will be displayed as follow:

Canada RRT Setting Change Password Off

Auto Scan Scan all channels MENU OK Digital channel onlyAnalog channel only Rating Description Age E Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. C Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being. C8+ Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen . G General: Considered acceptable for all age groups, Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional. PG Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues. 14+ Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline But it must be integral to the devel opment of plot or character. Language usage could be profane and nudity , present within the context of theme. 18+ Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of secretary and nudity. 2).Canada French: Switching the French-rating control level: E, G, 8ANS+, 13 ANS+, 16ANS+, 18ANS+. Rating Description Age E Exempt programming G General :All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner . 8ans+ General but inadvisable for young children :May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with paren. 13ans+ Over 13 years: Could contain scenes of frequent violent scenes and in tense violence. 16ans+ Over 16 years: Could contain frequent violent scenes and violence. 18ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

in ATSC digital TV mode, it can be adjusted

Press OK button, the screen will be displayed as follow:

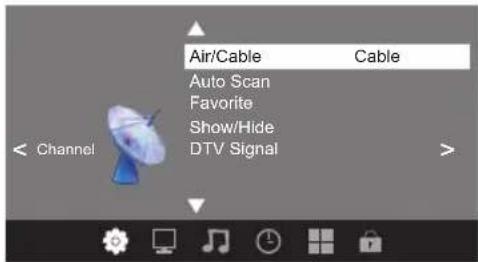

In this menu, you can adjust digital and analog TV Channels. Press to select,press OK to adjust.

Select Air TV signal and cable TV signal.

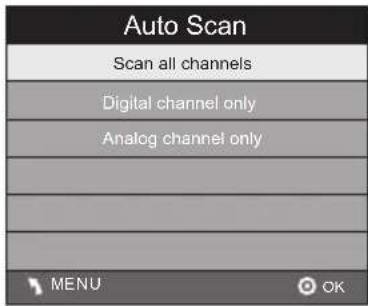

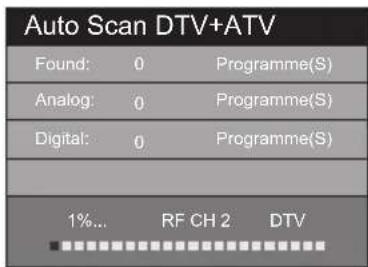

If it's the first time you use the TV, you should scan all the TV channels first, Press OK button to confirm, you will see the menu Press OK button to select a scan type,you will see the message below which indicates auto search is in process.

Press OK button to choose/delete the favorite channel.

Display DTV strength signal. It can't be selected and adjusted. Auto ScanFavoriteShow/HideDTV SignalAir/Cable Cable Channel

Programme(S)Programme(S)Programme(S)1%... RF CH 2 DTV Licensing and Patent Information This WESTINGHOUSE product may be covered by one or more U.S. and foreign patents and patent applications. See http://westinghousedigital.com/compliance/ for details.7.1 Connect the USB DEVICE that contains the files.

7. Displaying JPEG and M-JPEG files by using USB Port

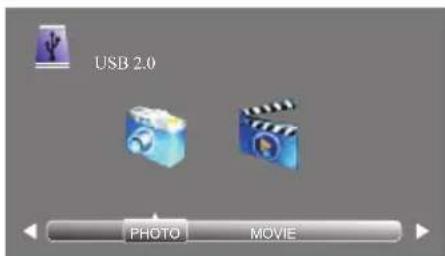

You can display the JPEG and M-JPEG fiels by using the USB port that is located on the rear panel:

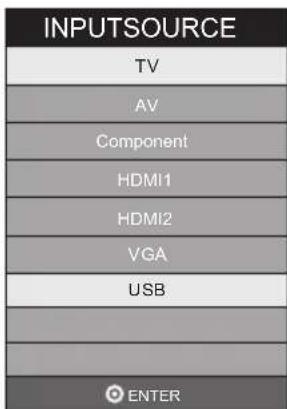

7.4 to select Photo or Movie, and then

7.5 Press to select folder which

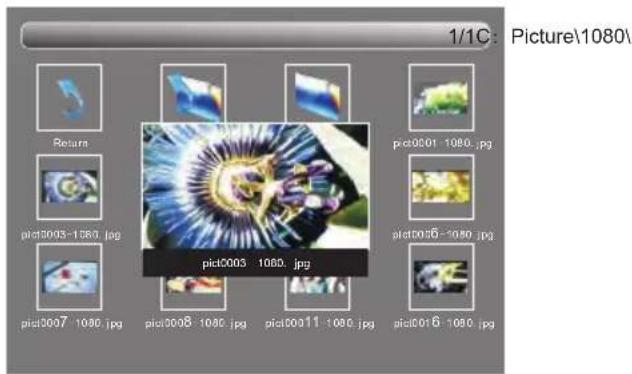

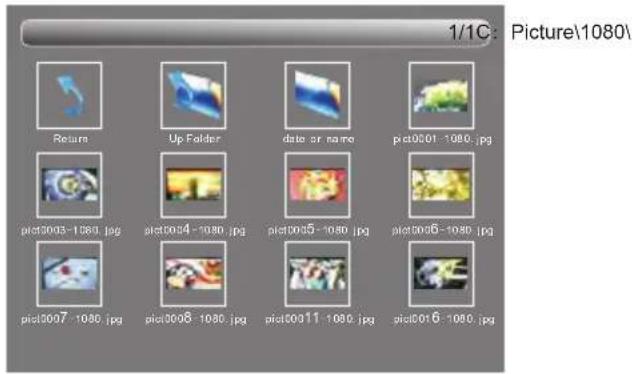

contains JPEG picture or Movie file . 1/1C: Picture\1080\ Return Up Folder date or name pict0001-1080. jpg pict0003-1080. jpg pict0004- 1080.jpg pict0005- 1080.jpg pict0006- 1080.jpg pict0007- 1080.jpg pict0008- 1080.jpg pict00011-1080. jpg pict0016-1080. jpg

7.6 Press ENTER to dispay the picture or Movie in
