Dynex DX-LCD19 19" LCD TV

Contents

Important safety instructions. 3

Features. 7

Front 8

Back 10

Remote control 11

Setting up your TV. 12

Selecting a location. 12

Installing remote control batteries. 13

Connecting an antenna. 14

Connecting cable TV. 16

Connecting A/V devices. 17

Connecting a computer 20

Connecting headphones 21

Using your TV 21

Turning your TV on and off. 21

Selecting the TV signal source. 21

Selecting the video source. 21

Memorizing channels. 22

Deleting channels from memory 22

Changing channels. 22

Selecting digital sub-channels. 22

Adjusting the volume. 22

Adjusting the audio. 23

Selecting the sound mode. 23

Selecting the audio mode 23

Adjusting the picture 24

Selecting a picture mode 24

Selecting the aspect ratio. 25

Selecting the audio language 25

Displaying video source information 25

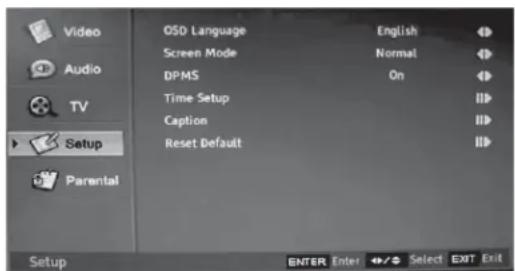

Setting the time. 25

Important safety instructions

Displaying the current time. 25

Viewing closed captions 26

Setting the sleep timer. 26

Setting the auto sleep timer.. 26

Setting up parental controls. 27

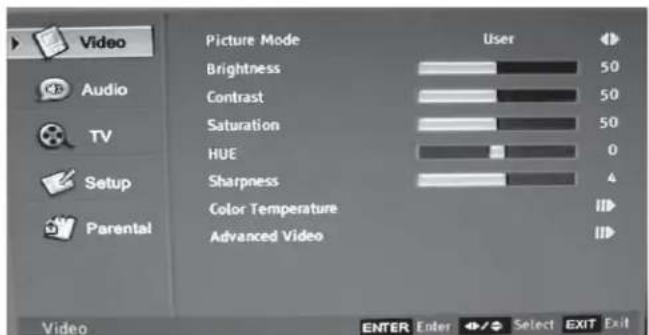

Using the on-screen display (OSD) 29

OSD menus. 30

Maintaining. 34

Troubleshooting 35

Specifications 36

Legal notices 37

One-year limited warranty 39

Francais 41

Espanol. 83

Important safety instructions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: To reduce the risk of electric shock, do not remove the cover or back. No user serviceable parts inside. Refer servicing to qualified service personnel. To reduce the risk of fire or electric shock, do not expose your TV to rain or moisture.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

Warning: Plug the power cord into a power outlet where access to the power cord is readily accessible in case power disconnection is required.

Read instructions

Read all of the safety and operating instructions before you use your TV.

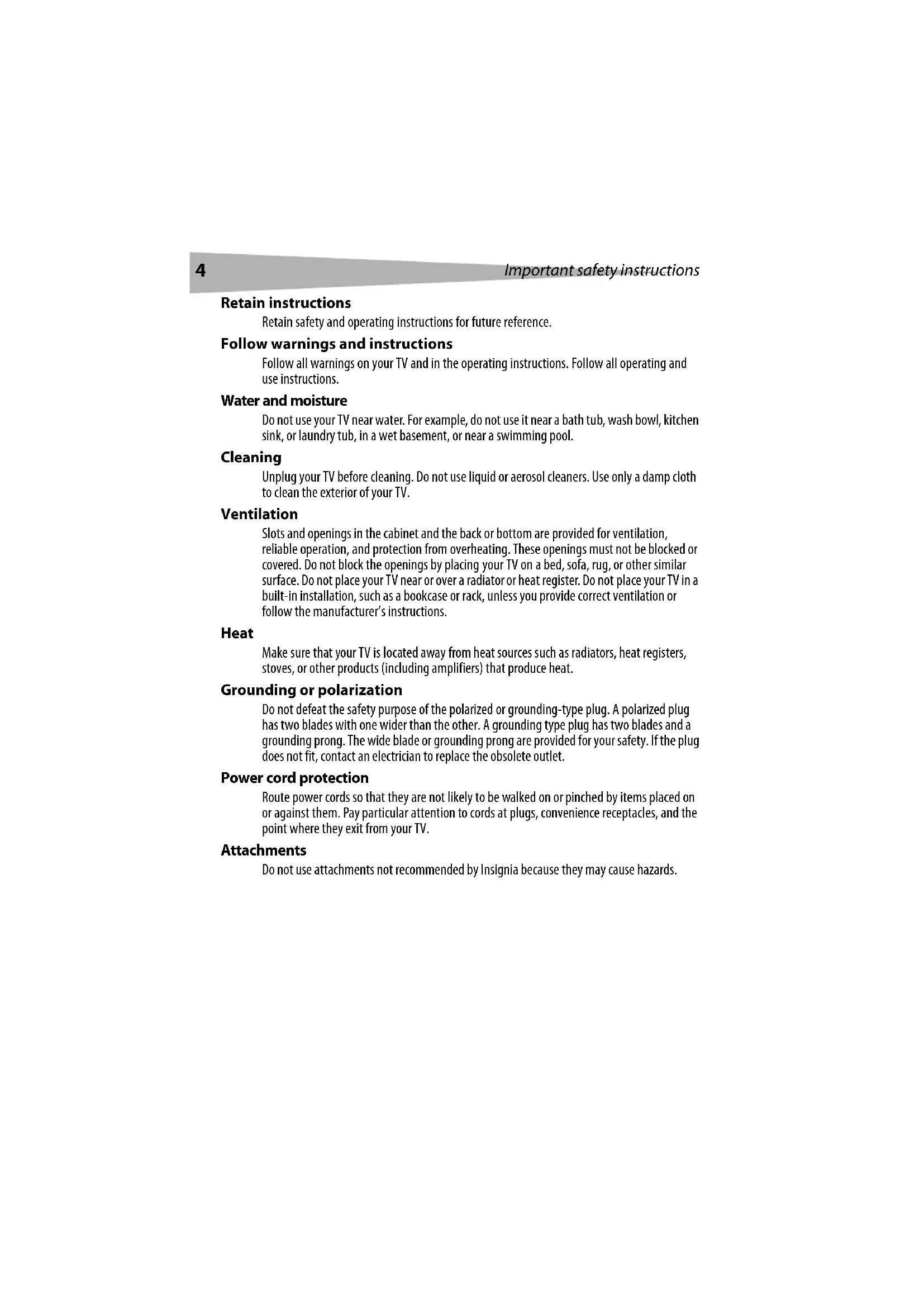

Retain instructions

Retain safety and operating instructions for future reference.

Follow warnings and instructions

Follow all warnings on your TV and in the operating instructions. Follow all operating and use instructions.

Water and moisture

Do not use your TV near water. For example, do not use it near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

Cleaning

Unplug your TV before cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth to clean the exterior of your TV.

Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, reliable operation, and protection from overheating. These openings must not be blocked or covered. Do not block the openings by placing your TV on a bed, sofa, rug, or other similar surface. Do not place your TV near or over a radiator or heat register. Do not place your TV in a built-in installation, such as a bookcase or rack, unless you provide correct ventilation or follow the manufacturer's instructions.

Heat

Make sure that your TV is located away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Grounding or polarization

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a grounding prong. The wide blade or grounding prong are provided for your safety. If the plug does not fit, contact an electrician to replace the obsolete outlet.

Power cord protection

Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from your TV.

Attachments

Do not use attachments not recommended by Insignia because they may cause hazards.

Stand

Do not place your TV on an unstable cart, stand, tripod, bracket, or table. Your TV may fall, causing serious personal injury and serious damage to your TV. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with your TV. If you mount your TV to the wall, follow the manufacturer's instructions and use a mounting accessory recommended by the manufacturer. Your TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause cart combination to overturn.

Lightning

For added protection for your TV's receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect the antenna or cable system. This helps prevent damage to your TV from lightning and power line surges.

Servicing

Do not attempt to service your TV yourself because opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Overloading

Do not overload power outlets and extension cords because this can result in a risk of fire or electric shock.

Object and liquid entry

Never push objects of any kind into your TV through openings because objects may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on your TV.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Damage requiring service

Unplug your TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.
  If liquid has been spilled or objects have fallen into your TV.
• If your TV has been exposed to rain or water.
• If your TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.
• If your TV has been dropped or damaged in any way.
• When your TV exhibits a distinct change in performance.

Safety check

After completing any service or repair to your TV, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.

Power source

Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type power supplied to your home, consult your TV dealer or local power company.

Screen protection

Your TV's screen is made of glass. Do not drop your TV or hit the glass screen. If the screen breaks, be careful of broken glass.

Non-active pixels

The LCD panel contains almost 3 million thin-film transistors, which provide exceptionally sharp video quality. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.

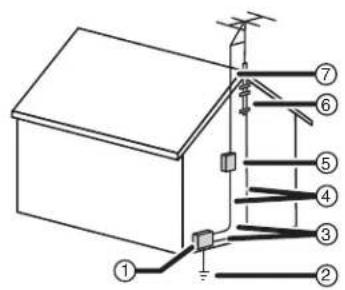

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

An outside antenna system should not be located near overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, because contact with them can be fatal.

1 Electric service equipment
2 Power service grounding electrode system
3	G r o u
4 Grounding conductors
5 Antenna discharge unit
6 Grounding clamp
7 Antenna lead-in wire

d C a m

Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for correct grounding and in particular, specifies that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Features

Your TV includes the following features:

• All-in-one TV receiver, video monitor, and computer display
  A 16:10 ergonomic display panel with 16:9 and 4:3 screen ratios
• Distortion-free image display regardless of magnetic or geomagnetic effects
• Closed caption decoder for watching TV programs, prerecorded videotapes, and DVDs that have closed captions
• V-chip that lets you control the type of content your children watch
• ATSC and NTSC capable
• Sleep timer
• Multi-language on-screen display (OSD)

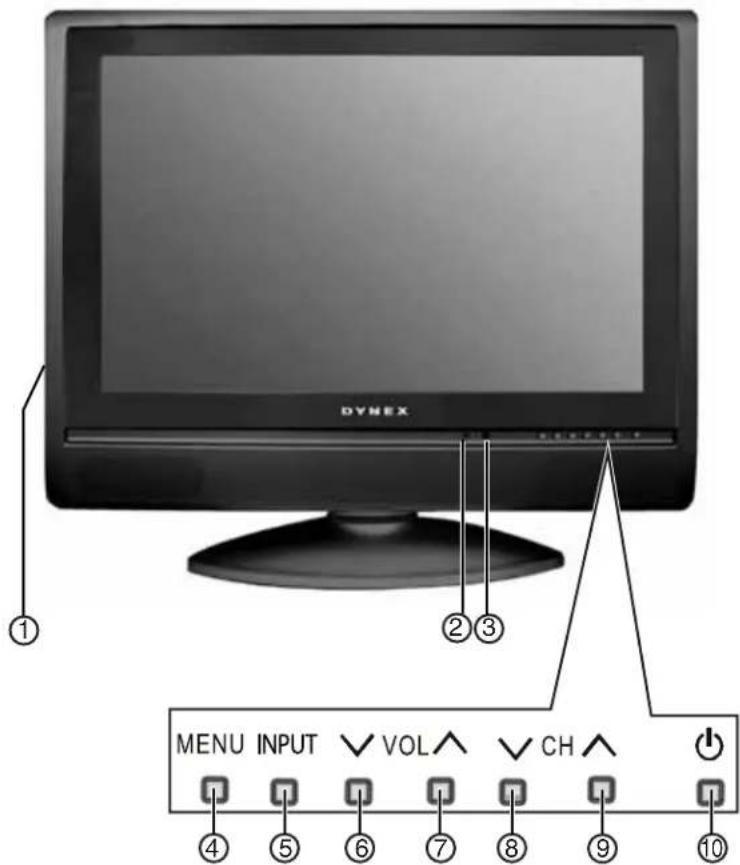

Front

No. Component Description
1	Headphone jack	Plug headphones into this jack. When headphones are plugged in, no sound comes from the speakers.
2 Power indicator Lights when your TV is plugged into a power outlet. If the indicator is red, your TV is off (standby mode). If the indicator is blue, your TV is on.
3 Remote sensor Receives signals from the remote control. Do not block.
4 MENU button Press to open the on-screen display (OSD).
No.	Component Description
5	INPUT button	Press to select the video mode. You can select TV, Video, S-Video, Component, HDMI, or VGA.
6 VOL button Press to decrease the volume.
7 VOL button Press to increase the volume.
8 CH button Press to go to the next lower channel number.
9 CH button Press to go to the next higher channel number.
10	( power ) button	Press to turn your TV on or off ( standby mode).

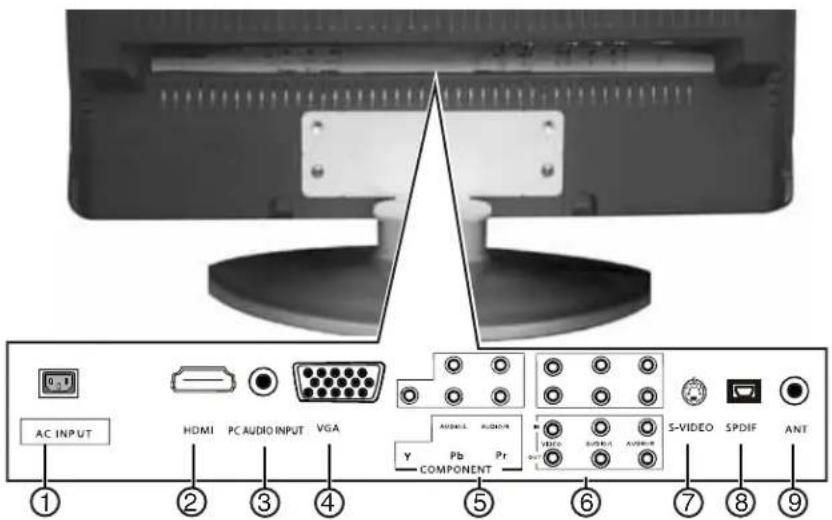

Back

No. Connector Description

1 AC Connect the power cord to this connector.

2 HDMI Connect an HDMI device to this jack.

3 PC AUDIO INPUT Connect the audio from a computer to this jack.

4 VGA video input Connect the video from a computer to this jack.

5 Component input Connect a component video device, such as a DVD player, to these jacks.

6 A/V input/output Connect standard audio cables to these jacks. The top row of jacks are input jacks. The bottom row of jacks are output jacks.

7 S-Video input Connect an S-Video device to this jack.

8 SPDIF output Connect an optical audio device to this jack.

9 Antenna input Connect an antenna, basic cable, or a cable or satellite set-top box to this jack.

Remote control

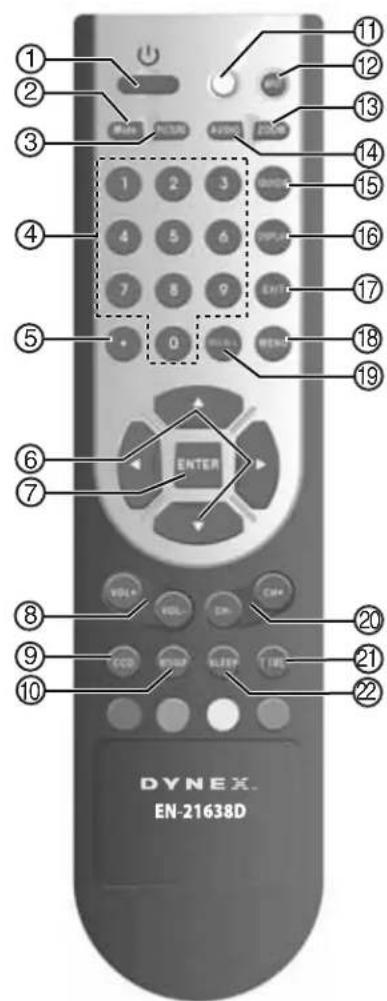

No. Button Description
1	( power )	Press to turn your TV on or off ( standby mode ) .
2 Mute Press to turn off the sound.	Press again to turn the sound back on .
No.	Button	Description
3 PICTURE Press to select the picture mode.
4 Numbers Press to enter channel numbers.
5 Press to select digital channels. For example, press 3, press this button, then press 1 to select digital channel 3.1.
6 Press to make selections or change options in the OSD.
7 ENTER Press to confirm a selection in the OSD or to return to a previous OSD menu.
8 VOL+ and VOL- Press to increase or decrease the volume.
9 CCD Press to select a closed caption mode.
10	MTS/SAP	Press to select the sound mode. You can select Mono, Stereo, or SAP (second audio program).
11 Power indicator Lights when you press a button.
12	INPUT	Press to select the video mode. You can select TV, Video, S-Video, Component, HDMI, or VGA.
13	ZOOM	Press to select the aspect ratio. You can select Auto, Normal, Letterbox, or Panorama.
14	AUDIO	Press to select the sound mode. You can select Rock, Pop, Live, Dance, Techno, Classic, or Soft.
15 GUIDE For ATSC tuners, press to display an electronic program guide (EPG).
16 DISPLAY Press to show video source.
17 EXIT Press to close the on-screen display (OSD).
18 MENU Press to open the on-screen display (OSD).
19 RECALL Press to go to the previously viewed channel.
20 CH+ and CH- Press to go to the next higher or lower channel.
21 TIME Press to display the current time.
22 SLEEP Press to set the sleep timer.

Setting up your TV

Selecting a location

• Place your TV on an open table or bench in a location where light does not shine directly on the screen.
• Make sure that your TV is far enough from walls to allow for correct ventilation. Inadequate ventilation may cause overheating, which may damage your TV.
• For information about mounting your TV on a wall, contact Dynex.

Installing remote control batteries

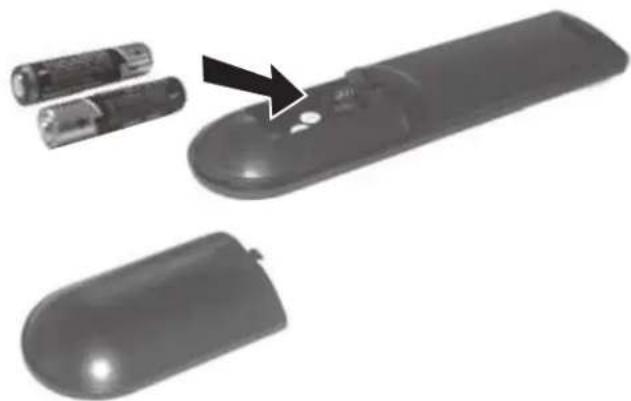

To install remote control batteries:

1 Open the battery compartment cover on the back of the remote control.
2 Insert two AAA batteries into the battery compartment. Make sure the + and - symbols on the batteries align with the + and - symbols in the battery compartment.

3 Replace the battery cover.

Cautions:

Dispose of batteries according to local hazardous waste regulations.

Do not throw batteries into fire.

Do not mix battery types.

Do not combine old and new batteries.

Remove dead batteries immediately to avoid battery acid leakage in the battery compartment.

If you do not intend to use the remote control for an extended time, remove the batteries to avoid acid leakage.

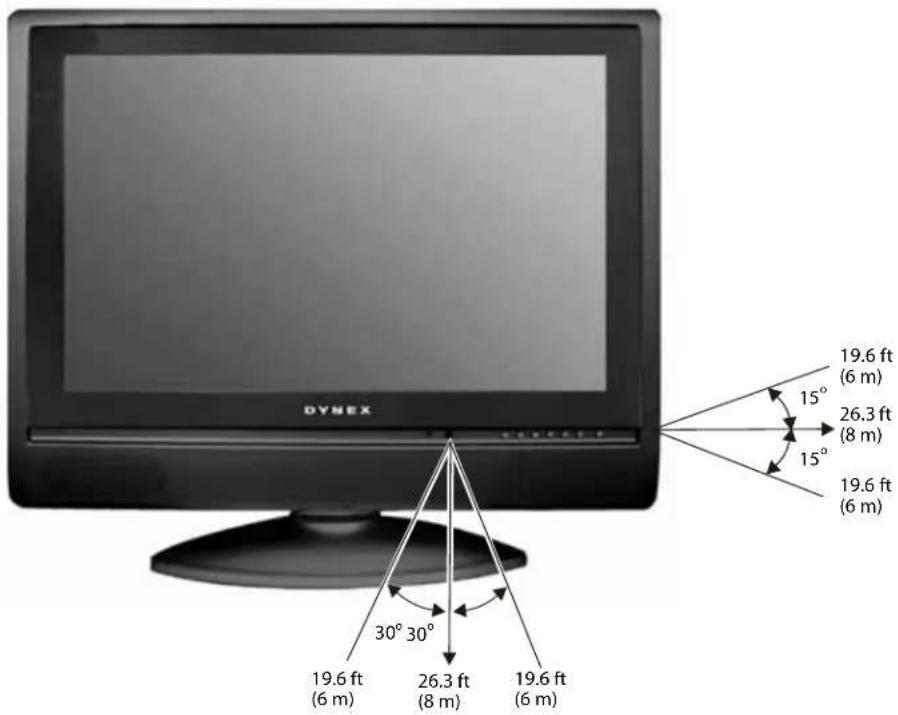

Remote control range

The following graphic shows the range of the remote control.

Connecting an antenna

Note: You can use an indoor or outdoor antenna. An outdoor antenna gives the best picture quality. You do not need an antenna for cable TV.

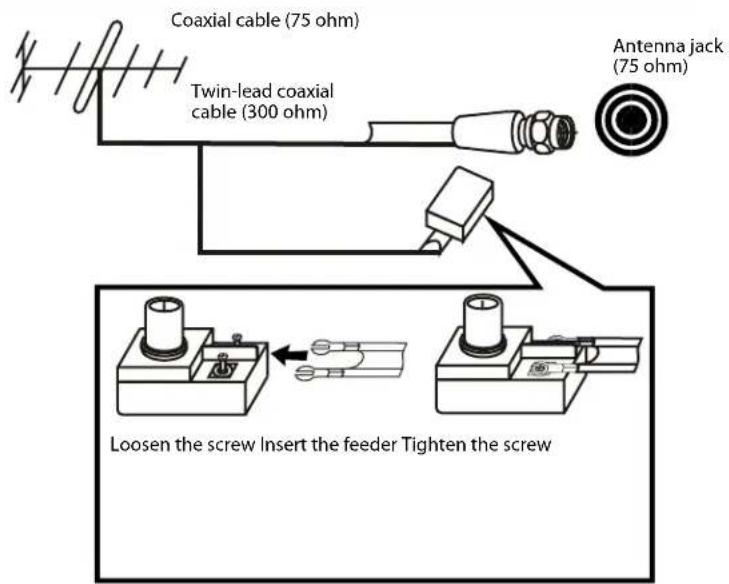

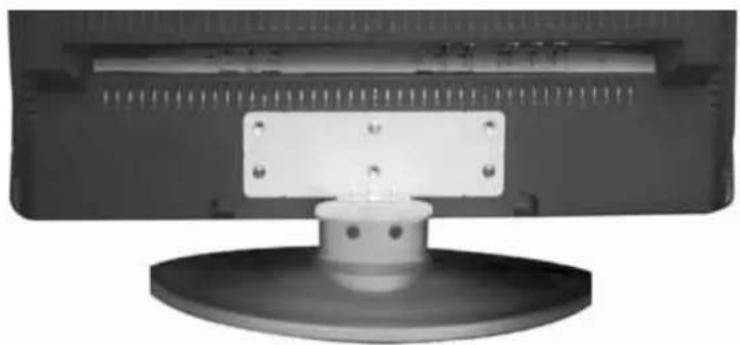

Use the following illustration to connect an antenna.

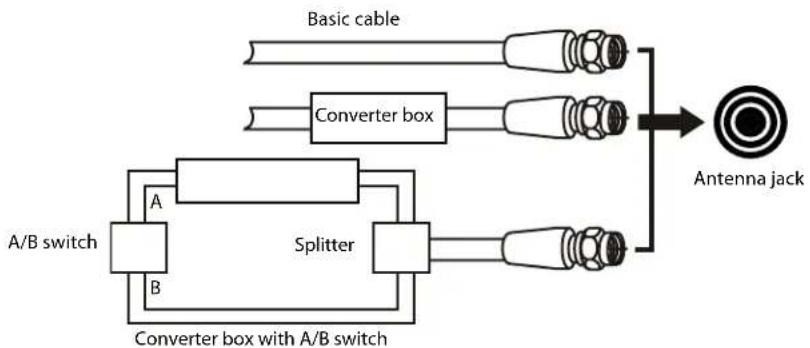

Connecting cable TV

Basic cable TV

Most basic cable TV service does not require a converter box.

To connect basic cable TV without a converter box:

• Connect a 75 ohm coaxial cable from the cable TV outlet to the antenna jack on the back of your TV.

Cable TV with a converter box

To connect cable TV with a converter box:

1 Connect a 75 ohm coaxial cable from the cable TV outlet to the IN jack on the converter box.
2 Connect a 75 ohm coaxial cable from the OUT jack on the converter box to the antenna jack on the back of your TV.
3 Tune your TV to the output channel for cable TV (usually channel 3 or 4), then use the cable converter box to select TV channels.

Cable TV with a converter box and A/B switch

If your cable TV service has basic (unscrambled) cable channels and premium (scrambled) channels that require a cable converter box, you may want to use an A/B switch that you get from the cable company or an electronics store. An A/B switch lets you use your TV to tune to basic cable channels and use the converter box to tune to premium channels.

To connect cable TV with a converter box and A/B switch:

Note: All cables used in this procedure are 75 ohm coaxial cables.

1 Connect a cable from the cable TV outlet to the IN jack on the A/B switch.
2 Connect a cable from the A jack on the switch to the converter box, then connect a cable from the converter box to the splitter. This connection lets you watch scrambled channels using the converter box to tune channels.
3 Connect a cable from the B jack on the switch to the splitter. This connection lets you watch unscrambled channels using your TV to tune channels.
4 Connect a cable from the splitter to the antenna jack on the back of the TV.

5 To watch basic (unscrambled) cable channels, set the A/B switch to B, then use your remote control to select channels.
6 To watch premium (scrambled) cable channels, set the A/B switch to A, tune your TV to the output channel for cable TV (usually channel 3 or 4), then use the cable converter box to select TV channels.

Connecting A/V devices

Caution: Do not plug in your TV until you finish connecting all A/V devices.

You can connect a variety of A/V devices to your TV, including a VCD, DVD, cable converter box, satellite receiver, camcorder, or amplifier. You select signal sources with the remote control.

Connecting a standard A/V device

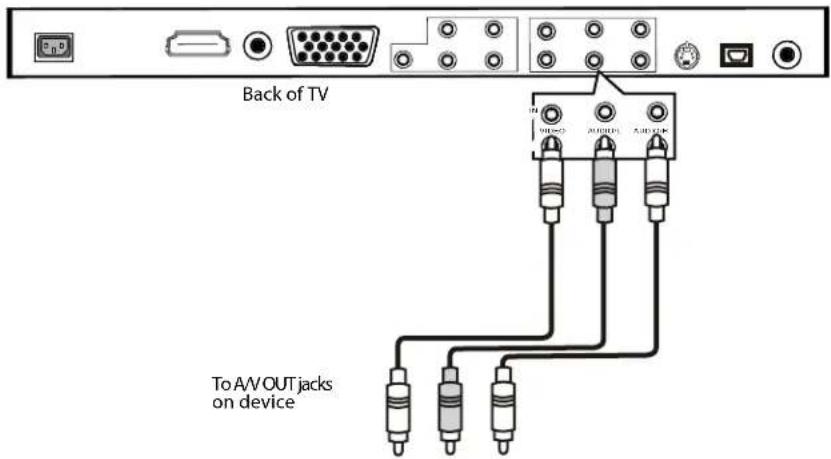

Use the following illustration to connect a standard A/V device, such as a DVD player or VCR.

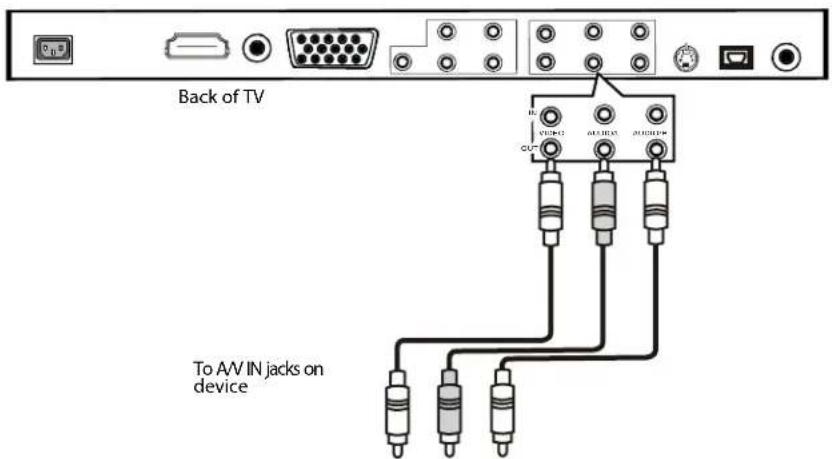

Connecting an output device

Use the following illustration to connect your TV to a standard output device, such as another TV.

Connecting an component video device

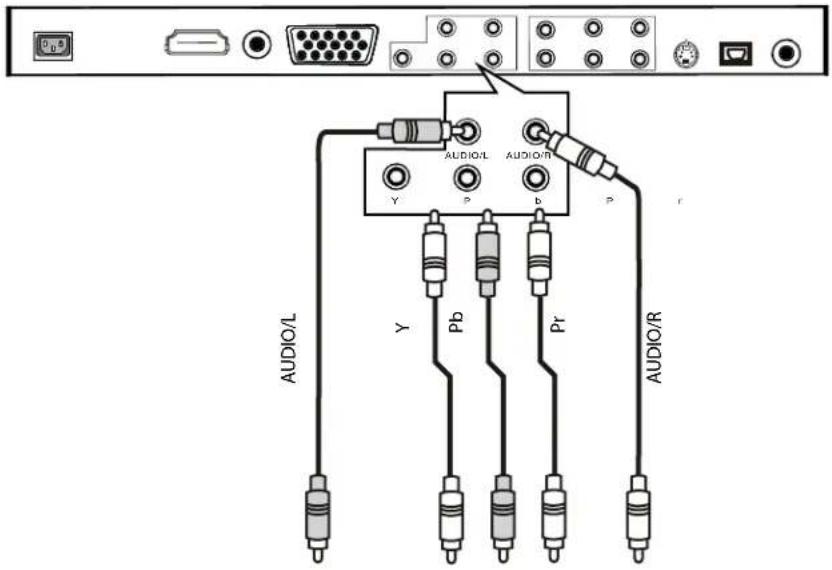

Use the following illustration to connect a component video device.

Connecting an HDMI device

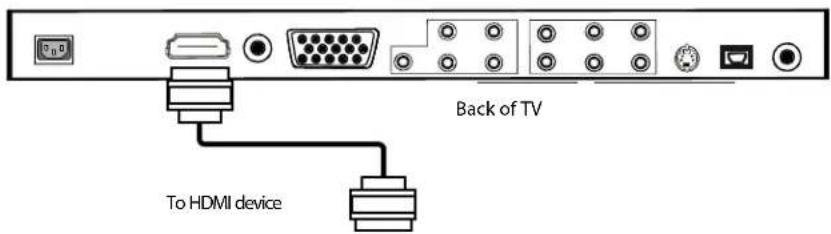

Use the following illustration to connect an HDMI device.

Connecting a digital audio device

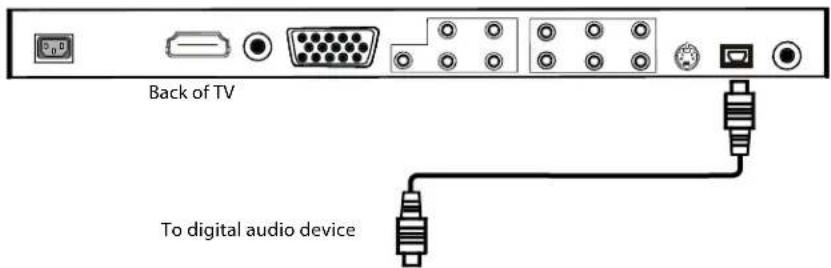

Use the following illustration to connect a digital audio device to the SPDIF jack.

Connecting a VGA device

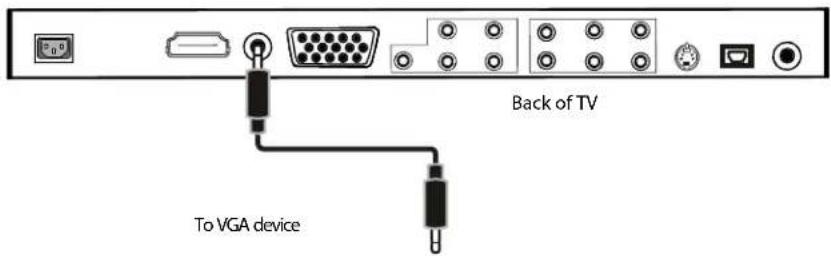

Use the following illustration to connect a VGA device.

Connecting a computer

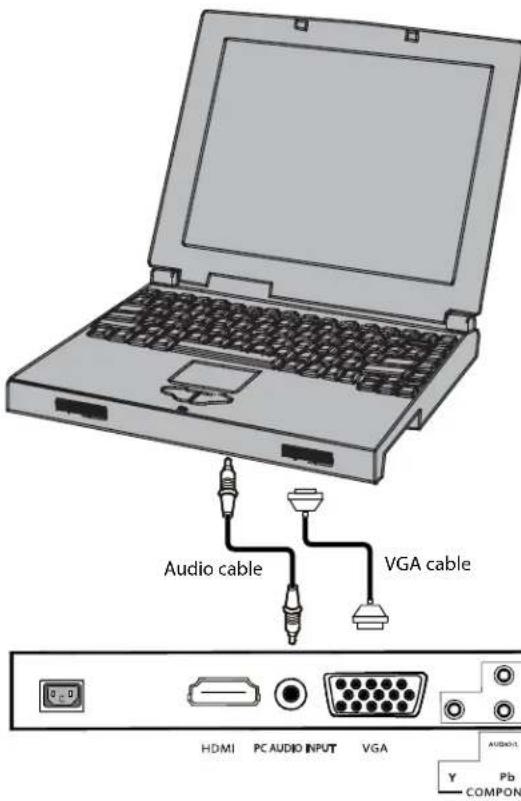

You can use your TV as a monitor and speakers for your computer. Note: In PC mode, your TV supports VGA, SVGA, and XGA resolutions Use the following illustration to connect a computer.

Connecting headphones

Note: Headphones are not included.

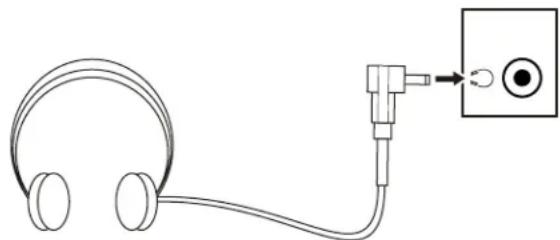

To connect headphones:

• Plug the headphones into the headphone jack on the left side of your TV. When headphones are plugged in, no sound comes from the speakers.

Using your TV

Turning your TV on and off

To turn your TV on and off:

1 Plug the power cord into a power outlet. The power indicator on the front of your TV lights red.
2 Press to turn on your TV. The power indicator turns blue. Several seconds later, the video image appears on your TV's screen.
3 Press again to turn off (put in standby mode) your TV.

Warning: When you turn off your TV, electrical power is still connected to it until the power cord is unplugged.

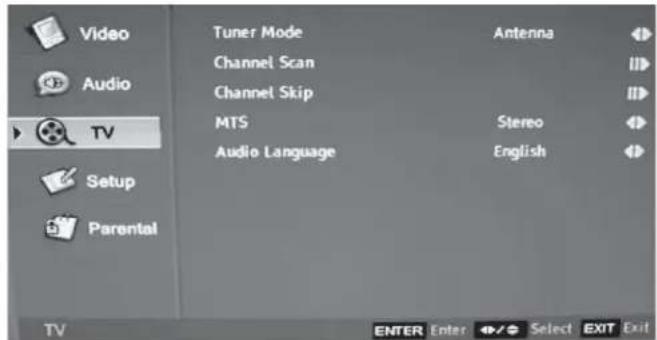

Selecting the TV signal source

To select the TV signal source:

1 Press MENU. The OSD opens.
2 Press or to highlight TV, then press to enter the TV menu.
3 Press or to highlight Tuner Mode, then press or to select Antenna or Cable.

Selecting the video source

Depending on the video device you have connected to your TV, you can select TV, A/V, S-Video, Component, VGA, or HDMI as the video source.

To select the video source:

• Press and hold INPUT until the source you want appears.
• Or, press INPUT. When the list of video sources appears, press an arrow button to select the source, then press ENTER.

Memorizing channels

When you first set up your TV or if you move your TV to a different geographical location, you should scan for (memorize) channels. Your TV searches for all channels in your area that have a signal, then stores the channel information in memory. When you press CH+ or CH- to change channels, your TV skips the channel numbers that do not have signals.

To memorize channels:

1 Make sure that you have selected the TV signal source. For more information, see "Selecting the TV signal source" on page 21.
2 Press MENU. The on-screen display (OSD) opens.
3 Press or to highlight TV, then press to enter the TV menu.
4 Press or to highlight Channel Scan, then press to start the scan.

Deleting channels from memory

After you scan for channels, you can delete a channel from memory if you want to skip the channel when your press CH+ or CH- . You can still select the skipped channel using the number buttons.

To delete a channel from memory:

1 Select the channel you want to delete.
2 Press MENU. The OSD opens.
3 Press or to highlight TV, then press to enter the TV menu.
4 Press or to highlight Channel Skip, then press to delete the channel from memory.

Changing channels

To change channels:

• Press CH+ or CH- to go to the next higher or lower channel.
• Or, press the number buttons to select a channel. For example, to select channel 120, press 1, then 2, then 0.
• 0r, press RECALL to go to the last viewed channel.

Selecting digital sub-channels

A main digital channel may have a sub-channel.

To select a digital sub-channel:

• Press the number buttons for the main channel, press ,then press the number button for the sub-channel. For example, to select channel 3.1, press 3, press then press 1.

Adjusting the volume

To adjust the volume:

• Press VOL+ or VOL- to increase or decrease the volume.
• Press Mute to turn off the sound. Press Mute again to turn the sound back on.

Adjusting the audio

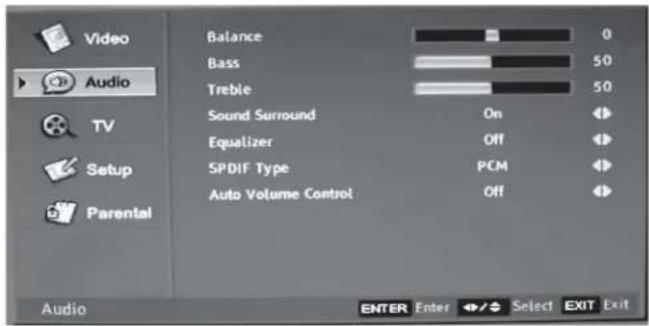

To adjust the audio:

1 Press MENU. The OSD opens.

2 Press or to highlight Audio, then press to enter the Audio menu.

3 Press to highlight an option, then press or to adjust the option. You can adjust:

Balance-Adjusts the volume from the left and right speakers.
- Bass-Adjusts the bass (low-pitch sounds).
- Treble-Adjusts the treble (high-pitch sounds).
Sound SurroundTurns the surround sound effect on or off.
- Equalizer-Turns the equalizer effect on or off. You can select Rock, Pop, Live, Dance, Techno, Classic, Soft, or Off. The default setting is Off.
- SPDIF Type—Selects the SPDIF type. You can select PCM, Dolby Digital, or Off.
- Auto Volume Control—Turns automatic volume control on or off. The option keeps the audio in a preset range to eliminate large spikes in volume. Note: If Auto Volume Control is turned on, the audio out control is also turned on.

Selecting the sound mode

To select the sound mode:

• Press AUDIO one or more times to select the sound mode you want. You can select Rock, Pop, Live, Dance, Techno, Classic, or Soft.

Selecting the audio mode

To select the audio mode:

• Press MTS/SAP one or more times to select the audio mode you want. You can select Mono, Stereo, or SAP (second audio program).

Adjusting the picture

To adjust the picture:

1 Press MENU. The OSD opens.

2 Press or to highlight Video, then press to enter the Video menu.

3 Press to highlight an option, then press or to adjust the option. You can adjust:

• Brightness-Increases the brightness to add more light to dark areas of the picture. Decreases the brightness to add more dark to light areas of the picture.
• Contrast-Increases the picture level to adjust the white areas of the picture. Decreases the picture level to adjust the black areas of the picture.
• Saturation-Adjusts the intensity of the colors.
• HUE-Adjusts the overall color of the picture.
• Sharpness-Increases the sharpness level to show cleaner and clearer images. Decreases the level to show a smoother picture.
  Color Temperature-Changes the color temperature. You can select Cool, Standard, or Warm.

• Advanced Video—Accesses advanced video settings such as:

• DNR- Reduces video noise in moving images without blurring the picture.

• Black Level Extension—Sharpens the image by increasing the black intensity.
• White Peak Limiter—Sharpens the image by adjusting the white.
• Fleshtone-Adjusts the fleshtones.
• Adaptive Luma Control—Sharpens the image by balancing the brightness and contrast.

Selecting a picture mode

To select a picture mode:

• Press PICTURE one or more times to select the picture mode you want. You can select User (a mode you define), Cinema, Sport, Vivid, or Hi-bright.

Selecting the aspect ratio

To select the aspect ratio:

• Press ZOOM one or more times to select the aspect ratio you want. In 4:3 mode, you can select Normal or Wide. In 16:9 mode you can select Normal, Wide, or Zoom.

Selecting the audio language

To select the audio language:

1 Press MENU. The OSD opens.
2 Press or to highlight TV, then press to enter the TV menu.
3 Press or to highlight Audio Language, then press or to select the language you want. You can select English, Spanish, or French. The program you are watching must have the language you select available for this option to work.

Displaying video source information

To display video source information:

• Press DISPLAY. Your TV displays information about the current video source. Press this button again to close the display.

Setting the time

To set the time:

1 Press MENU. The OSD opens.

2 Press or to highlight Setup, then press to enter the Setup menu.

3 Press or to highlight Time Setup, then press to enter the Time Setup menu.
4 Press or to highlight an option. You can select Time Zone, Time, or Sleep Timer.

Displaying the current time

To display the current time:

• Press TIME. The current time appears. Press this button again to close the display.

Viewing closed captions

The program or movie you are watching must have closed captions for this option to work.

To view closed captions:

• Press CCD one or more times to select the closed caption mode you want. You can select CC1 through CC4 or TEXT1 through TEXT4.

CC1 through CC4 show dialog and commentaries for TV programs while providing a clear picture of the program. TEXT1 through TEXT4 show information not related to the program, such as TV program schedules and weather forecasts. In TEXT mode, part of the picture may be covered by the text.

Setting the sleep timer

You can specify at the amount time you want your TV to wait before it automatically turns off.

To set the sleep timer:

• Press SLEEP one or more times until the remaining time you want appears. You can select Off, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 45 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, or 240 minutes.

Setting the auto sleep timer

To set the time:

1 Press MENU. The OSD opens.

2 Press or to highlight Setup, then press to enter the Setup menu.

3 Press or to highlight Time Setup.
4 Press the number buttons to enter the time, then press ENTER to select AM or PM.

Setting up parental controls

You can block TV programs and movies based on ratings. Some TV ratings also let you block certain types of content.

United States TV ratings

Rating Description
TV-Y All children
TV-Y7 Children over seven years old
TV-G General audiences
TV-PG Parental guidance suggested
TV-14 Parents strongly advised
TV-MA Mature audiences only

Some of the TV ratings also have content ratings.

Rating Description
FV Fantasy violence
D Suggestive dialog
L Strong language
S	S e
V	V i

Canadian English TV ratings

Rating Description
E	E xE
C	C h
C8+	Children eight years and older
G General programming suitable for all audiences
PG	Parental guidance
14+	Children 14 years and older
18+	Adult programming
NA	Rating not applicable

X u a o 1 e

mp t i 1 d

Canadian French TV ratings

Rating Description
E	E X
G General
8+ Children eight years and older
13+ Children 13 years and older
16+ Children 16 years and older
18+ Adult programming
NA Rating not applicable

e

m

p

Movie ratings

Movie ratings are set by the Motion Picture Association of America (MPAA). TV broadcasters use this rating system for some TV programs as well.

Rating Description
G General audiences
PG Parental guidance suggested
PG-13 Parents strongly cautioned
R	R e
NC-17 Viewers 17 years of age and older
X	A d

S

t

1

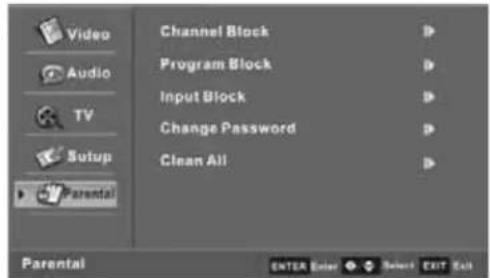

To set parental controls:

1 Press MENU. The OSD opens.

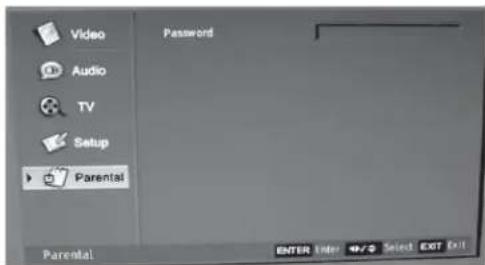

2 Press or to highlight Parental, then press to enter the Password menu.

3 Press the number buttons to enter the password. The default password is 0000. The Parental menu opens.

4 Press or to highlight Program Block, then press to enter the Program Block menu.

5 Press on to highlight an option, then press or to adjust the option. You can select:

Rating Enable On-Turns on parental controls.
US TV Ratings—Accesses the US TV ratings where you can block or unblock ratings.
- Canadian English Ratings—Accesses Canadian English ratings where you can block or unblock ratings.
- Canadian French Ratings—Access Canadian French ratings where you can block or unblock ratings.

Using the on-screen display (OSD)

Your TV has an on-screen display (OSD) that you can use to change settings for your TV.

To use the OSD:

1 Press MENU. The OSD opens.

2 Press to highlight a menu name on the left, then press to enter the menu.
3 Press or to highlight an option, then press or to adjust the option or enter a list of suboptions.
4 If you entered a list of suboptions, press or to highlight a suboption, then press or to adjust the suboption.

OSD menus

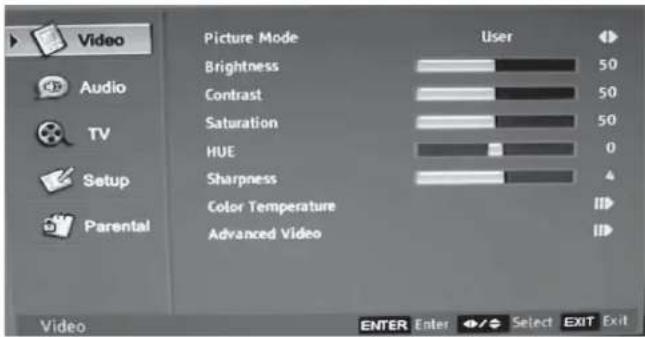

Video menu

Option Description
Picture Mode Selects the picture mode. You can select: User (a mode you define), Cinema, Sport, Vivid, or Hi-bright.
Brightness Increases the brightness to add more light to dark areas of the picture. Decreases the brightness to add more dark to light areas of the picture.
Contrast Increases the picture level to adjust the white areas of the picture. Decreases the picture level to adjust the black areas of the picture.
Saturation Adjusts the intensity of the colors.
HUE Adjusts the overall color of the picture.
Sharpness Increases the sharpness level to show cleaner and clearer images. Decreases the level to show a smoother picture.
Color Temperature	Adjusts the color temperature. You can select Cool, Standard, or Warm.
Advanced Video Access advanced video settings for: • DNR—Reduces video noise in moving images without blurring the picture. • Black Level Extension—Sharpens the image by increasing the black intensity. • White Peak Limiter—Sharpens the image by adjusting the white. • Fleshtone—Adjusts the fleshtones. • Adaptive Luma Control—Sharpens the image by balancing the brightness and contrast.

Audio menu

Option Description
Balance Adjusts the volume from the left and right speakers.
Bass Adjusts the bass (low-pitch sounds).
Treble Adjust the treble (high-pitch sounds)
Sound Surround Turns the surround sound effect on or off.
Equalizer	Turns the equalizer effect on or off. You can select: Rock, Pop, Live, Dance, Techno, Classic, Soft, or Off. The default is Off.
SPDIF Type	Selects the SPDIF type. You can select: PCM, Dolby Digital, or Off. Note: If Auto Volume Control is turned on, the audio out control is also turned on.
Auto Volume Control	Turns automatic volume control on or off. This option keeps the audio in a preset range to eliminate large spikes in volume.

TV menu

Option Description
Tuner Mode	Selects the TV signal source. You can select Antenna or Cable.
Channel Scan Scans for	channels that have signals and stores the channel information in memory. When you press CH+ or CH-, your TV skips any channels that do not have a signal.
Channel Skip Deletes a	channel stored in memory. When you press CH+ or CH-, your TV skips the channel you deleted. You can still tune to the channel using the number buttons on the remote control.
MTS	Selects the sound mode. You can select Mono, Stereo, or SAP (second audio program).
Audio Language Selects	the audio language for a program. You can select English, Spanish, or French.

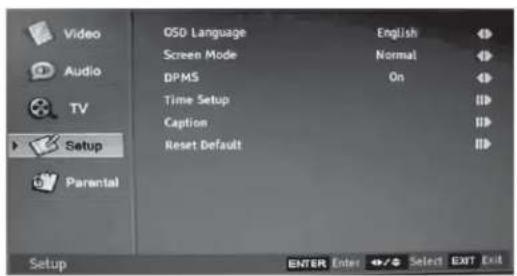

Setup menu

Option Description
OSD Language	Selects the language for the OSD. You can select English, Spanish, or French.
Screen Mode Selects the aspect ratio. In 4:3 mode, you can select Normal or Wide. In 16:9 mode, you can select Zoom, Normal, or Wide.
DPMS When your TV is connected to a computer and this option is turned on, the computer controls your TV's screen. When the computer is in sleep mode, your TV's screen is turned off. When the computer is active, your TV's screen is turned on.
Time Setup Sets the current time, sleep time and auto sleep timer.
Caption Controls closed captions. You can select: Analog Closed Caption—CC1 through CC4 or TEXT1 through TEXT4. Digital Closed Caption—Service1 through Service6. Digital Caption Style—Default caption styles from the broadcaster or custom styles you define, including font size, style, and color and background color.
Reset Default Resets your TV to the factory defaults. The password and parental controls are not reset.

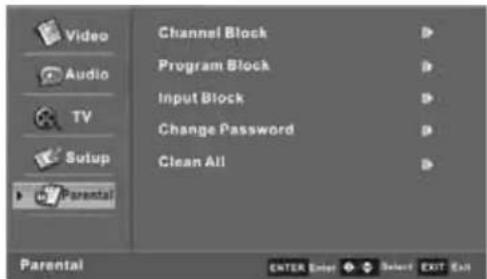

Parental menu

After you type the password, the Parental menu opens.

Option Description

Channel Block Blocks a channel.

Program Block Blocks programs and content based on ratings. For more information, see “Setting up parental controls” on page 27.

Input Block Blocks input from an A/V device connected to your TV.

Change Password Changes the parental password. The default password is 0000.

Clean All Clears the memorized channels from memory.

Maintaining

Warning: Do not remove the back cover. You may receive an electric shock. Refer all servicing to qualified service personnel.

Warning: To avoid electric shock or fire, always unplug your TV before you clean it.

Caution: Do not use strong solvents such as thinner, benzene, or other chemicals on or near your TV. These chemicals can damage the finish on your TV's cabinet.

To dean your TV:

1 Use a clean cellulose sponge or chamois cloth dampened with a solution of mild detergent and warm water to clean the screen and trim. Do not let liquid spill on or drip into the cabinet.
2 Wipe off any excess moisture with a clean, dry cloth.
3 Polish the cabinet with a good quality furniture polish to maintain the finish and appearance.

Troubleshooting

Before calling for service, try the following:

Problem Possible solution
TV does not turn on. • Make sure that the power cord is plugged in, then press Ⓞ. • Make sure that the remote control batteries are not dead. Replace the batteries, if necessary.
No picture or sound. • Make sure that the sleep timer is turned off. • Make sure that the antenna or cable is connected correctly and securely. • Press DISPLAY to make sure that you have the correct video source selected.
No sound, but picture is good. • Make sure that the sound is not muted. • Make sure that the volume is not set too low. • Try another station. The station may be having difficulties. • If you connected external speakers, make sure that they are connected securely and correctly.
Poor sound, but picture is good. • Try another station. The station may be having difficulties. • If you connected external speakers, make sure that they are connected securely and correctly.
Poor picture, but sound is good. • Adjust the picture settings. • Make sure that the antenna or cable is connected correctly and securely. • Try another station. The station may be having difficulties.
Poor or no color. • Adjust Saturation on the Video menu.
Cannot select a specific channel. • Make sure that you have memorized channels. • Make sure that the channel has not been deleted from memory.
Remote control does not work. • Make sure that are no obstructions between the remote control and the remote sensor on the front of your TV. • Make sure that the batteries are inserted correctly. The + and - symbols on the batteries must match the + and - symbols inside the battery compartment. • Replace the batteries.
Picture is distorted when turning on TV.	The time interval between turning off and turning on your TV may have been too short. Turn off your TV, unplug the power cord, then plug the power cord back in and turn on your TV.

Note: If the preceding solutions did not work, unplug your TV, then plug it back in and turn it on.

Specifications

Diagonal display size	19 inches
Television system	American TV standard ATSC/NSTC
Audio multiplex	BTSC system
Channel coverage	VHF: 2 through 13 UHF: 14-69 CATV: 1 through 125 Digital terrestrial broadcast (8VSB): 2 through 9 Digital cable (64/256 QAM): 1 through 135
PC mode	640 × 480 @ 60 Hz 800 × 600 @ 60 Hz 1024 × 768 @ 60 Hz
YPbPr/YCbCr mode	480I/60 Hz 480P/60 Hz 720P/60 Hz 1080I/60 Hz
Resolution	1440 × 900
Power source	AC 120 V / 60 Hz
Power consumption	50 W
Audio power	2 W + 2 W
Connections	RF input: Cable/antenna (1) Video input: · Video (1) · S-Video (1) · Component video (1) · HDMI (1) Video output: Video (1) Graphic input: Analog RGB 15-pin (1) Audio input: · AV audio (1) · Component audio (1) · Analog RGB audio (1) Audio output: · AV audio (1) · Digital audio (1)
Dimensions	8.39 × 19.65 × 17.72 inches (21.3 × 49.9 × 45.0 cm)
Weight	16.76 lbs (7.6 kg)
Accessories	Remote control, AC power cord, batteries, and User Guide

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.

One-year limited warranty

Dynex Products ("Dynex") warrants to you, the original purchaser of this new DX-19LCD ("Product"), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). This Product must be purchased from an authorized dealer of Dynex brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Dynex during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.

How long does the coverage last?

The Warranty Period lasts for one year (365 days) from the date you purchased the Product. The purchase date is printed on the receipt you received with the product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Dynex repair center or store personnel, Dynex will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Dynex and are not returned to you. If service of Products and parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Dynex Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain in-home warranty service for a television with a screen 25 inches or larger, call 1-888-BESTBUY. Call agents will diagnose and correct the issue over the phone or will have an Insignia-approved repair person dispatched to your home.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the Product in the United States and Canada.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction
• I n s t a l l a t i o n
• Set up adjustments
  Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
  Misuse
• Abuse
• Negligence
  Commercialuse
• Modification of any part of the Product
• Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

This warranty also does not cover:

• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Dynex to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. DYNEX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. DYNEX PRODUCTS MAKES NO OTHER EXPRESS WARRANTYES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTYES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTYES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTYES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Dynex:

For customer service please call 1-800-305-2204

www.dynexproducts.com

DYNEX is a registered trademark of Best Buy Enterprise Services, Inc.

Distributed by Best Buy Purchasing, LLC.

Dynex, 7601 Penn Avenue South, Richfield, Minnesota, U.S.A.

Dynex DX-LCD19 TV ACL de 19 po

Table des matieres

Dynex, 7601 Penn Avenue South, Richfield, Minnesota, U.S.A.

Dynex DX-LCD19 Televisor con PDT de 19"

Contidente

VGA
m = 311 ;
m = 311
AUGUST
m = 311

m = 311

1

Y
Pb
Pf
( x - 2x) t - xy^2 = ( x - 2x) f^ t

MPON
ENT
1

Dynex, 7601 Penn Avenue South, Richfield, Minnesota, U.S.A.

DYNEX

www.dynexproducts.com [phone]

© 2007 Best Buy Enterprise Services, Inc. All rights reserved.

DYNEX is a registered trademark of Best Buy Enterprise Services, Inc. All other products and brand

names are trademarks of their respective owners.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave. South, Richfield, MN 55423 U.S.A.

7601 Penn Ave. South, Richfield, MN 55423 E.-U.

© 2007 Best Buy Enterprise Services, Inc. Todos los derechos reservados.
