USER MANUAL TF16D857UV TELEFUNKEN

• Remote controlled colour LCD TV.

• Fully integrated digital TV (DVB-T).

• HDMI connectors for digital video and audio. This connection is also designed to accept high defi nition signals.

• 200 programmes from VHF, UHF(analogue).

• Scart socket for external devices (such as video, video games, audio set, etc.).

• Stereo sound system. (German + Nicam)

• Teletext, fastext, TOP text.

• Headphone connection.

• Automatic programming system.

• Forward or backward manual tuning.

• When no valid signal is detected, after 5 minutes the TV switches itself automatically to standby mode.

• PLL (Frequency Search).

Instruction Book 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 301_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 3 27.02.2009 17:23:0027.02.2009 17:23:00English - 4 - Introduction Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please do keep this manual in a safe place for future references. Preparation For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates. 10 cm 10 cm 10 cm Safety Precautions Please read the following recommended safety precautions carefully for your safety. Power

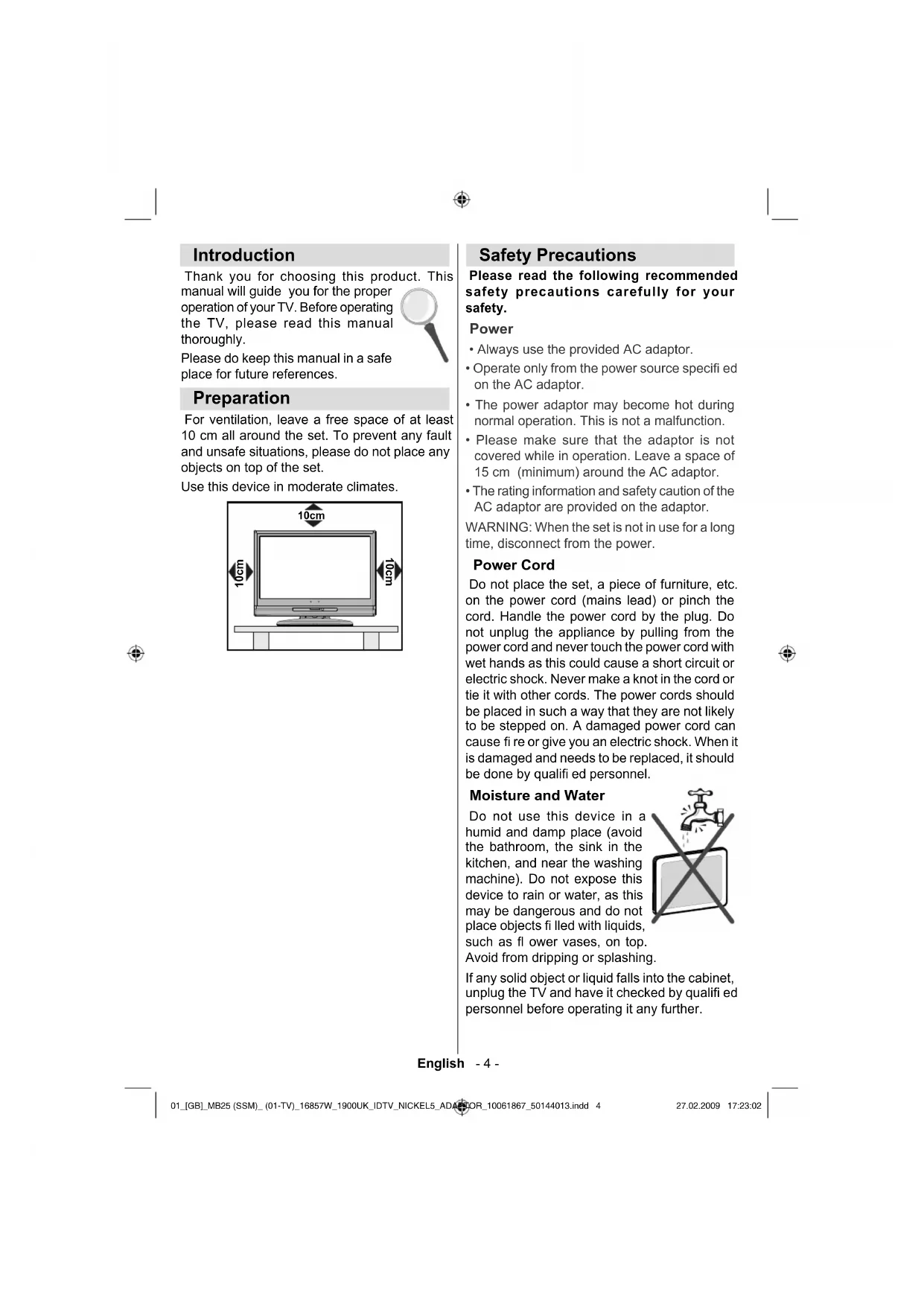

• Always use the provided AC adaptor.

• Operate only from the power source specifi ed on the AC adaptor.

• The power adaptor may become hot during normal operation. This is not a malfunction.

• Please make sure that the adaptor is not covered while in operation. Leave a space of 15 cm (minimum) around the AC adaptor.

• The rating information and safety caution of the AC adaptor are provided on the adaptor.

WARNING: When the set is not in use for a long

time, disconnect from the power. Power Cord Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fi re or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualifi ed personnel. Moisture and Water Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects fi lled with liquids, such as fl ower vases, on top. Avoid from dripping or splashing. If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualifi ed personnel before operating it any further. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 401_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 4 27.02.2009 17:23:0227.02.2009 17:23:02English - 5 - Cleaning Before cleaning, unplug the adaptor from the wall outlet. Do not use liquid or aerosol cleaners Use soft and dry cloth. Ventilation The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway. Heat and Flames The set should not be placed near to open fl ames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fi re or the like. Lightning In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet. Replacement Parts When replacement parts are required, make sure that the service technician has used replacement parts, which are specifi ed by the manufacturer or have the same specifi cations as the original one. Unauthorized substitutions may result in fi re, electrical shock or other hazards. Servicing Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock. Waste Disposal Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.

• Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.

• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow the local laws or regulations for disposal. Information for Users in European Union Countries This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in EU. For more information, please contact the local authority or the dealer where you purchased the product. Disconnecting the Device The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. Headphone Volume Excessive sound pressure from earphones and headphones can cause hearing loss. Installation To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available). LCD Screen The LCD panel is a very high technology product with about a million thin fi lm transistors, giving you fi ne picture details. Occasionally, a few non-active pixels may appear on the screen as a fi xed blue, green or red point. Please note that this does not affect the performance of your product. Warning Do not leave your TV in standby or operating mode when you leave your house. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 501_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 5 27.02.2009 17:23:0227.02.2009 17:23:02English - 6 - Be sure to ground the connection properly. Connect the ground terminal of the AC adaptor with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet. Connection to a Television Distribution System (Cable TV etc.) fromTuner Device connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing - and to a television distribution system using coaxial cable, may in some circumstances create a fi re hazard. To ground the antenna system properly, be sure that the cable grounding is connected with the building’s grounding system. Note that the connection should follow IEC 60364-7-707 and IEC 603646-5-548 standards which require that the grounding should be as close as possible to the cable connection.

SOURCESLEEPSCREEN LANG. Standby1. Image size2. Sleep timer3. Numeric buttons4. Return / TXT Index5. Cursor up / TXT up page6. Cursor left 7. Programme up8. Programme down9. Mono-Stereo / Dual I-II10. Swap11. Electronic programme guide (in DTV 12. mode) Info / TXT reveal13. Picture mode selection14. Source selection15. Red / Sound / Page up (in DTV mode)16. Green / Picture / Page down (in DTV 17. mode) Yellow / Feature / Current language (in 18. DTV mode) (*) Menu19. Blue / Install 20. OK / Select21. Cursor right / TXT Subpage22. Cursor down / TXT Downpage23. Volume up24. Volume down 25. Mute26. Teletext / Mix27. Subtitle (in DTV mode) / TXT Subtitle28. FAV (Favourite Selection)(in DTV mode)29. (*) Only available for EU country options. Note: Buttons that are not indicated with a number on the remote control illustration are not functional in TV mode. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 701_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 7 27.02.2009 17:23:0327.02.2009 17:23:03English - 8 - LCD TV and Operating Buttons FRONT VIEW REAR VIEW Power On/Off Switch1. TV/AV button2. Programme Up/Down 3. buttons Volume Up/Down 4. buttons Note: Press “ ”/“ ”buttons at the same time to view main menu. ATV/ V MENU P\CH 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 801_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 8 27.02.2009 17:23:0527.02.2009 17:23:05English - 9 - Viewing the Connections- Back Connectors (12V) (12V) DC IN DC IN 5Vdc 60mA SCART socket1. inputs or outputs for external devices. Connect the SCART cable between SCART socket on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player). Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. Component Video Inputs (YpBPr)2. are used for connecting component video. You can connect the component video and audio sockets with a device that has component output. Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, “ Y ”, “ Pb ”, “ Pr ” correspond with your device’s connectors. PC/YPbPr Audio Inputs3. are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio. S/PDIF Out4. outputs digital audio signals of the currently watched source. Use an S/PDIF coaxial cable to transfer audio signals to a device that has S/PDIF input. You should also set SPDIF Out option in the Sound Menu as On. RF Input5. connects to an antenna or a cable. Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustrationin the following pages. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 901_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 9 27.02.2009 17:23:0527.02.2009 17:23:05English - 10 -

DC 12 V Input is used for connecting the supplied power adaptor.

Audio Line Outs 7. output audio signals to an external device such as an optional sound system. To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable. Note: Line out feature cannot be used while in HDMI source. You can use SPDIF instead. PC Input8. is for connecting a personal computer to the TV set. Connect the PC cable between the PC INPUT on the TV and the PC output on your PC. HDMI 1 : 9. HDMI input HDMI Input is for connecting a device that has an HDMI socket. Your LCD Television is capable of displaying High Defi nition pictures from devices such as a High Defi nition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p signals. No sound connection is needed for an HDMI to HDMI connection.

01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 1001_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 10 27.02.2009 17:23:0627.02.2009 17:23:06English - 11 - Viewing the Connections - Side Connectors CI Slot is used for inserting a CI card. A CI card allows you 1. to view all the channels that you subscribe to. For more information, see “Conditional Access” section. Headphone jack is used for connecting an external 2. headphone to the system. Connect to the HEADPHONE jack to listen to the TV from headphones (optional). Video Input is used for connecting video signals of external 3. devices.Connect the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device. Audio Inputs are used for connecting audio signals of 4. external devices. Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device. Note: If you connect a device to the TV via the VIDEO INPUT, you should also connect your device with an audio cable to the AUDIO INPUTS of the TV to enable audio. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 1101_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 11 27.02.2009 17:23:0627.02.2009 17:23:06English - 12 - Power Connection IMPORTANT: The TV set is designed to operate on 12 V DC. For this, an adaptor is used which gives 12 V voltage. Connect this adaptor to a system that supplies 220-240V AC,50Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains . AC adapter To POWER

• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV. (12V) (12V) DC IN DC IN 5Vdc 60mA REAR VIEW 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 1201_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 12 27.02.2009 17:23:0627.02.2009 17:23:06English - 13 - Connecting the LCD TV to a PC For displaying your computer’s screen image on your LCD TV, you can connect your computer to the TV set.

• Power off both computer and display before making any connections.

• Use 15-pin D-sub display cable to connect a PC to the LCD TV.

• When the connection is made, switch to PC source. See “Input selection” section.

• Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts. REAR VIEW (12V) (12V) DC IN DC IN 5Vdc 60mA PC audio cable (not supplied) to AUDIO INPUTS on the TV PC RGB cable (not supplied) to PC input AudioInputs PC Input 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 1301_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 13 27.02.2009 17:23:0727.02.2009 17:23:07English - 14 - Connecting to a DVD Player If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player’s instruction book for additional information. Power off both the TV and the device before making any connections. Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, “Input Selection” section.

• Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When the connection is made, switch to YPbPr source. See, “Input selection” section.

• You may also connect through the SCART socket. Use a SCART cable as shown below. Note : These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods. (12V) (12V) DC IN DC IN 5Vdc 60mA

• For connecting a camcorder, connect to the VIDEO IN socket and the AUDIO SOCKETS. Do not connect the camcoder to VIDEO IN socket at the same time since it can cause noise in the picture. For selecting the related source, see the section “Input selection” in the following parts.

• To listen the TV sound from headphones, connect to the HEADPHONE jack of theTV. Camcorder Headphone SIDE VIEW 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 1501_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 15 27.02.2009 17:23:0927.02.2009 17:23:09English - 16 - Using Other Connectors You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• To connect external speakers, use an audio cable. Do not reverse the AUDIO LEFT and AUDIO RIGHT jacks. Turn on the LCD TV and external speaker set after all connections are made. Refer to your speaker set’s manual for further queries.

• For connecting a to a device that has SPDIF support, use an appropriate SPDIF cable to enable sound connection. You should also set SPDIF Out option in the Sound menu as On.

External Speakers A device that supports SPDIF signal. (12V) (12V) DC IN DC IN 5Vdc 60mA

REAR VIEW 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 1601_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 16 27.02.2009 17:23:1027.02.2009 17:23:10English - 17 - Connecting Other Equipment via Scart Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a decoder to your LCD TV by using the SCART socket. Note that cables shown in the illustration are not supplied. Power off both the TV and the devices before making any connections. For more information, refer to your device’s own instruction book. REAR VIEW (12V) (12V) DC IN DC IN 5Vdc 60mA

• Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.

• Insert two AAA/R3 or equivalent type batteries inside. Place the batteries in the right directions and replace the battery cover.

Note : Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Operating Range for the Remote Control

• Point the top of the remote control toward the LCD TV’s remote sensor LED while pressing a button.

LANG. Remote range is approximately 7m/23ft. Switching the TV On/Off To Switch the TV On Your TV will switch on in two steps:

• Connect the power cord to the system.

• Press POWER ON/OFF switch. Then the standby LED lights up.

• To switch on the TV from standby mode either:

• Press the “ ” button, P+ / P- or a numeric button on the remote control. or, press the -P/CH or P/CH+ button on the TV. The TV will then switch on. Note : If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected. By either method the TV will switch on. To Switch the TV Off

• Press the “ ” button on the remote control or press the POWER ON/OFF switch, so the TV will switch to standby mode. Note: If you have switched off the TV set from the Power On/off button instead of remote control, next time you press the Power On/off button, the TV set will switch on without going to the standby mode.

• To power down the TV completely, press Power On/Off switch. or,

• Unplug the power cord from the mains socket. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 1801_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 18 27.02.2009 17:23:1127.02.2009 17:23:11English - 19 - Input Selection Once you have connected external systems to your TV, you can switch to different input sources.

• Press SOURCE button on your remote control for directly changing sources. or,

• Select “Source” option from the main menu by using “ ” or “ ” button. Use then “ ” or

” button to select. Note : You can mark desired source options by pressing the OK button. Therefore, when SOURCE button is pressed, only the marked source options will be available (except for the TV source). Basic Operations You can operate your TV using both the remote control and onset buttons. Operation with the Buttons on the TV Volume Setting

• Press the “ TV/AV ” button in the control panel on the TV to switch between AV modes. Operation with the Remote Control

• The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

• Functions of the menu system are described in the following sections. Volume Setting

• Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between 10 - 299 (for IDTV) or 10-199 (for analogue), press the numeric buttons consecutively (e.g. for programme 27, first press 2 and then 7). When the pressing time is due for the second numeric button, only the fi rst digit programme will be displayed. The limit of the delay time is 3 seconds.

• Press directly the programme number to reselect single digit programmes. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 1901_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 19 27.02.2009 17:23:1327.02.2009 17:23:13English - 20 - Initial Settings When the TV set is operated for the fi rst time, the IDTV turns on fi rst. Because this is the fi rst time the TV is used, there are no channels stored in the memory. When the TV is turned on for the fi rst time, the menu for the language selection appears on the screen. The message “Welcome please select your language!” is displayed in all language options sequentially in the OSD. By pressing the “ ” or “ ” buttons highlight the language you want to set and press OK button. After then, “First time installation” OSD will appear on the screen. By pressing “ ” or “ ” buttons, select the country you want to set and press OK button (* for EU countries). Note: Country selection OSD will not be available for UK. After then, the active antenna selection OSD appears on the screen: By pressing “ ” or “ ” buttons, set active antenna mode as on or off. If an active antenna is connected to your TV, you can select this option as On. Antenna power should be “Off” when standard antenna is used instead of the active antenna. See Confi guration Menu in the following sections for more information. Press OK button on the remote control to continue and the following message will be displayed on the screen:

To start installation process, select “Yes”, to cancel select “No”.

• To select the “Yes” or “No” option, highlight the item by using “ ” or “ ” buttons and press the OK button. The IDTV will automatically tune to the UHF or VHF(*) (* for EU countries) transmission channels, searching for digital terrestrial TV broadcasts and displaying the names of channels found. This process will take about a few minutes. After Automatic Search is completed, the following message asking for analogue channel search appears on the screen: To search for analogue channels, select “Yes”. TV switches to the analogue TV mode. The menu below is displayed to search for analogue channels:

Select your Country, Language and Text language by using “ ” or “ ” and “ ” or “ ” buttons. Press OK or RED button to continue. To cancel, press the BLUE button. For more information on this process, see “Install Menu” section. Note : For proper functioning of digital teletext in DTV mode, you should set country as UK in analogue AUTO PROGRAM (for UK broadcasts only). Do not turn off the TV while initializing fi rst time installation. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 2001_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 20 27.02.2009 17:23:1327.02.2009 17:23:13English - 21 - General Operation Press the SOURCE button on the remote control and select DTV/USB to switch the TV set to digital terrestrial television broadcasting. Information Banner

• Whenever you change channel, using the P- / P+ button or the numeric buttons, the TV displays the broadcast picture along with an information banner at the bottom of the screen (available only in DTV mode). This will remain on the screen for a few seconds.

• The information banner can also be displayed at any time while watching TV by pressing the INFO button on the remote control: The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number. Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.

• Icons are also displayed in the information banner and if this channel is a favourite channel, favourite channel icon will also be displayed. If the selected channel is locked, you must enter the correct four numeric code to view the channel. “Enter PIN” will be displayed on the screen in such a case: Electronic Programme Guide (EPG)

• Some, but not all, channels send information about the current and next events.

• Please note that event information is updated automatically. If there is no event information data available in channels, EPG will be displayed with blanks.

• Press EPG button to view the EPG menu.

• Electronic Programme Guide appears on the screen. It is able to get Information of the channel - programs weekly by means of 7-DAY- EPG. All programs of channels are displayed. The current program is highlighted and there is brief information about the programs of the channel, such as: name, short/extended event description, start & end time. The time scale can be changed by pressing left or right buttons. If there is any event information data available, only programme names and dates are displayed. On the bottom of the screen; info bar, showing all the available commands, will be displayed. RED button (Shrink) : makes the info boxes smaller. GREEN button (Expand) : makes the info boxes larger. YELLOW button (Prev. Day) : displays the programmes of previous day. BLUE button (Next day) : displays the programmes of the next day. INFO (Details): displays the programmes in detail. Numeric buttons (Jump) : go to preferred channel directly via numeric buttons. OK : views options for future programmes. SWAP : jumps to the current boradcast. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 2101_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 21 27.02.2009 17:23:1427.02.2009 17:23:14English - 22 -

• Press “0” button on the remote control to view Guide Search menu. Using this feature, you can search the programme guide database in accordance with the genre selected or with name match. Info available in the programme guide will be searched and results matching your criteria will be listed. You can select programmes or set timers by highlighting a channel and then pressing OK button. Note: Searching process can be performed by the desired date rate or by the channel basis. Displaying Subtitles With digital terrestrial broadcasting (DVB-T), some programmes are broadcast with subtitles. Subtitles can be displayed while watching these programmes. Press the “ MENU ” button to display the main menu, highlight the Setup and then Language menu using “ ” or “ ” button and press the OK button to display the “Language settings” menu. Highlight the “Subtitle” item in “Language settings” menu and use ” or “ button to set Subtitle to the desired language. If “Subtitle” is on and a language option is set, pressing the button causes the following warning message display on the screen (** for UK only): Digital Teletext (** for UK only) With digital terrestrial broadcasting (DVB-T), in addition to pictures and sound, you can also view digital teletext. Digital teletext is sometimes broadcast at the same time with the normal broadcasting.

• The digital teletext information appears.

• Operate it with the coloured buttons, cursor buttons and OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

• When Press “SELECT” button or similar message appears on the screen, press the OK button.

• When the button is pressed, the TV returns to television broadcasting.

• With digital terrestrial broadcasting (DVB-T), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.

• The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.

• When you press the button again, the digital teletext screen will be displayed. Analogue Teletext Use of teletext and its functions are identical to the analogue text system. Please do refer to the “TELETEXT” explanations. Widescreen Depending on the type of the broadcast being transmitted, programmes can be viewed in a number of formats. Press the SCREEN button repeatedly to select between Auto, 16:9, 4:3, Panoramic, 14:9, Cinema, Zoom or Subtitle. When Auto is selected, the format being displayed is determined by the picture being broadcast. PLEASE NOTE : Menu size changes depending on the chosen image size. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 2201_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 22 27.02.2009 17:23:1427.02.2009 17:23:14English - 23 - IDTV Menu System The IDTV menu can only be viewed when watching digital terrestrial broadcasting. Use the SOURCE button to select DTV mode. Press the “ M ENU” button. The menu below appears on the screen:

Channel List Using the “ ” or “ ” button on the remote control, make sure that the fi rst item, Channel List, is highlighted and press the OK button to display the Channel List. The following operations can be performed in this menu:

• Navigating the entire list of channels

• Adding locks to channels

• Moving channels Channel List is the place where the channels are managed.

Navigating the Entire Channel List Press “ ” or “ ” button for selecting the previous or next channel. You can press RED or GREEN button to move page up or page down. To watch a specifi c channel, highlight it using

” or “ ” button and then press “ OK ” button, while the “Select” item on Channel List menu is highlighted by using “ ” or “ ” button. Then the name and number of the selected channel will be displayed in the top-left and top-right of the channel display at the top-right of the screen, respectively. Moving the channels in the channel list

• Press “ ” or “ ” buttons to select the channel that will be moved.

• Press “ ” or “ ” buttons to select the “ Move ” item on Channel List menu. Following OSD will be displayed next to “ OK ” item to indicate that enter a number by using the numeric buttons on the remote control and press “ OK ” to confi rm.

Note: If you enter the same programme number of the channel that you want to move, “.... channel services will be replaced. Do you want to continue?” OSD will be displayed. Press OK to confi rm or select “No” to cancel. Deleting the Channels in the Channel List

• Press “ ” or “ ” button to select the channel that will be deleted.

• Press the OK button to delete the highlighted channel in the channel list. Then the message below appears on the screen:

• Press “ ” or “ ” button to highlight the desired option. If OK button is pressed while “ Yes ” is highlighted, the highlighted channel is deleted. Selecting “ No ” cancels the deletion. Renaming Channels To rename a specifi c channel, the channel must be highlighted by pressing “ ” or “ ” button. Then highlight the Edit Name item by pressing

” or “ ” button as illustrated below. Press the OK button to activate the rename feature.

Now pressing “ ” or “ ” button moves to the previous/next character. Pressing “ ” or “ ” button toggles the current character, i.e., ‘b’ character becomes ‘a’ by “ ” and ‘c’ by “ ”. Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the characters printed above the button one by one as the button is pressed. Press the “MENU” button to cancel the editing or OK button to save the new name. Adding Locks to Channels Channel locking provides a password-protected access to channels selected by parents. In order to lock a channel you should know the parental lock password (default value is set to 0000 in the factory and can only be changed from the Confi guration menu). Select the channel to be locked by highlighting it and select the Lock option by pressing “

or “ ” button. When the OK button is pressed, a dialog OSD asking for the password will be displayed.

Enter the password by using the numeric buttons on the remote control. The lock icon “ ” will now be displayed next to the selected channel. Repeat the same operation to cancel the lock. Setting Favourites You can set various channels as favourites so that only the favourite channels are navigated. To set a favourite you should highlight the “Favourites” item at the bottom of the Channel List menu. To set a favourite you should highlight the “Favourites” item at the bottom of the Channel List menu. Then press OK button and Edit Favourite List menu appears on the screen. You can list your favourite channels using Favourite List. Channel list OSD will look like this: 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 2401_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 24 27.02.2009 17:23:1527.02.2009 17:23:15English - 25 - How to Add a Channel to a Favourites List

• By pressing “ ” or “ ” buttons, highlight the channel that you want to add to the favourite list.

• By pressing OK button, the highlighted channel is added to the Favourite List.

• F icon indicates that a channel is added to Favourite List. Removing a Channel from Favourite List

• Highlight the channel that you want to remove from the favourite list and press OK button to remove.You can press OK button again to re- add a channel.

• To activate Favourites, go to the Confi guration menu and select Favourite mode. Use “

” to set Favourite mode as on. To cancel Favourites, set Favourite Mode to Off. On Screen Help For all menus, press the INFO button to display the help information about the menu functions. For Channel List menu the following message is displayed on the screen:

Program Guide This section is same with the instructions given in the General Operations page. Please see Electronic Programme Guide (EPG) section in the General Operations part. Timers To display timers window, activate the item from the main menu. To add a timer, press the YELLOW button on the remote control. Then “Add Timer” window appears. Channel : “ ” or “ ” keys will navigate the user through the TV or Radio list. Date : Starting date is entered via the Left/Right or the numeric buttons. Start : Starting time is entered via the Left/Right or the numeric buttons. End : Ending time is entered via the Left/Right or the numeric buttons. Change/Delete : permits or prohibits any modifi cations for other users. Duration: Duration between Start and End time. Repeat: You can set a timer to be repeated as Once, Daily or Weekly. You can save the adjustments by pressing the GREEN key or cancel the process by pressing the RED button. You can edit the list via GREEN key and delete with the RED button. Conditional Access

• Press the M button to display the main menu and use the “ ” or “ ” button to highlight the “Conditional Access” line and press the OK button:

• Switch off the TV and unplug from the mains.

• Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the left-hand side of the TV (from front view).

• The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

• Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

• Some CAMs may require the following set up. Please set the CAM by entering the IDTV menu, Conditional Access then pressing the OK button. (CAM set up menu is not displayed when it is not required.)

• Refer to the module instruction manual for details of the settings. NOTE: Insert or remove the CI module only when the TV is switched off or in standby mode. TV Setup You can use this item to display the TV functions. The digital TV Setup menu screen is accessed from the main menu. Press the “MENU” button to display the main menu and use “ ” or “ ” button to highlight “TV Setup”, press the OK button to display TV Setup menu screen.

You can fi nd detailed information for all menu items in “Analogue TV Menu System” section. Setup The adjustments in this menu are given as the following:

Confi guration You can confi gure the settings of your TV. Select Confi guration from Setup menu and press OK to view this menu. Press the EXIT button on the remote control to exit.

AC3 Audio (* for EU countries only) In the Confi guration Menu, highlight the AC3 Audio item by pressing “ ” or “ ” buttons. Use the “ ” or “ ” buttons to set the AC3 Audio as On or Off. If the channel that you are watching supports AC3 Audio, turn this setting on. Hard of Hearing (* for EU countries only) Use “ ” or “ ” button to select Hard of Hearing and then press “ ” or “ ” button to set this setting as On or Off. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 2601_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 26 27.02.2009 17:23:1627.02.2009 17:23:16English - 27 - If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals. Favourite Mode Use this function to enable or disable favourite mode. Press “ ” / “ ” button to set this function as on or off. Channel List Use “ ” or “ ” buttons to go to Channel List option. Use “ ” or “ ” buttons to toggle Channel List Mode. If you select “TV Only”, with the “ ” or “ ” buttons, you navigate through only TV channels. If you select “Radio Only”, with the “ ” or “ ” buttons, you navigate through only radio channels. If you select “Text Only”, with the “ ” or “ ” buttons, you navigate through only text channels. Active Antenna Use “ ” or “ ” buttons to highlight Active Antenna option. When antenna power option is set as On by pressing “ ” or “ ” button, +5V will be transmitted to the antenna output. This feature enables the use of active antenna. Note: Antenna power should be “Off” when standard antenna is used instead of the active antenna. Scan Encrypted (**) (**) for UK broadcasts only. Scan Encrypted Channel feature will always be ON after performing first time installation. When this setting is on, search process will locate the encrypted channels as well. If it is set as OFF manually, encrypted channels will not be located while in automatic search or manual search. Use “ ” or “ ” button to select Scan Encrypted and then press “ ” or “ ” button to set this setting as On or Off. Receiver Upgrade Over Air Download (OAD) To ensure that your TV always has the most update information, use this setting. Please ensure that the TV is set to standby mode. The TV automatically powers up at 3.00 A.M. each day and searches for any new information which may be broadcast and will download this to your receiver automatically. This operation will normally take approximately 30 minutes. If you have an important recording to be carried out at 3.00 A.M. and you do not want to interrupt it, disable auto OAD search by performing the following:

• Using the“ ” or “ ” button change “Automatic scanning” from Enabled to Disabled.

• Highlight “Scan for upgrade” menu with “ ” or “ ” keys and pres OK to commence upgrade.

• After the search progress is completed, the message “ Completed searching for upgrade. No new software was found” appears on the screen if no new software is found.

• Do not forget to re enable the automatic OAD function after you have made your recording by repeating the above instructions but this time selecting ENABLE. Note: Your TV may start in First Time Installation mode after OAD update. Parental Control Use “ ” or “ ” buttons to go to Parental Lock option. Press OK button to enter the menu. A dialog box asking for the lock key will be displayed. The key is set to “0000” initially. Enter PIN. If it is incorrect, “Wrong Pin” OSD will be displayed. If it is correct, the Parental Control menu will be displayed: 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 2701_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 27 27.02.2009 17:23:1727.02.2009 17:23:17English - 28 - Maturity Lock (*) (*) If you set Country option as UK in the fi rst time installation, Maturity Lock option will not be visible. This setting is available only for EU countries. When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, does not show video-audio. Menu Lock In menu lock you can set locking for all menus, or the Installation Menu to restrict access to these menus. If the menu lock is disabled, there will be free access to the menu system. Use “

or “ ” buttons to go to Menu Lock option. Use “ ” or “ ” buttons to choose Menu Lock Mode. DISABLED : All menus are unlocked. ALL MENUS : All Menus are accessible only with the correct lock key. So the user cannot add, delete, rename, channels, cannot set timers. INSTALLATION MENU : Installation menu is locked.So the user can’t add channels. Changes will be updated after exiting ‘Configuration Menu’. Set PIN Use “ ” or “ ” buttons to go to “Set PIN” option. Press OK to display the “Set PIN” window. Use numeric buttons to enter new pin number you will need to input your new pin a second time for verifi cation purposes. If both pin numbers are four digits long and the same, the pin will be changed. The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

Time Settings In the configuration menu, highlight the Time Settings item by pressing “ ” or “ ” buttons. Press OK and Time Settings sub menu will be displayed on the screen. Current Time,Time Zone Setting and Time Zone will be available. Use “ ” or “ ” buttons to highlight the Time Zone Setting. Time Zone Setting is set using “ ” or “ ”buttons. It can be set to AUTO or MANUAL. When AUTO is selected, Current Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone Setting, Time Zone can be altered:

• By pressing “ ” or “ ” buttons select Time Zone. Use “ ” or “ ” buttons to change the Time Zone between GMT-12 or GMT+12. Current Time on the top of the menu list will then change according to the selected Time Zone. Audio Description (Optional) Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track. Use “ ” or “ ” buttons to select an item. Then use “ ” or “ ” buttons to set. Audio Description (Optional) This function enables or disables the audio description feature by pressing the “ ” or “ ” buttons. Preferred Language (Optional) By pressing the “ ” or “ ” buttons the preferred audio description language is being changed. This setting can be used, only if it is available. Relative Volume (Optional) Using this option, the Audio Description volume level can be increased or decrased relatively, according to the general volume. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 2801_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 28 27.02.2009 17:23:1727.02.2009 17:23:17English - 29 - Standby Search (*) (*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use “ ” or “ ” button to select Standby Search and then press “ ” or “ ” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. Language In this menu the user can adjust the preferred language. Language is changed by pressing OK button.

Menu : shows the language of the system Preferred These settings will be used if available. Otherwise the current settings will be used.

• Audio : by pressing “ ” or “ ” keys change the audio language.

• Subtitle : alter the subtitle language with “ ” or “ ” keys. The chosen language will be seen in subtitles.

• Guide : By pressing “ ” or “ ” buttons change the guide language. Current

• Audio : if audio language is supported change the audio language by pressing “ ” or “ ” buttons

• Subtitle : if subtitle is backed up, alter the subtitle language with “ ” or “ ” buttons. The chosen language will be seen in subtitles. Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below: Language Settings In the configuration menu, highlight the Language Settings item by pressing “ ” or “ ” buttons. Press OK and Language Settings submenu will be displayed on the screen: Use “ ” or “ ” buttons to highlight the menu item that will be adjusted and then press “ ” or “ ” button to set. Notes:

• System Language determines the on-screen menu language.

• Audio Language is used for selecting the soundtrack of a channels.

• Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available. Installation The Installation menu is mainly intended to help you for creating a Channel Table in the most effi cient way. Select Installation from the Confi guration menu by pressing “ ” or “ ” buttons. This menu includes the following items:

• Automatic channel scan

Highlight Yes or No by using “ ” or “ ” buttons and press OK button to confi rm. If Yes is selected, automatic search starts. Selecting No cancels automatic search. After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:

Press the OK button to search for analogue channels. The following menu appears on the screen for analogue channel search: Select your Country , Language and Text language by using “ ” or “ ” and “ ” or “ ” buttons. Press OK or RED button to continue. To cancel, press BLUE button. The following menu will be displayed during the automatic tuning:

After APS is fi nalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes. If you do not accept the locations and/or the programme names, you can change them via the program table. Manual Channel Scan In manual channel scan, the number of the multiplex is entered manually and only that multiplex is searched for the channels. For each valid channel number, signal level and signal quality are shown on the screen. In both manual and auto search any existing channel in the database is not re-stored to avoid redundant duplicates of that channel. Clear Service List (*) (*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored. Press

” or “ ” button to select Clear Service List and then press OK. The following OSD message will be displayed on the screen: Press OK to cancel. Select Yes by pressing “ ” or “ ” button and press OK to delete all of the channels. First Time Installation The user can use this item to load default settings, which were loaded to the receiver at the factory. To install factory settings, highlight “First Time Installation” menu item and press OK button, then you will be asked whether or not to delete the settings. Selecting “Yes” by pressing OK button while the “Yes” is highlighted will delete the existing channel table. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 3001_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 30 27.02.2009 17:23:1827.02.2009 17:23:18English - 31 - Then you will be asked to confi rm for deleting all channels and settings:

By selecting Yes and pressing the OK button, the existing channel table will be deleted. After factory settings are loaded, “First Time Installation” menu will be displayed. The menu which is displayed for language selection appears on the screen at fi rst. By using

” or “ ” buttons, select the desired language option, and press OK button to activate. After then, “First time installation” OSD will appear on the screen. By pressing “ ” or “ ” buttons, select the Country you want to set and press OK button (* only for EU countries). - Next, active antenna mode selection OSD will appear on the screen.Use “ ” or “ ” to set and press OK to continue.See the section, “Initial Settings” for more information. After active antenna mode option is selected, a message asking for automatic search appears on the screen: Press the OK button to start installation. After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:

Press the OK button to search for analogue channels. The following menu appears on the screen for analogue channel search:

Select your Country , Language and TXT Language by using “ ” or “ ” and “ ” or “ ” buttons. Press OK or RED button to continue. To cancel, press BLUE button. The following menu will be displayed during the automatic tuning:

• Press “ ” or “ ” buttons to change the settings.

• Press “ ” for more options.

• To exit the menu or return from sub-menu screen, press “ MENU ”. Note : These explanations are valid for the navigation of the analogue TV menu system. To select options that are explained in the following parts, refer to “Navigating the Analogue TV Menu System”. Analogue TV Menu System Picture Menu Mode For your viewing requirements, you can set the related mode option. Press “ ” or “ ” button to select Mode . Press

” or “ ” button to choose from one of these options: Cinema , Dynamic and Natural . Brightness/Contrast/Colour/Sharpness/ Hue Press “ ” or “ ” button to select the desired option. Press “ ” or “ ” button to set the level. Note : Hue option can only be visible when the TV receives an NTSC signal. Colour Temp Press “ ” or “ ” button to select Colour Temp . Press “ ” or “ ” to choose from one of these options: Cool , Normal and Warm . Note :

• Setting Cool option gives white colours a slight blue stress.

• Setting Warm option gives white colours a slight red stress.

• For normal colours, select Normal option. Noise Reduction If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Press “ ” or “ ” button to select Noise Reduction. Press “ ” or “ ” to choose from one of these options: Low , Medium , High or Off . Film Mode Films are recorded at a different number of frames per second to normal television programmes. Press “ ” or “ ” button to select Film Mode . Press “ ” or “ ” button to set this feature On or Off. Turn this feature on when you are watching. fi lms to see the fast motion scenes clearly. Game Mode (optional) Select Game Mode by pressing “ ” or “ ” button. Use “ ” or “ ” button to set Game Mode as On or Off . When Game Mode is set to On, specific game mode settings, which are optimized for better video quality, will be loaded. Also; Picture Mode, Contrast, Brightness, Sharpness, Colour and Colour Temp settings will be invisible and disabled while Game Mode is on. Note : 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 3201_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 32 27.02.2009 17:23:2027.02.2009 17:23:20English - 33 - Picture mode selection button on the remote control will have no function while Game Mode is on. Picture Zoom Select Picture Zoom by pressing “ ” or “ ” button. Use “ ” or “ ” buttons, to change picture zoom to Auto , 16:9 , 4:3 , Panoramic , 14:9 , Cinema , Subtitle or Zoom . Store Press “ ” or “ ” button to select Store. Press “ ” or OK button to store the settings. “ Stored... ” will be displayed on the screen. Reset Press “ ” or “ ” button to select Reset . Press “ ” or “ ” or OK button to reset the picture modes to factory default settings. Sound Menu Volume Press “ ” or “ ” button to select Volume . Press “ ” or “ ” button to change the level of the Volume. Equalizer Press “ ” or “ ” button to select Equalizer . Press “ ” button to view equalizer menu.

Press “ ” or “ ” button to change the preset. In equalizer menu, the preset can be changed to Music , Movie , Speech , Flat , Classic and User . Select the desired frequency by pressing “ ” or “ ” button and increase or decrease the frequency gain by pressing “ ” or “ ” button. Press the “ M ” button to return to the previous menu. Note : Equalizer menu settings can be changed only when the Equalizer Mode is in User . Balance This setting is used for emphasizing left or right speaker balance. Press “ ” or “ ” button to select Balance. Press “ ” or “ ” button to change the level of the balance. Balance level can be adjusted between -32 and + 32. Headphone Press “ ” or “ ” button to select Headphone . Press “ ” button to view the headphone menu. Note: Headphone will be disabled when SPDIF option is set to on. Headphone sub-menu options are described below: Volume Press “ ” or “ ” button to select Volume . Press “ ” button to increase headphone volume level. Press “ ” button to decrease headphone volume level. Headphone volume level can be adjusted between 0 and 63 . 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 3301_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 33 27.02.2009 17:23:2127.02.2009 17:23:21English - 34 - AVL Automatic Volume Limiting (AVL) function adjusts the sound to obtain fi xed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes). Press “ ” or “ ” button to select AVL . Press “ ” or “ ” button to set the AVL as On or Off . Spdif Out Press “ ” or “ ” button to select Spdif Out . Press “ ” or “ ” button to set the Spdif Out . as On or Off . Note : If Spdif Out is set to On, headphone will be disabled. Effect If you are watching a mono broadcast, set Effect on to obtain a better sound effect which will be more stereo-like. If the current sound system is stereo, switching this effect on will give a more spatial effect. Press “ ” or “ ” button to select Effect. Press “ ” or “ ” button to set as On or Off . Store Press “ ” or “ ” button to select Store. Press “ ” or OK button to store the settings. “ Stored... ” will be displayed on the screen. Feature Menu Sleep Timer Press “ ” or “ ” button to select Sleep Timer . Use “ ” or “ ” button to set the Sleep Timer. The timer can be programmed between Off and 120 minutes in steps of 10 minutes. If Sleep Timer is activated, at the end of the selected time, the TV goes automatically to standby mode. Child Lock Press “ ” or “ ” button to select Child Lock . Use “ ” or “ ” button to set the Child Lock On or Off . When On is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons will not work. Hence, if one of those buttons is pressed, Child Lock On will be displayed on the screen when the menu screen is not visible. Language Press “ ” or “ ” button to select Language . Use “ ” or “ ” button to select the Language . Default Zoom While zoom mode is set as AUTO , the TV will set the zoom mode in accordance with the signal of the broadcast. If there is no WSS or aspect ratio information, the TV will then use this setting to adopt. Press “ ” or “ ” button to select Default Zoom . You can set Default Zoom to Panoramic , 16:9 , 4:3 or 14:9 by pressing “ ” or “ ” button. Blue Background If the signal is weak or absent, the TV will automatically change to a blue screen. To enable this, set Blue Background to On . By pressing “ ” or “ ” button, select Blue Background . Press “ ” or “ ” button to set Blue Background as On or Off . Menu Background Press “ ” or “ ” button to select Menu Background . You can set menu background level by pressing “ ” or “ ” button. Backlight This setting controls the backlight level. Select Backlight by pressing “ ” or “ ” button. Press“ ” or “ ” button to set Backlight to Auto, Medium , Maximum or Minimum . Menu Timeout To set a specific display timeout for menu screens, set a value for this option. Press “ ” or “ ” button to select Menu Timeout . Use “ ” or “ ” button to change menu timeout to 15 sec , 30 sec or 60 sec . 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 3401_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 34 27.02.2009 17:23:2127.02.2009 17:23:21English - 35 - Teletext Language Press “ ” or “ ” button to select Teletext Language . Use “ ” or “ ” button to change Teletext Language to West, East , Turk/Gre , Cyrillic, Arabic or Persian . Ext Out Press “ ” or “ ” button to select Ext Out. Use “ ” or “ ” button to set the Ext Out as On or Off. Note : For copying from a DVD or VCR device, you should choose desired source from source menu and turn “On” to EXT Out from feature menu. Ext Out should be On in order to use Timers function in the DTV mode. Install Menu Program Press “ ” or “ ” button to select Program. Use “ ” or “ ” button to select the program number. You can also enter a number using the numeric buttons on the remote control. There are 200 programme storage between 0 and 199. Band Band can be selected either C or S. Press “

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except for the AV modes). By cursor action, programme selection is done automatically. Name To change the name of a programme, select the programme and press the RED button. The fi rst letter of the selected name will be highlighted. Press “ ” or “ ” button to change that letter and “ ” or “ ” button to select the other letters. By pressing the RED button, you can store the name. Move Select the programme which you want to move by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again. Delete To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the following programmes shift one line up. APS (Auto Programming System) When you press the BLUE button for starting automatic tuning, Auto Programming System menu will appear on the screen:

Country Press “ ” or “ ” button to select your country. If you want to exit from A.P.S. function, press the BLUE button. When you press OK or RED button for starting automatic tuning, all stored programmes will be erased and the TV will search for available channels. During the search, the following OSD will be displayed:

Whenever you press the BLUE button, APS function stops and Program Table appears on the screen. If you wait until the end of APS, Program Table will be displayed with the programmes found and located. Source Menu Press “ ” or “ ” button and select the sixth icon. Then press “ ” or OK button. Source menu appears on the screen:

” or “ ” button and switch to that mode by pressing “ ” button. Source options are; TV , DTV , DVD/USB, EXT-1 , FAV , HDMI, YPbPr and PC-VGA . Note : Once you have connected optional equipment systems to your TV, you should select the required input to view pictures from that source. PC Mode Menu System See “Connecting the LCD TV to a PC” section for connecting a PC to the TV set. For switching to PC source, press “SOURCE” button on your remote control and select PC input. You can also use “Source” menu to switch to PC mode. Note that PC mode menu settings are available only while the TV is in PC source. PC Position Menu Select the first icon by pressing “ ” or “ ” button. PC Position menu appears on the screen:

Autoposition If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display. Select Autoposition item by using “ ” or “ ” buttons. Press OK or “ ”, “ ” button.

Warning : Please ensure auto adjustment is

performed with a full screen image to ensure best results. H (Horizontal) Position This item shifts the image horizontally to right hand side or left hand side of the screen. Select H Position item by using “ ” or “ ” button. Use “ ” or “ ” button to adjust the value. V (Vertical) Position This item shifts the image vertically towards the top or bottom of the screen. Select V Position item by using “ ” or “ ” button. Use “ ” or “ ” button to adjust the value. Phase Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method. Select Phase item by using “ ” or “ ” buttons. Use “ ” or “ ” button to adjust the value. Dot Clock Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts. Select Dot Clock item by using “ ” or “ ” buttons. Use “ ” or “ ” button to adjust the value. PC Picture Menu For adjusting PC picture items, do the following: Press “ ” or “ ” button to select the second icon. PC Picture menu appears on the screen. Brightness, Contrast, Colour and Colour Temperature settings in this menu are identical to settings defi ned in TV picture menu under “Analogue TV Menu System”. Note : If you set Colour Temp as User, you can defi ne R, G, B settings manually. Sound Menu The items in this menu are described at “Sound Menu” section explained in “Menu System”. Feature Menu Feature menu settings are identical to the settings explained in “ Feature Menu ” section in “ Menu System ”. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 3701_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 37 27.02.2009 17:23:2427.02.2009 17:23:24English - 38 - Source Menu Source menu settings are identical to the settings explained in “ Source Menu ” section in “ Menu System ”. Displaying TV Information Programme Number , Programme Name , Sound Indicator and Zoom Mode information is displayed on the screen when a new programme is entered or “INFO” button is pressed. Mute Function Press “ ” button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; the fi rst one is pressing the “ ” button and the second one is increasing the volume level. Picture Mode Selection By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural and Cinema. Note: This feature cannot be set while in PC mode. Freezing Picture You can freeze the picture on the screen by pressing the “ OK ” button on the remote control. Press the “ OK ” button to freeze picture. Press again to quit freeze mode. Zoom Modes You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press SCREEN button to directly change the zoom mode. Available zoom modes are listed below. Note: In YPbPr and HDMI modes, while in 720p-1080i resolutions, only 16:9 mode is available. Zoom mode cannot be changed while in PC mode. Auto When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.

• When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually. 16:9 This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fi ll the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape. 4:3 Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Panoramic This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

The top and bottom of the picture are slightly cut off. 14:9 This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Zoom This option zooms to the picture. Note: You can shift to screen up or down by pressing “ ” / “ ” buttons while picture zoom is selected as panaromic, 14:9, Cinema or Subtitle. Teletext Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted. Teletext function buttons are listed below:

” Teletext On-Off Activates teletext mode when pressed once. Pressing the button for the second time, activates teletext mix feature. Pressing again will quit the teletext mode. “RETURN” - Index Selects the teletext index page.

” Subcode Pages Selects subcode pages if available when the teletext is activated. “INFO” - Reveal Shows hidden information (e.g. solutions of games). “SCREEN” - Expand Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size. P+ / P- and numbers (0-9) Press to select a page. Note : Most TV stations use code 100 for their index pages. Coloured Buttons (RED/GREEN/YELLOW/BLUE) Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing P - or P + commands will request the next or previous page respec tively. Teletext Subtitle If you press SUBTITLE button, teletext subtitle information will be displayed on the bottom right part of the screen (if available). You can set the desired option by highlighting it using “ ” or “ ” button and then by pressing OK button. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 3901_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 39 27.02.2009 17:23:2527.02.2009 17:23:25English - 40 - Tips Screen Care Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part. Image Persistence Please note that ghosting may occur while displaying a persistent image. LCD TVs’ image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture for extended periods. No Power If your TV system has no power, please check the main power cable and connection to the mains socket outlet. Poor Picture Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals. No Picture Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected. Sound You can not hear any sound. Did you perhaps interrupt the sound, pressing the button? Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu . Remote Control Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV. Input Sources If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 4001_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 40 27.02.2009 17:23:2527.02.2009 17:23:25English - 41 - Appendix A: PC Input Typical Display Modes The display has a maximum resolution of 1600 X 1200 . The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen. Index Resolution Frequency Standard Supported Zoom Modes Hor Ver Ver (Hz) Hor (KHz) 1 640 480 60 31.5 VESA 16:9, 4:3 2 640 480 72 37.9 VESA 16:9, 4:3 3 640 480 75 37.5 VESA 16:9, 4:3 4 800 600 56 35.2 VESA 16:9, 4:3 5 800 600 60 37.9 VESA 16:9, 4:3 6 800 600 70 43.8 16:9, 4:3 7 800 600 72 48.1 VESA 16:9, 4:3 8 800 600 75 46.9 VESA 16:9, 4:3 9 832 624 75 49.7 MAC 16:9, 4:3 10 1024 768 60 48.4 VESA 16:9, 4:3 11 1024 768 70 56.5 VESA 16:9, 4:3 12 1024 768 72 57.7 16:9, 4:3 13 1024 768 75 60.0 16:9, 4:3 14 1152 864 70 64.2 VESA 16:9, 4:3 15 1152 864 75 67.5 VESA 16:9, 4:3 16 1152 870 75 68.9 MAC 16:9, 4:3 17 1280 768 60 47.7 VESA 16:9, 4:3 18 1360 768 60 47.7 16:9, 4:3 19 1280 960 60 60.0 VESA 16:9, 4:3 20 1280 1024 60 64.0 VESA 16:9 21 1280 1024 75 80.0 VESA 16:9 22 1600 1200 60 75.0 VESA 16:9 Products Battery Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 4101_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 41 27.02.2009 17:23:2527.02.2009 17:23:25English - 42 - Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) Source Supported Signals Available EXT-1 (SCART) PAL 50/60 O NTSC 60 O RGB 50 O RGB 60 O FAV PAL 50/60 O NTSC 60 O YPbPr 480I 60Hz O 480P 60Hz O 576I 50Hz O 576P 50Hz O 720P 50Hz O 720P 60Hz O 1080I 50Hz O 1080I 60Hz O 1080P 50Hz O 1080P 60Hz O HDMI1 480I 60Hz O 480P 60Hz O 576I 50Hz O 576P 50Hz O 720P 50Hz O 720P 60Hz O 1080I 50Hz O 1080I 60Hz O 1080P 50Hz O 1080P 60Hz O 1080P 24 HZ O (X: Not Available, O: Available) Note : In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do expereince such a problem please contact your dealer and also the manufacturer of the source equipment. 01_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 4201_[GB]_MB25 (SSM)_ (01-TV)_16857W_1900UK_IDTV_NICKEL5_ADAPTOR_10061867_50144013.indd 42 27.02.2009 17:23:2527.02.2009 17:23:25English - 43 - Appendix C : Pin Specifi cations SCART connector pin specifi cations Pin Input signal Pin Input signal

• NTSC/PAL playback (according to disc content)

, LPCM audio via coaxial and optical digital audio outputs. (optional)

• Multiple Aspect Ratio support (16:9 Widescreen, 4:3 Letterbox, 4:3 PAN & SCAN)

• Multi-Audio (up to 8) support (According to disc content)

• Multi-Subtitle (up to 32) support (According to disc content)

• Multi-Angle (up to 9) support (According to disc content)

• 8 level parental control

• Fast forward and rewind in 5 different speeds. (2x, 4x, 8x, 16x, 32x)

• Slow motion playback in 4 different speeds. (1/2x, 1/4x, 1/8x, 1/16x forward)

• Frame by frame forward playback.

• Copied disks may be incompatible. Note: *** This DVD player may not support some MP3 recordings due to differences in recording formats or disc type. *** Please read the owner’s manual about MP3 playback. *** CD-R/CD-RW discs recorded by CD-DA method can be played. Some CD-R/CD-RW discs may be incompatible due to laser pick-up and disc design. *** Some VCD/SVCD discs may be incompatible . *** DVD-R/RW discs recorded by DVD-Video method can be played . Some DVD-R/RW discs may be incompatible due to laser pick- up and disc design. *** Some discs may be incompatible with JPEG Viewer function due to different recording format or condition of the discs. About this Manual Safety Information CAUTION DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. Be sure to operate the player correctly as instructed. CLASS 1 LASER PRODUCT

• Manufactured under license from Dolby Laboratories. “Dolby”, and the double-D symbol are trademarks of Dolby Laboratories.

• DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.

RISK OF ELECTRIC SHOCK

The lightning fl ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi cient magnitude to constitute a risk of electric shock of persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 201_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 2 27.02.2009 13:32:2827.02.2009 13:32:28English - 47 - How to Watch a DVD When placing a disc into the loader, labeled side of the disc should be on the front: When TV set is turned on, fi rst switch to DVD source by using the SOURCE button on the remote control. Press play on the remote control, or directly press play button at the front panel. If there is no disc inside the loader, place a DVD fi rst and press play. Note: You can get DVD source output via scart socket. DVD Control Panel Buttons A. Disc loader B. Memory card slot C. USB input D. Play / Pause Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as “button select” (selects the highlighted item in menu) if this is not prohibited by the disc. E. Stop / Eject Stop playing disc / Eject or Load the disc Note:

• You cannot eject the disc via the remote control.

• While playing a fi le, you should press STOP button three times to eject. Notes on Discs On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• If the disc is contaminated with any substance like glue remove before using it.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc.

• After playing, store the disc in its case. On cleaning

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. Licence Notifi cation

• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 301_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 3 27.02.2009 13:32:2927.02.2009 13:32:29English - 48 - Using Digital Multimedia Connectors

• Use SWAP button on the remote control to switch between USB and memory card.

• You can connect USB/MC devices to your TV by using USB or MC input of the TV. This feature allows you to display/play fi les stored on a USB device or a MC card.

• It is possible that certain types of USB devices (MP3 Players) or Multimedia Card interfaces may not be compatible with this TV.

• You may back up your fi les before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any fi le damage or data loss.

• Do not pull out USB module or MC card while playing a fi le. CAUTION: Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself. USB MEMORY MEMORY CARD SIDE VIEW MC Card Connection

• Insert the MC card into the Memory Card Input of the TV. Make sure the gold contact area faces up. The card is designed to fi t easily into the system one way only. Do not bend the card or force it into the slot. Insert only one card at a time.

• When you want to eject the card, do not grab the card all at once. Push to the card gently. Then it will pop out. USB Memory Connection

• Plug your USB device to the USB input of the TV. Note: USB hard drives are not supported.*

• It is recommended that you connect your USB device directly to the USB input of the TV. Some compatibility problems may occur if you use a separate cable connection. .

Dir:001 You can view or play contents of your device by using the related remote control buttons. See, General Control Buttons for Media Mode and Control Buttons for Video Playback. Note:

• Whenever you press the SWAP key, available media sources will be listed.

• If there is an active playback, you have to press STOP button fi rst and then SWAP key to list available DMP inputs.

• If you have plugged only one source, then only that source will be available to be selected.

• Do not pull out the MC module while playing a fi le.

• It is possible that certain types of MC or USB devices may not be compatible with this TV. General Control Buttons for Media Mode OK / SELECT > Enter/View / > Highlight an item by moving up or down. > Play > Pause > Stop RETURN > Media source selection. Control Buttons for Playback / > Rapid reverse / rapid advance/ . SEARCH > Search for a specifi c time. DISPLAY > Displays time. ZOOM > Zooms picture. Picture Playback / > Previous - next picture. / > Rotate picture REPEAT > Displays repeat options. ZOOM > Zooms picture. ROOT > Go back to root folder. DVD Playback Basic Play

1. Press on the power button

2. Please insert a disc to the loader.

The disc will be automatically loaded and play commences if the disc does not have any menus recorded on it. A menu may appear on the TV screen after a few moments or the fi lm may start immediately after the introduction of the Film Company. This behaviour depends on the disc content and may change. NOTE: Step 3 and 4 is available only when a menu is recorded on the disc.

3. Press “ ” / “ ” / / or the number button

(s) to select the preferred title.

Play of the selected items now starts.The played item may be a motion picture, a still picture or another submenu depending on the disc. For your reference: If an action corresponding to a button is prohibited the

twice. When the STOP( ) button is pressed for the fi rst time, a message “PRESS PLAY KEY TO CONTINUE” will appear on the screen to remind you if you want to continue the play. To stop the play, press the STOP ( ) button again or you can press SELECT to continue. Stopping Play and Returning To The Menu Screen (When a menu is available on the disc) Press MENU or TITLE button depending on the disc. Play is suspended, and the Disc menu screen is displayed. Rapid Advance (Rapid Reverse) Press SEARCH/SLOW ( ) on the remote control during play. Normal play is resumed when the SELECT button or PLAY/PAUSE ( ) button is pressed. The speed of advance ( 2x, 4x, 8x, 16x, 32x) or reverse ( 2x, 4x, 8x, 16x, 32x) changes for every press of the or button. Note: No sound will be heard during Rapid advance or Rapid reverse. Skipping Ahead or Back to Chapters Skipping ahead Press SKIP/ FRAME ( ) on the remote control during play. A chapter is skipped forward each time the button is pressed. Skipping back Press SKIP/ FRAME ( ) on the remote control during play. When the button is pressed once midway through a chapter, play returns to the previous chapter. Still Picture (PAUSE) Press PAUSE ( ) once during play. The screen freezes. To return to normal play press PLAY (

Frame Advance (STEP FORWARD) Press PAUSE ( ) once during play. The screen freezes. Press SKIP/ FRAME ( ) on the remote control. The next frame of the movie is displayed. You can press SKIP/ FRAME ( ) for the following frames. To return to normal play press PLAY (

NOTE: Reverse stepping is not available. Slow - motion Play Forward Press PAUSE ( ) once during play. The screen freezes. Press SEARCH/SLOW ( ) on the remote control. The unit starts playing the movie at four different speeds ( 1/2, 1/4, 1/8 and 1/16). You can increase or decrease the speed of the slow-motion play by pressing SEARCH/SLOW

or ). The speed of slow motion play is displayed on the screen each time you change it. To return to normal play, press PLAY (

NOTE: No sound will be heard during Slow motion play. NOTE: Reverse slow motion play is not available. Direct Selection of Scenes Selecting Scenes by Chapter Number Press SEARCH MODE on the remote control once during playback. The chapter/title search box is displayed on the screen. You can see the currently playing and total number of chapters in right hand side of the display bar as -- / xx. Enter the number of the chapter using number buttons. The selected chapter is played just after you enter the chapter number. For your convenience:

• If the chapter number you entered is between 0 and 9, player will automatically jump to the related chapter.

• You can clear the fi eld by pressing the C button if you enter a wrong number.

• If you attempt to enter a number greater than the total number of chapters on the current 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 701_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 7 27.02.2009 13:32:3227.02.2009 13:32:32English - 52 - title, the search box disappears and “ Input Invalid” message is displayed on screen.

• If you wait fi ve seconds without pressing any key for selecting scenes by chapter number, the operation is cancelled.

• You can press RETURN key to cancel title search. Selecting Scenes by Title Number Press SEARCH on the remote control once during playback. The chapter/title search box is displayed on the screen. You can see the currently playing and total number of titles in left hand side of the display bar as -- / xx. Enter the number of the title using the numeric buttons. The selected title is played just after you enter the title number. Selecting Scenes by Time You can view the DVD starting from any time point you want. Press SEARCH MODE on the remote control “twice” during playback. The time search box is displayed on the screen as Title xx/xx Time -- : -- : --. Enter the time using number buttons. The title is played beginning from the desired time just after you enter the time. If not prohibited by the DVD. Press SEARCH MODE on the remote control “three times” during playback. The time search box is displayed on the screen as Chapter xx/xx Time -- : -- : --. Enter the time using number buttons. The Chapter is played beginning from the desired time just after you enter the time. If not prohibited by the DVD. For your convenience:

• You can clear the fi elds by pressing the C button if you enter wrong numbers.

• If you attempt to enter a number greater than the total time of the current title, the time search box disappears, “ Input Invalid” message is displayed on screen.

• If you wait fi ve seconds without pressing any key to enter time, selecting scenes by time option is cancelled.

• You can press RETURN key to cancel time search. Convenient Functions Displaying the time information Press DISPLAY during play. Some information is displayed on TV screen to indicate the current status of the disc. On the display screen you can fi nd the following information lines: Line 1: Time Counter Mode Line 2: Title Number, Chapter Number, Time Counter Line 3: Audio Number, Audio Format, Number of Output Channels, Audio Language Line 4: Subtitle Number & Subtitle Language Time counter modes can be selected by pressing INFO key consecutively. The sequence for time counter modes is as ollows: TITLE ELAPSED, TITLE REMAIN, CHAPTER ELAPSED and CHAPTER REMAIN.

• If “TITLE ELAPSED” is displayed, the elapsed time for the title is being displayed.

• If “TITLE REMAIN” is displayed the remaining time for the title is being displayed.

• If “CHAPTER ELAPSED” is displayed, the elapsed time for the chapter is being displayed.

• If “CHAPTER REMAIN” is displayed, the remaining time for the chapter is being displayed. Pressing the DISPLAY key for the second time closes display menu screen. “DISPLAY OFF” is displayed. Displaying a scene with a larger and closer view The ‘zoom in’ function enables you to take a closer look at the scene you are viewing that is especially an impressive function when you are seeing science fi ction or adventure fi lm. Press ZOOM during play. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 801_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 8 27.02.2009 13:32:3327.02.2009 13:32:33English - 53 - 2X” is displayed on the screen and the picture is now larger. By pressing ZOOM key consecutively you can reach “ 3X”, “ 4X, 1/2x, 1/3x 1/4x” modes. NOTE: You can move in the picture, i.e. change the zoomed location, by using the “ ” (Left) or “ ” (Right) / “ ” (Down) / “ ” (Up) arrow keys. To return to normal play Press ZOOM again. Displaying / Changing Subtitle Language It is possible to change the subtitle language from the one selected at the initial settings to a different language, if available. (This operation works only with discs on which multiple subtitle languages are recorded.) Press SUBTITLE during play. When no subtitles are recorded “ ” will be displayed instead of the selected language. Press SUBTITLE a number of times until the preferred language is selected. When this button is pressed once, the fi rst subtitle recorded on the disc will display. The rest of the subtitles recorded will display in sequence for every press of the SUBTITLE button NOTE: <?> In some cases, the subtitle language is not changed immediately to the selected one. For your convenience:

• When the preferred language is not selected even after pressing the button several times, it means that the language is not available on the disc.

• When the player is restarted or the disc is changed, the subtitle selection is automatically changed back to the initial settings.

• If a language is selected, which is not supported by the disc, the subtitle language will automatically be set to the disc’s priority language.

• Usually a circulation will happen while switching to another language, that is you can cancel the subtitle by pressing this button a number of times until “Subtitle Off” appears on the screen. Changing Audio Soundtrack Language It is possible to change the audio language from the one selected at the initial settings to a different language, if available. (This operation works only with discs on which multiple audio soundtrack languages are recorded, if not prohibited by the DVD.) Press LANG. during play. Press LANG. a number of times until the preferred language is selected. For your convenience:

• When the preferred language is not selected even after pressing the button several times, it means that the language is not available on the disc.

• When the power is turned on or the disc is removed, the language heard is the one selected at the initial settings. If this language is not recorded on the disc, only the available language on the disc will be heard. Viewing From Another Angle Some DVD discs may contain scenes, which have been shot simultaneously from a number of different angles. For these discs, the same scenes can be viewed from each of these different angles using the ANGLE button. The number of recorded angles differs depending on the disc used.

y/x ” is displayed shortly on the screen during playback. This indicates that the multi- angle scene has just started. From that moment on, the yth angle of total x angles is played and you can change the viewing angle until the end of the multi-angle scene.

• In SETUP menu, an ‘ANGLE MARK’ option exists, which, if enabled, will display a continuous angle mark on the screen as long as multi-angle scene is available. Press ANGLE during play. The current angle is changed. Press ANGLE a number of times until the preferred viewing angle is selected.

• This function will only work on discs where different angles have been recorded. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 901_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 9 27.02.2009 13:32:3327.02.2009 13:32:33English - 54 - Using a DVD Menu Some DVD discs have unique menu structures called DVD menus. For example, DVDs programmed with complex contents provide guide menus, and those recorded with various languages provide menus for audio and subtitle language. Although the DVD menus’ contents and operation differ from disc to disc, the following explains basic operation when this feature is used. Press TITLE on the remote control. The DVD menu available on the disc is now displayed. NOTE:

• If you press MENU, the root menu of DVD is displayed.

• If you press TITLE, the menu of the current title is displayed. Press “ ” / “ ” / “ ” / “ ” to select the preferred item. Press SELECT. The selected item is now executed. For your convenience:

• You can also use number keys to select a DVD menu item. The player will automatically execute the item. To enter an item number which is more than 1 digit, press +10 key and then enter the item number. NOTE:

• Some DVDs may not contain root and/or title menus.

• To resume the playback, select PLAY item in DVD menu. Video CD Playback Basic Play

• Please insert a disc to the loader.

• For Video CDs without playback control: The disc loaded and play commences.

• For Video CDs provided with playback control: A menu screen will appear on the screen after a few moments. Menu Play

• This function works only with video CDs with playback control (version 2.0). Follow the instructions on the menu screen for interactive operations.

• The details differ depending on the disc concerned. Also refer to the instructions accompanying the disc.

• Press the number button(s) to select the preferred item. The player now starts to play the selected item. NOTE:

• Use +10 button to enter two-digit-numbers.

” / “ ” / “ ” / “ ” arrow buttons are not used for selecting items for video CDs. What is playback control? If a video CD has “playback control“ written on the jacket of disc, it means that particular scenes or information can be selected for viewing interactive with TV screen using the menu screen. NOTE:

• TITLE button is dedicated to PBC “playback control” during VCD playback. You can change PBC mode with TITLE button.

• For using Repeat Modes you need to switch off PBC manually.

• If you use Search mode, PBC automatically switches to OFF.

• PBC ON is default. Whenever you eject the CD it will be ON. Stopping play

• To stop the play permanently, press STOP ( ) twice. When the STOP ( ) button is pressed for the fi rst time, a message “Press Play Key To Continue” will appear on the screen to remind you if you want to continue the play. To stop the play, press the STOP ( ) button again or you can press PLAY ( ) to continue. Rapid Advance / Rapid Reverse Press SEARCH/SLOW (or) on the remote control during play.

• Normal play is resumed when the SELECT button or PLAY ( ) button is pressed. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 1001_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 10 27.02.2009 13:32:3327.02.2009 13:32:33English - 55 -

• The speed of advance ( 2x, 4x, 8x, 16x, 32x) or reverse ( 2x, 4x, 8x, 16x, 32x) changes for every press of the (or) button. Note: No sound will be heard during Rapid advance or Rapid reverse. Skipping Ahead or Back to Chapters Skipping ahead Press SKIP/ FRAME ( ) on the remote control during play. A track is skipped each time the button is pressed. Skipping back Press SKIP/ FRAME ( ) on the remote control during play. When the button is pressed once midway through a track, play returns to the start of previous track. When it is pressed again, a track is skipped. Still Picture (PAUSE) Press PAUSE ( ) once during play. The screen freezes. To return to normal play press PLAY ( ) again. Frame Advance (STEP Forward) Press PAUSE ( ) once during play. The screen freezes. Press SKIP/ FRAME ( ) on the remote control. The next frame of the movie is displayed. You can press SKIP/ FRAME ( ) for the following frames. NOTE: Reverse stepping is not available. Slow- motion Play Press PAUSE ( ) once during play. The screen freezes. Press SEARCH/SLOW ( ) on the remote control. You can increase or decrease the speed of the slow-motion play by pressing SEARCH/SLOW

(or) ). There are 4 slow motion modes

1/16, 1/8, 1/4, 1/2. The speed of slow motion play is displayed on the screen each time you change it. To return to normal play press PLAY (

again. NOTE: No sound will be heard during Slow motion play. NOTE: Reverse slow motion play is not available. Direct Selection of Scenes Selecting Scenes by Time You can view the video CD, starting from any time point you want. Press SEARCH MODE on the remote control once time during playback. The time search box is displayed on the screen as SELECT TRACK :_ _ / xx Player goes to entered track of the disc. Press SEARCH MODE on the remote control two times during playback. The time search box is displayed on the screen as DISC GOTO:_: _ _ : _ _ Player goes to entered time of the disc. Press SEARCH MODE on the remote control three times during playback. The time search box is displayed on the screen as TRACK GOTO:_: _ _ : _ _ Player goes to entered time of the current track. Enter the time using number buttons. The title is played beginning from the desired time just after you enter the time. For your convenience:

• If you attempt to enter a number greater than the total time of the current title, the time search box disappears and “ Input Invalid” message appears on up-left corner of screen.

• If you give up entering the time simply press RETURN button, and the operation is cancelled. Accessing tracks using number buttons: You can play any track you want, just by pressing the corresponding number button. For the track numbers which are greater than “9” use +10 button. Press this button once and then type the two digit track number. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 1101_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 11 27.02.2009 13:32:3327.02.2009 13:32:33English - 56 - If you attempt to enter a number greater than the total number of tracks on disc, “ ” message is displayed on the screen. Repeat Play Repeat Viewing Press REPEAT during play. Each time this button is pressed, a different repeat box is displayed on the screen.

• If “ All” is displayed, the whole disc will be played again.

• If “ Title” is displayed, the current title will be played again.

• If “ Chapter” is displayed, the current Chapter will be played again. Convenient Functions Displaying the time information Press INFO during play. Each time this button is pressed, a different time information box is displayed on the screen.

• If “Single elapsed” is displayed, the elapsed time for the title which is being played will be displayed.

• If “Single remain” is displayed, the remaining time for the title which is being played will be displayed. NOTE: If PBC feature is set to OFF then two other time information modes are also available which are “Total elapsed” and “Total remain”.

• If “Total Elapsed” is displayed, the elapsed time for the disc is being displayed.

• If “Total remain” is displayed, the remaining time for the disc is being displayed. Pressing the TIME key again closes display menu screen. “DISPLAY OFF” is diplayed. Displaying a scene with a larger and closer view This ‘zoom-in’ function enables you to take a closer look at the scene you are viewing. This is especially an impressive function when you are watching science fi ction or adventure fi lm. Press ZOOM during play. “ 2X” is displayed on the screen and the picture is now larger. By pressing ZOOM key consecutively you can reach “ 3X”, “ 4X” modes. NOTE: You can move in the picture, i.e. change the zoomed location, by using the (Left) / (Right) / (Down) / (Up) arrow keys. To return to normal play; Press ZOOM again. CD Menu CD Menu is used to display the directory structure of data discs which would contain fi les such as JPEG/MPEG/MP3/DivX and to display the tracks of Audio CDs. Basic Play 1.Please insert a CD-R disc to the loader. “Loading” message appears on screen. Please wait for a moment. CD MENU appears. Directories and the fi les in the root directory are listed. (For Audio CD, the tracks are listed.)

” or “ ” to select files or directories. In the stop mode or while playing MP3 the user can navigate in the current directory.

3. Press SELECT, “ ” or “ ” to switch between

directories & fi les. If a directory is selected and SELECT or “ ” key is pressed then the selected directory content is displayed after reading directory. To switch from a sub directory to an upper directory, press SELECT or “ ” key while the top-most option in the directory (“...”) is selected or press ““ ””.

4. Press SELECT on a fi le to play.

again. Stopping Play Press STOP ( ). The play is stopped. NOTE: If a JPEG fi le is displayed, pressing MENU also stops the play. MP3/MPEG/DivX File: CD MENU is displayed. Rapid Advance (Rapid Reverse) MP3/MPEG/DivX CD Track: Press SEARCH/SLOW ( or ) during play to decrease/increase play speed. 32x, 16x, 8x, 4x, 2x, PLAY, 2x, 4x, 8x, 16x, 32x are the play speed modes. Skipping Ahead or Back to Tracks Press SKIP/ FRAME ( / ) during play to jump to the previous/next fi le. Next fi le in the current directory will be played. Press SKIP/ FRAME (( / ) ) during stop mode to jump to the previous/next page of the current directory. ZOOM MPEG: This “zoom in” function enables you to take a closer look at the scene you are viewing that is especially an impressive function when you are seeing science fi ction or adventure fi lm. Press ZOOM during play.

2X” is displayed on the screen and the picture is now larger. By pressing ZOOM key consecutively you can reach “ 3X”, “ 4X” modes. NOTE: You can move in the picture, i.e. change the zoomed location, by using the ( ) / ( ) / ( ) / ( ) arrow keys. To return to normal play; Press ZOOM again. JPEG : Press PLAY ( ) to start slide show. During slideshow, you may change slide type (effect) by pressing ANGLE button. It is provided both ZOOM in/out and Zoom pan functions for JPEG pictures. Press ZOOM to turn on/off this function. When this mode is on, a message will indicate the current ratio on screen. If zoom mode is on, Press / to control the ratio of zoom in/ out. The zoom ratios are %50 and %75 for zoom out and %100, %125, %150 and %200 for zoom in. (The order is: %50, %75, %100, %125, %150, %200)(The initial ratio is %100) With ZOOM mode off, a picture is scaled to fi t the whole screen. Note: Slide Show is disabled when the ZOOM mode is on. Repeat Press REPEAT to change current repeat mode. In CD MENU it is displayed at the bottom. The options available are: FOLDER: When this mode is selected, the current folder will be played once. SINGLE: When this mode is selected, the current track will be played once. REPEAT ONE: When this mode is selected, the current track will be repeated continuously. REPEAT FOLDER: When this mode is selected, the current folder will be repeated continuously. Display Function Press INFO to change displayed time mode. There are two time modes :

• Single Remain Time is displayed during MP3,MPEG/DivX and Audio CD track playback. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 1301_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 13 27.02.2009 13:32:3427.02.2009 13:32:34English - 58 - Setup Menu Press DISPLAY key on the remote control when the player is not in playback mode. The setup menu-main page appears. To close the setup menu, press DISPLAY key. MAIN PAGE In the main page, the fi rst page is selected by default. Select pages using / arrow buttons. When selected, the page will be highlighted and the items of the selected page will be displayed. Press SELECT or arrow button to enter selected page. When entered a page, the fi rst item of the page is selected and the sub-items of that item are listed on the right. NOTE: To return to main page, press arrow button. To close the setup menu, press DISPLAY key. USING PAGES When entered a page, the fi rst item of the page is selected by default and the sub-items of the selected item are listed on the right. Use arrow buttons to change the selected item in the page. The sub-items of the selected item are listed on the right. Press SELECT or arrow button to select the sub-items of the selected item. The sub-item is selected on the right menu. Use / arrow buttons to change the selected sub-item. Press SELECT to choose the selected sub-item on the right menu.

TV Type TV Type is only available as ‘PAL’. The TV set also supports NTSC signal; however, the signal will be converted to PAL when it appears on the screen. DivX VOD DivX VOD provides the convenience of streaming video in terms of quality and performance. LANGUAGE SETUP OSD LANG You can select the default OSD language of the player menus AUDIO You can select the default audio language if supported by the DVD disc. DISC MENU You can select the DVD’s disc menu language among these languages. Disc menu appears in the selected language, if supported by the DVD disc. SUBTITLE You can select the default subtitle language if supported by the DVD disc. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 1401_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 14 27.02.2009 13:32:3527.02.2009 13:32:35English - 59 - PREFERENCES ANGLE MARK This option allows you to turn on /off the angle mark on the screen, which is displayed to indicate that a multi angle scene has started. It also shows which angle you are currently watching. DEFAULT If you choose RESET and press SELECT, the factory-presets are loaded. Parental level and parental password does not change. DOWNMIX This mode can be selected when the digital audio output of the TV is used. SURROUND: Surround sound output. STEREO: Two channels stereo. PARENTAL (Parental Level) Playing some DVDs can be limited depending on the age of users. The “Parental Control” function allows playback limitation level to be set by the parent. Parental Level can be adjusted to one of the eight levels. Level “8 ADULT” adjustment let you watch all of the DVD titles ignoring the DVD disc’s parental level. You can watch the DVD discs, which has the same or lower parental level than the player’s level only. PASSWORD (Change Password): Using this item you can change the current password. To change the password you will be prompted to enter your old password. After you have entered your old password, you can now enter the new 4-digit password. You can use C key to delete the incorrect entry. Note: Factory preset of the password is “0000”. You have to enter XXXX digital password every time you want to change the parental level. If you forget your password please contact technical service. Troubleshooting The picture quality is poor (DVD)

• Make sure the DVD disc surface is not damaged. (Scratch, fi ngerprint etc.)

• Clean the DVD disc and try again. See instructions described in “Notes on Discs” to clean your disc properly.

• Ensure that the DVD disc is in the drawer with the label uppermost.

• A damp DVD disc or condensation may effect the equipment. Wait for 1 to 2 hours in Stand- by to dry the equipment. Disc does not play

• No disc in the machine. Place a disc into the loader.

• Disc incorrectly loaded. Ensure that the DVD disc is in the drawer with the label uppermost.

• Wrong type of disc. The machine cannot play CD-ROMS etc.

• The region code of the DVD must match the player. Wrong OSD language

• Select the language in the set-up menu.

• The language for the sound or subtitles on a DVD cannot be changed.

• Multilingual sound and/or subtitles not recorded on the DVD.

• Try to change the sound or subtitles using DVD’s title menu. Some DVD’s do not allow the user to change these settings without using the disc’s menu 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 1501_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 15 27.02.2009 13:32:3527.02.2009 13:32:35English - 60 - Some functions (Angle, Zoom etc) do not work

• These functions are not available on the DVD.

• Angle can only be changed when the angle symbol is displayed. No picture

• Have you pressed the correct buttons on the remote control? Try once more. No sound

• Check the volume is set to an audible level.

• Make sure you have not switched the sound off accidentally. Distorted sound

• Check that the appropriate listening mode setting is correct. No response from remote control

• Make sure the remote control is in the correct mode.

• Check batteries are fi tted correctly.

• Change the batteries. If nothing works If you have tried the above solutions and none seem to work, try switching your TV-DVD off and on again. If this does not work, contact your supplier or TV-DVD repair technician. Never attempt to repair a defective TV-DVD yourself. Defi nition of Terms Angle Recorded onto some DVD discs are scenes, which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left side, from the right side, etc.). With such discs, the ANGLE button can be used to view the scene from different angles. Chapter Number These numbers are recorded on DVD discs. A title is subdivided into many sections, each of which are numbered, and specifi c parts of video presentations can be searched quickly using these numbers. DVD This refers to a high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG II) and high-density recording technology. DVD enables aesthetically pleasing full-motion video to be recorded over long periods of time (for instance, a whole movie can be recorded). DVD has a structure consisting of two 0.6-mm thin discs, which are adhered to each other. Since the thinner the disc, the higher the density at which the information can be recorded, a DVD disc has a greater capacity than a single 1.2 mm thick disc. Since the two thin discs are adhered to each other, there is the potential to achieve double-sided play sometime in the future for even longer duration play. Playback Control This is recorded on a Video CD (Version 2.0). The scenes or information to be viewed (or listened to) can be selected interactively with the TV monitor by looking at the menu shown on the TV monitor. Subtitles These are printed lines appearing at the bottom of the screen, which translate or transcribe the dialogue. They are recorded on the DVD discs. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 1601_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 16 27.02.2009 13:32:3527.02.2009 13:32:35English - 61 - Time Number This indicates the playtime, which has elapsed from the start of a disc or a title. It can be used to fi nd a specifi c scene quickly. (Not all discs permit the time search feature to be used. Availability is determined by the disc’s manufacturer.) Title Number These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as title 1, title 2, etc. Track Number These numbers are assigned to the tracks, which are recorded on AudioCDs. They enable specifi c tracks to be located quickly. Video CD This contains recordings of pictures and sound whose quality is on a par with that of videotape. This player also supports Video CDs with playback control (Version 2.0). Dolby Digital Many movie theatres are equipped with 5.1 channel surround systems. This same type of technology is available to you in your home. To enjoy full 5.1-channel surround, your DVD player must be connected to an external Dolby Digital decoder via the digital outputs (either coaxial or optical). Dolby Pro Logic This is Dolby Laboratories’ technology to decode Dolby Surround encoded programs actively. Dolby Surround programs have four channels of audio (Left, Center, Right and Surround) encoded into a standard 2-channel stereo signal. The rear channel is monaural. LPCM LPCM stands for Pulse Code Modulation and is digital audio. MPEG Short for Moving Picture Experts Group. This is an international standard for compression of moving images. On some DVDs digital audio has been compressed and recorded in this format. DivX DivX is a digital video compression technology based on MPEG-4 and developed by DivX Networks Inc. 01_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 1701_[GB]_MB25_ (02-DVD)_16857W_1900UK_IDTV_NICKEL5_DIVX_10061867_50144013.indd 17 27.02.2009 13:32:3527.02.2009 13:32:35English - 62 - Supported File Formats for USB & MC Modes

• MMC (Multi Media Card ™)

MP3 is reco rded as a D igital Signa l with better audio quality, less distortion andless deterioration of audio qualityove r tim e. JPEG is recorded as a Digital Signal withbetter picture quality over tim e.READABLE Disc Types (Logos) Recording Ty p es Disc Size Max. Playing Tim e 74 min. 20 min. 74 min. 20 min. Single -sided; 240 m in.Double -sided; 480 m in.Single -sided; 80 m in.Double -sided; 160 m in. Characteristics

DVD contains excellent sound and video du e to D olby Digital and M PE G-2 System .

Various screen and audio functions can beeasily selected through the on screenmenu.

Video w ith CD sou nd , VHS qu ality & MPEG-1 compression technology. An LP is recorded as an analog signal withmore distortion. CD is recorded as aDigital Signal with better audio quality,less distortion and less d eterioration ofaudio quality over time. 12 cm 8cm 12 cm 8cm Audio

• MMC (Multi Media Card ™)
