USER MANUAL TFL65FHD200BC TELEFUNKEN

AC3/EAC3, LPCM/ADPCM

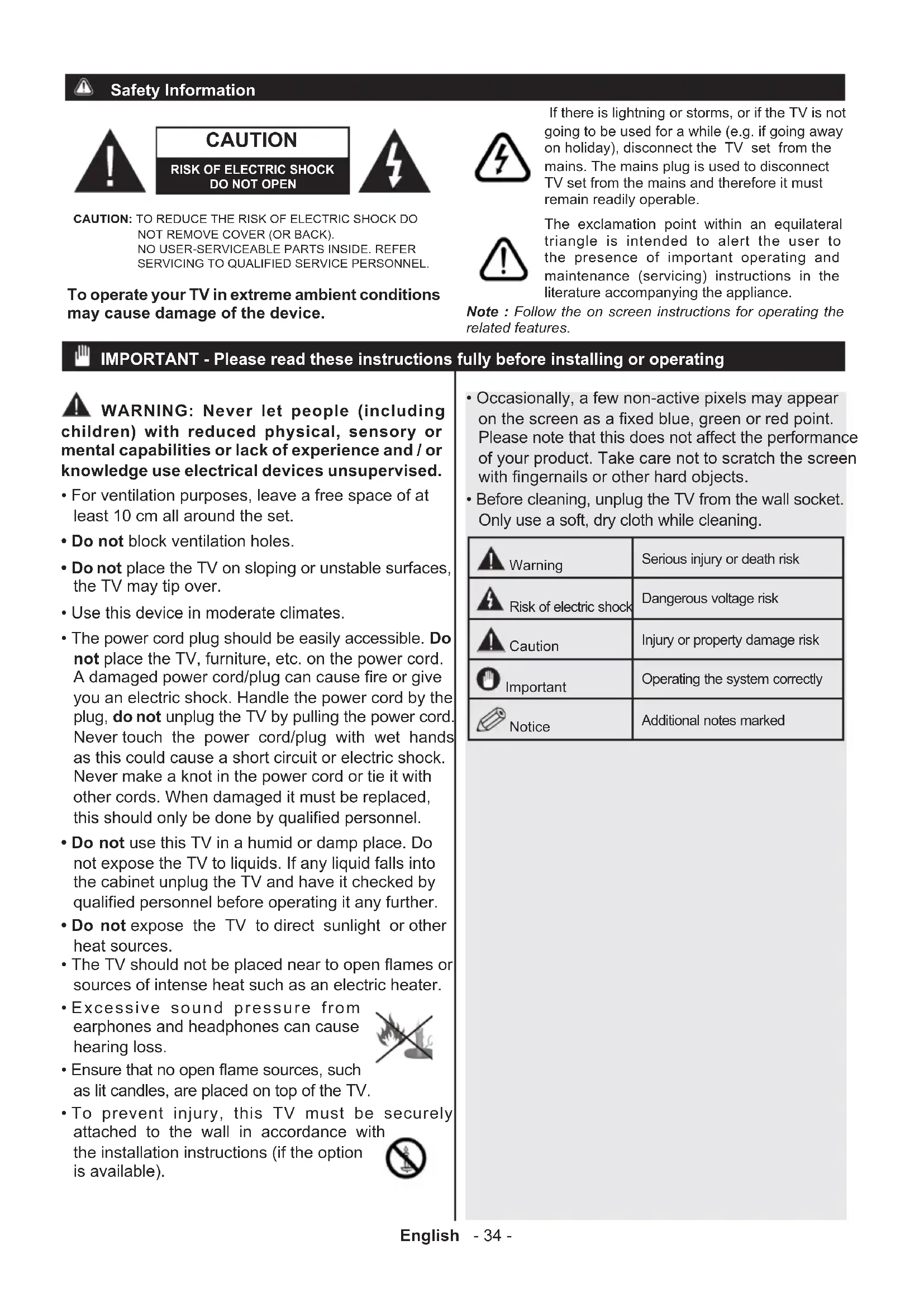

WARNING: Never let people (including

children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at least 10 cm all around the set.

• Do not block ventilation holes.

• Do not place the TV on sloping or unstable surfaces, the TV may tip over.

• Use this device in moderate climates.

• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause re or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualied personnel.

• Do not use this TV in a humid or damp place. Do not expose the TV to liquids. If any liquid falls into the cabinet unplug the TV and have it checked by qualied personnel before operating it any further.

• Do not expose the TV to direct sunlight or other heat sources.

• The TV should not be placed near to open ames or sources of intense heat such as an electric heater.

• Excessive sound pressure from earphones and headphones can cause hearing loss.

• Ensure that no open ame sources, such as lit candles, are placed on top of the TV.

• To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

• Occasionally, a few non-active pixels may appear on the screen as a xed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with ngernails or other hard objects.

• Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning. Warning Serious injury or death risk Risk of electric shock Dangerous voltage risk Caution Injury or property damage risk Important Operating the system correctly Notice Additional notes marked If there is lightning or storms, or if the TV is not going to be used for a while (e.g. if going away on holiday), disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. IMPORTANT - Please read these instructions fully before installing or operating Note : Follow the on screen instructions for operating the related features. To operate your TV in extreme ambient conditions may cause damage of the device. CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.English - 35 - Environmental Information This television is designed to consume less energy to help save the environment. To reduce energy consumption, you should take the following steps: You can use the Power Save Mode setting, located in the Picture menu. If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode. If Picture Off is selected, “Screen will be off in 15 seconds.” message will be displayed. Select PROCEED and press OK to continue. The screen will be off immediately. When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption. StandbyNotications

1) If the TV does not receive any input signal (e.g.

from an aerial or HDMI source) for 5 minutes, the TV will go into standby. When you next switch-on, the following message will be displayed: “Standby Cause No Signal”. Press OK to continue.

2) If the TV has been left on and not been operated

for a while, the TV will go into standby. When you next switch-on, the following message will be displayed. “Standby Cause No Operation” Press OK to continue. Features

• Remote controlled colour LED TV.

• Fully integrated digital/cable TV (DVB-T/C)

• HDMI inputs are for connecting a device that has a HDMI socket.

• Programme recording.

• Programme timeshifting.

• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)

• Headphone connection.

• Automatic programming system.

• Automatic power down after up to six hours.

• PLL (Frequency Search).

• Ethernet (LAN) for Internet connectivity and service

• 802.11n built in WIFI Support.

• 200 Hz CMP: This product has 200 Hz CMP feature. CMP (Clean Moving Picture) is a MPRT (Moving Picture Response Time) standardization terminology used to determine motion blur performance of a TV. Other than refresh rate, MPRT claries how smooth and clear the motion is. Accessories Included Remote Control Batteries not included Instruction Book Side AV Connection Cable Mini scart adapter cable TV Control Buttons & Operation TV/AV MENU P/CH

Getting Started Notications&Features&AccessoriesEnglish - 36 - Operation with the Buttons on the TV Press button to decrease the volume or button to increase the volume, so a volume level scale (slider) will be displayed on the screen. Press P/CH + button to select the next programme or P/CH - button to select the previous programme. Press the or button at the same time to view the main menu. In the Main menu select a sub-menu using TV/AV button and set the sub-menu using or buttons. To see what options are available via the menu, refer to the menu system section of this manual. Press the TV/ AV button in the control panel on the TV to switch between AV modes. Note: Function indications of the buttons will be displayed on the screen when pressed. Operation with the Remote Control Press the MENU button on your remote control to display the main menu screen. Use the “ ” or “ ” buttons to select a menu tab and press the OK button to select option. Use the “ ” or “ ” or “ ” or “ ” buttons to select or set an item. Press BACK or EXIT or MENU button to quit a menu screen. Input Selection Once you have connected external systems to your TV, you can switch to different input sources. Press the “ ”(source) button on your remote control consecutively to select the different inputs. Changing Channels and Volume You can change the channel and adjust the volume by using the V+/- and P+/- buttons on the remote. You can also change the channels by pressing the buttons on the front panel of your TV. Inserting the Batteries into the Remote Lift the cover on the back of the remote upward gently. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity) Replace the cover. Connect Power IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet. Antenna/Cable Connection Connect the aerial or cable TV plug to AERIAL INPUT (ANT-TV) socket located on the rear bottom side of the TV. Notication Manufactured under license from Dolby Laboratories. TRADEMARK ACKNOWLEDGMENT “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. “HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.” “DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certication marks of the Digital Living Network Alliance.” “YouTube and the YouTube logo are trademarks of Google Inc.” Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead. Products BatteryEnglish - 37 - Teletext Press “ ” button to enter. Press again to activate mix mode. Press once more to exit. Follow the instructions displayed on digital teletext screen. Digital Teletext (for UK only) Press“ ” button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the “ ” button is pressed again, the TV returns to television broadcast. Specication TV Broadcasting PAL B/G D/K K Receiving Channels VHF (BAND I/III) - UHF

(BAND U) - HYPERBAND

Number of Preset Channels

Channel Indicator On Screen Display RF Aerial Input 75 Ohm (unbalanced) Operating Voltage 220-240V AC, 50Hz. Audio German + Nicam Stereo Audio Output Power (WRMS.) (10% THD) 2x12W Power Consumption 200 W TV Dimensions DxLxH (with foot) 344x1460x905 TV Dimensions DxLxH (without foot) 38/48x1460x838 Display 65” Operation temperature and operation humidity: 0ºC up to 40ºC, 85% humidity maxEnglish - 38 -

1. Standby: Switches On / Off the TV

2. TV: Displays channel list / Switches among broadcast

types / Switches to TV Source

5. OK: Conrms user selections, holds the page (in TXT

mode), views channel list (DTV mode)

6. Back/Back: Returns to previous screen, opens index page

many web based applications

10. Coloured Buttons: Follow the on-screen instructions for

coloured button functions

11. Language: Switches between sound modes (analogue

TV), displays and changes audio/subtitle language (digital TV, where available)

12. Rapid reverse: Moves frames backwards in media such

13. Pause: Pauses the media being played/ Timeshift

14. Programme recording

15. Play: Starts to play selected media

16. Stop: Stops the media being played

17. Rapid advance: Moves frames forward in media such as

19. Screen: Changes the aspect ratio of the screen

20. Text: Displays teletext (where available), press again to

superimpose the teletext over a normal broadcast picture (mix)

21. Media browser: Opens the media browsing screen

22. EPG (Electronic programme guide): Displays the electronic

26. Info: Displays information about on-screen content, shows

28. Mute: Completely turns off the volume of the TV

29. Swap: Quickly cycles between previous and current

or a letter in the text box on the screen.

31. Source: Shows all available broadcast and content sources

Getting Started Remote Control - 1 NOTE: The Remote Control range is approximately 7m / 23ft. Using My button 1 (*) This button’s main function is to run Youtube link. However, if you want to change this function, you can press MY BUTTON 1 for ve seconds when on a desired source, channel or link, until the “MY BUTTON IS SET” message is displayed on the screen. This conrms that the selected MY BUTTON is now associated with the selected function. Note that if you perform rst time installation, MY BUTTON 1 will return to its default function. Using My Button 2 (**) Press MY BUTTON 2 for ve seconds when on a desired source, channel or link, until the “MY BUTTON IS SET” message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.English - 39 - NOTE: When connecting a device via the YPbPr or Side AV input, you must use a connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the SIDE AV CONNECTION cable’s WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. | Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. Getting Started Connections Connector Type Cables Device Scart Connection (back) Mini Scart Connection (rear bottom) Mini Scart adapter cable (supplied) VGA Connection (back) PC/YPbPr Audio Connection (back) Side Audio YPbPr or PC Connection Cable (not supplied) HDMI Connection (bottom&side) S/PDIF (Optical Out) Connection (bottom) Side AV (Audio/Video) Connection (side) Side AV Connection Cable (supplied) Headphone Connection (side) YPbPr Video Connection (side) YPbPr Connection Cable(not supplied) USB Connection (side)

Connection (side) CAM module Subwoofer Connection (back)(*)English - 40 - Switching On/Off To Switch the TV On Connect the power cord to the 220-240V AC, 50 Hz. To switch on the TV from standby mode either: Press the “ ” button, P+ / P- or a numeric button on the remote control. To Switch the TV Off Press the “ ” button on the remote control or press the “ ” touch button on the TV. The TV will now switch to standby mode. To power down the TV completely, unplug the power cord from the mains socket. Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode. First Time Installation When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK. The First Time Installation (FTI) screen will be displayed next. Set your preferences using the navigation buttons and when nished, press OK to continue. You can activate Store mode option to be available in “Other settings” menu and your TV’s settings will be optimized for best display quality. A conrmation screen will be displayed. Select YES to proceed. If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button to continue. Aerial Installation If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts. NOTE: You can press MENU button to cancel. After all the available stations are stored, the Channel List will be displayed on the screen. If you like how the channels are sorted according to the LCN (*), please select “Yes” and than press OK. Press MENU button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available). Cable Installation If you select CABLE option and press OK button on the remote control a conrmation message will be displayed. To continue, select YES and press OK. To cancel operation, select NO and press OK. You can select frequency ranges from this screen. Enter the frequency range manually by using the numeric buttons. Note: Searching duration will change depending on the selected search step. Media Playback via USB Input You can connect a 2.5” and 3.5” inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV. IMPORTANT! Back up your files before making any connections to the TV. The Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks. While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process. Quickly plugging and unplugging USB devices, is a very hazardous operation. This may cause physical damage to the USB player and the USB device itself. Do not pull out the USB module while playing a le. You can use USB hubs with your TV’s USB inputs. External power supplied USB hubs are recommended in such a case. It is recommended to use the TV’s USB input(s) directly, if you are going to connect a USB hard disk. Getting Started First Time Installation - USB ConnectionsEnglish - 41 - Recording a Programme IMPORTANT: When using a new USB hard disk drive, it is recommended that you rst format the disk using your TV’s “Format Disk” option. Note: To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature. To use the recording function, you need to connect a USB disk or an external hard disk drive to the TV and the connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed. Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these les will not be available to be played on a computer. You can play the recordings only via your TV. Note: Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours. Recorded programmes are split into 4GB partitions. If the writing speed of the connected USB disk is not sufcient, the recording may fail and the timeshifting feature may not be available. It is recommended to use USB hard disk drive to recording HD programmes. Do not plug out the USB/HDD during a recording. This may harm the connected USB/HDD. Multipartition support is available. A maximum of two different partitions are supported. The rst partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features. Some stream packets may not be recorded because of signal problems, so sometimes the video may freeze during playback. Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is ON. If a recording starts from the timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback. Timeshift Recording Press (PAUSE) button while watching a broadcast to activate timeshifting mode.In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button again to resume the paused programme from where you stopped. Press the STOP button to stop timeshift recording and return to the live broadcast. Note: Timeshift cannot be used while in radio mode. Note: You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option. Instant Recording Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, an OSD will be displayed, indicating the programmed events for recording. Press (STOP) button to cancel instant recording. Note: You can not switch broadcasts or view the Media Browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufcent. Watching Recorded Programmes Select the Recordings Library from the Media Browser menu. Select a recorded item from the list (if previously recorded). Press the OK button to view the Play Options. Select an option then press OK button. Note: Viewing main menu and menu items will not be available during the playback. Press the (STOP) button to stop a playback and return to the Recordings Library. Slow Forward If you press the (PAUSE) button while watching recorded programmes, the slow forward feature will be available. You can use the button to slow forward. Pressing the button consecutively will change slow forwarding speed. RecordingConguration Select the Recording Conguration item in the Settings menu to congure the recording settings. Format Disk: You can use the Format Disk feature for formatting the connected USB disk. Your pin is required to use the Format Disk feature (default pin is 0000). IMPORTANT: Note that ALL the data stored on the USB disk will be lost and the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case. Note: If “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.English - 42 - Media Browser Menu You can play photo, music, and movie les stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the MENU button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the MENU button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu. Loop/Shufe Mode Operation Start playback with and activate TV plays next file and loop the list. Start playback with OK and activate The same file will be played in a loop (repeat). Start playback with OK/ and activate The file will be played in a shuffle. Quick Menu The Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites, Sleep Timer, FollowMe TV, FollowMe TV to DMR, CEC RC Passthrough and Information booklet options. Press Quick Menu button on the remote control to view the quick menu. See the following chapters for details of the listed features. FollowMe TV With your mobile device you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate Smart Center application to your mobile device. Start the application. For further information on using this feature refer to the instructions of the application you use. Note: This application is not compatible with all mobile device. FollowMe TV to DMR This feature allows video streaming from your TV to another TV or mobile devices, using proper applications (e.g. UPnP - Universal Plug and Play - applications like BubbleUPnP). Activate FollowMe TV to DMR and timeshifting starts. Press the red button and device selection menu will be displayed. Choose your device and press OK. Note: FollowMeTV and FollowMe TV to DMR features work correlated wth the PVR feature and requres a connected USB storage devce wth FAT32 format and enough space n t. HD channels are not supported and both of the devces must be connected to the same network. E-Manual You can nd instructions for your TV’s features in the E-Manual. To use E-Manual, press to the Info button while main menu is displayed on the screen. By using the navigation buttons select a desired category. Every category includes a different topics. Select a topic and press OK to read instructions. To close the E-Manual screen press the Exit button. Note: The contents of the E-Manual may vary according to the model. CEC and CEC RC Passthrough This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV. The CEC option in the Other Settings menu under Settings menu should be set as Enabled at rst. Press the Source button and select the HDMI input of the connected CEC device from the Source List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(DVD Player, Recorder 1 etc.). The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected. To terminate this operation and control the TV via the remote again, press and hold the “0-Zero” button on the remote control for 3 seconds. Or press Q.Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the Settings/Other Settings menu. The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system). When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device’s volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.English - 43 - TV Menu Features and Functions Picture Menu Contents Mode You can change the picture mode to suit your preference or requirements. The Picture mode can be set to one of these options: Cinema, Game, Sports, Dynamic and Natural. Contrast Sets the lightness and darkness values of the screen. Brightness Sets the brightness value for the screen. Sharpness Sets the sharpness value for the objects displayed on the screen. Colour Sets the colour value, adjusting the colors. Power Save Mode To set the Power Save Mode as Eco, Picture Off and Disabled. (When the Mode is Dynamic, Power Save mode is automatically set as disabled.) Backlight (Optional) This setting controls the backlight level. The backlight function will be inactive if the Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game. Noise Reduction If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise. Advanced Settings Dyanmic Contrast You can change the Dynamic Contrast ratio to desired value. Colour Temp Sets the desired colour tone. Picture Zoom Sets the desired picture size from picture zoom menu. Note: Auto option is only available in Scart mode with SCART PIN8 high voltage/low voltage switching. Movie Sense Movie Sense: Press Use “Left” / “Right” to set Movie Sense Low, Med, High or Off. While Movie Sense is active, it will optimize the TV’s video settings for motional images to acquire a better quality and readability. When Movie Sense option is set to Low, Med or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two sections, one displaying the movie sense activity, the other displaying the normal settings for TV screen. HDMI True Black While watching from a HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture. Film Mode Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly. Skin Tone Skin tone can be changed between -5 and 5. Colour Shift Adjust the desired colour tone. RGB Gain You can congure the colour temperature values using the RGB Gain feature. Reset Resets the picture settings to factory default settings.(Except Game Mode) Autoposition (in PC mode) Automatically optimizes the display. Press OK to optimize. H Position (in PC mode) This item shifts the image horizontally to the right hand side or left hand side of the screen. V Position (in PC mode) This item shifts the image vertically towards the top or bottom of the screen. Dot Clock (in PC mode) Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts Phase (in PC mode) Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method. While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.English - 44 - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in user mode. Balance This setting is used for emphasizing left or right speaker balance. Headphone Sets headphone volume. Sound Mode You can select a sound mode (if the selected channel supports). AVL (Automatic Volume Limiting) This function sets the sound to obtain fixed output level between programmes. Headphone/Lineout (optional) When you connect an external amplier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone. Dynamic Bass Enables or disables the Dynamic Bass. Surround Sound (optional) Surround sound mode can be changed as On or Off. Digital Out Sets digital out audio type. Bass Gain Controls the bass gain level. Use Left or Right button to set. Settings Menu Contents Conditional Access Controls conditional access modules when available. Language Configures language settings (may change depending on the country selected) Preferred and current settings will be available. Current settings can be changed only if the broadcaster supports. Parental Enter correct password to change parental settings. You can easily adjust menu lock, maturity lock(depending on the country selected) and child lock in this menu. You can also set a new pin number. Timers Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes (USB Record). Recording Configuration Displays the recording configuration menu (Usb connection required). Date/Time Sets date and time. Sources Enables or disables selected source options. Network Settings Displays network settings. Other Settings: Displays other setting options of the TV set Menu Timeout Changes timeout duration for menu screens. Scan Encrypted Channels When this setting is on, the search process will locate the encrypted channels as well. HbbTV You can enable or disable this feature by setting it as On or Off. Blue Background Activates or deactivates the blue background system when the signal is weak or absent. Software Upgrade ensure that your TV always has the most up to date rmware. Application Version Displays application version. Hard of Hearing Enables any special feature sent from the broadcaster.English - 45 - Audio Description Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track. Note: Audio description sound feature cannot be available in recording or time shifting mode. Auto TV Off You can set the timeout value of the auto off feature. When the timeout value is reached and the TV has not been operated for a selected time, the TV will go into standby mode. Standby Search (Optional) If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. The Channel list will be updated and changed after this process. Store Mode (Optional) If you are displaying the TV in a store, you can activate this mode. Whilst Store Mode is enabled, some items in the TV menu may not be available. DLNA renderer DLNA renderer feature allows you to share les stored on your smartphone or tablet pc. If you have a DLNA compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. DLNA renderer mode will not be available with internet portal feature. Power Up Mode Enables or disables the virtual remote feature. Virtual Remote (optional) Enable or disable the virtual remote feature. CEC With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature. Netix You can view your ESN(*) number and deactivate Netix.(*) ESN number is an unique ID number for Netix, created especially to identify your TV. Install and Retune Menu Contents Automatic Channel Scan (Retune) (If available) Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations. Manual Channel Scan This feature can be used for direct broadcast entry. Network Channel Scan Searches for the linked channels in the broadcast system. Analogue Fine Tune You can use this setting for ne tuning analogue channels. This feature is not available if no analogue channels are stored. First Time Installation Deletes all stored channels and settings, resets TV to factory settings. Clear Service List (*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored.English - 46 - The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. ConguringParentalSettings To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system. To display parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed. Menu Lock: Menu lock setting enables or disables the menu access. Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast. Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work. Set PIN: Denes a new PIN number. Note: If the Country option is set to France, you can use 4725 as the default code. Electronic Programme Guide (EPG) Some, but not all channels send information about the current and next programmes. Press the “ ” button to view the EPG menu. Up/Down/Left/Right: Navigate EPG. OK: Displays programme options. İ(INFO): Displays, in detailed, information on the programme selected. GREEN: Switches to List Schedule EPG. YELLOW: Switches to Timeline Schedule EPG. BLUE: Displays ltering options. (RECORD): The TV will start to record the selected progamme. You can press again to stop the recording. IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature. Note: Switching to a different broadcast or source is not available during a recording. Programme Options In EPG menu, press the OK button to enter the Event Options menu. Select Channel In EPG menu, using this option, you can switch to the selected channel. General TV Operation Using the Channel List Record / Delete Record Timer After you have selected a programme in the EPG menu, press the OK button. Select the Record option and press the OK button. After this operation, a recording will be scheduled for the selected programme. To cancel an already set recording, highlight that programme and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled. Set Timer / Delete Timer After you have selected a programme in the EPG menu, press the OK button. Select the Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select “Delete Timer” option. The timer will be cancelled. Note: It is not possible to record two channels at the same time. CONNECTIVITY FUNCTIONS Wired Connectivity To Connect to a Wired Network

• You must have a modem/router connected to an active broadband connection.

• Ensure that Nero Media Home software is installed to your PC.(for DLNA function). See Nero Media Home Installation” section.

• Connect your PC to your modem/router. This can be a wired or wireless connection.

• Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV. Rear side of the TV Broadband ISP connection LAN (ethernet) cableEnglish - 47 -

• To access and play shared les, you must select the Media Browser. Press the Menu button and select Media Browser. Press OK to continue. Select the desired le type and press OK. You must always use the Media Browser screen to access and play shared network les.

• PC/HDD/Media Player or any other devices that are DLNA 1.5 compatible should be used with a wired connection for higher playback quality. Tocongurewired settings please refer to the Network Settings section in the Settings menu.

• You might be able to connect your TV to your LAN depending on your network’s conguration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet. ConguringWiredDeviceSettings Network Type The Network type can be selected as Wired or Wireless, in accordance with the active connection to the TV set. Select this as “Wired” if you are connecting via an ethernet. CongurationStatus This section displays the status of the connection. IP Address If an active connection is available, the IP address will be displayed on this section. If you want to congure an IP address preferences, press the GREEN button and switch to the advanced mode. ConguringWiredNetworkSettingsin Advanced Mode After pressing the GREEN button, the “Advanced mode” will be available. While in Advanced Mode, press the RED button to edit settings. When nished, press OK to save, Press RETURN/BACK to cancel. Wireless Connectivity To Connect to a Wireless Network

• To make your modem’s SSID visible, you should change your SSID settings via the modem’s software. The TV cannot connect to the networks with a hidden SSID. To Connect to a wireless LAN, you should perform the following steps:

1. Ensure that Nero Media Home software is

installed to your PC (for DLNA function).

2. To congure your wireless settings please refer

to the Network settings section in this manual. Broadband ISP connection Wireless LAN adaptor USB inputs rear left side of the TV

• A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming.

• Use a LAN connection for quicker file sharing between other devices like computers.

• The frequency and channel differ depending on the area.

• The transmission speed differs depending on the distance and number of obstructions between the transmission products, the conguration of these products, the radio wave conditions, the line trafc and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

• The location where the transmission is most effective differs depending on the usage environment.

• The Wireless feature of the TV supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.English - 48 -

• You must change your modem’s SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection. ConguringWirelessDeviceSettings Open the Network Settings menu and select Network Type as Wireless Device to start connection process. Press the YELLOW button to scan the wireless networks. A list of available networks will be displayed. Please select your desired network from the list. Note: If the modem supports N mode, you should set N mode settings. If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the navigation buttons and the OK button on the remote control. Wait until the IP address is shown on the screen. This means that the connection is now established. To disconnect from a wireless network press OK. You can navigate between menu tabs by pressing left/ right buttons. The help bar on the bottom of the dialog shows features that you may use. Press the BLUE button to check your internet connection speed. Press the GREEN button to switch to advanced mode and then press the OK button to edit settings. You can check the signal strenght by using the network settings menu for the wireless device mode. Other Information Configuration Status: Displays Wi-Fi status as connected or not connected. IP Address: Displays the current IP address. Network Name: Connected networks’ name will be displayed. DeleteSavedWi-FiProles Saved proles will be deleted if you press the RED button while the wireless device selection OSD is on the screen. Connecting to your mobile Phone via WiFi

• If your mobile phone has WiFi feature, you can connect your mobile phone to your TV by using a WiFi connection via a router, in order to play content from your phone. For this, your mobile phone must have an appropriate sharing software.

• Connect to your router following the steps stated above in the Wireless Connection section.

• Afterwards, engage your mobile phone with the router and then activate the sharing software on your mobile phone. Then, select les that you would like to share with your TV.

• If the connection is established correctly, you should now be able to access the shared les from your mobile phone via the Media Browser of your TV.

• Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile phone and press the OK button to continue.

• A virtual remote controller application could be available for download in your smartphone application providers server. Not all smartphones are supported by this application. Note: This feature may not be supported on all mobile phones. Connectivity Troubleshooting Wireless Network Not Available

• Ensure that any rewalls of your network allow the TV wireless connection.

• Try searching for wireless networks again, using the Network Settings menu screen. If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connection section for more information on the process. If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem. Connection is Slow See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem. Distruption during playback or slow reactions You could try the following in such a case: Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router. Using DLNA Network Service DLNA (Digital Living Network Alliance) is a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network. For further information, visit www.dlna.org. The DLNA standard allows you to view and play photos, music and videos stored in the DLNA media server connected to your home network.

1. Nero Media Home Installation

The DLNA function cannot be used if the server program is not installed onto your PC. Please prepare your PC with the Nero Media Home programme. For more information about the installation, please refer to the “Nero Media Home Installation” section.English - 49 -

2. Connect to a Wired or Wireless Network

See the chapter Network Settings for detailed conguration information.

3. Play Shared Files via Media Browser

Select Media Browser by using the Left or Right buttons from the main menu and press OK. The Media browser will then be displayed. DLNA DLNA support is only available in the Media Browser folder mode. To enable folder mode, go to the Settings tab in the main media browser screen and press OK. In the settings options, highlight View Style and change to Folder using the Left or Right buttons. Select the desired media type and press OK. If sharing congurations are set properly, an OSD message will be displayed after selecting the desired media type. Select OK to display the selected network or USB memory content. If you want to refresh the device list, press the GREEN button. You can press MENU to exit. If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the “ ” or “ ” buttons and press OK. If you select the media type as Video and choose a device from the selection menu, a new menu screen will appear on the screen. Select Videos from this screen to list all the available video les from the selected network. To play other media types from this screen, you must go back to main Media Browser screen and select the media type as desired and then perform the network selection again. Refer to the Media Browser USB Playback section for further information on le playback. Subtitle les do not work if you watch videos from your network through DLNA. You can connect only one television with DLNA to the same network. If a problem occurs with the DLNA network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the DLNA function. Note: There may be some PC’s which may not be able to utilize the DLNA function due to administrator and security settings (such as business PC’s). For best home network streaming with this TV, the Nero software should be installed. Internet Portal You can access PORTAL mode using your TV. To do this, an active internet connection is required. Follow the steps on Connecting to a Wired/Wireless Network section to connect your TV to internet. After the connection is established, you can select or view portal options. Note: Broadband internet connection is required for high quality viewing. Ensure that the internet connection is made properly. You must set the Country and Language data correctly in the First Time Installation for the proper operation of internet portal. Press “ ” button on your remote control and portal application options will be displayed. Application options will be displayed as the template below. Available applications’ contents may change depending on the application content provider. Note on PIP Window If you switch to portal mode while watching TV channels, current programme will be displayed on the PIP window. You can change channels using P+/P- buttons. Current HDMI content will be displayed on the PIP window, if you switch to portal mode while watching HDMI source. Use the “ ” or “ ”, “ ” or “ ” to navigate between the items on Portal screen. Press the OK button to conrm your selection. Press the BACK button to go to the previous screen. Press the EXIT button to quit the Internet portal mode. Not: Virtual remote controller application could be available to be downloaded from your smartphone application provider. Not all smartphones are supported by this application.English - 50 - Internet Browser Refresh Previous Next Quick Access Home Page Address Bar Add History Bookmarks Zoom Settings Remote control shortcuts (Zoom in-out/Back/Home)

• To navigate the web browser, use the arrow buttons on the remote control. Press OK to continue.

• After First time installation, predened web sites and logos will be displayed on the browser’s access page (see image above). To add a desired web page to the quick access page, whilst on the website you wish to add, select the “Add” menu and select “Quick Access” button.

• If you want to add bookmarks, select this item while the desired web page is on the screen. Quick Access Add Bookmarks

• You can navigate the web browser in three ways. First, enter any URL in the address bar.

• You can search keywords by clicking the search button in the address dialog box or another way to navigate to pages is by clicking on links on web pages and these will take you to the appropriate pages.

• When you scroll the pointer down to the middle of the screen, the remote control’s shortcuts will be shown.

• Use the zoom shortcut buttons or the zoom menu to zoom in or zoom out.

• You can clear cookies or clear all browser data from the settings menu.

• Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor to the USB input of your TV.

• To view your browsing history, click the history button. You can also clear your browsing history from here.

• The browser does not support multiple tabs.

• Some internet pages include ash content. These are not supported by the browser.

• Your TV does not support any download processes from the web browser. To use the internet browser, please select the internet browser logo from the portal section.English - 51 - Getting Started with Skype Make voice calls and video calls with Skype on your TV. Select the Skype app from the portal section to start a conversation. Follow the on screen instructions to see how to operate related features. NOTE

• Connect your supported webcam directly to the USB port on your TV.

• If the camera is not working properly, switch off and unplug the TV. Connect your camera again and turn the TV on.

• As soon as the TV is turned off, Skype disconnects.

• Voice level and sound quality are affected by environmental noise.

• Call quality can change with accordance to your internet connection.

• Please visit www.skype.com to learn more information and to see the Terms of Use about Skype.

• The TV must be connected to a network for Skype connection.

• The Skype app will alert you when someone calls whilst you are watching your TV or operating the Skype application.

• A Skype camera (can be sold separately) is required to get the full benet of Skype’s features. If you do not already have one, you will need to purchase a camera (compatible with Vesca100) to get the full benets of Skype. Note : When you turn on the TV and no users have been set up for Skype, the image shown to the side will appear on screen. LicenceNotication Skype is a trade mark of Skype or its related companies. This product/application has not been approved or endorsed by Skype, Skype Communications S.a.r.l. or any of their related companies. No emergency calls with Skype Skype is not a replacement for your ordinary telephone and can't be used for emergency calling. Select the Skype app from the portal section to start a conversation.English - 52 - Sign In & Sign Up Now To use the Skype application, you need a Skype account. You can create a Skype account, using this app, in the ‘Sign In & Sign Up Now’ menu if you don’t already have one. If you already have a Skype account, enter your name and password correctly. Select Sign In and press OK. If you have a Skype account and you forgot your password, press the Red button to view the “reset password” screen. After successfully logging in to your account, the contact list will be displayed on screen. You can review your contact list on the right side of the screen. Your Skype name, mood message and your camera preview (if connected) will be displayed on the left hand side of screen.English - 53 - Adding a contact By pressing the button select the “Search Contacts” option. Enter the full name, skype name or email address of the contact you want to nd and add. Use the remote control or virtual keyboard to enter a keyword. Your Skype history can be seen in this section. To view recent history options, use the p+ and p- buttons. To delete a conversation, press the Red button. When you press the OK button , the contact review will be displayed. Also Prole information can be displayed in this section. Recent history Incoming call Outgoing call Missed call Icon meaningEnglish - 54 - Actions Select a person from the contact list screen and press OK. Choose an action from the list and then press OK to start the selected process. Voice and video call is ready for your use. If available you will see the thumbnail view of yours and the other person’s camera feed. Help bar Your contact list (Press Ok to use video&voice call) Select a Menu by pressing the button. Online status Account Name, mood message and prole picture. When a conversation is active, you can mute the microphone or put the other person on the line on hold. Press the Red button to end a call.English - 55 - Dialing Phones The option to call phones is available if you have Skype Credit. Please buy credit rst. Afterwards, select a country then enter a phone number which you want to call. Press the Yellow button to save an entered telephone number. Press the Green button to start a conversation. The incoming call dialog is shown when you are logged into Skype and when other users initiate a Skype call. A small dialog box will appear in the lower right corner of the TV screen whether the user watches TV or is browsing through Skype. Use the remote control button and choose your action. Incoming call Settings All your Skype settings can be changed by using the Settings menu. Please use P+ and P- buttons on the remote control to move up or down. Select an option, then change the selected option by using the navigation buttons. In the about section, please nd the Skype terms and conditions. Please read this notice carefully.English - 56 - Remote control - does not operate

• The batteries may be exhausted. Replace the bateries. Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected. if not

• Check the AV cables and connections if you have tried to connect a device. Recording unavailable To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device. USB is too slow If a “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk. Nero MediaHome Installation To install Nero MediaHome, please proceed as follows: Note: To use DLNA function, this software should be installed to your PC.

1. Enter the link below completely in the adress-

bar of your web browser. http://www.nero.com/mediahome-tv

2. Click the Download button on the opening

page. The installation le will be downloaded onto your PC.

3. After the download is completed, double click

on the installation le to start the installation. The installation wizard will guide you through the installation process.

4. The prerequisites screen will be displayed rst.

The installation wizard checks the availability of required third-party software on your PC. If applications are missing they are listed and must be installed before continuing installation.

5. Click the Install button. The integrated serial

will be displayed. Please do not change the displayed serial.

6. Click the Next button. The License Conditions

(EULA) screen will be displayed. Please read the license agreement carefully and select the appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement. Software Upgrade Your TV is capable of nding and updating automatically via the Aerial/Cable signal or over the Internet. Software upgrade search via user interface Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software for Upgrade item and press OK button to check for a new software upgrade. Note : Internet connection is needed. If an internet connection is not available, try to upgrade via broadcast. If a new upgrade is found, it starts to download the upgrade. Press OK to continue with the reboot operation. 3 AM search and upgrade mode While the TV is connected to an aerial signal. If Automatic scanning in the Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for new software upgrades. If new software is found and downloaded successfully, the next time the TV powers up , it will have the new software version. Note: If the TV fails to come on after the upgrade unplug the TV for 2 minutes and plug in again. Troubleshooting & Tips TV will not turn on Make sure the power cord is plugged in securely to wall outlet. The batteries in the remote control may be exhausted. Press the Power button on the TV. Poor picture

• Have you selected the correct TV system?

• Low signal level can cause picture distortion. Please check antenna access.

• Check if you have entered the correct channel frequency if you have done manual tuning.

• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices. No picture

• No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

• Is the antenna connected properly?

• Is the antenna cable damaged?

• Are suitable plugs used to connect the antenna?

• If you are in doubt, consult your dealer. No sound

• Has the TV been set to mute? To cancel mute, press the “ ” button, or increase the volume level.

• Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.English - 57 -

7. Click the Next button. On the next screen you

can set your installation preferences.

8. Click the Install button. The installation begins

and nishes automatically. A progress bar will indicate the state of the installation process.

9. Click the Finish button. The installation is

completed. You will be directed to the web site of the nero software.

10. A shortcut is now placed on your desktop.

Congratulations! You successfully installed Nero MediaHome on your PC. Run Nero MediaHome by double clicking on the shortcut icon. HBBTV System HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, EPG, interactive advertising, personalisation, voting, games, social networking and other multimedia applications. HbbTV applications are available on channels where they are signalled by the broadcaster (currently various channels on Astra broadcast HbbTV applications). The broadcaster marks one application as “autostart” and this one is started by the platform automatically. The autostart applications are generally launched with a small red button icon to notify the user that there is an HbbTV application on that channel Press the red button to open the application page. After the page is displayed you can go back to the initial red button icon state by pressing the red button again. You can toggle between the red button icon mode and full UI mode of the application via pressing red button. It should be noted that the red button switching capability is provided by the application and some application may behave differently. If you switch to another channel while an HbbTV application is active (either in red button icon mode or full UI mode), the following scenarios can occur.

• The application can continue running.

• The application can be terminated.

• The application can be terminated and another autostart red button application can be launched. HbbTV allows the applications to be retrieved both from broadband or broadcast. The broadcaster may enable both ways or one of them. If the platfrom does not have an operational broadband connection, the platform can still launch applications transmitted on broadcast. The autostart red button applications generally provide links to other applications. An example of this is shown below. The user then can switch to other applications by using the links provided. The applications should provide a way to terminate themselves, usually button 0 is used for this. Figure a: ARD start bar application Figure b: ARD EPG application, broadcast video is shown on the left bottom, can be terminated by pressing 0. HbbTV applications use keys on the remote control to interact with the user. When an HbbTV applications is launched, the control of some keys are owned by the application. For example, numeric channel selection may not work on a teletect application where the numbers indicate teletext pages. HbbTV requires AV streaming capability for the platform. There are numerous applications providing VOD (video on demand) and catch-up TV services. The user can use play, pause, stop, forward, and rewind keys on the remote control to interact with the AV content. Note: You can enable or disable this feature from the Other Settings menu in Settings menu.English - 58 - Smart Center Smart Center is a mobile application running on iOS and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and programmes from your smart TV. Also; you can launch your portal applications, use your tablet as a remote control for your TV and share media and audio les. Getting Started To use Smart Center features, connections have to be done properly. To get connected with your mobile device, plug in the Wi-Fi dongle to one of the USB ports and connect your network cable properly to the LAN input of your TV for internet connection. IMPORTANT: To use Smart Center functions via your mobile device a wireless connection is needed. Make sure the TV and mobile device are connected to the same network. Press the Menu button on the remote, highlight Settings and press OK. Highlight Other Settings and Press OK. Highlight Media Renderer and change as Enabled. Press the Q.Menu button to display the Quick menu. Select FollowMe TV option and press OK to activate. If there is no device connected to your TV a warning message will be displayed. Your TV is ready to connect to your mobile device now. Install the Smart Center application to your mobile device. Start the smart center application. If all connections are congured properly, you will see your TV’s name on your mobile device. If your TV’s name doesn’t appear on the list, wait a while and tap on the Refresh widget. Select your TV from the list. Mobile Device screen On the main screen you can nd tabs to access various features. The application retrieves actual channel list from TV rst when it starts. MY CHANNELS: The programmes of first four channels from the channel list retrieved from the TV are shown. You can change the channels listed on this tab. Press OK button and hold. A list of channels will be displayed and you can choose your desired channel to be replaced. TV: You can watch content through the TV tab. In this mode you can navigate through the channel list retrieved from your TV and click on thumbnails to view the detail pages. RECORDINGS: You can view your active recordings and reminders through this tab. To delete any item, simply press on the delete icon found on each row. EPG: You can view the broadcast schedules of selected channel lists through this tab. You can also navigate through channels by pressing on the selected channel on the EPG grid. Please note that updating / refreshing the EPG information may take a while depending on your network and web service quality. PORTAL: This tab displays the Portal applications in scrollable view. Unless FollowMeTV is active, the selected application will be displayed on your TV screen. Note: This tab is enabled if a portal page is in use. SETTINGS: Congure the application to your liking. You can change; Auto-lock (Only in IOS): The screen of the device automatically turns off after a certain amount of time. Default is off, which means the screen will always stay on. Auto-enable FollowMeTV: FollowMeTV function will start automatically when this setting is enabled. Default is disabled. Auto-connection to TV: When enabled, your mobile device will automatically connect to last connected TV and skips the TV search screen. Change TV (Only in IOS): Shows the currently connected TV. You can press on this setting to go to the “TV search” screen and change to a different TV. Edit custom channel list: You can edit your custom channel list using this setting. Choose channel list source: You can choose the channel list source to be used in the application. The options are “TV List” and “Custom List”. Additionally you can activate “Remember my choice” option to set the selected channel list source as a constant choice. In this case if the selected source is available it will be used in the application. Version No: Displays the current version of the application. Detail Page On the detail page screen you can get detailed information of the programmes you select. There are “Details”, “Cast&Crew” and “Videos” tabs to nd on this page. DETAILS: This tab provides summary and information about the selected programme. Also there are links to facebook and twitter pages of the programme selected. CAST&CREW: Shows all the people contributed to the current programme. VIDEOS: Provides videos on Youtube related to the selected programme.English - 59 - FollowMe TV Feature Tap on the FOLLOW ME TV widget located at the bottom left of the screen to change the layout for FollowMe feature. Tap the play icon to start streaming of the content from the TV to your mobile device. Available if your device is in your routers operation range. To disable this feature, press the Q.Menu button on the TV-remote and disable FollowMe TV feature. Note: For streaming content from your TV a suitable USB disk, that is formatted as FAT32, has to be connected to your TV. If your USB disk doesn’t meet the speed requirements, you will not be able to use this feature. Try connecting another USB disk. Note that only digital(DVB-T/C/S) SD channels are supported but scrambled channels are not suppported. Multilanguage audio support and subtitle on/off features are not functional. The streaming performance may change depending on the quality of your connection. Media Share Page To access the Media Share widget tap on the Up- arrow on the bottom left side of the screen. If the Media Share widget is pressed, a screen is displayed where you can select the media le type to share with your TV. For media sharing DLNA protocol is used. Note: Not all image le formats are supported. Portal Launcher To access the Portal Launcher( ) widget tap on the Up-arrow on the bottom left side of the screen. You can access the portal page by tapping on the Portal Launcher widget (Internet connection is required). Smart Remote Feature You can use your mobile device as a remote control for your TV once it has connected to the TV. To use smart remote’s full features tap on the Up-arrow on the bottom left side of the screen. Voice Recognation You can tap on the Microphone( ) widget and manage your application, giving voice commands such as “Portal!”, “Volume Up/Down!”, “Programme Up/Down!”. Note: This feature is only for android based devices available Keyboard Page The keyboard page can be opened in two ways; by pressing the Keyboard( ) widget on the application screen or automatically by receiving a command from the TV. Note: User interface of the Smart Center application is subject to change according to version installed on your device. Requirements

1. Smart TV (with FollowMe TV feature)

2. Network connection

3. Mobile Device based on Android or iOS

platform (Android OS 4.0 or higher; IOS 6 or higher version)

4. Smart Center app.(to be found on online

application stores based on Android and iOS platforms)

5. Vitamio plugin app (for Android platforms)

Note: If Vitamio plugin app is not found on the system, the user will be redirected to the installation page of the application when the Smart Center application is started.

7. USB storage device (in FAT32 format)

AC3/EAC3, LPCM/ADPCM

1080P@ 30fps 50Mbit/sec dat, mpg, mpeg MPEG2 ,H.264, VC1, AVS, MVC MPEG1/2 Layer 1/2/3, AAC/HEAAC,

AC3/EAC3, LPCM/ADPCM

AC3/EAC3, LPCM/ADPCM

1080P@ 30fps 50Mbit/sec Music .mp3
