USER MANUAL CI2 350 NF TEKA

Simple line drawing of a two-tiered cabinet or enclosure with no text, numbers, or symbols.

Ieka

TKI2 325 DD

CI2 350 NF

Simple line drawing of a two-tiered cabinet or enclosure with no text, numbers, or symbols

Ieka

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.
⚠ Warning against dangerous conditions for life and property.
⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directiv 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

CONTENTS

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use ....4
General safety 4
Child safety 6
HCA Warning ......6
Things to be done for energy saving ..7

3 Installation 8

Points to be considered when re-transporting your refrigerator ....8
Before operating your refrigerator .....8
Disposing of the packaging .....8
Disposing of your old refrigerator .....9
Placing and Installation 9
Replacing the interior light bulb .....10
Reversing the doors .....11
Reversing the doors .....12

4 Preparation 13

5 Using your refrigerator 14

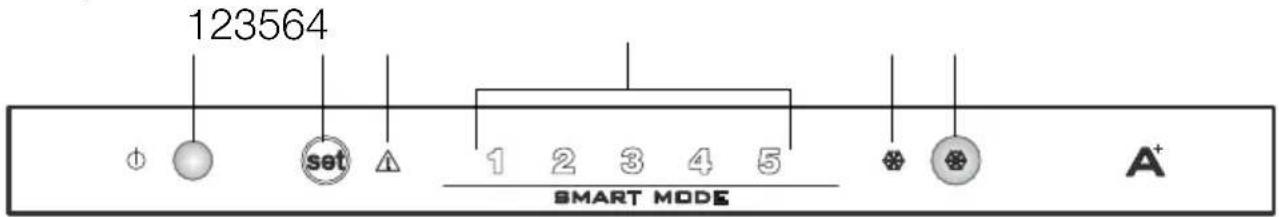

Setting the operating temperature ...14
LED indicators and control panel .....14
Using interior compartments .....15
Cooling 15
Freezing 15
Defrost ....15

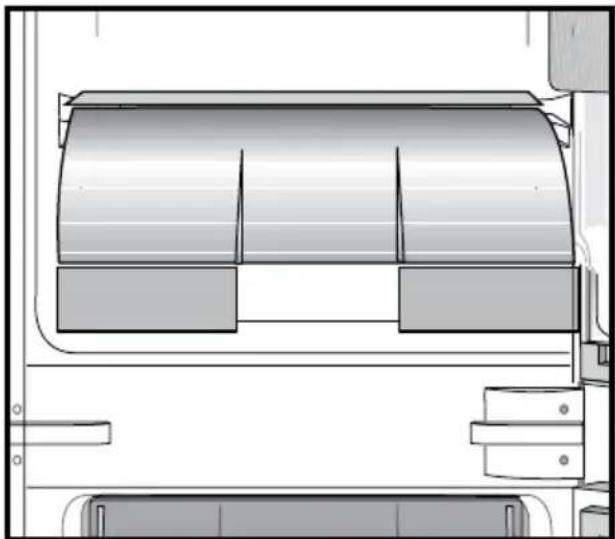

Zero temperature compartment .....16
Door Open Warning 16

6 Maintenance and cleaning 17

Protection of plastic surfaces .....17

7 Recommended solutions for the problems 18

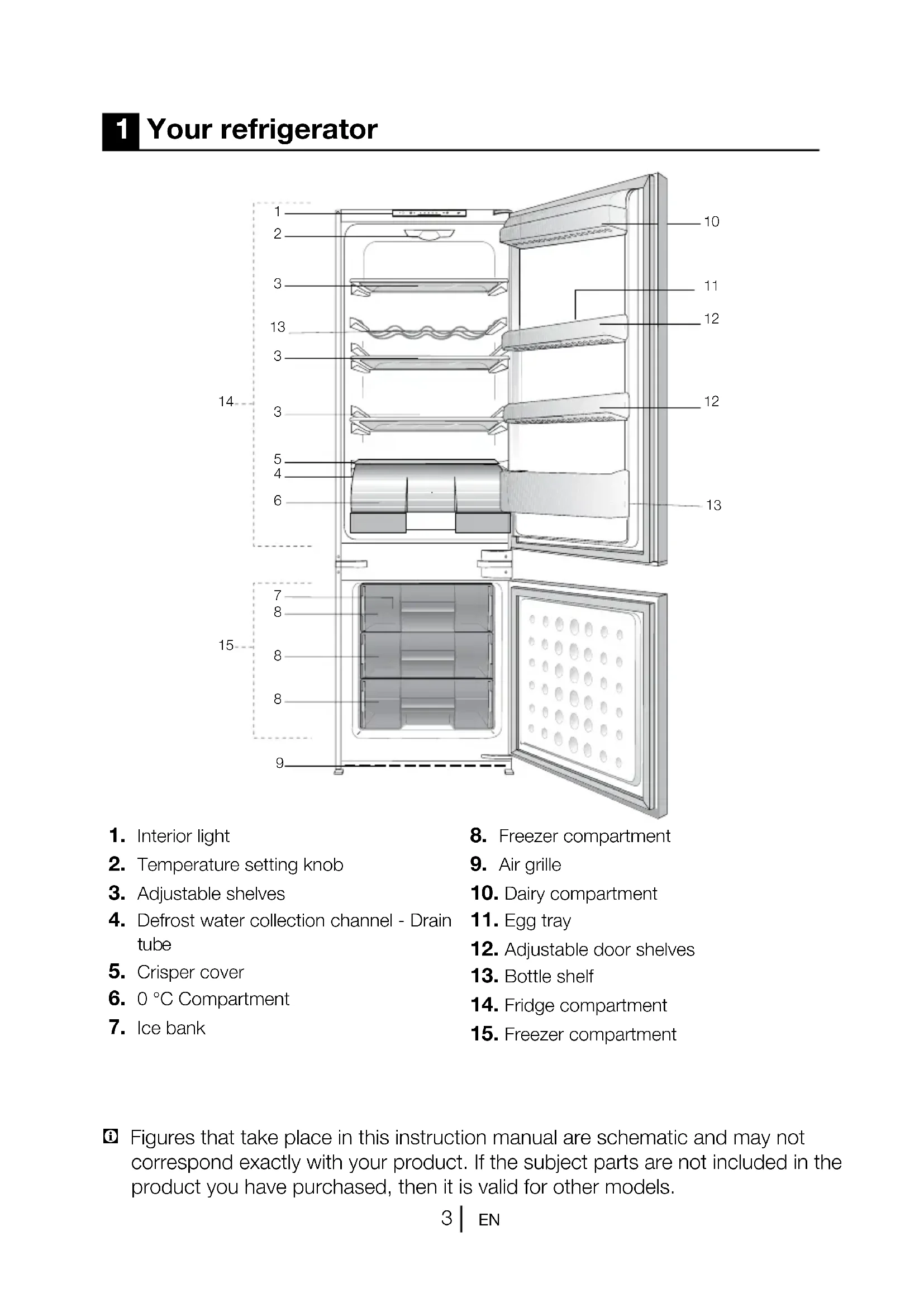

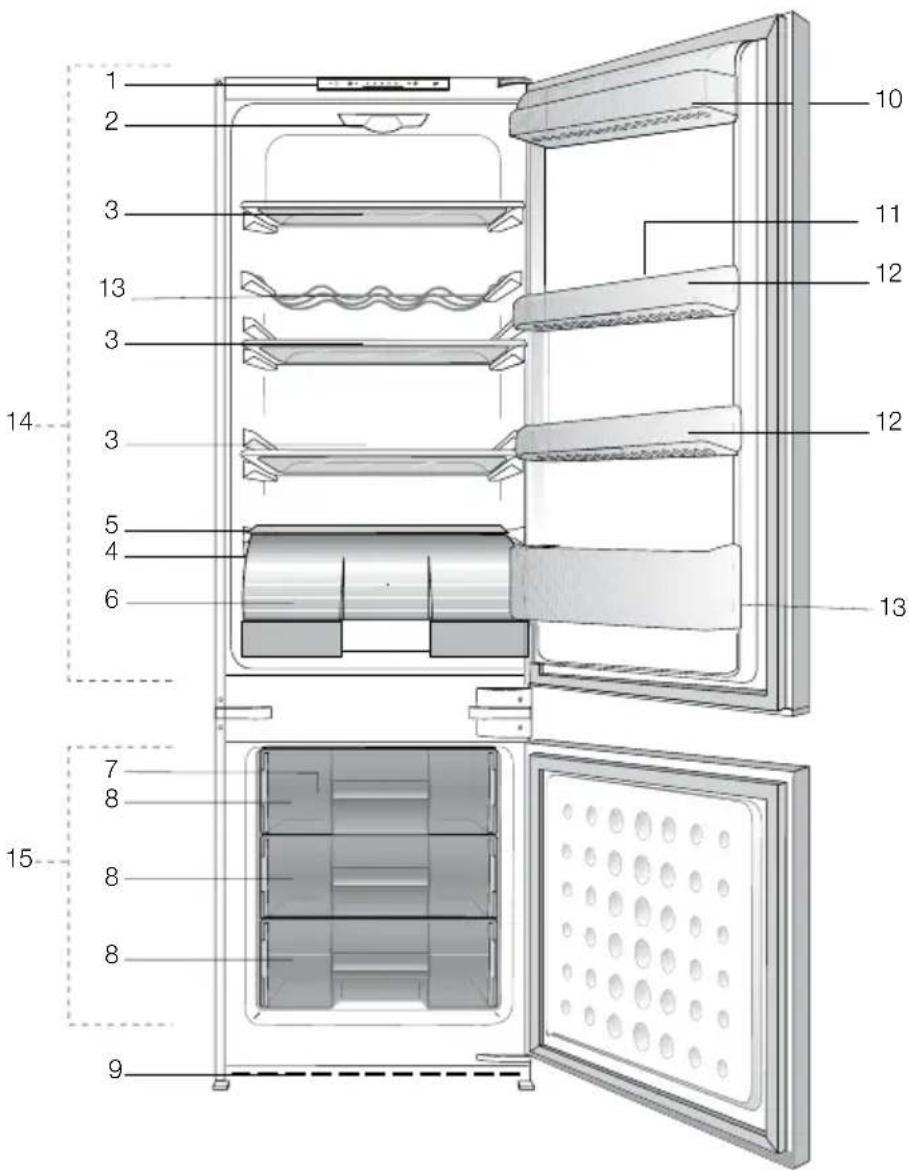

1 Your refrigerator

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

1. Interior light
2. Temperature setting knob
3. Adjustable shelves
4. Defrost water collection channel - Drain tube
5. Crisper cover
6. 0^ C Compartment

7. Ice bank

8. Freezer compartment

9. Air grille
10. Dairy compartment
11. Egg tray
12. Adjustable door shelves
13. Bottle shelf
14. Fridge compartment
15. Freezer compartment

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. If these are not followed, personal injury or material damage may occur. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
  – farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
  – catering and similar non-retail applications.
• It should not be used outdoors. It is not appropriate to use it outdoor even if the place is covered with a roof.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorized services.
• Do not eat cone ice cream and ice cubes immediately after you take

them out of the freezer compartment! (This may cause frostbite in your mouth.)

• Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.
• Do not touch frozen food by hand; they may stick to your hand.
• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor might get in contact with the electrical parts and cause short circuit or electric shock.
• Never use the parts on your refrigerator such as the door as a means of support or step.
• Do not use electrical devices inside the refrigerator.
• Do not damage the cooling circuit, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured may cause skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
• Repairs of the electrical appliances must only be made by qualified persons. Repairs performed by incompetent persons may create a risk for the user.
  • In case of any failure or during

a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.
• Place the beverage with higher proofs tightly closed and vertically.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not use mechanical devices or other means to accelerate the defrosting process, others than those recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not operate a damaged refrigerator. Consult your service if you have any doubts.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact the authorized service when there is a power cable damage and etc. so that it will not create a danger for you.
• Never plug the refrigerator into the wall outlet during installation.

Otherwise, risk of death or serious injury may arise.

• This refrigerator is designed solely for storing food. It should not be used for any other purposes.
• The label that describes the technical specification of the product is located on the inner left part of the refrigerator.
• Do not hook up the refrigerator to electronic energy saving systems as it may damage the product.
• If the refrigerator has blue light do not look at the blue light through optical devices.
• If the power supply is disconnected in manually controlled refrigerators please wait for at least 5 minutes before reconnecting the power.
• This product manual should be passed to the next owner of the refrigerator if the owner changes.

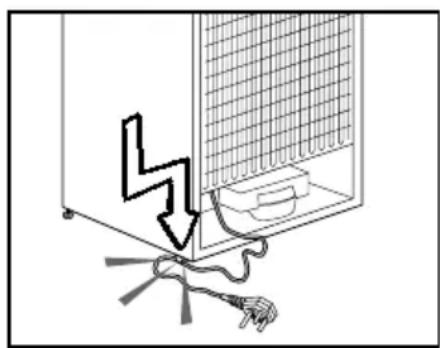

• When moving the refrigerator make sure that you do not damage the power cord. In order to prevent fire the power cord should not be twisted. Heavy objects should not be placed on the power cord. When the refrigerator is being plugged do not handle the power outlet with wet hands.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

- Do not plug the refrigerator if the

electric outlet is loose.

- Do not splash water directly on the outer or inner parts of the refrigerator due to safety.

- Do not spray inflammable materials such as propane gas etc near refrigerator due to the risk of fire and explosion.

- Do not place objects filled with water on top of the refrigerator as it may result in electric shock or fire.

- Do not overload the refrigerator with excess food. The excess food may fall when the door is opened resulting in injuring you or damaging the refrigerator. Do not place objects on top of the refrigerator as the objects may fall when opening or closing the refrigerator door.

- Materials that require certain temperature conditions such as vaccine, temperature sensitive medicines, scientific materials etc should not be kept in refrigerator.

- If refrigerator will not be operated for an extended period of time it should be unplugged. A problem in electrical cable insulation may result in fire.

- The tip of the electric plug should be cleaned regularly otherwise it may cause fire.

- The refrigerator may move when the adjustable feet is not positioned firmly on the floor. Using the adjustable feet you can unsure that the refrigerator is positioned firmly on the floor.

- If the refrigerator has door handle do not pull the refrigerator via door handles when moving the product as

it may disconnect the handle from the refrigerator.

• If you must operate your appliance adjacent to another refrigerator or freezer, the distance between the appliances must be at least 8 cm. Otherwise condensation may occur on the side walls facing each other.
• Water mains pressure must not be below 1 bar. Water mains pressure must not be above 8 bars.
• Use only drinkable potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children should be supervised to ensure that they do not play with the appliance

HCA Warning

If your product is equipped with a cooling system that contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in

which the unit is placed.

Ignore the warning if your product is equipped with a cooling system that contains R134a.

You can see the gas used in production of your product on the rating plate that is located on the left inner part of it.

Never dispose the product in fire.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.
• Maximum amount of food can be put in your refrigerator's freezer compartment when the freezer compartment shelf or drawer is removed. Declared energy consumption value of your refrigerator was determined when the freezer compartment shelf or drawer was removed and under maximum amount of food load. There is no risk in using a shelf or drawer according to the shapes and sizes of the foods to be frozen.

3 Installation

⚠️ Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?
2. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.

3. Plug the refrigerator into the wall outlet. When the fridge door is open the fridge compartment interior light will come on.

4. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

5. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

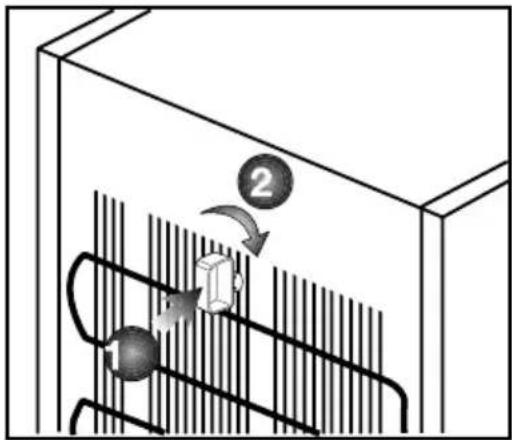

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important:

• The connection must be in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• The specified voltage must be equal to your mains voltage.
• Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

△ Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, than call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation.
   If the refrigerator is to be placed in a

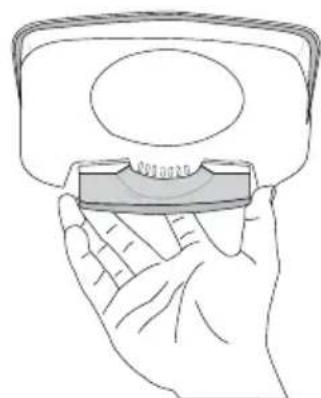

Replacing the interior light bulb

Should the light fail to work, proceed as follows.

1- Switch off at the socket outlet and pull out the mains plug.

You may find it useful to remove shelves for easy access.

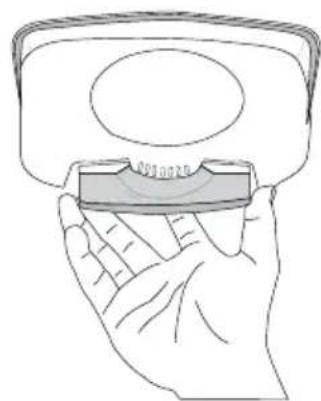

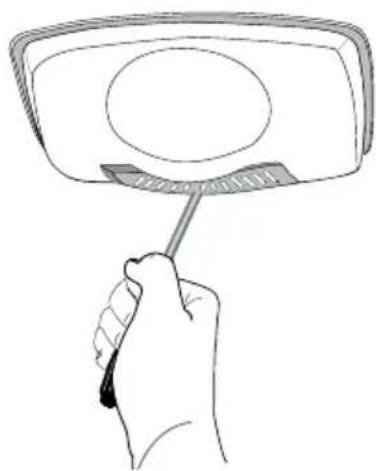

2- Use a flat tipped screwdriver to remove the light diffuser cover.

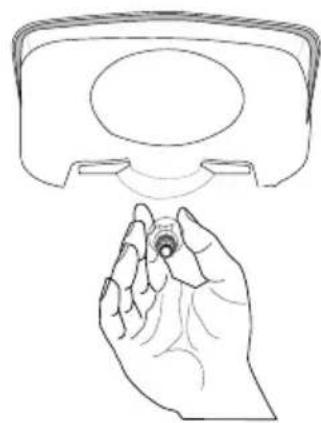

3- First check that the bulb hasn't worked loose by ensuring it is screwed securely in the holder. Replace the plug and switch on.

If the bulb works, replace the light cover by inserting the rear lug and pushing up to locate the front two lugs.

4- If the light still fails to work, switch off at the socket outlet and pull out the mains plug. Replace the bulb with a new 15 watt (max) screw cap (SES) bulb.

5- Carefully dispose of the burnt-out light bulb immediately.

Replacement light bulb can easily be obtained from a good local electrical or DIY store.

Line drawing of a hand holding a magnifying glass over a circular object (no text or symbols)

Line drawing of a hand holding a small object, with no text or symbols present

Line drawing of a hand holding a small electronic device with a circular top (no text or symbols)

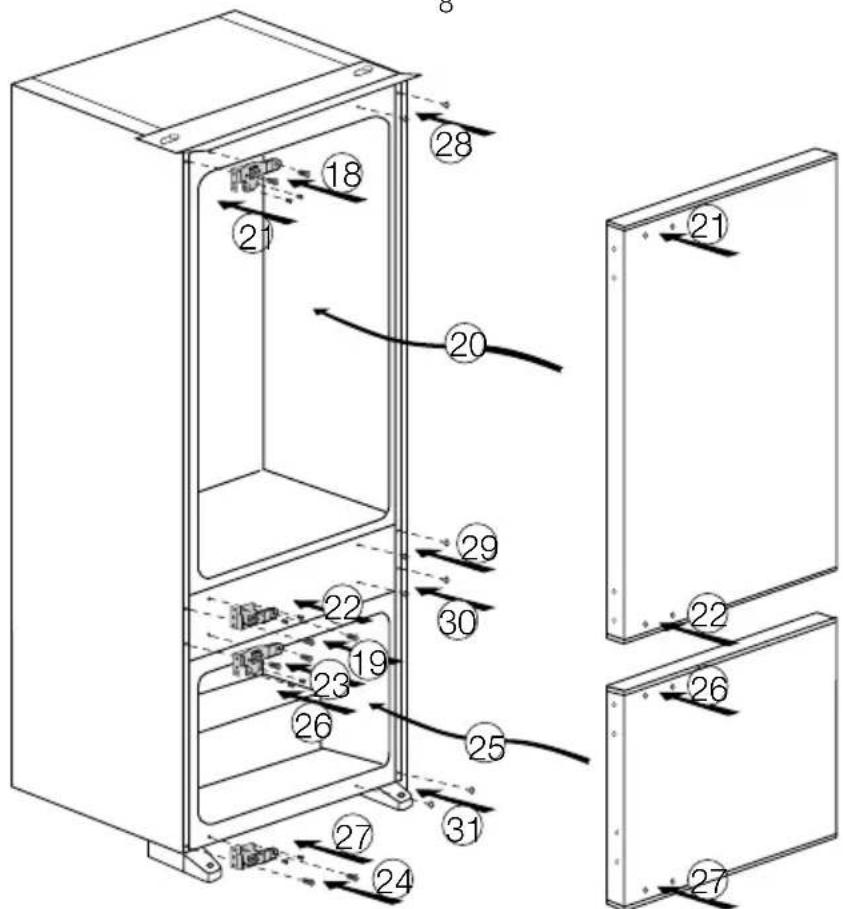

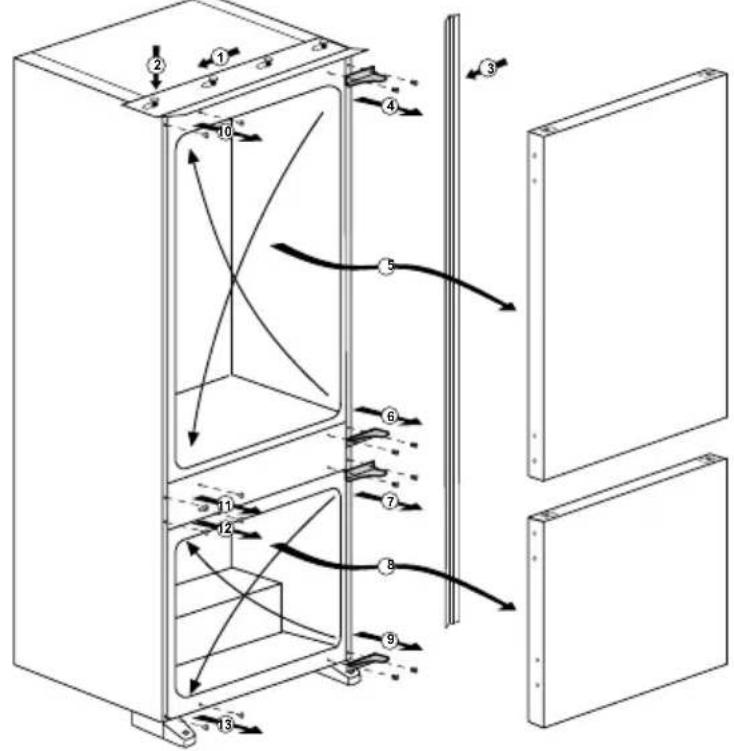

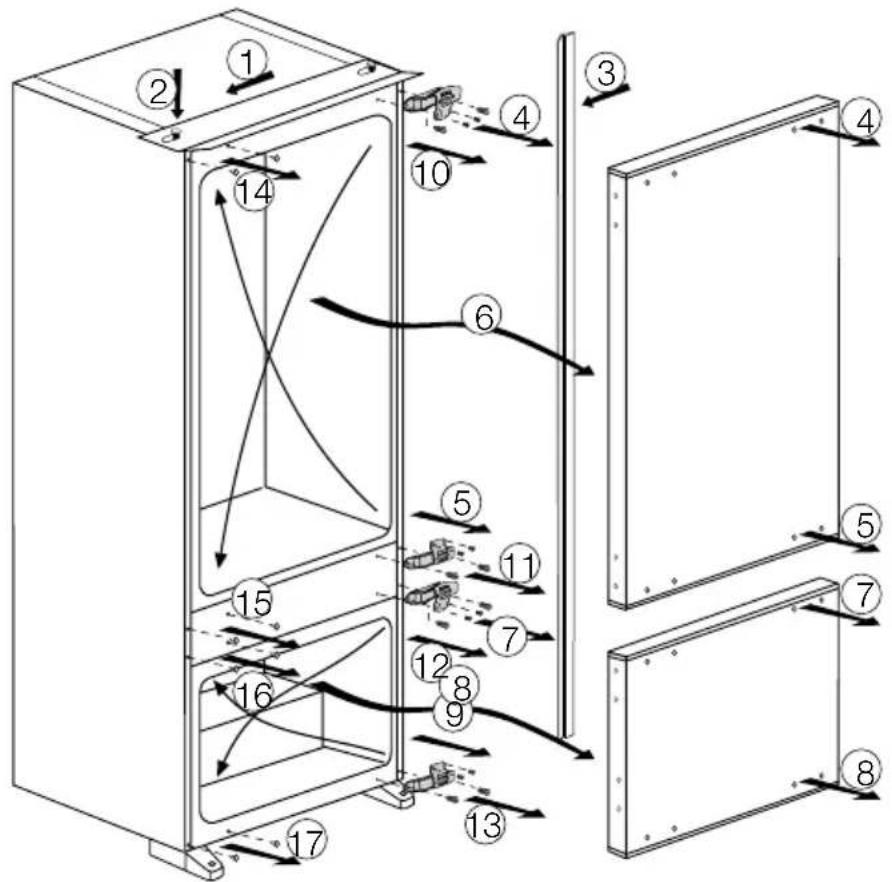

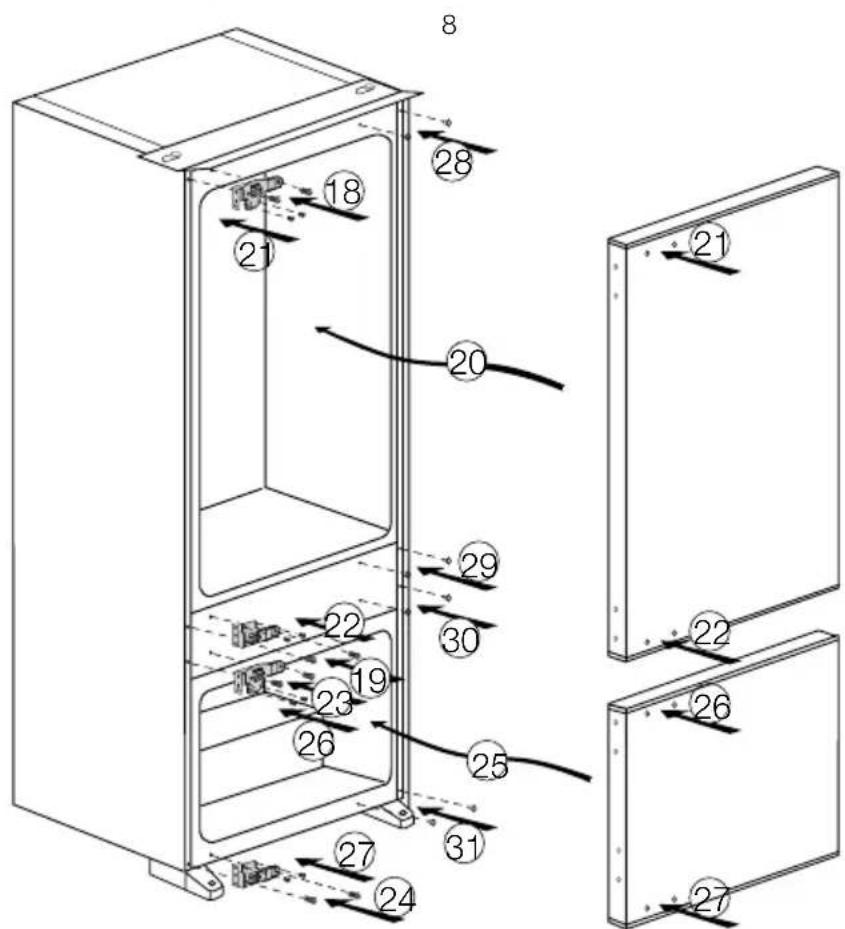

Reversing the doors

Proceed in numerical order

Technical diagram of a multi-panel server rack with numbered components and directional arrows indicating flow or movement.

Technical diagram of a refrigerator with numbered components and airflow indicators

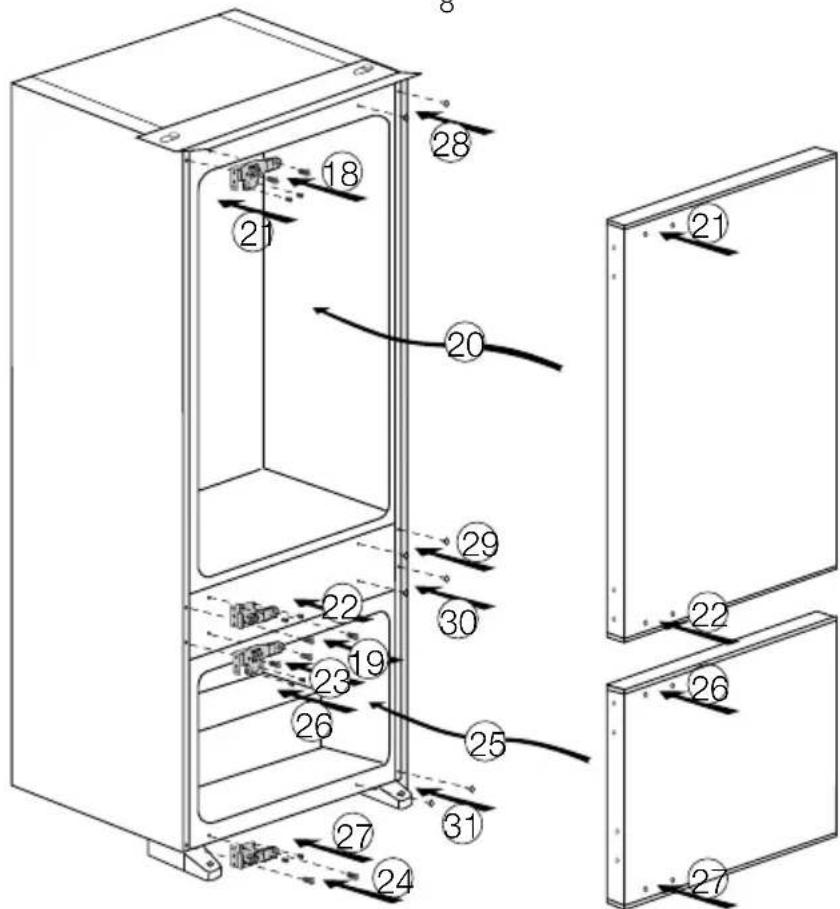

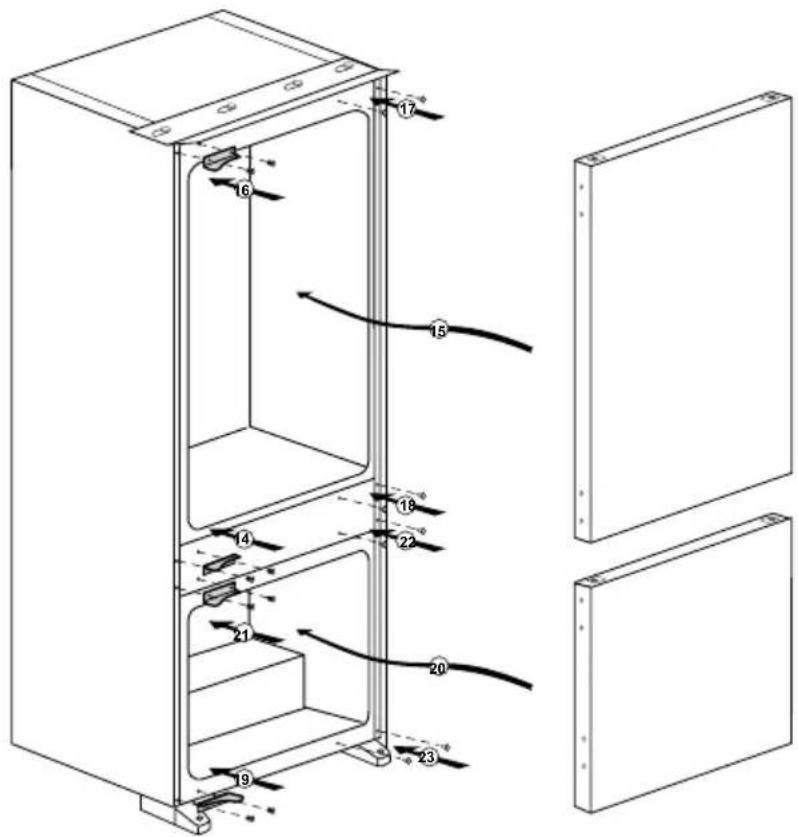

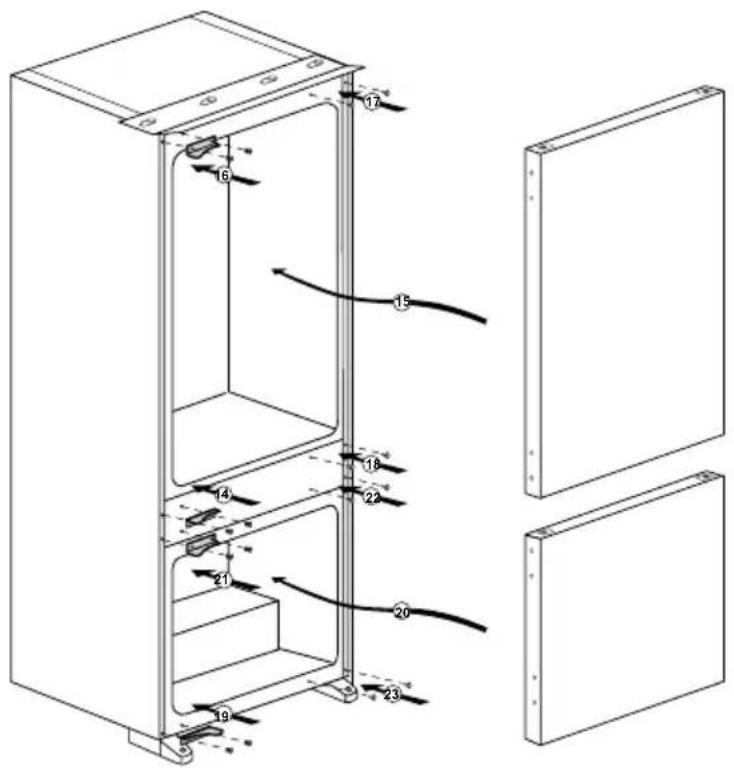

Reversing the doors

Proceed in numerical order

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram of a refrigerator with numbered components and airflow indicators

4 Preparation

i Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.

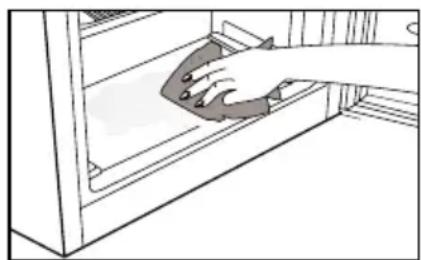

i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator

Setting the operating temperature

123564 ⊕ ⊖ set △ 1 2 3 4 5 SMART MODE A⁺

The operating temperature is regulated by the temperature control.

Warm←●→●→●→●→●→Cold 1 2 3 4 5

1 = Lowest cooling setting (Warmest setting)

5 = Highest cooling setting (Coldest setting)

The average temperature inside the fridge should be around +5°C.

Please choose the setting according to the desired temperature.

You can stop operation of your device by pressing on/off Button (1).

Please note that there will be different temperatures in the cooling area.

The coldest region is immediately above the vegetable compartment.

The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of foods kept inside.

Frequently opening the door causes the interior temperature to rise.

For this reason, it is recommended to close the door again as soon as possible after use.

LED indicators and control panel

LED indicators in the front section of your refrigerator are intended to help you in monitoring the operation of your appliance.

Keep your food in the refrigerator in a safe manner by monitoring and using these LEDs and controls as explained below:

Quick Cool Button (6): Used to cool the food quickly. Compressor may not operate immediately but after some time when the button is pressed and this is quite normal.

Thermostat Setting Button (2): Used to set your refrigerator between minimum and maximum values.

Temperature Indicator (4): Displays the set temperature of your refrigerator.

Snow LED (5): Lights up when the quick cool button on the LED panel is pressed. In this case, your refrigerator operates continuously.

Press the button again when the food you would like to quick cool comes to the desired temperature and the snow LED will turn off.

Alarm LED (3): It warns you by blinking. When your refrigerator starts to operate, if not enough cooling effect is obtained, when the door of your refrigerator remains open for a long time and when excessive food is loaded.

Using interior compartments

Movable shelves: Distance between the shelves can be adjusted when necessary.

Vegetable drawer: Vegetables and fruits can be stored in this compartment for long periods without decaying.

Bottle shelf: Bottles, jars and tins can be placed in these shelves.

Cooling

Food storage

The fridge compartment is for the short-term storage of fresh food and drinks.

Store milk products in the intended compartment in the refrigerator.

Bottles can be stored in the bottle holder or in the bottle shelf of the door.

Raw meat is best kept in a polyethylene bag in the compartment at the very bottom of the refrigerator.

Allow hot foods and beverages to cool to room temperature prior to placing them in the refrigerator.

Freezing

Freezing food

The freezing compartment is marked with this symbol.

You can use the appliance for freezing fresh food as well as for storing pre-frozen food.

Please refer to the recommendations given on the packaging of your food.

Storing frozen food

The frozen food compartment is marked with symbol.

The frozen food compartment is suitable for the storage of pre-frozen food. The recommendation for storage, as stated on the food packaging, should be observed at all times.

Defrost

Fridge compartment performs full-automatic defrosting. Water drops and a frosting up to 7-8 mm can occur on the inner rear wall of the fridge compartment while your refrigerator cools down. Such formation is normal as a result of the cooling system.

The frost formation is defrosted by performing automatic defrosting with certain intervals thanks to the automatic defrosting system of the rear wall. User is not required to scrape the frost or remove the water drops.

Water resulting from the defrosting passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself.

Check regularly to see if the drain pipe is clogged or not and clear it with the stick in the hole when necessary.

Deep freezer compartment does not perform automatic defrosting in order to prevent decaying of the frozen food

The freezer compartment defrosts automatically.

Illustration of a hand holding a tool over a surface with an upward arrow and a black dot (no text or symbols)

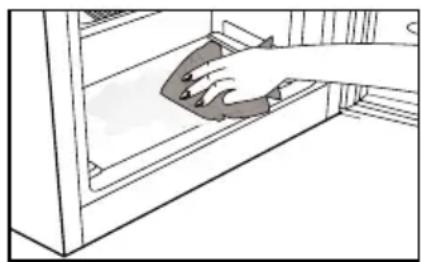

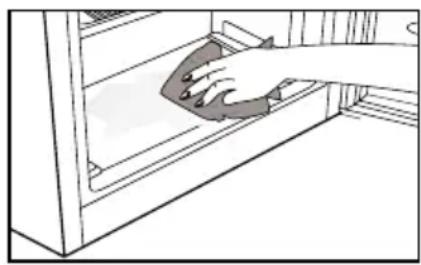

Illustration of a hand cleaning a cabinet with a cloth (no text or symbols)

Zero temperature compartment

This compartment has been designed to store frozen food which would be thawed slowly (meat, fish, chicken, etc.) as required. Zero temperature compartment is the coldest place of your refrigerator in which dairy products (cheese, butter), meat, fish or chicken may be kept at ideal storage conditions. Vegetables and/or fruits must not be placed in this compartment.

Technical line drawing of a mechanical component with no visible text or symbols

Door Open Warning

An audio warning will be given when the fridge or freezer compartment door of your product is left open for a certain period of time. This audio warning signal will mute when any button on the indicator is pressed or when the door is closed.

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
⚠️ Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠️ Make sure that no water enters the lamp housing and other electrical items.
⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they may damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

Is the refrigerator properly plugged in? Insert the plug to the wall socket.Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers.Leaving the door ajar. Switching the thermostat to a colder degree.Decreasing the time the door left open or using it less frequently.Covering the food stored in open containers with a suitable material.Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.Are the temperature adjustments correctly made?Power might be cut off.

The fridge is running frequently or for a long time.

Your new product may be wider than the previous one. This is quite normal.Large refrigerators operate for a longer period of time.The ambient room temperature may be high. This is quite normal.The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed.The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.Doors might have been opened frequently or left ajar for a long time; open them less frequently.Door might have been left ajar; close the door completely.Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

·The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

·The floor is not even or it is weak. The refrigerator rocks when moved slowly.Make sure that the floor is strong enough to carry the refrigerator, and level.·The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

·Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

·Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

·Hot and humid weather increases icing and condensation. It is normal and not a fault.·Doors might have been left ajar; make sure that the doors are closed fully.·Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

·There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

·Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.·Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

·Food packages may prevent the door's closing. Replace the packages that are obstructing the door.·The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.·The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

·The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

COUNTRY	COMPANY	CC	TELEPHONE	E-MAIL / FAX
AUSTRIA	KÜPPERSBUSCH GesmbH	43	1 866 800	[e-mail]
BELGIUM	B.V.B.A. KÜPPERSBUSCH S.P.R.L.	32	2 466 8740	in [e-mail]
BULGARIA	TEKA BULGARIA LTD.	359	2 9768 330	2 9768 332
CHILE	TEKA CHILE, S.A.	56	2 4386 000	[e-mail]
P. R. CHINA	TEKA INTERNATIONAL TRADING (Shanghai)	86	2 1 511 688 41	[e-mail]
CZECH REPUBLIC	TEKA CZ S.R.O.	420	2 84 691940	[e-mail]
ECUADOR	TEKA ECUADOR, S.A.	593	4 2100311	[e-mail]
GERMANY	TEKA KÜCHENTECHNIK GmbH	49	2771 3950	[e-mail]
GREECE	TEKA HELLAS A.E.	30	210 9760283	[e-mail]
HUNGARY	TEKA HUNGARY KFT	36	1 3542110	[e-mail]
INDONESIA	PT TEKA BUANA	62	21 390 5274	[e-mail]
MALAYSIA	TEKA KÜCHENTECHNIK (MALAYSIA) SDN.	60	3 7620 1600	[e-mail]
MAROC	TEKA MAROC, SA	34	942 355 286	942 355 260
MIDDLE EAST	TEKA KÜCHENTECHNIK MIDDLE EAST FZE	971	4 887 2912	[e-mail]
MEXICO	TEKA MEXICANA S.A. de C.V.	52	555 133 0493	ventas@ tekamexicana.com.mx
POLAND	TEKA POLSKA SP. ZO.O.	48	22 7383270	[e-mail]
PORTUGAL	TEKA PORTUGAL, S.A.	351	234 329 500	[e-mail]
ROMANIA	SC TEKA KÜCHENTECHNIK ROMANIA SRL	40	21 233 44 50	21 233 44 51
RUSSIA	TEKA RUS LLC	7	495 101 31 08	[e-mail]
SINGAPORE	TEKA SINGAPORE PTE. LTD.	65	67342415	[e-mail]
SPAIN	TEKA INDUSTRIAL, S.A.	34	942355050	[e-mail]
THAILAND	TEKA (THAILAND) CO. LTD.	66	2 652 2999	2 652 2740 1
TURKEY	TEKA TEKNIK MUTFAK	90	212 288 3134	[e-mail]
UKRAINE	TEKA UA	380	44 496 0680	[e-mail]
UNITED ARAB EMIRATES	TEKA KÜCHENTECHNIK U.A.E. LLC	97 1	4 283 3047	[e-mail]
UNITED KINGDOM	TEKA PRODUCTS LTD.	44	1235 861916	[e-mail]
USA	TEKA USA, INC.	1	813 2888820	[e-mail]
VENEZUELA	TEKA ANDINA, S.A.	58	2 1229 12821	[e-mail]
VIETNAM	TEKA VIETNAM CO LTD	848	38 258 746	38 258 747

Three grayscale images of the Americas showing continents, no text or symbols present

TEKA INDUSTRIAL, S.A.

C/ Cajo, 17

39011 Santander (Spain)

Tel.: [phone]

Fax: [phone]

[e-mail]

Ieka

www.teka.com

35708 Haiger (Germany)

Tel.: [phone]

Fax: [phone]

[e-mail]

48 9572 0000/AA

EN-DE-FR-ES

COUNTRY	COMPANY	CC	TELEPHONE	E-MAIL / FAX
AUSTRIA	KÜPPERSBUSCH GesmbH	43	1 866 800	[e-mail]
BELGIUM	B.V.B.A. KÜPPERSBUSCH S.P.R.L.	32	2 466 8740	in [e-mail]
BULGARIA	TEKA BULGARIA LTD.	359	2 9768 330	2 9768 332
CHILE	TEKA CHILE, S.A.	56	2 4386 000	[e-mail]
P. R. CHINA	TEKA INTERNATIONAL TRADING (Shanghai)	86	2 1 511 688 41	[e-mail]
CZECH REPUBLIC	TEKA CZ S.R.O.	420	2 84 691940	[e-mail]
ECUADOR	TEKA ECUADOR, S.A.	593	4 2100311	[e-mail]
GERMANY	TEKA KÜCHENTECHNIK GmbH	49	2771 3950	[e-mail]
GREECE	TEKA HELLAS A.E.	30	210 9760283	[e-mail]
HUNGARY	TEKA HUNGARY KFT	36	1 3542110	[e-mail]
INDONESIA	PT TEKA BUANA	62	21 390 5274	[e-mail]
MALAYSIA	TEKA KÜCHENTECHNIK (MALAYSIA) SDN.	60	3 7620 1600	[e-mail]
MAROC	TEKA MAROC, SA	34	942 355 286	942 355 260
MIDDLE EAST	TEKA KÜCHENTECHNIK MIDDLE EAST FZE	971	4 887 2912	[e-mail]
MEXICO	TEKA MEXICANA S.A. de C.V.	52	555 133 0493	ventas@ tekamexicana.com.mx
POLAND	TEKA POLSKA SP. ZO.O.	48	22 7383270	[e-mail]
PORTUGAL	TEKA PORTUGAL, S.A.	351	234 329 500	[e-mail]
ROMANIA	SC TEKA KÜCHENTECHNIK ROMANIA SRL	40	21 233 44 50	21 233 44 51
RUSSIA	TEKA RUS LLC	7	495 101 31 08	[e-mail]
SINGAPORE	TEKA SINGAPORE PTE. LTD.	65	67342415	[e-mail]
SPAIN	TEKA INDUSTRIAL, S.A.	34	942355050	[e-mail]
THAILAND	TEKA (THAILAND) CO. LTD.	66	2 652 2999	2 652 2740 1
TURKEY	TEKA TEKNIK MUTFAK	90	212 288 3134	[e-mail]
UKRAINE	TEKA UA	380	44 496 0680	[e-mail]
UNITED ARAB EMIRATES	TEKA KÜCHENTECHNIK U.A.E. LLC	97 1	4 283 3047	[e-mail]
UNITED KINGDOM	TEKA PRODUCTS LTD.	44	1235 861916	[e-mail]
USA	TEKA USA, INC.	1	813 2888820	[e-mail]
VENEZUELA	TEKA ANDINA, S.A.	58	2 1229 12821	[e-mail]
VIETNAM	TEKA VIETNAM CO LTD	848	38 258 746	38 258 747

Three grayscale images of the Americas showing continents (no text or labels)

TEKA INDUSTRIAL, S.A.

C/ Cajo, 17

39011 Santander (Spain)

Tel.: [phone]

Fax: [phone]

[e-mail]

Ieka

www.teka.com

35708 Haiger (Germany)

Tel.: [phone]

Fax: [phone]

[e-mail]

48 9572 0000/AA

PT-IT-EL-PL-AR

Pure electrical circuit lines without any symbols

Technical diagram of a refrigerator with numbered compartments and internal storage areas

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Line drawing of a hand holding a magnifying glass with a circular lens (no text or symbols)

Line drawing of a hand holding a small object, with no text or symbols present

Line drawing of a hand holding a small electronic device with a circular button (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram of a refrigerator internal structure with numbered components and airflow indicators

Technical diagram of a refrigerator interior with numbered components and airflow indicators

8

Technical diagram of a refrigerator with numbered components and airflow indicators

4 Vorbereitung

Illustration of a hand holding a tool over a droplet on a surface, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

0 °C-Fach

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a refrigerator with numbered compartments and internal storage areas

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Line drawing of a hand holding a magnifying glass with a circular lens (no text or symbols)

Line drawing of a hand holding a small object, with no text or symbols present

Line drawing of a hand holding a small electronic device with a circular button (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Technical diagram of a refrigerator interior with numbered components and airflow indicators

Technical diagram of a refrigerator interior with numbered components and airflow indicators

8

Technical diagram of a server rack cabinet with numbered components and airflow indicators

4 Préparation

Tiède ←● 1 ● 2 ● 3 ● 4 ● → Froid

Illustration of a hand holding a tool with a downward arrow and a black dot, no text or symbols present

Illustration of a hand cleaning a window with a cloth (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

EI Recycling

Technical diagram of a refrigerator with numbered components for identification and assembly reference.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Line drawing of a hand holding a magnifying glass with a circular lens (no text or symbols)

Line drawing of a hand holding a small object, with no text or symbols present

Line drawing of a hand holding a small electronic device with a circular top (no text or symbols)

Technical diagram of a multi-level cabinet with numbered components and directional arrows indicating flow or movement.

Technical diagram of a refrigerator internal structure with numbered components and airflow indicators

Technical diagram of a refrigerator interior with numbered components and airflow paths, showing structural changes across sections 1–27.

4 Preparación

Illustration of a hand holding a tool over a surface with an upward arrow and a black dot (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Compartimento de temperatura cero

Technical line drawing of a mechanical component with no visible text or symbols
