IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator follow these basic safety precautions: WARNING Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks. Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area. Do not touch the cold surfaces in the freezer compartment when hands are damp or wet, skin may stick to these extremely cold surfaces. Do not refreeze frozen foods which have thawed completely. In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. To reduce the risk of injury when using your refrigerator, follow these basic safety precautions. This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used. Unplug the refrigerator before making repairs, replacing a light bulb, or cleaning. Note: Power to the refrigerator cannot be disconnected by any setting on the control panel. Note: Repairs must be performed by a qualified service professional. Replace all parts and panels before operating. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA certified (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts. To prevent suffocation and entrapment hazards to children, remove the fresh food and freezer doors from any refrigerator before disposing of it or discontinuing its use. Do not allow children to climb, stand or hang on the door handles or the shelves in the refrigerator. They could seriously injure themselves.CAUTION3 GEAppliances.com READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

WARNING Suffocation and child entrapment hazard. Remove fresh-food and freezer doors from the refrigerator, prior to disposal. Failure to do so can result in child entrapment which can lead to death or brain damage. Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.Before You Throw Away Your Old Refrigerator or Freezer: Take off the fresh food and freezer doors. Leave the shelves in place so that children may not easily climb inside. Refrigerants All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do.

PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter.The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. IMPORTANT: CONNECTING ELECTRICITY WARNING Electrical Shock Hazard. Plug into a grounded 3-prong outlet Do not remove the ground prong Do not use an adapter Failure to follow these instructions can result in death, fire, or electrical shock. SAFETY (CONT.) WARNING Tip Over Hazard. Built-in style models (model PYE, CYE, GYE, PWE, CWE, and ZWE) are top heavy, especially with any doors open. These models must be secured with the anti-tip floor bracket to prevent tipping forward, which could result in death or serious injury. Read and follow the entire installation instructions for installing the anti-tip floor bracket packed with your refrigerator.Space-saving ice maker* Ice maker and bin are located on the door creating more usable storage space. Showcase LED lighting LED lighting is positioned throughout the interior to spotlight areas in the refrigerator. LEDs are located under the fresh food door to light the freezer when opened. Drop-down tray* Allows for extra door storage when you need it and tucks away when you don’t. Full-width temperature controlled drawer (on some models) Adjustable temperature control bin that can accommo- date larger items. Dairy bin* Separate compartment for your items. Dual ice maker/Ice bin (on some models) An ice maker in both compartments gives you more ice whenever you need it QuickSpace™ shelf* Functions as a normal full-sized shelf when needed and easily slides back to store tall items below. Spillproof shelves Designed to capture your spills for easier clean up. Anti-slip Mat* Liner that captures spills, keeps containers from shifting when the door is opened and is easily removable for cleaning. Removable door bin Can be removed for those with a wall limiting the door opening. Climate zone bin Separate bins for produce storage. Water filter* Filters water & Ice

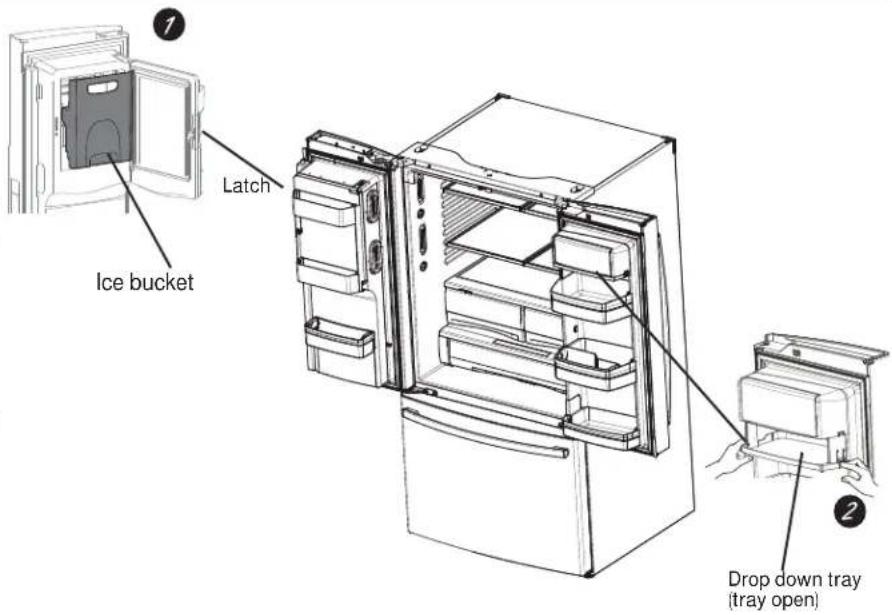

1. Open left fresh food door.

2. Pull down latch to release bin door.

3. Using handhold lift ice bucket up

and out to clear locators in bottom of bin.

4. To replace the ice bucket, set it on

the guide brackets and push until the ice bucket seats properly.

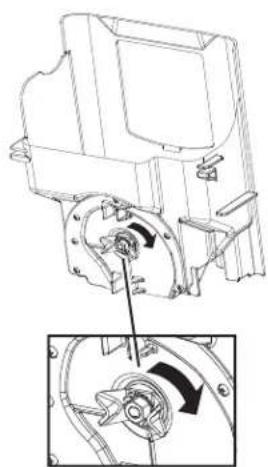

5. If bucket cannot be replaced,

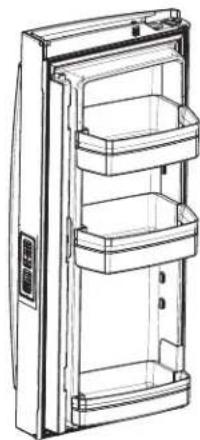

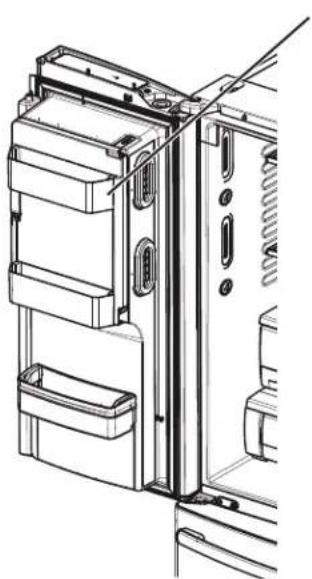

rotate the Ice Bucket Fork 1/4 turn clockwise. Drop down dairy bin*

1. Open right fresh food

2. Depress both buttons on lower

sides and bin will drop down.

3. Reverse to reinstall.

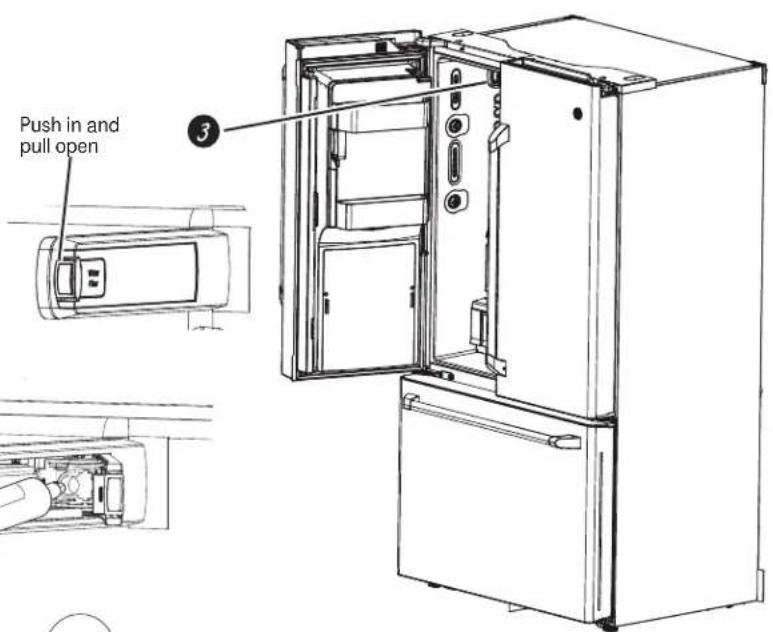

Ice/water filter Remove filter/bypass plug Push the indent on the cover and open filter door. Pull out on filter/ bypass plug and pull straight back to remove. Installing the filter cartridge Push the indent at the bottom of the cover and open. Lift door and align tabs on filter to filter/holder and push filter into place. Drop down tray (tray open) Ice bucket Latch About the features. * GEAppliances.com *Select Models OnlyPush in and pull openSwing Push \ Pull12About the controls with temperature settings. The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings. The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment. NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now. CubedExpress Mode Settings Precise FillControl Lock LightAuto FillWaterCrushedCubedTemperature PFE28,PYE22P Control Style A, LCD External Control GFE28, GFE26, DFE28, GYE22 Control Style B, External Control GNE29, PWE23 Control Style C, Internal Control Refrigerator Hold 3 Sec for °F/°CHold 3 SecondsHold 3 Seconds Recommended: 37 °F Actual Set Energy Smart Energy Smart OverrideHold 3 Seconds Freezer Door Alarm Ice Maker Lock Controls Reset Filter Recommended: 0°F

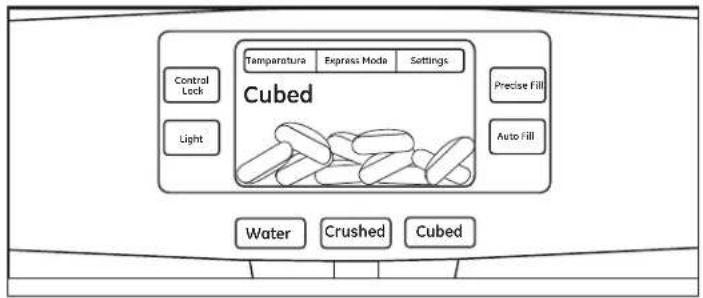

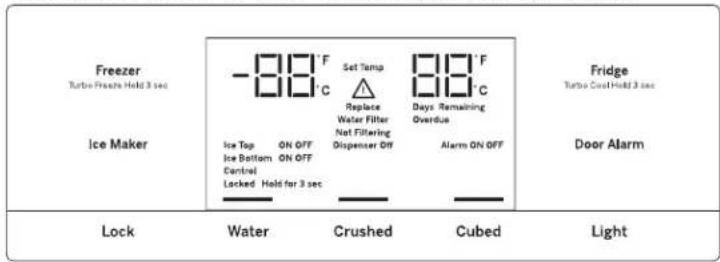

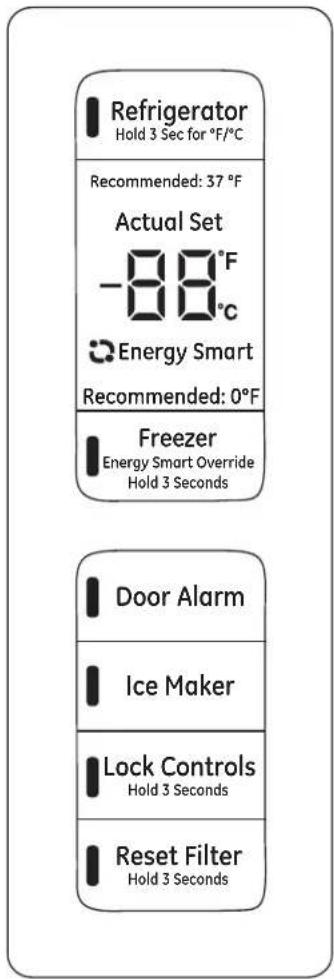

About the controls with temperature settings. GEAppliances.com NOTE: For optimal temperature performance, we recommend to avoid placing food items directly at the air flow vents of the fresh food air tower and thus blocking the air flow. Changing the Temperature for Control Style A To Change the Refrigerator Temperature: Access By: Temperature Button Temperature Activate By: Below the word “Refrigerator”, use the arrows to select the desired temperature. Press DONE when finished to return to HOME screen. To Change the Freezer Temperature: Access By: Temperature Button Temperature Activate By: Below the word “Freezer”, use the arrows to select the desired temperature. Press DONE when finished to return to HOME screen. To turn OFF cooling system, access SETTINGS from the HOME screen. Page over and tap COOLING SYSTEM ON. Press DONE to return to HOME screen. To turn ON cooling system, access SETTINGS from the HOME screen. Page over and tap COOLING SYSTEM OFF. Press DONE to return to HOME screen. Turning the cooling system off stops the cooling to refrigerator, but it does not shut off the electrical power. Changing the Temperature for Control Style B To change the temperature, press and release the Freezer or Fridge pad. The display will show the set temperature. To change the temperature, press either the Freezer or Fridge pad until the desired temperature is displayed. To turn OFF cooling system, press and hold Fridge and Ice Maker simultaneously for 3 seconds. When the cooling system is OFF the display should read OFF. Changing Temp. for Control Style C Temperature Display is located on inside of left-hand refrigerator door. To change the temperature, press and release the REFRIGERATOR or FREEZER pad. The ACTUAL TEMP light will come on and the display will show the actual temperature. To change the temperature, tap either the REFRIGERATOR or FREEZER pad until the desired temperature is displayed. To turn OFF cooling system, press and hold the REFRIGERATOR and FREEZER pads simultaneously for 3 seconds. When the cooling system is OFF the display should read OFF. To turn ON cooling system, press either REFRIGERATOR or FREEZER pad. The display will show the preset temperature settings of 37°F for refrigerator and 0°F for freezer. Turning the cooling system off stops the cooling to refrigerator, but it does not shut off the electrical power.8 Hands-free Autofill* Hands-free Autofill uses sensors to monitor container height to automatically dispense filteredwater without having to activate the paddle. PreciseFill setting* Precisely dispenses filtered water in accurate measurements in ounces, cups, quarts, or liters using paddle. Refrigerator temp control Adjust freezer compartment temperature. Fresh food temp control Adjust fresh food compartment temperature. TurboFreeze™ setting Activate TurboFreeze to quickly restore freezertemperatures after frequent door openings. TurboCool™ setting Activate TurboCool to quickly restore fresh food temperature after frequent door openings. Lock controls Press and hold 3 seconds to lock out ice and water dispenser and all feature and temperature buttons. LED dispenser light LED lighting that can be turned on/off to light your dispenser. Door Alarm Sounds to alert when the freezer or fresh food doors have been left open. Press and hold Door Alarm pad and it will toggle the sound between low, high and off. Photo upload* Insert USB memory stick to upload personal photos to the refrigerator LCD screen. LCD will provide on screen prompts to load and view slideshow. Make sure the photos are in the root directory in your USB. Ice maker setting Turn your ice makers on/off. Cooling system On/Off Press and hold Fridge & Ice Maker simultaneously for 3 seconds to turn the cooling system on or off. Metric/English units Press and hold Ice Maker & door alarm simultaneously for 3 seconds to switch between Metric & English units. Additional settings:

• Photo upload and delete• Slideshow• Connected Home ready• Reset water filter• Ice maker on/off• Door alarm• Sound control• Cooling system On/Off• Metric/English units• Auto fill video turorial Additional Modes

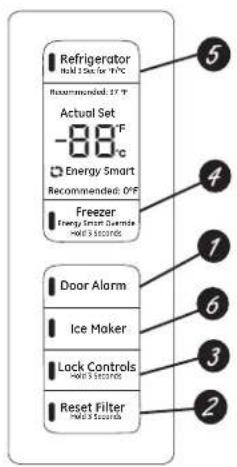

• Sabbath Mode Press and hold lock & light simultaneously for 3 seconds to enter/exit Sabbath mode. Activate Sabbath Mode to turn off interior lights, temperature control and advanced features. Compressor will run on a timed defrost when in Sabbath mode. Cubed Express Mode Settings Precise FillControl Lock LightAuto FillWaterCrushedCubedTemperature Control Style A, External Controls

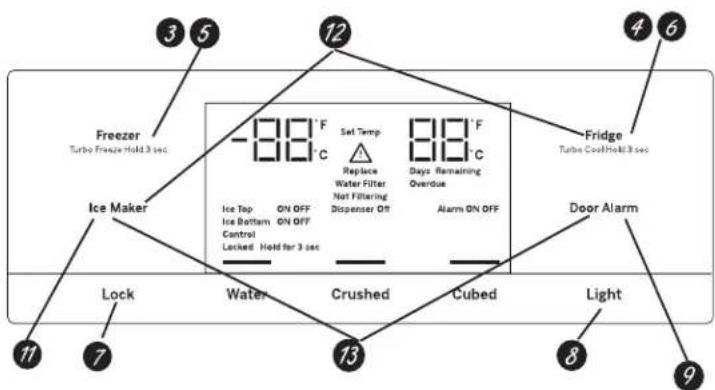

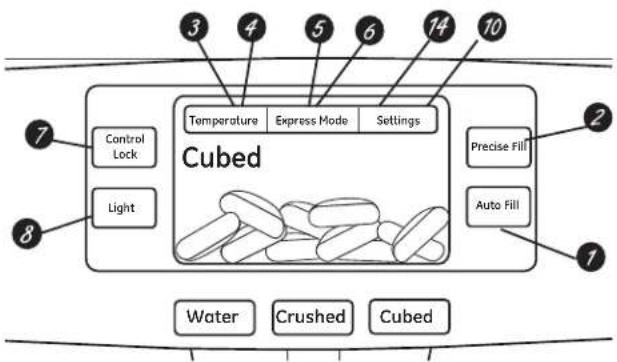

About the controls - features. Control Style B, External Controls GFE28, GFE26,DFE28, GYE22*Select Models OnlyUSB Cover9 About the controls - features.* GEAppliances.com Refrigerator Hold 3 Sec for °F/°CHold 3 SecondsHold 3 SecondsRecommended: 37 °F Actual Set Energy SmartEnergy Smart OverrideHold 3 Seconds Freezer Door Alarm Ice Maker Lock Controls Reset Filter Recommended: 0°F

Controls Style C, Internal Controls GNE29, PWE23 Door Alarm Sounds to alert when the freezer or fresh food doors have been left open. Reset Filter* Hold for 3 seconds after replacing filter. Lock Controls Press and hold 3 seconds to lock out ice and water dis- penser and all feature and temperature buttons. Freezer temp control Adjust freezer compartment temperature Refrigerator temp control Adjust fresh food compartment temperature Ice maker setting Turn your ice makers on/off. *Select Models OnlyL

Do not add ice from trays or bags to the door ice maker bucket. It may not crush or dispense.

Avoid overfilling glass with ice and use of narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute remove the ice bucket, poke it through with a wooden spoon.

Beverages and foods should not be quick-chilled in the door ice maker bin. Cans, bottles or food packages in the storage drawer may cause the ice maker or auger to jam.

To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser opening.

Some crushed ice may be dispensed even though you selected CUBED ICE. This happens occasionally when a few cubes accidentally get directed to the crusher.

After crushed ice is dispensed, some water may drip from the chute.

Sometimes a small mound of snow will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate. If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser paddle for at least five minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six full glasses of water. To remove Dispenser Tray (Type A Only)

Pull Dispenser Tray out until it stops.

Locate tab in the center on the bottom and push up.

Pull Dispenser Tray assembly out.

Lift metal Dispenser Tray out at center notch to clean. To remove Dispenser Tray (Type B Only)

Pull Dispenser Tray out. To reinstall Dispenser Tray (Type A Only)

Place the Dispenser Tray cover on top of catch tray and position under the two plastic retainers on either side.

Center Dispenser tray, and align with center guides.

Push in until it locks firmly in place. To reinstall Dispenser Tray (Type B Only)

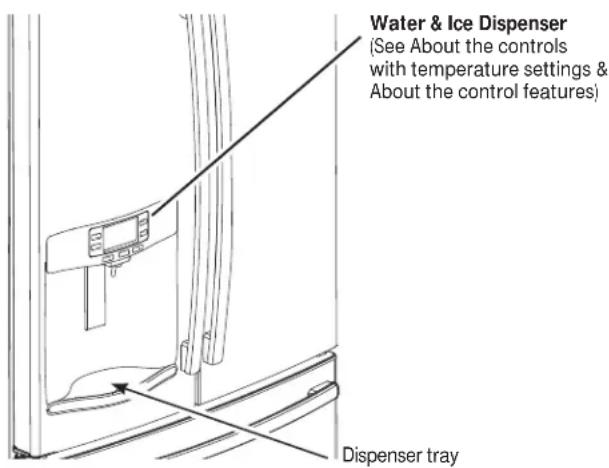

Center Dispenser Tray and push in until it snaps in place. Water & Ice Dispenser(See About the controls with temperature settings & About the control features) To Use the Internal Water Dispenser* The water dispenser is located on the left wall inside the refrigerator compart- ment. To dispense water: Hold the glass against the recess. Push the water dispenser button. Hold the glass underneath the dispenser for 2–3 seconds after releasing the dispenser button. Water may continue to dispense after the button is released. If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser button for at least 5 minutes to remove trapped air from the water line and to fill the water system. During this process, the dispenser noise may be loud as the air is purged from the water line system. To flush out impurities in the water line, throw away the first 6 glassfuls of water. NOTE: To avoid water deposits, the dispenser should be cleaned periodically by wiping with a clean cloth or sponge. WARNING Laceration Hazard Never put fingers or any other object into ice crusher discharge opening. Doing so can result in contacting the ice crushing blades and lead to serious injury or amputation Use a sturdy glass when dispensing ice. A delicate glass may break and result in personal injury. *Select Models Only11 About autofill.* GEAppliances.com To Use HANDS FREE AUTO FILL:

• Center container on Recess Dispenser Tray and remove hand from container

• For optimum results, use a uniform container between 4-8” tall and 2-6” wide.

• Container shape, fill level and functionality may vary on containers taller than 8”.

• Container volumes may vary, if error message “Container Not Found” is given, try a different container.

• AUTO FILL will time out.

• Handles and garnishes on the rim of the container my cause overfilling or variation in fill volumes.

• Splashing may occur depending on the location of the container, water flow rate, container shape, and ice cubes.

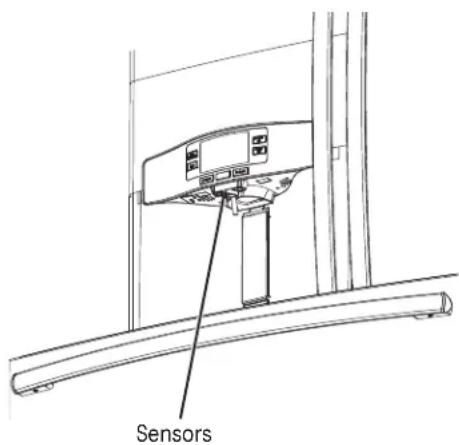

• Keep sensors clean with a clean damp cloth, and do not spray liquid or cleaners directly on sensors

• AUTO FILL works best with household water pressure of 60 to 100 psi. Sensors *Select Models OnlyREGULATORY INFORMATION FCC/IC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help. Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment. ConnectPlus module only (or similar communication module) RF Exposure - This device is only authorized for use in a mobile application. At least 20 cm of separation distance between the ConnectPlus device and the user’s body must be maintained at all times. *Select Models Only About Appliance Communication GE WiFi Connect (for customers in the United States): GE WiFi Connect Enabled* Your refrigerator is GE WiFi Connect Enabled. A WiFi communication card is built into the product allowing it to communicate with your Smart Phone for remote monitoring, control, and notifications. Please visit www. GEAppliances.com/connect to learn more about connected appliance features, and to learn what connected appliance App’s will work with your Smart Phone. GE WiFi Connect Optional * You refrigerator is GE WiFi Connect compatible using the GE ConnectPlus module that is provided with your refrigerator. To connect this appliance to the internet you will need to attach the module to your appliance through the communication port in the appliance. The GE ConnectPlus will allow your appliance to communicate with your smart phone for remote appliance monitoring, control and notifications. Please visit www.GEAppliances.com/ connect to learn more about connected appliance features, to learn what connected appliance App’s will work with your Smart Phone and to learn where you can purchase a GE ConnectPlus. WiFi Connectivity: For assistance with the appliance or the ConnectPlus network connectivity (for models that are WiFi enabled or WiFi optional), please call 1-800-220-6899.

RPWFE water filter cartridge. GEAppliances.com *Select Models Only Water Filter Cartridge The water filter cartridge is located in the fresh food interior on the left side wall, near the top. This product uses radio frequency identification (RFID) to detect leaks and monitor filter status. The RFID technology is certified by the FCC. When to replace the filter cartridge The filter cartridge should be replaced every six months or earlier if 170 gallons of water has been dispensed or the flow of water to the dispenser or icemaker decreases. Touch Screen Models: A filter status message will appear on the screen when the water filter needs to be replaced. The filter status will automatically update when the filter is replaced. Non-touch Screen Models: A filter indicator light will illuminate on the screen when the water filter needs to be replaced. Removing the filter cartridge To replace the filter, first remove the old cartridge by opening the filter door and pulling on the bottom of the cartridge to allow it to swing outward. When the cartridge can no longer swing, gently pull to unseat it from the cartridge holder. DO NOT TWIST CARTRIDGE. A small amount of water may drip out. Installing the Filter Cartridge

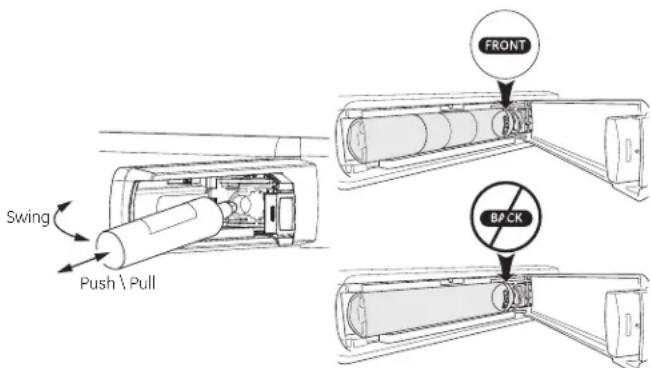

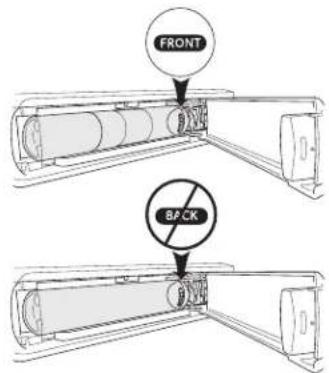

1. Align top of filter cartridge with cartridge holder with the word

“FRONT” facing outward then push the cartridge toward the rear of the unit until it is fully seated. DO NOT TWIST THE FILTER CARTRIDGE!

2. While continuing to ensure cartridge is fully seated in the

holder, gently swing the filter inward until it is in position. If filter will not swing easily, check to ensure filter is properly aligned and fully seated within the cartridge holder. Close the filter door.

3. Run two gallons of water through the cold water dispenser

(about 5 minutes) to remove air from the system. A newly installed filter cartridge will cause water to spurt from the dispenser. Use a large pitcher or sports bottle to catch the water spray. DO NOT use hands-free auto-fill (some models) until all air is removed from the system.

4. Reset Filter Status message (non-touch screen models).

WARNING Scalding Hazard.* Use of the hot water dispenser prior to purging air from the system may result in spurting of hot water and lead to hot water scalding. Follow the instructions above to purge all air from the system through the cold water dispenser prior to using the hot water dispenser. Note: It is normal for water to appear discolored during the initial system flush. Water color will return to normal after first few minutes of dispensing. Filter Bypass Plug To reduce the risk of property damage due to water leakage, you MUST use the filter bypass plug when a replacement filter cartridge is not available. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800-GECARES. In Canada, call 800.561.3344. The dispenser and icemaker will not operate without either the filter or bypass plug installed. The bypass plug is installed in the same way as a filter cartridge.

FCCID: ZKJ-EBX1532P001 ICID: 10229A-EBX1532P001

“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”“This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs. For the maximum benefit of your filtration system, GE recommends the use of GE-branded filters only. Using GE-branded filters in GE and Hotpoint

refrigerators provides optimal performance and reliability. GE filters meet rigorous industry NSF standards for safety and quality that are important for products that are filtering your water. GE has not qualified non-GE-branded filters for use in GE and Hotpoint refrigerators and there is no assurance that non-GE-branded filters meet GE’s standards for quality, performance and reliability. If you have questions, or to order additional filter cartridges, visit our website at www.gewaterfilters.com or call GE Parts and Accessories, 800.626.2002. Customers in Canada should consult the yellow pages for the nearest Camco Service Center. Swing Push \ Pull14 Rearranging the Shelves To remove: Remove all items from the shelf. Tilt the shelf up at the front. Lift the shelf up at the back and bring the shelf out. To replace: While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track. Lower the front of the shelf until the bottom of the shelf locks into place. Spillproof Shelves Spillproof shelves have special edges to help prevent spills from dripping to lower shelves. Shelves in the refrigerator compartment are adjustable. Quick Space Shelf * This shelf splits in half and slides under itself for storage of tall items on the shelf below. This shelf can be removed and replaced or relocated (just like spillproof shelves). NOTE: The location of the upper Quick Space Shelf is not adjustable. About the fresh food storage options. *Select Models Only15 GEAppliances.com Non-Adjustable Bins on the Door (Dispenser Models - Left Hand Door) To remove: Lift the bin straight up, then pull out. To replace: Engage the bin in the molded supports on the door and push down. It will lock in place. The ice maker door bins are not interchangeable, note the location upon removal and replace the bin in its proper location. Adjustable Bins on the Door Adjustable bins can easily be carried from refrigerator to work area. To remove: Lift bin straight up, then pull out. To replace or relocate: Slide in the bin just above the molded door supports, and push down. The bin will lock in place. See page 33. Drop down tray * (tray open)

1. Open right fresh food

2. Depress both buttons

on lower sides of bin and bin will drop down.

3. Reverse to reinstall.

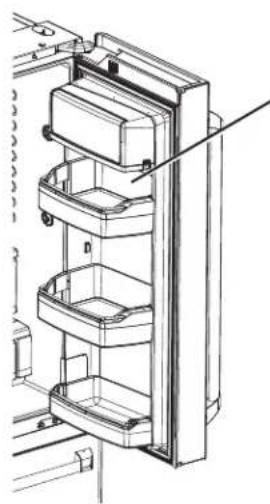

Non-Adjustable Dairy Bin* To remove: Lift the dairy bin straight up, then pull out. To replace: Engage the bin in the molded door supports and push down. The bin will lock in place. See page 33. Non-Dispense Models (Left Hand Door) *Select Models OnlyClimateZone Temperature Controlled Drawer* The Temperature Controlled Drawer is a full-width drawer with adjustable temperature control. This drawer can be used for large miscellaneous items. To change setting, press select button. Keep fruits and vegetables organized in separate compartments for easy access. Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry.

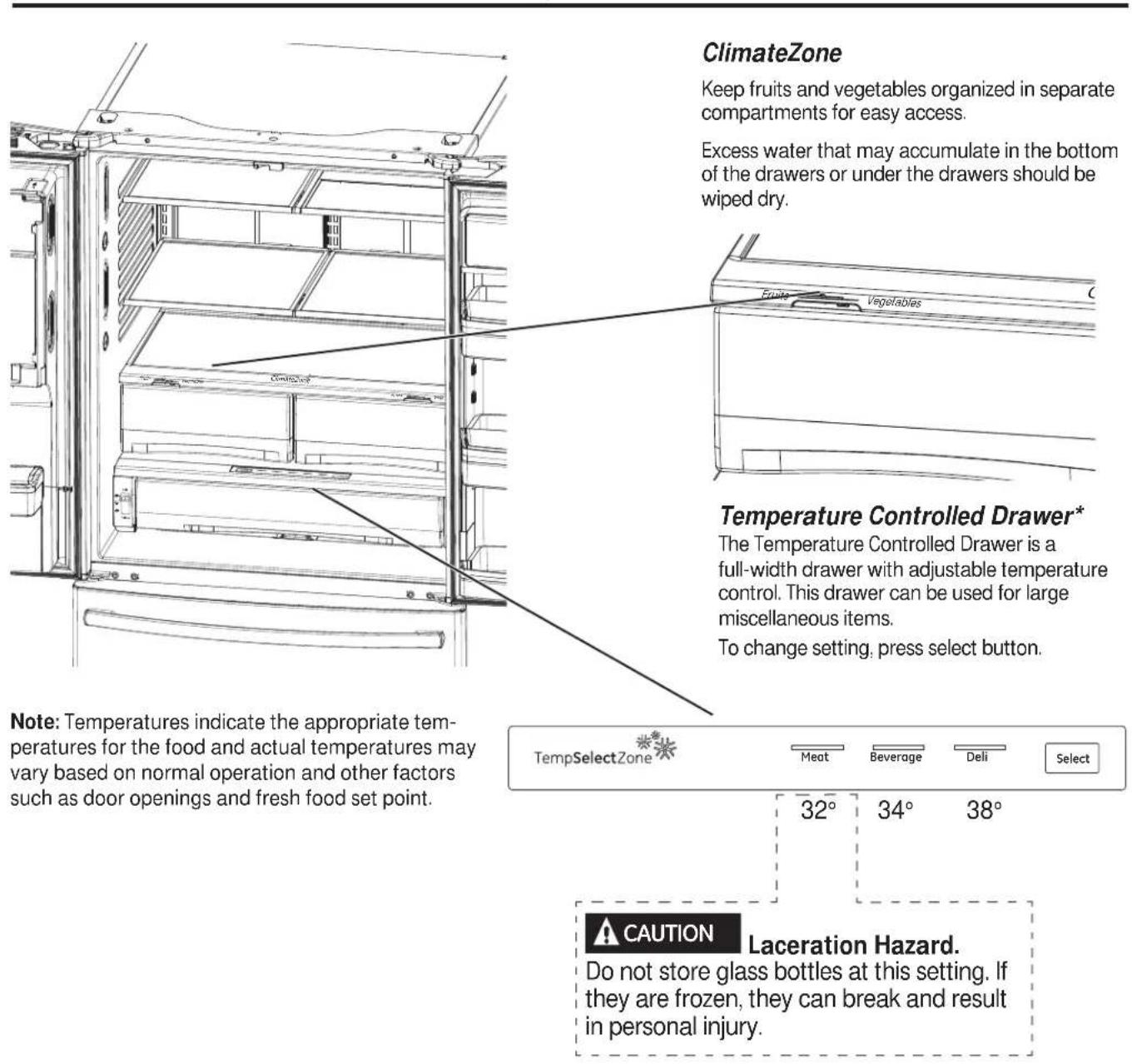

*Select Models Only 32° 34° 38° Note: Temperatures indicate the appropriate tem- peratures for the food and actual temperatures may vary based on normal operation and other factors such as door openings and fresh food set point. CAUTION Laceration Hazard. Do not store glass bottles at this setting. If they are frozen, they can break and result in personal injury. Meat Beverage Deli Select About the climate zone and temperature controlled drawer.GEAppliances.com To remove: Pull the drawer out to the stop position. Lift the front of the drawer up and out. To replace: Pull left and right slides until fully extended. Place drawer back in first and rotate drawer front down to seat on slide. Push the drawer in to closed position. How to Remove and Replace the Adjustable Deli/Produce Drawer To remove: Pull the drawer out to the stop position. Raise the front side of the divider to unhook it from the rear wall of the drawer. To replace: Hook the back of the divider over the rear wall of the drawer. Push the divider down. How to Remove and Replace Drawer Divider*

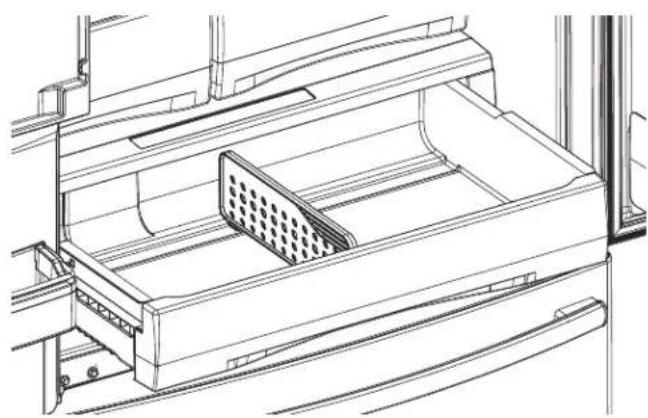

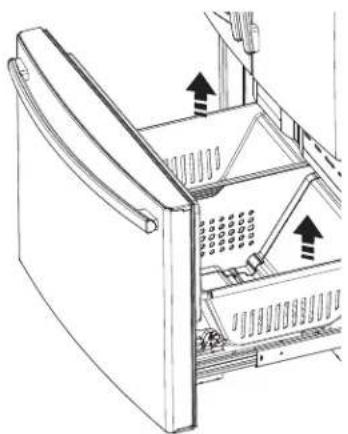

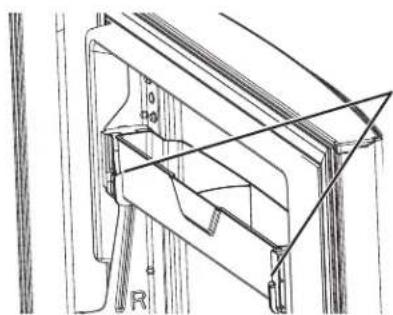

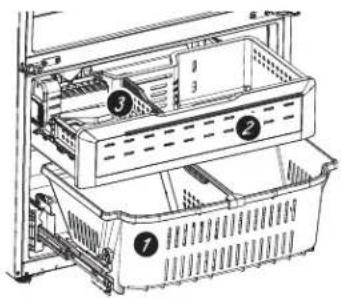

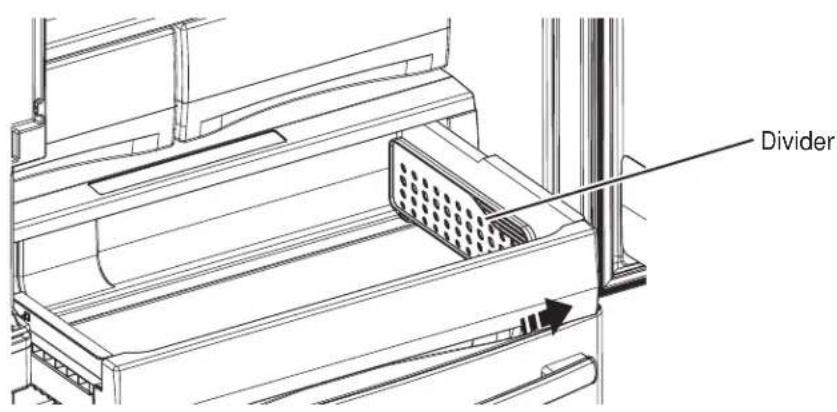

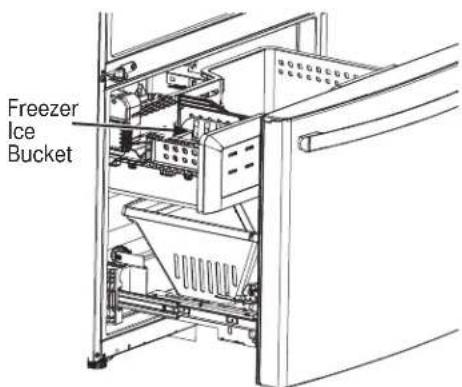

Divider *Select Models Only18 About the freezer. Freezer Basket and Drawer Basket. Drawer Ice Bucket * Non-Adjustable Bin in the Freezer* To remove: push in plastic tab on either left or right side To replace: slide bin into location until it locks into place. Basket Removal To remove, Standard Depth models only: Open freezer door to the stop position. Remove freezer door bin by pushing plastic tab on either left or right side to release bin hinge pin. Remove freezer basket by lifting up the rear of the basket and moving basket rearward until the front of the basket can be rotated upward and out. Lift it out to remove. To remove, PYE and PWE models only: Open fresh food doors. Open freezer door to the stop position. Remove freezer basket by lifting up the rear of the basket and rotate it upward. Lift it out to remove. To replace: Reverse step 1 thru 4 to replace. *Select Models Only19 About the automatic ice maker. A newly installed refrigerator may take 12 to 24 hours to begin making ice. Automatic Ice Maker*The ice maker will produce seven cubes per cycle approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.The ice maker will fill with water when it cools to 15°F (–10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.If the refrigerator is operated before the water line connection is made to the unit or if the water supply to an operating refrigerator is turned off, make sure that the ice maker is turned off. Once the water has been connected to the refrigerator, the ice maker may be turned on. See the table below for details.You may hear a buzzing sound each time the ice maker fills with water.Throw away the first few batches of ice to allow the water line to clear.Be sure nothing interferes with the sweep of the feeler arm.When the bin fills to the level of the feeler arm, the ice maker will stop producing ice. It is normal for several cubes to be joined together.If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. NOTE: In homes with lower-than-average water pressure, you may hear the ice maker cycle multiple times when making one batch of ice.Feeler ArmIce makerDisplay Type (See Page 6) Model # How to turn the ice maker on/offControl Style A PFE28, PYE22P Use the settings menu on the touchscreenControl Style B GFE28/26, DFE28, GYE22Use the “ICE MAKER” button on the controlControl Style C GNE29, PWE23 Use the “ICE MAKER” button on the control How to Turn the Ice Maker On/Off WARNING To minimize the risk of personal injury, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. *Select Models OnlyLift and pullIce Box Door Ice Bucket and Dispenser*

• Open the ice box door on inside of the left door.• Pull up and out on on the ice bucket in the left hand door to remove it from the compartment .• To replace the ice bucket, set it on the guide brackets and push until the ice bucket seats properly.• If bucket cannot be replaced, rotate the ice bucket fork 1/4 turn clockwise. Extra Ice Storage* There is additional ice storage in the freezer compartment drawer.• Open the freezer drawer.• The ice bucket is located on the left side of the upper basket.• Pull the upper basket forward to remove the ice bucket.Freezer Ice Bucket20 Care and cleaning of the refrigerator. Cleaning the Outside The stainless steel panels, door handles and trim. The stainless steel doors and door handles (on some models) can be cleaned with a commercially available stainless steel cleaner. Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove surface rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel. Silver-accented plastic parts. Wash parts with soap or other mild detergents. Wipe clean with a sponge, damp cloth or paper towel. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish. Should spill tray need cleaning use lime remover. Cleaning the Inside To help prevent odors, leave an open box of baking soda in the refrigerator and freezer compartments. Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls. Use an appliance wax polish on the inside surface between the doors. 8VHZDUPZDWHUDQGEDNLQJVRGDVROXWLRQ³DERXWD tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry. Behind the Refrigerator Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Raise the leveling legs located at the bottom front of the refrigerator. Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator. Lower the leveling legs until they touch the floor. When pushing the refrigerator back, make sure you don’t roll over the power cord or water supply line. Preparing for Vacation Preparing to Move Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage. When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator. Be sure the refrigerator stays in an upright position during moving. CAUTION Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks. Do not wash any plastic refrigerator parts in the dishwasher. For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open. LCD Models: turn refrigerator off at control (pg 7) . If the temperature can drop below freezing, have a qualified service technician drain the water supply system to prevent serious property damage due to flooding.

1) Turn refrigerator off (pg. 7) or unplug the refrigerator.

3) Turn water supply off

If you cut the water supply off, turn off the ice maker (pg. 18). Upon returning from vacation:

1) Replace the water filter.

2) Run 2 gallons of water through the cold water dispenser

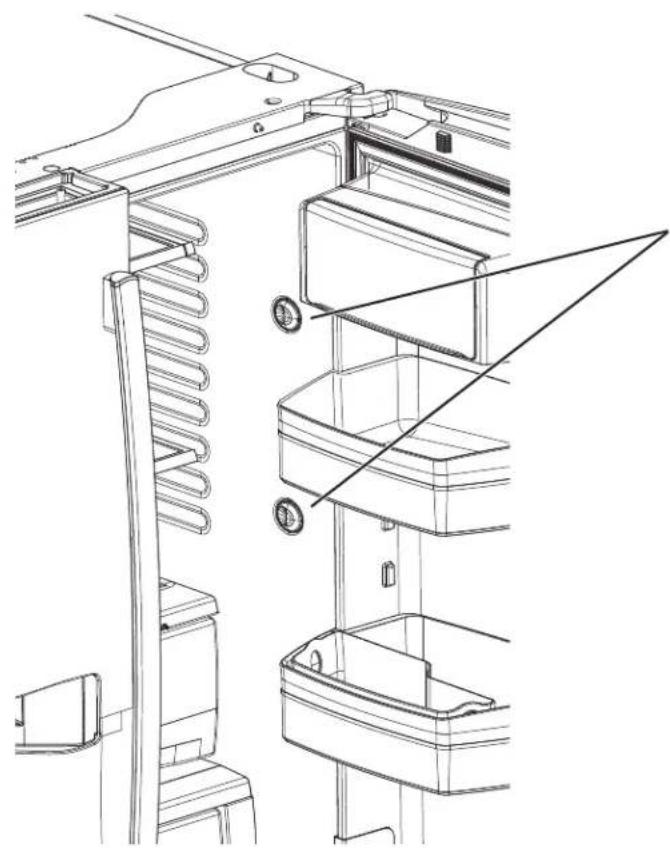

(about 5 minutes) to flush the system.21 Replacing the lights. GEAppliances.com Refrigerator Lights (LEDs) There is LED lighting in fresh food compartment and on the bottom of the fresh food doors to light the freezer compartment.* An authorized technician will need to replace the LED light. If this assembly needs to be replaced, call GE Service at 1.800.432.2737 in the United States or 1.800.561.3344 in Canada. *Select Models Only22

Read these instructions completely and carefully.WARNING Tip Over Hazard. Built-in style models (model PYE, CYE, GYE, PWE, CWE, and ZWE) are top heavy, especially with any doors open. These models must be secured with the anti-tip floor bracket to prevent tipping forward, which could result in death or serious injury. Read and follow the entire installation instructions for installing the anti-tip floor bracket packed with your refrigerator.

IMPORTANT ³ Observe all governing codes and ordinances. Save these instructions for local inspector’s use. Note to Installer – Be sure to leave these instructions with the Consumer.• Note to Consumer – Keep these instructions for future reference.• Skill level – Installation of this appliance requires basic mechanical skills.• Completion time – Refrigerator Installation can vary Water Line Installation 30 minutes• Proper installation is the responsibility of the installer. • Product failure due to improper installation is not covered under the Warranty. PREPARATION MOVING THE REFRIGERATOR INDOORSIf the refrigerator will not fit through a doorway, the refrigerator door and freezer drawer can be removed.• To remove the refrigerator door, see the Installing the Refrigerator section.• To remove the freezer drawer, see the Removing the Freezer Drawer section.WATER SUPPLY TO THE ICE MAKER AND DISPENSER If the refrigerator has an ice maker, it will have to be connected to a cold water line. A GE water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our website at GEAppliances.com (in Canada at www.GEAppliances.ca) or from Parts and Accessories, 800.626.2002 (in Canada 1.800.661.1616).Adjustable Wrench1/4” Outer Diameter Compression Nut and Ferrule (sleeve) Phillips-Head Screwdriver Ȓµ Socket Ratchet/Driver 1/8”, 3/32”, 1/4” & 5/32” Allen WrenchesPencil1/8” Drill Bit and Electric or Hand DrillTape Measure1/4” Nut Driver5/16” Nut DriverPliersLevelFlat-Head ScrewdriverTorx T20, T2523 Installation Instructions

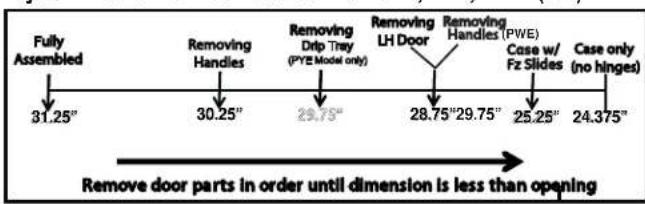

• Using the chart below determine if the width of your passageway can accommodate the depth of the refrigerator. Ensure you have clearance to prevent damage to the refrigerator before safely moving it to the final location.

• If passageways are large enough to accommodate the refrigerator without removing the handles skip to Step 6. Leave tape, film and all packaging on doors until the refrigerator is in the final location.

• NOTE: Use a padded hand truck or moving straps to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that two people move and complete this installation. Moving THE REFRIGERATOR DIMENSIONS All measurements are given with leveling leg fully retracted. SD CD Overall Height to Top of Hinge Cover

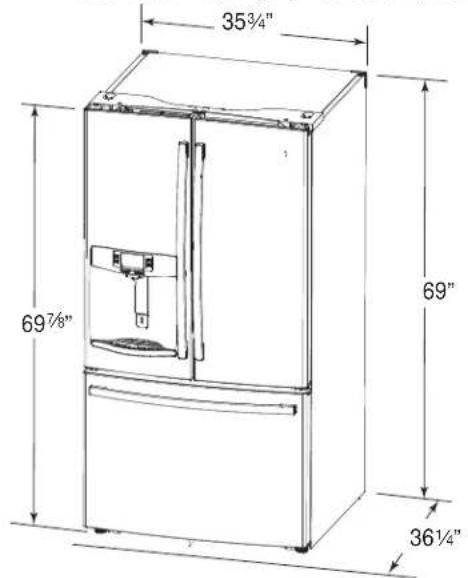

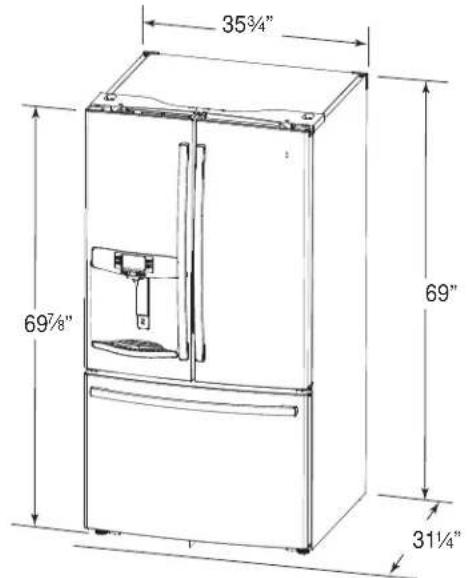

ø4” Overall Exterior Depth Doors/Drawers with Handles 36¼” 31¼” Standard Depth (SD) Models OnlyCounter Depth (CD) Models Only If your model number starts with PFE (SD) If your model number starts with CFE (SD) 36.25” 35.25” 29.375”33.75”30.25” If your model number starts with GFE, DFE, GNE (SD) If your model number starts with CYE, PYE, PWE (CD) 31.25”30.25”28.75”29.75”24.375”25.25”Case Depth w/o Doors 29 ø8” SD

ø8” CDHeight from floor to hinge cover top 69 ø8” Additional Dimensions

• Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.

• Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly.

• Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight.

• Install it on a floor strong enough to support it fully loaded. CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections. Sides 1/8” (3 mm) Top 1” (25 mm) Cabinet/Hinge Cover Back 2” (50 mm)

REMOVE THE FRESH FOOD

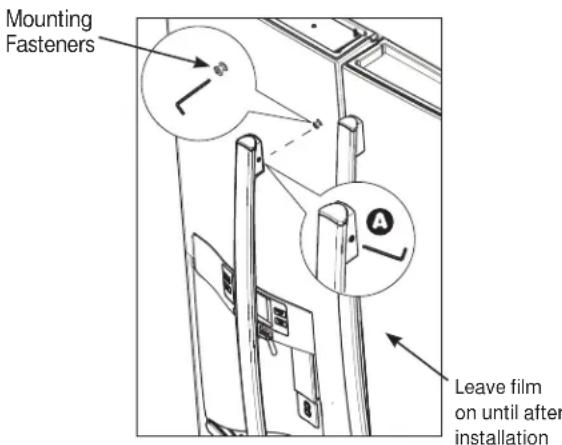

DOOR HANDLE Handle Design varies based on models, however Installation is same. Stainless steel and plastic handles: Loosen the set screws with the 1/8” Allen wrench and remove the handle. NOTE: If the handle mounting fasteners need to be tightened or removed, use a 1/4” Allen wrench.

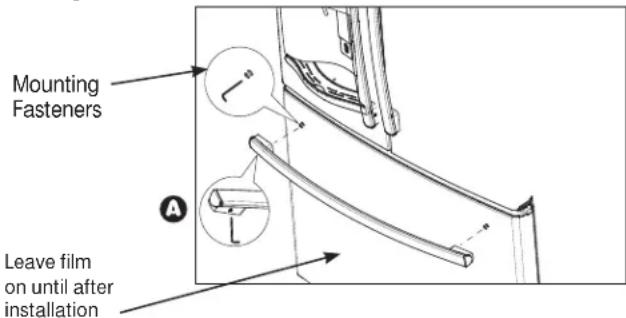

Handle Design varies based on models, however Installation is same. Stainless steel and plastic handles: Loosen the set screws with the 1/8” Allen wrench and remove the handle. NOTE: If the handle mounting fasteners need to be tightened or removed, use a 1/4” Allen wrench.

Mounting FastenersLeave film on until after installationMounting FastenersLeave film on until after installation Reinstall the handles using the same procedure as removing.

REMOVING THE REFRIGERATOR DOORS

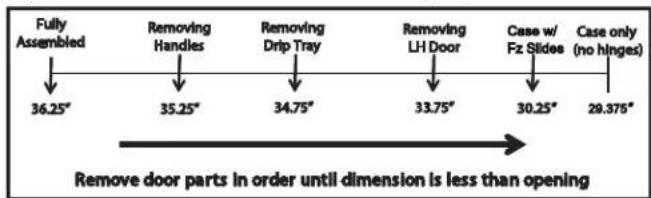

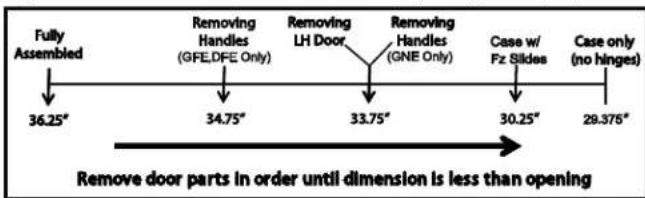

• IMPORTANT NOTE: This refrigerator is 36

/4” for CD models). Doors and passageways leading to the installation location must be at least 36

/4” wide in order to leave the doors and handles attached to the refrigerator while transporting it into the installation location. If passageways are less than 36

/4”, the refrigerator doors and handles can easily be scratched and damaged. The top cap and doors can be removed to allow the refrigerator to be safely moved indoors. If passageways are less than 31

• If it is not necessary to remove doors, skip to Step

11. Leave tape and all packaging on doors until the

refrigerator is in the final location.

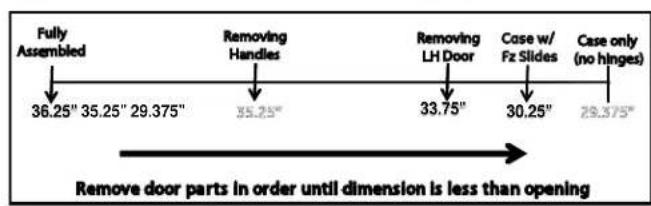

• NOTE: Use a padded hand truck to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that TWO PEOPLE move and complete this installation.25 Installation Instructions REMOVE THE REFRIGERATOR DOORS (cont) Disconnect the water line from the back of the unit by pressing down on the dark grey collar while pulling up on the water line. Pull water line through case conduit from the top to free the line for door removal. The water line is more than 4’ long and may need to be taped to Door for accessibility when reinstalling. Using a 3/8” socket ratchet/driver, remove the screws securing the top hinge to the cabinet, then lift the hinge straight up to free the hinge pin from the location in the top of the door. CAUTION Lifting Hazard. Single person lift could cause injury. Use assistance when handling, moving or lifting the refrigerator doors.Note: when removing door, to prevent damage to door and electronics, carefully place the door in a proper location. Note: The lower door hinge pin and hinge are keyed and must be matched correctly for the door to self close properly. Please follow the directions carefully.

REMOVE THE REFRIGERATOR DOORS

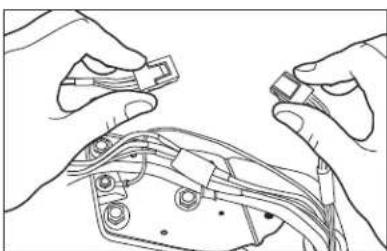

Securely tape the door shut with masking tape or have a second person support the door. Start with left-hand door first: Remove the hinge cover on top of the left refrigerator door by removing all hex screws and pulling it up. Do the same for the right-hand door and the middle cover. Disconnect both electrical connectors at the top cover. Remove the 1/4” hex head screw to disconnect the ground wire from the hinge. Remove the 1/4” hex head screw to remove the strain relief from the water line.

Reinstall center hinge first and torque the screws to 65 in-lbs. With the LH door at 90º to the front of the case, lower the refrigerator door onto the center hinge. Ensure that the door and hinge align correctly. Rotate doors closed and make sure moveable center sealing portion of the door aligns with the striker. If the door will not self-close after reinstalling, remove door, turn door upside down, check alignment mark and arrow; (there is an alignment mark on the door closure mechanism. It corresponds to an alignment arrow on the plastic ring. Rotate door closure mechanism to align mark and arrow, reinstall door).Securely tape the door shut with masking tape or have a second person support the door. Reinstall the top hinge and torque the screws to 65 in-lbs. Be sure to reinstall the ground wire and strain relief to the top hinge.

Reinstall hinge cover. NOTE: Ensure wires are not pinched or under screw bosses before tightening screws. REMOVE THE REFRIGERATOR DOORS (cont) Note: for proper installation later, please follow the next step carefully. Remove the tape and keeping the door as straight as possible, open the door to 90º then lift straight up to remove it. REMOVE OPPOSITE DOOR Follow the same procedure on the opposite door. There are no wires or water lines on the opposite side

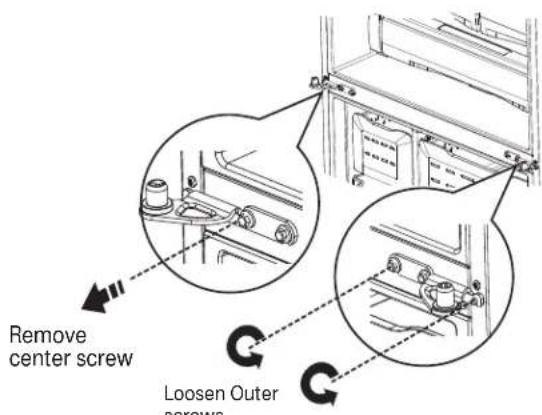

REMOVE CENTER HINGE (if necessary) Remove the 3/8ļscrews securing the center hinge to the cabinet. Use T20 driver to remove outboard screw

Installation Instructions INSTALLING THE REFRIGERATOR (cont.)

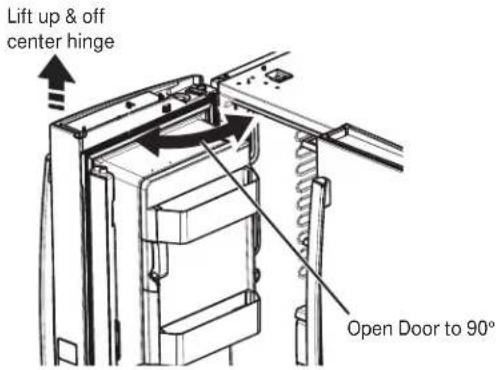

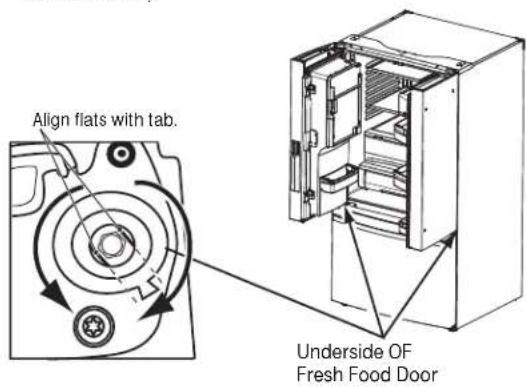

Remove center screwLift up & off center hingeOpen Door to 90°Align flats with tab.Underside OFFresh Food DoorIf door cannot be installed at 90° follow steps below: Install door at 180° to case front.2. If space limits opening door to less than 180°, then: a) Remove door, carefully turn door upside down. b) Check alignment of door closure mechanism shaft on underside of door. The flats on the shaft should correspond to alignment tab on plastic ring or mark on bottom end cap. c) If shaft is not aligned to tab/mark, using 5/32” Allen wrench, rotate door closure mechanism shaft counterclockwise for right door and clockwise for left door. Then align flat with tab/mark. d) Install the door at 90°.Loosen Outer screws 3Installation Instructions

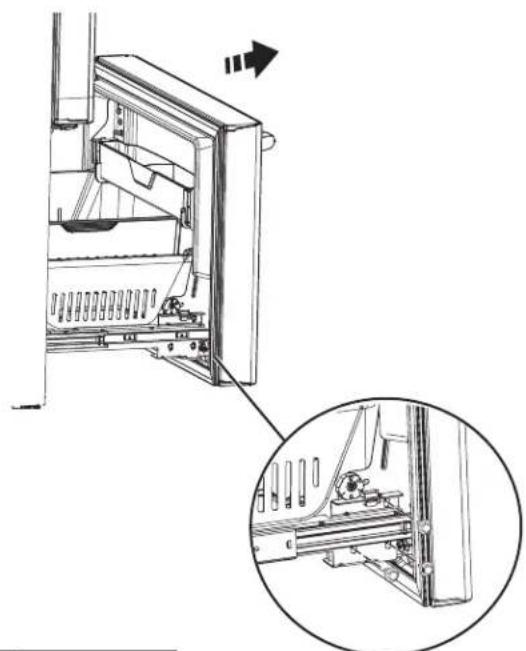

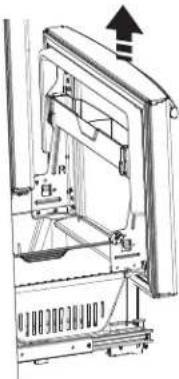

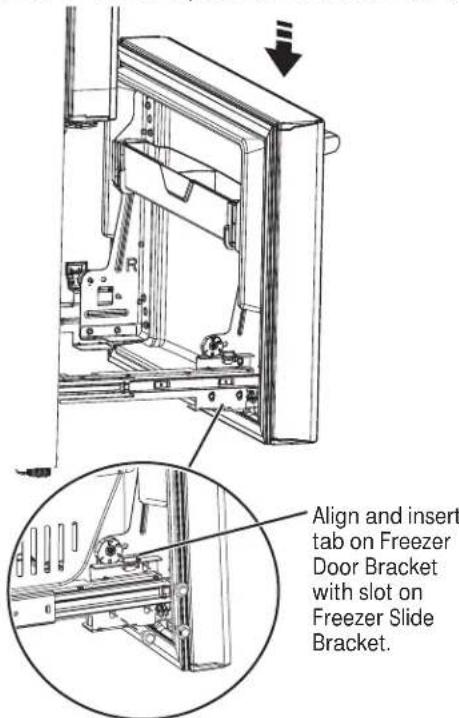

Pull the freezer door open to full extension. Remove 3 attachment screws, located at the bottom on each side of the freezer door using 3/8” hex socket driver. CAUTION Lifting Hazard Freezer door is heavy Use both hands to secure the door before lifting. Lift the freezer door to disengage it from the slide mechanism The door can safely rest on the bottom. Do not rest the door on any other surfaces to avoid scratches. Push the slide mechanism back completely until it self retracts.

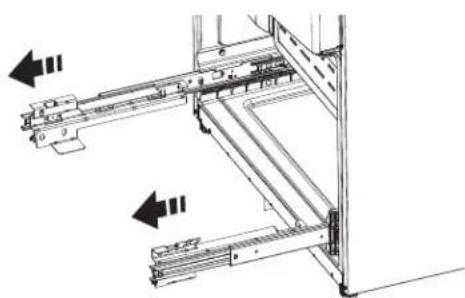

Pull the slide Mechanism to full extension using both hands simultaneously. Remove the basket resting on the slides. CAUTION Lifting Hazard Freezer door is heavy Use both hands to secure the door before lifting. Lift the freezer door and place it on the slide mechanism

Replace the attachment screws and torque the screws to 65 in-lb For adjusting freezer door gaps, follow the instructions on pg 27. Replace the basket

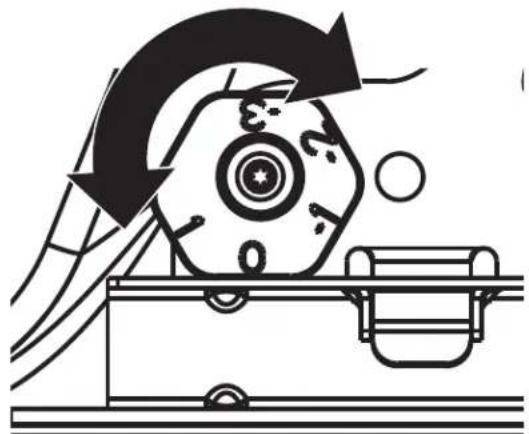

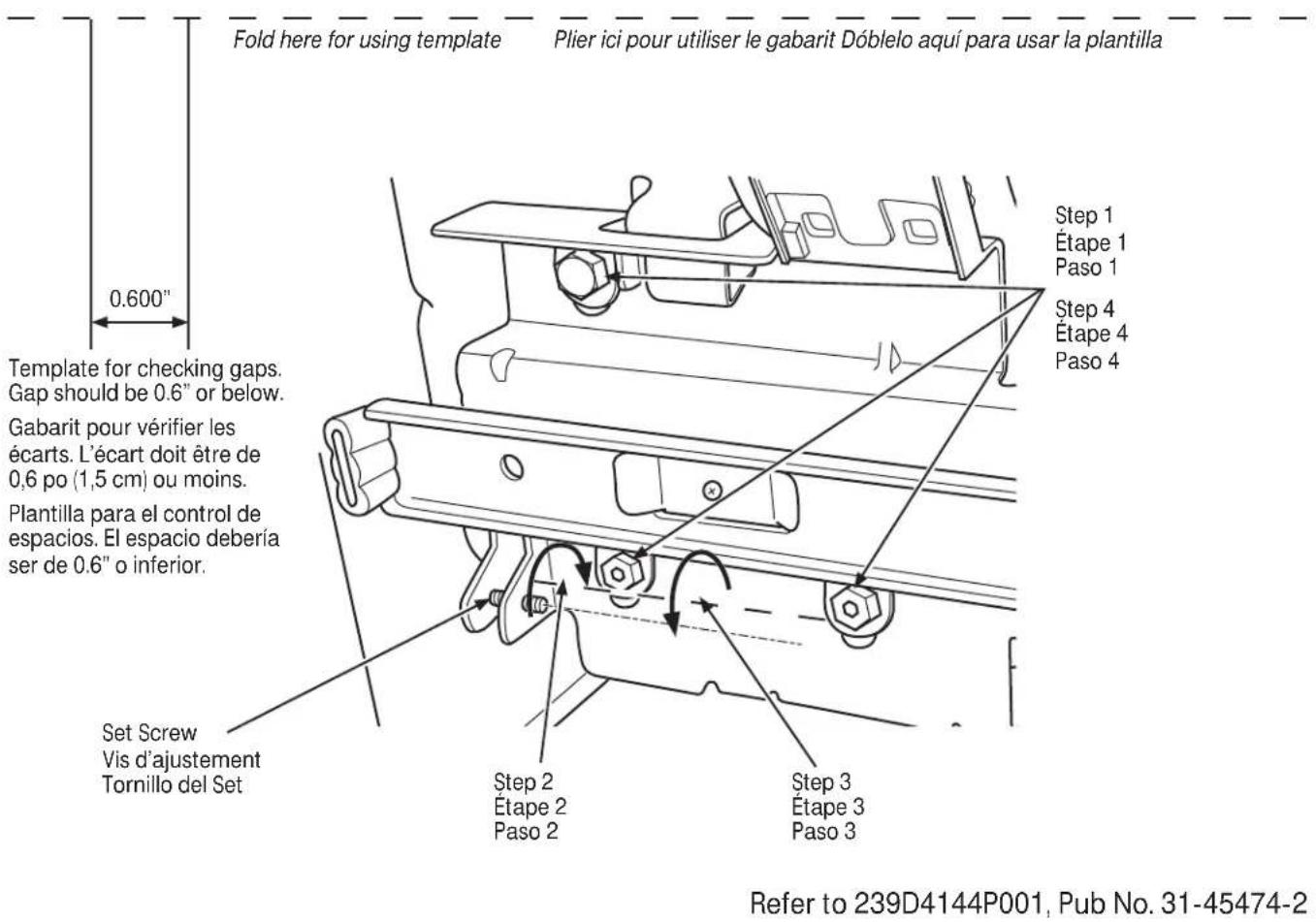

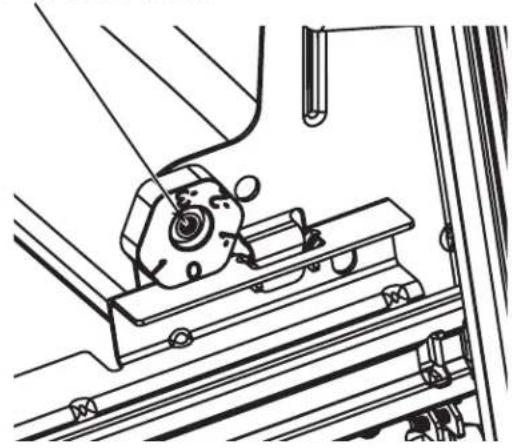

Locate the height adjuster cam in the freezer door. Slightly loosen the three door attachment screws on both sides using a 3/8” hex socket driver. Locate and loosen the cam screw using the T-27 screw driver.

REMOVE PACKAGING A) Remove all tape, foam and protective packing from shelves and drawers.

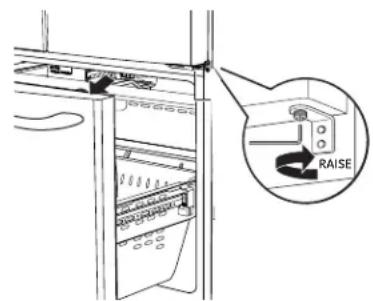

LEVEL THE FREEZER DOOR (cont.) Lift the door on the side requiring adjustment, rotate the cam to required position. After adjustment tighten the 3 attachment screws using to 65 in-lb.

-1 - Lower by 0.050” -2 - Lower by 0.100 -3 - Lower by 0.150”

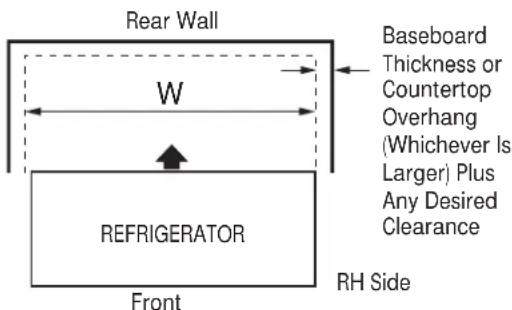

Measure width of cabinet opening where refrigerator will be placed, W.Be sure to account for any countertop overhang, baseboard thickness and any clearance desired. Width, W, should not be less than 36”. The refrigerator will be placed approximately in the middle of this opening. MATERIALS YOU MAY NEED (not included)

Pencil1/8” (3 mm) Drill Bit and Electric or Hand DrillTape measure5/16” (8 mm) Nut DriverLag Bolts1/4” (6 mm) x 1-1/2” (38 mm)Anchor Sleeves1/2” (12 mm) ODFor Anti-Tip Bracket Mounted on CONCRETE Floors OnlyDrill Bit Appropriate for Anchors AT-1 Baseboard Thickness or Countertop Overhang (Whichever Is Larger) Plus Any Desired ClearanceRear WallFrontRH Side AT-2

LOCATING THE ANTI-TIP FLOOR

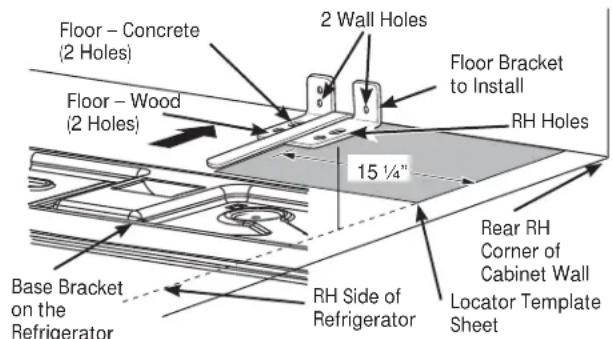

BRACKET Place the anti-tip floor bracket locator template (included inside the anti-tip kit) onto the floor up against the rear wall, within W, and in line with the desired location of the RH side of the refrigerator (see Figure 1).Place the anti-tip floor bracket onto the locator template with its RH floor holes lined up with the floor holes indicated on the template sheet, approximately 15 ¼” from the edge of the sheet or the RH side of the refrigerator. Hold down in position and use the anti-tip floor bracket as a template for marking the holes based upon your configuration and type of construction as shown in Step 3. Mark the hole locations with a pencil, nail or awl.NOTE:• It is REQUIRED to use at least 2 screws to mount the floor bracket (one on each side of the anti-tip floor bracket). Both must be into either the wall or the floor. Figure 2 indicates all the acceptable mounting configurations for screws. Identify the screw holes on the anti-tip floor bracket for your configuration.

REFRIGERATORFigure 1 – Installation OverviewBase Bracket on the Refrigerator2 Wall HolesRH Side of RefrigeratorFloor – Concrete (2 Holes)Floor – Wood (2 Holes)15 ¼”Locator Template SheetFloor Bracket to InstallRH HolesRear RH Corner of Cabinet Wall NOTE: If you did not receive an anti-tip bracket with your purchase, call 1.800.626.8774 to receive one at no cost. (In Canada, call 1.800.561.3344.)For installation instructions of the bracket, visit: www.GEAppliances.com. (In Canada, www.GEAppliances.ca.)

Instructions WARNING Tip Over Hazard. Built-in style models (model PYE, CYE, GYE, PWE, CWE, and ZWE) are top heavy, especially with any doors open. These models must be secured with the anti-tip floor bracket to prevent tipping forward, which could result in death or serious injury. Read and follow the entire installation instructions for installing the anti-tip floor bracket packed with your refrigerator. PYE, CYE, GYE, PWE, CWE, and ZWE Models Only Refer to 239D1142P001, Pub No. 31-45484-5AT-2

• Drill the recommended size holes for the anchors into the concrete at the center of the holes marked in Step 2.

• Install the sleeve anchors into the drilled holes. Place the anti-tip floor bracket as indicated in Step 2. Remove the locator template from the floor.

• Install the lag bolts through the anti-tip floor bracket and tighten appropriately. WOOD Wall and TILE Floor Construction:

• For this special case, locate the 2 wall holes identified in Fig. 2. Drill an angled 1/8” (3 mm) pilot hole (approx. as shown in Fig. 3) in the center of each hole.

• Mount the anti-tip floor bracket using the Minimum Acceptable Installation #1, as illustrated in Fig. 2.

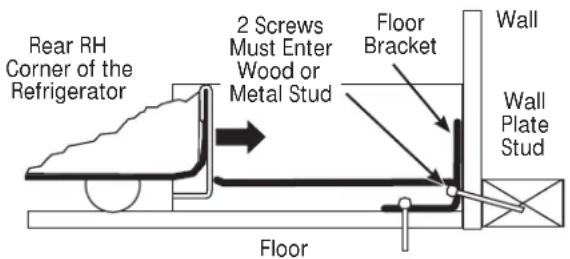

WOOD Wall and Floor Construction:

• Drill the appropriate number of 1/8” (3 mm) pilot holes in the center of each floor bracket hole being used (a nail or awl may be used if a drill is not available) AND remove the locator template from the floor.

• Mount the anti-tip floor bracket by fastening the 2, or recommended 4, #10-16 hex-head screws tightly into place as illustrated in Figure 3.

Before pushing the refrigerator into the opening, plug the power cord into the receptacle and connect waterline (if equipped). Check for leaks. Locate the refrigerator’s RH side and move back approximately in line with the RH side of the cabinet opening, W. This should position the anti-tip floor bracket to engage the anti-tip base bracket on the refrigerator. Gently roll the refrigerator back into the cabinet opening until it comes to a complete stop. Check to see if the refrigerator front lines up with the cabinet front face. If not, carefully rock the refrigerator forward and backward until engagement occurs and you notice that the refrigerator is fully pushed up against the rear wall. If Applicable: Adjust the rear (and front) wheel height settings to fully engage the rear anti-tip brackets, while also aligning the refrigerator front with the cabinet front face.

NOTE: If you pull the refrigerator out and away from the wall for any reason, make sure the anti-tip floor bracket is engaged when the refrigerator is pushed back against the rear wall. Rear RH Corner of the Refrigerator Floor Wall Plate Stud Floor Bracket 2 Screws Must Enter Wood or Metal Stud Wall Installation Instructions

Figure 3 – Attachment to Wall and Floor Refer to 239D1142P001, Pub No. 31-45484-532 Installation Instructions

A cold water supply is required for automatic ice maker operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section. NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using GE SmartConnect

Refrigerator Tubing Kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.

• Before connecting the water line to the house, purge the house line for at least 2 minutes. If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply. If you are using the GE SmartConnect

tubing, the nuts are already assembled to the tubing. If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting. If you are using GE SmartConnect

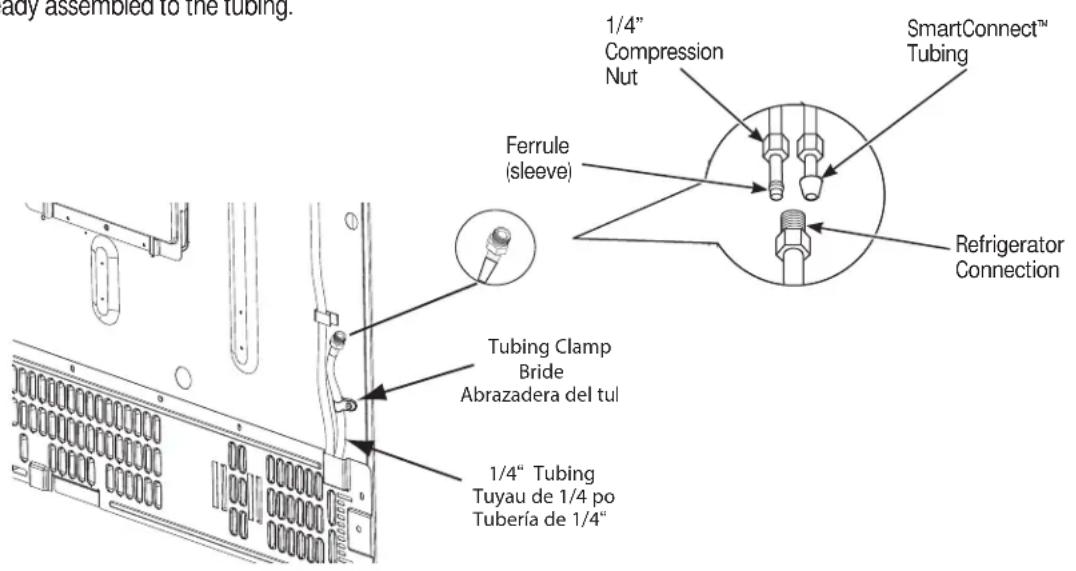

tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Over tightening may cause leaks. Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp.

TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

See the grounding information attached to the power cord.

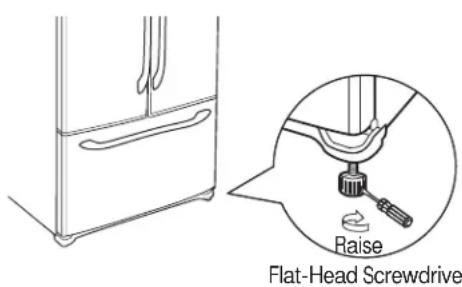

The leveling legs have 2 purposes:

1) Leveling legs adjust so the refrigerator is

firmly positioned on the floor and does not wobble.

2) Leveling legs serve as a stabilizing brake

to hold the refrigerator securely in position during operation and cleaning. The leveling legs also prevent the refrigerator from tipping. Turn the leveling legs clockwise to raise the refrigerator, counterclockwise to lower it. NOTICE: To avoid possible property damage, the leveling legs must be firmly touching the floor.

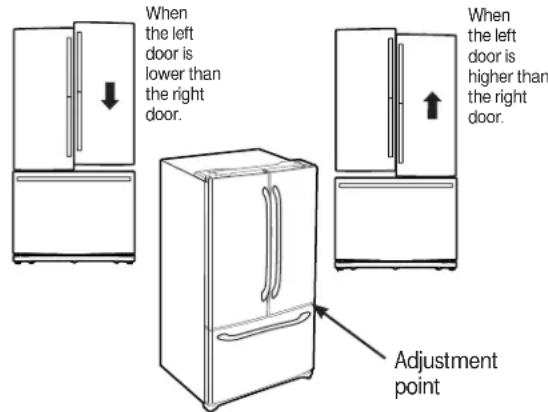

Remember a level refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator. If you open the freezer door, you can see the center hinge. Insert 1/4” Allen wrench into the shaft of the center hinge. Adjust the height by turning clockwise or counterclockwise. When you turn counterclockwise, the door will move up.

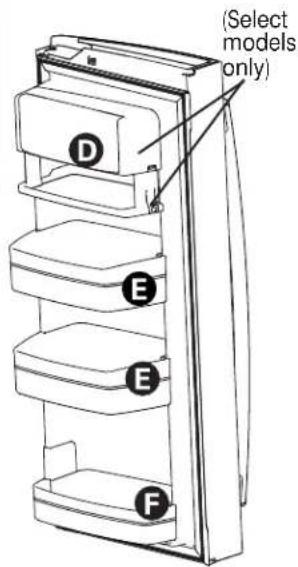

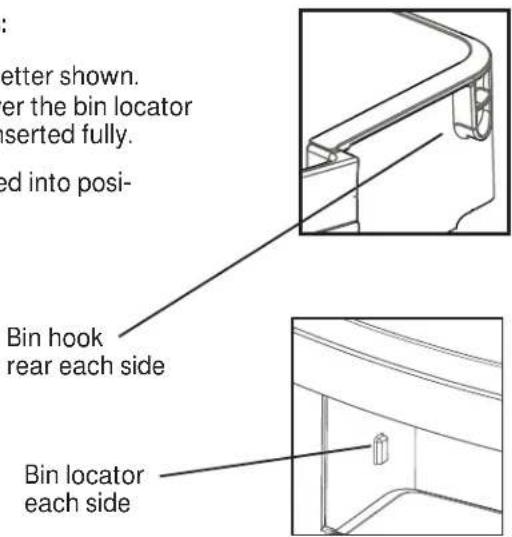

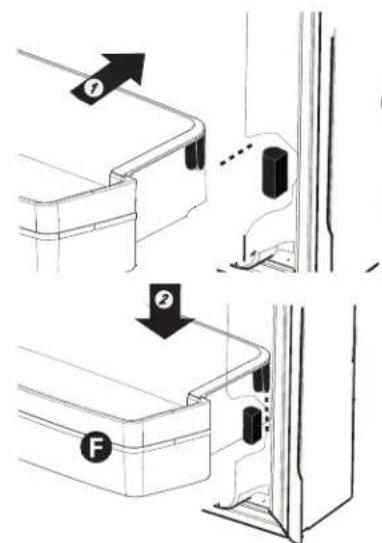

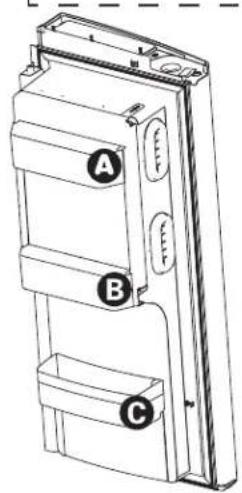

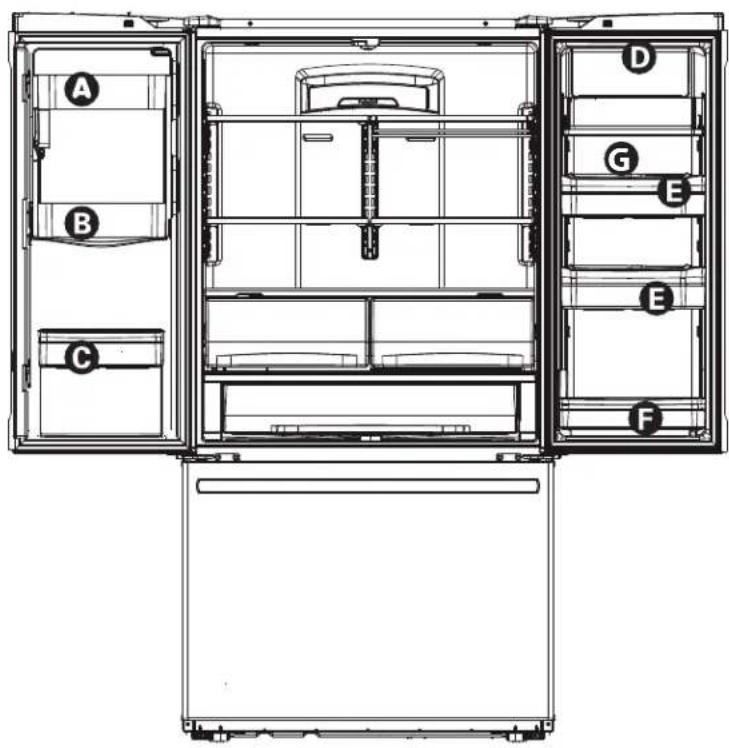

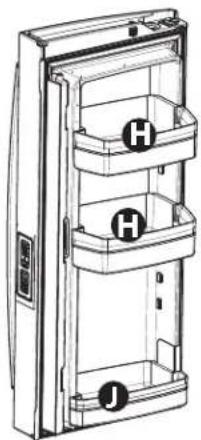

To place bins into doors: Match your bin with the letter shown.Position the bin hooks over the bin locator and push forward until inserted fully.Bin locator each sideBin hookrear each sidePush bin down until locked into posi-tion.

(Select models only)Non-Dispense Models

Refer to 239D4129P002 Pub No. 31-45498 GE AppliancesGeneral Electric CompanyLouisville, KY 40225GEAppliances.comInstallation Instructions

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are GE SmartConnect

Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025). When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer’s recommendations. If the water supply to the refrigerator is from a Reverse Osmosis (RO) Water Filtration System AND the refrigerator also has a water filter, use the refrigerator’s filter bypass plug. Using the refrigerator’s water filtration cartridge in conjunction with the RO water filter can result in hollow ice cubes. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800-GECARES. In Canada call

This water line installation is not warranted by the refrigerator or ice maker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line. For PFE27 and PYE23K Models: If the refrigerator is operated before the water connection is made to the ice maker, press and hold both the CRUSHED and CUBED buttons together for 3 seconds to disengage the ice maker. When the refrigerator has been connected to the water supply, press and hold both the CRUSHED and CUBED buttons together for 3 seconds to re-engage the ice maker. For Non-LCD Models: If the refrigerator is operated before the water connection is made to the ice maker, press and release the ICE MAKER button on the control panel to disengage the ice maker. When the refrigerator has been connected to the water supply, press and release the ICE MAKER button on the control panel to re-engage the ice maker.

Refrigerator Tubing kit, 1/4” outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square. To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation. GE SmartConnect

Refrigerator Tubing Kits are available in the following lengths: 8’ (2.4 m) – WX08X10006 15’ (4.6 m) – WX08X10015 25’ (7.6 m) – WX08X10025 For PFE28 and PYE22P Models: If the refrigerator is operated before the water connection is made to the ice maker, see ICE MAKER under SETTINGS menu of the LCD Operations section and follow the screen commands to turn the ice maker OFF. Do not install the ice maker tubing in areas where temperatures fall below freezing. When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered. All installations must be in accordance with local plumbing code requirements.Installation Instructions INSTALLING THE WATER LINE (cont.) NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect

Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 800.626.2002 (in Canada

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

• 1/2” or adjustable wrench.
• Straight and Phillips blade screwdriver.

• Two 1/4” outer diameter compression nuts DQGIHUUXOHVVOHHYHV³WRFRQQHFWWKHFRSSHU tubing to the shutoff valve and the refrigerator water valve.

• If you are using a GE SmartConnect

Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

• If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnect

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32” at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. WHAT YOU WILL NEED (CONT.)

SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet long enough to clear the line of water. Install the shutoff valve on the nearest frequently used drinking water line.

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

Drill a 1/4” hole in the water pipe (even if using a self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4” hole may result in reduced ice production or smaller cubes. 36Installation Instructions

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely. For plastic tubing from a GE SmartConnect

Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Over tightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

CONNECT THE TUBING TO THE VALVE

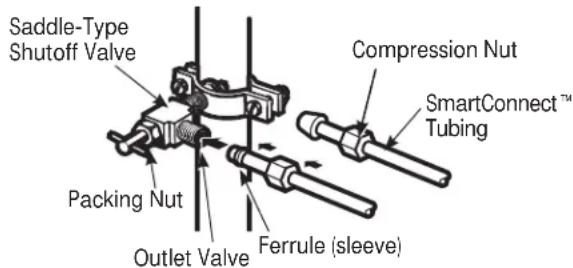

Saddle-Type Shutoff ValveCompression NutPacking NutOutlet ValveFerrule (sleeve) Turn the main water supply on and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart (1 liter or 2 minutes) of water has been flushed through the tubing.

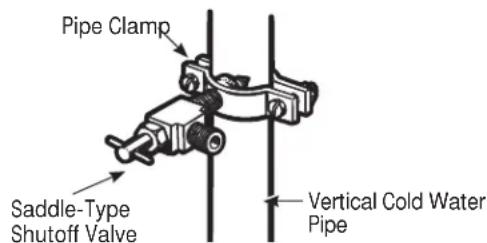

Tubing Fasten the shutoff valve to the cold water pipe with the pipe clamp. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Tighten the clamp screws until the sealing washer begins to swell. NOTE: Do not over tighten or you may crush the tubing.

TIGHTEN THE PIPE CLAMP

Pipe ClampVertical Cold Water Pipe Saddle-Type Shutoff ValveWasherInlet EndPipe ClampClamp Screw Route the tubing between the cold water line and the refrigerator. Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

To complete the installation of the refrigerator, go back to Step 11 in Installing the Refrigerator.Normal operating conditions. Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology. HUMMM... WHOOSH...

The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating. You may hear a whooshing sound when the doors close. This is due to pressure equalizing within the refrigerator. After dispensing ice, a motor will close the ice chute to keep warn room air from entering the ice bucket, maintaining ice at a freezing temperature.The hum of the motor closing the ice chute is normal, shortly after dispensing ice. You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.

The fans change speeds in order to provide optimal cooling and energy savings. CLICKS, POPS, CRACKS and SNAPS

You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.

Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.

On models with an ice maker, after an ice making cycle, you may hear the ice cubes dropping into the ice bucket. On models with a dispenser, during water dispense, you may hear the water lines move at initial dispense and after dispenser button is released. WATER SOUNDS

The flow of refrigerant through the cooling coils may make a gurgling noise like boiling water.

Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle. A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.

Closing the door may cause a gurgling sound due to pressure equalization. Do you hear what I hear? These sounds are normal.

It can take up to 24 hours for the refrigerator and freezer temperatures to match the display. During that time refrigerator and freezer door openings should be minimized. TIPS

Freezer cools first. Refrigerator compartment cools last; it may take several hours after the freezer. Turning off ice maker makes both fresh food and freezer food cool faster.Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. Before you call for service… GEAppliances.com

Problem Possible Causes What to Do Water filter indicated as installed incorrectly or a leak is present on LCD screen. Water filter installed backward or is leaking. Check for leak. If no leak is present, remove filter/bypass plug, rotate 180° and reinstall. Water filter indicator light remains lit after replacing filter Filter timer has not been reset or filter is installed backward. Internal Dispense models: -Press and hold reset button for 3 seconds External Dispense models: -Remove filter and rotate 180 degrees and reinstall. Water filter indicator light is not lit This is normal. This indicator will turn on to tell you that you need to replace the filter soon. See About the Water Filter for more information. Handle is loose/handle has a gap. Handle needs adjusting See Attach Fresh Food Handle and Attach the Freezer Handle sections for detailed instructions. Refrigerator beeping This is door alarm -Turn off or disable with door closed -If door open and alarm is sounding, you can only snooze the alarm Not cooling The cooling system is off See About Controls. Water has poor taste/odor* Water dispenser has not been used for a long time Dispense water, until all water in system is replenished. Water in glass is warm* Normal when refrigerator is first installed Wait 24 hours for the refrigerator to completely cool down. Water dispenser has not been used for a long time Dispense water, until all water in system is replenished Water system has drained Allow several hours for replenished supply to chill Water dispenser does not work* Water supply line turned off or not connected See Installing the Water Line Water filter clogged or filter/bypass plug not installed Replace filter cartridge or remove filter and install bypass plug** Air may be trapped in the water system Press the dispenser arm for at least 5 minutes. Water in reservoir is frozen because the controls are set too cold Set the refrigerator control to a warmer setting and wait 24 hours. If the water does not dispense after 24 hours, call for service Water spurting from dispenser* Newly installed filter cartridge Run water from the dispenser for 5 minutes (about 2 gallons) *Select Models Only **Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800-GECARES. In Canada call 800.561.3344.Troubleshooting Tips (cont)

Before you call for service… Problem Possible Causes What to Do No water or ice cube production* Supply line or shutoff valve is clogge Call a plumber Water filter is clogged Replace filter cartridge or remove filter and install bypass plug** Filter cartridge not properly installed Remove and reinstall filter cartridge, being certain that it locks in place. Ice maker is turned off Check that the ice maker is turned on. See About the Automatic Ice Maker. Water is leaking from dispenser* Air may be present in the water line system, causing water to drip after being dispensed Dispense water for at least 5 minutes to remove air from system Photos not found* Photos not in root directory of USB Photos not in JPEG format Camera/PC used with USB cord Make sure the photos are in the root direc- tory in your USB Photos must be in JPEG format Must use a USB drive AUTO FILL under fill/no fill* Not all containers work with AUTO FILL Try different container

• Misaligned container See pg. 11 AUTO FILL overfills* Not all containers work with AUTO FILL Try different container PRECISE FILL will not fill container* Normal, PRECISE FILL requires use of dispenser paddle For a specific amount of water, select PRE- CISE FILL to dispense water Freezer cooling, fresh food not cooling Normal, when refrigerator first plugged in or after extended power outage Wait 24 hours for temperature in both compartments to reach selected temperatures. Ice dispenser opens after closing freezer drawer * Normal The ice dispenser door may open after closing freezer door to allow access *Select Models Only **Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800-GECARES. In Canada call 800.561.3344.41 Truth or Myth? Answer Explanation The refrigerator water filter may require replacement prior to six months TRUE The water filter indicator will indicate the need to replace the water filter every six months or 170 gallons of water dispensed (select models only). Water quality varies from city to city. If water flow from the dispenser slows, or ice production decreases, the water filter should be replaced, even though the filter indicator may not indicate the need for replacement. The automatic ice maker in my refrigerator will produce ice when the refrigerator is plugged in to a power receptacle. MYTH The refrigerator must be connected to water, and the ice maker must be turned on. Make sure the ice maker is turned on, only after the water line is connected and water is turned on. The ice maker can be turned on/ off from the controls and ensure the ice maker is on, as indicated on the refrigerator control panel. See About the Automatic Ice Maker. After the refrigerator has been plugged in and connected to water, I will immediately have unlimited chilled water available from the water dispenser. MYTH The water dispenser tank located inside the refrigerator stores water for dispensing. The water in this tank requires 24 hours to chill after installation. High usage conditions will not allow time for the water to chill. After water dispenses, a few drops of water are normal. TRUE A few drops of water may fall from the dispenser, after the dispenser paddle has been released. To minimize the drops, remove the glass slowly from the dispenser. I will never see frost inside the freezer compartment. MYTH Frost inside the freezer typically indicates that the door is not properly sealed, or has been left open. If frost is found, clear the frost using a plastic spatula and towel, then check to ensure that no food packages or containers are preventing the freezer door from closing. Check the refrigerator control panel to ensure the door alarm is on. When the refrigerator is installed, or after replac- ing the water filter, I must dispense water for five minutes. TRUE A newly installed refrigerator or water filter contains air in the water lines. Press the dispenser paddle and dispense cold water for at least 5 minutes to remove air from the water line, and flush the filter. To fill the ice bucket to the maximum capacity, I should dispense 12 and 18 hours after installation. TRUE Dispensing 3-4 cubes 12 hours and 18 hours after installation, allows ice to disperse within the ice bucket, which in turns calls on the ice maker to produce additional ice. Normal ice production = 100 cubes in 24 hours. I can use the water filter bypass plug to determine if the filter requires replacement. TRUE Decrease in flow from the water dispenser, or decreased ice production, may indicate the need to replace the water filter. Install the water filter bypass plug (provided with the refrigerator on some models*), and check flow from the dispenser. If water flow returns to normal with the bypass plug in place, replace the water filter. The top of the refrigerator doors will always be aligned. MYTH Several things can affect the fresh food door alignment, including the floor the refrigerator is installed on and loading of doors. If the top of the fresh food doors are not aligned, use a 1/4” allen wrench to adjust the right/left hand door. The adjustment screw is located on the bottom right or left hand side of the door; open the freezer door to access the screw. Refrigerator door handles can be easily tightened. TRUE If door handles are loose or have a gap, the handle can be adjusted using a 1/8” allen wrench, on set screws located on the ends of the handles. There may be odor and taste problems with your ice. TRUE After starting the ice maker throw away 24 hours of ice production to avoid odor and taste problems. I can make fine adjustments to the fresh food doors to align them. TRUE If the fresh food doors are not aligned, use a 1/4” Allen wrench to adjust the right hand door. The adjustment screw is located on the bottom of the right/left hand door. Open the freezer door to access. Door handles should always be removed for installation. MYTH Check chart on reverse side of this instruction. If the doors must be removed do not remove the handles, or if the refrigerator will fit easily through the passage way opening. Adjust handles that are loose or have a gap, by adjusting 1/8” set screws on either end of handles. Before you call for service, review the detailed troubleshooting tips in the Owner’s manual. If needed, service can be scheduled by visiting us online GEAppliances. com or calling 800.ge.CARES 800.432.2737 Truth or Myth SERVICE *Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800-GECARES. In Canada call 800.561.3344.42 Truth or Myth? Answer Explanation Door removal is always required for installation. MYTH Check chart on reverse side of this instruction. Doors should only be removed when necessary to prevent damage from passage way or access to final location. Refrigerator doors that won’t close after installation, can be adjusted to close properly.TRUE Door mechanism works best if installed at 90°+. If installed at 180°, remove the door from the mid hinge, and swing the door 180° before reinstalling. See Reinstalling the Refrigerator Doors.There is an adjustment to rear wheels. MYTH Front leveling legs are adjustable and should be used to balance the refrigerator. Leveling legs are used to make initial fresh food door adjustment. Check for leaks after all water connections are made. TRUE While purging the air from the water system, check all water line connections for leaks. Check the connection to the household water supply at back of refrigerator, and door water line connect.My LCD display will always be on when I plug the power cord in at installation.MYTH If the refrigerator has been stored in a cold environment, the LCD may be slow to give a proper display. Give the refrigerator enough time to warm up, and the display should be okay.Any packaging residue can be cleaned off the refrigerator using any cleaner.MYTH Do not use wax, polish, bleach, or other products containing chlorine on Stainless Steel panels, door handles and trim. Check this instruction under “Cleaning the Outside” for full details. Before you call for service, review the detailed troubleshooting tips in the Owner’s manual. If needed, service can be scheduled by visiting us online GEAppliances. com or calling 800.ge.CARES 800.432.2737 Truth or Myth (cont.) SERVICENOTES. GEAppliances.com

Refrigerator Warranty. ■ Service trips to your home to teach you how to use the product. ■ Improper installation, delivery or maintenance. ■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. ■ Loss of food due to spoilage. ■ Replacement of house fuses or resetting of circuit breakers.

Damage to finish, such as , tarnish, or small blemishes not reported within 48 hours of delivery. ■ Replacement of the water filter cartridge, if included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply. ■ Replacement of the light bulbs, if included, or water filter cartridge, if included, other than as noted above. ■ Damage to the product caused by accident, fire, floods or acts of God. ■ Incidental or consequential damage caused by possible defects with this appliance. ■ Product not accessible to provide required service. ■ Damage caused by a non-GE Brand water filter. What GE Will Not Cover: Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV

Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. For the Period of: GE Will Replace One Year From the date of the original purchase Any part of the refrigerator which fails due to a defect in materials or workmanship. During the limited one-year warranty, GE will also provide, free of charge, all labor and related service to replace the defective part. Thirty Days (Water filter, if included) From the original purchase date of the refrigerator Any part of the water filter cartridge which fails due to a defect in materials or workmanship. During this limited thirty-day warranty, GE will also provide, free of charge, a replacement water filter cartridge.

GE PROFILE ™ MODELS ONLY

Five Years From the date of the purchase Any part of the sealed refrigerating system (the compressor, condenser, evaporator an all connecting tubing) which fails due to a defect in materials or workmanship. During this limited five-year sealed refrigerating system warranty, GE will also provide, free of charge, all labor and related service to replace the defective part in the sealed refrigerating system. Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a GE Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE improve its products by providing GE with information on your appliance. If you do not want your appliance data to be sent to GE, please advise your technician NOT submit the data to GE at the time of service. For US Customers, all warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, visit us online at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service. In Canada, call 800.561.3344. For US Customers: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: General Electric Company. Louisville, KY 40225 For Customers in Canada: This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warrant service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Warrantor Canada: MC Commercial, Burlington, Ontario, L7R 5B645 RPWFE Water Filter Cartridge Limited Warranty. Contact us at www.geapplianceparts.com, or call 800.GE.CARES. This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the U.S.A. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale. This form should be retained on file by the seller for a minimum of two years. Buyer: Name AddressCity State ZipSignature Date Seller: Name AddressCity State ZipSignature Date For The Period Of: We Will Replace, At No Charge To You: Thirty Days From the date of the original purchase Any part of the water filter cartridge which fails due to a defect in materials or workmanship during this limited thirty-day warranty.* What is Not Covered:

• Service trips to your home to teach you how to use the product.

• Improper installation.

• Failure of the product if it is abused, misused, used for other than the intended purpose or used commercially.

• Replacement of house fuses or resetting of circuit breakers.

• Replacement of the water filter cartridge due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply.

• Damage to the product caused by accident, fire, floods or acts of God.

• Incidental or consequential damage caused by possible defects with this appliance. Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.Appliance Service800-GE-CARES Appliances
• If your GE part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a copy of the “proof of purchase” for the part. If the part is defective and shows no signs of abuse, it will be exchanged. The warranty does not cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. It does not cover the cost of returning the part to the supplier from whom it was purchased nor does it cover the cost of labor to remove or install it to diagnose the fault. It does not cover parts used in products in commercial use except in the case of air conditioning equipment. In no event shall GE be liable for consequential damages. Warrantor: General Electric Company EXCLUSION OF IMPLIED WARRANTIES: Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law. 34-8715-2704-9 EPA #070595-MEX-001 © 2014 General Electric Company PC78863

Appliances Appliance Park Louisville, KY 40225 geapplianceparts.com RPWFE46 Performance Data Sheet Model: GE RPWFE Use Replacement Cartridge RPWFE. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53. System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the reduction of substances listed below. The following pharmaceutical reduction claims have not been certified by NSF International. Claims tested and verified by independent laboratory: Substance Reduction Average Influent NSF specified Challenge Concentration Avg % Reduction Average Product Water Concentration Max Permissible Product Water Concentration NSF Test Report Atenolol 1088 ng/L N/A 99.5% 5.0 ng/L N/A J-00103221 Fluoxetine 845 ng/L N/A 99.4% 5.0 ng/L N/A J-00103221 Ibuprofen 898 ng/L N/A 98.8% 9.9 ng/L N/A J-00103726 Progesterone 945 ng/L N/A 99.4% 5.5 ng/L N/A J-00103727 Trimethoprim 403 ng/L N/A 99.5% 2.0 ng/L N/A J-00103221 It is essential that the manufacturer’s recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised. See Installation Manual for Warranty information. Application Guidelines/Water Supply Parameters Service Flow 0.5 gpm (1.89 lpm)Water Supply Potable Water Water Pressure 25-120 psi (172– 827 kPa) Water Temperature 33º F - 100º F (0.6º C - 38º C) Note: While the testing was performed under standard laboratory conditions, actual performance may vary. Replacement Cartridge: RPWFE. For estimated costs of replacement elements please call 1-800-626-2002 or visit our website at www.geapplianceparts.com. WARNING To reduce the risk associated with ingestion of contaminants:

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. EPA Establishment Number 070595-MEX-001. NOTICE To reduce the risk of water leakage or flooding, and to ensure optimal filter performance:

• Read and follow use instructions before installation and use of this system.

• Installation and use MUST comply with all state and local plumbing codes.

• Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi, you must install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.

• Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.

• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 100º F (38º C).

• Protect filter from freezing. Drain filter when temperatures drop below 33ºF (0.6ºC).

a noticeable reduction in water flow rate.

lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding. Capacity 170 Gallons (643.5 Liters). Contaminant Reduction Determined by NSF testing. Substance Tested for Reduction Average Influent NSF specified Challenge Concentration Avg % Reduction Average Product Water Concentration Max Permissible Product Water Concentration NSF Reduction Requirements NSF Test Report Chlorine Taste and Odor 2.0 mg/L 2.0 mg/L ± 10% 97.4% 0.05 mg/L N/A ≥50% J-00102044 Nominal Particulate Class I, , ≥0.5 to < 1.0 μm 7,633,333 pts/mL At least 10,000 particles/mL 99.0% 71,850 pts/ml N/A ≥85% J-00106249 Asbestos 109 MFL

• For this special case, locate the 2 wall holes identified in Fig. 2. Drill an angled 1/8” (3 mm) pilot hole (approx. as shown in Fig. 3) in the center of each hole.

all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Extended Warranties In the U.S.: GEAppliances.com Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133 Parts and Accessories In the U.S.: GEApplianceParts.com Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616. Contact Us In the U.S.: GEAppliances.com If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225 In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3 Register Your Appliance In the U.S.: GEAppliances.com

5HJLVWHU\RXUQHZDSSOLDQFHRQOLQH³DW\RXUFRQYHQLHQFH7LPHO\SURGXFWUHJLVWUDWLRQZLOODOORZIRUHQKDQFHG

communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca Printed in United States
