progress 13CONTENTS Safety instructions 14 Product description 16 Control panel 16 Programmes 17 Options 17 Before first use 18 Daily use 20 Hints and tips 21 Care and cleaning 22 Troubleshooting 23 Technical information 24 Environment concerns 25 Subject to change without notice. SAFETY INSTRUCTIONS Before the installation and use of the appli- ance, carefully read the supplied instruc- tions. The manufacturer is not responsible if an incorrect installation and use causes in- juries and damages. Always keep the in- structions with the appliance for future ref- erence. Children and vulnerable people safety Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a per- son who is responsible for their safety. Do not let children play with the appli- ance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door when it is open. Installation

• Remove all the packaging.

• Do not install or use a damaged appli- ance.

• Do not install or use the appliance where the temperature is less than 0 °C.

• Obey the installation instruction supplied with the appliance.

• Make sure that the appliance is installed below and adjacent to safe structures. Water connection

• Make sure not to cause damage to the water hoses.

• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.

• The first time you use the appliance, make sure that there is no leakage.

• The water inlet hose has a safety valve and a sheath with an inner mains cable. Warning! Dangerous voltage.

• If the water inlet hose is damaged, imme- diately disconnect the mains plug from the mains socket. Contact the service to replace the water inlet hose. Electrical connection Warning! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shock- proof socket.

• Do not use multi-plug adapters and ex- tension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Con- tact the Service or an electrician to change a damaged mains cable.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. 14 progress• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. Use

• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments – Farm houses – By clients in hotels, motels and other residential type environments – Bed and breakfast type environments. Warning! Risk of injury.

• Do not change the specification of this appliance.

• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.

• Do not keep the appliance door open without supervision to prevent to fall on it.

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous. Obey the safety instructions on the deter- gent packaging.

• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appli- ance until the programme is completed. There can be detergent on the dishes. Warning! Risk of electrical shock, fire or burns.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not use water spray and steam to clean the appliance.

• The appliance can release hot steam if you open the door while a programme operates. Customer Care and Service Contact the Service to repair the appliance. We recommend only the use of original spare parts. When you contact the Service, ensure that you have the following information that is available on the rating plate. Model : PNC : Serial Number : Disposal Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and dispose of it.

• Remove the door catch to prevent chil- dren and pets to get closed in the appli- ance. progress 15PRODUCT DESCRIPTION

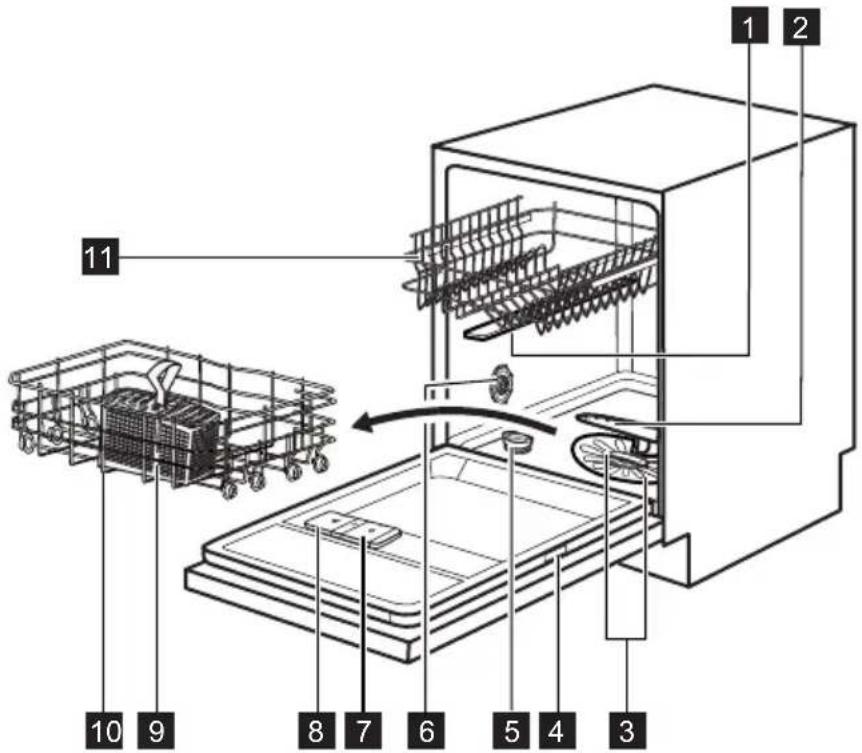

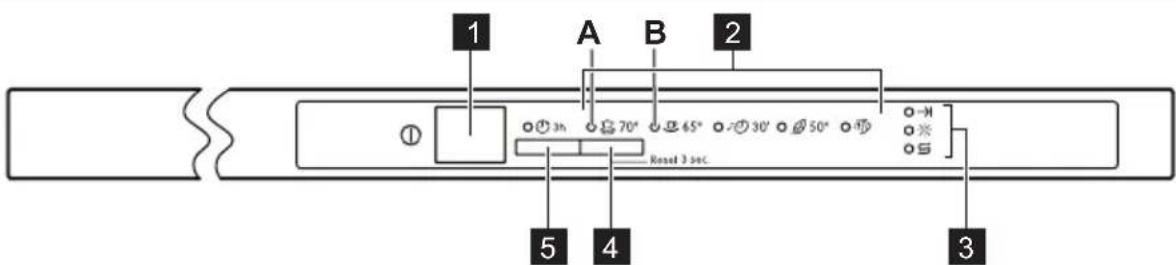

Delay button Indicators Description End indicator. Rinse aid indicator. This indicator is off while the programme operates. Salt indicator. This indicator is off while the programme operates. 16 progressPROGRAMMES Programme

Degree of soil Type of load Programme phases Duration (min) Energy (kWh) Water (l)

Heavy soil Crockery, cutlery, pots and pans Prewash Wash 70 °C Rinses Dry

85 - 95 1.8 - 2.0 22 - 25

Normal soil Crockery and cut- lery Prewash Wash 65 °C Rinses Dry

Fresh soil Crockery and cut- lery Wash 60 °C Rinse

Normal soil Crockery and cut- lery Prewash Wash 50 °C Rinses Dry

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of

dishes can change the programme duration and the consumption values.

2) This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the

temperature stays at 70 °C for 10 to 14 minutes.

3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

4) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery

with normal soil. (This is the standard programme for test institutes).

5) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad

odours to come out from the appliance. Do not use detergent with this programme. Information for test institutes For all the necessary information for test performance. send an email to: info.test@dishwasher-production.com Write down the product number (PNC) that is on the rating plate. OPTIONS Acoustic signals The acoustic signals operate in these con- ditions:

• When the programme is completed.

• A malfunction occurs to the appliance. Factory setting: on. You can deactivate the acoustic sig- nals. Deactivating the acoustic signals

1. Press the on/off button to activate the

2. Make sure that the appliance is in set-

ting mode. Refer to ‘SETTING AND STARTING A PROGRAMME’.

3. Press and hold the programme button

until the programme indicator (A) flashes and the programme indicator (B) comes on.

4. Press immediately the programme but-

• The programme indicator (A) comes on with a fixed light.

• The programme indicator (B) starts to flash.

5. Wait until the programme indicator (A)

goes off and the end indicator comes on (the programme indicator (B) contin- ues to flash).

• The acoustic signals are on. progress 176. Press the programme button. The end indicator goes off.

• The acoustic signals are off.

7. Deactivate the appliance to confirm the

setting. Activating the acoustic signals

1. Refer to ‘Deactivating the acoustic sig-

nals’, step (1) through (4).

2. Wait until the programme indicator (A)

goes off. The end indicator is off and programme indicator (B) continues to flash.

• The acoustic signals are off.

• The acoustic signals are on.

4. Deactivate the appliance to confirm the

1. Make sure that the set level of the water

softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water au- thority to know the water hardness in your area.

4. Open the water tap.

5. Processing residues can stay in the ap-

pliance. Start a programme to remove them. Do not use detergent and do not load the baskets. Adjusting the water softener Water hardness Water softener adjustment German degrees (°dH) French degrees (°fH) mmol/l Clarke degrees Manual Elec- tronic

2) Do not use salt at this level.

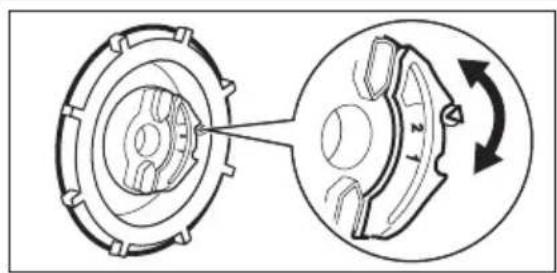

You must adjust the water softener manually and electronically. 18 progressManual adjustment Turn the water hardness dial to the position 1 or 2. Electronic adjustment

1. Press the on/off button to activate the

2. Make sure that the appliance is in set-

ting mode. Refer to ‘SETTING AND STARTING A PROGRAMME’.

3. Press and hold the programme button

until the programme indicator (A) starts to flash and the programme indicator (B) comes on.

4. Wait until the programme indicator (B)

goes off and the end indicator starts to flash (the programme indicator (A) con- tinues to flash).

5. Press the programme button.

• The end indicator flashes intermittent- ly. The number of flashes shows the level of the water softener, e.g. 5 flashes + pause + 5 flashes = level 5.

6. To adjust the level of the water softener,

press the programme button. Each time you press the programme button you go to the next level.

7. Deactivate the appliance to confirm the

setting. Filling the salt container

1. Turn the cap counterclockwise and

open the salt container.

2. Put 1 litre of water in the salt container

(only for the first time).

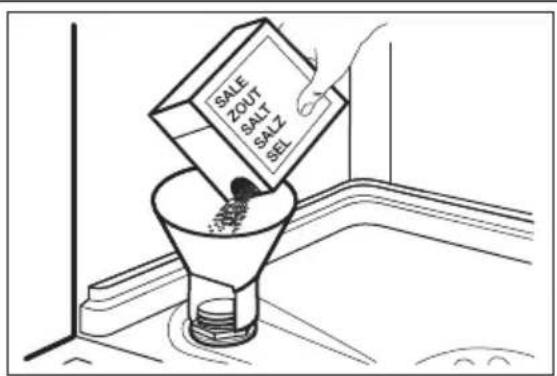

3. Fill the salt container with dishwasher

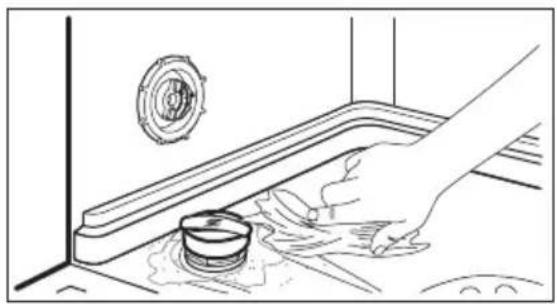

4. Remove the salt around the opening of

5. Turn the cap clockwise to close the

salt container. Caution! Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a pro- gramme. progress 19Filling the rinse aid dispenser

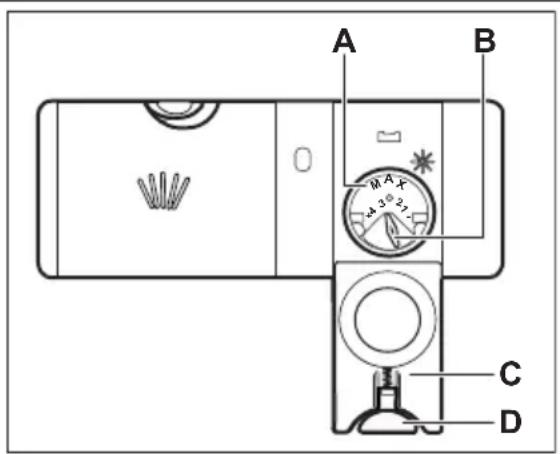

1. Press the release button (D) to open

than the mark 'max'.

3. Remove the spilled rinse aid with an

absorbent cloth to prevent too much foam.

4. Close the lid. Make sure that the re-

lease button locks into position. You can turn the selector of the re- leased quantity (B) between position 1 (lowest quantity) and position 4 (high- est quantity). DAILY USE

1. Open the water tap.

2. Press the on/off button to activate the

appliance. Make sure that the appliance is in setting mode, refer to ’SETTING AND STARTING A PROGRAMME’.

• If the salt indicator is on, fill the salt container.

• If the rinse aid indicator is on, fill the rinse aid dispenser.

3. Load the baskets.

4. Add the detergent.

5. Set and start the correct programme for

the type of load and the degree of soil. Using the detergent

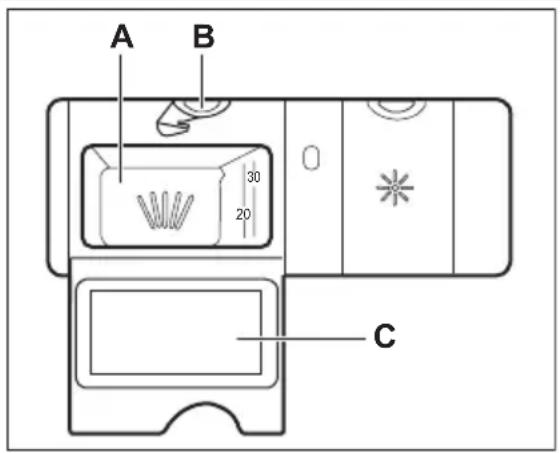

1. Press the release button (B) to open

2. Put the detergent in the compartment

3. If the programme has a prewash

phase, put a small quantity of deter- gent on the inner part of the appliance door.

4. If you use detergent tablets, put the

tablet in the compartment (A).

5. Close the lid. Make sure that the re-

lease button locks into position. Setting and starting a programme Setting mode The appliance must be in setting mode to accept some operations. The appliance is in setting mode when, af- ter the activation, all the programme indica- tors are off and the end indicator flashes. If the control panel shows other conditions, press and hold the programme button until the appliance is in setting mode. Starting a programme without delay start

1. Open the water tap.

2. Press the on/off button to activate the

appliance. Make sure that the appliance is in setting mode.

3. Press continuously the programme but-

ton until the indicator of the programme you want to set comes on.

4. Close the appliance door. The pro-

gramme starts. Starting a programme with delay start

1. Set the programme.

20 progress2. Press the delay button to delay the start of the programme of 3 hours. The delay indicator comes on.

3. Close the appliance door. The count-

• When the countdown is completed, the programme starts. Opening the door while the appliance operates If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption. Cancelling the delay start while the countdown operates

1. Open the appliance door.

2. Press the delay button, the delay indica-

3. Close the appliance door. The pro-

gramme starts. Cancelling the programme

1. Open the appliance door.

2. Press and hold the programme button

until the indicator of the set programme goes off and the end indicator flashes. Make sure that there is detergent in the detergent dispenser before you start a new programme. At the end of the programme When the programme is completed, an in- termittent acoustic signal operates and the end indicator comes on.

1. Press the on/off button to deactivate the

2. Close the water tap.

• Let the dishes become cold before you remove them from the appli- ance. Hot dishes can be easily dam- aged.

• First remove the items from the lower basket, then from the upper basket.

• There can be water on the sides and on the door of the appliance. Stain- less steel becomes cool more quick- ly than the dishes.

The water softener Hard water contains a high quantity of min- erals that can cause damage to the appli- ance and bad washing results. The water softener neutralises these minerals. The dishwasher salt keeps the water soft- ener clean and in good conditions. It is im- portant to set the right level of the water softener. This makes sure that the water softener uses the correct quantity of dish- washer salt and water. Loading the baskets Refer to the supplied leaflet with exam- ples of the load of the baskets.

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.

• To remove easily remaining burned food, soak pots and pans in water before you put them in the appliance.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.

• Make sure that glasses do not touch oth- er glasses.

• Put the small items in the cutlery basket.

• Put the light items in the upper basket. Make sure that they do not move.

• Make sure that the spray arms can move freely before you start a programme. Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.

• The rinse aid helps, during the last rinsing phase, to dry the dishes without streaks and stains.

• Combi detergent tablets contain deter- gent, rinse aid and other added agents. progress 21Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.

• Detergent tablets do not fully dissolve with short programmes. To prevent de- tergent residues on the tableware, we recommend that you use the tablets with long programmes. Do not use more than the correct quantity of detergent. Refer to the in- structions on the detergent packaging. Before starting a programme Make sure that:

• The filters are clean and correctly instal- led.

• The spray arms are not clogged.

• The position of the items in the baskets is correct.

• The programme is applicable for the type of load and for the degree of soil.

• The correct quantity of detergent is used.

• There is dishwasher salt and rinse aid (unless you use combi detergent tablets).

• The cap of the salt container is tight.

Warning! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Dirty filters and clogged spray arms de- crease the washing results. Make a check regularly and, if neces- sary, clean them. Cleaning the filters

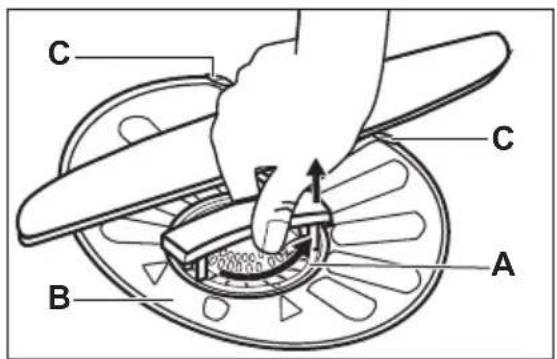

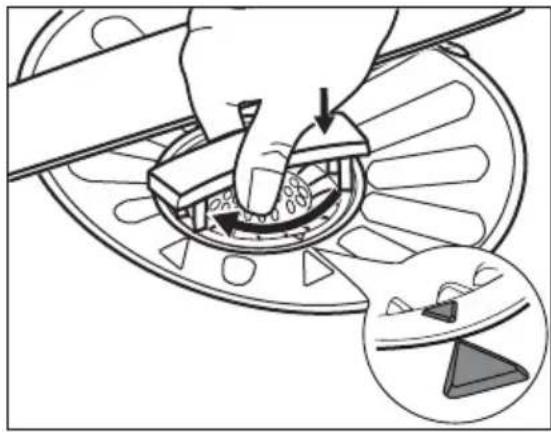

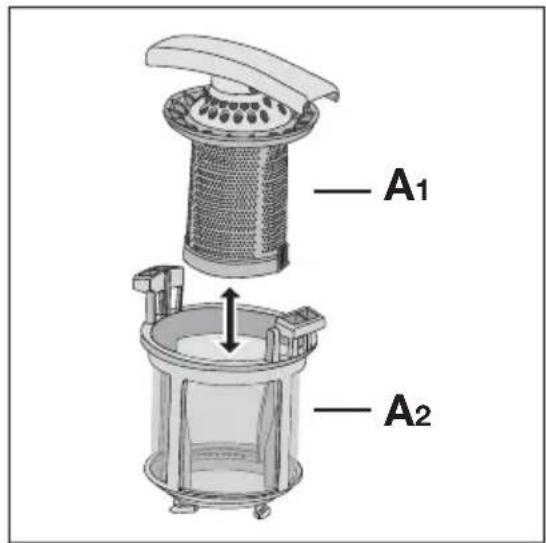

1. Turn the filter (A) counterclockwise and

2. To disassemble the filter (A), pull apart

3. Remove the filter (B).

4. Wash the filters with water.

5. Put the filter (B) to its initial position.

Make sure that it assembles correctly under the two guides (C). 22 progress6. Assemble the filter (A) and put it into position in filter (B). Turn it clockwise until it locks. An incorrect position of the filters can cause bad washing results and dam- age to the appliance. Cleaning the spray arms Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object. External cleaning Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents. TROUBLESHOOTING The appliance does not start or it stops during operation. Before you contact the Service, refer to the information that follows for a solution to the problem. With some problems, different indica- tors flash continuously or intermittently at the same time to show an alarm code. Alarm code Problem

• The start indicator flashes continuously.

• The end indicator flashes 1 time intermittently. The appliance does not fill with water.

• The start indicator flashes continuously.

• The end indicator flashes 2 times intermittent- ly. The appliance does not drain the water.

• The start indicator flashes continuously.

• The end indicator flashes 3 times intermittent- ly. The anti-flood device is on. Warning! Deactivate the appliance before you do the checks. Turn the programme knob until the programme marker is aligned with the on/off indicator. Problem Possible solution You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket. Make sure that there is not a damaged fuse in the fuse box. The programme does not start. Make sure that the appliance door is closed. If the delay start is set, cancel the setting or wait for the end of the countdown. The appliance does not fill with water. Make sure that the water tap is open. progress 23Problem Possible solution Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority. Make sure that the water tap is not clogged. Make sure that the filter in the inlet hose is not clogged. Make sure that the inlet hose has no kinks or bends. The appliance does not drain the water. Make sure that the sink spigot is not clogged. Make sure that the drain hose has no kinks or bends. The anti-flood device is on. Close the water tap and contact the Service. After the checks are completed, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Service. If other alarm codes appear, contact the Service. If the washing and drying results are not satisfactory Whitish streaks or bluish layers on glasses and dishes

• The released quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position.

• The quantity of detergent is too much. Stains and dry water drops on glasses and dishes

• The released quantity of rinse aid is not sufficient. Adjust the rinse aid selector to a higher position.

• The quality of the detergent can be the cause. Dishes are wet

• The programme is without a drying phase or with a low temperature drying phase.

• The rinse aid dispenser is empty.

Cold water or hot water

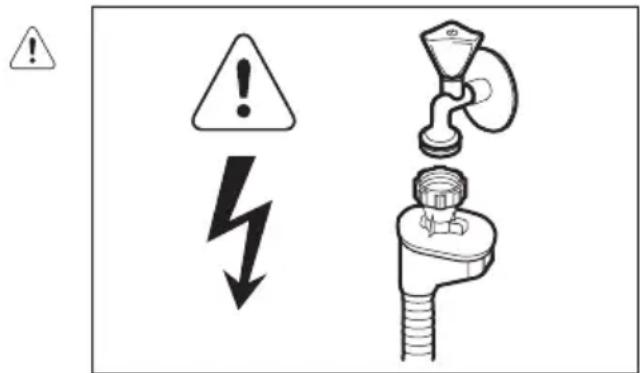

1) Connect the water inlet hose to a water tap with a 3/4'' thread.

2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water

supply to decrease energy consumption. 24 progressENVIRONMENT CONCERNS The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

• Discard correctly the packaging material. Recycle the materials with the symbol
