USER MANUAL MDB8979SFZ MAYTAG

THANK YOU for purchasing this high-quality product. Register your new dishwasher at www.maytag.com. In Canada, visit our website at www.maytag.ca.

For future reference please make a note of your product model and serial numbers. These can be located near the door on the right-hand or left-hand side of the dishwasher interior.

Model Number.

Serial Number

TABLE OF CONTENTS

DISHWASHER SAFETY 1

QUICK STEPS 3

DISHWASHER USE 3

CYCLE AND OPTION DESCRIPTIONS. 6

DISHWASHER FEEDBACK SECTION 8

DISHWASHER FEATURES. 8

DISHWASHER CARE 9

TROUBLESHOOTING. 10

WARRANTY 13

Dishwasher Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher.
Use the dishwasher only for its intended function.
Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and
2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
• Do not touch the heating element during or immediately after use.
• Do not operate the dishwasher unless all enclosure panels are properly in place.

Do not tamper with controls.
- Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
To reduce the risk of injury, do not allow children to play in or on the dishwasher.
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
- Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

State of California Proposition 65Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

Quick Steps

Prepare and load dishwasher.

3 Select a cycle and option (cycles and options vary by model)

PowerBlast auto normal quick rinse

hi tems anitize heated dry PowerDry

control lock hold 3 sec

start resume
cancel/drain hold 3 sec

The full lit display will glow for Wash (A), Dry (B), Lock (C), and Sanitized or Clean.

2 Add detergent and rinse aid.

4 Start dishwasher.

Dishwasher Use

STEP1

Prepare and Load the Dishwasher

IMPORTANT: Remove leftover food, bones, toothpicks and other hard items from the dishes. Remove labels from containers before washing.

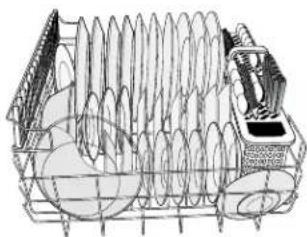

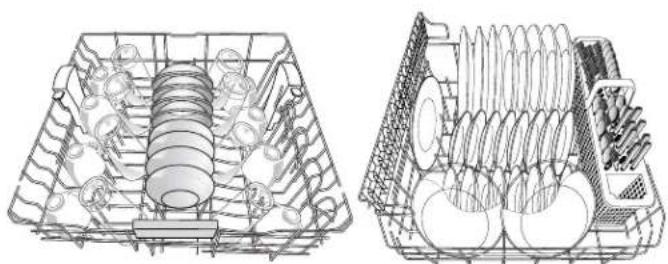

8 Place loading pattern

Upper rack Lower rack

10 Place loading pattern

Upper rack Lower rack

■Fresh automatic dishwasher detergent results in better cleaning.
Store tightly closed detergent container in a cool, dry place.

12 Place loading pattern

Upper rack Lower rack

Make sure nothing keeps spray arm(s) from spinning freely. It is important for the water spray to reach all soiled surfaces.
Make sure that when the dishwasher door is closed no items are blocking the detergent dispenser.
- Items should be loaded with soiled surfaces facing down and inward to the spray as shown. This will improve cleaning and drying results.
Avoid overlapping items like bowls or plates that may trap food.
Place plastics, small plates and glasses in the upper rack. Wash only plastic items marked "dishwasher safe."
To avoid thumping/clattering noises during operation: Load dishes so they do not touch one another. Make sure lightweight load items are secured in the racks.
When loading silverware, always place sharp items pointing down. Mix other items pointing up and some pointing down.

STEP2

Add Detergent

NOTE: If you do not plan to run a wash cycle soon, run a rinse cycle. Do not use detergent.

Use automatic dishwasher detergent only. Add detergent just before starting a cycle.

Premeasured Detergents (dispenser varies by model)

Many detergents now come in several forms (gel packs, tablets, or powder packs).

It is recommended to use tablets and packs for convenience and improved performance. They have been proven better than powder, liquid or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film. Also, by using a rinse aid, you can minimize repeat buildup of white film. These forms are suitable for all hardness and soil levels. Always place detergents in the main compartment and slide lid to close.

To close lid

Place selected detergent in the dispenser. Place finger, as shown, and slide lid closed. Press firmly until it clicks.

To open lid

Push OPEN and the lid will slide open.

Powders and Gels

The amount of detergent to use depends on:

How much soil remains on the items - Heavily soiled loads require more detergent.

The hardness of the water - If you use too little in hard water, dishes won't be clean. If you use too much in soft water, glassware will etch.

Soft to Medium Water (0-6 grains per U.S. gallon) [typical water softener water and some city water] Medium to Hard Water (7-12 grains per U.S. gallon) [well water and some city water]

Depending on your water hardness, fill the Main Wash section of the dispenser as shown. Fill the Pre-Wash section to the level shown, if needed.

NOTE: Fill amounts shown are for standard powdered detergent. Follow instructions on the package when using other dishwasher detergent types.

STEP3

Add Rinse Aid (Dispenser varies by model)

■Your dishwasher is designed to use rinse aid for good drying performance. Without rinse aid your dishes and dishwasher interior will have excessive moisture. The Heat Dry option will not perform as well without rinse aid.
Rinse aid keeps water from forming droplets that can dry as spots or streaks. They also improve drying by allowing water to drain off of the dishes after the final rinse.
■Rinse aid helps to reduce excess moisture on the dish racks and interior of your dishwasher.

Check the rinse aid indicator. (varies by model) Add rinse aid when indicator drops to "Add" level.

To add rinse aid, turn the dispenser cap to "Open" and lift off. Pour rinse aid into the opening until the indicator level is at "Full." Replace the dispenser cap and turn to "Lock." Make sure cap is fully locked.

On some models, add rinse aid by opening the rinse dispenser lid by gently pushing in the center of the lid with your thumb and pulling up on the edge. Pour rinse aid into the opening until the dispenser is full. Then, close the dispenser by pushing down gently on the lid.

NOTE: For most water conditions, the factory setting will give good results. If you have hard water or notice rings or spots, try a higher setting. Turn the arrow adjuster inside the dispenser by either using your fingers or inserting a flat-blade screwdriver into the center of the arrow and turning.

1234

STEP4

Select a Cycle (cycles vary by model)

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves gas. Cycle times may increase or decrease depending on selections. Estimated cycle times after calibration are listed in the "Cycle and Options Descriptions" chart in the following section. Select the desired cycle by pressing the Cycles button. Each time you press the Cycles button it will advance to the next available cycle.

PowerBlast auto normal quick rinse

Select Options (options vary by model)

See the "Cycle and Option Descriptions" charts in the following section.

You can customize the cycles by pressing the options desired and pressing Start/Resume.

Follow the Progress of the Dishwasher.

Depending on the model, progress will be displayed by a full lit display or by an indicator light on the front panel.

The full lit display will glow for Wash (A), Dry (B), Lock (C), Sanitized, or Clean. It will also show the estimated remaining time for the cycle in hours and minutes.

0

When delay is selected, the full lit display will show an "H" for hour and the number of hours to delay.

The indicator light will glow blue for wash, red for dry, or green for cycle complete.

STEP5

Start or Resume a Cycle

NOTE: Run hot water at the sink nearest your dishwasher until the water is hot. Turn off water.

If Start/Resume button is located on top of door, push door firmly closed within 4 seconds of pressing Start/Resume. If door is not closed within 4 seconds, the Start button light will flash, an audible tone will be heard (on top control models), and cycle will not start.

IMPORTANT: If anyone opens the door (such as, adding a dish, even during the Delay Hours option), Start/Resume button must be pressed each time.

If the Start/Resume button is located on front of door, push door firmly closed. The door latches automatically. Select the wash cycle, options and press START/RESUME or press START/RESUME to repeat the same cycle and options as in previous wash cycle.

Cycle and Option Descriptions

PowerBlast auto normal quick rinse

hi tems anitize heated dry PowerDry

This information covers several different models. Your dishwasher may not have all of the cycles and options described.

CYCLES ESTIMATED		WASH TIME DISPLAYED	WATER USAGE GALLONS (LITERS)
PowerBlastTM	Targets toughest food soils. Use for hard-to-clean heavily soiled pots, pans, casseroles, and tableware.	3:28 9.0 (34.0)
auto	Load and soil sensing cycle. This cycle is optimized to achieve best cleaning with minimal water and energy for all soil levels.	2:03 4.5 (16.9)
normal	This cycle with only the Heated Dry option selected, and without other options selected, is recommended to completely wash and dry a full load of normally soiled dishes. The energy usage label is based on this cycle and option combination.	1:51 3.8 (14.5)
quick	For fast results, this cycle will clean light to medium soiled dishes, but use slightly more water and energy. For improved drying, select a heated dry option.	:59 5.5 (20.9)
rinse	Use for rinsing dishes, glasses, and silverware that will not be washed right away. Do not use detergent. During cycle, the rinse action will repeatedly pause for several seconds.	:11 1.3 (4.9)

*Cycle times may increase depending on water temperature, heavy soil condition, dish load size and options selected. Adding options will add time to cycle. See options information.

	OPTIONS CAN BE	SELECTED WITH	WHAT IT DOES ADDED TIME TO CYCLE		ADDED WATER GALLONS (LITERS)
delay	Runs dishwasher at a later time or during off-peak electrical hours. Select a wash cycle and options. Press DELAY one time for each additional hour of delay up to 24 hours. Press START/RESUME. Close door firmly. NOTE: Anytime door is opened (such as, to add a dish), The Start/Resume button must be pressed again to resume delay countdown.	Available with any cycle	Delays start of a cycle up to 24 hours.	NA NA
hitemp	Raises main wash temperature to improve cleaning for loads containing tough, baked-on food.	Auto PowerBlast™ Normal	Raises main wash temperature from 105°F (41°C) to 129°F (54°C).	:04 to 1:16 0-1.2	(0-4.5)

OPTIONS CAN BE		SELECTED WITH	WHAT IT DOES ADDED TIME TO CYCLE	ADDED WATER GALLONS (LITERS)
sanitize control lock hold 3 sec	Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certified dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. At end of the cycle, the sanitized indicator or word "sanitized", on some models, will glow. If your load did not properly sanitize, the indicator will flash at the end of the cycle. This can happen if the cycle is interrupted, or if the water does not reach the required temperature. The light goes off when you open and close the door or press CANCEL.	Auto PowerBlastTM Normal	Increased main wash temperature from 105°F (41°C) to 145°F (63°C) and final rinse from 140°F (60°C) to 156°F (69°C).	:04 to 1:15 0-3.0 (0-11.2)
heated dry PowerDry	Dries dishes with heat and the fan (on some cycles). Use this option with rinse aid. Plastic items are less likely to deform when loaded in top rack. Turn option off for an air dry. NOTE: The fan may run for 1 hour after the cycle ends for some cycle/option selections. The fan can be stopped by opening the door or pressing any key on the console. Dries dishes with heat and the fan (on some cycles). Use this option, with rinse aid, to get the best drying results. Plastic items are less likely to deform when loaded in top rack. NOTE: The fan may run for 1 hour after the cycle ends for some cycle/option selections. The fan can be stopped by opening the door or pressing any key on the console.	Auto PowerBlastTM Normal Quick	Uses heating element and the fan (with some cycles) to speed drying times.	:12 to :46 0
CONTROL PURPOSE COMMENTS
cancel/drain start resume	Press to start or resume a wash cycle	If the door is opened during a cycle or power is interrupted, Start/Resume indicator flashes. Cycle will not resume until door is closed and Start/Resume is pressed. NOTE: If Start/Resume button is located on top of door, push door firmly closed within 4 seconds of pressing Start/Resume. If door is not closed within 4 seconds, start button light will flash, an audible tone will be heard (on some top control models), and cycle will not start.
cancel/drain start resume	Cancelels wash cycle.	Press and hold CANCEL/DRAIN for 3 seconds to cancel the wash cycle. The dishwasher starts a 3-minute drain (if needed). Let dishwasher drain completely.
sanitize control lock hold 3 sec	Use Control Lock to avoid unintended use of dishwasher between cycles, or cycle and option changes during a cycle.	To turn on Lock, press and hold SANITIZE for 3 seconds. Control Lock light will stay on for a short time, indicating that it is activated and all buttons are disabled. If you press any button while the dishwasher is locked, light flashes 3 times. Dishwasher door can still be opened/closed while controls are locked. To turn off Lock, press and hold SANITIZE for 3 seconds. Light turns off. NOTE: If the model requires you to press and hold Sanitize to lock controls, Control Locked LED(C) will be on or off to indicate whether Control Lock is active or not.

Dishwasher Feedback Section

CONTROL PURPOSE COMMENTS

To follow the progress of the dishwasher cycle

Depending on the model, progress will be displayed by a full lit display or by an indicator light on the front panel.

The full lit display will glow for Wash (A), Dry (B), Sanitized or Clean. It will also show the estimated remaining time for the cycle.

The indicator light will glow blue for wash, red for dry, and green for cycle complete.

Canceling A Cycle

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop before completely opening the door.
2. Press and hold START/RESUME button for 4 seconds. The Cancel/Drain light will light up.
3. Close the door, and the dishwasher starts a drain cycle (if water remains in bottom of dishwasher). Let the dishwasher drain completely. The Cancel/Drain light turns off after 3 minutes.

Changing A Cycle After Dishwasher Is Started

1. You can interrupt a cycle and restart the dishwasher from the beginning using the following procedure.

2. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.

3. Check that detergent dispenser cover is still closed. If cover is open, you will need to refill the detergent dispenser before restarting the new cycle.

4. Press CANCEL/DRAIN to reset the control.
5. Select new cycles and options.
6. Press START/RESUME.

Adding A Dish After Dishwasher Is Started

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.
2. Check whether the detergent dispenser cover is still closed. If it is open, the wash cycle has already started and adding a dish is not recommended.
3. If detergent has not yet been used (detergent dispenser cover is closed), you may add a dish.
4. Press START/RESUME.

Dishwasher Features

Your Maytag dishwasher may have some or all of these features.

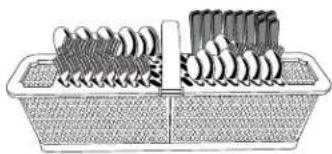

Silverware Basket

Use suggested loading patterns, as shown, to better clean the silverware.

10 place loading pattern

Use the slots in the cover to keep the silverware separated for optimum wash.

If the silverware does not fit into the designated slots, slide the covers outward to remove them and mix silverware types to keep them separated.

Load knives down, forks up, and alternate spoons for best cleaning results.

Folding Tines

The Folding Tines located in the back left corner (lower rack) provide convenient loading space for large, bulky items such as pots, pans and mixing bowls.

To lower the tines:

Gently push the tines out of each holder toward the center and lay the tines down.

Cup Clips

The Cup Clips located in the upper rack can be used to hold lightweight plastic items, cooking utensils and knives in place. Clip the item between the tine and the clip.

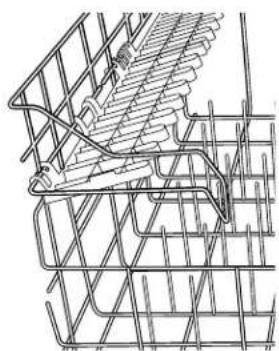

Stack-Rack Shelves

Increase loading flexibility - items such as casserole dishes stay stable while the folding shelf allows you to load smaller items on top.

Cup Shelf

Fold down the extra shelf on the left-hand or right-hand side of the top rack to hold additional cups, stemware, or long items such as utensils and spatulas.

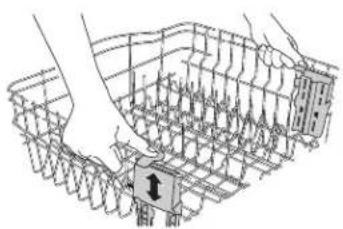

Adjustable Upper Racks

The Adjustable Upper Rack can be raised or lowered to accommodate taller plates, platters, pots or pans in the upper or lower racks. Full size dinner plates can be loaded in the upper rack if it is in the lower position.

NOTE: Always unload racks before adjusting.

To raise the rack, press both rack adjusters and lift the rack until it is in the up position and level.

To lower the rack, press both rack adjusters and slide the rack back to its lower position.

Removable Upper Rack

The removable rack allows you to wash larger items such as stock pots, roasters and cookie sheets in the lower level rack.

IMPORTANT: Remove dishes prior to removing the upper rack from the dishwasher.

To remove the rack (push tab rack stop):

1. Roll the rack 13 to 12 of the way out of the tub.
2. Rotate the rack stops outward.
3. Roll the rack all the way out of the track and remove from the dishwasher.

To replace the rack:

Reverse the above steps 1-3 to replace the rack into the dishwasher.

CLEANING THE DISHWASHER

Cleaning the exterior

Clean the exterior of the dishwasher with a soft, damp cloth and mild detergent. If the dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended - Stainless Steel Cleaner and Polish Part Number 31464.

Cleaning the interior

Clean the interior of the dishwasher, with a paste of powdered dishwasher detergent and water or use liquid dishwasher detergent on a damp sponge to clean the cooled-down interior.

A white vinegar rinse may remove white spots and film. Vinegar is an acid, and using it too often could damage the dishwasher.

Put 2 cups (500~mL) white vinegar in a glass or dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water.

Dishwasher maintenance procedure

Removal of hard water/filming: We recommend to use a monthly maintenance product such as affresh® Dishwasher Cleaner Part Number W10282479.

• Load the dishwasher (preferably with dishes affected by filming/hard water).
  Place tablet in main wash compartment of detergent dispenser.
• Select cycle/option best for heavily soiled dishes and start dishwasher.

NOTE: It is recommended to use a premeasured detergent tablet or pack for regular daily use.

Drain air gap

If you have a drain air gap, check and clean it if the dishwasher isn't draining well.

To reduce risk of property damage during vacation or extended time without use

When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.
Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to the dishwasher or home. Damage from freezing is not covered by the warranty.
- When storing the dishwasher in the winter, avoid water damage by having the dishwasher winterized by authorized service personnel.

Troubleshooting

First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual and scan the code with your mobile device, or visit www.maytag.com/product_help. In Canada, visit www.maytag.ca.

Contact us by mail with any questions or concerns at the address below:

In the U.S.A.:

Maytag Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in the correspondence.

In Canada:

Maytag Brand Home Appliances

Customer eXperience Centre

200-6750 Century Ave.

Mississauga, Ontario L5N 0B7

PROBLEM SOLUTION

DISHWASHER DOES NOT RUN OR STOPS DURING A CYCLE	NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle. Is the door closed tightly and latched? Is the right cycle selected? Is there power to the dishwasher? Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Has the motor stopped due to an overload? The motor automatically resets itself within a few minutes. If it does not restart, call for service. Is the water shutoff valve (if installed) turned on?
DETERGENT REMAINS IN THE DISPENSER OR TABLET IS ON BOTTOM OF TUB	Check for dishware such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly. Be sure the detergent is fresh and lump free. Be sure the cycle has been completed (green light is on). If it has not been completed, you will need to resume the cycle by pressing Start/Resume and closing the door within 4 seconds.
CYCLE RUNS TOO LONG NOTES: ■ Efficient dishwashers run longer to save water and energy. Cycle times may increase depending on selections (See "Cycles and Options Descriptions" for estimated cycle times.) ■ A water heater setting of 120°F (49°C) is best. The dishwasher will delay longer while heating cooler water. Try the Quick Wash cycle. Run the hot water at a faucet close to the dishwasher before starting the cycle.
DISHWASHER NOT DRYING	NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface, which tends to collect water droplets. Towel drying may be necessary. Use of rinse aid along with the Heated Dry and Sanitize option will provide the best drying and avoid excess moisture in the dishwasher interior. Proper loading of items can affect drying. (See specific loading instructions within this guide.) Adjust your rinse aid dispenser to a higher setting allowing a larger amount of rinse aid to dispense. (See "Add Rinse Aid" in the "Dishwasher Use" section.) Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading. ■Unload the bottom rack first. ■Place these items on the more slanted side of the rack for improved results.

WILL NOT FILL Be sure the water is turned on to the dishwasher.

Check that the float is free from obstructions.

Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate properly or may not fill with water.

WATER REMAINS IN THE TUB/ WILL NOT DRAIN

Be sure the cycle has been completed (the green light is on). If the cycle has not been completed, you will need to resume the cycle by pressing Start/Resume and closing the door within 4 seconds.

If dishwasher is connected to a food waste dispenser, be sure the knockout plug has been removed from the dispenser inlet.

Check for kinks in the drain hose.

Check for food obstructions in the drain or garbage dispenser.

Check the house fuse or circuit breaker.

PROBLEM SOLUTION
HARD WATER (WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)	NOTE: Extremely hard water mineral deposits can cause damage to the dishwasher and make it difficult to achieve good cleaning. A water softener is strongly recommended if the hardness is 15 grains or more. If a water softener is not installed, the following steps may help: Use a commercial cleaner designed for dishwashers once per month. Always use a rinse aid. Always use a high-quality, fresh detergent. Use a detergent booster/water softener additive designed for dishwashers.
ODORS	NOTE: If the dishwasher is not used daily, you can run a rinse cycle with the partial load until a full load is ready to run. Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a normal cycle with the Heated Dry option turned off. Do not use detergent. The dishwasher may not be draining properly. See the section "Water Remains In The Tub/Will Not Drain" in "Troubleshooting."
NOISES NOTES:	Surging sounds can occur periodically throughout the cycle while the dishwasher is draining. Normal water valve hissing may be heard periodically. A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle. Improper installation will affect noise levels. Be sure the filters are properly installed. A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.
FOOD SOILS REMAIN ON DISHES	Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance. See "Prepare and Load the Dishwasher" in the "Dishwasher Use" section. Select the proper cycle and option for the type of soils. PowerBlastTM with the Sanitize option can be used for tougher loads. Be sure the incoming water temperature is at least 120°F (49°C). Use the proper amount of fresh detergent. More detergent is needed for heavier-soiled loads and hard water conditions. Scrape food from dishes prior to loading (do not prerinse).
DID NOT SANITIZE	If the sanitized light is blinking, the load is NOT sanitized. The cycle was interrupted in the final rinse, or the water heater is set too low. Set the water heater to 120°F (49°C).
DAMAGE TO DISHWARE	Improper loading can cause dishes to become chipped or damaged. See specific loading instructions within this guide.
BLINKING LIGHTS	If the Start/Resume light is blinking, press START/RESUME and close the door within 4 seconds. If the Clean light or any other lights are blinking and the dishwasher will not run, call for service.
CLOUDY OR SPOTTED DISHWARE (AND HARD WATER SOLUTION)	NOTES: Liquid rinse aid is necessary for drying and to reduce spotting. Use the correct amount of detergent. Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. See "Hard Water (White Residue On Dishwasher Interior Or Glassware" in the "Troubleshooting" section. If it does not come clear, it is due to etching (see below). Be sure the incoming water temperature is set at 120°F (49°C). Try using the Hi Temp and Sani Rinse options. To remove spotting, run a vinegar rinse through the dishwasher. Wash and rinse the affected dishwasher and load into dishwasher. Remove all silverware and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack. Run a normal cycle with the Heated Dry option turned off. No detergent is needed.
ETCHING (PERMANENT CLOUDINESS)	This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot or from using too much detergent with soft water or by pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop pre-washing, and use water heating options only when incoming water temperature is below 120°F (49°C).
LEAKING WATER	Be sure dishwasher has been installed properly and is level. Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues. To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overfilling.
TUB IS DIScolORED NOTES:	■High iron content in the water can discolor the tub. ■Tomato-based foods can discolor the tub or dishware. A citrus-based cleaner can be used to clean.

MAYTAG DISHWASHER LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address and telephone number
■Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit https:// www.maytag.com/product_help.
2. All warranty service is provided exclusively by our authorized Maytag Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Maytag Customer eXperience Center

In the U.S.A., call 1-800-688-9900. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized Maytag dealer to determine whether another warranty applies.

https://www.maytag.com/product_help

TEN YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Maytag brand of Whirlpool Corporation or Whirlpool Canada, LP (hereafter "Maytag") will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

SECOND THROUGH TENTH YEAR LIMITED WARRANTY (CERTAIN COMPONENT PARTS ONLY - LABOR NOT INCLUDED)

In the second through tenth years from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Maytag will pay for factory specified parts for the following components to correct non-cosmetic defects in materials or workmanship in these parts that prevent function of this major appliance and that existed when this major appliance was purchased. This is a limited 10-year warranty on the below named parts only and does not include repair labor.

Upper and Lower Racks (excludes cup shelves and silverware basket)

Chopper Blade

Stainless Steel Tub and Inner Door Liner

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Maytag designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential or multiple-family use, or use inconsistent with published user, operator or installation instructions.

2. In-home Instruction on how to use your product

3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).

5. Defects or damage caused by the use of non-genuine Maytag parts or accessories.

6. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Maytag.

7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.

8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to Maytag within 30 days.

9. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

10. Pick-up or delivery. This product is intended for in-home repair.

11. Travel or transportation expenses for service in remote locations where an authorized Maytag servicer is not available.

12. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

13. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTYES

IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Maytag makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Maytag or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

hitemp sanitize heated dry PowerDry

control lock

hold 3 sec

k

start

resumeth

La pantalla totalmente iluminada se encenderá para lavado (A), secado (B), bloqueo (C), higienizzato o limpieza.

hi temp sanitize heated dry PowerDry

sanitize heated dry PowerDry

Ea.

Canasta superior removable

https://www.meantag.com/
product_help

hi tems anitize heated dry PowerDry

start

ock

m = 311

resume

hi tempr sanitize heated dry PowerDry

sanitize heated dry PowerDry

cancel/drain hold 3 sec

control lock hold 3 sec

Customer eXperience Centre

553 Benson Road

200-6750 Century Ave.

Benton Harbor, MI 49022-2692

Mississauga ON L5N 0B7
