PROTECTION AGREEMENTS Master Protection Agreements Congratulations on making a smart purchase. Your new Kenmore

product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation. The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes: ✔Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage— real protection. ✔Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can trust will be working on your product. ✔Unlimited service calls and nationwide service, as often as you want us, whenever you want us. ✔“No-lemon” guarantee – replacement of your covered product if four or more product failures occur within twelve months. ✔Product replacement if your covered product can’t be fixed. ✔Annual Preventive Maintenance Check at your request – no extra charge. ✔Fast help by phone – we call it Rapid Resolution – phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.” ✔Power surge protection against electrical damage due to power fluctuations. ✔$250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer. ✔Rental reimbursement if repair of your covered product takes longer than promised. ✔10% discount off the regular price of any non-covered repair service and related installed parts. Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online. The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today! Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 18008276655. *Coverage in Canada varies on some items. For full details call Sears Canada at 18003616665. Sears Installation Service For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 18004MYHOME

LIMITED WARRANTY When this appliance is installed, operated and maintained according to all supplied instructions, the following warranty coverage applies. To arrange for warranty service, call 18004MYHOME

(18004694663). ■ For two years from the date of purchase, any part of the dishwasher that fails due to defective materials or workmanship will be replaced free of charge. After the first year from purchase date, the customer assumes any labor costs associated with replacement of these parts. ■ For five years from the date of purchase, any part of the upper or lower dish rack that rusts due to defective materials or workmanship will be replaced free of charge. After the first year from purchase date, the customer assumes any labor costs associated with dish rack replacement. ■ If a leak ever occurs as a result of rust-through of the stainless steel tub or inner door panel, the tub or panel will be replaced free of charge. This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes. This warranty covers only defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use,

including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product

installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed,

operated or maintained according to the all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident,

abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of

detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from

unauthorized modifications made to this product. Disclaimer of implied warranties; limitation of remedies Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you. This warranty applies only while this appliance is used in the United States or Canada. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Sears Brands Management Corporation, Hoffman Estates, IL 60179 Sears Canada Inc., Toronto, Ontario, Canada M5B 2C34 DISHWASHER SAFETY You can be killed or seriously injured if you don'timmediately follow instructions. You can be killed or seriously injured if you don'tfollow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what canhappen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey allsafety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or“WARNING.” These words mean:

When using the dishwasher, follow basic precautions, including the following:

SAVE THESE INSTRUCTIONS

■ Read all instructions before using the dishwasher.■ Use the dishwasher only for its intended function.■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.■ When loading items to be washed:1) Locate sharp items so that they are not likely to damage the door seal; and2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.■ Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.■ Do not touch the heating element during or immediately after use.■ Do not operate the dishwasher unless all enclosure panels are properly in place.■ Do not tamper with controls.■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.■ To reduce the risk of injury, do not allow children to play in or on the dishwasher.■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it. State of California Proposition 65 Warnings:WARNING: This product contains one or more chemicals known to the State of California to cause cancer.WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.5 ■ Install where dishwasher is sheltered from the elements. Avoid possible rupture of fill valve from freezing. Such ruptures are not covered by the warranty. See “Storing” section for winter storage information. ■ Install and level dishwasher on a floor that will hold the weight, and in an area suitable for its size and use. ■ Remove all shipping plugs from hoses and connectors (such as the cap on the drain outlet) before installing. See Installation Instructions for complete information. Tip Over Hazard Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts. Electrical Shock Hazard Electrically ground dishwasher. Connect ground wire to green ground connector in terminal box. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.

For a grounded, cord-connected dishwasher: The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher: The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher. GROUNDING INSTRUCTIONS

Energy Performance Congratulations on purchasing your water and energy efficient dishwasher! This dishwasher cleans by spraying the dishes with water and pauses to allow the detergent to soak into and release the soils on the dishes. The cycles are longer due to the soak and the pauses for exceptional cleaning. Models with SmartWash

contain an optical water sensor. The optical water sensor is used to determine the optimum water and energy consumption for great cleaning performance. The first cycle using the sensor will run longer to calibrate the optical sensor. Rinse Aid Using rinse aid will optimize your drying and wash performance. This dishwasher is specifically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Energy efficient dishwashers use less water and energy, so they depend on the water “sheeting” action of rinse aid for total optimal performance. Detergent The United States has passed a restriction limiting the amount of phosphorus (phosphates) in the household dishwasher detergents to no more than 0.5%, where previous detergents contained 8.7%. Major manufacturers have reformulated their dishwasher detergent for this change in detergents as another step in eco-conscious awareness. With these recent changes it is recommended to use tablets and packs for convenience and improved performance. Filtration System Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy conservation while providing optimal cleaning performance. Regular maintenance of your filters will sustain peak cleaning performance. We suggest you clean both your upper and lower filter and rinse under running water at least once a month.

START-UP / QUICK REFERENCE (VARIES BY MODEL) ULTRACLEAN™ removable filters provide peak performance. Cleaning the filters periodically helps keep the dishwasher working at peak performance. The filters can be found at the bottom center of your dishwasher.See “ULTRACLEAN™ FILTRATION SYSTEM” for information on removing and maintaining the filters. IMPORTANT: Do not block detergent dispenser. Tall items placed in the lower rack may block the dispenser door. Cookie sheets and cutting boards loaded on the left-hand side of the dishwasher can easily block the dispenser. If detergent is inside of the dispenser or on the bottom of the tub after the cycle is complete, the dispenser was blocked. Drying - Rinse Aid is essential. You must use a drying agent such as rinse aid for good drying performance (sample included). Rinse aid along with the Heated Dry option will provide best drying and avoid excessive moisture in the dishwasher interior. 1 Hour Wash - When you need fast results. High Efficiency dishwashers run longer to save water and energy just as driving a car slower saves on gas. When you need fast results, the 1 Hour Wash will clean your dishes using slightly more water and energy. For improved drying, select the Heated Dry option to add additional time to dry. SmartWash

cycle SmartWash provides optimal results using only the amount of water and energy needed. The SmartWash and Pots & Pans cycles are recommended for tough soil. TURBOZONE

loading (on some models) When the URBOZONE option is selected, it provides a concentrated wash on the back of the lower dish rack for hard-to-clean dishes. Place these dishes with the soiled surface of the dish toward the URBOZONE spray nozzles in the lower rack of the dishwasher. Press START/RESUME every time you add a dish. To start and resume a cycle, close the door and press START/RESUME. IMPORTANT: If anyone opens the door (as, to add a dish, even during the Delay Hours option), the door must be closed and the Start/Resume button must be pressed each time. Detergent Dosing It is possible to use too much detergent in your dishwasher. This can lead to etching of your dishes. See “Detergent and Rinse Aid” to determine the amount of detergent needed based on your water hardness. Using dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents to reduce filming on your dishes.

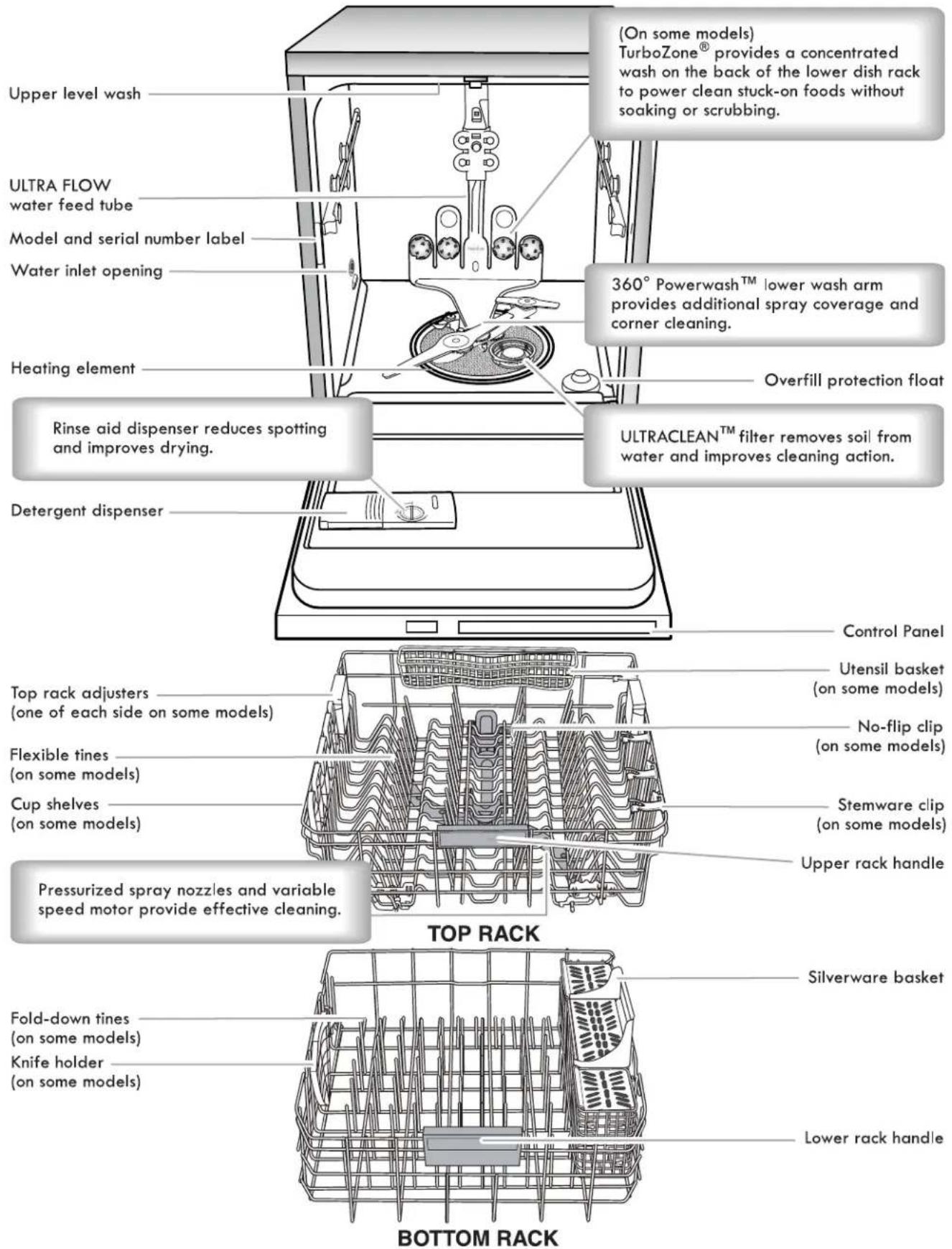

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy consumption while providing superior cleaning performance. Throughout the life of your dishwasher, the filter will require maintenance to sustain peak cleaning performance. The triple filter system consists of 2 parts, an upper filter assembly and a lower filter. ■ The upper filter assembly keeps oversized items and foreign objects, along with very fine food particles out of the pump. ■ The lower filter keeps food from being recirculated onto your dishware. In order to provide optimum cleaning performance we suggest a monthly filter maintenance by removing and inspecting both the upper and the lower filter for any soils. Based on your dishwashing habits, cleaning of the filters may be required more or less often than what is indicated in the chart below. The filters may need to be cleaned when: ■ Visible objects or soils are on the Upper Filter Assembly. ■ There is degradation in cleaning performance (that is, soils still present on dishes). ■ Dishes feel gritty to the touch. Removing and maintaining the filters is very easy. The chart below shows the recommended cleaning frequency. Recommended time interval to clean your filter. *Manufacturer's recommendation: This practice will eliminate the water and energy that you use preparing your dishes. This will also save you time and effort. Very Hard Water If you have hard water (above 15 grains), clean your filter at least once per month. Buildup of white residue on dishwasher surfaces indicates hard water. You may bring your water samples to Sears to check hardness level. For tips on removing spots and stains, see “Troubleshooting” section. Filter Removal Instructions Number of Loads Per Week If you wash before loading If you scrape and rinse before loading If you only scrape before loading* If you do not scrape or rinse before loading 8-12 Once per year Every four months Every two months Every two weeks 4-7 Once per year Once per year Every four months Once per month 1-3 Once per year Once per year Twice per year Every two months

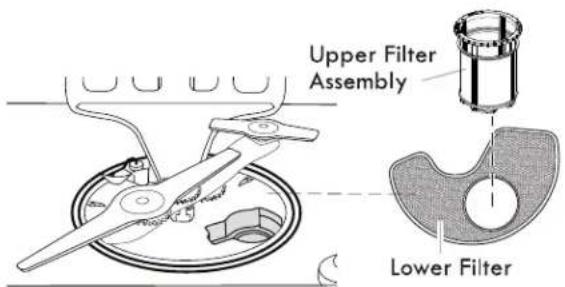

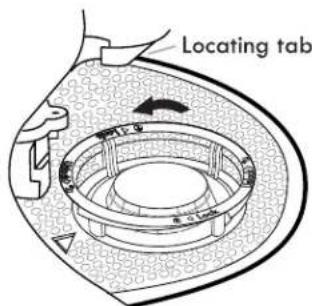

1. Turn the Upper Filter Assembly ¼ turn counterclockwise and lift out.

2. Grasp the Lower Filter in the circular opening, lift slightly, and pull forward to remove.

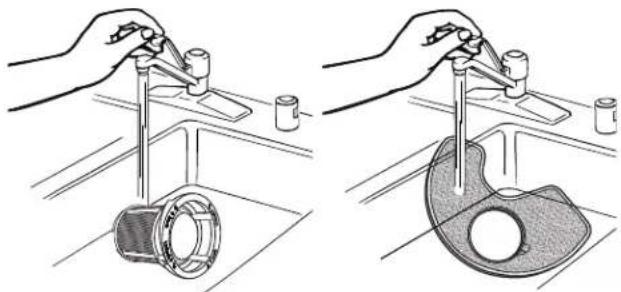

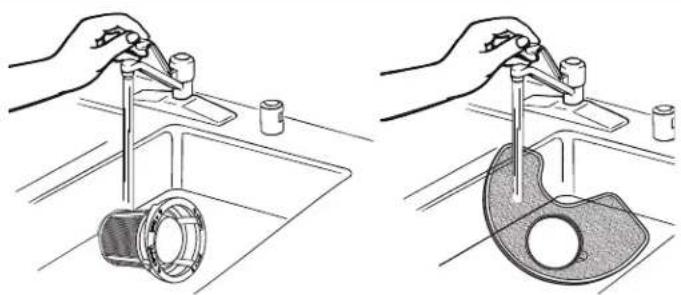

3. Clean the filters as shown below.

To remove Upper Filter Assembly10 Cleaning Instructions IMPORTANT: Do not use wire brush, scouring pad, etc., as they may damage the filters. Filter Reinstallation Instructions IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the ULTRACLEAN™ filters properly installed. Be sure the Lower Filter is securely in place and the Upper Filter Assembly is locked into place. If the Upper Filter Assembly turns freely, it is not locked into place.

DISHWASHER EFFICIENCY TIPS

Hot water dissolves and activates the dishwasher detergent. Hot water also dissolves grease on dishes and helps glasses dry spot- free. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low. Additional efficiency tips ■ To save water, energy and time, only scrape dishes. Do not rinse dishes before putting them into the dishwasher. ■ Use a delay feature to run your dishwasher during off-peak hours. Local utility providers recommend avoiding heavy usage of energy at certain times of day. ■ During the summer, run your dishwasher at night. This reduces daytime heat buildup in the kitchen. ■ Use a rinse aid to improve drying. Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

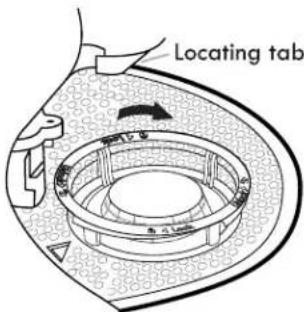

1. Noting the previous illustrations, place the Lower Filter under the Locating Tabs in the

bottom of the dishwasher so the round opening for the Upper Filter Assembly lines up with the round opening in the bottom of the tub.

2. Insert the Upper Filter Assembly into the circular opening in the Lower Filter.

3. Slowly rotate the filter clockwise until it drops into place. Continue to rotate until the filter

is locked into place. If the filter is not fully seated (still turns freely), continue to turn the filter clockwise until it drops and locks into place. To replace Upper Filter Assembly11

DETERGENT AND RINSE AID

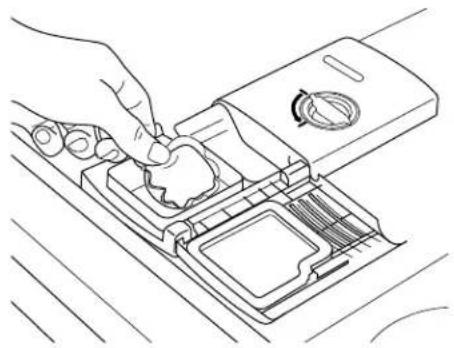

Detergent NOTE: If you do not plan to run a wash cycle soon, run a rinse cycle. Do not use detergent. ■ Use automatic dishwasher detergent only. Add powder, liquid or tablet detergent just before starting a cycle. ■ Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool, dry place. Premeasured Detergents Many detergents now come in premeasured forms (gel packs, tablets, or powder packs). These forms are suitable for all hardness and soil levels. Always place premeasured detergents in main compartment and close lid. Using dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film. Also, by using a rinse aid you can minimize repeat buildup of white film. Powders and Gels *Full pre-wash compartment contains 7 tsp (35 mL), and full main wash cup contains 9 tsp (45 mL). IMPORTANT: Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difficult to achieve good results. A water softener is recommended to avoid damage and achieve good results. You may bring your water samples to Sears to check hardness level. Rinse Aid IMPORTANT: Your dishwasher is designed to use a liquid rinse aid. The use of rinse aids greatly improves drying by allowing water to drain from the dishes after the final rinse. They also keep water from forming droplets that can dry as spots or streaks. Filling the dispenser The dispenser holds 5 oz (150 mL) of rinse aid. Under most conditions this will last 1 to 3 months.

1. Turn the knob to the REFILL position and remove.

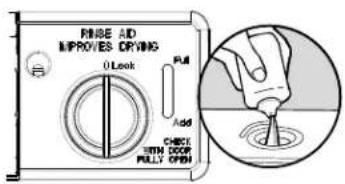

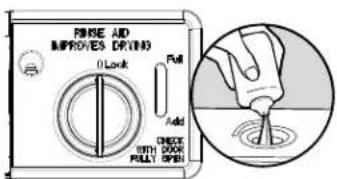

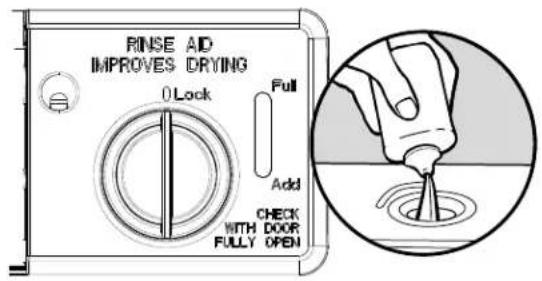

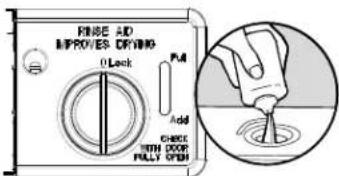

2. Pour rinse aid into the opening until the indicator points to

4. Replace the knob and turn to the LOCK position.

NOTE: Indicator reads correct fill level when door is completely opened. Rinse Aid Setting Your rinse aid dispenser is adjustable. For most water conditions, the factory setting will give good results. If you have hard water and notice calcium buildup on your dishware, you may want to try a higher setting. If you notice foam in your dishwasher, use a lower setting. To adjust the setting

1. Turn the knob to the REFILL position and remove.

2. Turn the arrow inside the dispenser to the desired setting.

3. Replace the knob and turn to the LOCK position.

Water Hardness Soil Level Pre-Wash Compartment Main Wash Compartment Soft (0-4 grains per U.S. gallon) Light None ¹⁄₂ Normal None ¹⁄₂ Heavy Full ¹⁄₂ Medium (5-9 grains per U.S. gallon) Light None ¹⁄₂ Normal ¹⁄₂ ¹⁄₂ Heavy Full* Full* Hard (10-14 grains per U.S. gallon) Light ¹⁄₂ Full* Normal Full* Full* Heavy Full* Full*12 LOADING Loading for Best Cleaning and Drying Performance

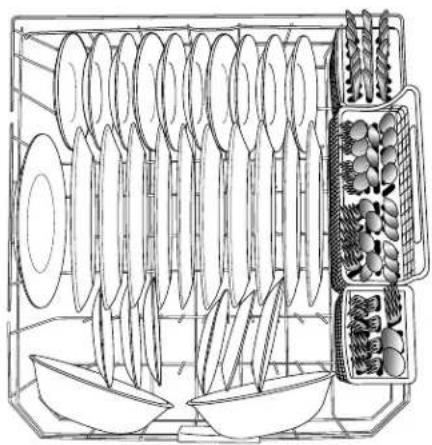

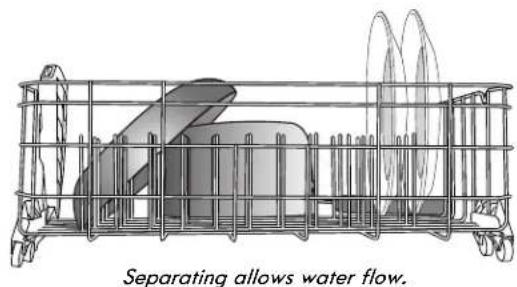

1. Angle dirtiest dish surfaces downward and allow

space for water to flow up through each rack and between dishware. Separating allows water flow.

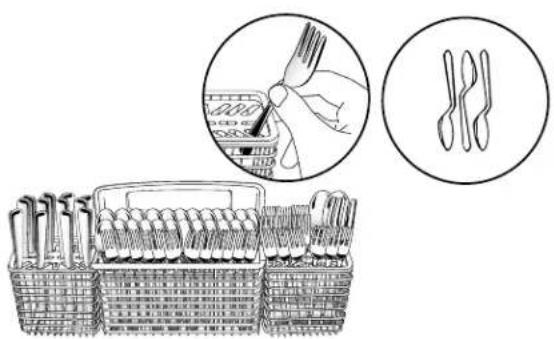

2. For best silverware cleaning use the slots in the covers

to keep items separated. Separated

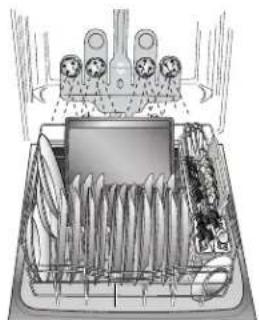

(on some models) option with your dirtiest items facing toward the lower back. Soil facing T URBO

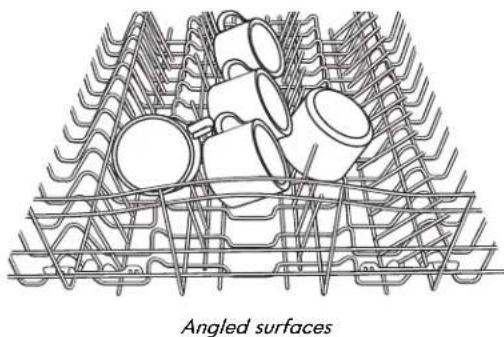

4. Angle concave surfaces such as the bottom of coffee

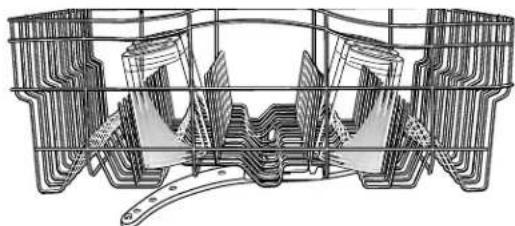

cups to allow water to drain and improve drying performance. Angled surfaces

5. Check that all spray arms spin freely before every

6. Place cups and glasses in the rows between tines.13

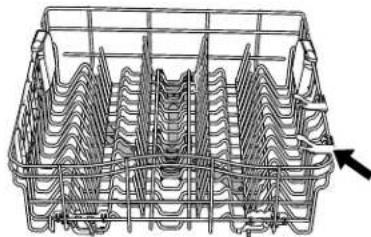

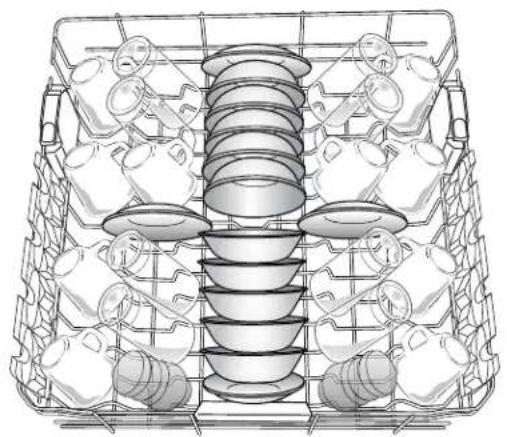

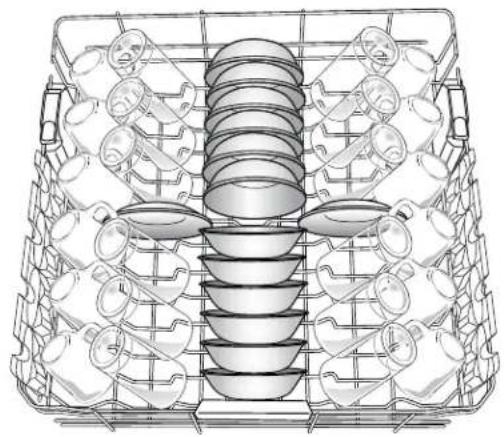

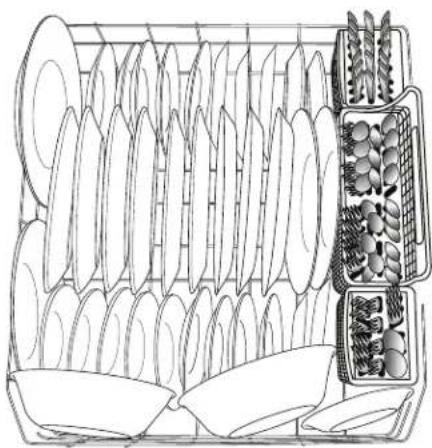

Top Rack Loading Loading Recommendations Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots. To avoid damage to your delicate items, be sure china, crystal, stemware and other similar items do not touch during dishwasher operation. Load lightweight and dishwasher-safe plastic items only in the top rack. 10 place setting load 12 place setting load Utensil Basket (on some models) Use this extra capacity basket in the back of the top rack to hold spatulas, serving spoons, and similar items. The utensil basket can be removed for additional capacity by releasing the clips attached to the rack. Deluxe Adjustable 2-position Rack (on some models) You can raise or lower the top rack to fit tall items in either the top or bottom rack. Adjusters are located on each side of the top rack. Raise the top rack to accommodate items up to 9" (22 cm) in the top rack and 13" (33 cm) in the bottom rack, or lower the top rack to accommodate items up to 11" (28 cm) in both the top and bottom racks.

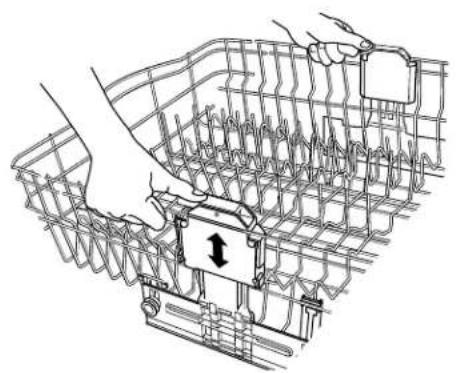

1. To raise, lift rack until both sides are at the same height and

2. To lower, depress both tabs on rack adjusters, as shown,

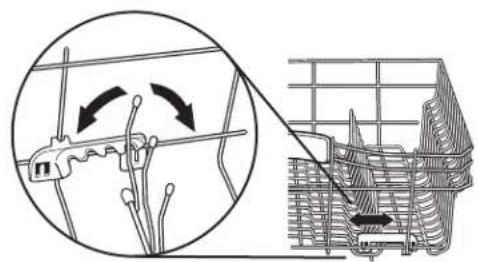

and lower. Flexible Tines The row of tines on the left-hand and right-hand sides of the top rack can be adjusted to make room for a variety of dishes.14 Cup Shelves and Stemware Clips (on some models) Fold down the extra shelf on either side of the top rack to hold additional cups or long items, such as utensils and spatulas. Use the stemware clips to hold stemware more securely. Cup shelves Stemware clips Removable Top Rack The removable rack allows you to wash larger items such as pots, roasters, and cookie sheets in the bottom rack. IMPORTANT: Remove dishes prior to removing the top rack from dishwasher. To remove the rack

1. To gain access to the track stops, pull the upper rack forward about halfway out of the tub.

2. To open, flip the track stop toward the outside of the tub.

3. After opening both track stops, pull top rack out of the rails.

4. Close track stops and slide the tracks back into the dishwasher.

1. Gently pull tracks forward in dishwasher until they stop. Open track stops.

2. Place the back wheels on each side of the rack into the track slot and roll them back into the tracks, but do not push the rack all the way into the tub.

3. Insert front rack wheels on each side of the rack into the track slots.

4. Slide the rack into the dishwasher. The stops will automatically close when rack enters dishwasher.

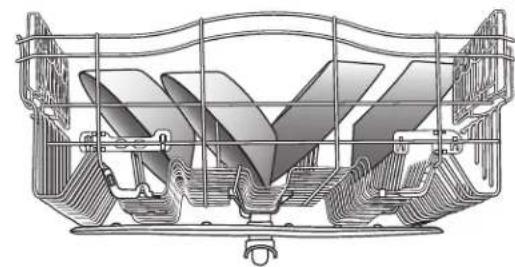

Track stop open Track stop closed15 Bottom Rack Loading Loading Recommendations The bottom rack is best suited for plates, pans, casseroles, and utensils. See recommended loading patterns shown. Load small items in the bottom rack only if they are secured in place. Load plates, soup bowls, etc., between tines. Load bowls securely between the rows of tines. Ensure that there is space between dishes so that the spray will reach all surfaces. Load heavily soiled items facing the spray. NOTE: Ensure that detergent dispenser is not blocked by tall items such as cookie sheets or cutting boards placed at the left-hand front of rack. See “Start Up/Quick Reference” section. 10 place setting load 12 place setting load Fold-Down Tines (on some models) You can fold down one row of tines at the back of the bottom rack in order to accommodate larger dishware. Keep this tine row in the 60° position when using the

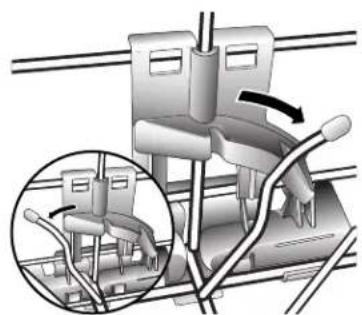

option (on some models). IMPORTANT: When moving the tine row to the flat position, fold only the tine row toward the front of the dishwasher. TURBOZONE

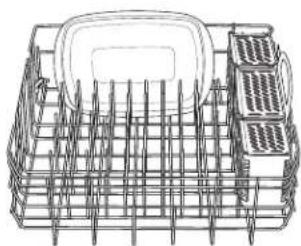

Loading (on some models) IMPORTANT: For proper performance, only one row of items may face the TURBOZONE

spray jets. You must select the T URBOZONE

wash option to utilize this wash feature. Load pans, casserole dishes, etc., with the soiled surfaces facing the T URBOZONE

spray jets. TURBOZONE

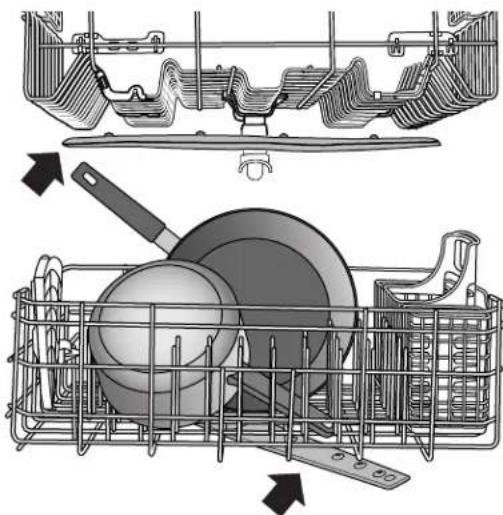

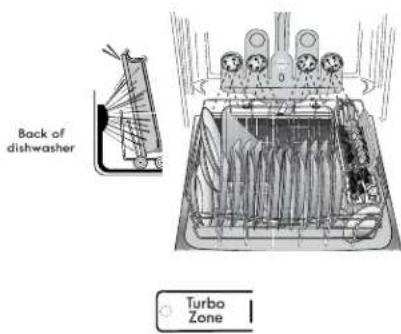

wash area is located at the back of the lower dish rack. Place the fold-down tine row in the 60° position when using the TurboZone

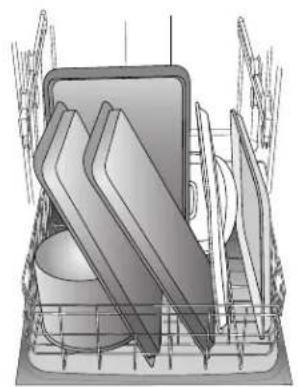

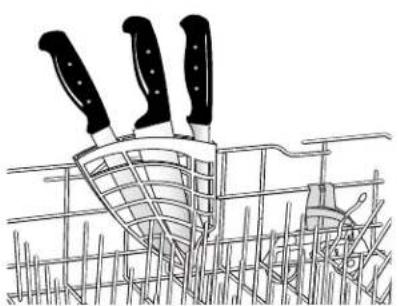

option (on some models). Back of dishwasher16 Loading Tall Items You can wash larger items such as pots, roasters, and cookie sheets in the bottom rack by removing the top rack. See “Top Rack Loading” section. IMPORTANT: Do not block detergent dispenser. Knife Holder (on some models) To load knives that are too large for the silverware basket, use the knife holder located on the left-hand side of the bottom rack. Place knives in the holder as shown. Splittable Silverware Basket (on some models) Your new silverware basket can be split into three segments. Removing one section will increase your capacity in the TURBOZONE

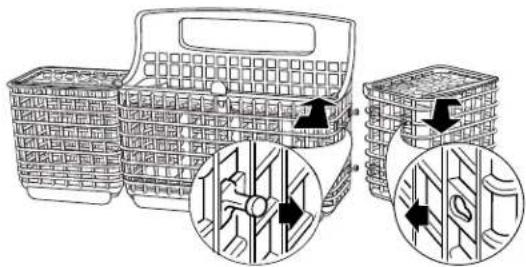

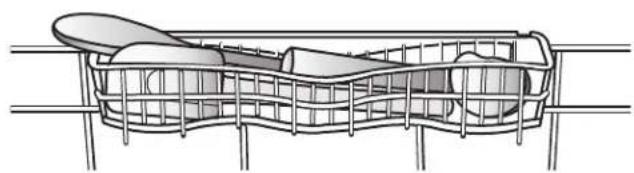

(on some models) loading area. You can remove the covered side baskets to place in the top rack. Use for small delicate items such as baby bottle caps, nipples and small baking utensils, etc. Loading Silverware Use suggested loading patterns, as shown, to better clean your silverware. Use the slots in the covers to keep your silverware separated for optimum wash. See illustration at right. NOTE: If your silverware does not fit into the designated slots, flip the covers up and mix silverware types to keep them separated. Load knives down, forks up, and alternate spoons, as illustrated, for best cleaning results.17 DISHWASHER USE Cycles and Options Information (on some models) *Adding options will add time to the cycle. See options information section. **This is the approximate cycle time obtained with 120°F (49°C) hot water available at the dishwasher. Increase in time results from low temperature of the incoming water. Cycles Soil Level Time* (mins.) w/o Options Water Usage Gallons (Liters) Typical** Max SmartWash

cycle The most advanced and versatile cycle. This cycle senses the load size, soil amount, and toughness of soil. This cycle is optimized to achieve outstanding cleaning with minimal water and energy. Light to Medium 110 150

Pots & Pans Works best on your toughest items, such as casseroles with baked-on food residue. Use with TURBOZONE

option (on some models) to get the best baked-on soil cleaning. Heavy/Baked-On 140 205

(31.0) Normal Wash This cycle is recommended to completely wash a full load of normally soiled dishes. The energy label is based on this cycle. Light to Medium 110 150 2.8-4.0 (10.5-15.0) Heavy 125 190

(29.0) China Gentle (on some models) Provides a light wash and gentle dry for delicate items such as china and crystal. Light to Medium 105 145 2.8-4.0 (10.5-15.0) Heavy 120 185

(29.0) Quick Rinse Use for rinsing dishes, glasses, and silverware that will not be washed right away. Do not use detergent. All soil levels 17 20

(8.0) 1 Hour Wash To save water and energy, High Efficiency dishwashers use advanced filtration which may result in longer cycle times (in some cases over 2 hours). When you need fast results, the 1 Hour Wash cycle will clean your dishes using slightly more water and energy. For improved drying, select the Heated Dry option. 1 Hour Wash is optimized and no options are needed. All soil levels 58 64

Selecting multiple options does not result in accumulative time and water from chart above. Options Can be selected with What it does Added time to cycle Added Water

option (on some models) Blasts into every corner to eliminate the need for soaking and scrubbing of dirty, baked-on dishes. For your toughest items, use the T URBOZONE

Pots & Pans Normal Wash Directs all of the cleaning power of the dishwasher to the TURBOZONE

area during certain times in the wash cycle.

High Temp Raises the main wash temperature to improve cleaning. When used with the Normal Wash cycle, it will provide a little extra tough cleaning capability, but not as much as the Pots & Pans cycle. SmartWash

Pots & Pans Normal Wash Raises the main wash temperature from 120°F (49°C) to 140°F (60°C).

Sani Rinse This high temperature option sanitizes your dishes and glassware in accordance with National Sanitation Foundation (NSF)/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. The Sani Rinse indicator indicates at the end of the cycle whether the Sani Rinse option was successfully completed. If the indicator does not activate, it is probably due to the cycle being interrupted. SmartWash

Pots & Pans Normal Wash Increases the main wash temperature from 120°F (49°C) to 140°F (60°C) and the final rinse from 140°F (60°C) to 155°F (68°C).

Top Rack Only For added convenience, use for washing a small load of dishes in the top rack to help keep the kitchen continuously clean. Available with any cycle Cannot be used with T URBOZONE

option Slightly faster wash for smaller loads -7 -30 0 Heated Dry Turns the heat element on at the end of the wash cycle. Use rinse aid with or without the Heated Dry option for best drying results. Plastic items are less likely to deform when loaded in the top dish rack. Available with any cycle except Quick Rinse Turns the heat element on at the end of the wash cycle.

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop before completely opening the door.

2. Press and hold the Cancel/Drain button until the Cancel/Drain light turns on.

3. Close the door. The dishwasher starts a drain cycle if water remains in bottom of dishwasher. Let the dishwasher drain completely. The Cancel/Drain light turns off after 2 minutes. Delay Hours (on some models) Use this option to run your dishwasher during off-peak hours. Local utility providers recommend using energy during off-peak hours when possible. To delay the start:

1. Select a wash cycle and options.

NOTE: Anytime the door is opened for more than 5 seconds (such as, to add a dish), the Start/Resume button must be pressed again to resume the delay countdown. Control Lock Option Use the Control Lock option to avoid unintended use of the dishwasher between cycles. When Locked is lit, all buttons are disabled. The dishwasher door can still be opened/closed while the controls are locked. To turn on Control Lock: Press and hold TOP RACK ONLY for 3 seconds. Locked will light. If you press any pad while your dishwasher is locked, the light flashes 3 times. NOTE: The dishwasher cannot start if the control is locked. To turn off Control Lock NOTE: You may need to disable Sleep Mode by pressing either START/RESUME or CANCEL/DRAIN, or by opening and closing the door before you are able to turn off Control Lock. Press and hold TOP RACK ONLY for 3 seconds. The lights turn Off. Indicators and Countdown Bar (on some models) The indicators will inform you if you are able to add a dish to the cycle after it started. It will also inform you if the dishwasher is washing, rinsing, drying, complete, and/or sanitized. They will show whether the control is locked and/or the delay option is selected. A series of bars will count down the duration of the cycle remaining from left to right. Each bar equals approximately 24 minutes of cycle length. Selecting Cycles and Options 1. To repeat the same cycle/options used on previous cycle, press START/RESUME once to show which selections you used. To change cycle, select desired cycle. 2. Select the desired options, then press START/RESUME to start the cycle. Not all options are available for every cycle. If an invalid option is selected for a given cycle, the lights will flash. Turning OFF/ON the Sound Press and hold HIGH TEMP for 3 seconds to toggle sound On and Off. The sound will not deactivate for cycle interruption or service required messages.20 Changing A Cycle After Dishwasher Is Started You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure.

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.

2. Check whether the detergent dispenser cover is still closed. If it is open, you will need to refill the detergent dispenser before restarting your new cycle. Close the door.

3. Press and hold CANCEL/DRAIN twice to reset the control.

4. Select new cycles and options.

2. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.

3. Check whether the detergent dispenser cover is still closed. If it is open, the wash cycle has already started and adding a dish is not recommended.

4. If detergent has not yet been used (detergent dispenser cover is closed), you may add a dish. Close the door.

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe. Material Dishwasher Safe? Comments Aluminum Yes High water temperature and detergents can affect finish of anodized aluminum. Disposable Aluminum No Do not wash disposable aluminum pans in the dishwasher. These might shift during washing and transfer black marks to dishes and other items. Bottles and Cans No Wash bottles and cans by hand. Labels attached with glue can loosen and clog the wash system and reduce washing performance. Cast Iron No Seasoning will be removed and then will rust. China/Stoneware Yes Always check manufacturer’s recommendations before washing. Antique, hand-painted, or over-the-glaze patterns may fade. Gold leaf can discolor or fade. Crystal Yes Always check manufacturer’s recommendations before washing. Some types of leaded crystal can etch with repeated washing. Gold No Gold-colored flatware will discolor. Glass Yes Milk glass material yellows with repeated dishwasher washing. Hollow-Handle Knives No Handles of some knives are attached to the blade with adhesives which can loosen if washed in the dishwasher. Pewter, Brass, Bronze, and Copper No High water temperatures and detergent can discolor or pit the finish. Disposable Plastics No Cannot withstand high water temperatures and detergents.21 DISHWASHER CARE Cleaning Plastics Yes Always check manufacturer’s recommendations before washing. Plastic items may vary in their ability to withstand high temperatures and detergents. It is recommended that lightweight items such as lids and butter dishes be placed in the upper rack only. Sturdy items such as coolers and high-chair trays may be placed in the lower rack. When washing plastic items in the lower rack, it is recommended not to use the Heated Dry option. Stainless Steel Yes Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice can damage finish. Sterling Silver or Silver Plate Yes Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish. Tin No Not recommended. Wooden Ware No Wash by hand. Always check manufacturer’s instructions before washing. Untreated wood can warp, crack, or lose its finish. Large Casserole Section Yes There may be certain casserole dishes that may not fit in front of the TurboZone

feature (on some models) in the back of the lower dish rack. Adjust the tines as necessary to load the large dishes. Cleaning the exterior In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to keep the outside of your dishwasher looking nice and clean. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended. Cleaning the interior Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area. Do not clean the dishwasher interior until it has cooled. You may want to wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing. To clean interior Make a paste with powdered dishwasher detergent on a damp sponge and clean.

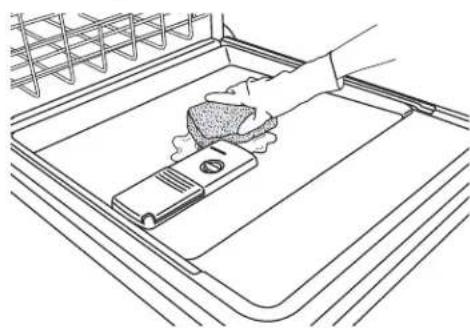

Use liquid automatic dishwasher detergent and clean with a damp sponge.

See the vinegar rinse procedure in “Spotting and filming on dishes” in “Troubleshooting” section. NOTE: Run a normal cycle with dishwasher detergent after cleaning the interior. Material Dishwasher Safe? Comments22 Dishwasher Maintenance Procedure To help avoid hard water residue in your dishwasher, use affresh

dishwasher cleaner (recommended) once a month as part of routine maintenance. affresh

dishwasher cleaner is effective in all dishwasher brands. IMPORTANT: ■ Read these instructions and the instructions found on the affresh

product package completely before beginning the cleaning process. Removal of Hard Water/Filming: Recommended use of a monthly maintenance product such as affresh

Dishwasher Cleaner Part Number W10282479. ■ Load your dishwasher (preferably with dishes affected by filming/hard water). ■ Place tablet in main wash compartment of detergent dispenser. ■ Select cycle/option best for heavily soiled dishes and start dishwasher. NOTE: Recommended to use a premeasured detergent tablet or pack for regular daily use. Drain Air Gap Storing Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. Check the drain air gap when your dishwasher is not draining well. The drain air gap is usually located on top of the sink or countertop near the dishwasher. To order a drain air gap, please call 1-800-4-MY-HOME

. Ask for Part Number 300096. NOTE: The drain air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap. To clean the drain air gap Clean the drain air gap periodically to ensure proper drainage of your dishwasher. With most types, you lift off the chrome cover. Unscrew the plastic cap. Then check for any soil buildup. Clean if necessary. Storing for the summer If your dishwasher is not in use during the summer months, turn off the water supply and power supply to the dishwasher. Storing for the winter Avoid possible water damage to your home and dishwasher due to freezing water lines. If your dishwasher is left in a seasonal dwelling or could be exposed to near freezing temperatures, have your dishwasher winterized by authorized service personnel. †® affresh is a registered trademark of Whirlpool.23 TROUBLESHOOTING CHECK THESE POINTS TO HELP SAVE YOU TIME AND MONEY. PROBLEM SOLUTION DISHWASHER DOES NOT RUN NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle. If the Start/Resume light is blinking, close the door and push START/RESUME. Be sure the door is closed and latched. Check that there is not an interference with large casserole dishes and the wash system at the back of the dishwasher. Adjust loading as necessary to ensure door is closed and latched. Be sure you have selected a cycle. (See “Cycles and Options Information.”) Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped. If lights other than Start/Resume blink and the unit will not run, you will need to call for service.

DETERGENT REMAINS IN THE

OF TUB Check for dishware such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly. Be sure your detergent is fresh and lump free. Be sure the cycle has completed (blue light is on). If it has not completed, you will need to resume the cycle by closing the door and pressing START/RESUME. CYCLE RUNS TOO LONG NOTES: ■ To use less water and reduce energy consumption you will encounter cycles that typically run for up to 3 hours. ■ A water heater setting of 120°F (49ºC) is best. The dishwasher will delay longer while heating cooler water. ■ Some options will add time to the cycle. (See “Cycles and Options Information” section.) The Heated Dry option adds ½ hour. Try the 1 Hour Wash cycle. Run the hot water at a faucet close to the dishwasher before selecting and starting the cycle. DISHWASHER NOT DRYING NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface which tends to collect water droplets. Towel drying may be necessary. Use of rinse aid along with the Heated Dry option is needed for proper drying. Proper loading of items can affect drying. (See specific loading instructions within this guide.) Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading. ■ Unload the bottom rack first. ■ Locate these items on the more slanted side of the rack for improved results. WILL NOT FILL Be sure the water is turned on to the dishwasher. Check that the float is free from obstructions. (See “Parts and Features.”) Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate properly or may not fill with water.

Be sure the cycle has completed (the blue light is on). If it has not, you will need to resume the cycle by closing the door and pressing START/RESUME. If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet. Check for kinks in the drain hose. Check for food obstructions in the drain or disposer. Check your house fuse or circuit breaker.24 HARD WATER

GLASSWARE) NOTE: Extremely hard water mineral deposits can cause damage to your dishwasher and make it difficult to achieve good cleaning. You may bring water samples to Sears to check your water hardness level. A water softener is strongly recommended if your hardness is 15 grains or more. If a water softener is not installed, the following steps may help: Use a cleaner designed for dishwashers once per month. See the “Dishwasher Maintenance Procedure” section. Clean the ULTRACLEAN™ filters at least once per month. Always use a rinse aid. Always use a high-quality, fresh detergent. Use a detergent booster/water softener additive designed for dishwashers. ODORS NOTE: If the dishwasher is not used daily, you can run a rinse cycle with the partial load daily until a full load is ready to run, or use the Top Rack Only option (on some models) for partial loads. Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a normal cycle with the Heated Dry option turned off. Do not use detergent. The dishwasher may not be draining properly, see “WATER REMAINS IN THE TUB/WILL NOT DRAIN” in “Troubleshooting.” NOISY NOTES: ■ Surging sounds can occur periodically throughout the cycle while the dishwasher is draining. ■ Normal water valve hissing may be heard periodically. ■ A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle. ■ Improper installation will affect noise levels. Be sure the filters are properly installed. A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.

ON DISHES Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance (see “Loading for Best Performance”). Check filter to ensure it is properly installed. Clean it if needed. (See “Cleaning Instructions” in “ULTRACLEAN™ Filtration System” for details.) Select the proper cycle and option for the type of soils. The Pots Pans cycle with the T URBOZONE

(on some models) option can be used for tougher loads. Be sure the incoming water temperature is at least 120°F (49ºC). Use the proper amount of fresh detergent. More detergent is needed for heavier-soiled loads and hard water conditions. Scrape food from dishes prior to loading (do not prerinse). DID NOT SANITIZE If the Sani Rinse indicator light is blinking, the load is NOT sanitized. The cycle was interrupted in the final rinse, or your water heater is set too low. Set your water heater to 120ºF (49ºC). DAMAGE TO DISHWARE Improper loading can cause dishes to become chipped or damaged. (See specific loading instructions within this guide.) BLINKING LIGHTS If Start/Resume or any status lights are blinking and the dishwasher will not run, close the door and push START/RESUME. If the dishwasher still will not run, call service at 1-800-4-MY-HOME

WATER SOLUTION) NOTES: ■ Liquid rinse aid is necessary for drying and to reduce spotting. ■ Use the correct amount of detergent. Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. See “HARD WATER (WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)” in “Troubleshooting.” If it does not come clear, it is due to etching (see below). Be sure the incoming water temperature is set at 120°F (49ºC). Try using the High Temp and Sani Rinse options. To remove spotting, run a vinegar rinse through the dishwasher. ■ Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack. Run a normal cycle with the Heated Dry option turned off. No detergent is needed. ETCHING (PERMANENT CLOUDINESS) This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot, from using too much detergent with soft water or by pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop pre- washing, and use water heating options only when incoming water temperature is below 120°F (49ºC). LEAKING WATER Be sure dishwasher has been installed properly and is level. Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues. To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overfilling. TUB IS DISCOLORED NOTES: ■ High iron content in the water can discolor the tub. ■ Tomato-based foods can discolor the tub or dishware. ■ A citrus-based cleaner can be used to clean. PROBLEM SOLUTION26 ÍNDICE

5,0 (19,0) Intensa 125 190 7, 7 (29,0)

5,0 (19,0) Important 125 190 7, 7 (29,0)

TRACES OU DES TACHES (ET
