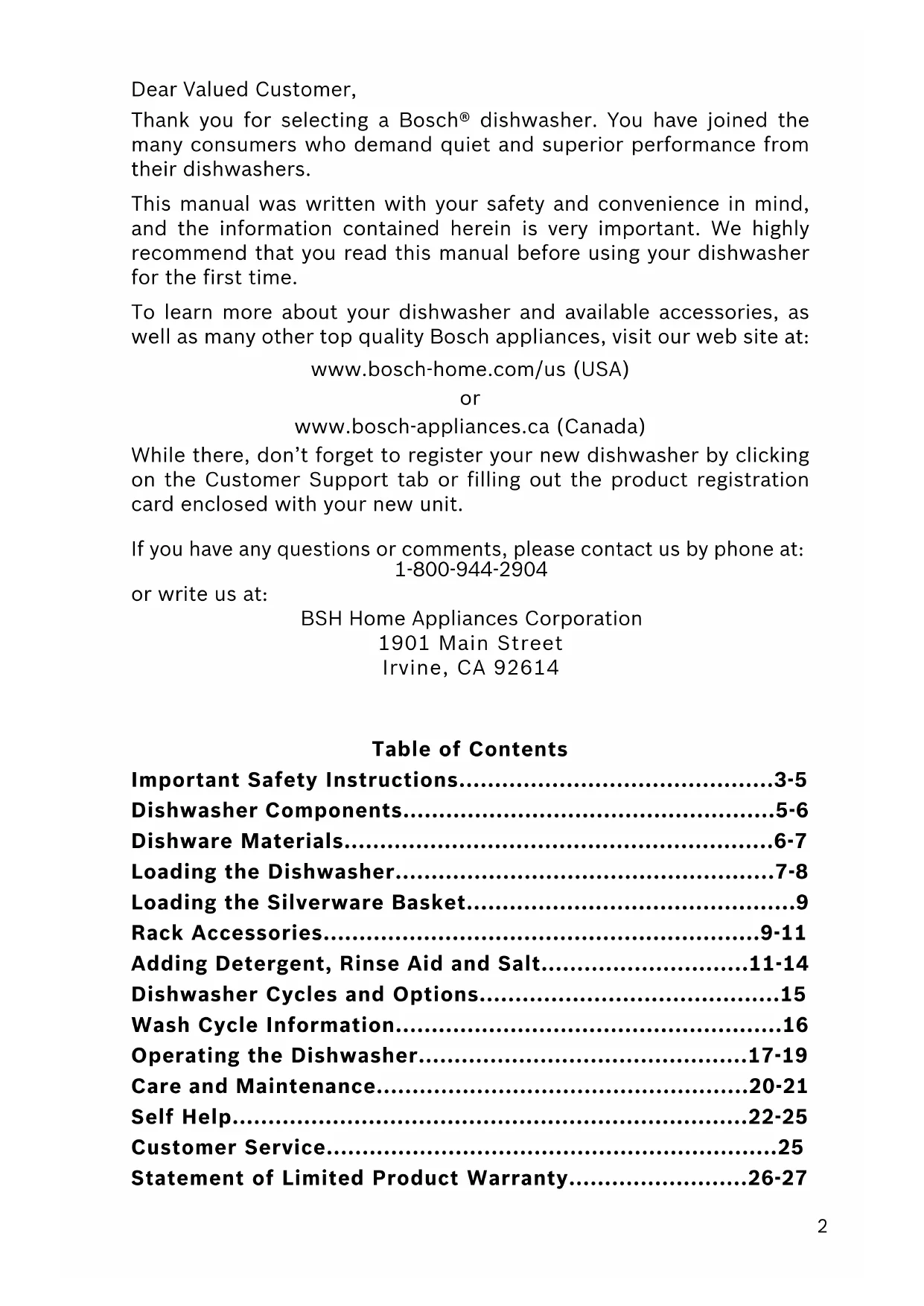

Lave Vaisselle 9000838753 Rev. A (9302)12 Dear Valued Customer, Thank you for selecting a Bosch® dishwasher. You have joined the many consumers who demand quiet and superior performance from their dishwashers. This manual was written with your safety and convenience in mind, and the information contained herein is very important. We highly recommend that you read this manual before using your dishwasher for the first time. To learn more about your dishwasher and available accessories, as well as many other top quality Bosch appliances, visit our web site at: www.bosch-home.com/us (USA)

• www.bosch-appliances.ca (Canada) While there, don’t forget to register your new dishwasher by clicking on the Customer Support tab or filling out the product registration card enclosed with your new unit. If you have any questions or comments, please contact us by phone at: 1-800-944-2904 or write us at: BSH Home Appliances Corporation 1901 Main Street Irvine, CA 92614 Table of Contents Important Safety Instructions p. 3
• -5 Dishwasher Components p. 5
• -6 Dishware Materials p. 6
• -7 Loading the Dishwasher p. 7
• -8 Loading the Silverware Basket p. 9
• Rack Accessories p. 9
• -11 Adding Detergent, Rinse Aid and Salt p. 11
• -14 Dishwasher Cycles and Options p. 15
• Wash Cycle Information p. 16
• Operating the Dishwasher p. 17
• -19 Care and Maintenance p. 20
• -21 Self Help p. 22
• -25 Customer Service p. 25
• Statement of Limited Product Warranty -273 IMPORTANT SAFETY INSTRUCTIONS: Please READ and SAVE this information WARNING Misuse of the dishwasher can result in serious injury or death. Do not use the dishwasher in any way not covered in this manual or for any purpose other than those explained in the following pages. Severe product damage and/or injury could result from the use of unqualified service technicians or non-original replacement parts. All repairs must be performed by a qualified service technician using only original equipment factory replacement parts. Electrical shock or fire could result if the electrical supply for the dishwasher covered in this manual is incorrectly installed or if the dishwasher has been improperly grounded. Do not use the dish- washer covered in this manual unless you are certain the electrical supply has been correctly installed or the dishwasher has been prop- erly grounded. Never use harsh chemicals to clean your dishwasher. Some chloride- containing products can damage your dishwasher and may present health hazards! Only sanitizing cycles have been designed to meet the requirements of 6 for soil removal and sanitation efficacy. There is no intention, either directly or indirectly, to imply that all cycles on a certified machine have passed the sanitization performance test. NOTICE Never use steam cleaning products to clean your dishwasher. The manufacturer will not be liable for the possible damages or conse- quences. It is highly recommended for the end user to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the Installation Instructions or contact your installer for more information. NSF/ANSI 184 Certified residential dishwashers are not intended for licensed food establishments.4 p. 26

WARNING: To reduce the risk of fire, electrical

shock, or serious injury, observe the following: 1 This dishwasher is provided with Installation Instructions and this Use and Care Manual. Read and understand all instructions before using the dishwasher. 2 This appliance must be grounded to a metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instruc- tions included with this dishwasher for more information on elec- trical requirements. 3 Use this dishwasher only for its intended function, which is the washing of household dishware and kitchenware. 4 Use only detergents or rinsing agents recommended for use in a dishwasher, and keep them out of the reach of children. 5 When loading items to be washed:

• Locate sharp items so they are not likely to damage the door seal.

• Load knives and other sharp utensils with their HANDLES UP to reduce the risk of cut-type injuries.

• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

• Do not operate your dishwasher unless all enclosure panels are in place.

• Do not tamper with or override controls and interlocks. 6 Do not abuse, sit or stand on the door or dish racks of the dish- washer. 7 To reduce risk of injury, do not allow children to play in or on the dishwasher. 8 When children become old enough to operate the appliance, it is the legal responsibility of the parents/legal guardians to ensure the children are instructed in safe practices by qualified persons. 9 Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydro- gen gas is explosive. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time. 10 Remove the dishwasher door to the washing compartment when removing an old dishwasher for service or discarding. 11 To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher. 12 Protect your dishwasher from the elements. Protect against freez- ing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty.5 13 This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appli- ance is equipped with a cord having an equipment-grounding con- ductor.

• Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

Additional Features Model Delay Speed Perfect™ Half Load Delicate Sanitize 3rd Rack Time Light® SHE7PT5xUC*

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the

State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the

State of California to cause birth defects or other reproductive harm.6 Dishware Materials Note: Before using your dishwasher for the first time, check the information in this section. Some items are not dishwasher safe and should be hand washed; others require special loading. Recommended Aluminum: Colored anodized aluminum may fade over time. Minerals in your water may cause the aluminum to darken or spot. This can usually be removed with a soap-filled steel wool pad. China, Crystal, Stoneware: Some hand-painted utensils may discolor, fade or spot. Hand wash these utensils. Position fragile glassware so that it will not topple over or come in contact with other utensils during the wash cycle. Glass: Milk glass may discolor or become yellow. Non-stick Coatings: Apply a light coating of vegetable oil to non-stick sur- faces after drying. Plastics: Make sure the plasticware is dishwasher safe. Stainless Steel, Sterling Silver and Silver Plates: Load these so they do not come in contact with other metals. Top rack Bottom rack Silverware basket Bottom rack spray arm Filter system Top rack spray arm 3rd Rack Detergent Rinse aid dispenser dispenser7 Not Recommended Acrylic: Crazing or small cracks throughout the acrylic, may occur. Adhesive-Joined Pieces: Adhesives that join materials such as plastic, wood, bone, steel copper, tin, etc. may loosen. Bone-Handled Utensils: Handles may separate. Iron: Iron will rust. Hand wash and dry immediately. Non-Dishware Items: Your dishwasher is intended for use in cleaning ONLY standard household dishware and kitchenware. Pewter, Brass, Bronze: These items will tarnish. Hand wash and dry immedi- ately. Tin: Tin will stain. Hand wash and dry immediately. Wood: Wooden bowls, wooden utensils and utensils with wooden handles can crack, warp and lose their finish. Loading the Dishwasher Do not pre-wash items with loosely attached soiling. Remove all food parti- cles, bones, toothpicks and excessive grease. Items having burned-on, baked-on or starchy soils may require some pretreatment. Refer to the Dishware Materials section for more information about dishware suitability. Load only dishwasher safe items into the dishwasher. Load dishes in the dishwasher racks so the insides of bowls, pots and pans are facing the spray arms. Avoid nesting and contact points between dishes. Separate items of dissimilar metals. Loading the Top Rack Ensure items do not protrude through the bottom of the racks and block the spray arms. Note: When pushing the top rack into the dishwasher, push it until it stops against the back of the tub so the top rack spray arm connects to the water supply at the back of the tub. Do not push racks in using the door. Loading the Bottom Rack Place large items in the bottom rack. Load pots, pans and bowls upside down. Do not block vent with tall baking sheets. Load these items on the left side of the dishwasher. Unloading the Dishwasher When unloading the dishwasher it is best to unload the bottom rack first. Next, unload the silverware basket followed by the top rack. NOTICE To avoid dishwasher damage, do not load the dishwasher with paper products, plastic bags, packing materials or anything other than normal, dishwasher safe dishware and kitchenware.8

Suggested Loading Pattern Top Rack Bottom Rack 3rd Rack Top Rack Additional Loading Pattern Bottom Rack 3rd Rack9

Loading the Silverware Basket Place knives and sharp utensils with their HANDLES UP and forks andspoons with their handles down. If large or oddly-shaped items areloaded in the silverware basket, be sure they do not nest together. WARNING The sharp points and edges of knives and other sharp utensils can causeserious injury. Load knives and other sharp utensils with edges down. Donot allow children to handle or play near knives and sharp utensils. The Duo-Flex Silverware Basket To split the Duo-Flex Silverware Basket Grasp the basket and slide the two halves in oppositedirections as shown at right and then pull the twohalves apart. Loading pattern for Duo-Flex Silverware Basket The basket lid may also be snapped to the handle in order to leave the basket open. Rack Accessories Flip Tines The racks consist of tines that can be folded downdepending on what you may need to load in therack. To fold down, grasp the folding tine and re-lease from notch. Push folding tine downward todesired position as shown in Figure 1.Figure 1

1- salad fork2- teaspoon3- dinner fork4- knife5 - tablespoon6 - serving spoon7 - serving forkThis basket splits along its length, resulting in two halvesthat may be placed in a variety of positions in the lowerrack, greatly increasing the lower rack’s loading versatil-ity. The basket snaps together either back to back or endto end as shown.10 3-Step RackMatic® The height of the upper rack can be adjusted in 3 steps to create more space. 1 Pull the top rack out of the dishwasher until it stops. 2 To lower the rack, push the lever inward. 3 To raise the rack, hold the basket on the sides of the upper rack and lift up. 3rd Rack The 3rd Rack horizontally positions knives, spatu- las and other oversized tools for improved clean- ing and easier loading and unloading. Arrange cutlery in 3rd Rack as illustrated in Figure 3. Plastic Item Clips Light-weight plastic accessories (cups, lids, etc.) can be held securely by the plastic item clips. See Figure 4. Cup Shelves The shelf and the space underneath can be used for small cups or for larger serving utensils. Figure 2 Figure 3 Figure 4

Figure 511 Figure 6 Extra Tall Item Sprinkler If an item is too tall to be placed in the bottom rack even with the top rack in the raised posi- tion, remove the empty top rack by pulling it out of the dishwasher until it stops. Pull the front of the rack upward and outward until the rollers are completely free of the roller guides. Set the top rack aside and push the roller guides back into the dishwasher. Insert the Extra Tall Item Sprinkler into the top rack spray outlet and turn the sprinkler clockwise to lock into position. See Figure 6. Note: Keep the vent on the tub’s right side clear by plac- ing tall items such as plastic cutting boards and tall baking sheets on the bottom rack’s left side or center. NOTICE To avoid dishwasher damage, do not reinstall the top rack without removing the Extra Tall Item Sprin- kler. Adding Detergent, Rinse Aid and Salt Detergent Use only detergent specifically designed for dishwashers. For best results, use fresh powdered dishwashing detergent or detergent tabs. NOTICE To avoid dishwasher damage, do not use hand dishwashing products in your dishwasher. To avoid dishwasher damage, do not use too much detergent if your water is soft. Using too much detergent with soft water may cause etching in glassware. This dishwasher uses less water than most, therefore, less detergent is required. With soft water, 1 tablespoon (15ml) of detergent will clean most loads. The detergent dispenser cup has lines that measure detergent to 1 tablespoon (15ml) and 1.75 tablespoons (25ml). 3 tablespoons (45ml) of detergent will completely fill the detergent dispenser. Note: If you do not know the hardness of your water supply, use 15ml of detergent. Increase the amount if necessary to the least amount required to get your kitchenware clean. Use the measuring lines in the detergent dispenser cup as a guide to measure the amount of detergent recommended in Table 1.12 Adding Detergent

• 1 tablespoon (15ml) will clean most loads.

• Do not over fill the detergent dispenser.

• When using detergent tabs, lay them such that they do not come in contact with the cover. To Close

• Place finger as shown in Figure 8.

• Slide door closed and press down firmly until it clicks. To Open

• Push the button as shown in Figure 9. Cover will slide open. Rinse Aid To achieve proper drying, always use a liquid rinse aid, even if your detergent contains a rinse aid or drying additive. Note: The dishwasher indicates low rinse aid by turning on the “Add Rinse Aid” indicator light. If this light is on, you need to refill the rinse aid dis- penser by following the directions below. Adding Rinse Aid 1 Add liquid rinse aid to the dispenser until it is full (see Figure 10). 2 Close the lid. Lid must be fully closed until it clicks in order to seal. 3 Wipe up any excess rinse aid that may have puddled when the dis- penser reservoir is full. The indicator light will go out a few moments after the dishwasher door is shut. See below for instruction on how to adjust the amount of rinse aid dispensed. Table 1 - Recommended Detergent Amount Wash Cycle Hard Water/ Heavy Soil Medium Water/ Medium Soil Soft Water/ Little Soil Heavy 45ml (3tbsp) 45ml (3tbsp) 25-45ml (1.75-3tbsp) Auto 25-45ml (1.75-3tbsp) 25ml (1.75tbsp) 15-25ml (1-1.75tbsp) Glass 25ml (1.75tbsp) 15-25ml (1-1.75tbsp) 15ml (1tbsp) Normal 25-45ml (1.75-3tbsp) 25ml (1.75tbsp) 15-25ml (1-1.75tbsp) Express 25ml (1.75tbsp) 15-25ml (1-1.75tbsp) 15ml (1tbsp) Rinse none none none Figure 8 Figure 7 Figure 9 Figure 10 7EVS0D[ 7EVSPO 7EVSPO13 Setting the amount of rinse aid used The amount of rinse aid dispensed can be set from “r:00” to “r:06”. 1 Press the [On/Off] button. 2 Hold down the “A” button (see page 17) and press [Start] until the display indicates “d:00”. Release both buttons. 3 Press the “A” button until the display shows “r:05”. 4 Press the “C” button to select the desired setting. “r:00” = dispenser is OFF “r:01” = lowest setting “r:02” = low setting “r:03” = medium setting 5 Press [Start] to save the setting. Note: Using rinse aid and setting the dispenser to “r:00” may result in longer cycle times. Salt Your dishwasher requires soft water to ensure proper washing results and is equipped with an internal water softening system. However, if you have a household water softening system, the internal system provided is not needed. For the water softening system to function properly, it will need to use the dishwasher water softening salt. The amount of salt dispensed can be set from “H:00” to “H:07”. Salt is not required at H:00 (this is the default factory setting). The amount of salt required depends on the degree of hardness of your tap water. See Hard Water and your Dishwasher Table on next page. To use the provided water hardness test strip see below. 1 Hold down the “A” button (see page 17) and press [START] until the display indicates “d:00”. 2 Release both buttons. Press the “C” button to select the desired setting. 3 Save the selected setting by pressing [START]. “r:04” = medium/high setting “r:05” = high setting “r:06” = highest setting14 Step 1 - Run the water at the kitchen sink for 5 minutes. Step 2 - Dip the end of the test strip with the colored squares into the tap water for 1 second and shake off excess water. Step 3 - After one minute, compare the test strip to the chart below and determine the Dishwasher Water Softener setting. Step 4 - Adjust the dishwasher Water Softener setting. Consult your Use and Care manual for details. Step 5 - If required, add salt to the dishwasher salt chamber as shown. H:00 No 0 116 0 6 0 6H:01 Yes 117 152 7 8 7 8H:02 Yes 153 188 9 10 9 10H:03 Yes 189 223 11 13 11 12H:04 Yes 224 294 14 17 13 16H:05 Yes 295 383 18 22 17 21H:06 Yes 384 544 23 31 22 30H:07 Yes 545 890 32 52 31 50 Only use salt designed for automatic dishwashers. Never use household water softener salt or table salt. Instructions for use of included "Water Hardness Test Strip" Follow the instructions below for the included test strip (If purchasing a different test strip, follow manufacturers instructions). Adjusting the Water Softener Setting of your Dishwasher (select models) ppm Grains/gallon (gpg) °dH Dishwasher Water Softener settingAdd salt to dishwasher salt chamber Water Hardness Conversion Chart (Only necessary if you purchase a different Test Strip) Hard Water and your Dishwasher Using the Test Strip included with your dishwasher (Purchased Test Strips May have a Different Scale) Your water hardness level directly impacts your dishwasher's performance. Hard water will increase spotting and reduce detergent perfor- mance. Some dishwasher models are equipped with a water softener that uses a special salt to adjust the water hardness to obtain optimal performance. The dishwasher salt is added to the salt chamber located under the lower dishwasher rack. The amount of salt that is dispensed is based on your home water hardness. The home water hardness can be determined by using the water hardness test strip included in your manual set (or from your local hardware store). The dishwasher water softener setting must be adjusted to match your water hardness. Refill the salt container, using a funnel to pour, right before turning on the unit to ensure that salt overflow is immediately washed away. This prevents corrosion. See Figure 11. 1 Open the screw cap of the salt container. 2 Fill the container with water (only required when turning on the unit for the first time). 3 Add dishwasher salt until the was is dis- placed and runs out. 4 Refill with salt as soon as the salt refill indicator is lit.

Warning: Never fill the salt dispenser with detergent. It will destroy the

water softening system. To prevent corrosion, refill with salt and imme- diately begin any cycle. Note: Refill salt only when the “Refill Salt” LED or the salt refill symbol is lit (model dependent). Do not use salt tablets or any salt other than dishwasher water softening salt. For more information about ordering salt please contact Customer Service. Figure 1115 Dishwasher Cycles and Options Wash Cycles Heavy: Best for cleaning items with baked-on food or grease. These dishes would normally require soaking. Auto: With our most complex soil sensing capability, this cycle is perfect for use with mixed loads of dishware and varying amounts of food soil. This is the most flexible cycle and is a good choice for everyday use. Glass: A cycle for lightly soiled dishes, ideal for temperature sensitive items or cutlery. In this cycle the temperature is reduced to help prevent dishes from becoming damaged. It is especially helpful to reduce a cloudy or etched appearance on glasses. Note: Some glasses are more prone to etching due to glass manufacturing processes. Normal: Thoroughly cleans a full load of normally soiled dishes. Note: The Energy Guide Label was based on this soil sensing cycle with all available options turned off. As prescribed in the energy test procedure, the unit was tested without any Rinse Aid in the Rinse Aid dispenser. A single dose of detergent was used in the Detergent Dispenser, with no detergent used in the prewash. For models with a 3rd rack, the test was conducted with the upper rack in the middle position. Express: Cleans lightly soiled dishes and reduces overall wash time. Use this cycle to clean glasses and dessert dishware that may need to be reused at the same event. Rinse: Allows you to rinse food soil off of a partial load and hold the dishes in the dishwasher until you are ready to run a full load. Do not use detergent in this cycle. Wash Cycle Options Delay: Allows you to delay the start time of your dishwasher up to 24 hours. SpeedPerfect™: The Speed Perfect option is available with Heavy, Auto, Eco and Normal cycles. Half Load: The Half Load option can reduce the energy and water con- sumption when washing small, lightly soiled loads that fill approximately half of the dishwasher’s capacity. Delicate: The Delicate option is available only in the Heavy, Auto and Nom- ral cycles. This cycle is best used for lightly soiled items with easy to remove food soils. Sanitize: The Sanitize feature is available only in the Heavy, Auto and Normal cycles. Select one of these cycles, press the “Sanitize Option” button and then press Start to activate the Sanitation features. The sanitize LED will light when sanitation requirements are met. The technical sanitation mea- sures may also improve the drying results. Note: The dishwasher automatically defaults to Auto Wash when turned off and back on. If you used the sanitize option in your last cycle, the dishwasher will default to Auto Wash with the Sanitize option selected when you turn it on.16 Wash Cycle Information To save energy, this dishwasher has EcoSense® where the sensors in the dishwasher automatically adjust the cycle length, temperature and water changes based on the amount of food soil and the incoming water tempera- ture. The “Smart Control” makes decisions that can cause the cycle time and water usage to adjust intermittently. Wash cycle times are based on 120°F water supply. If your household water supply is different than 120°F, your dishwasher’s cycle times may be impacted. Note: Only sanitizing cycles have been designed to meet the requirements of 6 for soil removal and sanitization efficacy. There is no intention, either directly or indi- rectly, to imply that all cycles have passed sanitization performance tests. Table 2 - Wash Cycle Information Heavy Auto Glass Normal Express Rinse cycle time 110-135 min 105-129 min 80-85 min 130-135 min 30 min 9 min water cons. 18.6-24.2 L 4.9-6.4 gal 13.1-24.5 L 3.5-6.5 gal 9.3-14.5 L 2.5-3.8 gal 8.8-20.8 L 2.4-5.5 gal

• “x” can be any number or letter NOTE: For models with hidden controls, the door must be opened before changing settings and closed after changing settings. Buttons are sensitive and should be touched gently. Avoid any grease or food particals rest- ing on the buttons as they could activate the dishwasher. Wiping and cleaning can also acti- vate the dishwasher. For best results, use bare, clean hands when touching the buttons. NOTICE: Use caution when opening door during a running cycle. Hot water may splash out. Open door slowly. Start the dishwasher 1 Press the [On/Off] button. The LED of the last selected cycle flashes. 2 Select a cycle and desired options and press [Start]. Cancel a cycle 1 Press and hold the [Start] button for approximately 3 seconds until the display reads “0:01”. 2 Wait about 1 minute while the dishwasher drains. 3 Open the door and press the [On/Off] button.

A18 Interrupt a cycle 1 Press the [On/Off] button to turn the unit off. 2 To resume the cycle, press the [On/Off] button again. Delay Start You can delay the start of the cycle in one hour increments up to 24 hours. To set delay start: 1 Press the [On/Off] button. Select a cycle. 2 Press the [Delay] button until the displayed time corresponds with your requirements and press [Start] to activate delay start. h:01 = 1 hour delay h:24 = 24 hour delay To cancel delay start: 1 Press the [Delay] button until “h:00” is indicated on the digital display. 2 Press [Start] to save setting. Cycle Completion Signal 1 Open the door and press the [On/Off] button. 2 Hold down the “A” button (see page 17) and press [Start] until the display indicates “d:00”. Release both buttons. 3 Press the “A” button until the display shows “b:02”. 4 Press the “C” button to increase or decrease the tone “b:00” = OFF and “b:03” = LOUDEST and press [Start] to save setting and close the door. Intensive Drying The final rinse uses a higher temperature which improves the drying results. The running time may increase slightly. To turn intensive drying on: 1 Press the [On/Off] button. 2 Hold down the “A” button and press [Start] until the display indi- cates “d:00”. Release both buttons 3 Press the “A” button until the display shows “d:00”. 4 Press the “C” button to turn intensive drying on or off. “d:01” = ON and “d:00” = OFF and press [Start] to save setting. Auto Power Off To save energy, the dishwasher is turned off 1 minute after the wash cycle ends. Auto Power Off can be adjusted from P:00 to P:02. To change the factory setting (P:01): 1 Press the [On/Off] button. 2 Hold down the “A” button and press [Start] until the display indi- cates “d:00”. Release both buttons. 3 Press the “A” button until the display indicates “P:01”. 4 Press the “C” button until the display corresponds with your require- ments. P:00 = dishwasher does not turn off automatically P:01 = dishwasher turns off automatically after 1 minute P:02 = dishwasher turns off automatically after 120 minutes (2 hours) 5 Press [Start] to save the setting.19 Time remaining image Bosch logo Language To change the language of the display following these instructions. 1 Open the door and press the [On/Off] button. 2 Hold down the “A” button and press [Start] until the display indi- cates “d:00”. 3 Release both buttons. Press the “A” button until the display shows “L:01”. 4 Press the “C” button until the display corresponds with your requirements. L:02 = English L:03 = French L:07 = Spanish 5 Press [Start] to save and close the door. Time Light® Our dishwashers offer a convenient time remaining indicator light that projects cycle status and time remaining on the kitchen floor. Note: If the appliance is installed at eye-level, the time remaining informa- tion is not visible. In the default setting (S:01) the time remaining shows on the floor alternating with the Bosch® logo (about 5 seconds per image). To change setting: 1 Press the [On/Off] button. 2 Hold down the “A” button and press [Start] until the display indi- cates “d:00”. 3 Release both buttons. Press the “A” button until the display shows “S:01”. 4 Press the “C” button to switch between “S:00” = OFF, “S:01” and “S:02” = Time Light ON 5 Press [Start] to save the setting.20 Care and Maintenance A regular inspection and maintenance of your machine will help to pre- vent faults. This saves time and prevents future problems. Overall condition of the machine Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any resulting damage. Regularly wipe the front of the appliance with a damp cloth - water and a small amount of liquid soap is adequate. Do not use sponges as they could scratch the surfaces. Stainless steel appliances: To prevent corrosion, do not use sponges. Clean the outer edges of the inside door panel regularly to remove debris that may collect from normal loading. If spots begin to appear on the stainless steel, make sure the rinse agent is full and functioning properly. WARNING Use caution when removing parts for cleaning as some debris may be sharp. Filters The filter system consists of a coarse filter, a flat fine filter and a micro filter. The filters keep large foreign objects in the rinsing water away from the pump. Foreign objects may occasionally block the filters. Check the filters for residue by:

• Unscrew the filter cylinder as illustrated in Fig. 11-12 and take out the filter system.

• Remove any residue and clean filters under running water.

• Reinstall filter system in reverse sequence and ensure that the arrow marks are facing each other after locking it into place. Spray Arms Check spray arms for grease and limescale deposits. If you find such deposits:

• Fill detergent dispenser with detergent and start the appliance without utensils in the cycle with the highest rinsing temperature (see wash cycle information table).

• Clean the appliance with detergents/ appli- ance cleaners which are particularly suit- able for use with dishwashers.

• Unscrew the spray arms and inspect as shown in Figure 13. Figure 11 Figure 12 Figure 13

Waste water pump Large food remnants in the rinsing water not retained by the filters may block the waste water pump. In this case:

• Disconnect the appliance from the power supply.

• Remove the filters (see Figures 11-12).

• Scoop out standing water - use a sponge if nec- essary.

• Using a spoon, pry off the pump cover (see Fig- ure 14-15) until it clicks, then grip the cover and pull upward until it resists and then pull for- ward.

• Check inner compartment and remove any for- eign objects.

• Place cover in the original position, press down and engage. Reinstall filters. Preparing your unit for vacation Before leaving for vacation during warmer weather, besides turning off the main valve, also turn off water supply at the nearest point to the dish- washer. During colder weather, please follow the instructions for winter- izing your unit below. Winterizing your unit If your dishwasher will be unused for an extended period of time in a lo- cation that experiences freezing temperatures (holiday home or through a vacation period), have your dishwasher winterized by an authorized pro- fessional service. Figure 14 Figure 15

&OLFN22 Self Help Dishwashers may occasionally exhibit problems that are unrelated to a mal- function of the dishwasher itself. The following information may help you with a dishwasher problem without involving a repair professional. Problem Cause Action Dishwasher does not start

2. Unit may not be turned on

3. Unit not reset or previous cycle

4. Delay start engaged

5. Interruption of electrical power

supply to dishwasher or blown fuse.

6. The door may have been closed

without first selecting a cycle

7. Water supply may not be turned on

1. Shut the door completely until you

2. Press the main power switch to

3. To reset, refer to “Cancel a Cycle”

section in this manual

4. To reset, refer to “Delay Start”

section in this manual

5. Check circuit breaker

6. Select a cycle and close the door

(for hidden controls only).

7. Check and turn on water supply

Display does not illuminate

1. A fuse may have been blown or

circuit breaker tripped

2. Door not closed or latched

Note: For models with controls on top of the door, the display only illu- minate when the door is opened and controls are visible.

2. Ensure door is properly latched

and completely closed Dishwasher seems to run a long time

1. Incoming water is not warm

2. Cycle time can vary due to soil

and water conditions

3. Rinse aid dispenser is empty

4. Dishwasher connected to cold

water supply Note: Refer to “Wash Cycle Informa- tion” section in this manual for typi- cal cycle lengths

1. Before starting a cycle, run hot

water faucet at the sink closest to the dishwasher

2. Sensors in the dishwasher auto-

matically increase the cycle time to ensure a good wash when heavy soil is detected

4. Verify dishwasher is connected to

hot water supply plumbing Detergent dispenser cover will not shut

1. Improper operation of detergent

2. Previous cycle has not been fin-

ished or rest or cycle or inter- rupted

1. Refer to “Adding Detergent and

Rinse Aid” section of the manual for instructions on opening and closing the dispenser

2. Refer to the “Operating the Dish-

washer” section of the manual Unable to select desired cycle

1. Previous cycle has not finished 1. Refer to the “Operating the Dish-

washer” section of the manual23 Dishes are not getting clean enough

1. Spray arm movement obstructed

4. Filters could be clogged

5. Dishes are nested or loaded too

6. Selected wash cycle is not suitable

for food soil conditions

1. Ensure that spray arm movement is

not blocked by hand rotating spray arms before starting cycle

2. Remove the spray arms and clean

according to the “Care and Mainte- nance” section of the manual

3. Increase or decrease detergent

depending on the water hardness (refer to Table 1)

4. Clean the filters according to the

“Care and Maintenance” section of the manual

5. Rearrange load such that water

spray can reach all items in the dish- washer - see “Loading the Dishwasher” section of the manual

6. Refer to “Wash Cycle Information” sec-

water, adjust the rinse agent dis- penser. Refer to “Adding Detergent and Rinse Aid” section in the manual Dishes are not getting dry enough

1. Rinse aid dispenser is empty

2. Improper loading of dishes

Note: Plastic or Teflon do not typically dry as well as other items due to their inher- ent properties

2. Rearrange load to ensure items are

not nesting (see “Loading the Dish- washer” section of the manual) Note: Select models offer an extra heat- ing option to improve drying perfor- mance. Odor 1. Food debris is present at the bot- tom of the dishwasher

2. Food particles are present near

3. Residual water is present at the bot-

tom of the dishwasher

4. Drain hose is obstructed

1. Remove the filters and clean accord-

ing to the “Care and Maintenance” sec- tion of the manual

2. Refer to “Care and Maintenance” sec-

3. Ensure the unit has completely

drained from the last cycle

4. Remove any obstructions from the

drain hose by calling qualified personnel. Note: If odor still persists, run the Nor- mal/Regular cycle until it flushes and interrupt the cycle and place an 8oz. cup of distilled white vinegar solution on the top rack and then finish the cycle. Problem Cause Action24 Dishwasher not filling with water or “Check water sup- ply” display lights up

1. Restriction in the water supply

2. Previous wash cycle was not com-

3. Delay start is active

4. Household water supply turned off

1. Ensure that the water supply valve

(typically located under kitchen sink) is open and check that the water sup- ply line has no kinks or clogs

2. Refer to the “Operating the Dish-

washer” section of the manual.

3. Cancel the delay start or wait until

delay start time completes

4. Turn on water supply

Fascia panel discolored or marked

1. Abrasive cleaner used 1. Use mild detergents with soft

damp cloth Water leaks 1. Suds

2. Door seal could be pulled away

3. Condensation vent is blocked

4. Improper installation

1. Wrong type of detergent results in

suds and leaks - use only dishwasher detergents. If suds still persist, add one tablespoon of vegetable oil at the bottom of the dishwasher and run the desired cycle.

2. Ensure the door seal is in the track

3. Ensure that condensation vent is

4. Have proper installation verified

by qualified personnel (water supply, drain system, leveling, plumbing) Tub stains 1. Stains on the dishwasher interior are due to water hardness

2. Silverware in contact with tub

1. Concentrated lemon juice can

reduce the build up of hard water stains. Run Normal cycle until it flushes and interrupt the cycle and then place an 8oz. cup of the con- centrated lemon solution on the top rack and finish the cycle. This can be done periodically to avoid build up.

2. Ensure that silverware does not

make contact with the tub while run- ning a cycle. Noise dur- ing wash cycle

1. Dishes may not be arranged

1. Water circulation sound is normal,

but if you suspect items are banging into each other or into the spray arms, refer to the “Loading the Dish- washer” section of the manual for optimal arrangement. Problem Cause Action25 Customer Service Your Bosch® dishwasher requires no special care other than that described in the Care and Maintenance section of this manual. If you are having a problem with your dishwasher, before calling for service please refer to the Self Help section of the manual. If service is necessary, contact your dealer or installer or an authorized service center. Do not attempt to repair the appliance your- self. Any work performed by unauthorized personnel may void the warranty. If you are having a problem with your Bosch dishwasher and are not pleased with the service you have received, please take the following steps until the problem is corrected to your satisfaction: 1 Call us at 1-800-944-2904 2 Contact Customer Service from our web site: www.bosch-home.com/us or www.bosch-appliances.ca 3 Contact your installer or the Bosch Authorized Service Contrac- tor in your area. 4 Write us: BSH Home Appliances Corporation 1901 Main Street Irvine, CA 92614 Please be sure to include your model information as well as an explanation of the problem and the date it started. You will find the model and serial number information on the label located on the edge of the dishwasher door. Please make a copy of your invoice and keep it with this manual. The customer must show proof of purchase to obtain warranty service. Touch sensi- tive “but- tons” not activating easily or activating without being touched

1. Water or other liquid on the sur-

2. “Buttons” not being activated

1. Wiping the fascia may cause

unwanted activation. Dry clean when possible. If you must use a damp cloth to clean, dry immediately. Never pour water on the controls.

2. Press the center of the “button”

with the flat area of your fingertip. A beep will sound to indicate that the selection has been made. Touching the “buttons” lightly should work. Note: There is a built in delay to pre- vent someone from launching several actions at once by accidentally wiping their hand (or a cleaning cloth) across the control panel. Problem Cause Action26 Statement of Limited Product Warranty What this Warranty Covers & Who it Applies to: The limited warranty provided by BSH Home Appliances Corporation (BSH) in this Statement of Limited Product Warranty applies only to Bosch® dishwashers (“Product”) sold to you, the first using purchaser, provided that the Product was purchased: (1) for your normal, household (non-commer- cial) use, and has in fact at all times only been used for normal household purposes; (2) new at retail (not a display, “as is”, or previously returned model), and not for resale, or commercial use; and (3) within the United States or Canada, and has at all times remained within the country of original purchase. The warranties stated herein apply only to the first purchaser of the Product and are not transferable.

• Please make sure to return your registration card; while not necessary to effectuate war- ranty coverage, it is the best way for BSH to notify you in the unlikely event of a safety notice or product recall. How Long the Warranty Lasts: BSH warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty five (365) days from the date of purchase. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. Labor and shipping costs are included in this basic coverage. Extended Limited Warranty: BSH also provides these additional limited warranties:

• 5 Year Limited Warranty on Electronics: BSH will repair or replace any BSH microproces- sor or printed circuit board if it proves to be defective in materials or workmanship (excludes labor charges).

• 5 Year Limited Warranty on Dish Racks: BSH will replace the upper or lower dish rack (excluding rack components), if the rack proves defective in materials or workmanship (excludes labor charges).

• Lifetime Warranty against Stainless Steel Rust Through: BSH will replace your dish- washer with the same model or a current model that is substantially equivalent or better in functionality, if the inner liner should rust through (excludes labor charges).

• BSH will replace the stainless steel door if the door should rust through (excludes labor charges). The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. Repair/Replace as Your Exclusive Remedy: During this warranty period, BSH or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made with- out success, then BSH will replace your Product (upgraded models may be available to you, in the sole discretion of BSH, for an additional charge). All removed parts and components shall become the property of BSH at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. BSH’s sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a BSH-authorized service provider during normal business hours. For safety and property damage concerns, BSH highly recommends that you do not attempt to repair the Product yourself, or use an unauthorized servicer; BSH will have no responsibility or liability for repairs or work performed by a non-authorized ser- vicer. If you choose to have someone other than an authorized service provider work on your Product, THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND VOID. Authorized ser- vice providers are those persons or companies that have been specially trained on BSH prod- ucts, and who possess, in the opinion of BSH, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affili- ates or representatives of BSH). Notwithstanding the foregoing, BSH will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, BSH would still pay for labor and parts and ship the parts to the nearest authorized service pro- vider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call.27 Out of Warranty Product: BSH is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or Product replacement, once this war- ranty has expired. Warranty Exclusions: The warranty coverage described herein excludes all defects or damage that are not the direct fault of BSH, including without limitation, one or more of the following: (1) use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels); (2) any party’s will- ful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self-performed “fixing” or exploration of the appli- ance’s internal workings); (3) adjustment, alteration or modification of any kind; (4) a failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations; (5) ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product; and (6) any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God. In no event shall BSH have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are scratches, nicks, minor dents, and cosmetic damages on external surfaces and exposed parts; Products on which the serial num- bers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses. TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUD- ING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHER- WISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPE- CIAL, INCIDENTAL, INDIRECT, “BUSINESS LOSS”, AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RES- TAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BSH, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH Home Appliances Corporation. How to Obtain Warranty Service: TO OBTAIN WARRANTY SERVICE FOR YOUR PROD- UCT, YOU SHOULD CONTACT THE NEAREST BSH AUTHORIZED SERVICE CENTER, OR
