USER MANUAL DWHD94EP THERMADOR

DISHWASHER USE AND CARE MANUAL

MODEL: DWHD94BF, DWHD94BS, DWHD94BP, DWHD94EP

GUIDE D'ENTRETIEN ET D'UTILISATION DU LAVE-VAISSELLE

MODELE: DWHD94BF, DWHD94BS, DWHD94BP, DWHD94EP

MODELOS: DWHD94BF, DWHD94BS, DWHD94BP, DWHD94EP

on Off ①

Congratulations and Thank You from Thermador!

Thank you for selecting a Thermador dishwasher. You have joined the many consumers who demand quiet and superior performance from their dishwashers.

This manual was written with your safety and convenience in mind, and the information contained herein is very important. We highly recommend that you read this manual before you use your dishwasher for the first time.

To learn even more about your dishwasher and available accessories, as well as many other top-quality Thermador appliances, visit our website at www.thermador.com.

Please contact us if you have any questions or comments. You can call us at 1-800-735-4328, or you can write us at:

Thermador

5551 McFadden Avenue

Huntington Beach, CA 92649

Enjoy!

IMPORTANT SAFETY INSTRUCTIONS 4-5

Dishwasher Components 5

Dishwasher Features and Options 6

Dishware Materials ....7

Preparing and Loading the Dishware 7-9

Dishware Preparation 7

Loading the Dishwasher 7-10

Adding Detergent and Rinse Agent 10-11

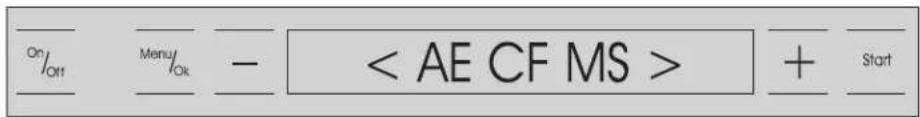

Operating the Dishwasher 12-14

Before you begin 12

Cycles and Options 13-14

Starting the Dishwasher 14

Care and Maintenance 14-17

Wash Cycle Information/Sanitized 18

Self Help 19

Statement of Warranties 20

Customer Service 21

▲ Important Safety Instructions - Save This Information ▲

ATTENTION

Never use steam cleaning products to clean your dishwasher. The manufacturer will not be liable for possible damages or consequences.

ATTENTION

Never use harsh chemicals to clean your dishwasher. Some chloride-containing cleaning products can damage your dishwasher and may present health hazards!

ATTENTION

It is highly recommended for the end use consumer to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the Installation Instructions or speak with your installer for more information.

WARNING

Misuse of the dishwasher can result in serious injury or death. Do not use the dishwasher in any way not covered in this manual or for any purpose other than those explained on the following pages.

WARNING

Severe product damage and/or injury could result from the use of unqualified service technicians or non-original replacement parts. All repairs must be performed by a qualified service technician using only original equipment factory replacement parts.

WARNING

Electrical shock or fire could result if the electrical supply for the dishwasher covered in this manual is incorrectly installed or if the dishwasher has been improperly grounded. Do not use the dishwasher covered in this manual if you are not certain the electrical supply has been correctly installed or the dishwasher has been properly grounded.

▲ Important Safety Instructions - Save This Information ▲

• This appliance must be grounded to a metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instructions included with this dishwasher for more information on electrical requirements.
• Use this dishwasher only for its intended function, which is the washing of household dishware and kitchenware.
• This dishwasher is provided with before using the dishwasher. Installation Instructions and this Use and Care Manual. Read and understand all instructions
  • Use only detergents or rinsing agents recommended for use in a dishwasher, and keep them out of the reach of children.
• When loading items to be washed:

- Locate sharp items so that they are not likely to damage the door seal.

- Load knives and other sharp utensils with their HANDLES UP to reduce the risk of cut-type injuries.

• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
• Do not operate your dishwasher unless all enclosure panels are in place.
• Do not tamper with or override controls and interlocks.
• Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.
  • To reduce the risk of injury, do not allow children to play in or on the dishwasher.
• When children become old enough to operate the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding.
  • To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.
• Protect your dishwasher from the elements. Protect against freezing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty.

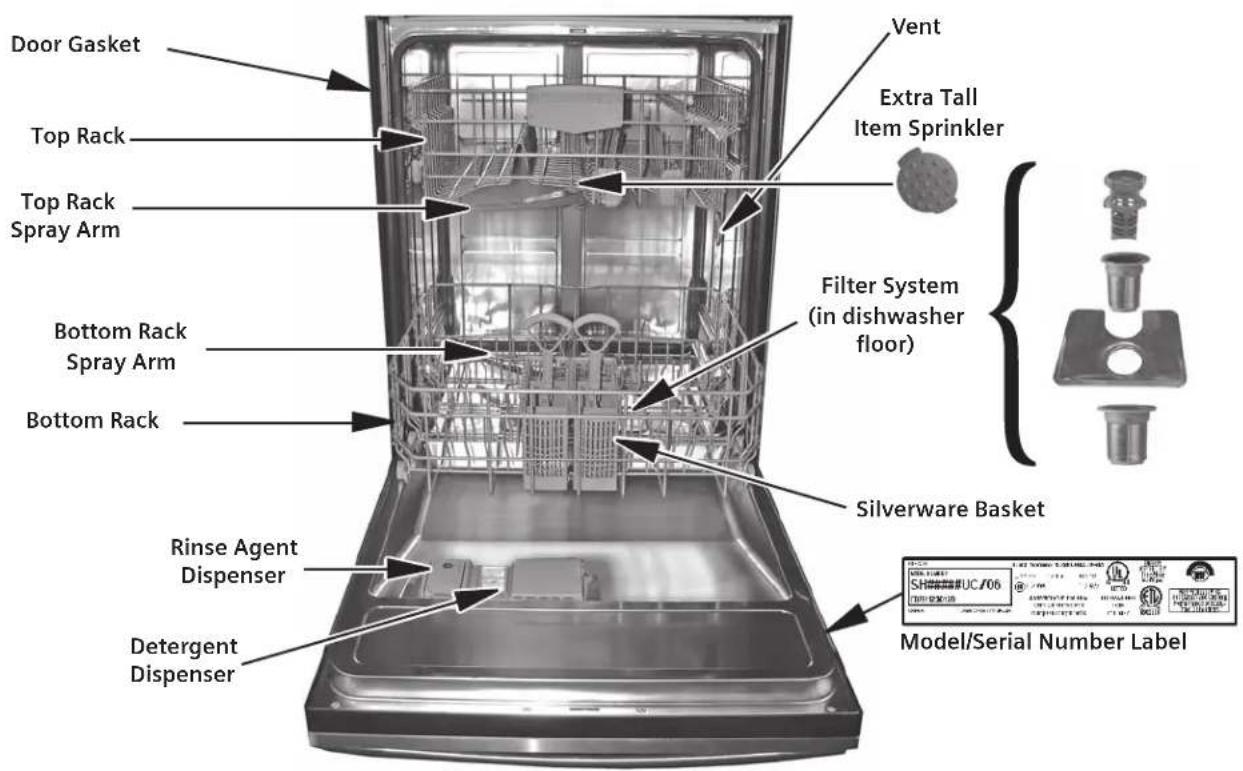

Dishwasher Components

Door Gasket Top Rack Top Rack Spray Arm Bottom Rack Spray Arm Bottom Rack Rinse Agent Dispenser Detergent Dispenser Vent Extra Tall Item Sprinkler Filter System (in dishwasher floor) Silverware Basket Model/Serial Number Label

Dishwasher Features and Options

Condensation Drying: A high temperature final rinse, a low temperature stainless steel tub, and the sheeting action of a rinse agent result in drying that is hygienic, energy efficient, and economical.

Digital Countdown Display: A digital readout that counts down the approximate time remaining in the cycle, and is also used in setting other options. Alternating Spray Arms: Reduces water, energy consumption and noise by alternately distributing water to either the upper, lower, or both spray arms.

Exceptionally Low Water Usage: As little as 3.1 gallons in the Auto Delicate cycle.

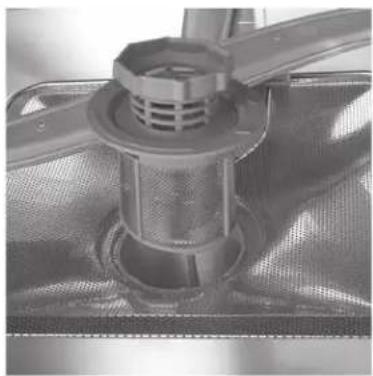

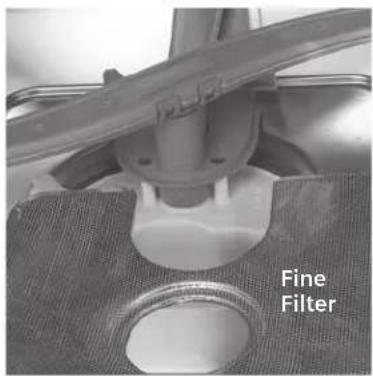

Filter System: Four filters ensure distribution of clean water and protect the main pump and the drain pump from foreign material.

In Line Flow Through Water Heater™: Heats water to a temperature of up to 161°F.

Nylon Racks: Durable rack material resistant to cuts and nicks, with a five-year warranty.

Refill Rinse Agent Indicator: The control display reads "Refill Rinse Agent" when the rinse agent dispenser needs refilling.

Sanitized Indicator: The control display reads "Sanitized" to indicate that your dishes are sanitized to the standards of the National Sanitation Foundation.

Sens-a-Wash™ Soil Sensor: Checks water condition and decides whether a second fresh water fill is necessary.

Stainless Steel Tall Tub: A rust-free, hygienic interior surface with a lifetime warranty. See warranty statement for details.

Water Shut-Off: A safety feature that stops the flow of incoming water if water is detected in the base of the dishwasher.

Additional Drying Heat: Raises the rinse water temperature, which results in better drying.

Cup Shelves: Fold-down shelves that hold cups or large kitchen utensils.

Cycle Completion Signal: A tone that sounds when your dishwasher finishes washing and drying your dishes.

Delay Start: Allows you to delay the start of the wash cycle for up to 24 hours.

Knife Rack: Designed to securely hold fine cutlery and silverware.

Automatic Height-Adjustable Top Rack: Lower the top rack to accommodate large items in the top rack, or raise the top rack to make room for larger items in the bottom rack.

Top Rack and Bottom Rack Flip Tines: Tines that fold down allow loading versatility.

PowerBoost Cycle Time Optimizer: Reduces the time to complete the wash cycle by preheating.

PowerBeam Status Indicator: Red LED illuminates floor to indicate unit is running.

Hygiene Dry Low Rinse Aid Compensator: Senses when the unit is low on rinse agent and automatically adjusts the drying performance.

Sens-a-Touch Controls: Provide easy cleaning while preventing accidental activation.

Rack Attachment: Adds additional fold down shelves on the lower rack.

Glass Rack: Removable rack that fits in the lower dish rack to help position glasses.

Tall Items Sprinkler: Allows you to remove the upper rack and wash extra tall items.

Dishware Materials

NOTE: Before using your dishwasher for the first time, check the information in this section. Some items are not dishwasher safe and should be hand-washed; others require special loading. Contact the item's manufacturer if you are unsure about the item's dishwasher suitability.

Recommended

Aluminum: Colored anodized aluminum may fade over time. Minerals in your water may cause the aluminum to darken or spot. This can usually be removed by using a soap-filled steel wool pad.

China, Crystal, Stoneware: Some

hand-painted pieces may discolor, fade, or spot. Hand-wash these pieces. Position fragile glassware so that it will not topple over or contact other pieces during the wash cycle.

Glass: Milk glass may yellow.

Non-Stick Coatings: Apply a light coating of vegetable oil to non-stick surfaces after drying.

Plastics: Make sure the piece is dishwasher safe.

Stainless Steel, Sterling Silver, and Silver Plate: Place these pieces so that they do not contact dissimilar metals.

Not Recommended

Acrylic: Crazing (small cracks throughout the acrylic) may occur.

Adhesive-Joined Pieces: Adhesives that join materials such as plastic, wood, bone, steel copper, tin, etc. may loosen.

Bone-Handled Utensils: Handles may separate.

Iron: Iron will rust. Hand-wash and dry immediately.

Non-Dishware Items: Your dishwasher is intended for use in cleaning ONLY standard household dishware and kitchenware.

Pewter, Brass, Bronze: Pewter will tarnish. Hand-wash and dry immediately.

Tin: Tin will rust. Hand-wash and dry immediately.

Wood: Wooden bowls, wooden utensils, and wood-handled utensils can crack, warp, and lose their finish.

Preparing and Loading the Dishware

Dishware Preparation

Do not pre-wash items having loosely-attached soiling. Remove large food particles, bones, seeds, toothpicks, and excessive grease. Items having burned-on, baked-on or starchy soils may require pre-treatment.

Loading the Dishwasher

Check the Materials section of this manual if you are unsure about an item's dishwasher suitability.

Load only dishwasher-safe items into the dishwasher. Load dishes in the dishwasher racks so that the insides of bowls, pots, and pans are facing the spray arms. Avoid nesting and contact points between dishes. Separate items of dissimilar metals.

Loading the Top Rack

Figures 1 and 2 show typical 10 and 12 place load patterns for the top rack.

NOTE: Make sure items do not protrude through the bottom of the racks and block the spray arms.

ATTENTION

To avoid dishwasher damage, do not load the dishwasher with objects such as paper products, plastic bags, packing materials, or anything other than normal dishware and kitchenware. Do not load the dishwasher with anything other than dishwasher-safe dishware and kitchenware.

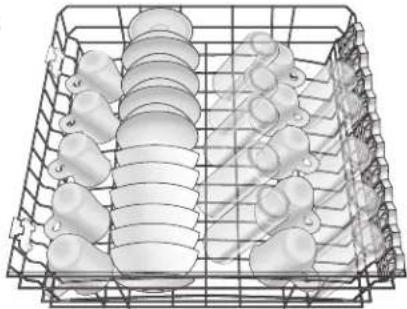

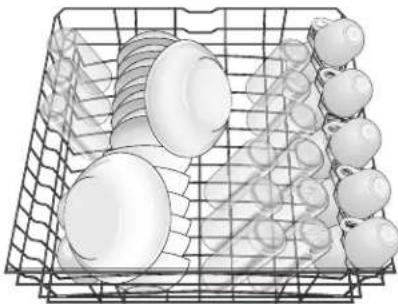

Figure 1
10 place setting top rack

3D wireframe model of a basket filled with various food items, no text or symbols visible

Figure 2

12 place setting top rack

Illustration of a shopping basket filled with eggs and fruits (no text or symbols)

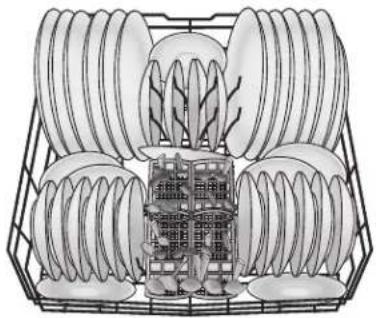

Figure 3
10 place setting bottom rack

3D wireframe diagram of a mechanical assembly with multiple circular components and a central cylindrical component (no text or symbols)

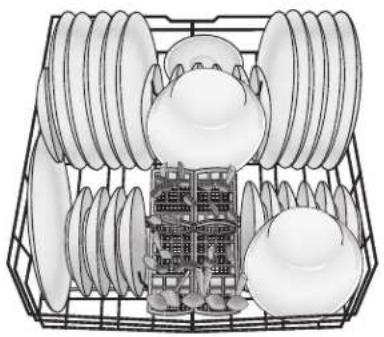

Figure 4
12 place setting bottom rack

Technical line drawing of a mechanical assembly with multiple circular components and internal components (no text or symbols)

Figure 5

Close-up of a metallic industrial cabinet with a circular component and a black arrow pointing to a detail (no visible text or symbols)

Figure 6

Do not block vent.

Interior view of a kitchen appliance with visible battery compartments and a black arrow pointing to a component (no text or symbols)

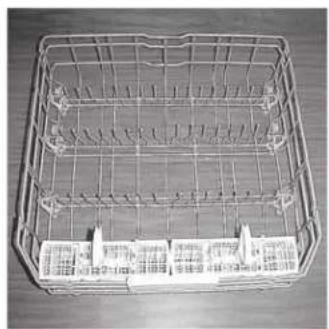

Loading the Bottom Rack

Place large items in the bottom rack. Load pots, pans and bowls upside-down. Figures 3 and 4 show typical mixed loads for the bottom rack.

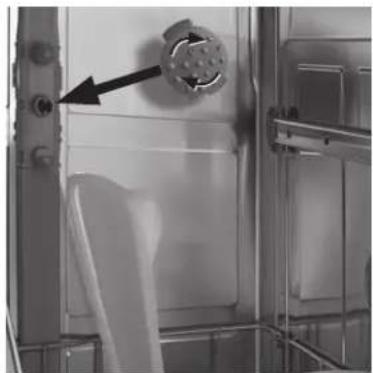

Loading Extra Tall Items

If an item is too tall to be placed into the bottom rack even with the top rack in the raised position, remove the empty top rack by pulling it out of the dishwasher until it stops rolling. Pull the front of the rack upward and outward until the rollers are completely free of the roller guides. Set the top rack aside. Push the roller guides back into the dishwasher. Insert the Extra Tall Item Sprinkler into the top rack spray outlet and turn the sprinkler clockwise to lock it into position as shown in Figure 5. Place your extra tall item(s) in the bottom rack as shown in Figure 6.

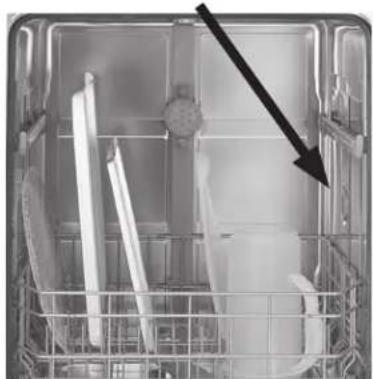

NOTE: Keep the vent on the tub's right side clear by placing tall items such as plastic cutting boards and tall baking sheets on the bottom rack's left side, center, or back.

ATTENTION

To avoid dishwasher damage, do not reinstall the top rack without removing the extra tall item sprinkler. Do not reinstall the top rack with the sprinkler installed.

To remove the sprinkler and return the dishwasher to its normal condition:

1. Turn the sprinkler counterclockwise and remove it.
2. Retrieve the top rack.
3. Tilt the top rack upwards and position the top rack rollers onto the roller guides.
4. Continue pushing the top rack until the rollers are on the guide.

Rack Accessories

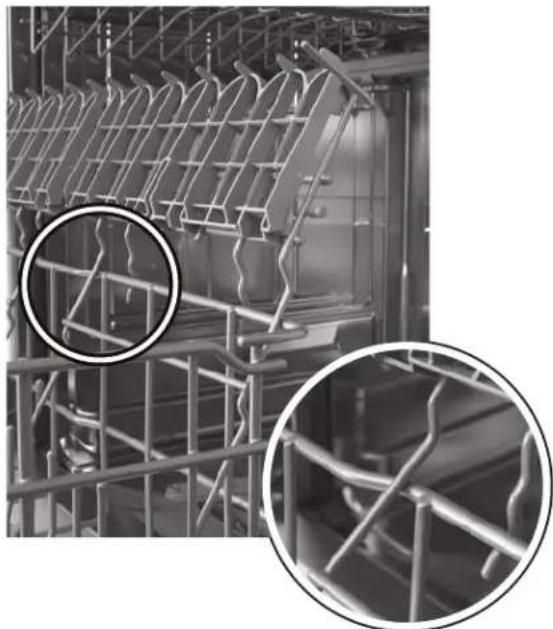

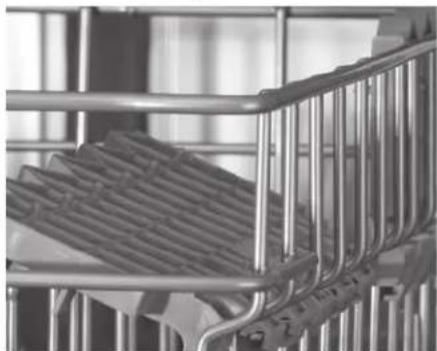

Flip Tines

Flip Tines fold down to make loading the racks easier in some instances. Grasp the tines and release from notch to reposition as shown in Figure 7.

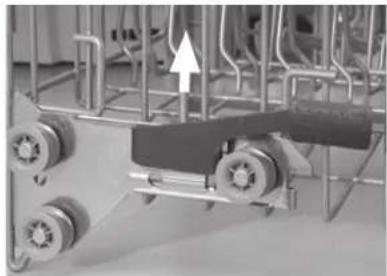

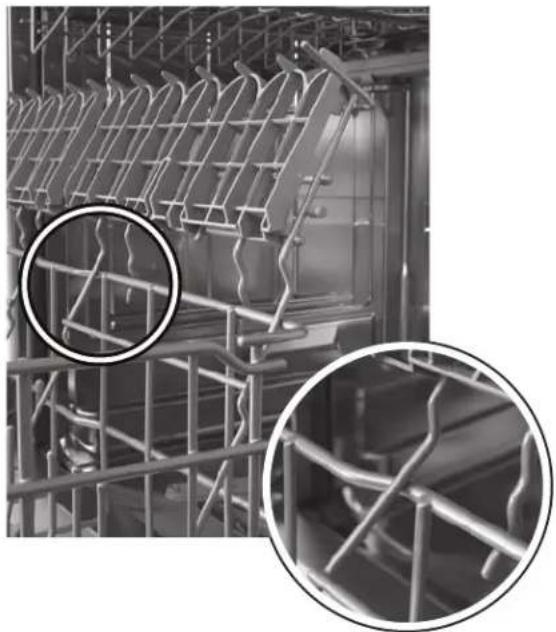

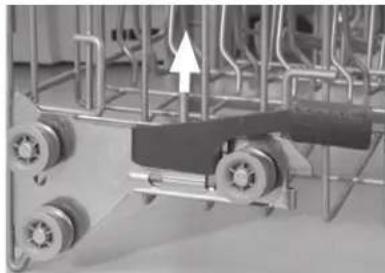

Top Rack Height Adjustment

The top rack can be lowered to accommodate large items in the top rack, and raised to make room for large items in the bottom rack.

To raise the top rack:

1. Pull the top rack out of the dishwasher until it stops rolling.
2. Grasp the top of the rack above the Automatic Height-Adjustable Top Rack handles and pull it upward as shown in Figure 8 until the Automatic Height-Adjustable Top Rack handles lock the rack into position (you do not need to press the Automatic Height-Adjustable Top Rack handles in order raise the rack).

NOTE: Before you push the top rack back into the dishwasher, ensure that the rack height is the same on both sides. Otherwise, the dishwasher door will not shut and the top rack spray arm will not connect to the water circuit.

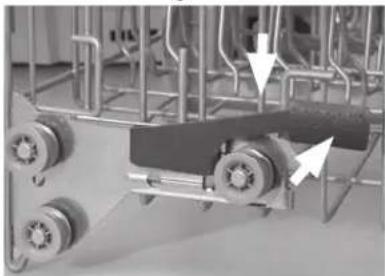

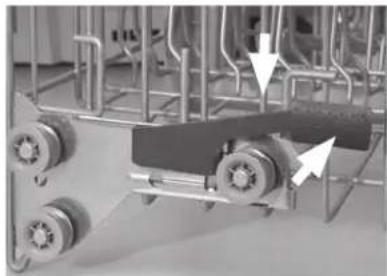

To lower the top rack:

1. Pull the top rack out of the dishwasher until it stops rolling.
2. Press the Automatic Height-Adjustable Top Rack handles inward as shown in Figure 9 and let the rack drop.

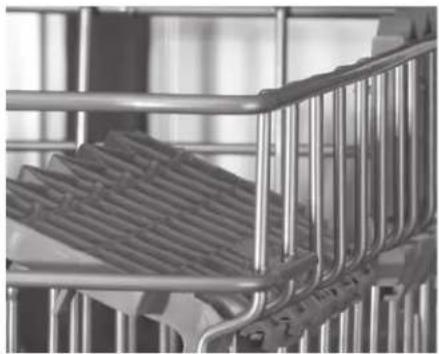

Cup Shelves

In addition to cups, the shelves can also hold large utensils. Grasp the cup shelves and fold them down as shown in Figure 10. Place cups upside-down on the cup shelves.

Knife Rack

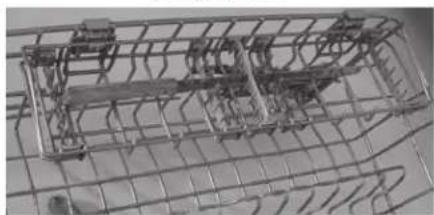

The knife rack is an extra shelf for knives and other large utensils. It is assembled onto an edge of the upper rack. Place knives with sharp sides down as shown in Figure 11,

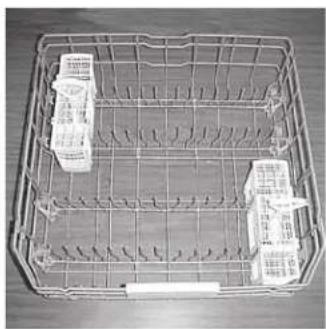

Glass Rack Attachment

The rack attachment has two additional cup shelves upon which to place cups and large kitchen utensils. The rack attachment is assembled on the rear edge of the lower rack. Before placing the glass rack in the bottom rack, first fold down the two rear rows of flip tines.

To assemble:

Slide the Rack Attachment in as shown in Figure 12, keeping the longest tines on the inside of the top basket wire and on the outside of the lower basket wire. The short tines will snap into place.

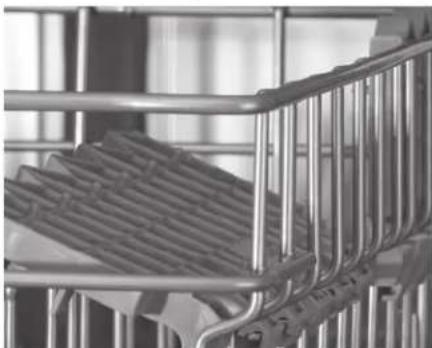

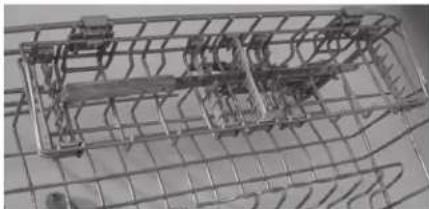

Rack Attachment Use

To use the rack attachment, fold down the cup shelves and place items to be washed.

Figure 7

Mechanical assembly diagram showing two views of a bracket with metal levers and a white arrow pointing to a component (no text or symbols present)

Figure 8

Industrial machine component with rollers and metal frame, no visible text or symbols

Figure 9

Industrial machinery component with rollers and pipes, no visible text or symbols

Figure 10

Close-up of a metal shopping cart filled with documents, no visible text or symbols

Figure 11

Metal wire cage structure with internal components, no visible text or symbols

Figure 12

Close-up of a metal rack structure with structural ribs, shown in two magnified insets (no text or symbols visible)

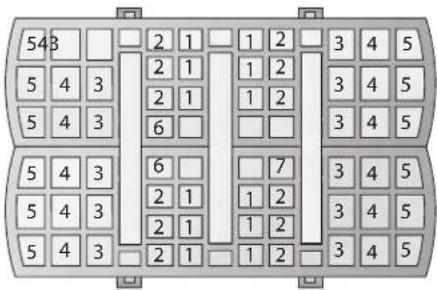

Figure 14

54 3 2 1 1 2 3 4 5 5 4 3 2 1 1 2 3 4 5 5 4 3 6 1 2 3 4 5 5 4 3 6 7 3 4 5 5 4 3 2 1 1 2 3 4 5 5 4 3 2 1 1 2 3 4 5

12345 6 7

12 place setting

Figure 15

Two-panel image showing a person holding a wireframe basket, with arrows indicating movement or transformation (no text or symbols present)

Loading the Silverware Basket

NOTE: The silverware basket tops can be folded up to accommodate large or oddly-shaped items.

With the silverware basket tops down, load the silverware basket following the pattern suggested in Figure 14. Place knives with their handles up, and forks and spoons with their handles down.

If large or oddly-shaped items are to be loaded into the silverware basket with the tops up, load the items so that they do not nest together. Load knives and sharp utensils with their handles up.

CAUTION

The sharp points and edges of knives and other sharp utensils can cause serious injuries. Load knives and other sharp utensils with sharp points and edges down. Do not allow children to handle or play near knives and sharp utensils.

The Flexible Silverware Basket

This basket is designed for maximum versatility. The basket splits along its length, resulting in two halves that may be placed in a variety of positions in the lower rack, greatly increasing the lower rack's loading versatility.

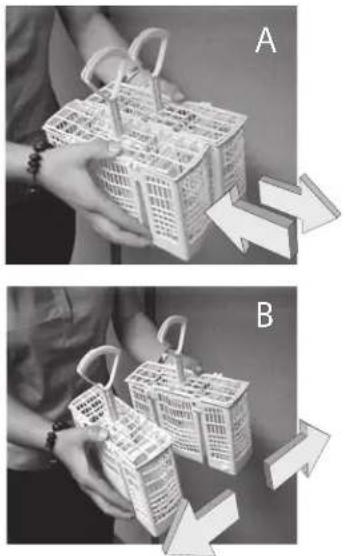

To split the Flexible Silverware Basket:

1. Grasp the basket as shown in Figure 15A, and slide the two halves in opposite directions, as shown in Figure 15A.
2. Pull the two halves apart, as shown in Figure 15B.

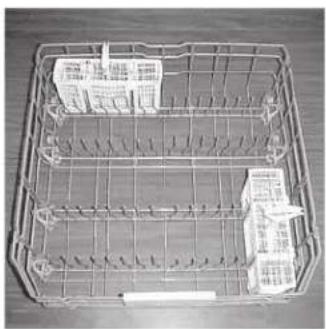

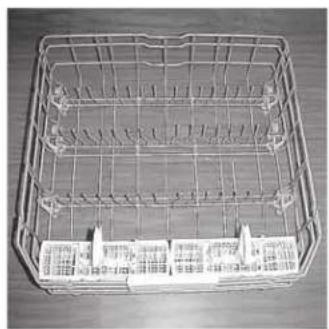

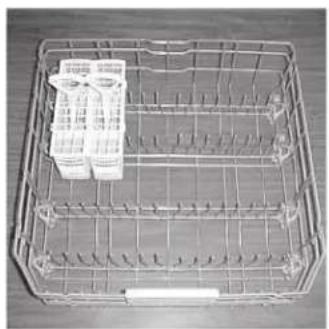

Some suggestions for placing the two halves in the lower rack are shown in Figure 16.

Figure 16

Empty metal shopping basket with grid lines and a small label on the side (no visible text or symbols)

Metal wire basket with multiple compartments and labels, placed on a wooden surface (no readable text or symbols)

Metal rack with multiple compartments and small labels, no visible text or symbols on the main structure.

Metal wire rack with two white plastic components placed on top, placed on a wooden surface (no text or symbols visible)

Adding Detergent and Rinse Agent

Detergent

Use only detergent specifically designed for dishwashers. For best results, use fresh powdered dishwashing detergent.

ATTENTION

To avoid dishwasher damage, do not use hand dishwashing products.

This dishwasher uses less water so you need to use less detergent. With soft water, 1 tablespoon (15ml) of detergent will clean most loads. The detergent dispenser cup has lines that measure detergent to 1 tablespoon (15ml) and 1.75 tablespoons (25ml). 3 tablespoons (45ml) of detergent will completely fill the detergent dispenser cup.

ATTENTION

To avoid dishware damage, do not use too much detergent if your water supply is soft. Using too much detergent in soft water may cause etching in glassware.

NOTE: If you do not know the hardness of your water supply, use 15ml of detergent. Increase the amount of detergent, if necessary, to the least amount required to get your dishware and kitchenware clean.

Use the measuring lines in the detergent dispenser cup as a guide to measure the amount of detergent recommended in Table 1.

Table 1 - Recommended Detergent Amount
		Water Type
Wash Cycle	Unit	Hard Medium Soft
Auto Super Wash	ml	45	45	25-45
	Tbsp	3 3 1.75 to 3
Auto Wash	ml	25-45	25 15-25
	Tbsp	1.75 to 3	1.75	1 to 1.75
Auto Delicate	ml	25 15-25 15
	Tbsp	1.75 to 1.75 1
Party Wash	ml	25 15-25 15
	Tbsp	1.75 to 1.75 1
Rinse Hold		None	None None

Add Detergent
Figure 17

• Use fresh powdered detergent for best results
  • 1 tablespoon will clean most loads
  • 3 tablespoons Max, do not overfill
• When using detergent tabs, lay them flat to avoid contact with the cover

Figure 18

To close

Slide cover fully left

Push rear of cover down firmly until you hear the
→CLICK

Figure 19

To open the cover

• Push the blue button in (NOT DOWN)


Figure 20
Always use Rinse Agent even if your detergent contains Rinse Agent

Lift tab to open
- Add Rinse Agent when the control panel message iondicates "Refill Rinse Agent"

Filling the Detergent Dispenser

Fill the dispenser cup as recommend in Table 1. (See Figure 17 for additional information.) To close, slide the detergent dispenser cover in the direction shown in Figure 18 and press it down firmly so the cover snaps shut.

To open the detergent dispenser cover, press the blue release tab in the direction shown in Figure 19. Pressing down on the release tab will not open the cover.

Rinse Agents

To achieve proper drying, always use a liquid rinse agent, even if your detergent contains a rinse agent or drying additive.

Rinse Agent Dispenser

Open the rinse agent dispenser by lifting the tab with your thumb as shown in Figure 20.

NOTE: The dishwasher indicates low rinse agent with the "Refill Rinse Agent" message at the control panel.

Add liquid rinse agent to the dispenser as shown in Figure 21 until the rinse agent reservoir is full. Wipe up any excess rinse agent that puddles when the dispenser reservoir is full.

Figure 21

Diagram of a rotary dial with Chinese text labels and an arrow pointing to the dial's center.

• To add Rinse Agent pour on the arrow
• Turn arrow to adjust the amount of rinse agent dispensed

To Decrease Streaks on glasses
To Decrease Spots on glasses

Operating the Dishwasher

On/Ott Menu/Ok - < AE CF MS > + Start

Before you begin

Using the Touch Pad Controls

Your new dishwasher is equipped with the latest control technology featuring Sens-a-Touch Controls activation.

In order to activate a button, open the door and place the entire fingertip over the desired button and hold it in place for three seconds. This three-second hold is intended to prevent accidental activation.

Selecting a Language

Before using your new dishwasher you must select a language. Open the door far enough to expose the controls and press the ON/OFF button to turn the unit on. The first time you turn on the dishwasher, the language selection screen (see above) will appear.

The available languages are:

1. AE = American English
2. CF = Canadian French
3. MS = Mexican Spanish

The language abbreviation "AE" will be flashing. If you want a different language press – or + until the desired language flashes. Save the selected language by pressing the MENU/OK button. If you select the wrong language, refer to the "Display Language" section of this manual for more information.

Selecting a Wash Cycle

After adding detergent and rinse aid as explained in the Adding Detergent and Rinse Aid section of this manual, turn the dishwasher on by pressing the ON/OFF button. The display will indicate the default cycle, "Auto Wash".

If you did not add rinse aid, the display will indicate "Refill Rinse Aid." To bypass this screen press the MENU/OK button.

To select a different cycle press + or - until the display shows the desired wash cycle.

ATTENTION

To avoid damage to delicate or heirloom items, do not wash them in your dishwasher.

Always make sure your dishware is dishwasher safe. Refer to the Dishware Materials section of this manual for guidance.

Wash Cycle Selections

Wash cycles accessible from this menu include:

Auto Super Wash

Cleans items having baked-on or hard dried-on food soils. These items may require soaking or hand scouring.

Auto Wash (default cycle)

Cleans large loads with loosely attached food soils.

Auto Delicate Wash

Cleans delicate or heirloom dishware and silverware, or other special items. Hand washing may be the best for such items.

Party Wash

Cleans lightly soiled dishes and reduces overall wash time. Use this cycle to clean glasses and desert dishes that may need to be re-used at the same event.

Rinse and Hold

Allows you to rinse the food soil off of a partial load and hold them in the dishwasher until there is a full load.

Wash Cycle Options

WARNING

You could be seriously scalded if you allow hot water to splash out of the dishwasher. OPEN THE DOOR CAREFULLY during any wash or rinse cycle. Do not fully open the door until water noises have stopped.

The factory default settings for all options should provide good results.

The door must be open to activate the controls.

Options Selections

You can access the available options in the Options Step Down Menu as follows:

Delay Start

This option allows you to delay the start of the selected cycle for up to 24 hours in 30 minute increments.

Power Boost

Reduces the time to complete the wash cycle by preheating.

Extra Drying

This option allows you to adjust the final rinse temperature to improve drying or to save energy.

The following set points are available:

• Economy Drying – saves energy.
• Normal Drying – factory default setting.
• Extra Drying – improves the drying performance.

End Signal

The dishwasher emits a tone (five times) to let you know that your dishes are clean and dry. You can change the tone volume or you can disable it.

Rinse Aid ON/OFF

This option allows you to turn the rinse aid dispenser on or off.

NOTES:

• When the rinse aid setting is turned off, the display message "Refill Rinse Aid" will not appear.
• See the Adding Detergent and Rinse Aid section for further information.

Display Language Selection

This option allows you to select the display language. The first time that you use your dishwasher, this screen will automatically appear.

The following set points are available:

AE = American English
CF = Canadian French
MS = Mexican Spanish

Standard Programs

The wash cycles available in this hidden menu are special wash cycles that may be used to solve special needs.

The following special cycles are available:

• Regular - normal wash cycle.
• Enviro Care - reduces water and energy consumption.
• Glass Care - reduces temperatures to reduce glass damage.
• Extreme Wash - for extremely hard to remove food soils.

Activating a Dishwasher Option

To activate any of the Dishwasher Options listed, follow these steps:

1. Open the dishwasher door far enough to expose the control panel.
2. Press the On/Off button.
3. Press the MENU/OK button until the desired option appears in the display window.
4. Press the - or + button to step through the available option settings.
5. When the desired setting is shown in the display window, press the MENU/OK button to save the setting. The display will indicate "Value Stored" and return to the main menu. If you did not change the setting, press the start button to return to the main menu.
6. Select the desired wash cycle by pressing the - or + buttons.
7. Press the start button and close the dishwasher door to begin the cycle.

NOTE: In the Options Step Down Menu, you can return to the main menu at any time by pressing the START button.

Starting the dishwasher

When the correct cycle and options are shown in the display window and you have added detergent and rinse aid as explained in the Adding Detergent and Rinse Aid section of this manual, press the START button and close the door.

After pressing the START button, the display will show the following information:

• Close the door.
• Estimated completion time (this automatically adjusts throughout the cycle based on incoming water temperature and selected options).
• Current cycle name.
• "Return" (allows you to choose another cycle).

Unloading the Dishwasher

Unload the bottom rack first.

Unload the silverware basket(s). They are easily removed for unloading.

Unload the top rack.

If the Extra Tall Item Sprinkler was installed, return the dishwasher to its normal condition (see the Loading Extra Tall Items instructions in the "Loading the Dishwasher" section of this manual).

Care and Maintenance

Maintenance Tasks

Certain areas of your dishwasher require occasional maintenance. The maintenance tasks are easy to do and will ensure continued superior performance from your dishwasher.

These tasks are:

• Winterizing Your Dishwasher
- Wiping up Spills and Splash-out
- Clean the Stainless Steel Inner Door and Tub
- Check/Clean the Spray Arm Nozzles
- Check/Clean the Filter System
- Clean the Exterior Door Panel
- Clean the Door Gasket

Winterizing Your Dishwasher

If your dishwasher will be unused for an extended period of time in a location that experiences freezing temperatures (e.g., in a holiday home or through a vacation period), have your dishwasher winterized by an authorized service center.

ATTENTION

To avoid dishwasher damage, do not allow water to remain in your dishwasher systems through extended periods of freezing temperatures. Freezing temperatures can damage your dishwasher.

Wiping Up Spills and Splash-out

Water may occasionally splash out of your dishwasher, especially if you interrupt a cycle or open the dishwasher door during a cycle. To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.

Check/Clean the Stainless Steel Inner Door and Tub

Clean the outer edges of the inside door panel regularly to remove debris that might collect there from normal loading.

If spots begin to appear on the stainless steel tub or inner door, make sure the rinse agent reservoir is full.

Check/Clean the Spray Arm Nozzles

Occasionally check the spray arms to ensure that the spray arm nozzles (holes) are unobstructed. You must remove the spray arms to check them for obstruction.

To remove the top spray arm:

1. Remove the empty top rack from the dishwasher.

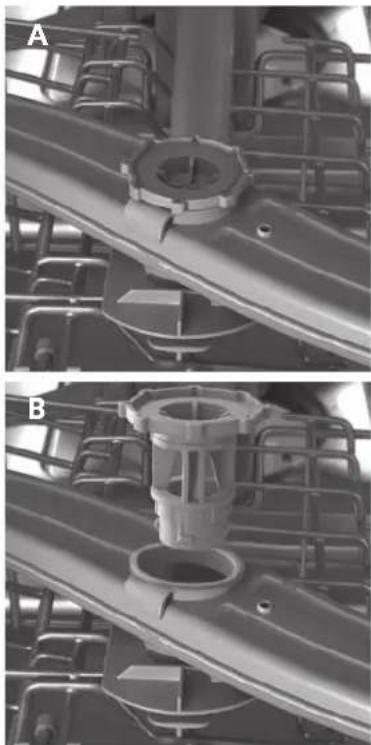

2. Turn the rack upside-down. The top spray arm is held in position by a locking nut as shown in Figure 22A. Turn the locking nut counter-clockwise 1/8 turn and remove it, as shown in Figure 22B to release the spray arm.
3. Remove the spray arm as shown in Figure 23.
4. Look for obstruction in the spray nozzles.
5. If the spray nozzles need cleaning, flush them under running water.

To reinstall the top spray arm:

1. Return the top spray arm to its installed position.
2. Return the locking nut to its installed position and turn it 1/8 turn clockwise.
3. Return the top rack to the top rack roller guides.

To remove the bottom spray arm:

1. Remove the empty bottom rack from the dishwasher tub.

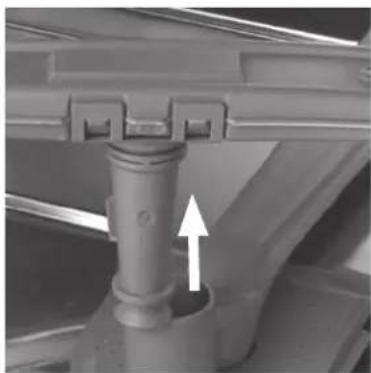

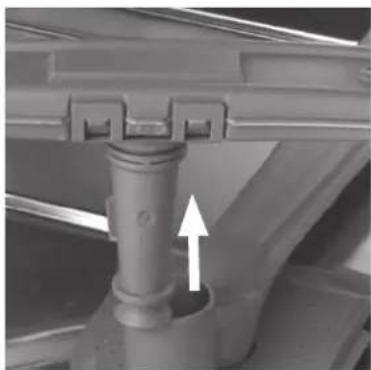

2. Grasp and lift the bottom spray arm as shown in Figure 24.
3. Look for obstruction in the spray nozzles.
4. If the spray nozzles need cleaning, flush them under running water.

To reinstall the bottom spray arm:

1. Return the bottom spray arm to its installed position and press it so that it snaps into place.
2. Return the bottom rack to its installed position.

Figure 22

Close-up of mechanical components labeled A and B, showing structural details without any readable text or symbols.

Figure 23

Close-up of a gray plastic mechanical component with curved ends and a small protrusion (no visible text or symbols)

Figure 24

Mechanical assembly diagram showing a cylindrical component with an arrow indicating upward motion (no text or symbols present)

Figure 25

Close-up of a mechanical component with circular grooves and directional arrows indicating motion (no text or symbols)

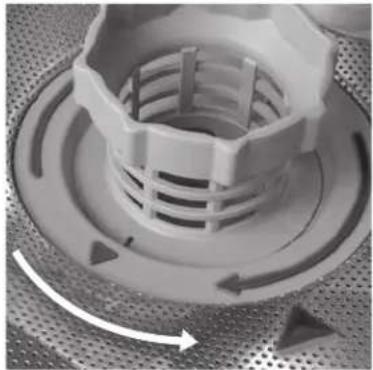

To open - turn counterclockwise.

Figure 26

Close-up of a mechanical component with a central cylindrical housing and flange (no visible text or symbols)

Large Object Trap/Cylinder Filter

Figure 27

Fine Filter

Figure 28

Close-up of a mechanical component with a circular inset showing a micro filter (no text or symbols visible)

Check/Clean the Filter System

This dishwasher has a filter system that consists of a Large Object Trap/Cylinder Filter assembly and a Fine Filter. Select models have an additional Micro Filter. The filter system is located on the inside of your dishwasher under the lower rack and is easily accessible.

During normal use, the filter system is self-cleaning. You should occasionally inspect it for foreign objects and clean it when necessary.

CAUTION

To avoid injury, do not reach into the large object trap with your fingers. The large object trap could contain sharp objects.

To Remove the Large Object Trap/Cylinder Filter Assembly:

1. Remove the bottom rack.
2. Grasp the assembly as shown in Figure 25 and turn it counterclockwise 1/4 turn.
3. Lift out the assembly as shown in Figure 26.
4. Carefully examine the assembly. If you find debris in the Large Object Trap, turn it upside-down and gently tap it on a surface such as a countertop to dislodge and remove the debris. Flush the Cylinder Filter clean by holding it under running water.

To Remove the Fine Filter:

1. Lift the Fine Filter from the dishwasher floor as shown in Figure 27 and flush it clean by holding it under running water.

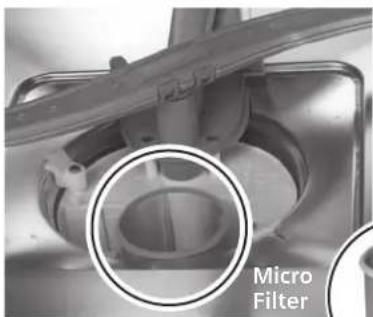

2. Remove the Micro Filter as shown in Figure 28 and flush it clean by holding git under running water.

To reinstall the filter system:

1. Return the Fine Filter to its installed position.
2. Place the Large Object Trap/Cylinder Filter Assembly into its installed position in the dishwasher floor.
3. Turn the ring handle clockwise 1/4 turn until it is locked. The arrow on the ring handle and the arrow on the Fine Filter should point to each other, as shown by the circle in Figure 29.
4. Gently pull the ring handle to ensure that the assembly is locked into place.

ATTENTION

To avoid possible dishwasher damage, do not use harsh chemicals, abrasive cleaners, scouring pads (metal or plastic), or abrasive cloths/paper towels to clean your dishwasher's exterior door panel. Your dishwasher's exterior door panel can be damaged by doing so.

Clean the Exterior Door Panel

Colored Doors

Use only a soft cloth that is lightly dampened with soapy water.

Stainless Steel Doors

Use a soft cloth with a non-abrasive cleaner (preferably a liquid spray) made for cleaning stainless steel. For the best results, apply the stainless steel cleaner to the cloth, then wipe the surface.

Clean the Door Gasket and Door Seal

Regularly clean the door gasket with a damp cloth to remove food particles and other debris. Also clean the door seal, located inside the dishwasher at the bottom of the door.

Figure 29

Close-up of a plastic filter or vent with circular arrows indicating flow direction (no text or symbols)

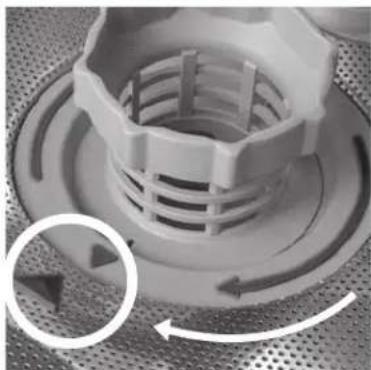

To close - turn clockwise.

Wash Cycle Information

NOTE: To save energy, this dishwasher has a "Smart Control" that automatically adjust the cycle based on soil loads and incoming water temperature. The "Smart Control" makes decisions that can cause the cycle time and water usage to adjust intermittently. The cycle times listed in the Use and Care manual are based on normal soil loads and 120°F incoming water and will vary based on your actual conditions.

NOTE: If the unit is out of rinse agent the Hygiene Dry feature will automatically extend the cycle time by approximately 10 minutes.

NOTE: If Additional Drying Heat is selected the cycle will be extended by approximately 20 minutes.

Cycle	Cycle Time (in minutes)	Cycle Time with PowerBoost	Wash Temp (Fahrenheit)	Rinse Temp (Fahrenheit)		Water (Gallons)
Auto Super Wash	104-129	90	151 - 160	156	X	6.1 - 7.2
Auto Wash	94-119	72	122 - 131	156	X	2.3 - 5.7
Auto Delicate Wash	92-100	60	113 - 122	156	X	3.0 - 4.7
Party Wash	30	Not Available	113	122		3.3
Rinse and Hold	8	Not Available	No Heat	No Heat		1.2
Regular	119	Not Available	122-131	156	X	2.3- 5.7
Enviro Care	128	Not Available	122	156	X	4.5
Glass Care	55	Not Available	122	140		3.6
Extreme Wash	120	Not Available	158	162	X	7.6

THE NSF SYMBOL

A dishwasher or a dishwasher cycle that has the NSF symbol has been certified by the NSF International to meet very strict requirements of wash time and water temperature to ensure dishware and kitchenware sanitization. These requirements are explained in the document NSF/ANSI 184, Residential Dishwashers. More information on NSF Certification is available at the NSF website, http://www.nsfconsumer.org/home/appliances.asp.

Your dishwasher is NSF certified. The dishwasher cycles that are NSF certified are shown in the chart above. When these cycles are complete, the "Sanitized" indicator on your dishwasher control panel will illuminate.

NOTE: If your household water supply is too hot, your dishwasher's heating time may be reduced and the "Sanitized" light or symbol may not illuminate. Your Dishwasher Installation Manual has information on the recommended temperature for your household hot water supply.

Self Help

Dishwashers may occasionally exhibit problems that are unrelated to a malfunction of the dishwasher itself. The following information may help you with a dishwasher problem without your having to call a repair person.

Dishes do not dry

The rinse agent dispenser may be empty. Check the rinse-aid dispenser and refill it if necessary. Dishware drying can be accelerated and enhanced by opening the dishwasher door slightly and propping it open with the top rack.

Indicator light(s) do not come on

A fuse may have blown or a circuit breaker tripped. Check the fuse or circuit breaker at your fuse box/breaker box and replace the fuse or reset the breaker if necessary.

Dishwasher does not start

The dishwasher door may not be properly shut. Make certain the dishwasher door is shut and latched.

Dishwasher runs a long time

If the dishwasher completes the cycle, but the run time seems exceptionally long, it may be due to cold incoming water. Before starting the dishwasher, open the hot water faucet at the sink nearest the dishwasher. Run the water until it runs hot, then turn off the water and start the dishwasher.

Machine cycle does not advance to rinse

NOTE: The Installation Manual that came with your dishwasher will help you with the following instructions. The water supply line may be shut off. Check the water supply valve and open it if it's shut.

White spots left on dishes

More rinse agent is needed. Go to the Adding Detergent and Rinse Agent section of this manual for instructions on increasing the amount of rinse agent dispensed.

Water not pumped from dishwasher

Make certain the drain hose isn't kinked, clogged, or improperly installed. Make certain a portion of the drain hose is at least 20 inches above the dishwasher's enclosure floor (see the Installation Manual). Filters may be clogged. Make certain the filter system isn't clogged (see the Care and Maintenance section of this manual). The kitchen sink drain may be clogged; you may need a plumber rather than a serviceman for the dishwasher. If an air gap is installed at sink, it may be clogged.

Detergent dispenser cover will not shut

You may not be correctly shutting the detergent dispenser cover, or a cycle was not finished and should be cancelled. Go to the Adding Detergent and Rinse Agent section of this manual for instructions on shutting the detergent dispenser cover. Go to the Operating the Dishwasher section of this manual for instructions on canceling a cycle.

Streaks on glassware

Too much rinse agent is being dispensed. Go to the Adding Detergent and Rinse Agent section of this manual for instructions on decreasing the amount of rinse agent dispensed.

Rattling noises

Utensils may not be properly arranged.

Suds in dishwasher

You may have used the wrong type of dishwashing detergent. Use only automatic dishwasher detergents.

Unsatisfactory washing results

• Incorrect amount of detergent.
• Utensils incorrectly arranged or rack overloaded.
• Spray arm rotation blocked by utensils.
• Spray arm nozzles need cleaning.
• Filters not properly fitted into position.
  • Unsuitable cycle selected.

Statement of Limited Product Warranty Thermador Dishwashers

What this Warranty Covers & Who it Applies to: The limited warranty provided BSH Home Appliances ("Thermador") in this Statement of Limited Product Warranty applies only to Thermador dishwashers ("Product") sold to you, the first using purchaser, provided that the Product was purchased: (1) for your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes; (2) new at retail (not a display, "as is", or previously returned model), and not for resale, or commercial use; and (3) within the United States or Canada, and has at all times remained within the country of original purchase. The warranties stated herein apply only to the first purchaser of the Product and are not transferable.

- Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for Thermador to notify you in the unlikely event of a safety notice or product recall.

How Long the Warranty Lasts: Thermador warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty five (365) days (i.e., 1 year) from the date of purchase. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. Labor and shipping costs are included in this basic coverage.

Extended Limited Warranty: Thermador also provides these additional limited warranties:

- 2 Year Limited Warranty: Thermador will repair or replace any component that proves to be defective in materials or workmanship (excludes labor charges).

- 5 Year Limited Warranty on Electronics: Thermador will repair or replace any Thermador microprocessor or printed circuit board if it proves to be defective in materials or workmanship (excludes labor charges).

- 5 Year Limited Warranty on Dish Racks: Thermador will replace the upper or lower dish rack (excluding rack components), if the rack proves defective in materials or workmanship (excludes labor charges).

- Lifetime Warranty against Stainless Steel Rust Through: Thermador will replace your dishwasher with the same model or a current model that is substantially equivalent or better in functionality, if the inner liner should rust through (excludes labor charges). Thermador will replace the stainless steel door if the door should rust through (excludes labor charges).

The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever.

Repair/Replace as Your Exclusive Remedy: During this warranty period, Thermador or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then Thermador will replace your Product (upgraded models may be available to you, in Thermador's sole discretion, for an additional charge). All removed parts and components shall become the property of Thermador at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Thermador's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a Thermador-authorized service provider during normal business hours. For safety and property damage concerns, Thermador highly recommends that you do not attempt to repair the Product yourself, or use an un-authorized servicer; Thermador will have no responsibility or liability for repairs or work performed by a non-authorized servicer. If you choose to have someone other than an authorized service provider work on your Product, THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND VOID. Authorized service providers are those persons or companies that have been specially trained on Thermador products, and who possess, in Thermador's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Thermador). Notwithstanding the foregoing, Thermador will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably

inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Thermador would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call. Out of Warranty Product: Thermador is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or Product replacement, once this warranty has expired.

Warranty Exclusions: The warranty coverage described herein excludes all defects or damage that are not the direct fault of Thermador, including without limitation, one or more of the following: (1) use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels); (2) any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self-performed "fixing" or exploration of the appliance's internal workings); (3) adjustment, alteration or modification of any kind; (4) a failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations; (5) ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product; and (6) any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God. In no event shall Thermador have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are scratches, nicks, minor dents, and cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses. TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY Thermador, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

How to Obtain Warranty Service: TO OBTAIN WARRANTY SERVICE FOR YOUR PRODUCT, YOU SHOULD CONTACT THE NEAREST THERMADOR AUTHORIZED SERVICE CENTER, OR CALL 800-735-4328, or write Thermador at: BSH Home Appliances - 5551 McFadden Avenue, Huntington Beach, CA 92649 /

Customer Service

Your Thermador dishwasher requires no special care other than that described in the Care and Maintenance section. If you are having a problem with your dishwasher, before calling for service please refer to the Self Help section. If service is necessary, contact your dealer or installer or an authorized service center. Do not attempt to repair the appliance yourself. Any work performed by unauthorized personnel may void the warranty.

If you are having a problem with your Thermador dishwasher and are not pleased with the service you have received, please take the following steps (in the order listed below) until the problem is corrected to your satisfaction:

1. Contact your installer or the Thermador Authorized Service Contractor in your area.
2. E-mail us from the customer service section of our website, www.thermador.com.
3. Write us at the address below:

BSH Home Appliances, Corporation

5551 McFadden Avenue

Huntington Beach, CA 92649

1. Call us at 1-800-735-4328.

Please be sure to include your model information listed below as well as an explanation of the problem and the date it originated.

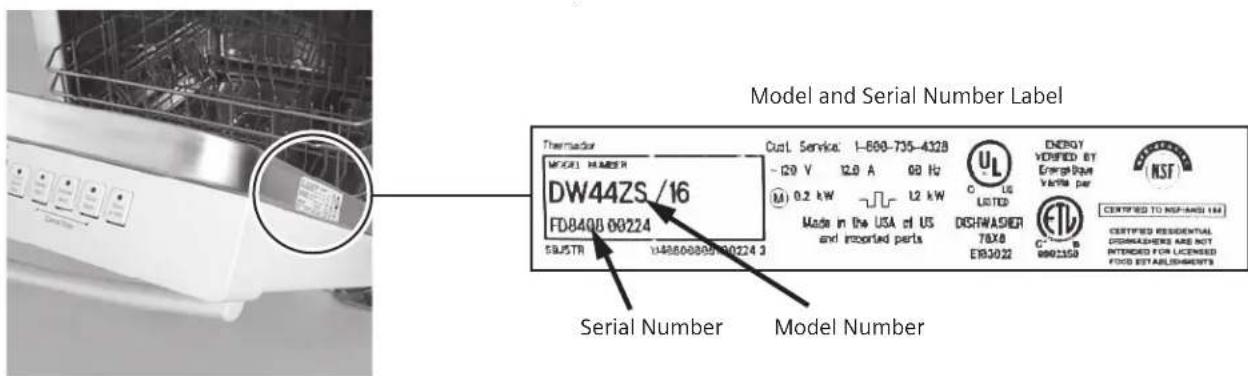

You will find the model and serial number information on the label located on the right edge of the dishwasher door as shown in Figure 30.

Also, if you are writing, please include a daytime phone number where you can be reached.

Please make a copy of your invoice and keep it with this manual. The customer must show proof of purchase to obtain warranty service.

Your Model Information:

• Model Number
• Serial Number
• Date Purchased
• Date Installed

CAUTION

Removing any cover or pulling the dishwasher from the cabinet can expose hot water connections, electrical power and sharp edges or points.

Figure 30

Model and Serial Number Label Thermador M5001 NUMBER DW44ZS /16 FD84QB 00224 50J5TR 148800899100224 3 Serial Number Model Number Cutl Service: 1-600-735-4328 ~ 120 V 12.0 A 08 Hz M) 0.2 kW ~12 kW Made in the USA at US and imported parts UL C US LISTED DISHWASHER 78X8 E193022 ENERGY VRSFED BY Energy Rate Vr/min per ESFT C B 8801150 CERTIFIED RESIDENTIAL COMWACKERS ARE NOT INTENDED FOR LICENSED FOOD ESTABLISHMENTS

3D wireframe model of a basket filled with various cylindrical objects, no text or symbols visible

Figure 2

Illustration of a shopping basket filled with eggs and vegetables (no text or symbols)

3D wireframe diagram of a mechanical assembly with multiple circular components and a central cylindrical component (no text or symbols)

Technical line drawing of a mechanical assembly with multiple circular components and internal components (no text or symbols)

Figure 5

Close-up of a metallic industrial cabinet with a circular component and a black arrow pointing to a detail (no visible text or symbols)

Figure 6

Interior view of a kitchen appliance with visible dish, wheels, and a black arrow pointing to a component (no text or symbols)

To remove the sprinkler and return the dishwasher to its normal condition:

Close-up of mechanical components with a white arrow pointing to a detail (no visible text or symbols)

Figure 8

Mechanical assembly with rollers and a conveyor belt, no visible text or symbols

Figure 9

Mechanical assembly with rollers and a conveyor belt, no visible text or symbols

Figure 10

Close-up of metal wire cage with metal sheets, no visible text or symbols

Figure 11

Metal wire cage structure with internal components, no visible text or symbols

Figure 12

Close-up of a metal rack structure with two circular insets showing internal structural details (no text or symbols visible)

Figure 14

54 3 2 1 1 2 3 4 5 5 4 3 2 1 1 2 3 4 5 5 4 3 6 1 2 3 4 5 5 4 3 6 7 3 4 5 5 4 3 2 1 1 2 3 4 5 5 4 3 2 1 1 2 3 4 5

12345 6 7

12 place setting

Figure 15

Two-panel image showing a person holding a wireframe basket, with arrows indicating movement or transformation (no text or symbols)

Empty metal shopping basket with grid lines and a small label on the side (no visible text or symbols)

Metal wire basket with multiple compartments and labels, placed on a wooden surface (no readable text or symbols)

Metal wire rack with multiple compartments and small labels, no visible text or symbols on the main structure.

Metal wire basket containing two small white rectangular items, placed on a wooden surface (no text or symbols visible)

Close-up of a mechanical device with a dial and pointer (no visible text or symbols)

Two grayscale industrial mechanical components labeled A and B, showing structural details without any text or symbols.

Figure 23

Close-up of a dark, curved mechanical component with a small protrusion (no visible text or symbols)

Figure 24

Mechanical assembly diagram showing a cylindrical component with an arrow indicating upward motion (no text or symbols present)

Figure 25

Close-up of a mechanical component with circular grooves and directional arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a perforated cylindrical part and mesh texture (no visible text or symbols)

Close-up of a plastic filter or vent with circular arrows indicating flow direction (no text or symbols)

Close-up of a kitchen appliance with a close-up circular inset showing a small label (no readable text or symbols)

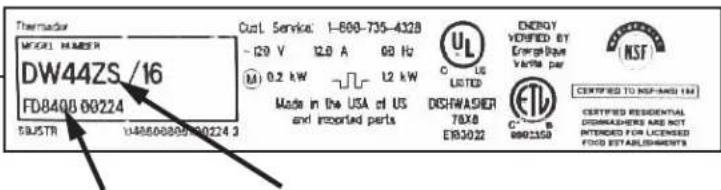

Plaque signalétique

Thermador MCK01 NUMBER DW44ZS/16 FD849B 09224 50J5TR 14860880700224 3 Cutl Service: 1-600-735-4328 ~120 V 12.0 A 69 Hz (Ω) 0.2 kW ~12 kW Made in the USA of US and imported parts UL C LUS LISTED DISHWASHER 78X8 E193022 ENERGY VERIFIED BY Energy Rate Variable per NSF CERTIFIED RESIDENTIAL CROSSERS ARE NOT INTENDED FOR LICENSED FOOD ESTABLISHMENTS

5551 McFadden Avenue

Huntington Beach, CA 92649

!Disfrútelo!

3D wireframe model of a basket filled with various cylindrical objects, no text or symbols visible

Ilustración 2

Illustration of a wire cage filled with eggs and fruits, no text or symbols present

Ilustración 3

Diagram of a multi-tiered industrial or electrical equipment unit with insulators and a central circuit board (no text or symbols)

Ilustración 4

Technical line drawing of a mechanical assembly with multiple circular components and a central internal structure (no text or symbols)

Ilustración 5

Close-up of a mechanical component with a metallic housing and a black arrow pointing to a detail (no visible text or symbols)

Ilustración 6

Interior view of a kitchen appliance with visible fixtures and a black arrow pointing to a component (no text or symbols)

Close-up of mechanical components with a white arrow pointing to a detail (no visible text or symbols)

Ilustración 8

Mechanical assembly with rollers and a lever mechanism, no visible text or symbols

Ilustración 9

Mechanical assembly with rollers and a conveyor belt, no visible text or symbols

Ilustración 10

Close-up of metal wire cage with metal sheets, no visible text or symbols

Ilustración 11

Metal wire cage structure with internal components, no visible text or symbols

Ilustración 12

Close-up of a stainless steel rack with metal framework and two magnified circular insets showing internal structural details (no text or symbols visible)

Ilustración 14

54 3 2 1 1 2 3 4 5 5 4 3 2 1 1 2 3 4 5 5 4 3 6 1 2 3 4 5 5 4 3 6 7 3 4 5 5 4 3 2 1 1 2 3 4 5 5 4 3 2 1 1 2 3 4 5

12345 6 7

Two-panel image showing a person handling a 3D-printed basket, labeled A and B, with arrows indicating transformation or movement (no text or symbols on the objects themselves)

Metal wire basket with multiple compartments and a small label on the side (no visible text or symbols)

Metal wire basket with multiple compartments and small labels, placed on a wooden surface (no readable text or symbols)

Metal wire basket with multiple compartments and small labels, placed on a wooden surface (no readable text or symbols)

Metal rack with two white rectangular items on either side, placed on a wooden surface (no text or symbols visible)

Two grayscale industrial mechanical components labeled A and B, showing structural details without any text or symbols.

Ilustración 23

Close-up of a dark, elongated object with smooth curved surfaces, possibly a mechanical part or tool (no visible text or symbols)

Ilustración 24

Mechanical assembly diagram showing a cylindrical component with an arrow indicating upward motion (no text or symbols present)

Ilustración 25

Close-up of a mechanical component with circular grooves and directional arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a central filter and mesh texture (no visible text or symbols)

Close-up of a mechanical component with a circular inset showing a micro-filtration feature (no text or symbols on the main subject)

Close-up of a plastic filter or vent with circular arrows indicating flow direction (no text or symbols)

BSH Home Appliances, Corp.

5551 McFadden Avenue

Huntington Beach, CA 92649

Close-up of a kitchen appliance with a circular annotation highlighting a component (no visible text or symbols)

Thermador reserves the right to change specifications or design without notice. Some models are certified for use in Canada. Thermador is not responsible for products which are transported from the United States for use in Canada. Check with your local Canadian distributor or dealer. Thermador, Corporation, 5551 McFadden Avenue, Huntington Beach, CA 92649.

For the most up to date critical installation dimensions by fax, use your fax handset and call 775/833-3600. Use code #8030.
