Brand	Haier
Model	1U09EH1ERA
Product type	Split air conditioner (indoor and outdoor unit)
Remote control	Yes, with LCD screen and R-03 batteries (2×)
Operating modes	Smart, Cooling, Heating, Dry, Fan, Economy, Sleep, Turbo/Soft
Special functions	iFP (presence detection), Health air flow (ions), Follow/Avoid, On/Off timer (24h), Auto restart, Lock
Ambient temperature range (Cooling)	Indoor: 21-32 °C DB / Outdoor: 18-43 °C DB
Ambient temperature range (Heating)	Indoor: 0-27 °C DB / Outdoor: -7-24 °C DB (down to -15 °C for inverter)
Power supply	Single phase, appropriate voltage (see rating label)
Electrical protection	Indoor fuse T 3.15A/250V, outdoor T 25A/250V
Cleaning	Washable air filter (every 15 days), air intake grille
Installation	By a professional; grounding required
Max. remote control distance	7 meters (without obstacles)
Remote control batteries	2 R-03 (AAA) batteries – remove if unused for long time
Emergency operation	Button on indoor unit (if remote lost)
Compliance	Low Voltage Directive, EMC, RoHS, WEEE
Repairability	Fuses replaceable by a professional; do not disassemble yourself

Frequently Asked Questions - 1U09EH1ERA HAIER

How to set the remote control clock?

Press the CLOCK button until 'AM' or 'PM' blinks. Use + or - to set the time. Press CANCEL/CONFIRM to confirm.

How to clean the air filter?

Open the air intake grille, remove the filter by pushing the central tab. Clean it with a vacuum or water. Dry it completely in the shade before reinstalling, with FRONT facing forward.

What to do if the remote control does not work?

Check the batteries (replace if necessary) and distance (max 7 m without obstacles). If still abnormal, use a pointed object to press the RESET button. As a last resort, use the emergency button on the indoor unit.

How to activate the energy saving mode?

Press the ECONOMY button in Cooling, Heating or Dry mode. 'ECO' displays. The unit automatically adjusts temperature and compressor. Press again to deactivate.

Why does the unit not restart immediately after a stop?

The compressor is protected by a 3-minute delay. Wait for this delay to elapse before restarting.

How to set the on/off timer?

First set the clock. Select the desired mode, then press ON TIMER or OFF TIMER. Use + or - to set the time (max 24h) and confirm with CANCEL/CONFIRM.

What is the iFP function?

iFP detects movement of people in the room. In FOLLOW mode, the air flow follows the person; in AVOID mode, it avoids them. The infrared sensor can be disturbed by stillness, obstacles or animals.

What to do in case of power failure?

When power returns, the unit restarts automatically after about 3 minutes (compressor protection). You can enable/disable the auto restart function by pressing the SLEEP button 10 times within 5 seconds (4 beeps = activation, 2 beeps = deactivation).

Why is there steam or water at the air outlet?

In Cooling or Dry mode, cooled humid air can cause condensation. This is normal. Use the horizontal louver to avoid drips. If the problem persists, check that the filter is not clogged.

How to change the temperature displayed on the panel (ambient or set)?

Press the LIGHT button ten times in a row without interruption. The display toggles between ambient temperature and set temperature.

USER MANUAL 1U09EH1ERA HAIER

SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL

AS09SH1ERA/1U09EH1ERA

AS12SH1ERA/1U12EH1ERA

AS09SB1HRA/1U09QE6ERA

AS12SB1HRA/1U12QE6ERA

Contents

PARTSAND FUNCTIONS 1
OPERATION 2
CAUTIONS 5
TROUBLESHOOTING 8

Contenido

• Please read this operation manual before using the air conditioner. Keep this operation manual for future reference.

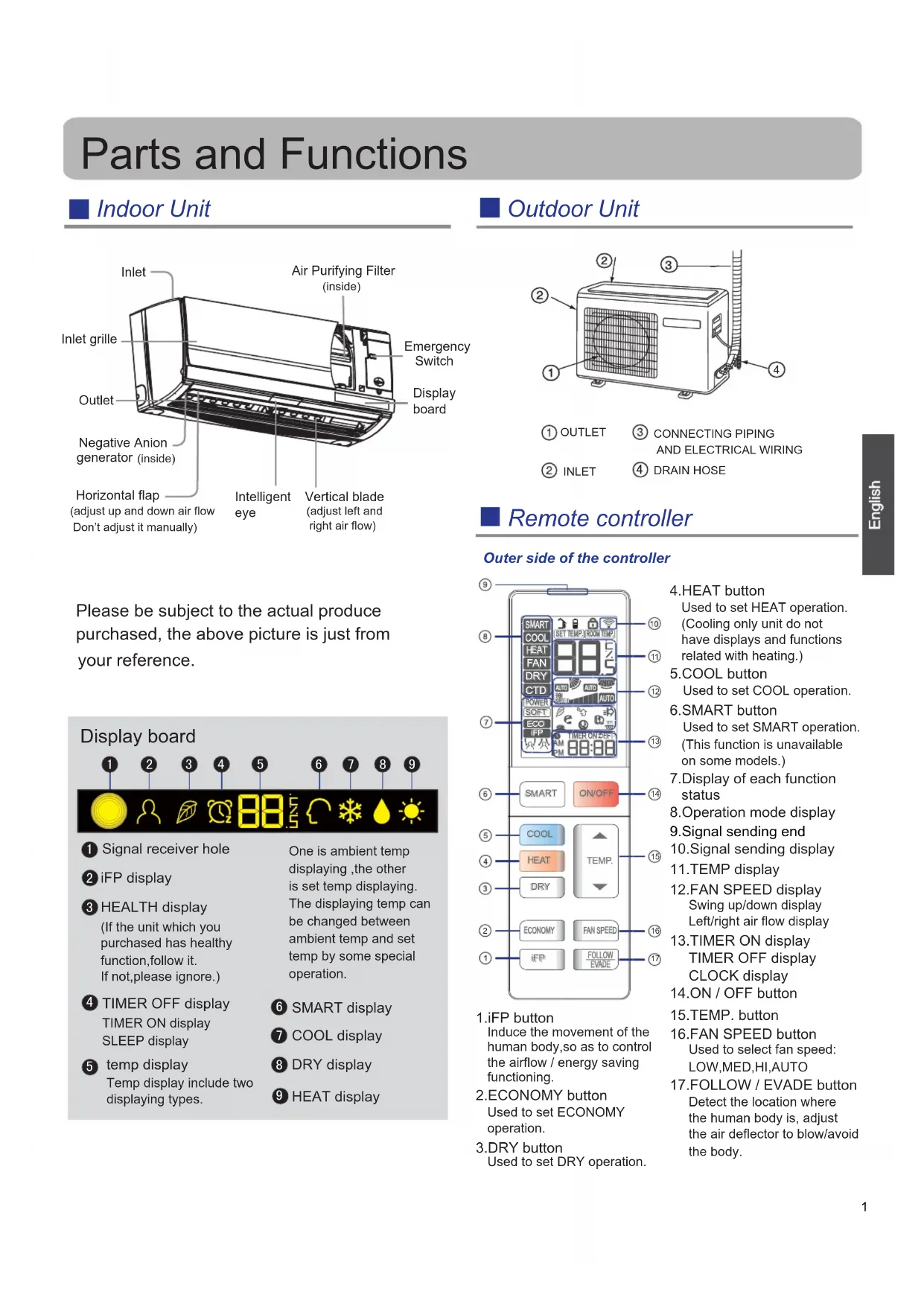

Parts and Functions

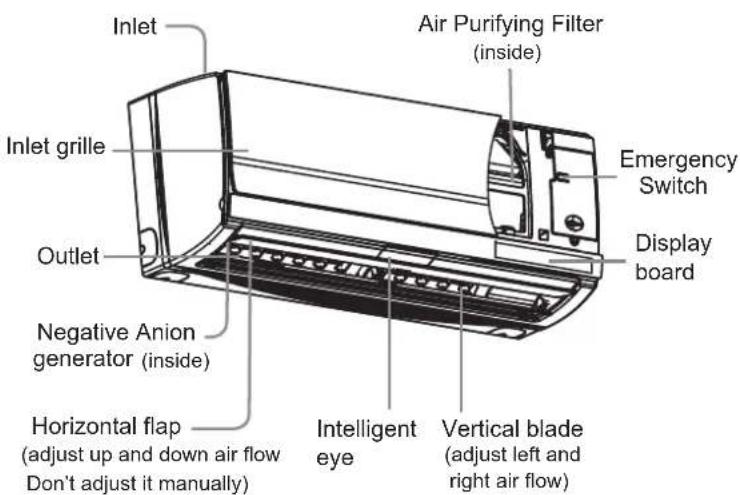

Indoor Unit

Please be subject to the actual produce purchased, the above picture is just from your reference.

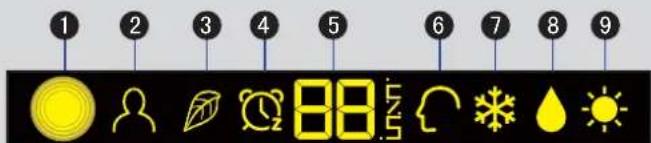

Display board

1 Signal receiver hole
iFP display
3 HEALTH display (If the unit which you purchased has healthy function, follow it. If not, please ignore.)
4 TIMER OFF display TIMER ON display SLEEP display
temp display Temp display include two displaying types.

One is ambient temp displaying, the other is set temp displaying. The displaying temp can be changed between ambient temp and set temp by some special operation.

SMART display
COOL display
8 DRY display
HEAT display

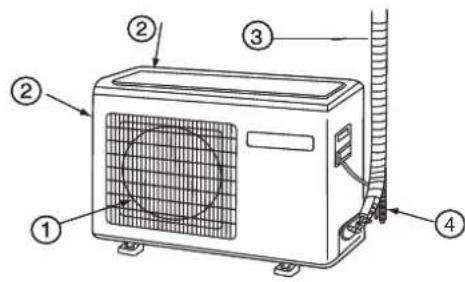

Outdoor Unit

① OUTLET

③ CONNECTINGPIPING AND ELECTRICAL WIRING

② INLET

④ DRAIN HOSE

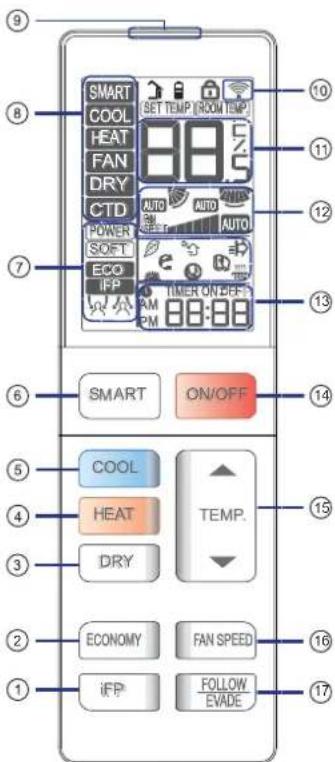

Remote controller

Outer side of the controller

1.ifP button Induce the movement of the human body,so as to control the airflow / energy saving functioning.
2.ECONOMY button Used to set ECONOMY operation.
3.DRY button Used to set DRY operation.

Operation

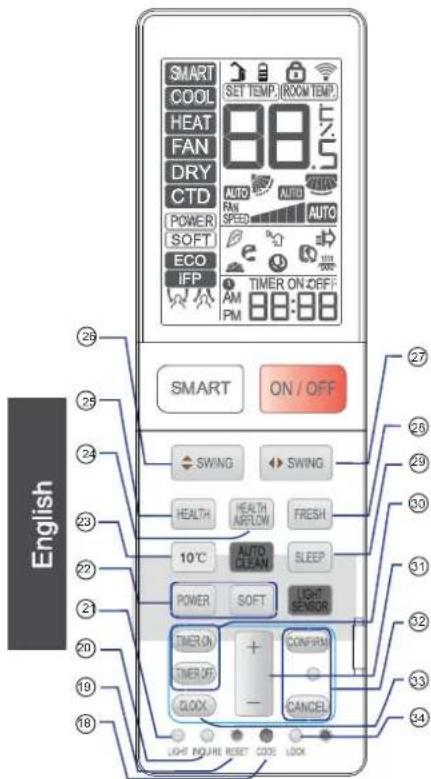

Inner side of the controller

18.CODE button
Used to select CODE A or B with a press, A or B will be displayed on LCD.Please select A without special explanation.
19.RESET button
When the remote controller appears abnormal, use a sharp pointed article to press this button to reset the controller normal.
20.INQUIRE button
Inquire the external environmental temperature and the operating power of the machine. (e.g. when the panel display "01", the

operating power is 100W; when the panel display "02", the operating power is 200W, and so forth)

21.LIGHT button

Control the lightening and extinguishing of the indoor LED display board. The manual of how to change the default display temp: Press LIGHT button continuously for ten times, display temp on display pan can be changed between ambient temp and set temp.

22.POwER/SOFT button 23.10°C

special heating set function: 10 degree heating maintaining (valuable for RS)

24.HEALTH AIRFLOW button

25.HEALTH button

26.SWING UP/DOWN button

27.SWING LEFT/RIGHT button

28.FRESH button

29.SLEEP button

30.TIMER ON / OFF button

31.HOUR button

32.CANCEL/CONFIRM button

Used to confirm timer and clock settings.

33.CLOCK button

1. LOCK button If pressed, the other buttons will be disabled. Press it once again, lock will be cancelled.

This function unavailable on this models.

Loading of the battery

Remove the battery cover;

Load the batteries as illustrated. 2 R-03 batteries, resetting key(cylinder); Be sure that the loading is in line with the" +"/-";

Load the battery, then put on the cover again.

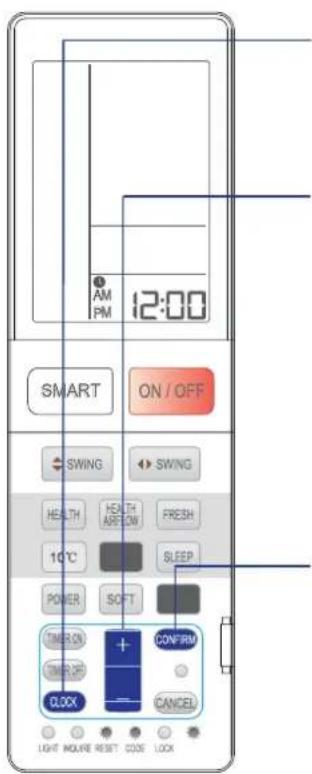

Clock set

Press CLOCK button,

"AM" or "PM" flashes.

Press "+" or "-" to set correct time.

Each press will increase or decrease 1min.If the button is kept pressed, time will change quickly.

Confirm time.

After time setting is confirmed, press CONFIRM,"AM"and "PM" stop flashing, while clock starts working.

Note:

The distance between the signal transmission head and the receiver hole should be within 7m without any obstacle as well. When electronic-started type fluorescent lamp or change-over wireless telephone is installed in the type fluorescent lamp or room, the receiver is apt to be disturbed in receivingthe signals, so the distance to the indoor unit should be shorter. Full display or unclear display during operation indicates the batteries have been used up.Please change batteries. If the remote controller can't run normally during operation, please remove the batteries and reload several minutes later.

Hint:

Remove the batteries in case unit won't be in usage for a long period. If there are any display after taking-out, just need to press reset key.

Operation

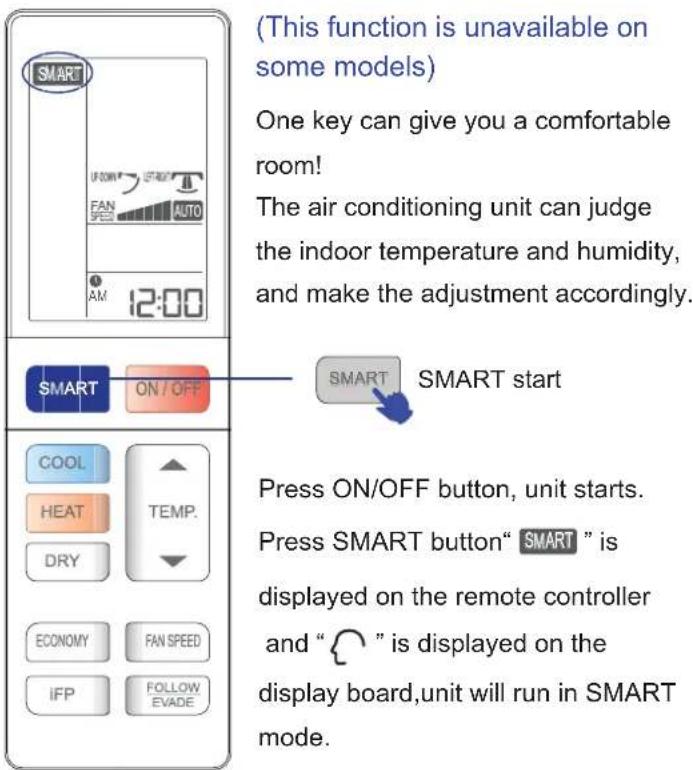

SMART Operation

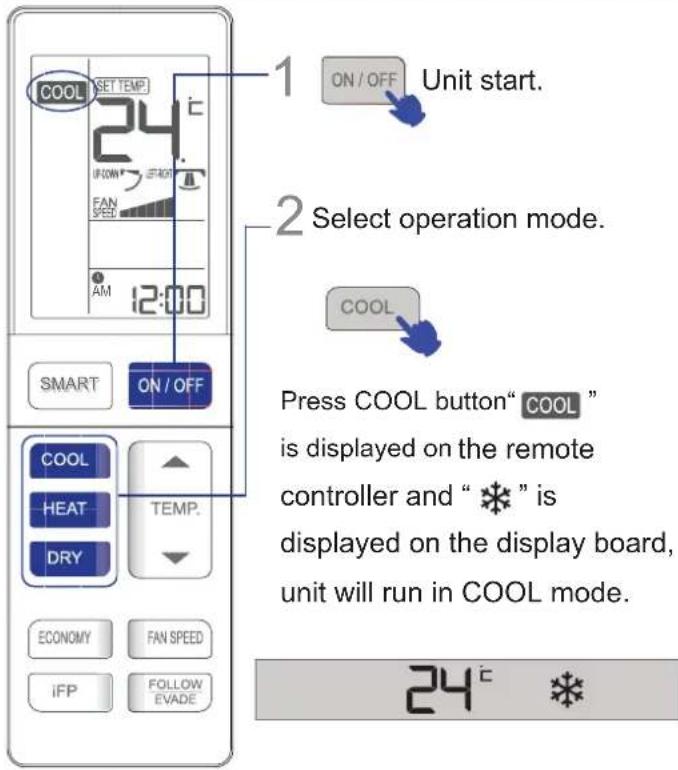

COOL,HEAT and DRY Operation

24 C

SMART Defrost
SMART FAN SPEED
SMART FAN HEALTH
SMART DRY
SMART SOFT
SMART Control temperature

SMART stopsor

-Under the cooling, heating and dehumidifying mode, press the smart key to enter the smart function.
Under the smart running mode, when the air conditioning is running, it will automatically select cooling, heating, dehumidifying or blowing mode as per the setting temperature.
- When the smart function is running, press the "cooling" heating" or "dehumidifying" key to switch to the other mode, you will exit from the smart function.

Press HEAT button "HEAT" is displayed on the remote controller and " " is displayed on the display board, unit will run in HEAT mode.

Press DRY button "DRY" is displayed on the remote controller and "▲" is displayed on the display board, unit will run in DRY mode.

1. In DRY mode, when room temperature becomes lower than temp.setting +2^ , unit will run intermittently at LOW speed regardless of FAN setting.
2. Remote controller can memorize each operation status. When starting it next time, just press ON/OFF button and unit will run in previous status.

Operation

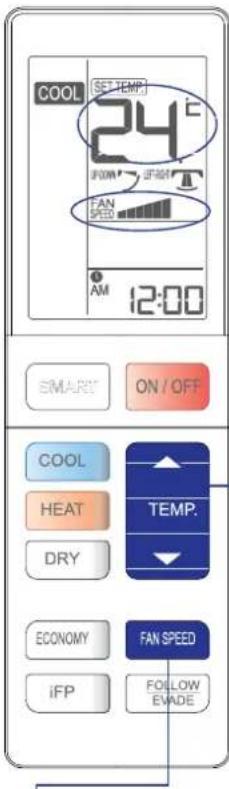

Select TEMP.setting,FANOperation

1 Press TEMP.setting

Press TEMP button.

Every time the button is pressed, temp. setting increases 0.5^
Every time the button is pressed, temp. setting decreases 0.5^

Unit will start running to reach the temp.setting on LCD.

2 FAN Operation

Press FAN SPEED button. For each press, fan speed changes as follows:

Unit will run at selected fan speed.

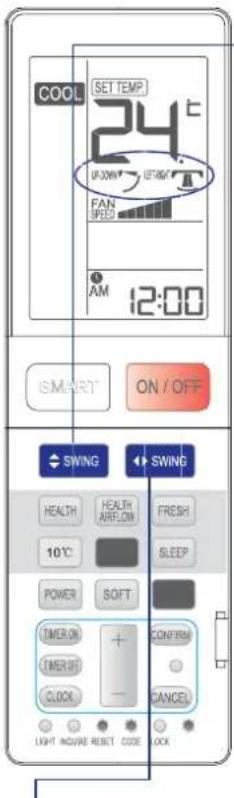

SWING Operation

1 Up and down air flow direction

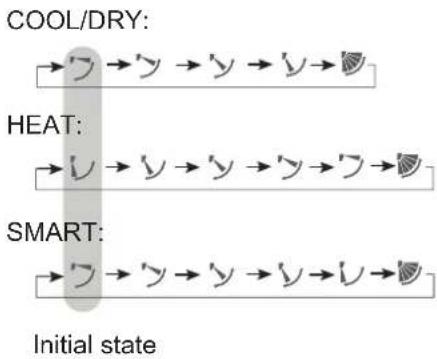

For each press of " SWING" button, air flow direction on remote controller displays as follows according to different operation modes:

2 Left and right air flow direction

For each press of " SWING" buttor,remote controller displays as follows:

remote controller:

Initial state

• When humidity is high, condensate water might occur at air outlet if all vertical louvers are adjusted to left or right.
  It is advisable not to keep horizontal flap at downward position for a long time in COOLor DRY mode, otherwise, condensate water might occur.
• As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more helpful for a better air circulation.

Operation

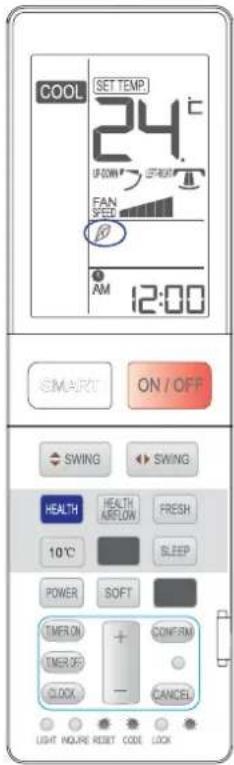

HEALTHOperation

The anion generator in the airconditioner can generate a lot of anion effectively balance the quantity of position and anion in the air and also to kill bacteria and speed up the dust sediment in the room and finally clean the air in the room.

Press HEALTH button

For each press, is displayed Air conditioner starts health anion function operation.

Press HEALTH button for twice press, disappears, the operation stops.

When indoor fan motor is running, it has healthy process function. (It's available under any mode) When the fan in the indoor unit does not work, the health lamp lights up, but the anion generator does not release anion.

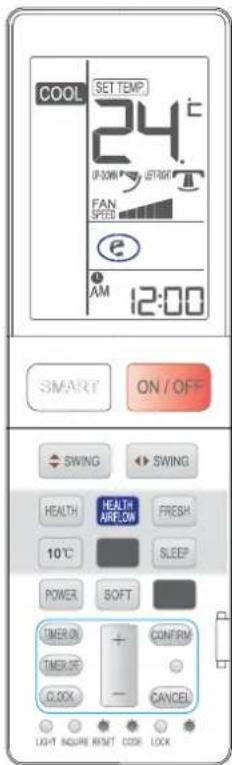

HEALTH AIRFLOW Operation

The setting of health airflow function

1). Press the button of health airflow, appears on the display. Avoid the strong airflow blows direct to the body.
2). Press the button of health airflow again, appears on the display. Avoid the strong airflow blows direct to the body.

The cancel of the health airflow function

Press the button of health airflow again, both the inlet and outlet

grills of the air conditioner are opened, and the unit goes on working under the condition before the setting of health airflow function.

After stopping, the outlet grille will close automatically.

Notice:

Cannot pull direct the outlet grille by hand.

Otherwise, the grille will run incorrectly. If the grille is not run correctly, stop for a minute and then start, adjusting by remote controller.

• Remote controller can memorize each operation status. when starting it next time, just press ON/OFF button and unit will run in previous status.

Note:

1. After setting the health airflow function, the position of inlet and outlet grills is fixed.
2. In heating, it is better to select the mode.
3. In cooling, it is better to select the mode.
4. In cooling and dry, using the air conditioner for a long time under the high air humidity, a phenomenon falling drips of water occurs at the outlet grille.
5. Select the appropriate fan direction according to the actual conditions.

Operation

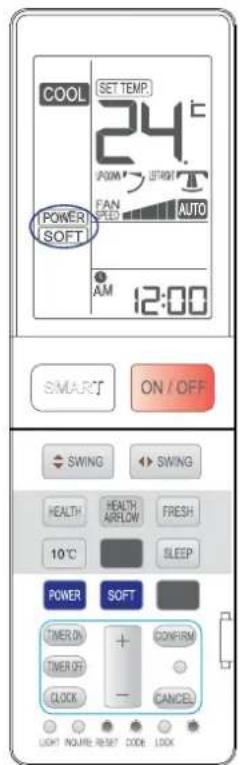

■ POWER/SOFT Operation

POWER Operation

When you need rapid cooling, you can use this function.

For each press, POWER is displayed Air conditioner starts POWER function operation.

In COOL mode, fan speed automatically takes high speed of AUTO fan mode.

Press POWER button again,
POWER disappears, the operation stops.

SOFT Operation

You can use this function when silence is needed for rest or reading.

For each press, SOFT is displayed Air conditioner starts POWER function operation.

In SOFT operation mode, fan speed automatically takes low speed of AUTO fan mode.

Press SOFT button again, SOFT disappears, the operation stops.

Hints:

During POWER operation, in rapid COOL mode, the room will show inhomogeneous temperature distribution.

Long period SOFT operation will cause effect of not too cool or not too warm.

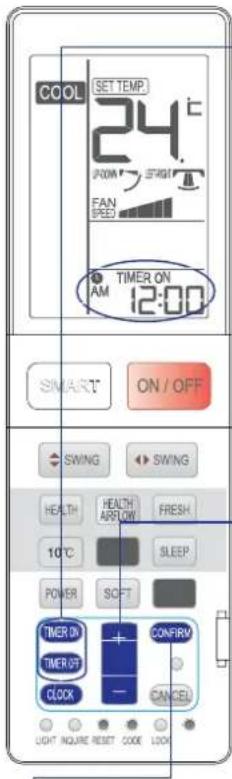

TIMER Operation

Set Clock correctly before starting Timer operation. You can let unit start or stop automatically a following times: Before you wake up in the morning, or get back from outside or after you fall asleep at night.

1 Select your desired operation mode.

Select your desired TIMER ON.

Remote controller: " TIMER ON" will flash.

Select your desired TIMER OFF.

Remote controller: " TIMER OFF " will flash.

2 Time setting.

Every time the button is pressed, time setting increases or

decreases 1 min, if kept depressed, it will increase rapidly. It can be adjusted within 24 hours.

3 Confirming your setting.

After setting correct time, press CONFIRM button press CONFIRM button to confirm "ON"or"OFF" on the remote controller stops flashing.

TIMER ON-OFF/TIMER ON-OFF

press TIMER ON button to confirm, follow the same procedure in "Time setting for TIMER OFF"

Remote controller: TIMER ON OFF
press TIMER OFF button to confirm, follow the same procedure in "Time setting for TIMER ON"

Remote controller: TIMER ON<OFF

To cancel TIMER mode

Just press CANCEL button several times until TIMER mode disappears.

Operation

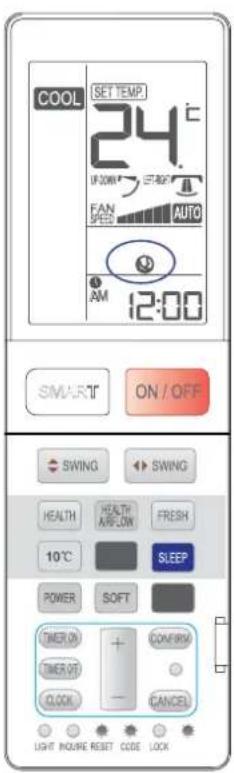

Comfortable SLEEP

Before going to bed, you can simply press the SLEEP button and unit will operate in SLEEP mode and bring you a sound sleep.

Press SLEEP button.

Operation Mode

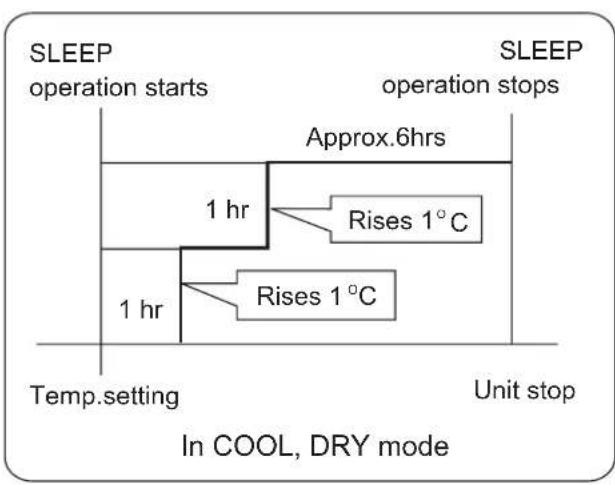

1.In COOL,DRY mode

1 hours after SLEEP mode starts, temp.will become 1^ higher than temp.settingting. After another 1 hours, temp. rises by 1^ further. The unit will run for further 6 hours then stops Temp.is higher than temp. setting so that room temperature won't be too low for your sleep.

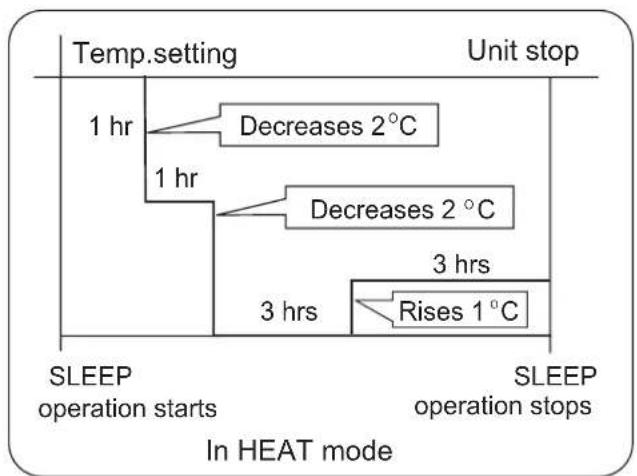

2.In HEAT mode

1 hours after SLEEP mode starts, temp will become 2^ lower than temp.seting. After another 1 hours, temp decrease by 2^ further. After more another 3 hours, temp. rises by 1^ further. The unit will run for further

3 hours then stops. Temp. is lower than temp. setting so that room temperature won't be too high for your sleep.

3.In SMART mode

The unit operates in corresponding sleep mode, which adapted to the automatically selected operation mode.

4.When quiet sleeping function is set to 8 hours the quiet sleeping time can not be adjusted.When TIMER function is set, the quiet sleeping function can't be set up.After the sleeping function is set up, if user resets TIMER function, the sleeping function will be cancelled; the machine will be in the state of timing-on, if the two modes are set up at the same time, either of their operation time is ended first, the unit will stop automatically, and the other mode will be cancelled.

Power Failure Resume Function

If the unit is started for the first time, the compressor will not start running unless 3 minutes have elapsed. When the power resumes after power failure, the unit will run automatically, and 3 minutes later the compressor starts running.

Note to the power failure resume:

press the sleep button ten times in five seconds and enter function after hearing four sounds. And press the sleep button ten times within five seconds and leave this function after hearing two sounds.

Operation

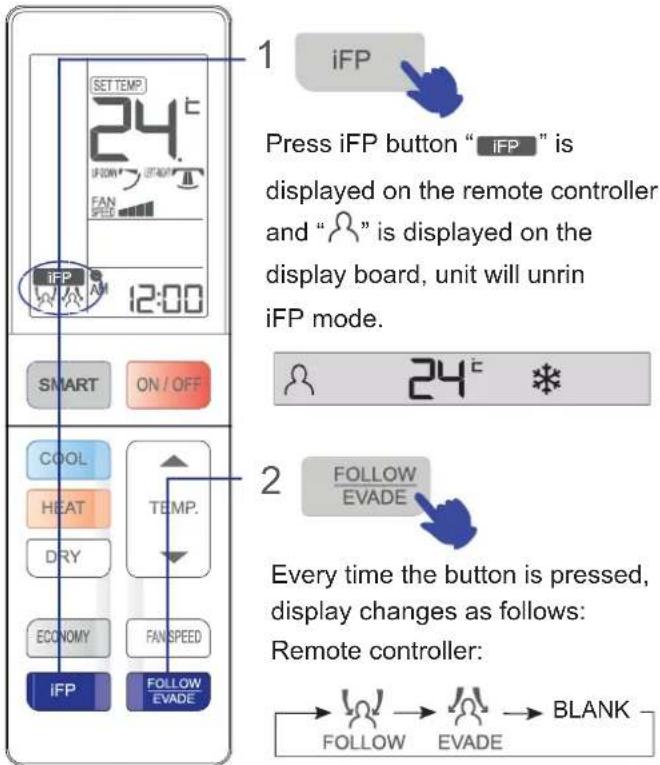

iFP Operation

The movement of people in the room can be sensed, which can improve the air adjustment efficiency.

Detect the location of the human body, adjust the FLOW wind swing, blow the location where the body is. Evade Detect the location of the human body, adjust the

• When several people are located at different positions, or one person is moving in different areas, no matter whether the wind is blowing or not, the wind will automatically swing and blow to multi areas, the wind direction adjustment will be delayed, it cannot be deflected suddenly while detecting.
• In iFP, FOLLOW and EVADE operation mode, Press "SWING" button, the unit will not operate "mode, Press "HEALTH" button, the operation stops.

The human body sensor is used to detect if the infrared ray is changing. It may be inaccurate in the following conditions:

• The human body keeps still (when reading or watching TV etc.) or is blocked by barriers like screen, cabinet or glass.
  The person is wearing very thick clothes or the person is lying or sleeping.
• A pet is moving frequently, or the wind is blowing the curtains, or something in the room is swinging frequently.

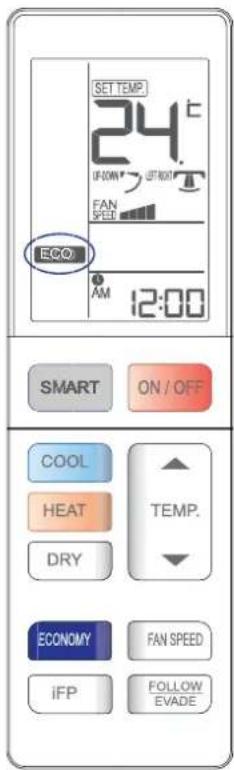

ECO Operation

Automatic adjusting with the environmental temperature, running with power saving.

Press ECONOMY button "ECO" is displayed on the remote controller, unit will run in ECONOMY operation.

Press ECONOMY button For twice press, ECONOMY disappears, the operation stops.

• The power saving function only works under the cooling, heating or dehumidifying mode, after the power saving function is set, press the sharp, mute, sleep, or smart key to exit the power saving function.
  After the power saving is set, the host machine will automatically adjust the setting temperature, and automatically control the switch of the compressor, which may be inconsistent with the user's setting.
  The power saving function is more effective after the air conditioning has been running for a long time (more than 2 hours)

Operation

Emergency operation and test operation

Emergency Operation:

• Use this operation only when the remote controller is defective or lost.
• When the emergency operation switch is pressed, the "Pi" sound is heard once, which means the start of this operation.
• In this operation, the system automatically selects the operation modes, cooling tor fan or heat, according to the room temperature.

Room temperature	Operation mode	Designated temperature	Timer mode	Air flow
ABOVE 23°C	COOLING	26°C	NO	AUTOMATIC
BELOW 23°C	HEAT	23°C	NO	AUTOMATIC

(cooling only uint) Room temperature	Operation mode	Designated temperature	Timer mode	Air flow
BELOW 23°C	FAN	26°C	NO	AUTOMATIC

It is not possible to operate in dry mode.

For smart Use of The Air Conditioner

Air Filter cleaning

1 Open the inlet grille by pulling it upward

2 Remove the filter

Push up the filter's center tab slightly until it is released from the stopper, and remove the filter downward.

3 Clean the filter

Use a vacuum cleaner to remove dust, or wash the filter with water. After washing, dry the filter completely in the shade.

4 Attach the filter

Attach the filter correctly so that the "FRONT" indication is facing to the front. Make sure that the filter is

completely fixed behind the stopper. If the right and left filters are not attached correctly, that may cause defects.

5 Close the inlet grille

Test operation:

Test operation switch is the same as emergency switch.

• Use this switch in the test operation when the room temperature is below 16^ , do not use it in the normal operation.
• Continue to press the test operation switch for more than 5 seconds. After you hear the "Pi" sound twice, release your finger from the switch:the cooling operation starts with the air flow speed "Hi".

Cautions

WARNING

Please call Sales/Service Shop for the Installation.

Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage.

WARNING
When abnormality such as burnt-small found, immediately stop the operation button and contact sales shop. OFF !STRICT ENFORCEMENT	Use an exclusive power source with a circuit breaker	Check proper installation of the drainage securely !STRICT ENFORCEMENT
Connect power supply cord to the outlet completely !STRICT ENFORCEMENT	Use the proper voltage !STRICT ENFORCEMENT	1.Do not use power supply cord extended or connected in halfway 2.Do not install in the place where there is any possibility of inflammable gas leakage around the unit. 3.Do not get the unit exposed to vapor or oil steam. PROHIBITION
Do not use power supply cord in a bundle. !PROHIBITION	Take care not to damage the power supply cord. !PROHIBITION	Do not insert objects into the air inlet or outlet. !PROHIBITION
Do not start or stop the operation by disconnecting the power supply cord and so on. !PROHIBITION	Do not channel the air flow directly at people, especially at infants or the aged. !PROHIBITION	Do not try to repair or reconstruct by yourself. !earththing	Connect the earth cable. !

CAUTION
Do not use for the purpose of storage of food, art work, precise equipment, breeding, or cultivation.	Take fresh air occasionally especially when gas appliance is running at the same time.	Do not operate the switch with wet hand.
PROHIBITION	STRICT ENFORCEMENT	PROHIBITION
Do not install the unit near a fireplace or other heating apparatus.	Check good condition of the installation stand	Do not pour water onto the unit for cleaning
PROHIBITION	PROHIBITION	PROHIBITION
Do not place animals or plants in the direct path of the air flow	Do not place any objects on or climb on the unit.	Do not place flower vase or water containers on the top of the unit.
PROHIBITION	PROHIBITION	PROHIBITION

Trouble shooting

Before asking for service, check the following first.

	Phenomenon	Cause or check points
Normal Performance inspection	The system does not restart immediately.	·When unit is stopped, it won't restart immediately until 3 minutes have elapsed to protect the system. ·When the electric plug is pulled out and reinserted, the protection circuit will work for 3 minutes to protect the air conditioner.
	Noise is heard	·During unit operation or at stop, a swishing or gurgling noise may be heard.At first 2-3 minutes after unit start, this noise is more noticeable. (This noise is generated by refrigerant flowing in the system.) ·During unit operation, a cracking noise may be heard. This noise is generated by the casing expanding or shrinking because of temperature changes. ·Should there be a big noise from air flow in unit operation, air filter may be too dirty.
	Smells are generated.	·This is because the system circulates smells from the interior air such as the smell of furniture, paint, cigarettes.
	Mist or steam are blown out.	·During COOL or DRY operation, indoor unit may blow out mist. This is due to the sudden cooling of indoor air.
	In dry mode, fan speed can't be changed.	·In DRY mode, when room temperature becomes lower than temp. setting+2 °C, unit will run intermittently at LOW speed regardless of FAN setting.
Multiple check	7	·Is power plug inserted?
	Poor cooling	·Is there a power failure?
		·Is fuse blownout?
		·Is the air filter dirty? Normally it should be cleaned every 15 days. ·Are there any obstacles before inlet and outlet? ·Is temperature set correctly? ·Are there some doors or windows left open? ·Is there any direct sunlight through the window during the cooling operation?(Use curtain)
		·Are there too much heat sources or too many people in the room during cooling operation?

Cautions

• Do not obstruct or cover the ventilationgrille of the air conditioner. Do not put fingers or any other things into the inlet/outlet and swing louver.
• Do not allow children to play with the air conditioner. In no case should children be allowed to sit on the outdoor unit.

Specifications

The refrigerating circuit is leak-proof.

The machine is adaptive in following situation

1.Applicable ambient temperature range:

Cooling	Indoor	Maximum:D.B/W.B 32°C/23°C Minimum:D.B/W.B 21°C/15°C
	Outdoor	Maximum:D.B/W.B 43°C/26°C Minimum:D.B 18°C
Heating	Indoor	Maximum:D.B 27°C Minimum:D.B 0°C
	Outdoor	Maximum:D.B/W.B 24°C/18°C Minimum:D.B/W.B -7°C/-8°C
	Outdoor (INVERTER)	Maximum:D.B/W.B 24°C/18°C Minimum:D.B -15°C

1. If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person.

2. If the fuse of indoor unit on PC board is broken, please change it with the type of T. 3.15A/250V. If the fuse of outdoor unit is broken, change it with the type of T.25A/250V

3. The wiring method should be in line with the local wiring standard.

4. After installation, the power plug should be easily reached.
5. The waste battery should be disposedproperly.
6. The appliance is not intended for useby young children or infirm persons without supervision.
7. Young children should be supervised to ensure that they do not play with the appliance.
8. Please employ the proper power plug, which fit into the power supply cord.
9. A breaker should be incorporated intofixed wiring. The breaker should be all-pole switch and the distance between its two contacts should be not less than 3mm
10. The power plug and connecting cable must have acquired the local attestation.
11. In order to protect the units, please turn off the A/C first, and at least 30 seconds later, cutting off the power.
12. Please don't insert any sensor on 3-waystop valve pipe fitting.

EUROPEAN REGULATIONS CONFORMITY FOR THE MODELS

CE

All the products are in conformity with the following European provision:

• Low Voltage Directive 73/23/EEC
• Low Voltage Directive 2006/95/EC
  -Electromagnetic CompatibilityY 89/336/EEC
  -Electromagnetic Compatibility 2004/108/EC

ROHS

The products are fulfilled with the requirements in the directive 2002/95/EEC of the European parliament and of council on the Restriction of the use of Certain Hazardous Substances in Electrical and Electronic Equipment (EU RoHS Directive)

WEEE

In accordance with the directive 2002/96/CE of the European parliament, herewith we inform the consumer about the disposal requirements of the electrical and electronic products. DISPOSAL REQUIREMENTS:

Your air conditioning product is marked with this symbol. This means that electrical and electronic products shall not be mixed with unsorted household waste. Do not try to dismantle the system yourself: the dismantling of the air conditioning system,

treatment of the refrigerant, of oil and of other part must be done by a qualified installer in accordance with relevant local and national legislation. Air conditioners must be treated at a specialized treatment facility for reuse, recycling and recovery. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. Please contact the installer or local authority for more information. Battery must be removed from the remote controller and disposed of separately in accordance with relevant local and national legislation.

CONDITIONS D'ELIMINATION
