Product type	Split air conditioner (indoor and outdoor unit)
Brand	Haier
Model	AS09SH1ERA
Operating modes	SMART, COOLING, HEATING, DEHUMIDIFYING, FAN
iFP function	Motion detection with follow or avoid airflow
Health function	Built-in anion generator for air purification
Energy saving function	ECO: automatic temperature adjustment to reduce consumption
Power / Soft function	POWER (rapid cooling) / SOFT (silent operation)
Sleep function	SLEEP: gradual temperature adjustment for comfortable sleep
Remote control	LCD screen, multifunction buttons, range 7 meters
Timer	On/off programming over 24 hours
Airflow adjustment	Vertical direction (horizontal flap) and horizontal direction (vertical vanes) with oscillation
Air filter	Washable, cleaning recommended every 15 days
Power supply	230 V ~ 50 Hz (standard estimate)
Operating temperature range	Cooling: indoor 21-32 °C, outdoor 18-43 °C; Heating: indoor 0-27 °C, outdoor -7 to 24 °C
Compressor protection	3-minute delayed start
Safety	Automatic shutdown in case of anomaly, protection fuse, mandatory grounding
Installation	Must be performed by a certified professional
Compliance	CE, Low Voltage and Electromagnetic Compatibility directives, RoHS
Remote control batteries	2 R-03 (AAA) 1.5 V batteries

Frequently Asked Questions - AS09SH1ERA HAIER

How to clean the air filter?

Open the air intake grille by pulling it upward. Remove the filter by pushing the central tab upward. Clean it with a vacuum cleaner or with clean water. Dry it completely in the shade before reinstalling. Reinstall respecting the FRONT indication facing forward.

How to set the on/off timer?

Ensure the clock is set. Select the desired operating mode. Press TIMER ON or TIMER OFF until the display flashes. Use the + or - buttons to set the time (in 1-minute steps). Confirm with the CONFIRM button. To cancel, press CANCEL or repeat the operation until the symbol disappears.

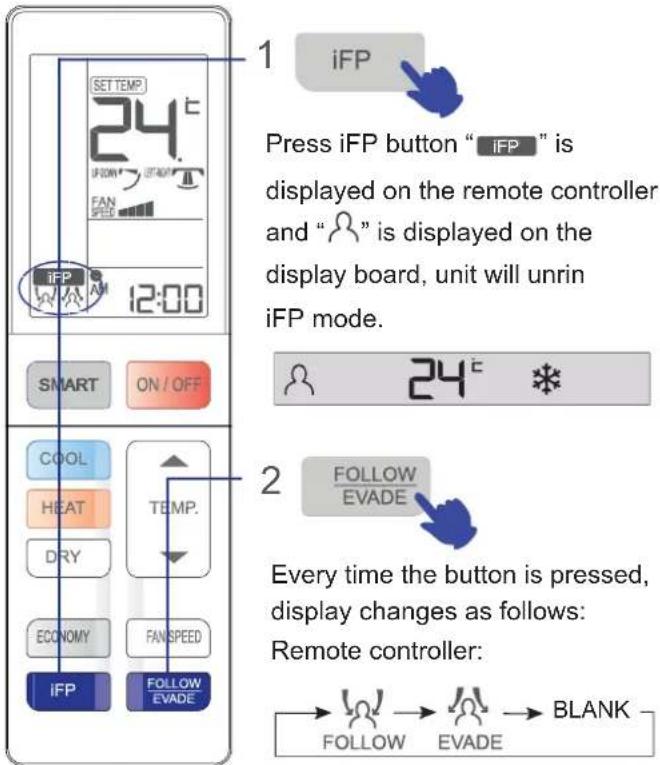

What does the iFP function do?

The iFP (Intelligent Following Person) function detects people's movements in the room using an infrared sensor. In FOLLOW mode, the unit directs airflow toward the detected person. In EVADE mode, it avoids them. This function improves comfort and energy efficiency.

How to use emergency operation?

If the remote control is lost or defective, press the emergency selector on the indoor unit. A beep indicates startup. The system automatically selects the operating mode (cooling, heating, or fan) based on ambient temperature (cooling if >23°C, heating if <23°C). In test mode, hold the button for more than 5 seconds for forced cooling operation.

How to change the remote control batteries?

Remove the battery compartment cover on the back of the remote control. Insert 2 R-03 (AAA) batteries, respecting the + and - polarities. Replace the cover. If the display is dim or the remote does not respond, replace the batteries. In case of malfunction, use a pointed object to press the RESET button.

What does the HEALTH button do?

The HEALTH button activates the built-in anion generator. Anions help eliminate bacteria, accelerate dust settling, and purify the air. Press once to turn on the icon, a second time to turn off. Note that the generator only works when the indoor fan is running.

What is the difference between POWER and SOFT modes?

The POWER mode provides rapid cooling or heating by running the fan at the highest speed. The SOFT mode promotes silent operation by reducing fan speed. These modes are useful respectively for quickly reaching the desired temperature or for optimal sound comfort (reading, sleeping).

How to reset the remote control?

If the remote control displays abnormal information or does not respond, use a pointed object (like a paperclip) to press the RESET button inside the battery compartment. This clears the settings and restores normal operation. You can also remove the batteries for a few minutes.

What is the 10°C function for?

The 10°C function is a special heating setting that maintains the room at a temperature of 10°C. Useful for secondary residences or prolonged absence to prevent freezing. It can only be activated in heating mode. Press the 10°C button on the remote control to activate it.

How to cancel the sleep function (SLEEP)?

To cancel the SLEEP function, press the SLEEP button on the remote control again. The icon disappears and the air conditioner returns to normal operation. Note that if the timer is activated, the sleep function is automatically canceled. Also, sleep lasts by default 6 to 8 hours depending on the mode.

USER MANUAL AS09SH1ERA HAIER

SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL

Exterior view of a modern white air conditioner unit (no text or symbols visible)

AS09SH1ERA/1U09EH1ERA

AS12SH1ERA/1U12EH1ERA

AS09SB1HRA/1U09QE6ERA

AS12SB1HRA/1U12QE6ERA

Contents

PARTSAND FUNCTIONS 1

OPERATION 2

CAUTIONS 5

TROUBLE SHOOTING 8

English

Contenido

PARTES Y FUNCIONES 12

FUNCIONAMIENTO 15

PRECAUCIONES 18

- Please read this operation manual before using the air conditioner. Keep this operation manual for future reference.

Parts and Functions

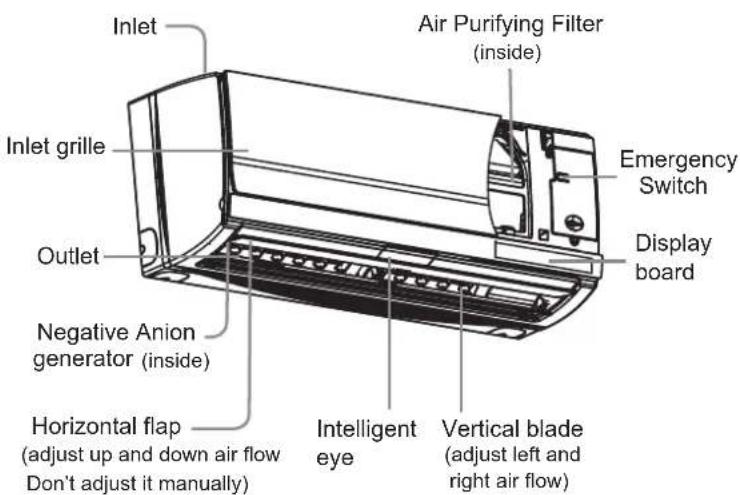

Indoor Unit

Inlet Air Purifying Filter (inside) Inlet grille Emergency Switch Outlet Display board Negative Anion generator (inside) Horizontal flap (adjust up and down air flow Don't adjust it manually) Intelligent eye Vertical blade (adjust left and right air flow)

Please be subject to the actual produce purchased, the above picture is just from your reference.

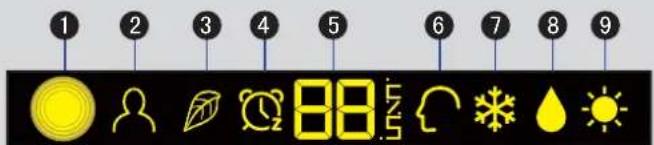

Display board

1 2 3 4 5 6 7 8 9 88.5

1 Signal receiver hole
2 iFP display
3 HEALTH display (If the unit which you purchased has healthy function, follow it. If not, please ignore.)
4 TIMER OFF display TIMER ON display SLEEP display
5 temp display Temp display include two displaying types.

One is ambient temp displaying, the other is set temp displaying. The displaying temp can be changed between ambient temp and set temp by some special operation.

6 SMART display
7 COOL display
8 DRY display
9 HEAT display

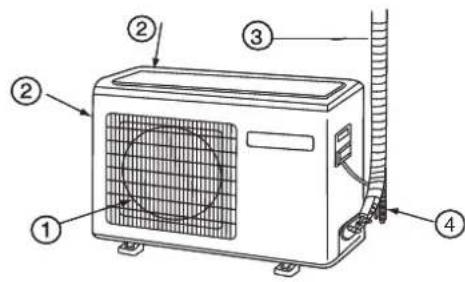

Outdoor Unit

Diagram of an air conditioning unit with numbered components and airflow path annotations

① OUTLET

③ CONNECTING PIPING AND ELECTRICAL WIRING

② INLET

④ DRAIN HOSE

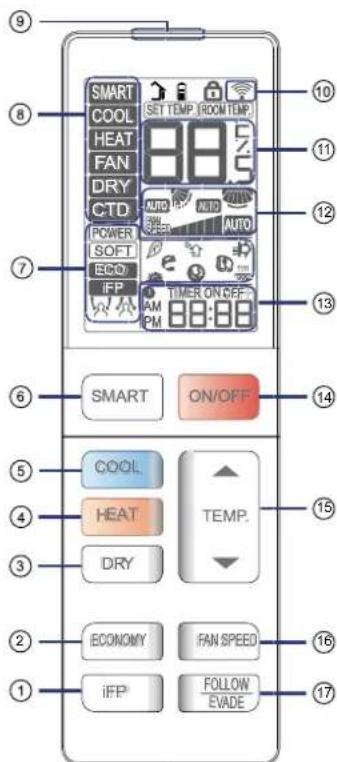

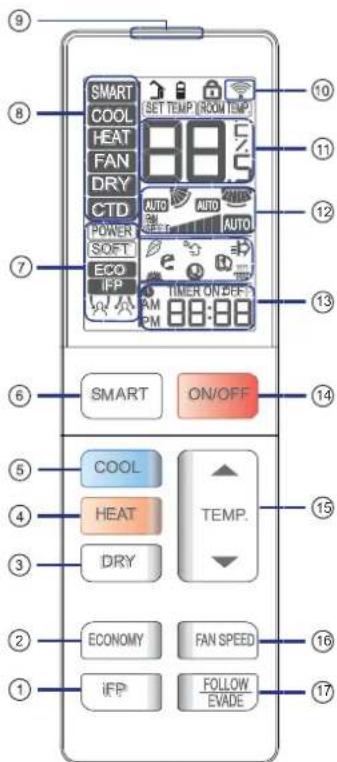

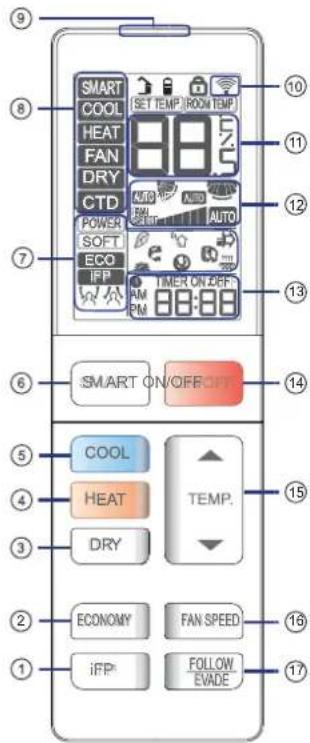

Remote controller

Outer side of the controller

SMART COOL HEAT FAN DRY CTD POWER SOFT ECO IPP 88:00 88:00 10 11 12 13 14 15 16 17 1 ECONOMY iFP FAN SPEED FOLLOW EVADE

1.iFP button Induce the movement of the human body, so as to control the airflow / energy saving functioning.
2. ECONOMY button Used to set ECONOMY operation.
3.DRY button Used to set DRY operation.

1. HEAT button Used to set HEAT operation. (Cooling only unit do not have displays and functions related with heating.)
2. COOL button Used to set COOL operation.
3. SMART button Used to set SMART operation. (This function is unavailable on some models.)
4. Display of each function status
5. Operation mode display
6. Signal sending end
7. Signal sending display
8. TEMP display
9. FAN SPEED display Swing up/down display Left/right air flow display
10. TIMER ON display TIMER OFF display CLOCK display
11. ON / OFF button
12. TEMP. button
13. FAN SPEED button Used to select fan speed: LOW, MED, HI, AUTO
14. FOLLOW / EVADE button Detect the location where the human body is, adjust the air deflector to blow/avoid the body.

Operation

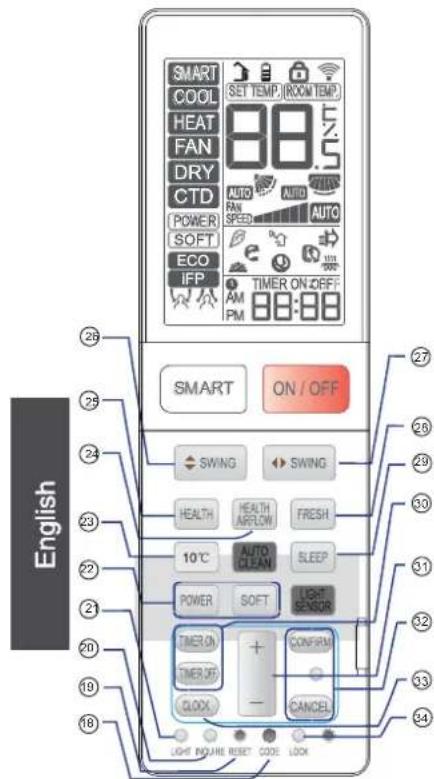

Inner side of the controller

SMART COOL SET TEMP (ROOM TEMP) HEAT FAN 88:5 DRY CTD POWER SOFT ECO IFP AM PM TIMER ON OFF 26 25 24 23 22 21 20 19 18 SMART ON / OFF SWING SWING HEALTH HEALTH AIRFLOW FRESH 10°C AUTO CLEAN SLEEP POWER SOFT LIGHT SENSOR TIMER ON TIMER OFF + - CONFRIN CLOCK CANCEL LIGHT INSUR RESIST CODE LOCK English

18.CODE button
Used to select CODE A or B with a press, A or B will be displayed on LCD.Please select A without special explanation.
19. RESET button
When the remote controller appears abnormal, use a sharp pointed article to press this button to reset the controller normal.
20.INQUIRE button
Inquire the external environmental temperature and the operating power of the machine. (e.g. when the panel display "01", the

operating power is 100W; when the panel display "02", the operating power is 200W, and so forth)

21.LIGHT button

Control the lightening and extinguishing of the indoor LED display board. The manual of how to change the default display temp: Press LIGHT button continuously for ten times, the display temp on display panel can be changed between ambient temp and set temp.

22.POWER / SOFT button 23.10°C

special heating set function: 10 degree heating maintaining (valuable for RS)

1. HEALTH AIRFLOW button

25.HEALTH button

26.SWING UP/DOWN button

27.SWING LEFT/RIGHT button

28.FRESH button

29.SLEEP button

30.TIMER ON / OFF button

31.HOUR button

32.CANCEL/CONFIRM button

Used to confirm timer and clock settings.

33.CLOCK button

1. LOCK button

If pressed, the other buttons will be disabled. Press it once again, lock will be cancelled.

Load the batteries as illustrated. 2 R-03 batteries, resetting key(cylinder); Be sure that the loading is in line with the" + "/"-";

Load the battery, then put on the cover again.

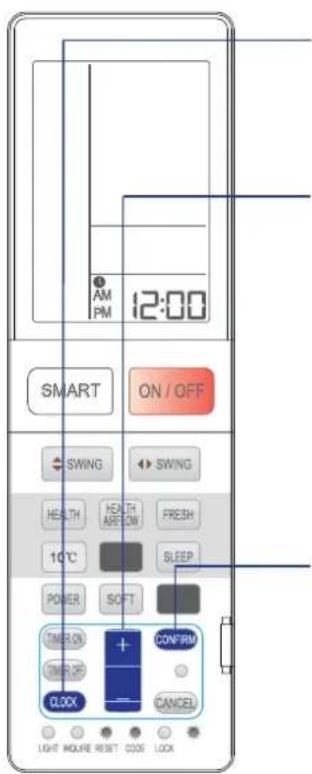

Clock set

12:00 AM PM SMART ON / OFF SWING HEALTH 10°C FRESH SLEEP POWER SOFT TIMER ON TIMOR UP CLOCK CONFIRM CANCEL LIGHT MOUNT RESET CODE LOCK

Press CLOCK button,

"AM" or "PM" flashes.

Press "+" or "-" to set correct time.

Each press will increase or decrease 1min. If the button is kept pressed, time will change quickly.

Confirm time.

After time setting is confirmed, press CONFIRM,"AM "and "PM" stop flashing, while clock starts working.

Note:

The distance between the signal transmission head and the receiver hole should be within 7m without any obstacle as well. When electronic-started type fluorescent lamp or change-over wireless telephone is installed in the type fluorescent lamp or room, the receiver is apt to be disturbed in receivingthe signals, so the distance to the indoor unit should be shorter. Full display or unclear display during operation indicates the batteries have been used up.Please change batteries. If the remote controller can't run normally during operation, please remove the batteries and reload several minutes later.

Hint:

Remove the batteries in case unit won't be in usage for a long period. If there are any display after taking-out, just need to press reset key.

This function unavailable on this models.

Loading of the battery

Remove the battery cover;

Operation

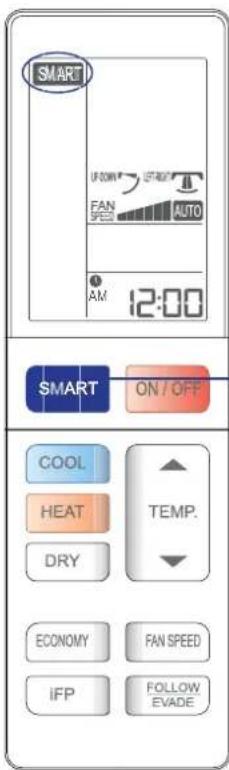

SMART Operation

SMART FROM STRAW? FAN AUTO AM 12:00 SMART ON / OFF COOL HEAT TEMP. DRY ECONOMY FAN SPEED IFP FOLLOW EVADE

(This function is unavailable on some models)

One key can give you a comfortable room!

The air conditioning unit can judge the indoor temperature and humidity, and make the adjustment accordingly.

SMART start

Press ON/OFF button, unit starts.

Press SMART button“SMART” is displayed on the remote controller and “☐” is displayed on the display board, unit will run in SMART mode.

• SMART Defrost
• SMART FAN SPEED
  • SMART FAN HEALTH
• SMART DRY
• SMART SOFT
  • SMART Control temperature

SMART stopsor

• Under the cooling, heating and dehumidifying mode, press the smart key to enter the smart function.
• Under the smart running mode, when the air conditioning is running, it will automatically select cooling, heating, dehumidifying or blowing mode as per the setting temperature.
- When the smart function is running, press the "cooling" "heating" or "dehumidifying" key to switch to the other mode, you will exit from the smart function.

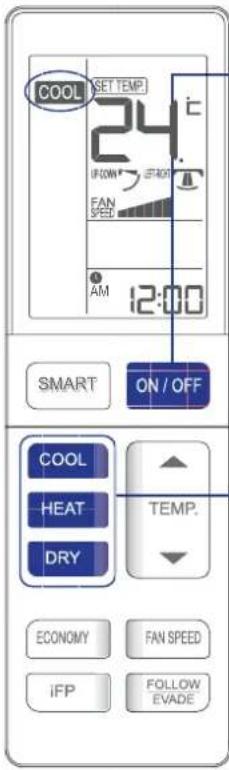

COOL,HEAT and DRY Operation

COOL SET TEMP. IF DOWN STRONG FAN SPEED 12:00 AM SMART ON/OFF COOL HEAT DRY TEMP. ECONOMY FAN SPEED IFP FOLLOW EVADE

1

Unit start.

2

Select operation mode.

Press COOL button" COOL "

is displayed on the remote

controller and “*” is

displayed on the display board,

unit will run in COOL mode.

HEAT

Press HEAT button "HEAT" is displayed on the remote controller and "☀️" is displayed on the display board, unit will run in HEAT mode.

DRY

Press DRY button "DRY" is displayed on the remote controller and "💧" is displayed on the display board, unit will run in DRY mode.

1. In DRY mode, when room temperature becomes lower than temp. setting + 2°C, unit will run intermittently at LOW speed regardless of FAN setting.
2. Remote controller can memorize each operation status. When starting it next time, just press ON/OFF button and unit will run in previous status.

Operation

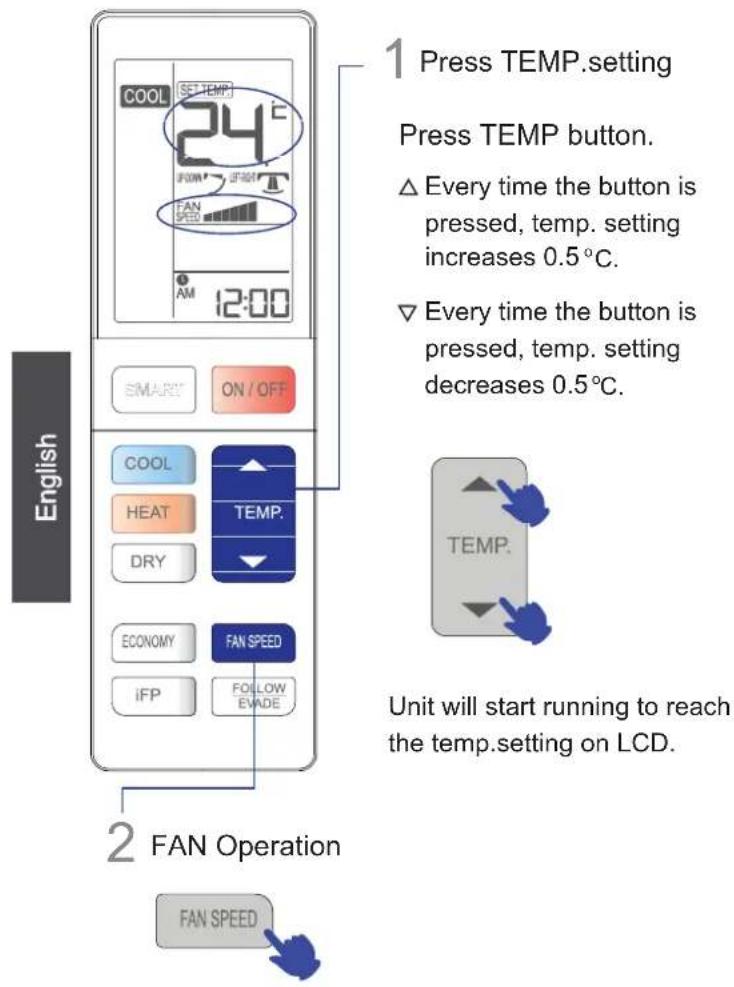

Select TEMP. setting, FAN Operation

1 Press TEMP. setting Press TEMP button. △ Every time the button is pressed, temp. setting increases 0.5 °C. ▽ Every time the button is pressed, temp. setting decreases 0.5 °C. 2 FAN Operation FAN SPEED UNIT will start running to reach the temp. setting on LCD.

Press FAN SPEED button. For each press, fan speed changes as follows:

Unit will run at selected fan speed.

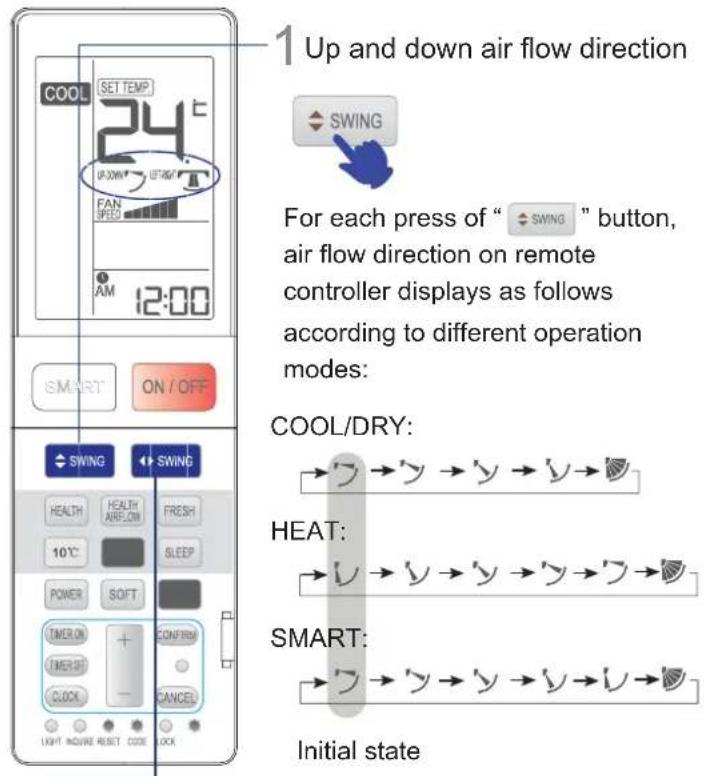

SWING Operation

1 Up and down air flow direction SWING For each press of "SWING" button, air flow direction on remote controller displays as follows according to different operation modes: COOL/DRY: HEAT: SMART: Initial state

2 Left and right air flow direction

For each press of “SWING” buttor, remote controller displays as follows:

remote controller:

Initial state

• When humidity is high, condensate water might occur at air outlet if all vertical louvers are adjusted to left or right.
• It is advisable not to keep horizontal flap at downward position for a long time in COOL or DRY mode, otherwise, condensate water might occur.
• As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more helpful for a better air circulation.

Operation

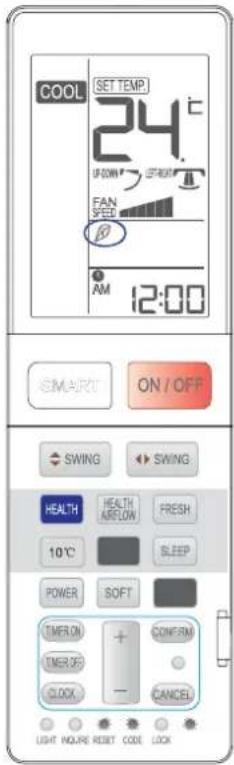

HEALTH Operation

COOL SET TEMP. 24°C OFF STRAW FAN SPEED AM 12:00 SMART ON/OFF SWING SWING HEALTH HEALTH FRESH 10°C SLEEP POWER SOFT TIMER ON + CONFIRM TIMER ON CLOCK - CANCEL LIGHT INSUR RESIST CODE LOCK

The anion generator in the airconditioner can generate a lot of anion effectively balance the quantity of position and anion in the air and also to kill bacteria and speed up the dust sediment in the room and finally clean the air in the room.

Press HEALTH button

For each press, 📋 is displayed Air conditioner starts health anion function operation.

Press HEALTH button for twice press, disappears, the operation stops.

When indoor fan motor is running, it has healthy process function. (It's available under any mode) When the fan in the indoor unit does not work, the health lamp lights up, but the anion generator does not release anion.

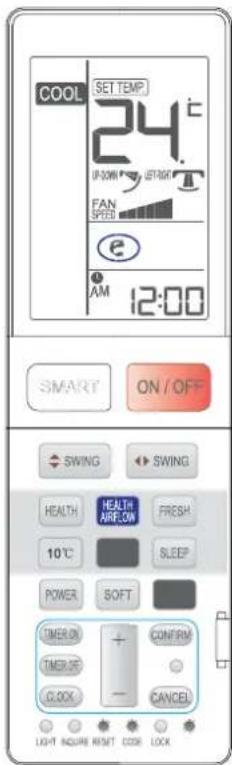

HEALTH AIRFLOW Operation

COOL SET TEMP 24°C UP-SWIP SWITCH FAN SPEED e 1 AM 12:00 SMART ON/OFF SWING SWING HEALTH HEALTH AIR ELOW FRESH 10°C SLEEP POWER SOFT TIMER ON CONFIRM TIMER OF CLOCK CANCEL LIGHT INQUIRE RESET CODE LOCK

The setting of health airflow function

1). Press the button of health airflow, appears on the display. Avoid the strong airflow blows direct to the body.
2). Press the button of health airflow again, appears on the display. Avoid the strong airflow blows direct to the body.

The cancel of the health airflow function

Press the button of health airflow again, both the inlet and outlet

grills of the air conditioner are opened, and the unit goes on working under the condition before the setting of health airflow function.

After stopping, the outlet grille will close automatically.

Notice:

Cannot pull direct the outlet grille by hand.

Otherwise, the grille will run incorrectly. If the grille is not run correctly, stop for a minute and then start, adjusting by remote controller.

- Remote controller can memorize each operation status. when starting it next time, just press ON/OFF button and unit will run in previous status.

Note:

1. After setting the health airflow function, the position of inlet and outlet grills is fixed.
2. In heating, it is better to select the mode.
3. In cooling, it is better to select the mode.
4. In cooling and dry, using the air conditioner for a long time under the high air humidity, a phenomenon falling drips of water occurs at the outlet grille.
5. Select the appropriate fan direction according to the actual conditions.

Operation

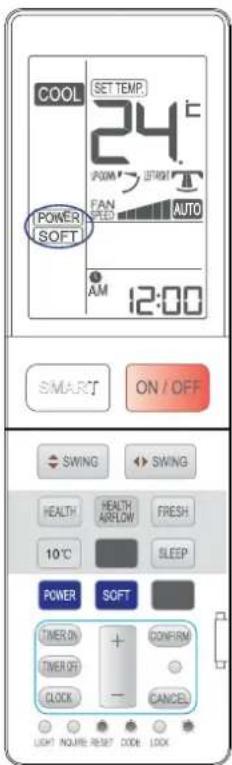

POWER/SOFT Operation

COOL SET TEMP. 24℃ PUM / 24"FROM FAN AUTO POWER SOFT AM 12:00 SMART ON/OFF SWING SWING HEALTH HEALTH AIRFLOW FRESH 10℃ SLEEP POWER SOFT TIMER ON + CONFIRM TIMER OFF - CLOCK - CANCEL LIGHT INQUIRE RESET CODE LOCK

POWER Operation

When you need rapid cooling, you can use this function.

For each press, POWER is displayed Air conditioner starts POWER function operation.

In COOL mode, fan speed automatically takes high speed of AUTO fan mode.

Press POWER button again, POWER disappears, the operation stops.

SOFT Operation

You can use this function when silence is needed for rest or reading.

For each press, SOFT is displayed Air conditioner starts POWER function operation.

In SOFT operation mode, fan speed automati cally takes low speed of AUTO fan mode.

Press SOFT button again, SOFT disappears, the operation stops.

Hints:

During POWER operation, in rapid COOL mode, the room will show inhomogeneous temperature distribution.

Long period SOFT operation will cause effect of not too cool or not too warm.

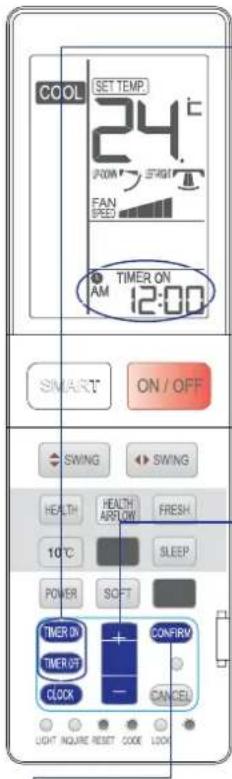

TIMER Operation

Set Clock correctly before starting Timer operation. You can let unit start or stop automatically a following times: Before you wake up in the morning, or get back from outside or after you fall asleep at night.

COOL SET TEMP. 24°C FAN SPEED TIMER ON AM 12:00 SMART ON / OFF SWING SWING HEALTH HEALTH FRESH 10°C SLEEP POWER SOFT TIMER ON CONFIRM TIMER ON CANCEL CLOCK Cancel LIGHT INQUARE RESET CODE LOCK

1 Select your desired operation mode.

Select your desired TIMER ON.

Remote controller: " TIMER ON " will flash.

Select your desired TIMER OFF.

Remote controller: " TIMER OFF " will flash.

2 Time setting.

Every time the button is pressed, time setting increases or

decreases 1 min, if kept depressed, it will increase rapidly. It can be adjusted within 24 hours.

3 Confirming your setting.

After setting correct time, press CONFIRM button press CONFIRM button to confirm "ON" or "OFF" on the remote controller stops flashing.

TIMER ON→OFF / TIMER ON←OFF

press TIMER ON button to confirm, follow the same procedure in "Time setting for TIMER OFF "

Remote controller: TIMER ON→OFF press TIMER OFF button to confirm, follow the same procedure in "Time setting for TIMER ON"

Remote controller: TIMER ON←OFF

To cancel TIMER mode

Just press CANCEL button several times until TIMER mode disappears.

Operation

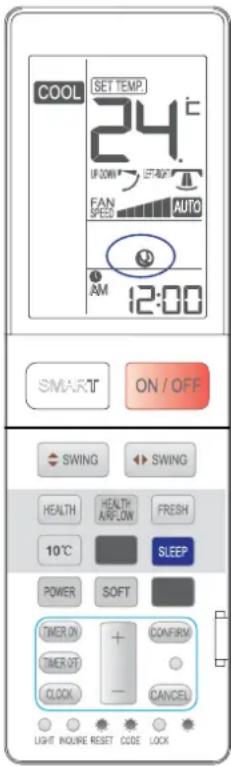

Comfortable SLEEP

Before going to bed, you can simply press the SLEEP button and unit will operate in SLEEP mode and bring you a sound sleep.

COOL SET TEMP. 24°C FAN AUTO SPEED AM 12:00 SMART ON / OFF SWING SWING HEALTH HEALTH AIRFLOW FRESH 10°C SLEEP POWER SOFT TIMER ON + TIMER OT - CLOCK - CONFIRM CANCEL LIGHT ROUTE RESET CODE LOCK

Press SLEEP button.

Operation Mode

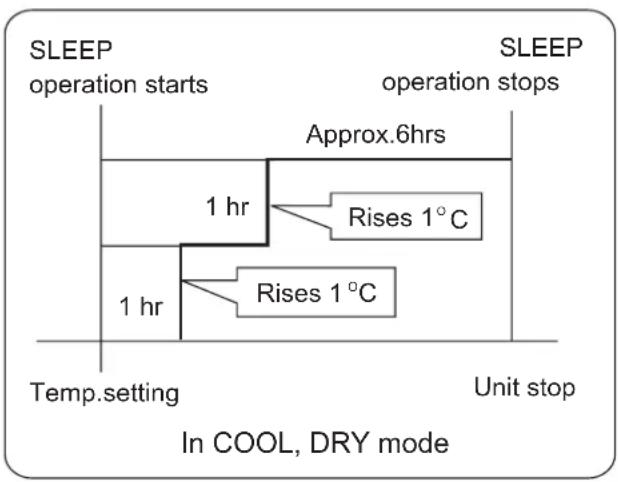

1. In COOL, DRY mode

1 hours after SLEEP mode starts, temp. will become 1°C higher than temp. setting. After another 1 hours, temp. rises by 1°C further. The unit will run for further 6 hours then stops Temp. is higher than temp. setting so that room temperature won't be too low for your sleep.


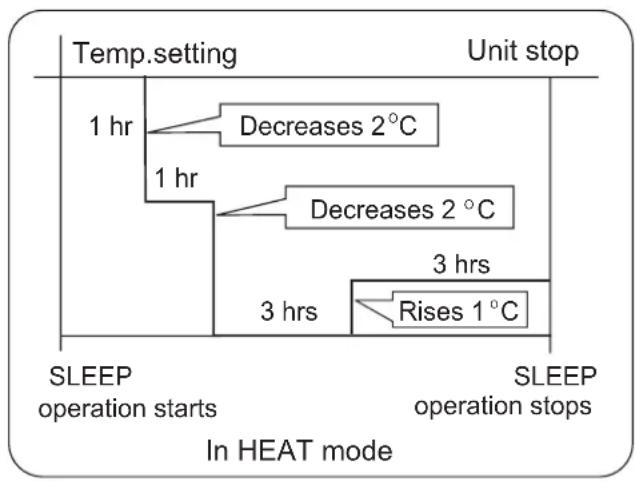

2. In HEAT mode

1 hours after SLEEP mode starts, temp will become 2^ C lower than temp. setting. After another 1 hours, temp decrease by 2^ C further. After more another 3 hours, temp. rises by 1^ C further. The unit will run for further

3 hours then stops. Temp. is lower than temp. setting so that room temperature won't be too high for your sleep.
    note right of A: Unit stop
    note left of H: Sleep operation starts
    note right of H: Sleep operation stops
    note right of A: Sleep operation starts
    note right of H: Sleep operation stops
    note right of H: Sleep operation starts
    note right of H: Sleep operation stops
    note right of H: Sleep operation starts
    note right of H: Sleep operation stops
    note right of H: Sleep operation starts
    note right of H: Sleep operation stops
    note right of H: Sleep operation starts
    note right of H: Sleep operation stops
    note right of H: Sleep operation starts
    note right of H: Sleep operation stops
    note right of A: Unit stop
    note right of H: Sleep mode

3. In SMART mode

The unit operates in corresponding sleep mode, which adapted to the automatically selected operation mode.

1. When quiet sleeping function is set to 8 hours the quiet sleeping time can not be adjusted. When TIMER function is set, the quiet sleeping function can't be set up. After the sleeping function is set up, if user resets TIMER function, the sleeping function will be cancelled; the machine will be in the state of timing-on, if the two modes are set up at the same time, either of their operation time is ended first, the unit will stop automatically, and the other mode will be cancelled.

Power Failure Resume Function

If the unit is started for the first time, the compressor will not start running unless 3 minutes have elapsed. When the power resumes after power failure, the unit will run automatically, and 3 minutes later the compressor starts running.

Note to the power failure resume:

press the sleep button ten times in five seconds and enter function after hearing four sounds. And press the sleep button ten times within five seconds and leave this function after hearing two sounds.

Operation

iFP Operation

The movement of people in the room can be sensed, which can improve the air adjustment efficiency.

1 iFP Press iFP button "IFP" is displayed on the remote controller and "♀" is displayed on the display board, unit will unrin iFP mode. 2 FOLLOW EVADE Every time the button is pressed, display changes as follows: Remote controller: FOLLOW → EVADE → BLANK

Detect the location of the human body, adjust the wind swing, blow the location where the body is. Detect the location of the human body, adjust the wind swing, avoid the location where the body is.

• When several people are located at different positions, or one person is moving in different areas, no matter whether the wind is blowing or not, the wind will automatically swing and blow to multi areas, the wind direction adjustment will be delayed, it cannot be deflected suddenly while detecting.
• In iFP, FOLLOW and EVADE operation mode, Press "SWING" button, the unit will not operate "⚡" mode, Press "HEALTH AIRFLOW" button, the operation stops.

The human body sensor is used to detect if the infrared ray is changing. It may be inaccurate in the following conditions:

• The human body keeps still (when reading or watching TV etc.) or is blocked by barriers like screen, cabinet or glass.
  • The person is wearing very thick clothes or the person is lying or sleeping.
• A pet is moving frequently, or the wind is blowing the curtains, or something in the room is swinging frequently.

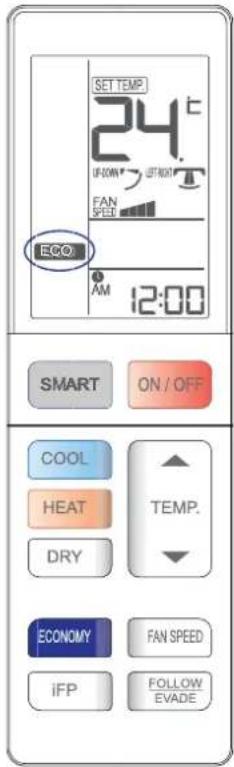

ECO Operation

Automatic adjusting with the environmental temperature, running with power saving.

SET TEMP 24°C IF DOWN IF DOWN FAN SPEED ECO AM 12:00 SMART ON/OFF COOL HEAT DRY TEMP. ECONOMY IFP FAN SPEED FOLLOW EVADE

Press ECONOMY button "ECO" is displayed on the remote controller, unit will run in ECONOMY operation.

Press ECONOMY button For twice press, ECONOMY disappears, the operation stops.

• The power saving function only works under the cooling, heating or dehumidifying mode, after the power saving function is set, press the sharp, mute, sleep, or smart key to exit the power saving function.
• After the power saving is set, the host machine will automatically adjust the setting temperature, and automatically control the switch of the compressor, which may be inconsistent with the user's setting.
• The power saving function is more effective after the air conditioning has been running for a long time (more than 2 hours)

Operation

Emergency operation and test operation

Emergency Operation:

• Use this operation only when the remote controller is defective or lost.
• When the emergency operation switch is pressed, the "Pi" sound is heard once, which means the start of this operation.
• In this operation, the system automatically selects the operation modes, cooling tor fan or heat, according to the room temperature.

Room temperature	Operation mode	Designated temperature	Timer mode	Air flow
ABOVE 23°C	COOLING	26°C	NO	AUTOMATIC
BELOW 23°C	HEAT	23°C	NO	AUTOMATIC

(cooling only uint) Room temperature	Operation mode	Designated temperature	Timer mode	Air flow
BELOW 23°C	FAN	26°C	NO	AUTOMATIC

- It is not possible to operate in dry mode.

For smart Use of The Air Conditioner

Air Filter cleaning

1 Open the inlet grille by pulling it upward

2 Remove the filter

Push up the filter's center tab slightly until it is released from the stopper, and remove the filter downward.

3 Clean the filter

Use a vacuum cleaner to remove dust, or wash the filter with water. After washing, dry the filter completely in the shade.

4 Attach the filter

Attach the filter correctly so that the "FRONT" indication is facing to the front. Make sure that the filter is completely fixed behind the stopper. If the right and left filters are not attached correctly, that may cause

5 Close the inlet grille

Test operation:

Test operation switch is the same as emergency switch.

• Use this switch in the test operation when the room temperature is below 16°C, do not use it in the normal operation.
• Continue to press the test operation switch for more than 5 seconds. After you hear the "Pi" sound twice, release your finger from the switch: the cooling operation starts with the air flow speed "Hi".

Cautions

WARNING

Please call Sales/Service Shop for the Installation.

Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage.

WARNING

When abnormality such as burnt-small found,immediately stop the operation button andcontact sales shop. OFFSTRICTENFORCEMENT		Use an exclusivepower sourcewith a circuitbreaker——	Check proper installationof the drainage securely STRICTENFORCEMENT
Connect power supply cordto the outlet completely STRICTENFORCEMENT	Use the proper voltage STRICTENFORCEMENT		1.Do not use power supply cord extendedor connected in halfway2.Do not install in the place where there is anypossibility of inflammable gas leakage around the unit.3.Do not get the unit exposedto vapor or oil steam.PROHIBITION
Do not use power supplycord in a bundle. PROHIBITION	Take care not to damagethe power supply cord. PROHIBITION		Do not insert objects into the air inlet or outlet. PROHIBITION
Do not start or stop theoperation by disconnecting thepower supply cord and so on. PROHIBITION	Do not channel the air flow directlyat people, especially at infants orthe aged. [HCX6]PROHIBITION		Do not try to repair orreconstruct by yourself. Connect the earthcable. earthing

CAUTION

PROHIBITION

PROHIBITION

Do not use for the purpose of storage of food, art work, precise equipment, breeding, or cultivation.

PROHIBITION

ke fresh air occasionally especially en gas appliance is running at the time.

PROHIBITION

PROHIBITION

Do not operate the switch with wet hand.

Do not place flower vase or water containers on the top of the unit.

PROHIBITION

Trouble shooting

Before asking for service, check the following first.

	Phenomenon	Cause or check points
Normal Performance inspection	The system does not restart immediately.	When unit is stopped, it won't restart immediately until 3 minutes have elapsed to protect the system.When the electric plug is pulled out and reinserted, the protection circuit will work for 3 minutes to protect the air conditioner.
	Noise is heard	During unit operation or at stop, a swishing or gurgling noise may be heard.At first 2-3 minutes after unit start, this noise is more noticeable.(This noise is generated by refrigerant flowing in the system.)During unit operation, a cracking noise may be heard.This noise is generated by the casing expanding or shrinking because of temperature changes.Should there be a big noise from air flow in unit operation, air filter may be too dirty.
	Smells are generated.	This is because the system circulates smells from the interior air such as the smell of furniture, paint, cigarettes.
	Mist or steam are blown out.	During COOL or DRY operation, indoor unit may blow out mist.This is due to the sudden cooling of indoor air.
	In dry mode, fan speed can't be changed.	In DRY mode, when room temperature becomes lower than temp. setting+2 °C,unit will run intermittently at LOW speed regardless of FAN setting.
Multiple check		Is power plug inserted?Is there a power failure?Is fuse blownout?
	Poor cooling	Is the air filter dirty?Normally it should be cleaned every 15 days.Are there any obstacles before inlet and outlet?Is temperature set correctly?Are there some doors or windows left open?Is there any direct sunlight through the window during the cooling operation?(Use curtain)Are there too much heat sources or too many people in the room during cooling operation?

Cautions

• Do not obstruct or cover the ventilationgrille of the air conditioner. Do not put fingers or any other things into the inlet/outlet and swing louver.
• Do not allow children to play with the air conditioner. In no case should children be allowed to sit on the outdoor unit.

Specifications

• The refrigerating circuit is leak-proof.

The machine is adaptive in following situation

1. Applicable ambient temperature range:

Cooling	Indoor	Maximum:D.B/W.B 32°C/23°CMinimum:D.B/W.B 21°C/15°C
	Outdoor	Maximum:D.B/W.B 43°C/26°CMinimum: D.B 18°C
Heating	Indoor	Maximum:D.B 27°CMinimum: D.B 0°C
	Outdoor	Maximum:D.B/W.B 24°C/18°CMinimum:D.B/W.B -7°C/-8°C
	Outdoor(INVERTER)	Maximum:D.B/W.B 24°C/18°CMinimum:D.B -15°C

1. If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person.
2. If the fuse of indoor unit on PC board is broken, please change it with the type of T. 3.15A/250V. If the fuse of outdoor unit is broken, change it with the type of T.25A/250V
3. The wiring method should be in line with the local wiring standard.
4. After installation, the power plug should be easily reached.
5. The waste battery should be disposed properly.
6. The appliance is not intended for use by young children or infirm persons without supervision.
7. Young children should be supervised to ensure that they do not play with the appliance.
8. Please employ the proper power plug, which fit into the power supply cord.
9. A breaker should be incorporated into fixed wiring. The breaker should be all-pole switch and the distance between its two contacts should be not less than 3mm.
10. The power plug and connecting cable must have acquired the local attestation.
11. In order to protect the units, please turn off the A/C first, and at least 30 seconds later, cutting off the power.
12. Please don't insert any sensor on 3-waystop valve pipe fitting.

EUROPEAN REGULATIONS CONFORMITY FOR THE MODELS

CE

All the products are in conformity with the following European provision:

• Low Voltage Directive 73/23/EEC
• Low Voltage Directive 2006/95/EC
  -Electomagnetic Compatibility 89/336/EEC
  -Electomagnetic Compatibility 2004/108/EC

ROHS

The products are fulfilled with the requirements in the directive 2002/95/EEC of the European parliament and of council on the Restriction of the use of Certain Hazardous Substances in Electrical and Electronic Equipment (EU RoHS Directive)

WEEE

In accordance with the directive 2002/96/CE of the European parliament, herewith we inform the consumer about the disposal requirements of the electrical and electronic products.

DISPOSAL REQUIREMENTS:

Your air conditioning product is marked with this symbol. This means that electrical and electronic products shall not be mixed with unsorted household waste. Do not try to dismantle the system yourself: the dismantling of the air conditioning system,

treatment of the refrigerant, of oil and of other part must be done by a qualified installer in accordance with relevant local and national legislation. Air conditioners must be treated at a specialized treatment facility for reuse, recycling and recovery. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. Please contact the installer or local authority for more information. Battery must be removed from the remote controller and disposed of separately in accordance with relevant local and national legislation.

Diagram of an air conditioner unit with numbered components and airflow path annotations

① SALIDA DE AIRE NÓIXENOCEDSOBUT CABLEADO ELÉCTRICO
② ENTRADA DE AIRE MANGUITO DE DRENAJE

■ Mando a distancia

Parte externa del mando

SMART COOL HEAT FAN DRY CTD POWER SOFT ECO IFP AM PM SET TEMP ROOM TEMP AUTO AUTO Timer ON DEF. PM SMART ON/OFF/OFF COOL HEAT TEMP. DRY ECONOMY FAN SPEED iFP FOLLOW EVADE

Diagram of an air conditioning unit with numbered components and airflow path annotations

① USCITA CONNESSIONE DELLE TUBAZIONI E DEI CAVI ELETTRICI
② INGRESSO TUBO Ⓓ SCARICO

Telecomando

Esterno del telecomando

SMART COOL HEAT FAN DRY CTD POWER SOFT ECO IFP AM PM SET TEMP (ROOM TEMP.) 88:5 AUTO ON OFF TIMER ON OFF: 88:88 SMART ON/OFF COOL HEAT TEMP. DRY ECONOMY IFAN SPEED IFP FOLLOW EVADE

1. Tasto iFP

Diagram of an air conditioning unit with numbered components and airflow indicators

① ÉVENT CONNEXION DE LA TUYAUTERIE ET DU CÂBLAGE ÉLECTRIQUE
② PRISE D'ASPIRATION TUYAU DE VIDANGE

Télécommande

COOL SET TEMP. UP/OWN 24 FAN SPEED AM 12:00 SMART ON/OFF COOL HEAT DRY TEMP. ECONOMY FAN SPEED iFP FOLLOW EVADE

Diagram of an air conditioning unit with numbered components and airflow path annotations

SMART FAN SPEED AUTO 12:00 AM

COOL SET TEMP 24°C POM SP 1000 FAN SPEED AM 12:00

1

Starten des Geräts.

2

SET TEMP 24°C UP DOWN UP FLOW FAN SPEED IFP AM 12:00 SMART ON / OFF COOL HEAT DRY TEMP. ECONOMY FAN SPEED IFP FOLLOW EVADE

1
