Product type	Smartphone
Brand	YEZZ
Model	Andy C5VP
Screen	Capacitive touchscreen (size not specified, estimated 5 inches)
Network	Dual SIM (GSM, 3G, HSPA)
Internal storage	Expandable via microSD up to 32 GB
RAM	Not specified (estimated 1 GB)
Battery	Removable, lithium-ion type (estimated capacity 2000 mAh)
Rear camera	Present (resolution not specified, estimated 5 MP)
Front camera	Not mentioned
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth, GPS, FM Radio
Operating system	Android (version not specified, estimated 4.4 KitKat)
Sensors	Accelerometer, proximity (likely)
Power	5V mains charger, micro USB plug
Dimensions	Not provided (estimated 145 x 72 x 10 mm)
Weight	Not provided (estimated 150 g)
Care and cleaning	Avoid any contact with liquids. Clean with a soft, dry cloth.
Safety	Do not use while driving without a hands-free kit. Turn off in airplanes, hospitals, and gas stations. Keep 15 mm away from body.
Spare parts and repairability	Battery and SIM card are removable. Only use certified accessories.
General information	Manual available in French (176 pages). Compliant with SAR standards (2 W/kg at 1 cm from body).

Frequently Asked Questions - Andy C5VP YEZZ

How to insert the SIM card and battery?

Remove the back cover, insert the SIM card into the slot (two slots available), then place the battery and put the cover back on.

How to turn the phone on and off?

Press and hold the power button located on the left side of the phone. To turn it off, repeat the same action.

How to use the camera?

Open the Camera app, frame your subject, make desired adjustments by pressing the settings icon, then press the on-screen shutter.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi, enable Wi-Fi, select your network and enter the password if required.

How to configure the APN for Internet?

Go to Settings > More... > Mobile network > Access Point Names, select the SIM card, then press Menu > New APN. Enter the parameters provided by your operator and save.

How to use Bluetooth to share files?

Enable Bluetooth in Settings, pair with another device by selecting its name in the list, then use the Share option in the gallery or file manager.

How to listen to FM radio?

Plug in the earphones (they act as an antenna), open the FM Radio app, then use the toolbar to change stations.

How to insert a microSD memory card?

Remove the battery cover, insert the memory card into the slot (gold contacts facing up) until it clicks, then put the cover back on.

What to do if the phone becomes unresponsive?

Press and hold the power button for 10 seconds to force a restart. If the problem persists, remove the battery, wait a few seconds, and reinsert it.

Where can I find the full manual?

The manual is available for free download in PDF format on the website notice-facile.com. You can also request a translation by choosing your language and providing your email.

USER MANUAL Andy C5VP YEZZ

Diagram of a mobile phone with two directional arrows and connector ports (no text or symbols)

Diagram of a mobile phone interface showing two directional arrows pointing to the screen (no text or symbols present)

Simple line drawing of a trash bin with crossed x and y axes, no text or symbols present

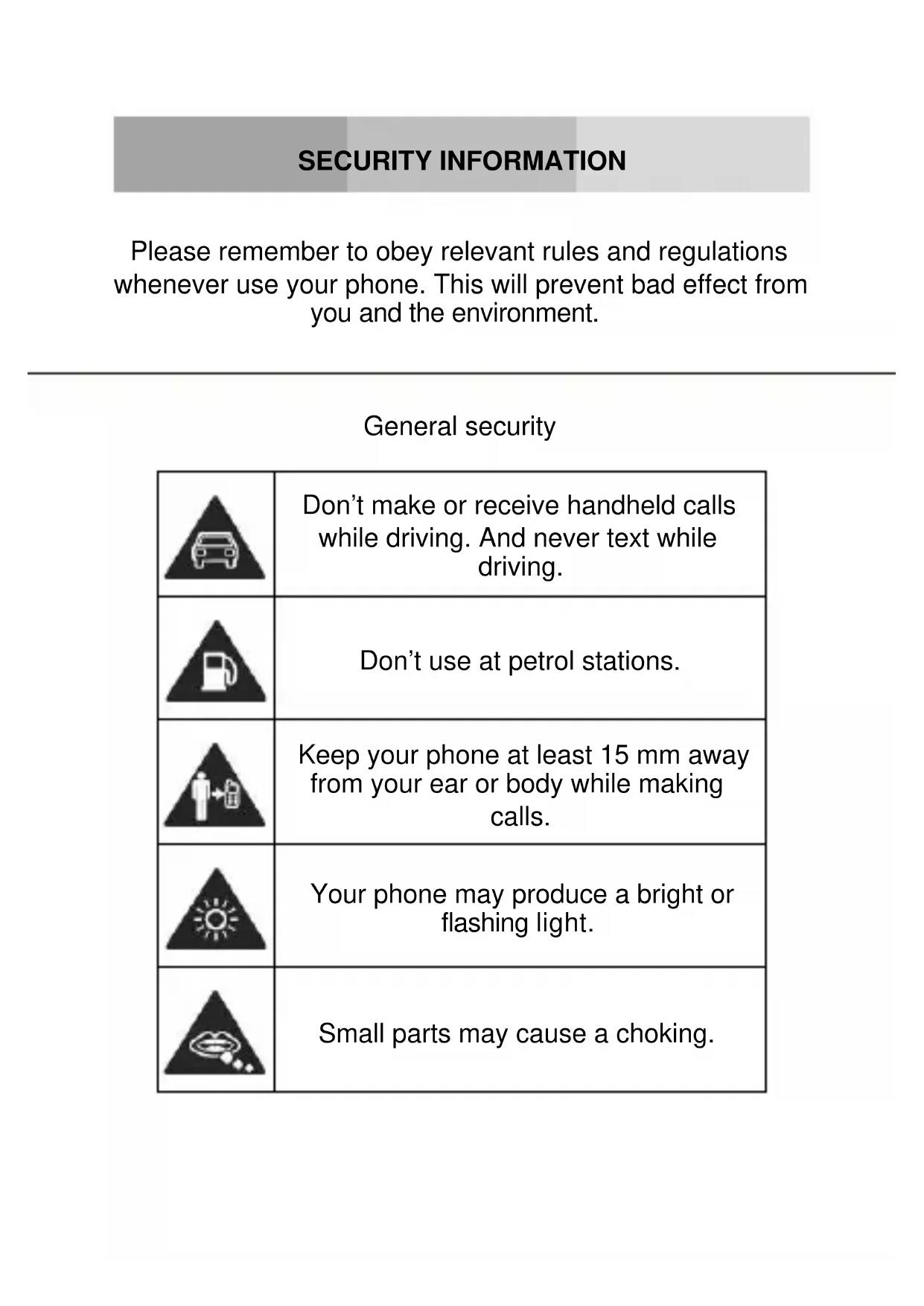

Please remember to obey relevant rules and regulations whenever use your phone. This will prevent bad effect from you and the environment.

General security

	Don’t make or receive handheld calls while driving. And never text while driving.
	Don’t use at petrol stations.
	Keep your phone at least 15 mm away from your ear or body while making calls.
	Your phone may produce a bright or flashing light.
	Small parts may cause a choking.
	Don’t dispose of your phone in fire.
	Your phone can produce a loud sound.
	Avoid contact with anything magnetic.
	Keep away from pacemakers and other electronic medical devices.
	Avoid extreme temperatures.
	Switch off when asked to in hospitals and medical facilities.
	Avoid contact with liquids. Keep your phone dry.
	Switch off when told to in aircrafts and airports.
	Don’t take your phone apart.
	Switch off when near explosive materials or liquids.
	Only use approved accessories.
	Don’t rely on your phone for emergency communications.
	Warning electrical hazard!To avoid serious injury do not touch charger pins.Unplug the charger when not in use.To unplug a charger or an accessory, hold and pull the plug, not the cord.

INTRODUCING YOUR MOBILE PHONE

Learn about your mobile phone's layout, keys, display and icons.

Unpacking

Check the product box for the following items:

• Mobile phone
• Battery
• Travel adapter (charger)
• User manual

The supplied accessories perform best for your phone.

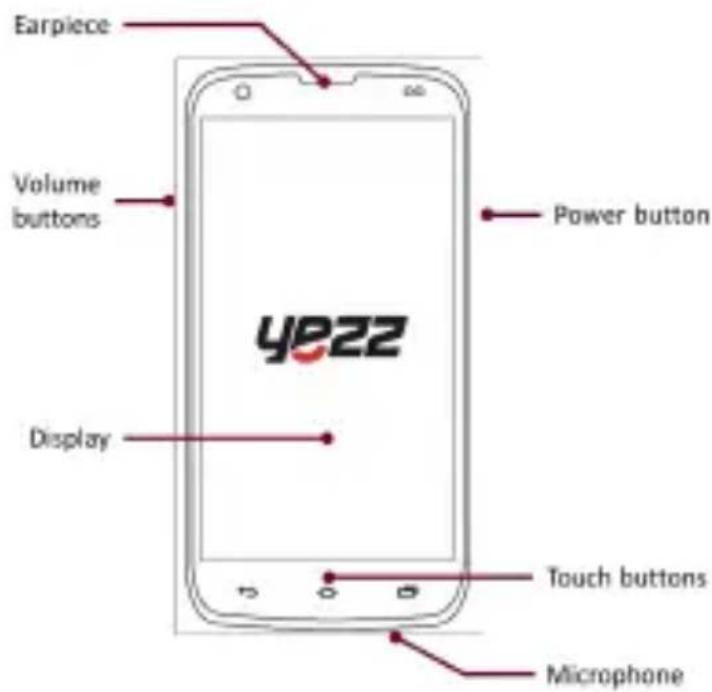

Phone layout

From the front view of your phone you will observe the following elements:

Earpiece Volume buttons Display Power button yEP22 Touch buttons Microphone

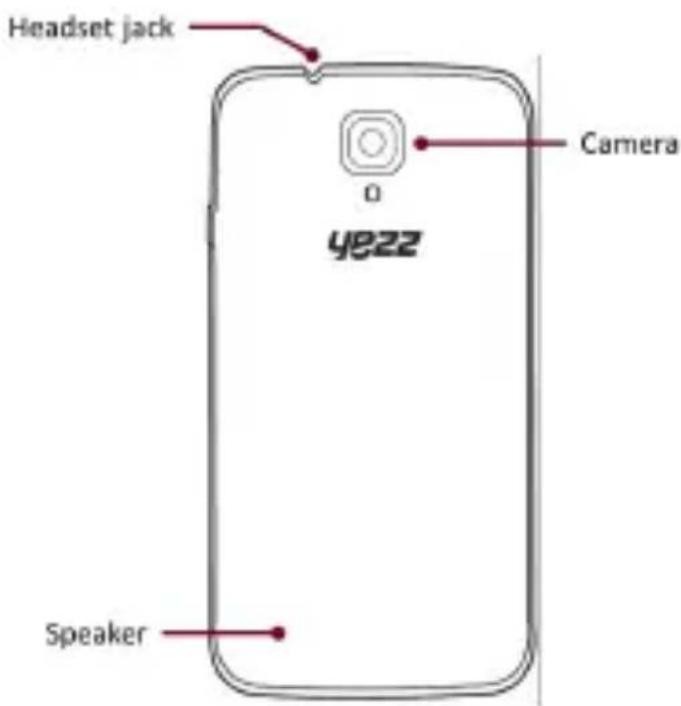

From the back view of your phone you will observe the following elements:

Headset jack Camera 0 Y822 Speaker

Keys

The following table offers you a quick description about the phone's keys:

Key Function
Power button	Allow you to turn on/off the device and to lock the screen.
Volume	Allow you to adjust the volume of ringing and notifications. Also allows you to adjust the volume of multimedia content playback.
Back	Allow you to return to the previous menu or screen. Also allow you to close some applications.
Home	It takes you directly to the home screen, leaving any application open.
Menu	Allow you to access to the functions menu of the application or screen you are.

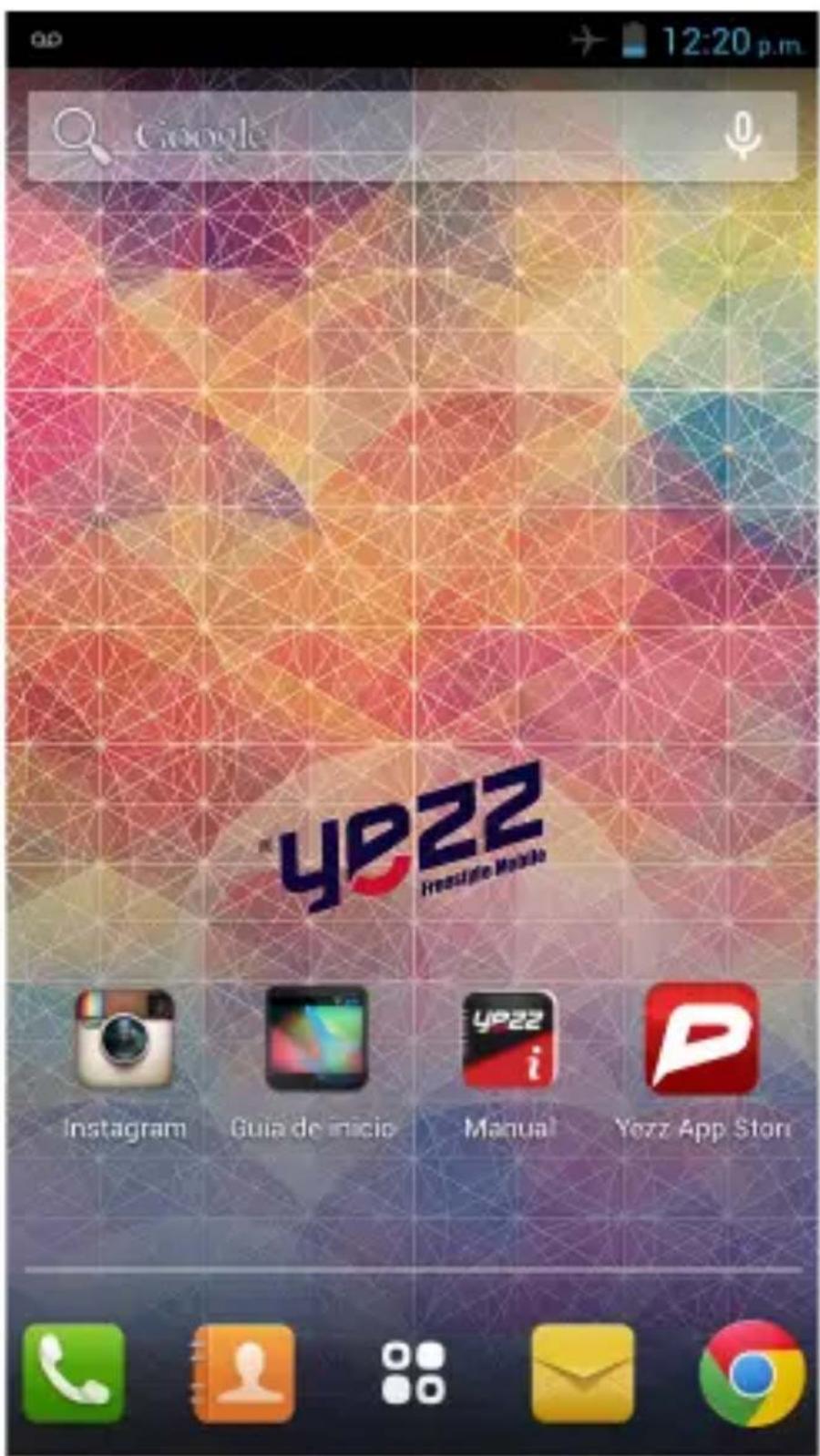

Screen

The screen of your mobile phone is designed as follows:

Google YP22 Hesiglio Mobile Instagram Guía de inicio Manual Yezz App Stori

Icons

Learn about the icons that are displayed on the top of the screen, indicating the status of the phone:

	Signal strength		Wi-Fi connection
	GPRS connected		EDGE connected
	3G connected		HSPA connected
	Bluetooth On		New message
	USB connected		New email
	Battery meter		Alarm active
	Vibration profile		Headset connected

PREPARING YOUR MOBILE PHONE

Get started setting up your mobile phone for its first use.

Install the SIM card and battery

When you subscribe to a cellular service, you will receive a Subscriber Identity Module (SIM) card, with subscription details, such as your personal identification number (PIN) and optional services.

To install the SIM card and battery,

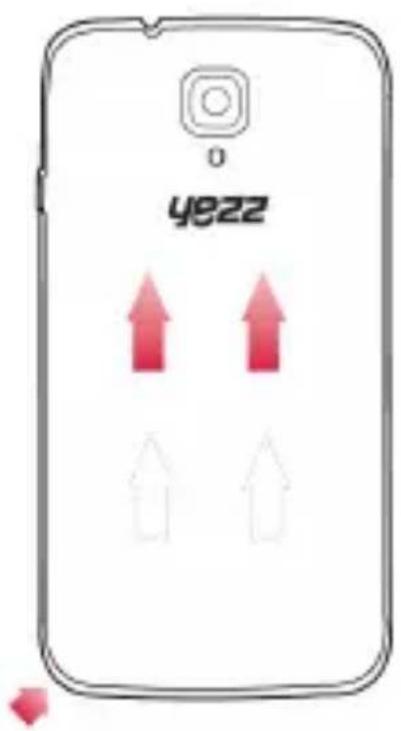

1. Remove the battery cover.

yezz

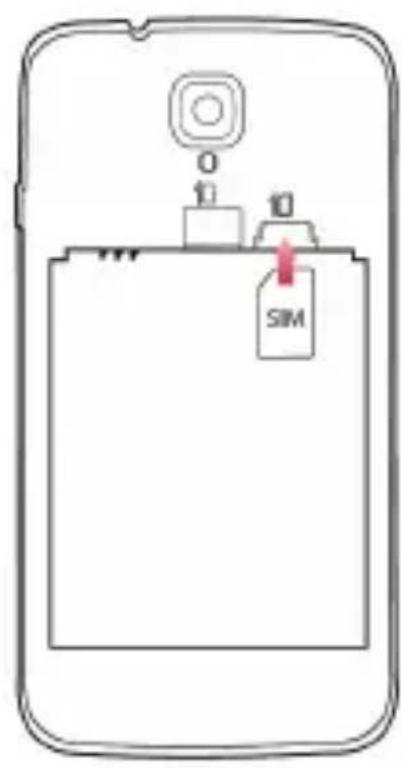

1. Insert the SIM card.

Your phone has 2 SIM card slots to allow you use 2 SIM cards and switch between them.

0 10 10 SIM

Z

• Place the SIM card in the phone with the gold-colored contacts facing down.

• Without inserting a SIM card, you can use your phone's non-network services and some menus.

• Insert the battery.

Diagram of a mobile phone with two directional arrows and connector ports (no text or symbols)

1. Replace the battery cover

Insert a memory card (optional)

To store additional multimedia files, you must insert a memory card.

Your phone accepts memory cards up to 32 GB (depending on memory card manufacturer and type).

- Formatting the memory card on a PC may cause incompatibility with your phone. Format the memory card only on the phone.

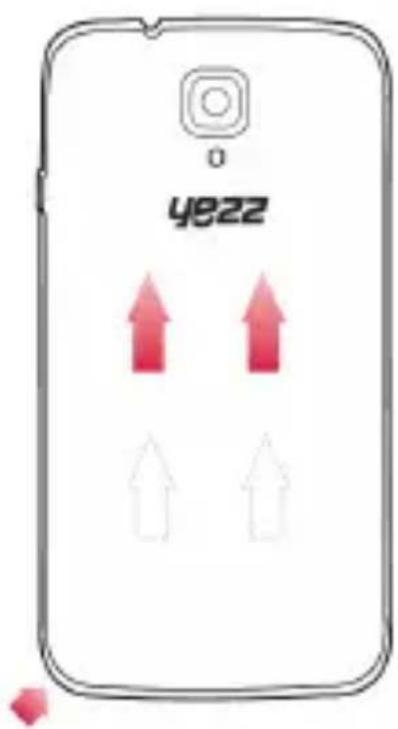

1. Remove the battery cover.

yezz

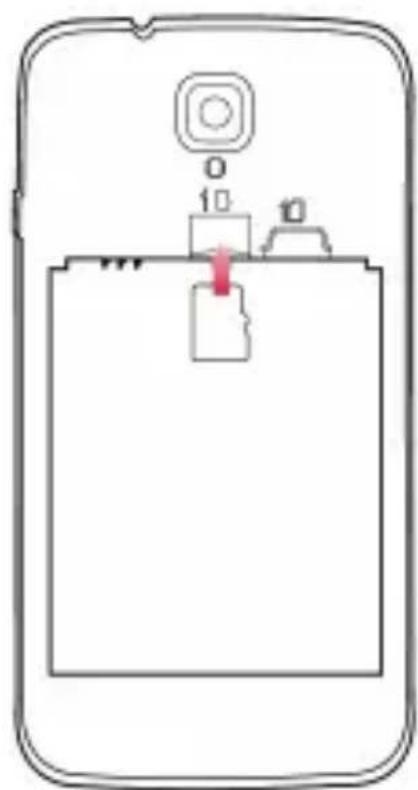

1. Insert a memory holder with the label side facing up.

0 10 10

Z

USING BASIC FUNCTIONS

Learn how to perform basic operations of your mobile phone.

Turn your phone on and off

To turn your phone on,

1. Long press the power button [ ] on the left side of your phone.
2. Type in your PIN number and press OK (if it is needed).

To shut down your phone, go to step 1 above.

Access menus and applications

To get access to the Menu and Applications,

1. At the home screen, touch the button [ ] on the screen to pop up the list of Installed Applications in your phone.
2. Slide your finger to the right or left to access other pages of apps.
3. Touch any icon to enter to the application.
4. To exit the application, press Back or Home at the bottom of the screen.

Use basic call functions

Learn to make or answer calls in this section

Make a call:

1. At the home screen or applications menu, touch the Phone icon [ ]
2. Dial the area code and phone number.
3. Touch [] to start the call.
4. To end a call, touch [ ].

To answer a call:

1. When you receive a call, slide the phone icon to the right to answer it or slide it to the left to reject it [ ]
2. To end the call, touch [ ].

Send and view messages

In this section, learn how to send and receive:

• Text Messages (SMS).
• Multimedia Message (MMS).

Steps to send Text and Multimedia Messages:

1. Touch [ ] Messages at the application list, then touch [ ] on the left bottom corner.

2. Type in the phone number or contact name on the field "To" or touch [ ] to access to Contacts.

3. Type in your message in the field "Enter message".

To send as text message go to step 5.

To attach a multimedia object (audio, image, etc.) continue to step 4.

1. Touch [ ] on the top right corner, select the attach type then choose the item.

2. Touch [ ] to send the message.

Add contacts

Learn the basics of using the phonebook feature.

Add a new contact:

1. In the application list touch Contacts, then touch [ ] on the bottom right corner to add a new contact.

2. Fill the contact information (Name, Last name and phone number). You can add more fields such as, email, address, etc.

3. Touch [ ] on the top of the screen to save.

Search for a contact

1. In the application list touch [ ] Contacts.
2. Slide your finger from bottom to top to scroll the list or touch the search button [ ] and type in the first letters of the name or last name.
3. To see the contact details touch the name or the picture of the contact.

If you want to call a contact touch the phone number.

Listen to music

Learn how to listen to music via the music player or FM radio.

Listen to the FM radio:

1. Plug in the earphones in your phone.
2. In the application list touch [ ] FM Radio.
3. Use the tool bar at the bottom to change of station.

Listen to music files:

First, copy the music files into your phone internal memory or a MicroSD card.

1. In the application list, touch [ ] Music.
2. Select an order at the top of the screen and touch the song

that you want to listen to.

1. You can Pause, Loop, or change of song using the tool bar at the bottom.

Browse the web

Learn how to access to your favorites Web Sites.

1. In the application list, touch [ ] Browser.

2. Touch the address bar and type in the address of the web site you want to go and touch [ ] Go.

Learn the basics to capture and view photos.

Capture pictures

1. In the applications list, touch [ ] Camera.
2. Adjusts the lens at the photo target and make the desired adjustments by touching the settings button [ ]
3. Touch the shot button [ ] on the screen to capture the picture. It will be saved automatically.

See the captured pictures

In the applications list, touch [ ] Gallery and then select the Camera folder [ ] access and visualize all the pictures captured by your phone.

CONNECTING TO INTERNET

Learn the basics to configure your phone and connect to Internet.

Add a new connection

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the option “More...”, then touch Mobile networks and touch APN. Now select the SIM Card that you want to configure.
3. Touch the Menu key and select New APN then, type in the parameters according with your Carrier.

The basic parameters are:

• Account name
• APN
• Username
• Password

Some carriers use Proxy Servers, refer to your carrier configuration for more information.

1. When you finish typing in the parameters needed, touch Menu then Save.

If you have multiples APN Configurations for the same SIM card, choose which one you want to use touching the radio button [ ] at the right side of the name.

To add another connection, repeat from step 3.

Switch between carriers (SIM cards)

If you use multiple SIM cards and want to switch to another one, follow these steps:

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch SIM management [ ]
3. Choose the option Data Connection [ ] and select the SIM Card that you want to use.

USING THE BLUETOOTH

Learn about your phone's ability to connect to other wireless devices for exchanging data.

Turn on the Bluetooth wireless feature

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the Bluetooth option [ ] Bluetooth
3. To turn the Bluetooth touching the button [ ] on the right top corner.

Find and pair with other Bluetooth enabled devices

1. When you turn the Bluetooth on, the list will show all the available devices near you.
2. Touch the device that you want to pair with your phone.
3. Enter a PIN for the Bluetooth wireless feature or the other device's Bluetooth PIN, if it has one, and press OK.

When the owner of the other device enters the same code or accepts the connection, the pairing will be complete.

Send images using the Bluetooth wireless feature

1. Open Gallery [ ]

2. Choose a picture and press Share [ ] on the top right corner of the screen and select Bluetooth

[ ]. Bluetooth

1. Touch the device that you want to send the picture then accept the file in the receiver.

Receive images using the Bluetooth wireless feature

1. Turn on the Bluetooth at System Settings.
2. Type in the Bluetooth PIN or accept it (if it is needed).
3. Accept the receiving file if you want to receive data from the other device.

When the transferring is finished you can see the picture using the Gallery Application [ ]

USING THE Wi-Fi

Learn to use the phone's wireless capabilities to connect to any wireless local area network compatible.

Connect to a wireless network

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the Wi-Fi option [ Wi-Fi
3. To turn the On the Wi-Fi touching the button [ ] on the right top corner.
4. Choose a wireless network and enter the security password if it is needed.

Disconnect from a wireless network

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the Wi-Fi option [ ] Wi-Fi
3. To turn the Wi-Fi off touch the button [ OFF ] on the right top corner.

View the technical details of a wireless network

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the Wi-Fi option [ ] Wi-Fi
3. Touch the active wireless network to see details such as Link Speed, Signal strength and more.

EU WEEE

Information to consumers in application of EU WEEE.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

This product is subject to European Union regulations that promote the re-use and recycling of used electrical and electronic equipment. This product required the extraction and use of natural resources and may contain hazardous substances. The symbol above, on the product or its packaging, indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handling it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop of your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the store from which you purchased the product.

RADIO WAVES

Proof of compliance whit international standards (ICNIRP) or with European Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can be put on the market. The protection of the health and safety for the user any other person is an essential requirement of these standards or this directive.

THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg.

Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.

Body-worn SAR testing has been carried out at a separation

distance of 1.0 cm. to meet RF exposure guidelines during body-worn operation, the device should be positioned at least this distance away from the body. If you are not using an approved accessory ensure that whatever product is used is free of any metal and that it positions the phone the indicated distance away from the body.

For more information you can go to www.sayyezz.com

Additional information about electromagnetic fields and public health are available on the following site. http://www.who.int/peh-emf.

Your telephone is equipped whit a built-in antenna. For optimal operation, you should avoid touching it or degrading it.

As mobile devices offer a range of functions, they can be used in positions other that against your ear. In such circumstances the device will be compliant whit the guidelines when used with headset or usb data cable. If you are using another accessory ensure that whatever product is used is free of any metal and that it positions the phone at least 1.0 cm away from the body.

LICENCES

The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by DDMBrands LLC and its affiliates is under license. Other trademarks and trade names are those of their respective owners.

Diagram of a mobile phone interface showing two directional arrows pointing to device ports (no text or symbols)

Diagram of a smartphone showing a device with labeled ports and a red arrow indicating a location or movement.

UTILIZAR AS FUNÇÕES PRINCIPAIS

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

The supplied accessories perform best for your phone.

Diagram of a mobile phone interface showing two directional arrows pointing to device ports (no text or symbols)

Learn the basics of using the phonebook feature.

Adauga un prieten:

Adauga o cenexiune noua

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Diagram of a mobile phone interface showing two directional arrows pointing to the left panel and a close-up of the right panel (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)
