Product type	Multi-function vacuum cleaner (with telescopic tube)
Brand	Koenic
Model	KVC 710
Rated voltage	220-240 V~, 50/60 Hz
Rated power	700 W
Protection class	II
Indicative annual consumption	24.7 kWh/year (based on 50 cleanings)
Dust container type	Transparent container with opening bottom
Filters	Main filter (washable), motor filter, air outlet filter
Included accessories	Floor brush, dusting brush, round furniture brush, square furniture brush, hard floor brush, flexible suction hose, telescopic tube
Telescopic tube length	Adjustable
Cord winding mechanism	Automatic retraction via button
Carrying handle	Integrated on the hood
Storage system	Rear support for tube and brush
Maintenance	Empty the container and clean the filters regularly
Safety	Do not vacuum liquids, do not use without filter, do not expose to heat
Intended use	Household use, dry dust only
Warranty	Warranty card included

Frequently Asked Questions - KVC 710 Koenic

How to assemble the vacuum cleaner?

Insert the flexible hose into the connector on the front of the vacuum cleaner until it clicks. Attach the floor brush to the lower end of the telescopic tube and the hose handle to the upper end. Adjust the tube length by sliding the locking mechanism.

How to use the brush for hard floors or carpets?

For hard floors, press the brush toggle switch to extend the bristles. For carpets, press it again to retract them.

How to empty the dust container?

Press the release button at the bottom of the container to open the flap and let the dust fall into a trash bin. For a thorough cleaning, remove the filter and empty the container.

How to clean the main filter?

Remove the filter assembly from the container, disassemble it, tap it to remove dust, then wash all parts with clean water. Let it dry completely before reassembling.

How to clean the motor filter?

Remove the motor filter, tap it to remove dust, then put it back. Never use the vacuum cleaner without this filter.

How to wind the power cord?

Hold the cord taut and press the automatic retraction button on the device. The cord will wind automatically.

What to do if suction power decreases?

Empty the dust container and clean the filters (main, motor, and air outlet). Also check that the hose and accessories are not clogged.

What accessories are included?

Floor brush, dusting brush, round furniture brush, square furniture brush, hard floor brush, flexible hose and telescopic tube.

What are the important safety instructions?

Never vacuum liquids, hot ashes or flammable substances. Do not use without filters. Keep the device away from heat sources. Unplug before cleaning.

How to store the vacuum cleaner after use?

Turn off and unplug the device. Wind the cord. You can attach the telescopic tube with the brush on the rear support of the vacuum cleaner for vertical storage.

USER MANUAL KVC 710 Koenic

Close-up of a white vacuum cleaner with black handle and blue filter, no visible text or symbols.

N. KATC, 1875, 2013, 11/4/11, 11:30

Labeled diagram of a vacuum cleaner with parts marked for identification and assembly reference.

Instructional images showing how to adjust or plug a car's electrical plug, with numbered steps and red arrows indicating action.

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

• The mains voltage must match the information on the rating label of the product.

• Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.

English

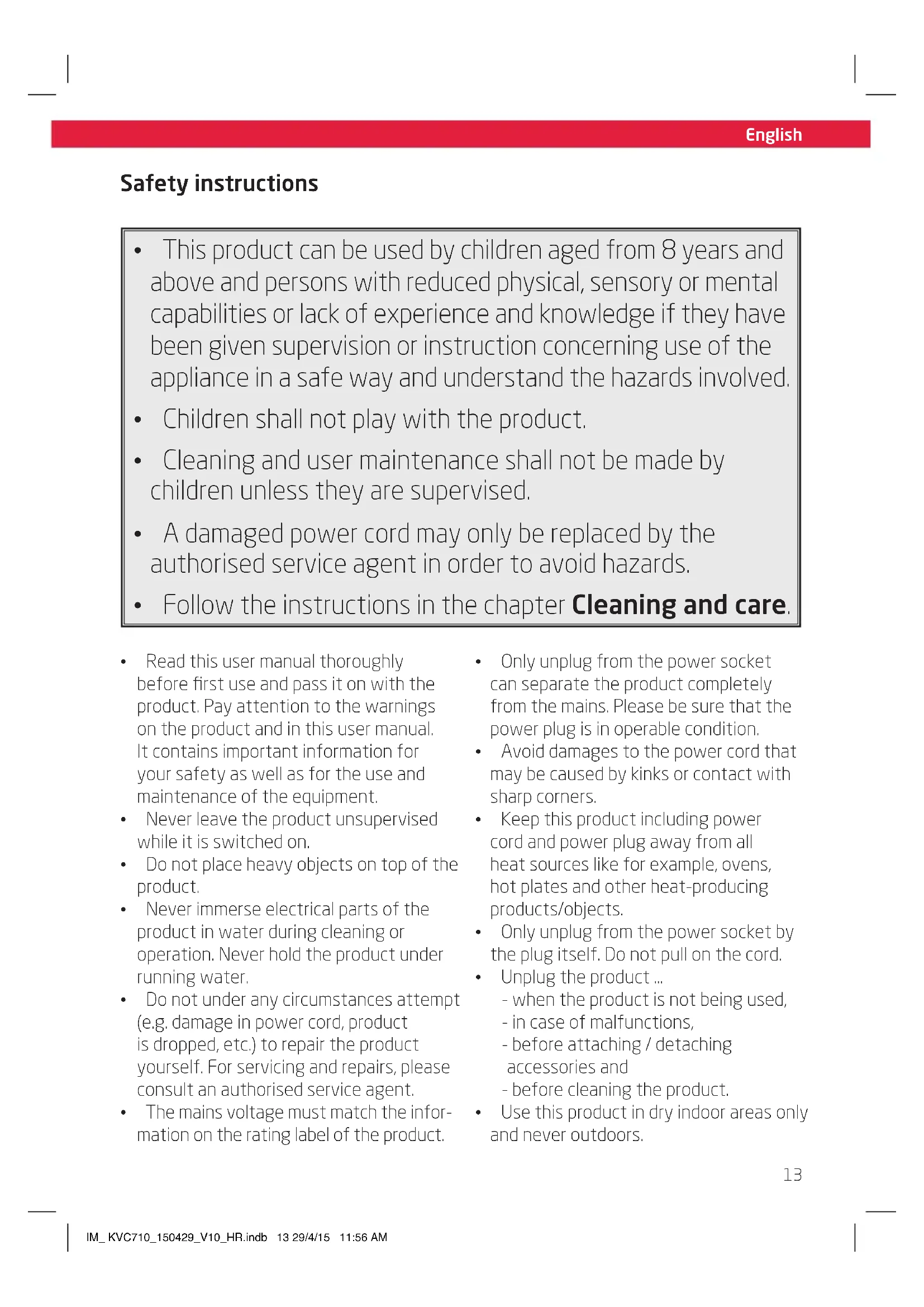

Safety instructions

• This product is not intended for commercial use. It is designed for household use only.
• Do not allow the product to operate unsupervised.
  • Make sure that the motor unit and supply cord do not become wet.
• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
  • Always switch the product off before disconnecting it from mains supply.
• Let the product cool down sufficiently before storing.
• Do not cover the product while in use. Fire hazard!
• Do not suck up liquids with the product. Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
• Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.
• Be especially careful when cleaning the stairs
• When in use, keep the product away from clothes and body parts (fingers, hair, face).
• Do not try to clean people or animals with the product.

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Vacuum cleaner

1 x Floor nozzle

1 x Crevice nozzle

1 x Upholstery nozzle round brush

1 x Upholstery nozzle square brush

1 x Hard floor brush

1 x User manual

1 x warranty card

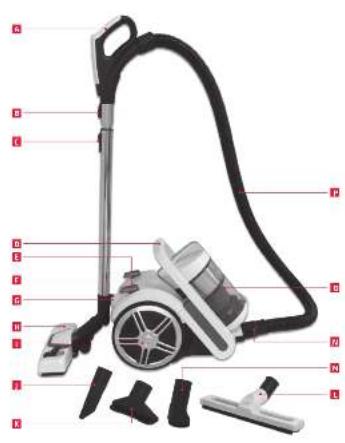

Part list

A Suction tube handle
B Suction tube handle release button
C Telescopic tube with locking mechanism
D Carrying handle
E On/Off button
F Cable retraction button
G Telescopic tube holder
H Floor nozzle
I Wheel
J Crevice nozzle
K Upholstery nozzle square
L Hard floor brush
M Upholstery nozzle round
N Suction hose bracket
0 Dust container
P Suction hose

English

Assembling the vacuum cleaner

1 Insert the suction hose into the hose connection. Make sure that it has clicked into place.
2 Place the floor nozzle on the lower end and the suction tube handle on the upper end of the telescopic tube.
3 Adjust the telescopic tube to the desired length, by sliding up the locking mechanism and then pushing the telescopic tube out or squeezing it together.

Use of the accessories provided Floor nozzle

4 To vacuum hard floors, press the toggle switch down.
5 To vacuum carpeted areas, press the toggle switch again in order to retract the brushes.

Upholstery nozzle round/square

6 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc.

Crevice nozzle

7 For vacuuming folds, crevices and corners.

Hard floor brush

8 For vacuuming hard and wooden floor. Use the hard floor brush to protect the floor from being scratched.

Operation

9 Pull out the connection cable to the desired length and insert the power plug into a receptacle.
10 Press the On/Off switch to turn the vacuum cleaner on/off.
11 Switch the vacuum cleaner off after use and unplug it when you have finished working.
12 Wind the power cable around the cable storage device by pressing the automatic cable retraction switch. While you are doing this keep the cable taut, if possible.

Parking system for pauses in vacuuming

13 You can store the telescopic tube with the floor nozzle on the vacuum cleaner for short pauses in vacuuming. Insert the floor nozzle with the parking attachments into the parking system.

Transport and storage

14 To carry your vacuum cleaner grasp it by the handle. To store your vacuum cleaner, the suction tube with the floor nozzle can be mounted on the back of the vacuum cleaner in an upright position.

Cleaning and care

Warning!

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

Emptying the dust canister

15 If the suction power diminishes, the dust canister must be emptied and the filters must be cleaned. We recommend to empty the dust canister outside of the house.
a) Remove the suction hose from the dust canister. Press the unlocking device and remove the filter by bringing it forward. b) To empty the dust canister, simply press the release on the bottom so that the bottom of the canister opens and the dust falls out. Hold the dust canister over a rubbish container whilst you are emptying it.
c) Loosen the filter lid and remove the entire filter insert from the dust canister. Empty the remain dusty from the dust canister.
d) Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Cleaning the main filter

16 a) Loosen the filter lid and remove the entire filter insert from the dust canister. Break down the filter into all of its individual parts. Tap the filter to remove the dust and clean all parts with water and dry them thoroughly.
b) Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Cleaning the motor filter

17 Remove the motor filter and tap it to remove the dust. Then re-insert it. Reassemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Warning!

Never use the vacuum cleaner without a motor filter, as otherwise, the motor will soon get dirty and will be subject to wear. If the motor filter gets dirty, the suction power will diminish.

Cleaning the exhaust air filter

18 Open the flap, take the filter out and tap it to remove the dust. Assembly is carried out in reverse order. Insert the filter in the right direction so that the correct side is facing the motor.

Technical data

Rated Voltage : 220 - 240 V\~, 50/60 Hz

Rated input power : 700 W

Protection class : II

• This is a general purpose vacuum cleaner
- The Erp test method is according to (EU) No 666/2013, (EU) No 665/2013 & EN 60312:2013
- Please refer to below website for detail technical information, or contact us for technical document:
www.koenic-online.com

• Indicative annual energy consumption 24.7 kWh per year, based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.
  • The rated input power: 700 W
