| Product type | Chocolate fondue, raclette and wok appliance |
| Brand | BEEM |
| Model | ChocoFondue Deluxe B24.001 |
| Dimensions (H x W x D) | 145 x 130 x 130 mm |
| Net weight (without accessories) | Approx. 0.4 kg |
| Operating voltage | 220 – 240 V~ |
| Network frequency | 50 Hz |
| Max. power consumption | 25 W |
| Protection class | II |
| Protection type | IP20 |
| Bowl material | Ceramic with BIO-LON non-stick coating |
| Main functions | Melting chocolate, chocolate fondue, hot chocolate milk |
| Temperature settings | 2 levels: I (keep warm), II (high temperature for quick melting) |
| Included accessories | Bowl, handle, rotary switch, control light, 10 picks, 1 spatula, 10 forks, user manual |
| Care and cleaning | Bowl dishwasher safe; housing cleanable with a damp cloth; picks and forks hand-washable with dish soap |
| Safety | Do not immerse in water; hot surfaces; use only supplied accessories; do not use without bowl |
| Spare parts and repairability | Spare parts available: bowl (ref. 1), accessory kit (ref. 5-7: spatula, picks, forks). Repair by authorized after-sales service. |
| Warranty | 2 years for domestic use; 6 months for professional use |
Frequently Asked Questions - ChocoFondue Deluxe B24.001 BEEM
User questions about ChocoFondue Deluxe B24.001 BEEM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fondue, raclette and wok appliance in PDF format for free! Find your manual ChocoFondue Deluxe B24.001 - BEEM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ChocoFondue Deluxe B24.001 by BEEM.
USER MANUAL ChocoFondue Deluxe B24.001 BEEM
Choco-Fondue "Deluxe"


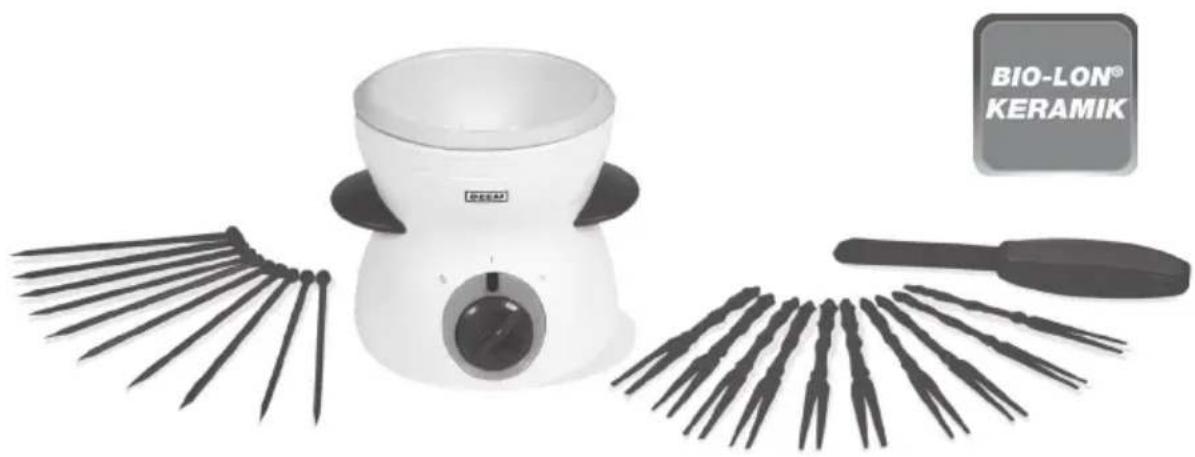

Product photo of a white food pot with black chopsticks and a BIO-LON® KERAMIK brand label (no text on main subject)Chocolate Melting Pot
Fondue au chocolat
Chocoladesmelter
General instructions ..... 13
Safety instructions .... 15
Startup 17
Appliance description ..... 1 8
Non-stick coating 18
Using the appliance....19
Instructions for use 19
After using 20
Cleaning and care 20
Storage 20
Troubleshooting 21
Spare parts and other accessories .. 21
Technical Specifications ..... 2 2
Dear Customer,
Before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.
Open the fold-out page at the beginning and end of the user manual in order to view the illustration during reading.
Keep this user manual in a safe place and pass it on to any future owners together with the appliance.
General instructions
Copyright
This document is copyrighted. Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations, even in modified form, is only permitted with the written approval of the manufacturer.
Notes on environmental protection
The packaging materials used can be recycled. When no longer re-d, dispose of the packaging materials rding to local environmental regula-
This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appli-via communal collection points.
Guarantee
We will remedy any faults due to material flaws or manufacturing faults free of charge within the guarantee period of two years.
For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the warranty period shall be six months. This does not infringe the warranty disclaimer.
The guarantee does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.
Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages
Symbols used
DANGER
This indicates an imminent hazardous situation, which could lead to severe physical injury or death.
Follow these instructions to avoid danger.
WARNING
This indicates a possible hazardous situation, which could lead to severe physical injury or death.
Follow these instructions to avoid danger.
CAUTION
This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.
Follow these instructions to avoid danger.
NOTE
A note contains additional information to simplify the use of the appliance.
Intended use
This appliance is intended primarily for non-commercial use in closed rooms for the melting of chocolate in normal household quantities. Any use other than previously stated is considered as improper use.
WARNING
If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.
Use the appliance only for its intended purpose.
Observe the procedures described in this user manual.
No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.
The risk has to be borne solely by the user.
If used commercially, please pay attention to the changes in the guarantee period.
Limitation of liability
All technical information, data and instructions contained in this user manual represent the latest status at the time of printing.
No claims can be made based on the specifications, illustrations and descriptions of this user manual.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts and/or consumables.
Declaration of Conformity
BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC directives. The full declaration of conformity can be found under www.beem.de.
Safety instructions
Inspect the appliance for visible signs of damage before use. Do not use a damaged device.
This appliance is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on the use of the appliance from such a person.
Children must be supervised to ensure that they do not play with the appli- ance.
Store the appliance and accessory ■ parts out of the reach of children.
Do not leave the appliance unattended during operation.
Only allow repairs to the appliance ■ to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the guarantee.
Repairs to the appliance during the ■ guarantee period may only be carried out by service centres authorised by the manufacturer as the guarantee will otherwise be invalidated in the event of damage or subsequent damage.
Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.
Do not use this appliance together with an external timer or a separate remote control system.
DANGER
Danger from electric current!
Do not use the appliance if the mains cable or mains plug is damaged.
Do not open the housing of the appliance. Danger from electric current if live connections are touched and/or the electrical and mechanical configuration is changed.
Never immerse the appliance or the mains plug in water or other liquids.
Pull the plug out of the mains socket, if you are not using the appliance;
- if a malfunction occurs during operation,
– before you clean the appliance.
Risk of suffocation!
Never play with packaging material. Risk of suffocation.
WARNING
Danger of burns!
This electrical appliance has a heating function. Surfaces, even apart from the functional surfaces, can develop high temperatures. Since temperatures are experienced differently by different people, this appliance must be used CAREFULLY. Hold the appliance only at the handles provided, and use gloves or pot holders to protect against heat. Surfaces not intended as handles must be allowed sufficient time to cool down.
Do not touch the melting pot during use.
Use the handle to hold the appliance while it is in operation.
Before cleaning, allow the appliance to cool down.
Do not move the appliance during operation.
CAUTION
Always switch off the appliance be- before removing the melting pot.
Never operate the appliance without the melting pot.
Do not pull the connecting cable ▶ to remove the plug from the mains socket.
Never operate the appliance when the melting pot is empty.
Do not use abrasive cleaning agents or metal brushes, nylon brushes or other sharp objects to clean the surfaces.
Use only the forks or skewers included in the scope of supply.
Never lift or move the appliance with the mains cable.
Requirements for the place of use
For safe and trouble-free operation of the appliance, the place of operation must satisfy the following requirements:
Place the appliance on a firm, dry, flat, waterproof and heat-resistant surface.
Do not install the appliance in a hot, wet or very humid environment.
■The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.
■The surface finishes on furniture may contain substances that can be detrimental to the feet of the appliance. If necessary, place a mat under the feet of the appliance.
Electrical connection
For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection:
Before connecting the appliance, ■ compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.
The mains socket must be protected by at least a 10 A automatic circuit breaker.
Ensure that the mains lead is undamaged and is not laid over sharp edges.
The mains cable must not be pulled ■ tightly, bent or come into contact with hot surfaces.
Route the cable to prevent risk of tripping.
The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.
Startup
Unpacking
Remove the appliance, all accessory parts and the user manual from the box.
Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.
NOTE
Do not remove the rating plate or any warning signs on the appliance. If possible, keep the original packaging during the guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the guarantee.
Check the delivery contents
Check for visible signs of damage or missing items.
Report incomplete or damaged contents to your supplier immediately.
Prior to first use
Clean the appliance and the accessories, as described in the section Cleaning and care (page 20).
Rub down the BIO-LON ceramic coating lightly with edible fat or oil.

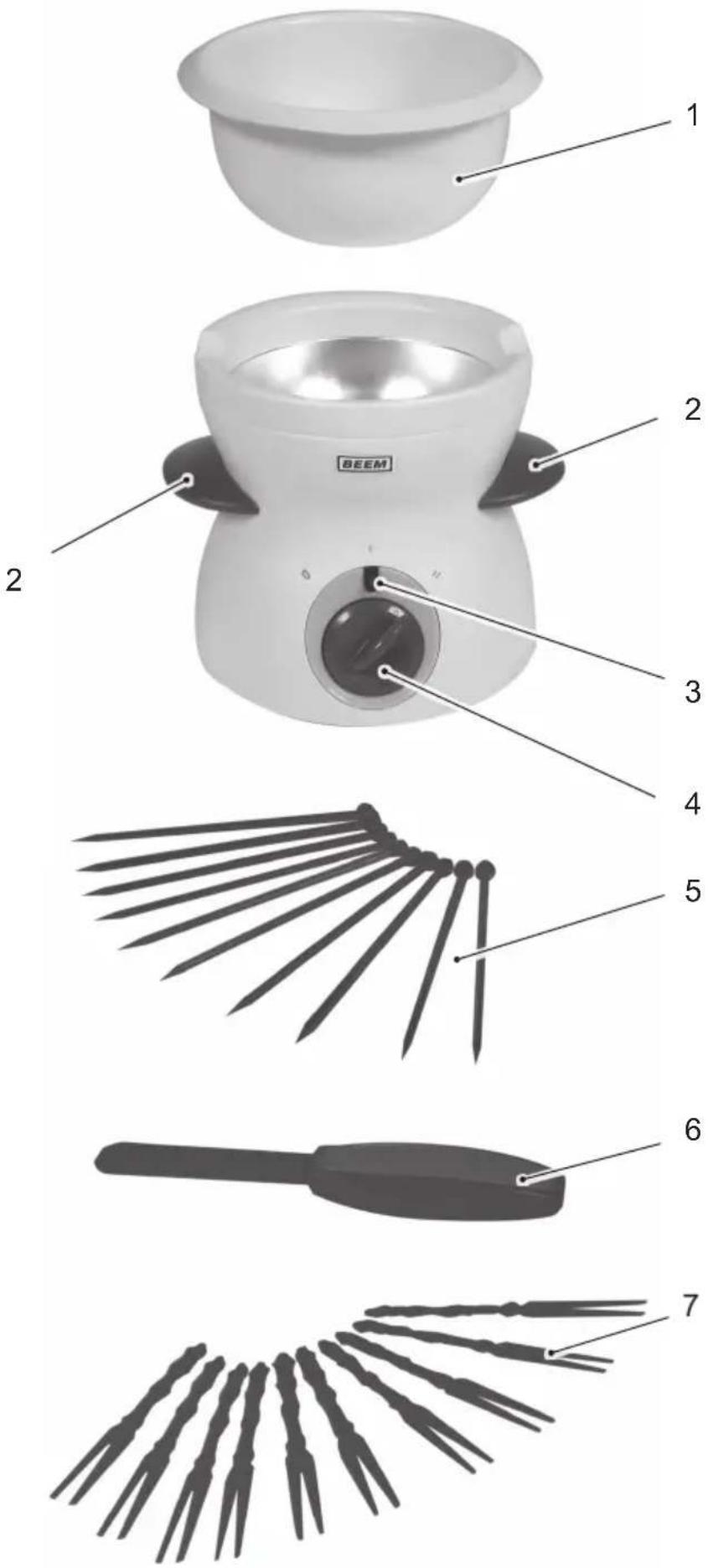

Appliance description
(See illustration on the left fold-out page)
Melting pot1
Handle2
Indicator light3
Rotary knob4
Skewers (10 off)5
Spatula6
Forks (10 off)7
User manual (not illustrated)8
Rotary knob
Level Function
| 0 Appliance switched off. | |
| I | Appliance switched on:Low temperature level, suitable for melting flakes or light or very milky chocolate and for keeping warm. |
| II | Appliance switched on:Higher temperature level, suitable for faster melting of chocolate chunks. |
Non-stick coating
BIO-LON® KERAMIK
The BIO-LON non-stick coating not only distinguishes itself by health and environmental awareness but also has other special features:
high scratch resistance, ■
environmental friendliness, ■
durability, ■
optimum heat distribution ■
■ fast heating up and long heat storage, simple cleaning. ■
BIO-LON gives the melting pot outstanding characteristics:
■lotus beading effect
■low fat requirement,
■ no sticking or burning
■temperature resistant up to approx. 400 °C
■hardness that withstands even the strongest loads.
Using the appliance
Insert the plug into a mains socket.
Break the chocolate into small pieces and place them in the melting pot (1).
Turn the rotary knob (4) to the desired level: Level 1 for keeping warm or Level 2 for melting. The red indicator light (3) comes on.
Stir the chocolate regularly during the melting process using the spatula. Leave the appliance switched on until the chocolate mass has a smooth consistency.
NOTE
Use the spatula (6) or a plastic ▶ spoon for stirring or removing the chocolate; on no account should metal tools be used in order not to damage the BIO-LON ceramic coating.
Instructions for use
The appliance is particularly suitable for melting cooking chocolate or whole milk chocolate:
For chocolate fondue with fresh fruit – (e.g. strawberries, banana, grapes, etc.),
For fast melting of cake toppings, – For preparing hot chocolate. –
Chocolate fondue
Ingredients:
- 100 g whole milk, dark or cooking chocolate
- 50 ml cream
•1 TS milk
- 1 packet of vanilla sugar
Pineapple, banana, mango, papaya or strawberries are particularly suitable as fruit for fondue.
Wash the fruit carefully, then cut it into bite-sized pieces.
Break the chocolate into pieces and place them in the melting pot. Turn the rotary knob to level II.
Add the vanilla sugar and the cream to the melting pot.
Mix all the ingredients with the spatula until the chocolate mass has a smooth, creamy consistency..
Push the pieces of fruit onto the skewers or forks and dip them into the hot chocolate.
Hot chocolate milk
Ingredients:
- 100 g chocolate pieces
- 100 ml of milk
- 50 ml cream
- 25 g icing sugar
Place the chocolate pieces into the melting pot.
Turn the rotary knob to level I.
Add 50 ml of milk and stir regularly.
When the chocolate has melted, add the remaining milk, the cream and the icing sugar.
Turn the rotary knob to level II. After approx. 2 to 3 minutes, the chocolate milk is ready.
Chocolate strawberry fondue
Melt 100 g of low-fat yoghurt strawberry cream-filled whole milk chocolate.
Serve with fresh strawberries.
After using
◆ Turn the rotary knob to position 0. The indicator light (3) goes out.
Pull the plug out of the mains socket.
Allow the appliance to cool down completely.
Clean the appliance and the accessories used as described in the Cleaning and care section (page 20).
Cleaning and care
Before beginning work, pay attention to the safety instructions in the Safety section (page 15)!
Cleaning the appliance
Remove the melting pot from the appliance.
Wipe the outside housing of the appli-◆ance with a lightly damp cloth.
The skewers and forks can be ♦ cleaned in a warm detergent solution.
The melting pot can be cleaned in the dish washer, but the BIO-LON ceramic natural product reacts very sensitively to strongly acid detergents. It loses its non-stick effect, the more often it is cleaned in the dish washer.
Dry all parts of the appliance thoroughly after cleaning.
Place the melting pot in the appliance again.
NOTE
Dried residues in the melting pot can be removed more easily if they are allowed to soak first in luke-warm water.
Storage
If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care (page 20).
Store the appliance and all accessory parts at a dry, clean and frost-free location, which is protected against direct sunlight.
Troubleshooting
The following table will help you locate and eliminate minor faults:
| Fault Possible cause Remedy | ||
| Plug not inserted into socket. Insert plug. | ||
| The appliance does not function after switching on. | Automatic circuit breaker in electrical distribution board tripped. | Switch on the automatic circuit breaker again. |
| The automatic circuit breaker in the electrical distribution board trips. | Too many appliances connected to the same power circuit. | Reduce the number of appliances on the power circuit. |
| No fault detected. | Contact customer service. | |
NOTE
If you cannot resolve the problem with the steps described above, please contact customer service.
Spare parts and other accessories
| Item* Article No. | Designation |
| 1 Melting pot | |
| 5 - 7 | Set, consisting of:Spatula ■Skewers (10x) ■Forks (10x) ■ |
* numbering according to the description of the appliance
Technical Specifications
| Model | Chocolate Melting PotChoco-Fondue "Deluxe" |
| Type number B24.001 | |
| Dimensions (W x H x D) 145 x 130 x 130 mm | |
| Net weight without accessories, approx. 0.4 kg | |
| Operating voltage 220 – 240 V~ | |
| Mains frequency 50 Hz | |
| Power consumption max. 25 W | |
| Protection class II | |
| Type of protection IP20 |
Table des matières
'Lotus' afpareleffect, ■
Subject to printing error.
For service in other countries contact your local dealer.
