Product type	Croque Monsieur Press
Brand	CaterChef
Model	680.200
Usage	Quick preparation of sandwiches for hotels, canteens, and fast food
Material	Stainless steel
External dimensions	440 mm (L) x 300 mm (P) x 400 mm (H)
Internal dimensions	360 mm x 242 mm x 246 mm
Weight	9.8 kg
Power supply	220-240 V ~ 50/60 Hz
Power	3000 W
Heating type	Infrared quartz tubes
Timer	Yes, adjustable
Preparation	Immediately ready to use, no preheating
Cleaning	Clean with a damp cloth after unplugging
Safety	Grounded plug, do not immerse, do not open the interior
Storage	Well-ventilated place, protected from rain
Spare parts	Quartz heating tubes
Repairability	Intervention by an approved professional only

Frequently Asked Questions - 680.200 CaterChef

What is the power of the 680.200 appliance?

The power is 3000 W under a voltage of 220-240 V.

How to clean the croque monsieur press?

Turn off and unplug the appliance. Clean with a clean damp cloth. Never immerse in water or put in a dishwasher.

What to do if the appliance does not heat up?

Check the electrical connection, the power source, and if a heating element is broken. If the problem persists, contact a professional.

Can the appliance be used without preheating?

Yes, the appliance is immediately ready to use after plugging in without preheating thanks to the infrared tubes.

What types of sandwiches can be prepared?

This appliance is designed for croque monsieur and other hot sandwiches. It is perfect for fast food.

What are the dimensions of the appliance?

External dimensions: 440 x 300 x 400 mm. Internal: 360 x 242 x 246 mm. Weight: 9.8 kg.

Where to find the user manual?

The manual is available in PDF format on the site notice-facile.com for the model 680.200 CaterChef.

What are the important safety precautions?

Use a grounded outlet, do not place the appliance near flammable materials, do not immerse it, and do not open the interior to avoid electric shocks.

Is the appliance suitable for professional use?

Yes, it is specially designed for hotels, canteens, and fast food thanks to its power and robustness.

How to set the timer?

Turn the timer knob to the desired time, then turn on the appliance. Make sure to set the timer back to OFF after use.

USER MANUAL 680.200 CaterChef

Read this manual carefully before using the device.

4. VERPLAATSEN & OPSLAG

1 Introduction 6
2 Structure 6
3 Specifications 7
4 Move and storage 7
5 Placement 7
6 Use 7
7 Installation 8
8 Cleaning and maintenance. 8
9 Electric scheme 8
10 Malfunctions 9

1. INTRODUCTION

We thank you for choosing this CaterChef sandwich maker.

To make full use of the possibilities and to minimize malfunctions,

we recommend that you carefully read the operating instructions and to store it.

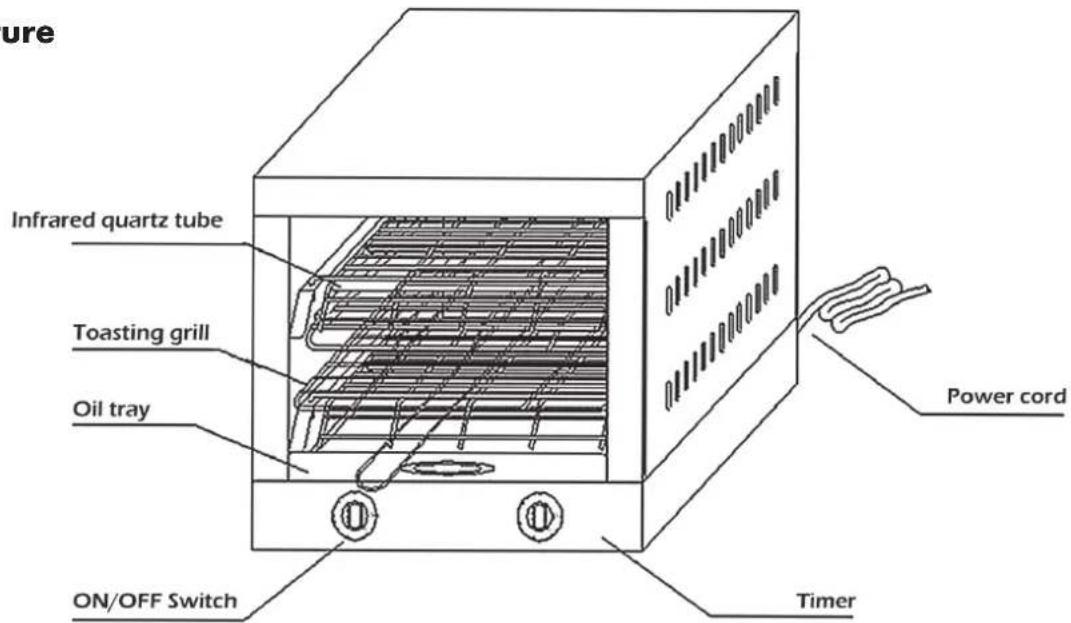

2. STRUCTURE

Fully made of stainless steel and equipped with infrared quartz tubes. Ready for use after connection to the mains, without pre-heating.

Structure

Specially designed for Hotels, canteens and Fast-Food restaurants and anyone who quickly wants to prepare tasty sandwiches.

3. SPECIFICATIONS

680.200 680.100

Wide 440 mm 440 mm

Dimensions

Length 300 mm 300 mm

Height 400 mm 290 mm

Voltage 220~240V 220~240V

Power 3000 W 1700 W

Dimensions interior space 360 × 242 × 246 360 × 242 × 131

Weight

9,8 kg

7,4 kg

4. MOVE AND STORAGE

While moving: Make sure that the device does not hit anything.

During storage: Do not place it outside but in a carefully ventilated area.

If for any reason the device is placed outside, make sure the device is protected against rain.

Never place the device upside down.

5. PLACEMENT

• Do not move the device during usage.
• Do not disassemble the device. This can be dangerous.
• Switch off after usage. If you are not using the device, you must set the timer back to the OFF position. Unplug the power cord for further safety.
• Do not open the interior space due to the danger of voltage. It could cause electric shocks and therefore danger.
• Do not rinse with water during cleaning. This can cause an electric shock and therefore danger.
• Do not hang or place heavy objects on or on the device. This can cause malfunctions
  and damage to the device and therefore danger.

6. USE

• Place the sandwich toaster on a flat surface and set the timer to the OFF position.
• Place the sandwich clamps on the racks.
• Plug it into the socket. Set the desired time with the timer, and switch the device on. Your sandwich will be cooked as required.
• Never place the device in the vicinity of (highly) flammable materials.
• Check whether all accessories are in the designated place.

7. INSTALLATION

• Use only at the appropriate voltage.
• Do not use a switch that does not meet the safety standards.
• Contact a recognized professional for technical maintenance and support.
• This product must be earthed.
• The plug and the socket must be properly connected to prevent the risk of disconnection.

8. CLEANING AND MAINTENANCE

• Switch off the appliance and remove the plug from the socket before starting maintenance and/or cleaning.
  After completing the work, clean the device with a hygienic damp cloth.

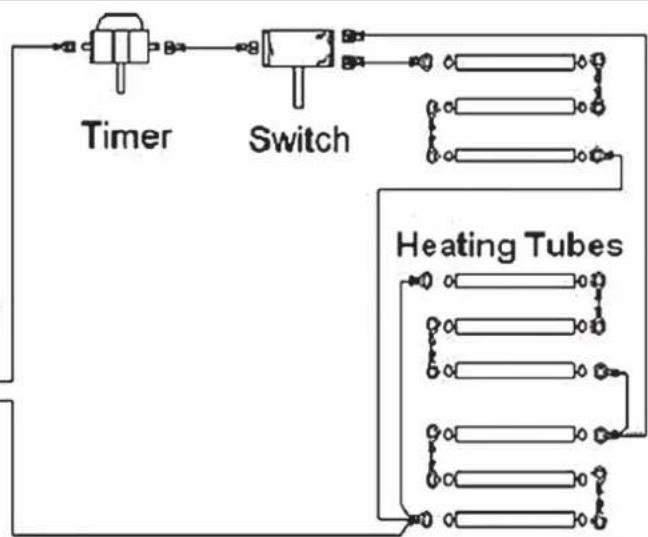

9. ELECTRIC SCHEME

680.200

10. MALFUNCTIONS

Problem Checklist
The device is not heating	Check if the device is connected properly.
	Check if the power supply is correct.
	Check whether a heating element is broken.

The above problems are a most common, if other problems occur, stop using this device and contact your local dealer.

Warning

Any dismantling and unlawful installation, incorrect adjustment and maintenance work can cause damage.

Always contact your supplier if the product needs to be repaired by a professional.

Warning

For your own safety, do not store any flammable liquids, gas or other objects around or in the product.
