USER MANUAL 680.100 CaterChef

Read this manual carefully before using the device.

4. VERPLAATSEN & OPSLAG

1 Introduction 6
2 Structure 6
3 Specifications 7
4 Move and storage 7
5 Placement 7
6 Use 7
7 Installation 8
8 Cleaning and maintenance. 8
9 Electric scheme 8
10 Malfunctions 9

1. INTRODUCTION

We thank you for choosing this CaterChef sandwich maker.

To make full use of the possibilities and to minimize malfunctions,

we recommend that you carefully read the operating instructions and to store it.

2. STRUCTURE

Fully made of stainless steel and equipped with infrared quartz tubes. Ready for use after connection to the mains, without pre-heating.

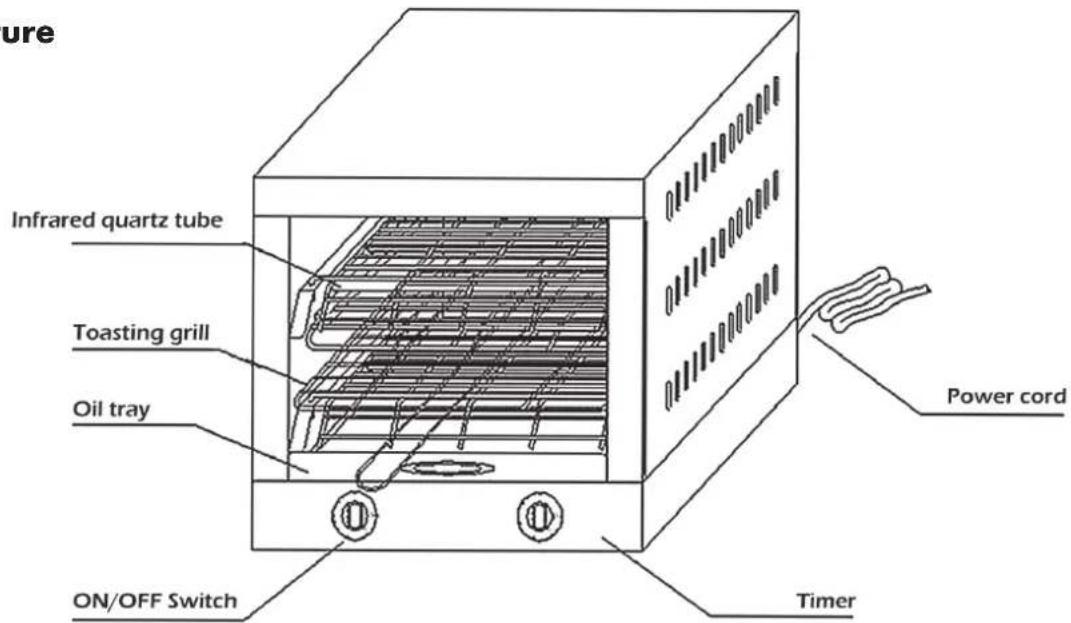

Structure

Specially designed for Hotels, canteens and Fast-Food restaurants and anyone who quickly wants to prepare tasty sandwiches.

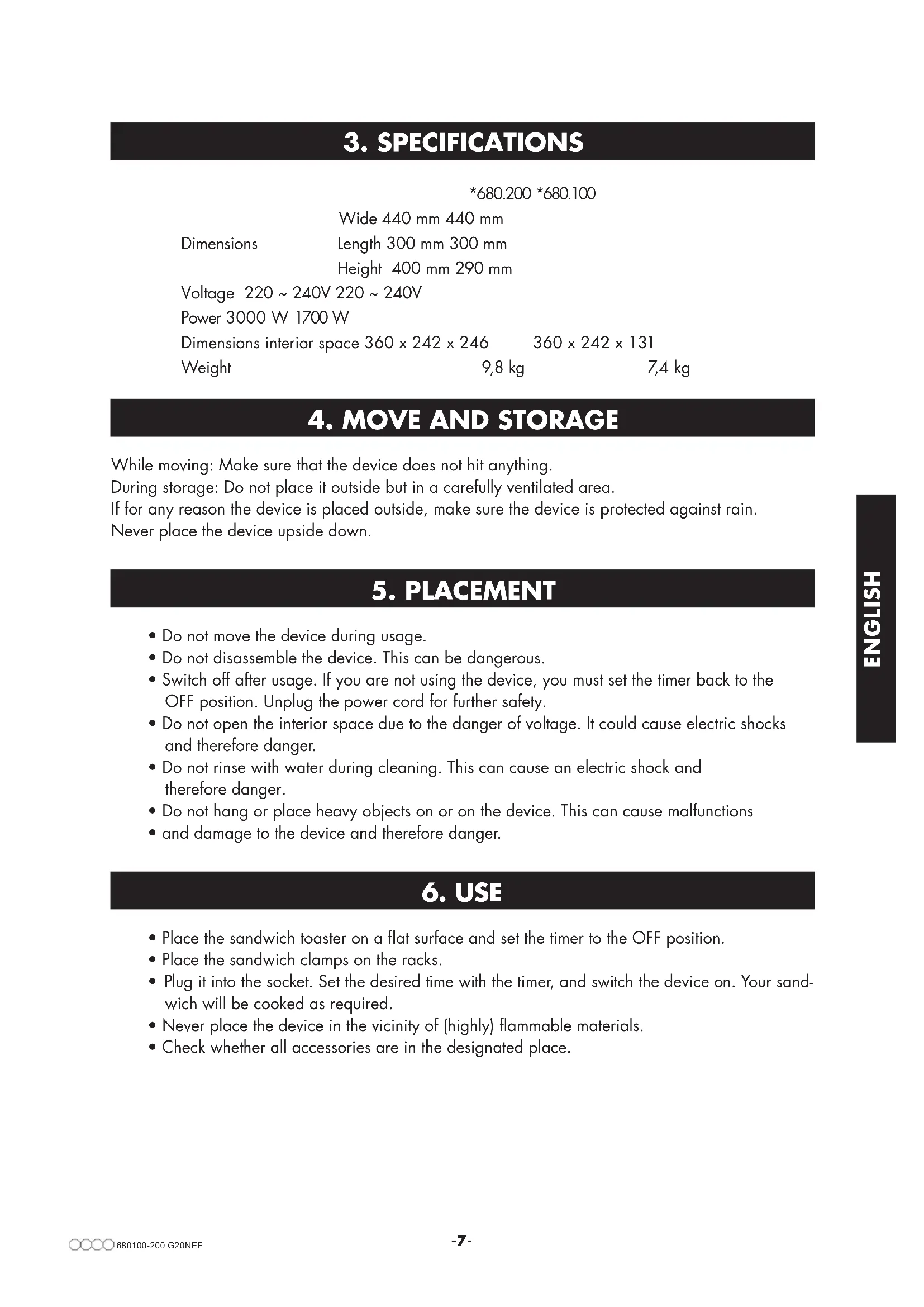

3. SPECIFICATIONS

680.200 680.100

Wide 440 mm 440 mm

Dimensions

Length 300 mm 300 mm

Height 400 mm 290 mm

Voltage 220~240V 220~240V

Power 3000 W 1700 W

Dimensions interior space 360 × 242 × 246 360 × 242 × 131

Weight

9,8 kg

7,4 kg

4. MOVE AND STORAGE

While moving: Make sure that the device does not hit anything.

During storage: Do not place it outside but in a carefully ventilated area.

If for any reason the device is placed outside, make sure the device is protected against rain.

Never place the device upside down.

5. PLACEMENT

• Do not move the device during usage.
• Do not disassemble the device. This can be dangerous.
• Switch off after usage. If you are not using the device, you must set the timer back to the OFF position. Unplug the power cord for further safety.
• Do not open the interior space due to the danger of voltage. It could cause electric shocks and therefore danger.
• Do not rinse with water during cleaning. This can cause an electric shock and therefore danger.
• Do not hang or place heavy objects on or on the device. This can cause malfunctions
  and damage to the device and therefore danger.

6. USE

• Place the sandwich toaster on a flat surface and set the timer to the OFF position.
• Place the sandwich clamps on the racks.
• Plug it into the socket. Set the desired time with the timer, and switch the device on. Your sandwich will be cooked as required.
• Never place the device in the vicinity of (highly) flammable materials.
• Check whether all accessories are in the designated place.

7. INSTALLATION

• Use only at the appropriate voltage.
• Do not use a switch that does not meet the safety standards.
• Contact a recognized professional for technical maintenance and support.
• This product must be earthed.
• The plug and the socket must be properly connected to prevent the risk of disconnection.

8. CLEANING AND MAINTENANCE

• Switch off the appliance and remove the plug from the socket before starting maintenance and/or cleaning.
  After completing the work, clean the device with a hygienic damp cloth.

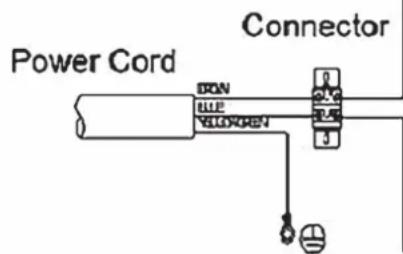

9. ELECTRIC SCHEME

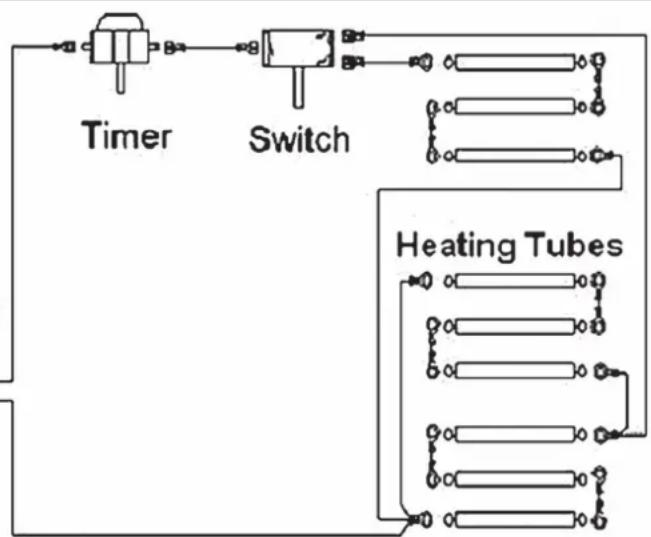

680.200

10. MALFUNCTIONS

Problem Checklist
The device is not heating	Check if the device is connected properly.
	Check if the power supply is correct.
	Check whether a heating element is broken.

The above problems are a most common, if other problems occur, stop using this device and contact your local dealer.

Warning

Any dismantling and unlawful installation, incorrect adjustment and maintenance work can cause damage.

Always contact your supplier if the product needs to be repaired by a professional.

Warning

For your own safety, do not store any flammable liquids, gas or other objects around or in the product.
