MS 7 - Mixer TEAM - Free user manual and instructions

Product type	Immersion blender
Brand	Team
Model	MS 7
Power supply	220-240 V, 50-60 Hz (estimated)
Power	Not specified in the manual
Maximum continuous use duration	3 minutes (see rating plate)
Mandatory pause after use	At least 10 minutes
Material of blending shaft	Stainless steel (estimated)
Material of motor unit	Plastic
Cable length	Approximately 1 meter (estimated)
Weight	Approximately 0.8 kg (estimated)
Dimensions	Not specified
Intended use	Domestic, small food quantities
Main functions	Mixing, emulsifying, preparing milkshakes, soups, eggs
Safety	Very sharp blades, do not touch while operating; do not immerse motor unit
Maintenance and cleaning	Motor unit: damp cloth; blending shaft: soapy water, do not soak
Spare parts and repairability	Contact an approved qualified service
Included accessories	Blending shaft, beaker (not mentioned but probable)
General information	Read the manual before use; do not use outdoors

Frequently Asked Questions - MS 7 TEAM

What is the maximum continuous use time of the MS 7 immersion blender?

The maximum continuous use time is 3 minutes. After that, the motor must rest for 10 minutes to avoid damage.

Can I blend hot liquids with this blender?

No, it is not recommended to blend hot liquids to avoid splashes and burns. Never use the appliance for boiling liquids.

How to clean the MS 7 immersion blender?

Always unplug the appliance before cleaning. The motor unit can be cleaned with a damp cloth. The blending shaft can be washed under running water or with warm soapy water, but do not let it soak. Never immerse the motor unit in water.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by a qualified competent service (manufacturer's or importer's after-sales service) to avoid any danger.

Can I use accessories not recommended by the manufacturer?

No, using non-recommended accessories can pose a danger to the user and damage the appliance. Use only the accessories supplied or approved.

Is the blender suitable for professional use?

No, this appliance is designed for domestic use only. It cannot operate continuously like a professional appliance.

How to use the immersion blender for the first time?

Before first use, clean the blending shaft with a slightly damp cloth. Pour ingredients into a container, immerse the blending shaft, plug in and turn on. Do not exceed 3 minutes of continuous use.

Can I leave the blender unattended while operating?

No, never leave the appliance unattended while it is running. Keep it out of reach of children and irresponsible persons.

Are the blender blades dangerous?

Yes, the blades are extremely sharp. Handle them with care, never touch them while operating, and use a scraper only when the appliance is unplugged.

Where can I find the rating plate of the appliance?

The rating plate is usually located on the motor unit. It indicates the voltage, power and maximum continuous use time (marked KB xx where xx is the time in minutes).

USER MANUAL MS 7 TEAM

White and black handheld device with a stylized logo on its body (no readable text or symbols)

team International

Stabmixer

Stickmixer

Mixeur Plongeant

Staafmixer

Batidora De Varilla

Varinha

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

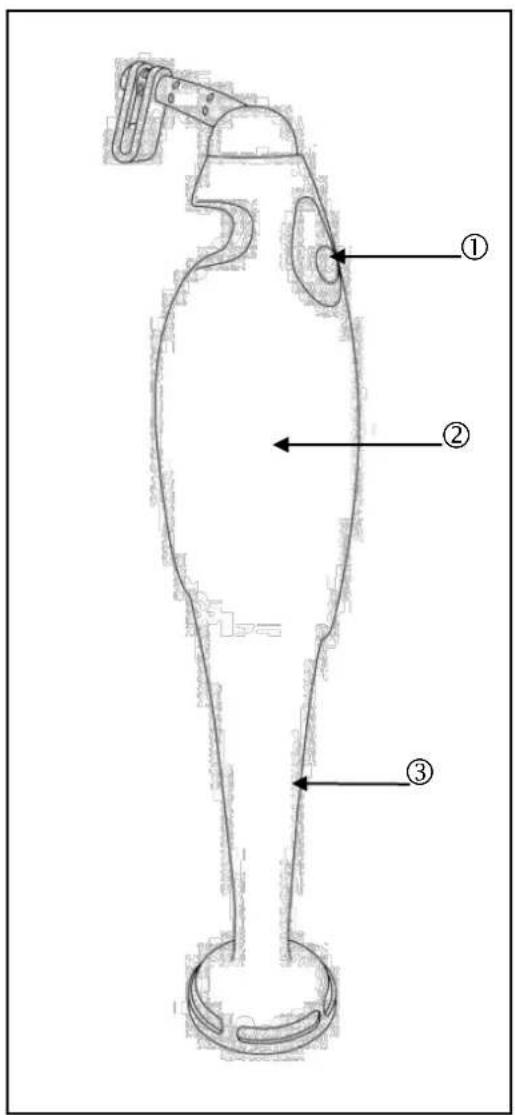

Technical diagram of a mechanical device with numbered parts labeled ①, ②, and ③.

team international

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

1) An-/aus-schalter
2) Motorblock
3) Mixstab

GB

1) On/off switch
2) Blender body
3) Foot

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

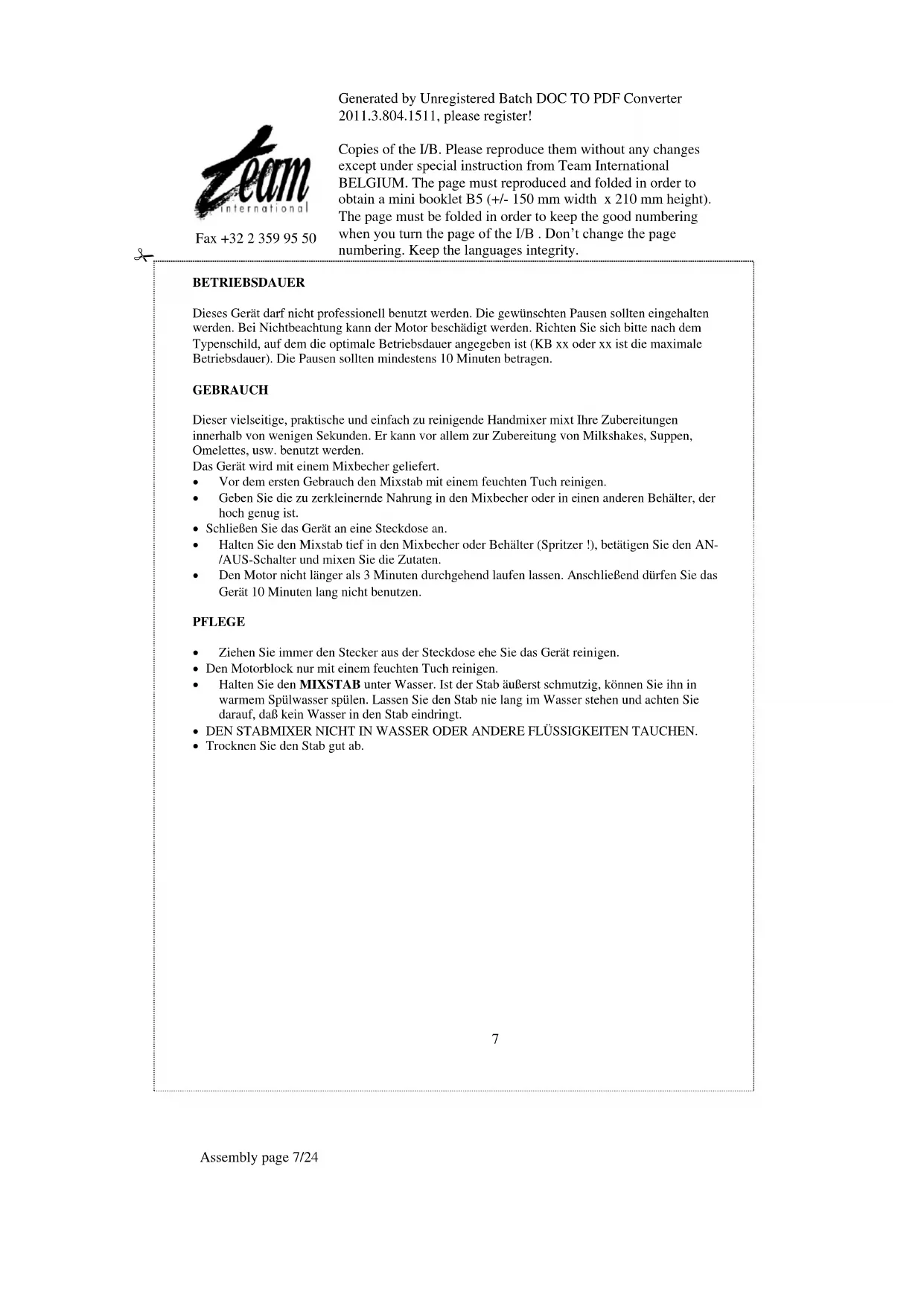

GEBRAUCHSANLEITUNG

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

BETRIEBSDAUER

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ Should the cord be damaged, it must be replaced by a competent qualified electrician ^(*) .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Unplug the appliance when not in use.
□ Only use this mixer for cooking purposes.
This kind of appliance can not function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
☐ It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
☐ The blade of this appliance is extremely sharp, always be very careful when handling the appliance.
☐ Make sure your hands and/or any kind of utensil stay clear of the recipient when the appliance is in use in order to avoid serious injuries.
☐ You may use a scraper (to clean the blades) when the appliance is unplugged.
☐ When mixing warm liquid, be particularly careful as a projection of warm liquid could cause serious burns. Never use this appliance to mix boiling liquids.
☐ The appliance is designed for the preparation of small quantities of food, which have to be consumed rather quickly. It is not designed for the preparation of large quantities at once.
☐ Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx or xx is the maximum usage time). The breaks should last at least 10 minutes.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green & yellow wire must be connected to the terminal marked E or coloured in green & yellow.

HOW TO USE

Versatile, convenient and easy to use for powerful high speed blending. It is great for shakes, soups, source omelette and much more.

• Before using for the first time, the foot should be cleaned with a moist cloth. Please ensure the unit is unplugged first!
• Put the ingredient into the container or other bowl and pan, which is sufficiently tall to avoid splashing.
• Plug in at the mains.
• Dip the appliance as deeply as possible into the container and then switch it on (not the other way around as this may cause splashing). Work through the ingredients with a gentle up and down of the blender.
• Remember to use for no longer than 3 minutes continuous use. The motor must then be rested for 10 minutes.

HOW TO CLEAN

• Always unplug the unit before cleaning.
- The motor unit should only be wiped down with a moist cloth.
- Wash the FOOT under running water. If it is very dirty, it can be washed in warm washing-up water.
- NEVER IMMERSE THE BODY OF THE MIXER IN ANY LIQUIDS.
- Dry the foot thoroughly.

MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

GEBRUIKSINTERVAL

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEAM MS 7 A

Deutsch	5
English	7
Français	9
Nederlands	11
Español	13
Português	15
Italiano	17
