USER MANUAL TO 24 TEAM

team International

Exterior view of a stainless steel toaster with black handle (no text or symbols visible)

Toaster

Toaster

Grille-Pain

Broodrooster

Tostador

Torradeira

Tostapane

CE

I/B Version

050817

TEAM TO 24

230V\~920W

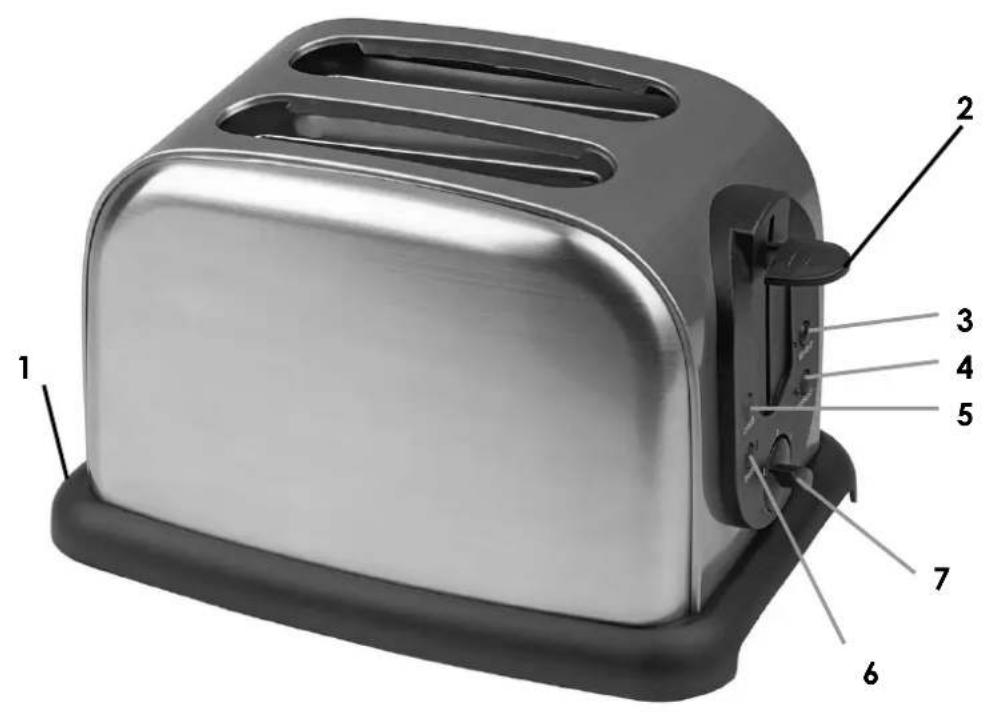

Labeled diagram of a stainless steel toaster with numbered parts for identification

D

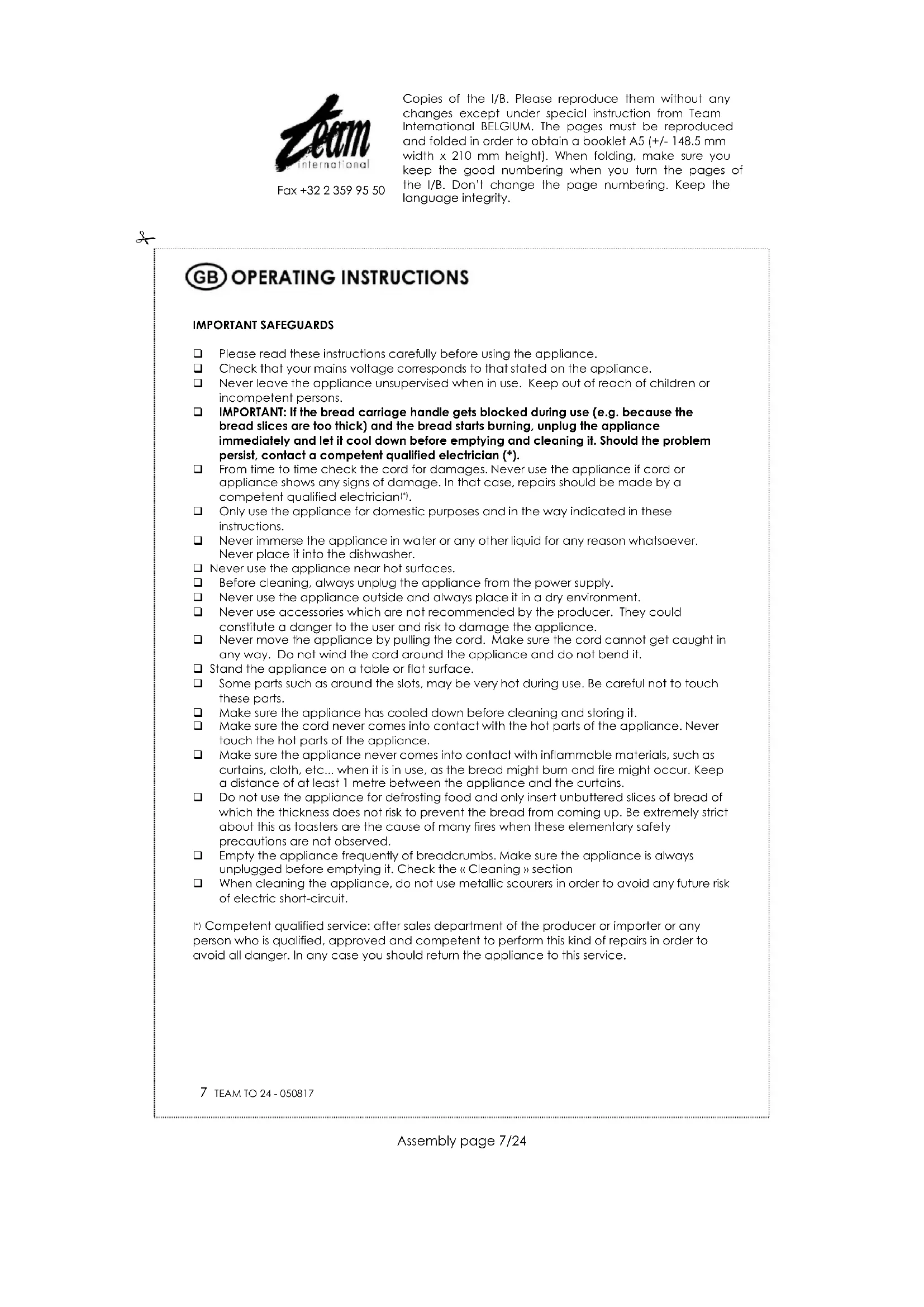

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
☐ IMPORTANT: If the bread carriage handle gets blocked during use (e.g. because the bread slices are too thick) and the bread starts burning, unplug the appliance immediately and let it cool down before emptying and cleaning it. Should the problem persist, contact a competent qualified electrician (*).
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician ^[1] .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

□ Never use the appliance near hot surfaces.

Before cleaning, always unplug the appliance from the power supply.

☐ Never use the appliance outside and always place it in a dry environment.

☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

☐ Stand the appliance on a table or flat surface.

☐ Some parts such as around the slots, may be very hot during use. Be careful not to touch these parts.

☐ Make sure the appliance has cooled down before cleaning and storing it.

☐ Make sure the cord never comes into contact with the hot parts of the appliance. Never touch the hot parts of the appliance.

☐ Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as the bread might burn and fire might occur. Keep a distance of at least 1 metre between the appliance and the curtains.

☐ Do not use the appliance for defrosting food and only insert unbuttered slices of bread of which the thickness does not risk to prevent the bread from coming up. Be extremely strict about this as toasters are the cause of many fires when these elementary safety precautions are not observed.

Empty the appliance frequently of breadcrumbs. Make sure the appliance is always unplugged before emptying it. Check the « Cleaning » section

☐ When cleaning the appliance, do not use metallic scourers in order to avoid any future risk of electric short-circuit.

(*) Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this service.

7 TEAM TO 24 - 050817

CAUTION: the bread carriage handle will not stay down if the appliance is not plugged in!

BEFORE USING THE TOASTER FOR THE FIRST TIME

In order to eliminate any manufacturing residues, operate the toaster a couple of times without bread with the browning control selector on a medium power level. Some smoke might escape.

OPERATION

• Before using your appliance for the first time, check if it is clean (see "Maintenance and cleaning") as it comes into direct contact with bread. Check if any object has fallen into the slot.
• For safety reasons, connect the appliance only to a mains earthed wall socket.
• Place the bread slices in the slot (for the French bread, cut a loaf shorter than the slot, then cut it in two pieces along its length.). Your appliance is provided to receive French bread, but also pieces of toast or other bread slices if their thickness and their length are shorter than the one of the slot.
• Press down the bread carriage handle until it stops (in the same time, the grid inside the slot will tighten around the bread in order to keep it away from the heating wires). Then release the pressure and the handle will stay in the lower position, which means that the heating process has begun. If the handle comes up immediately, check if the appliance is plugged in as it blocks when the unit is plugged in.
• You can adjust the browning intensity to obtain a more or less toasted bread by positioning the browning control selector to one of the degrees marked from 1 to 5. Therefore you only have to turn clockwise to increase the intensity, and anticlockwise to decrease it. The higher the number is, the more toasted the bread will be.
• During the functioning, if you think that the bread is toasted enough or for another reason, you can break the heating process, simply by pressing the cancel button.
• The reheat button allows you to reheat already toasted bread or to toast bread which is not toasted enough during a short time without modifying the browning degree.
  • The defrost button allows you to toast the bread that has been frozen beforehand.
  • If you want to reheat bagels (American pastry), push the "BAGEL" button.
  • Always unplug the appliance after use and let it cool down before handling or storing it.
• A cord winder is foreseen on the bottom of the appliance: 4 hooks. When you store your appliance, wind the cord around the hooks.

MAINTENANCE AND CLEANING

• Before attempting any cleaning operation, make sure the toaster is unplugged from the supply socket and fully cooled down.
  • To remove bread crumbs slide the crumb tray situated on the side of the appliance.
  • Never use sharp objects to clean. Doing so could damage the appliance.
  • To clean the exterior surfaces, simply wipe over with a soft damp cloth.
• ON NO ACCOUNT MUST THE TOASTER BE IMMERSED IN WATER.
  • All other maintenance and repair should be performed by a qualified technician.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label, your appliance should not be disposed of as unsorted municipal waste but should

either be returned to the vendor, or disposed of in a separate collection point performing waste recovery by means of reuse, recycling or use for other applications.
