RAC 14 N - Fondue, raclette and wok appliance TEAM - Free user manual and instructions

Product type	Fondue, raclette and wok appliance
Brand	TEAM
Model	RAC 14 N
Dimensions (L x D x H)	42 x 28 x 14 cm
Weight	2.8 kg
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W
Number of raclette pans	8
Plate material	Non-stick coating
Main functions	Grilling, raclette, crepe surface, cooking in pans
Cooking temperature	Adjustable by on/off switch
Care and cleaning	Grill plate and pans washable with soapy water; do not immerse the appliance
Safety	Automatic shutdown not provided; do not leave unattended; unplug after use
Recommended use	Household, indoor
Accessories included	Raclette pans, grill plate, wooden spatula recommended
Warranty	2 years (parts and labor)

Frequently Asked Questions - RAC 14 N TEAM

How to use the appliance for the first time?

Before first use, lubricate the non-stick plates with oil and carefully wash the pans and grilling surface with a damp cloth. Heat the appliance empty for 10 minutes (ventilate the room) to eliminate any smell from the heating element.

How long does it take to preheat the appliance?

Allow about 10 minutes of preheating before starting to cook.

Can I wash the grill plate and pans in the dishwasher?

No, it is recommended to wash them by hand with soapy water and a soft cloth. Do not use abrasive pads to avoid damaging the non-stick coating.

What to do if the appliance smokes during first use?

This is normal. The heating element may emit smoke and odor initially. Ventilate the room and heat the appliance empty for 10 minutes before using it.

Can I use metal utensils on the plate?

No, use a wooden or heat-resistant plastic spatula to avoid scratching the non-stick coating.

How to clean burnt residue on the pans?

Soak the pans in warm soapy water, then gently scrub with a non-abrasive sponge. Avoid abrasive products.

Does the appliance have an automatic shut-off?

No, this appliance does not have an automatic shut-off. Never leave it unattended while in operation.

What types of cheese to use for raclette?

Use original raclette cheese, cut into slices about 2 mm thick. Allow 150 to 250 g per person.

Can I use the appliance to grill meat?

Yes, the grill surface can cook meat, toast, eggs, vegetables, etc. Cut the meat into small pieces to reduce cooking time.

How to store the appliance after use?

Unplug the appliance and let it cool completely. Wipe the interior and exterior with a damp cloth. Store in a dry, dust-free place.

USER MANUAL RAC 14 N TEAM

team International

Black-and-white photo of a flat-screen grater with a side mirror and a small dish, no visible text or symbols.

Raclette-Grill

Gourmet-partyset

Raclette

MIT REZEPTIDEEN

WITH RECIPES IDEAS

AVEC IDEES DE RECETTES

MET RECEPTIDEEËN

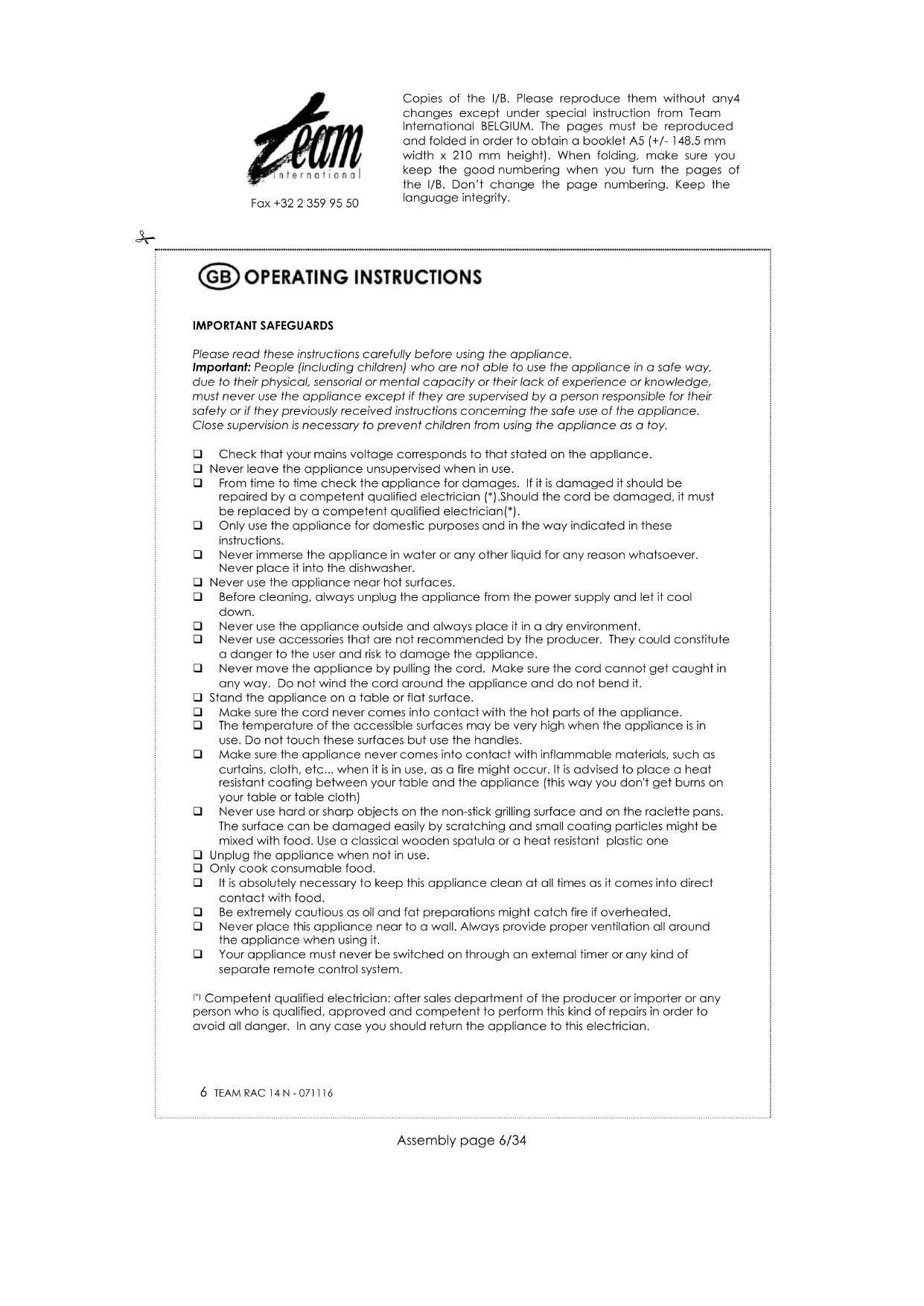

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. If it is damaged it should be repaired by a competent qualified electrician (*). Should the cord be damaged, it must be replaced by a competent qualified electrician(*).
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply and let it cool down.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Stand the appliance on a table or flat surface.
☐ Make sure the cord never comes into contact with the hot parts of the appliance.
☐ The temperature of the accessible surfaces may be very high when the appliance is in use. Do not touch these surfaces but use the handles.
☐ Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur. It is advised to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth)
☐ Never use hard or sharp objects on the non-stick grilling surface and on the raclette pans. The surface can be damaged easily by scratching and small coating particles might be mixed with food. Use a classical wooden spatula or a heat resistant plastic one
□ Unplug the appliance when not in use.
□ Only cook consumable food.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
☐ Be extremely cautious as oil and fat preparations might catch fire if overheated.
☐ Never place this appliance near to a wall. Always provide proper ventilation all around the appliance when using it.
☐ Your appliance must never be switched on through an external timer or any kind of separate remote control system.

INSTRUCTIONS

• Before using it for the first time, clean the grill plate and the raclette-pans with a wet cloth
- When it is first switched on, the raclette-grill may smell and emit some smoke. This is normal; the grease that may have adhered to the element during manufacture is burning off. We therefore recommend that you heat up the raclette-grill for about 10 minutes without any food (ventilate the room during this period).
• Always pre-heat your appliance during more or less 10 minutes before using it.
- In order to prevent grease stains on your table cloth, don't forget to put another, easy-washing cloth under your appliance.
- To switch on your appliance, after having read and observed all important safeguards, put the plug in an earthed power outlet and put the switch on "I" position. The pilot light will come on, indicating that the appliance is warming up.

Hint: When your appliance is warming up and the raclette pans are clean, you can put them on the appliance to warm them up but never leave raclette pans that have already been used in the appliance, as the food residues might burn.

GRILL

• Put the raclette-grill in the middle of the table.
• Cut the meat into small pieces. You thus reduce the cooking time. Chop the crude meat and serve it on a plate or a wooden board. This way you can then choose the quantity of meat you wish and grill it on the grill plate.
  • You can grill toasts in the raclette pans, fry eggs or potatoes and many other things.
  • You may serve the grilled meat with different sauces, salad or French baguette.
• The concave area on the grill is the pancake surface, which you can use to make crêpes or omelettes.

RACLETTE

• Raclette is a typical Swiss dish. You can obtain a good raclette by using the original raclette cheese. Take about 150-250 grams for each person. Cut the cheese into slices (more or less 2 mm thick).
  • Prepare potatoes in their skin, which you will put into a covered bowl.
• Put the raclette-grill in the middle of the table.
• Put the cheese into the raclette pans and place them under the heating tube. The cheese will melt after 3 or 4 minutes.
• As soon as the cheese has melted and taken a brownish-golden colour, you can serve it as it is on the plates or spread it out on the potatoes in their skin. Add some fresh ground black pepper.
• Raclette is served with raw ham or "Bündner" meat, little oignons and pickles, as well as a dry wine.

CLEANING

• Before cleaning, unplug and wait for the appliance to cool down.
• Wipe the inside and the edges of the appliance with a paper towel or a soft cloth.
• Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.
• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.
• Do not immerse in water or any other liquid.

7 TEAM RAC 14 N - 071116

PARTY IDEAS AND RECIPES

Informal dinner party menu:

Grilled pork escalope

Minted courgettes

Provencale tomatoes

New potatoes

Mustard cream sauce

Buffet menu:

Grilled marinated chicken

Raclette cheese slices

King prawns

Kebabs

Salad

French bread

Teenagers' party menu:

Frankfurter sausages

Small Burgers

Tomato relish

Onion rings

Bread rolls

Brunch menu:

Bacon

Fried Eggs on top pan or scrambled in the raclette pans

Mushrooms

Sausages

Tomatoes

French toast

Barbecue extras:

Tomatoes

Mushrooms

Courgette slices

Peppers

Baby corn

Asparagus spears

Recipes ideas:

Provencale tomatoes:

Make a paste of crushed garlic, salt, chopped parsley and olive oil. Spread onto halved tomatoes. Place in the Raclette pans and cook for 10 minutes.

Minted courgettes:

Brush slices of courgette with olive oil, sprinkle on finely chopped mint and cook in the Raclette pans for 15 minutes.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

team international
