HM3 - Mixer PROLINE - Free user manual and instructions

Brand	Proline
Model	HM3
Product type	Electric mixer (stand mixer)
Power supply	220-240 V~, 50/60 Hz
Rated power	300 W
Number of speeds	5 speeds + turbo function
Included accessories	2 beaters, 2 dough hooks
Maximum continuous use	10 minutes
Housing material	Plastic
Maintenance and cleaning	Housing: damp cloth; accessories: washable with soapy water
Safety	Automatic stop at 0, disconnect before assembly/disassembly, do not immerse
Spare parts and repairability	Repair by qualified technician; after-sales service: Darty (0 978 970 970), Vanden Borre ([phone])
Intended use	Household and similar (kitchens, farms, bed and breakfasts)
Warranty	Not specified in the manual

Frequently Asked Questions - HM3 PROLINE

How to attach the accessories (beaters or hooks)?

Make sure the appliance is unplugged and the speed knob is set to 0. Insert the accessory with collar into the large hole until it clicks, then insert the accessory without collar into the small hole while turning slightly. Never mix a beater and a hook at the same time.

Which speed to use for each preparation?

Speed 1 (hooks): dry ingredients, mashed potatoes. Speed 2 (beaters): light liquids. Speed 3 (hooks): light batters (cakes, cookies). Speed 4 (beaters): cream, desserts. Speed 5 (beaters): egg whites. Start slowly then increase speed.

Can the appliance be used for more than 10 consecutive minutes?

No, at speeds 1 to 5, do not exceed 10 minutes. Let it cool to room temperature before using again.

How to clean the mixer?

Unplug the appliance. Clean the housing with a damp cloth (never immerse it). Wash the accessories in warm soapy water, rinse and dry thoroughly.

What to do if the mixer does not start?

Check that the appliance is properly plugged in and that the speed knob is set to a position other than 0. If the problem persists, contact after-sales service.

Is the turbo button dangerous?

No, it allows reaching maximum speed momentarily. Press and hold it, then release to return to the set speed. Use it with caution to avoid splashing.

Can I mix hot or boiling foods?

No, only use the appliance for foods at room temperature or cold. Do not immerse the mixer in boiling liquid.

How to store the accessories?

After cleaning and drying, store the beaters and hooks in a dry place. The appliance can be stored with the accessories inserted or separately.

Is the appliance suitable for people with reduced abilities?

Yes, provided they are supervised or have received instructions for safe use and understand the hazards.

What to do in case of breakdown?

Contact after-sales service at Darty on 0 978 970 970 (France, 7 days a week, 24 hours) or Vanden Borre on [phone] (Belgium). Do not attempt to repair yourself.

USER MANUAL HM3 PROLINE

Language of introduction

English GB1-GB6

French FR7-FR13

Dutch NL14-NL20

WARNING

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
Regarding the operating times and speed setting, refer to the section "Operation" on page 4 of the manual.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Regarding the instructions for cleaning surfaces in contact with food, refer to the section "Cleaning and Maintenance" on pages 5&6 of the manual.
- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
Children shall not play with the appliance.
WARNING: Risks of injuries if you don't use this appliance correctly.

IMPORTANT SAFETY INSTRUCTIONS

Please read this manual carefully before using the appliance and keep it for future reference.

• To protect against risk of electrical shock, do not immerse the appliance or its cord in water or any other liquid. If the appliance falls into liquid, unplug the cord from the mains socket immediately. Do not reach into the liquid.
• Do not use the appliance outdoors or anywhere the cord or mixer might come into contact with water while in use.
• Always disconnect the mixer from the mains socket when not in use, before assembling or disassembling and before cleaning.
• Never use this appliance to mix or stir anything other than foods.

• Avoid contacting moving parts.

• The use of attachments not recommended by the manufacturer may cause fire, electric shock or injury.

• To avoid possibility of mixer being accidentally pulled off work area, which could result in damage to the mixer or in personal injury, do not let cord hang over the edge of a table or counter.
• To avoid damage to cord and possible fire hazard, do not let cord contact hot surfaces.
• Do not attempt to repair the appliance yourself. This appliance must be repaired by a qualified technician to avoid any hazard.
• Keep the appliance and cord away from direct radiant heat from the sun, from damp surfaces, from sharp edges and other dangers.
• Use the appliance only for its intended purpose.
• Do not use the appliance during cooking processes or with boiling liquids.

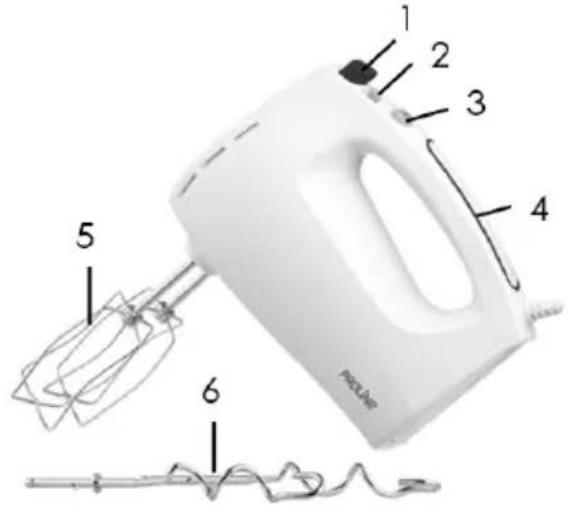

OVERVIEW

1. Eject button
2. Speed selector (0 to 5)
3. Turbo button
4. Handle
5. Beaters (2)
6. Dough hooks (2)

GETTING STARTED

Before using your hand mixer for the first time, wash the dough hooks and beaters in warm soapy water. Rinse and dry thoroughly. Wipe the outer surface of the body with a damp cloth.

CAUTION: To avoid injury when inserting or removing beaters or dough hooks, make sure that the appliance is unplugged from the mains socket and the speed selector is set to the 0 position.

Select the attachment according to the required type of mix.

• Beaters: Used for liquid mixtures such as creams, egg-whites, confectionary doughs, etc.
• Dough hooks: Used for light doughs.

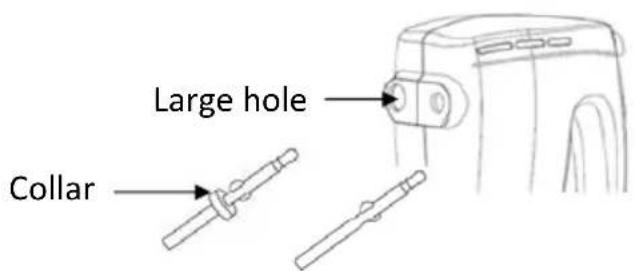

Insert the beater or dough hook with collar into the large hole. Push the beater or dough hook in until it clicks into place. Insert the beater or dough hook without collar into the small hole and rotate slightly until it is properly secured.

NOTE: Never operate the appliance with one beater and one dough hook at the same time.

OPERATION

WARNING: Do not operate this appliance for more than 10 minutes without interruption at speed 1 to 5. Allow it to cool down to room temperature before continuing again.

1. Plug the appliance into the mains socket.

2. Make sure that the speed selector is set to the 0 position.

3. Put the beaters or dough hooks into the ingredients to be mixed as deep as possible to avoid splashing.

4. NOTE: Do not immerse the hand mixer into the ingredients beyond the length of the beaters or dough hooks. Do not allow liquid to come into contact with the mixer body.

5. Select the desired speed by moving the speed selector to the right, from 1 for a low speed to 5 for a high speed.

Recommended mixing guide:

Speed	Attachment	Description
1 Dough Hooks Suggested	ested for blending dry and bulky ingredients, folding in butter, or to break up potatoes for mashing
2 Beaters Suggested	for blending liquid ingredients, such as the mixing of salad dressings
3 Dough hooks Suggested	ested for mixing light pastry dough used for cakes, cookies, quick breads, etc.
4 Beaters Suggested	for whipping cream, desserts, etc.
5 Beaters Suggested	for beating egg whites and whipping cream

• It is recommended to first start on a low speed and increase the speed as needed, depending on the desired consistency of the ingredients being processed.

• Hold the hand mixer through the ingredients with a gentle circular motion, and up and down movement.

Turbo setting: press and hold the turbo button to obtain maximum mixing speed. Release the button and the appliance will return to the previously selected speed.

1. When you have finished mixing, move the speed selector to the 0 position and unplug the appliance from the mains socket.

CLEANING AND MAINTENANCE

Warning: Always turn off and unplug the appliance before cleaning.

Clean the body of the hand mixer with a damp cloth. Never immerse the body in water.

After each use, remove the beaters or dough hooks by pressing the eject button. Clean them in warm soapy water. Rinse and dry thoroughly.

Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of warm clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food.

Correct food hygiene practises should always be followed at all times to avoid possibility of food poisoning /cross contamination.

Dry the entire appliance with a dry cloth before replacing.

Do not use chemical cleaners or abrasives product for cleaning.

SPECIFICATIONS

Ratings: 220V-240V\~, 50/60Hz 300W

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SAS © 14 route d'Aulnay 93140 Bondy, France 13 / 07 / 2016
