USER MANUAL LW14 Venta

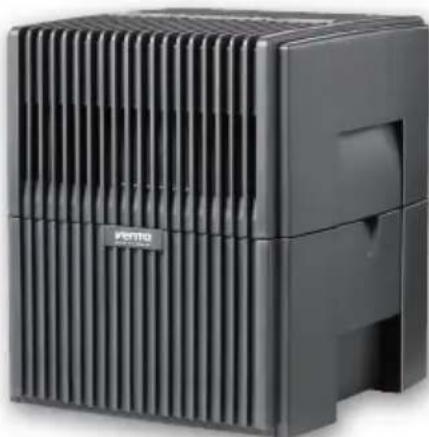

Exterior view of a black rectangular electronic device with ventilation grilles and a central door (no visible text or symbols)

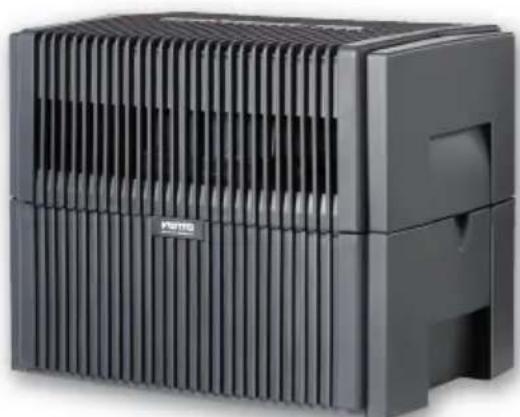

LW14

Exterior view of a black Vetta air conditioner unit with ventilation grilles (no text or symbols visible)

LW24

Exterior view of a black industrial electronic device with ventilation grilles and a small cutout (no visible text or symbols)

LW44

GB Instructions for use

F Mode d'emploi

GB Before reading, please unfold the user manual to reveal pictures.

Exploded view diagram of a mechanical device showing internal components (no text or symbols)

2

Illustration of a mechanical device with a spool and a water-filled container, no text or symbols present.

3

Microscopic view of a microfluidic chip structure with no visible text or symbols

4

Diagram of a mechanical device with rollers and a showerhead pouring material from a container (no text or symbols)

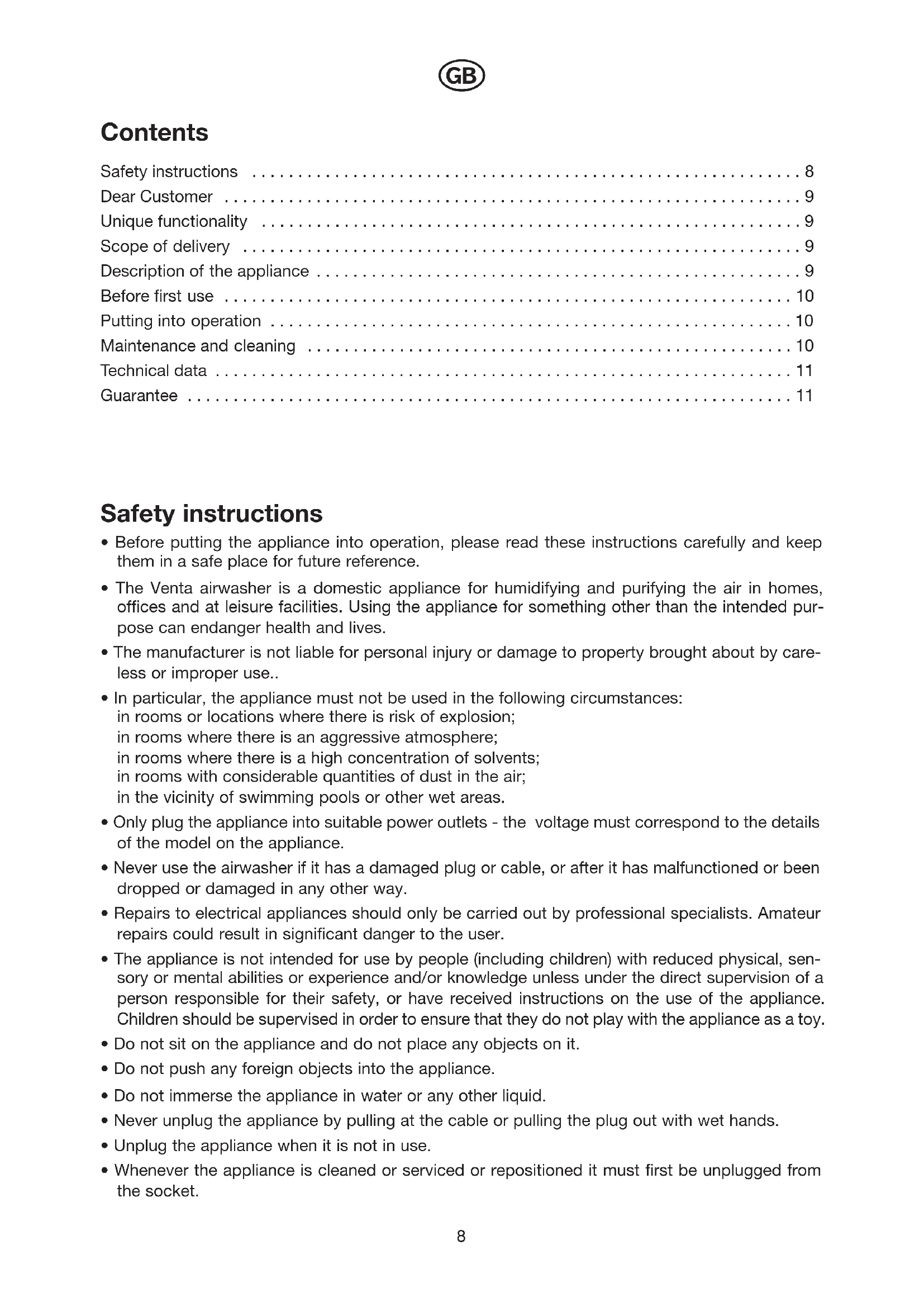

Inhaltsverzeichnis

Safety instructions 8

Dear Customer 9

Unique functionality 9

Scope of delivery 9

Description of the appliance 9

Before first use 10

Putting into operation 10

Maintenance and cleaning 10

Technical data 11

Guarantee 11

Safety instructions

• Before putting the appliance into operation, please read these instructions carefully and keep them in a safe place for future reference.
• The Venta airwasher is a domestic appliance for humidifying and purifying the air in homes, offices and at leisure facilities. Using the appliance for something other than the intended purpose can endanger health and lives.
• The manufacturer is not liable for personal injury or damage to property brought about by careless or improper use..
• In particular, the appliance must not be used in the following circumstances: in rooms or locations where there is risk of explosion; in rooms where there is an aggressive atmosphere; in rooms where there is a high concentration of solvents; in rooms with considerable quantities of dust in the air; in the vicinity of swimming pools or other wet areas.
• Only plug the appliance into suitable power outlets - the voltage must correspond to the details of the model on the appliance.
• Never use the airwasher if it has a damaged plug or cable, or after it has malfunctioned or been dropped or damaged in any other way.
• Repairs to electrical appliances should only be carried out by professional specialists. Amateur repairs could result in significant danger to the user.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental abilities or experience and/or knowledge unless under the direct supervision of a person responsible for their safety, or have received instructions on the use of the appliance. Children should be supervised in order to ensure that they do not play with the appliance as a toy.
• Do not sit on the appliance and do not place any objects on it.
• Do not push any foreign objects into the appliance.
• Do not immerse the appliance in water or any other liquid.
• Never unplug the appliance by pulling at the cable or pulling the plug out with wet hands.
• Unplug the appliance when it is not in use.

• Whenever the appliance is cleaned or serviced or repositioned it must first be unplugged from the socket.

• The airwasher should only be operated when it is completely assembled.

• Place the airwasher on a stable surface which is flat and dry.
• Ensure the appliance is at least 50cm from any objects such as furniture or walls.
• Place the appliance so that it cannot be knocked over, and so that no one can trip over it or its lead.
• Only add original Venta additives to the water. Venta-Luftwäscher GmbH accepts no liability for damage which may be caused by the use of other additives.

Dear Customer,

The Venta System of Airwashing offers world-wide unique technology. The Venta Airwasher does away with filter pads and is thus extremely hygienic.

Unique method of operation:

Bad, dry air is drawn into the appliance. Rotating disc stacks with a total surface area of 4.2 sq m occupying the minimum possible space ensure that the dry air is humidified by clean water evaporating. Dirt particles down to 10 m (10/1,000 mm) in size are retained in the water. There are no filters to become contaminated. The Venta filter is water - renewed every day, and with a consistently high purifying/humidifying performance year after year.

Content of delivery

1 airwasher
2 sample bottles of hygiene additive 50 ml (each is sufficient to last for two weeks)
1 user guide
1 product brochure, questions & answers, fragrance sheet

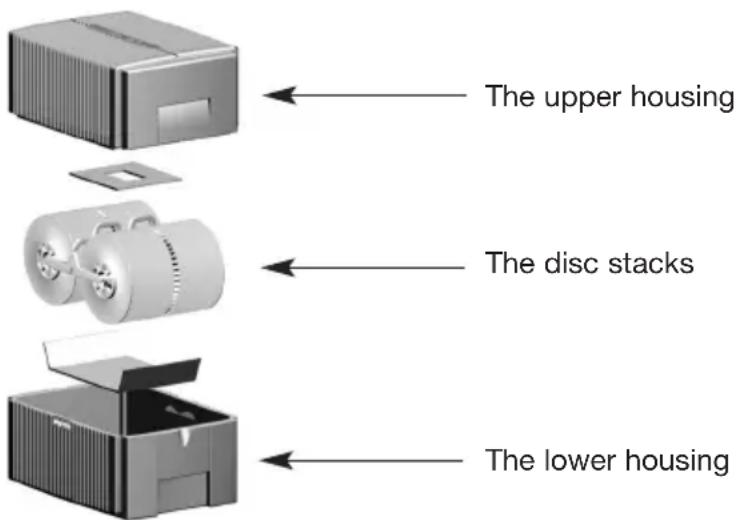

Description

The upper housing The disc stacks The lower housing

Before first use

Fig. 1

Remove the upper housing. Take the transport protection out of the upper housing. Take out the disc stacks. Remove the transport protection from the lower housing. Take the sample pack from the lower housing.

Putting into operation

- Place the airwasher on a dry and level surface at least 50 cm from the walls, furniture and any other objects.

- Check that the mains power lead is not damaged in any way.

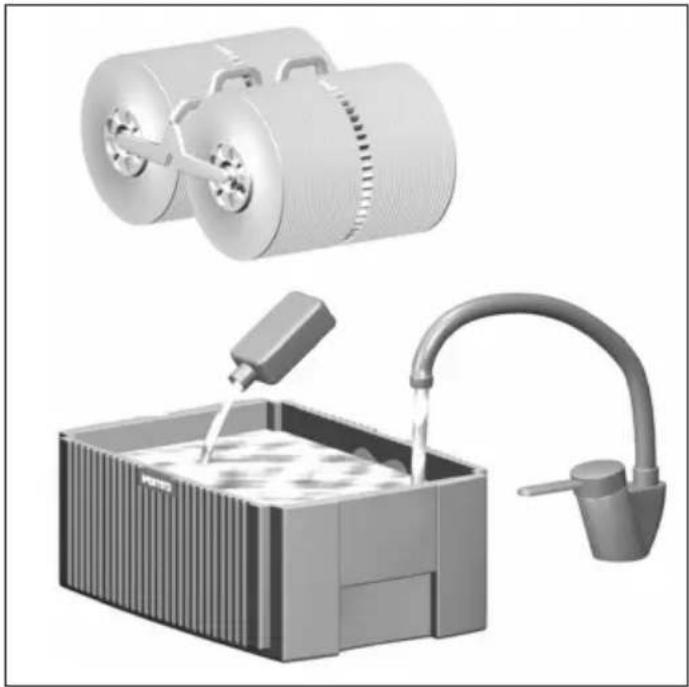

Fig. 2

Replace the disc stacks. Fill the lower housing to the marking indicated (approx. 5 cm from the rim of the housing). Add the entire contents of one sample bottle of Venta hygiene additive (50 ml).

Fig. 3

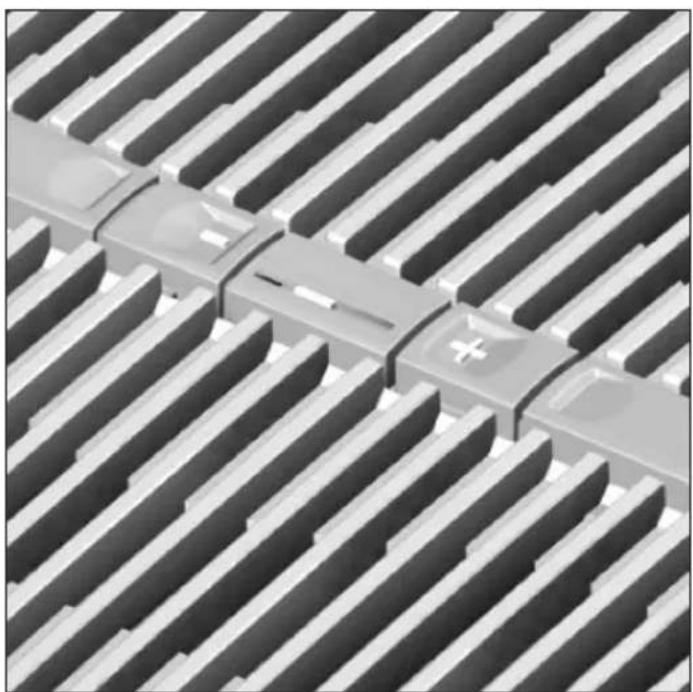

Replace the upper housing. Plug the appliance into the mains and switch it on. Regulate the power by using the +/- switch.

Maintenance and cleaning

The appliance must always be unplugged from the socket before it is cleaned or serviced!

Daily

Top up the appliance with fresh water.

Every 10-14 days

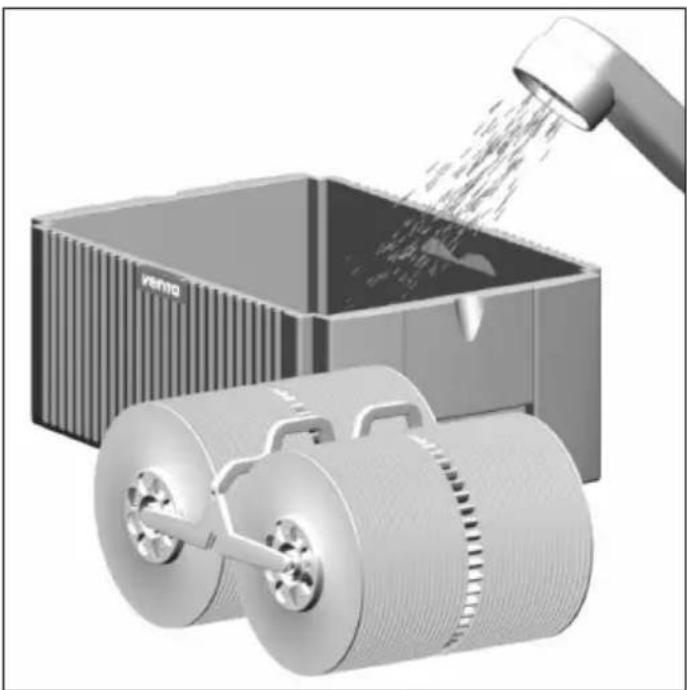

Fig. 4

Pour out the any remaining water. Brush off any sediment in the lower housing and rinse out. Rinse disk stacks with water. Refill the lower housing of the unit with water (tap water quality) as described above. Recharge with Venta hygiene additive. Dosage: see the markings on the back of the bottle.

This appliance has an automatic shut off! As soon as the upper housing is removed, the appliance will turn off. All residues in the lower section and on the disk stack (white, greenish-yellow or brownish deposits) does NOT impair operation of the Venta Airwasher. Adding Venta hygiene additive guarantees perfect hygienic operation.

Every six months

We recommend a yearly general cleaning with the Venta Cleaner. This is specifically formulated for use with the plastics used in constructing Venta appliances. Please only use chemicals approved for use by Venta-Luftwäscher GmbH. Please follow the instructions on the bottle.

General cleaning

Fig. 5

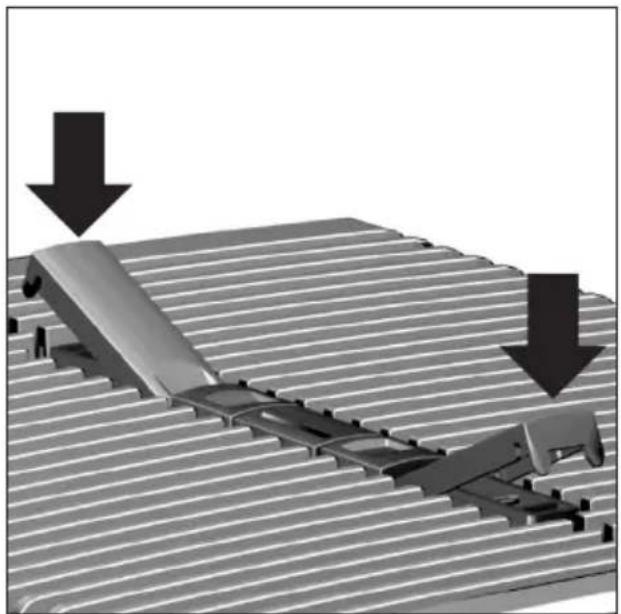

Switch the appliance off and unplug it from the mains socket. To open the upper housing, press the locking catches (see arrows).

Fig. 6

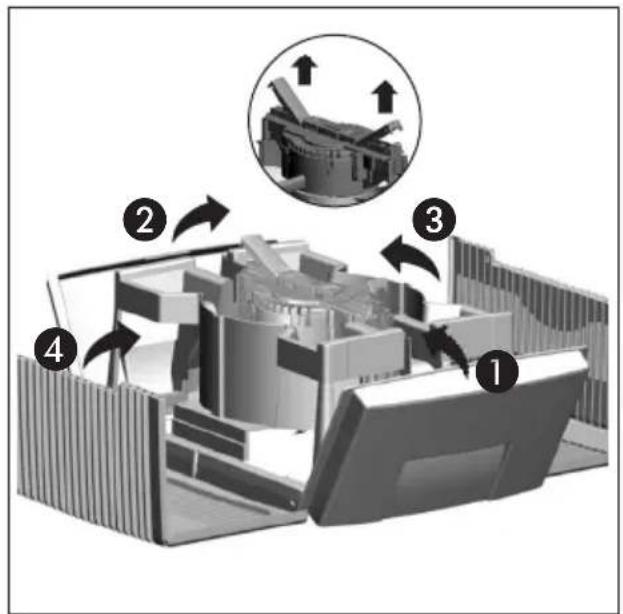

Open up the ridged sides first, next open up the end caps (with light pressure).

Fig. 7

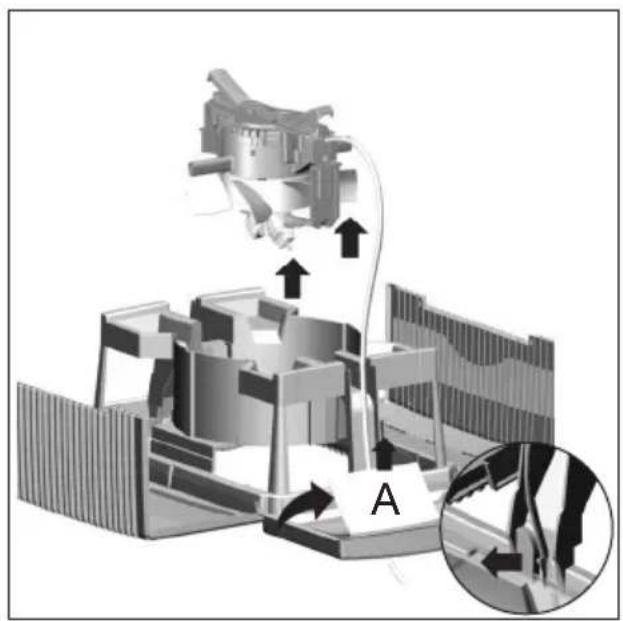

Remove complete motor housing. Note: Pull the power cord through the hinged door (A) on the end cap (see detail in circle).

• Please turn off and unplug before cleaning or servicing.
• Do not disassemble the motor housing, do not submerse the motor housing or bring in contact with water in any way.
• Motor housing, fan and gear can be wiped off with a dry cloth.
• The outer shell of the upper housing can be cleaned with water and the Venta-Cleaner.
• Ensure that all pieces are completely dry before re-assembling!

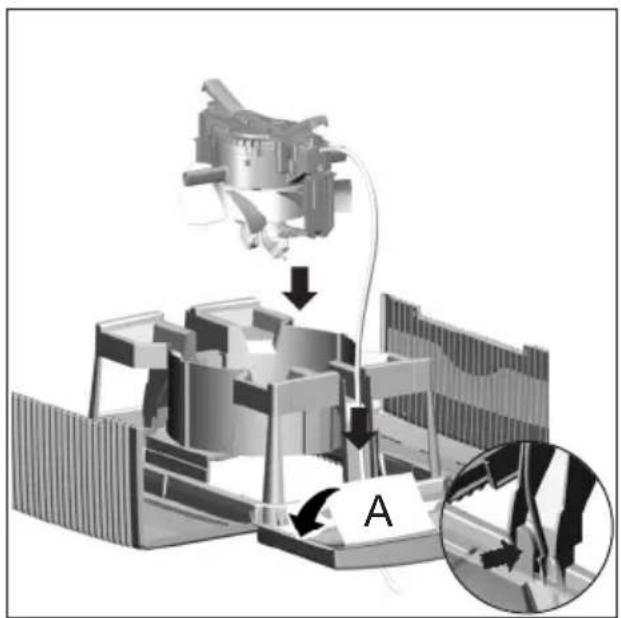

Fig. 8

Replace motor housing with fan facing down and the power cord facing the end cap with the hinged door. (Please note: the latches on the motor housing should still be depressed, as during disassembly, see detail in circle.). Thread power cord through the hinged door (A) on the end cap (see detail in circle).

Fig. 9

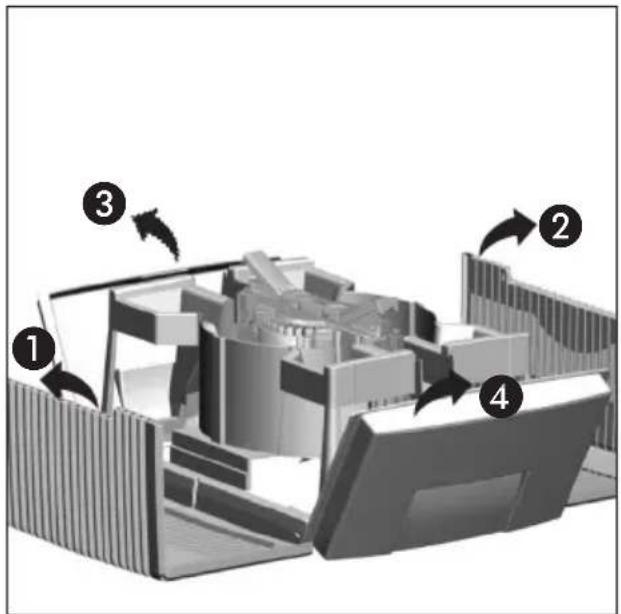

Then, close up the end caps, followed by the ridged sides; ensuring all sides are fitted firmly under the latches.

Fig. 10

To lock upper housing, press down on latches to return them to their original position (see arrows).

Technical data

Technical data LW 14 LW 24 LW 44
Humidifying capacity up to 17 m ^2		up to 34 m ^2	up to 68 m ^2
Purifying capacity up to 10 m ^2		up to 20 m ^2	up to 40 m ^2
Disk surface 1,4 m ^2		2,1 m ^2	4,2 m ^2
Air throughput up to 1,5 m ^3 /min. up to 3 m ^3 /min up to 4,2 m ^3 /min
Speeds 2 3	3
Sound level	30/34 dBA	32/37/42 dBA	32/37/42 dBA
Dimensions	24 x 27 x 30 cm	29 x 30 x 33 cm	42 x 30 x 33 cm
Weight	approx. 3 kg	approx. 4 kg	approx. 6 kg.
Motor output	approx. 18 watts	approx. 32 watts	approx. 32 watts
Water capacity	4,5 l	7 l	10 l
Warranty	2 years	2 years 2 years

Extremely low power consumption

Guarantee

The company Venta-Luftwäscher GmbH undertakes to replace any defective parts of its Airwasher free of charge, including labour costs, for a period of two years. The guarantee's area of application lies within the European Union. For all other countries the area of application is valid solely for the country in which the item was purchased. The certificate of purchase shall be the certificate of guarantee.

Disposal instructions

Only valid for EU countries: Electrical and electronic appliances must not be disposed of together with household waste. Please use the locally available return and collection systems. In this way you make a valuable contribution to environmental protection and human health.
