USER MANUAL HF 1110 Heaven Fresh

Heaven Fresh TM MC

Exterior view of a modern glass coffee maker with black lid and 'Heaven Fresh' logo (no other text or symbols)

INSTRUCTION MANUAL

MODE D'EMPLOI

HEAVEN FRESH

© 2014, HFEF -CAN | US | UK | FR- HF 1110 - 1/14

Thank you for purchasing the innovative Heaven Fresh HF 1110 Electric Water Kettle. Ensure that all safety precautions are followed when using this electrical appliance for the proper operation of the device. These instructions describe the safety precautions to be observed during operation. They are designed to prevent injuries or damage to this device.

SAFETY OPERATION

1. AC 120V 60Hz (North America)
   AC 220 - 240V 50\~60Hz (Europe)
   Over voltage may cause fire hazard or electric shock.
2. Close supervision is necessary when the appliance is used by or near children.
3. Do not allow children to play with any product packaging, such as plastic bags etc.
4. Do not subject the device to direct sunlight or near high temperature objects.
   Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
   Do not let cord hang over edge or table or counter, or touch hot surfaces.
5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
6. NEVER tilt, move, or attempt to empty unit while it is operating.
7. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. All servicing should be performed by qualified personnel only.
   Switch OFF and unplug from the power outlet when not in use. Allow cooling before cleaning.
8. Do not operate dry.
9. Do not overfill or the water may leak out during operation.
10. Do not plug in the cord with wet hands.
11. Household user only.

CAUTION

Take care when opening the lid. This product generates heat and steam at a high temperature which will escape immediately when the lid is opened. Avoid touching hot surfaces, use cool touch handles.

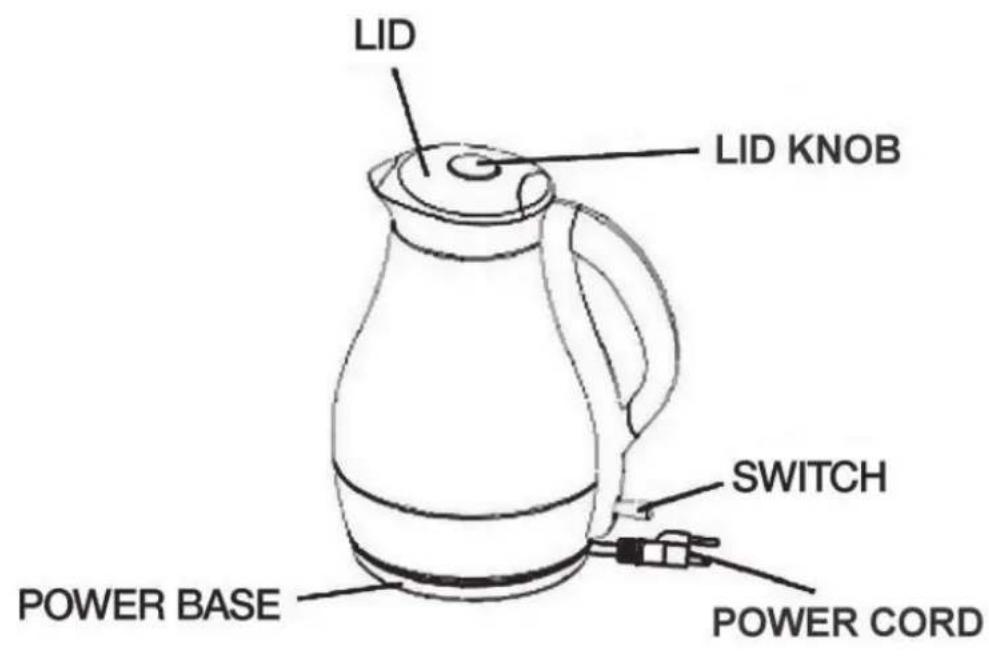

COMPONENTS

LID LID KNOB SWITCH POWER BASE POWER CORD

PRE-OPERATING INSTRUCTIONS

1. The kettle is only to be used with the stand provided.
2. Do not open the lid while the water is boiling.
3. Do not leave the product unattended when in use.
4. Always operate the product on a dry, level bench top surface, in a well-ventilated area, away from walls and flammable materials, etc. Avoid operating/ using the product on metal surface suck as sinks, etc.

CAUTION

Do not operate the product on an inclined surface; do not operate unless the element is fully immersed; do not move the product while it is switched ON. Failure to observe these cautions may result in injury and damage to the kettle.

BEFORE FIRST USE

Carefully unpack kettle making sure you keep all the packaging material until all parts of the appliance have been found and the appliance has been used. We recommend keeping all the packaging material in a safe place in case at any time you wish to repack the appliance for shipping purpose.

To remove any dust that may have accumulated during packing, simply wipe the exterior of the product with a clean soft, slightly dampened (not wet) cloth, and thoroughly dry. Do not use any abrasive cleaners as they may scratch the surface.

We recommend cleaning the inside of the kettle the first time it is used by filling to the MAX level with cold water and boiling twice. The boiled water should then be discarded. Rinse the kettle again with cold water before first use.

OPERATING INSTRUCTIONS

1. Open the lid, fill the kettle with the desired amount of cold water (between the MAX and MIN marks), and close the lid.
2. Plug the power cord into the wall outlet and then turn ON.
3. Press the switch to start the kettle heating. The indicator light on the kettle will illuminate.
4. When the water has boiled the kettle will automatically turn OFF. If required the water can be re-boiled by waiting a few seconds and pressing the switch again.

AUTOMATIC SAFETY CUT-OFF

An automatic safety is fitted to the kettle for protection against boil-dry overheating. It will operate if the kettle is switched ON when there is insufficient water inside the kettle (i.e. the kettle is not above the MIN marking). If this should occur, switch the kettle OFF and remove the power cord from the power outlet. Allow cooling for 10 minutes then refill with cold water and reconnect to the power outlet.

CLEANING AND MAINTENANCE

1. Make sure the product is turned OFF and DISCONNECTED from the power outlet. Let the product cool down before cleaning.
2. Clean the exterior of the product by wiping with a slightly dampened (not wet) soft cloth. Remove stubborn spots with a cloth moistened (not wet) with sudsy water or mild, non- abrasive cleaner. Avoid the use of scouring pads, harsh detergents, solvents, polish, abrasive or aerosol cleaners as they may damage surfaces of the product. Dry with a clean, soft cloth before storage, or reconnecting to the power outlet.

From time to time, depending on the nature of your water supply, you may need to clean the inside of the kettle. This can be done in the following manner:

1. Half fill the kettle with normal tap water.
2. Add 30 ml of while vinegar to the water in the kettle.
3. Boil the mixture and leave it for 1 to 2 minutes, then re-boil it once more.

NOTE: In extreme cases this process may need to be repeated.

IMPORTANT

Empty the mixture in kettle and thoroughly rinse several times before normal use.

WARNING

The use of descalers containing phosphoric acid, sulfamic acid, or their equivalents must not be used as they may damage your kettle.

CLEANING THE FILTER

The following steps are applicable only when the kettle is switched OFF, removed from the power outlet and the kettle including water are cool.

1. Open the lid and lift the filter out from its location in the body of the product.
2. Wash the filter in warm soapy water. Rinse and dry with a clean, soft cloth.
3. Insert the filter back into the body making sure it is correctly located.

SPECIFICATIONS

Model: HF 1110

Power Supply: AC 120V 60Hz

Power: 1500W

Capacity: 1.7 Litres

Dimensions (L x W x H): 20 x 16 x 25 cm (7.8" x 6.3" x 9.8")

Weight: 1.2 kg (2.6 lbs.)

DISPOSAL OF THIS DEVICE

At the end of the product life cycle, you should not throw this machine into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipment.

Dimensions (L x W x H): 20 x 16 x 25 cm (7.8" x 6.3" x 9.8")

Poids: 1.2 kg (2.6 lbs.)

REJET DE CET APPAREIL

Heaven Fresh products are subject to strict quality control before leaving the manufacturer. This allows our customers to benefit from repairs, replacement of parts and even replacements for free.

What is covered: All parts defective in material and workmanship.
For how long: One year from purchase date.
What we will do: Repair or replace any defective parts.

90-Day Replacement Policy

If, due to manufacturer defect, any part requires repair during the first 90 days after receiving your item, Heaven Fresh will replace it with a new item.

What You Must Do

1. Contact Heaven Fresh customer support at:

1-866-625-1857

www.heavenfresh.ca

1-800-642-0367

www.heavenfresh.com

0800 952 9962

www.heavenfresh.co.uk

for Return Authorization Number.

1. Pack the product in its original carton, and in the same manner in which you received it, or as identical as possible.
2. Include proof of purchase inside box along with the Return Authorization Number.
3. Label and ship the unit, freight pre-paid, to the address provided.

Other Conditions

The provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer's maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.
