KS 162IB - Fridge Novamatic - Free user manual and instructions

Product type	Refrigerator
Brand	Novamatic
Model	KS 162IB
Height	850 mm
Width	595 mm
Depth	635 mm
Voltage	230-240 V
Frequency	50 Hz
Climate class	SN, N, ST, T
Temperature adjustment	Rotary thermostat (from min to max, position 0 off)
Defrost	Automatic in the refrigerator compartment
Interior lighting	Replaceable bulb (max power indicated on the diffuser)
Shelves	Removable, slides on the walls
Door bins	Adjustable in height
Door reversibility	Possible (follow instructions)
Adjustable feet	2 feet at the front
Rear spacers	Provided for ventilation
Refrigerant gas	Isobutane (R600a)
Warranty	2 years (labor, travel, parts)
Country of origin	Not specified in the manual

Frequently Asked Questions - KS 162IB Novamatic

How to adjust the temperature of my Novamatic KS 162IB refrigerator?

Turn the thermostat to the right for more cold (maximum position) or to the left for less cold (minimum position). The intermediate position is generally recommended. To turn off the appliance, turn the thermostat to the « O » position.

Why is water flowing inside the refrigerator?

This is often due to a clogged defrost water drain hole. Clean this hole regularly, located in the middle of the refrigerator compartment, with a cotton swab or soft brush. Also, ensure that food does not touch the back wall.

How to defrost my refrigerator?

Defrosting is automatic: frost melts on the back wall when the compressor stops. Water flows through a hole to an evaporation tray at the back. No manual action is necessary. If frost persists, check that the hole is not blocked.

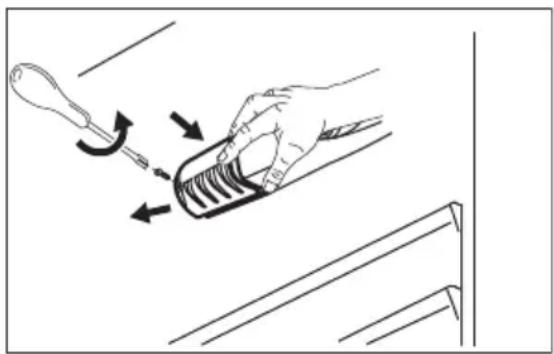

What to do if the interior lighting does not work?

First, close and reopen the door to exit standby mode. If the bulb remains off, unplug the appliance, remove the diffuser (screw), and replace the bulb with a new one of the same power (indicated on the diffuser). Reconnect and check.

My refrigerator is noisy, is this normal?

Yes, some noises are normal: gurgling (gas circulation), hum of the compressor, cracking (thermal expansion), and clicking of the thermostat. If the appliance is unstable, check that it is level and that the feet are in good contact with the floor.

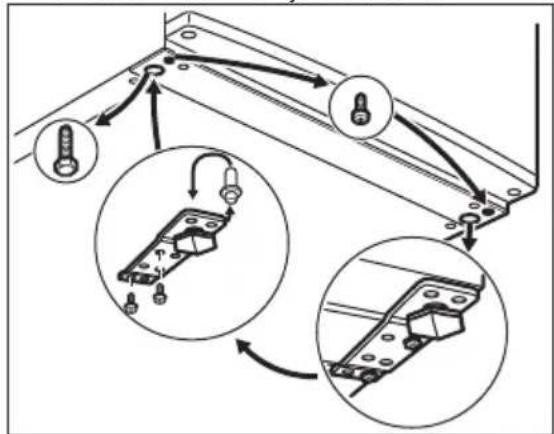

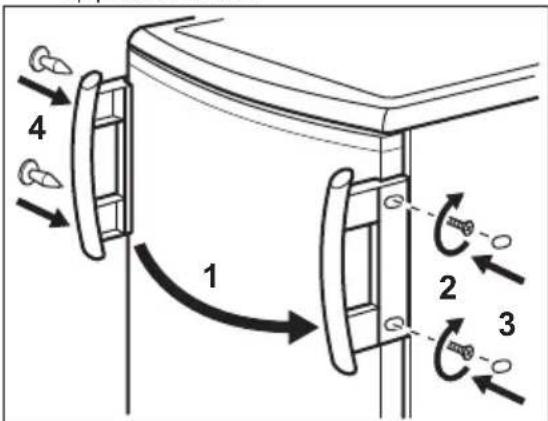

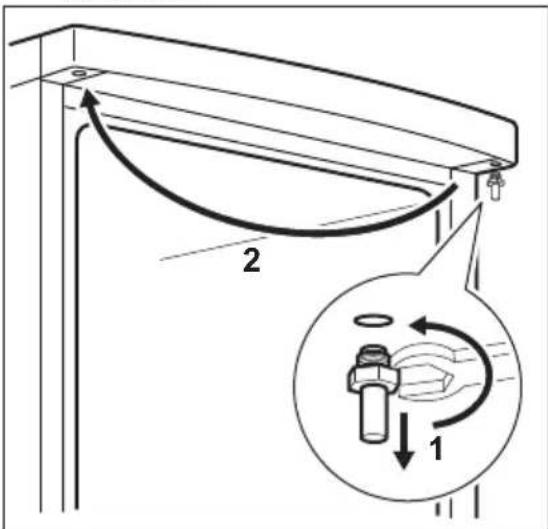

How to reverse the door opening direction?

Unplug the appliance, tilt it gently backwards. Remove the feet, unscrew the bottom hinge, take out the door, then unscrew the top pin to move it to the other side. Reassemble the door and bottom hinge. Adjust the feet. Wait 4 hours before reconnecting. It is easier with two people.

What is the capacity of my refrigerator?

The capacity is not indicated in the manual, but the dimensions (850x595x635 mm) suggest a useful volume of about 140 to 160 liters. Check the rating plate for more details.

How to clean my refrigerator?

Unplug the appliance. Clean the interior and accessories with warm water and a mild detergent. Do not use abrasive products, solvents, or metal objects. Dry thoroughly. Also clean the condenser at the back with a brush (if accessible).

Why does the compressor run continuously?

This can happen if the thermostat is set too low, if the door is opened too often, if the ambient temperature is high, or if too many warm foods have been placed inside. Set the thermostat to a less cold position and wait a few hours. Also check that the door closes properly.

Where can I find the complete user manual?

The complete manual (56 pages) is available for free download on the site notice-facile.com in PDF format. You can also request a translation by selecting your language and providing your email address.

USER MANUAL KS 162IB Novamatic

Line drawing of a hand using a tool to lift a wooden plank (no text or symbols)

Illustration of a hand holding a tool inside a circular frame, with no text or symbols present.

FEHLERSUCHE

Illustration of a hand using a screwdriver to press down a mechanical component (no text or symbols present)

Technical line drawing of a metal bracket with bolt holes and a cube component (no text or symbols)

Standort

For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).

The guarantee covers the costs of materials, labour and travel. The guarantee

will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

CONDITIONS DE GARANTIE / SERVICE

Line drawing of a hand holding a wooden plank, no text or symbols present

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Illustration of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols present)

INSTALLATION

Technical line drawing of a metal bracket with bolt holes and a hexagonal nut (no text or symbols)

Emplacement

For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).

The guarantee covers the costs of materials, labour and travel. The guarantee

will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

CONDITIONS DE GARANTIE / SERVICE

Line drawing of a hand holding a wooden plank, no text or symbols present

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Illustration of a hand using a tool to adjust or install a component, with arrows indicating motion (no text or symbols present)

INSTALLAZIONE

Technical line drawing of a metal bracket with bolt holes and a small inset component (no text or symbols)

Luogo di utilizzo

For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).

The guarantee covers the costs of materials, labour and travel. The guarantee

will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

CONDITIONS DE GARANTIE / SERVICE

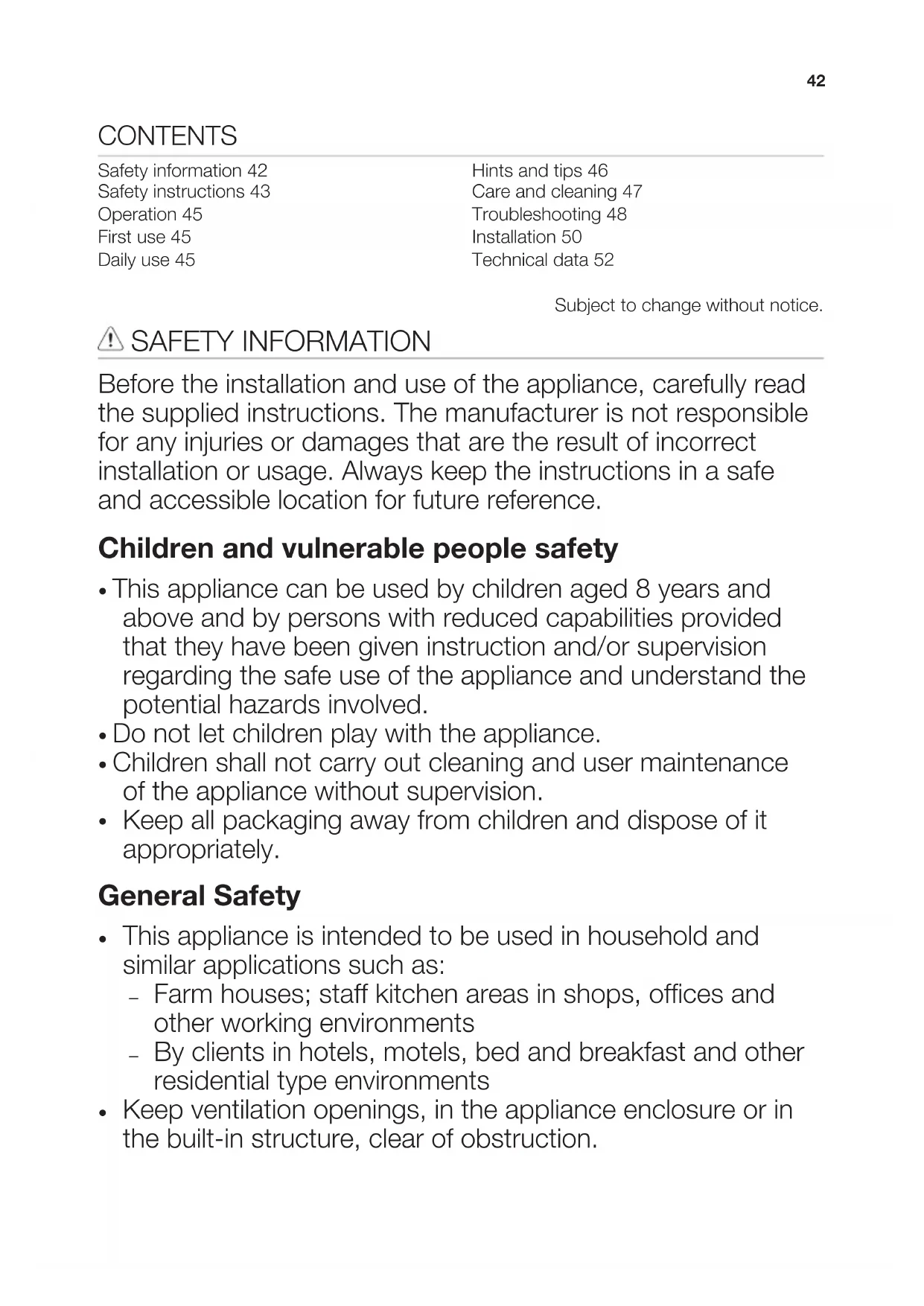

Safety instructions 43

Operation 45

First use 45

Daily use 45

Hints and tips 46

Care and cleaning 47

Troubleshooting 48

Installation 50

Technical data 52

Subject to change without notice.

⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged 8 years and above and by persons with reduced capabilities provided that they have been given instruction and/or supervision regarding the safe use of the appliance and understand the potential hazards involved.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

General Safety

• This appliance is intended to be used in household and similar applications such as:
• Farm houses; staff kitchen areas in shops, offices and other working environments
• By clients in hotels, motels, bed and breakfast and other residential type environments

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

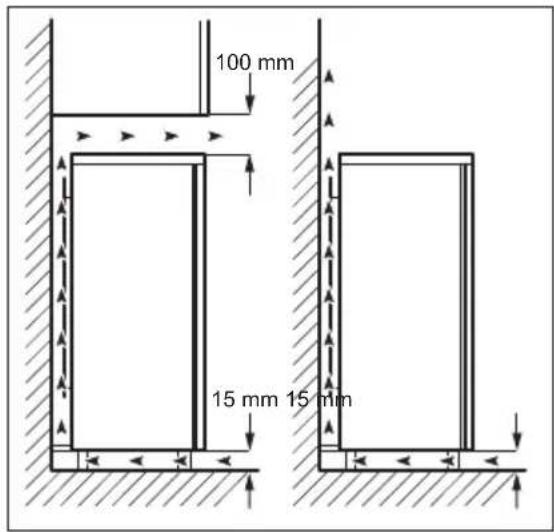

• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• The rear of the appliance must stand against the wall.

• Do not install the appliance where there is direct sunlight.

• Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.

• When you move the appliance, lift it by the front edge to avoid scratching the floor.

Electrical connection

WARNING! Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an

electrician to change the electrical components.

• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

Internal light

- The type of lamp used for this appliance is not suitable for household room illumination

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

OPERATION

Switching on

Insert the electrical plug into a wall socket.

Turn the temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the temperature regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated.

To operate the appliance, proceed as follows:

• turn the Temperature regulator towards lower settings to obtain the minimum coldness.
• turn the Temperature regulator towards higher settings to obtain the maximum coldness.

A medium setting is generally the most suitable.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

DAILY USE

WARNING! Refer to Safety chapters.

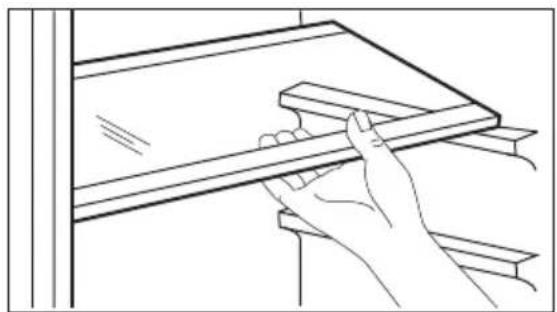

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
  • how often the door is opened
  • the quantity of food stored
  • the location of the appliance.

If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperature, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

CAUTION! Do not use detergents or abrasive powders, as these will damage the finish.

Line drawing of a hand holding a wooden plank over a shelf (no text or symbols)

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

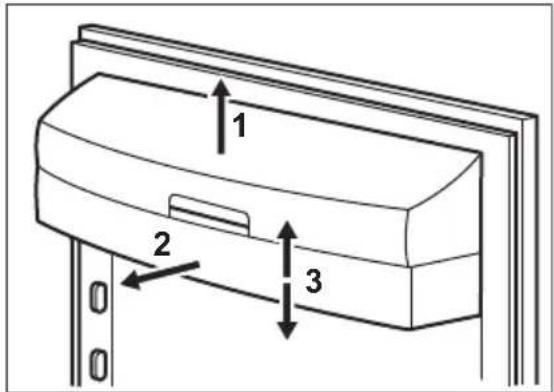

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1. Gradually pull the shelf in the direction of the arrows until it comes free.

HINTS AND TIPS

Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

Hints for energy saving

- Do not open the door frequently or leave it open longer than absolutely necessary.

- If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

1. Reposition as required.

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

• Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days.
  • Cooked foods, cold dishes: cover and place on any shelf.
• Fruit and vegetables: clean thoroughly and place in a special drawer. Bananas, potatoes, onions and garlic must not be kept in the refrigerator if not packed.
• Butter and cheese: place in a special airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.
• Bottles: close with a cap and place on the door bottle shelf, or (if available) on the bottle rack.

WARNING! Refer to Safety chapters.

General warnings

CAUTION! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or cables inside the cabinet.

CAUTION! Take care of not to damage the cooling system.

CAUTION! When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe clean to ensure they are clean and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

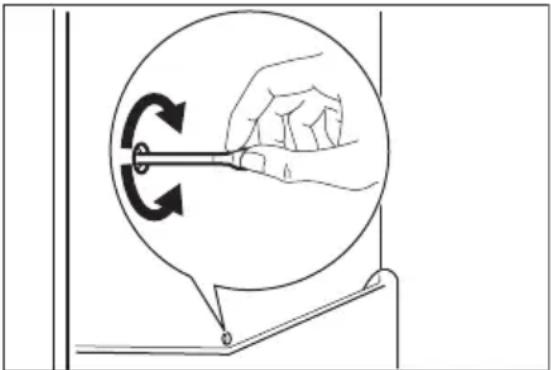

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent unpleasant smells.

WARNING! If you want to keep the appliance switched on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WARNING! Refer to Safety

chapters.

What to do if...

Problem Possible cause Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.	Connected to the mains socket correctly.	Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.	mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.	Check if the appliance stands stable.
The lamp does not work. The lamp is in stand-by. Close and open the door.
	The lamp is defective. Refer to "Replacing the lamp".
The compressor operates continually.	Temperature is set incorrectly.	Refer to "Operation" chapter.
Many food products to be frozen were put in at the same time.	Wait a few hours and then check the temperature again.
The room temperature is too high.	Refer to climate class chart on the rating plate.
Food products placed in the appliance were too warm.	Allow food products to cool to room temperature before storing.
	The door is not closed correctly.	Refer to "Closing the door".
Water flows on the rear plate of the refrigerator.	During the automatic defrost-ing process, frost melts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged.	Clean the water outlet.
Problem Possible cause Solution
	Food products prevent that water flows into the water collector.	Make sure that food products do not touch the rear plate.
Water flows on the floor. The melting water outlet is not connected to the evaporative tray above the compressor.		Attach the melting water outlet to the evaporative tray.
Door is misaligned or interferes with ventilation grill.	The appliance is not levelled. Refer to "Levelling".
The temperature in the appliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/lower temperature.
	The door is not closed correctly.	Refer to "Closing the door".
	The food products' temperature is too high.	Let the food products temperature decrease to room temperature before storage.
	Many food products are stored at the same time.	Store less food products at the same time.
	The door has been opened often.	Open the door only if necessary.
	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.

If the advice does not lead to the desired result, call the nearest Authorized Service Centre.

Replacing the lamp

Disconnect the plug from the mains socket.

1. Remove the screw from the lamp cover.
2. Remove the lamp cover (refer to the illustration).

Illustration of a hand using a tool to adjust or install a component, with arrows indicating motion (no text or symbols)

1. Replace the used lamp with a new lamp of the same power and specifically designed for household appliances (the maximum power is shown on the lamp cover).

2. Install the lamp cover.

3. Tighten the screw to the lamp cover.
4. Connect the plug to the mains socket.
5. Open the door.

Make sure that the light comes on.

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to assembly instructions.

INSTALLATION

WARNING! Refer to Safety chapters.

Positioning

Install the appliance in a dry, well ventilated indoors where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

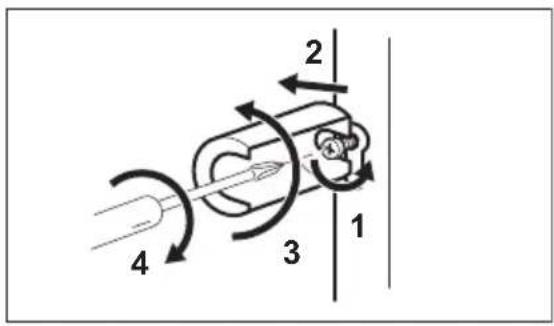

Rear spacers

You can find the two spacers in the bag with documentation.

1. Release the screw.
2. Engage the spacer below the screw.
3. Turn the spacer to the right position.

4. Tighten again the screws.

5. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

Levelling

When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front.

Technical line drawing of a metal bracket with bolts and a cube component (no text or symbols)

Location

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not

be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

Door reversibility

WARNING! Before carrying out any operations, remove the plug from the power socket.

CAUTION! To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

1. Tilt back the appliance carefully so that the compressor cannot touch the floor.
2. Unscrew both adjustable feet.

1. Unscrew the screws of the door bottom hinge.

2. Take off the appliance door by pulling it slightly downwards.

3. Unscrew the top door hinge pin of the appliance then screw it back on the other side.

1. Fit the appliance door on the upper door hinge pin.
2. Remove the lower hinge. Put over the pin in the direction of the arrow.
3. Unscrew and install the screw on the opposite side.
4. Install the lower hinge on the opposite side leaving the position of the door unchanged.
5. Screw in the one screw in the place set free on the other side as well as the adjustable feet (2 pieces).
6. Remove and install the handle on the opposite side.

CAUTION! Reposition, level the appliance, wait for at least four hours and then connect it to the power socket.

Do a final check to make sure that:

• All screws are tightened.
• The magnetic seal adheres to the cabinet.
• The door opens and closes correctly.

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket. In case you do not want to carry out the above mentioned operations, contact the nearest Authorised Service Centre. The Authorised Service specialist will carry out the reversibility of the doors at your cost.

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
• The manufacturer declines all responsibility if the above safety precautions are not observed.
• This appliance complies with the E.E.C. Directives.

TECHNICAL DATA

Technical data

Height mm 850
Width mm 595
Depth mm 635
Voltage Volts 230 - 240
Frequency Hz 50

The technical information is situated in the rating plate, on the external or internal side of the appliance and in the energy label.

WARRANTY / CUSTOMER SERVICE

For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).

The guarantee covers the costs of materials, labour and travel. The guarantee

will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

CONDITIONS DE GARANTIE / SERVICE

Recycle the materials with the symbol 🌐 Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol ✉ with the household waste. Return the product to your local recycling facility or contact your municipal office.

For Switzerland:

Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms.

The list of official SENS collection points can be found at www.erecycling.ch

Fust

Unsere Kundendienst-Telefonnummer: Le numéro de téléphone de notre service après-vente: Il nostro numero di telefono del servizio clientela: Our customer service telephone number:

0848 559 111

oder unter ou sur Internet oppure su Internet or in the internet

www.fust.ch

Dipl. Ing FUST AG Dipl. Ing. FUST AG Dipl. Ing. FUST AG Ing. dipl. FUST SA

Buchental 4 Riedmoosstrasse
