Product Type	Freezer (chest)
Brand	Novamatic
Model	OKO 1020.2IB
Dimensions (H × W × D)	850 × 550 × 593 mm
Weight	Not specified (approx. 30 kg)
Power Supply	230 V, 50 Hz (check rating plate)
Climate Class	SN (10 °C to 32 °C), N (16 °C to 32 °C), ST (16 °C to 38 °C), T (16 °C to 43 °C)
Operating Autonomy	26 hours (temperature rise time)
Freezing Capacity	Indicated on the rating plate (not specified in the manual)
Refrigerant	Isobutane (R600a) - flammable gas
Main Functions	Freezing fresh food, storing frozen food, thermostat adjustment
Included Accessories	Storage baskets (2), installation spacers
Cleaning	Warm soapy water, mild detergent; no abrasive products
Defrosting	Manual, recommended when frost layer reaches 10-15 mm
Child Safety	Magnetic closure; remove door before disposal
Installation	Level surface, 5 cm clearance around, wait 4 hours before connecting
Noise Level	Not specified (normal compressor and refrigerant circuit noises)
Repairability	Original spare parts from after-sales service; repairs by qualified professional
Warranty	2 years from delivery
Environmental Information	Recyclable (symbol); do not dispose of with household waste

Frequently Asked Questions - OKO 1020.2IB Novamatic

What should I do if the appliance is noisy?

Check the stability of the appliance: all four feet must be in contact with the floor. If the noise persists, contact after-sales service.

The compressor runs continuously, what should I do?

Check the thermostat setting: select a higher temperature. Make sure the lid closes properly and is not opened too often.

There is too much frost and ice in the freezer?

Pack food properly, check that the lid closes tightly and that the seal is clean. If necessary, defrost the appliance (when the layer reaches 10-15 mm).

The lid is difficult to open?

Clean the lid seals with warm water. If the problem persists, check that no food is blocking the closure.

The temperature inside the freezer is too high?

Select a lower temperature. Check that the lid closes well, that the food is not too hot, and that air can circulate between the products.

The temperature inside is too low?

Increase the temperature via the thermostat.

The appliance does not work at all (no cold, no light)?

Check that the plug is properly inserted, that the appliance is switched on and the thermostat is set. Test the outlet with another appliance. Otherwise, call an electrician.

How do I clean the inside of the freezer?

Unplug the appliance. Use warm soapy water and a mild detergent. Rinse and dry thoroughly. Never use abrasive or metal products.

What is the defrosting procedure?

Turn off the appliance, remove the food wrapped in newspaper. Leave the lid open. Scrape the ice with a plastic spatula. Once defrosted, dry well, restart and set the thermostat to maximum for 2-3 hours before replacing the food.

Can I freeze large quantities of food at once?

Check the maximum freezing capacity on the rating plate. The process takes 24 hours: do not add other food during this time. Use the 'Heavy charge' setting for large quantities.

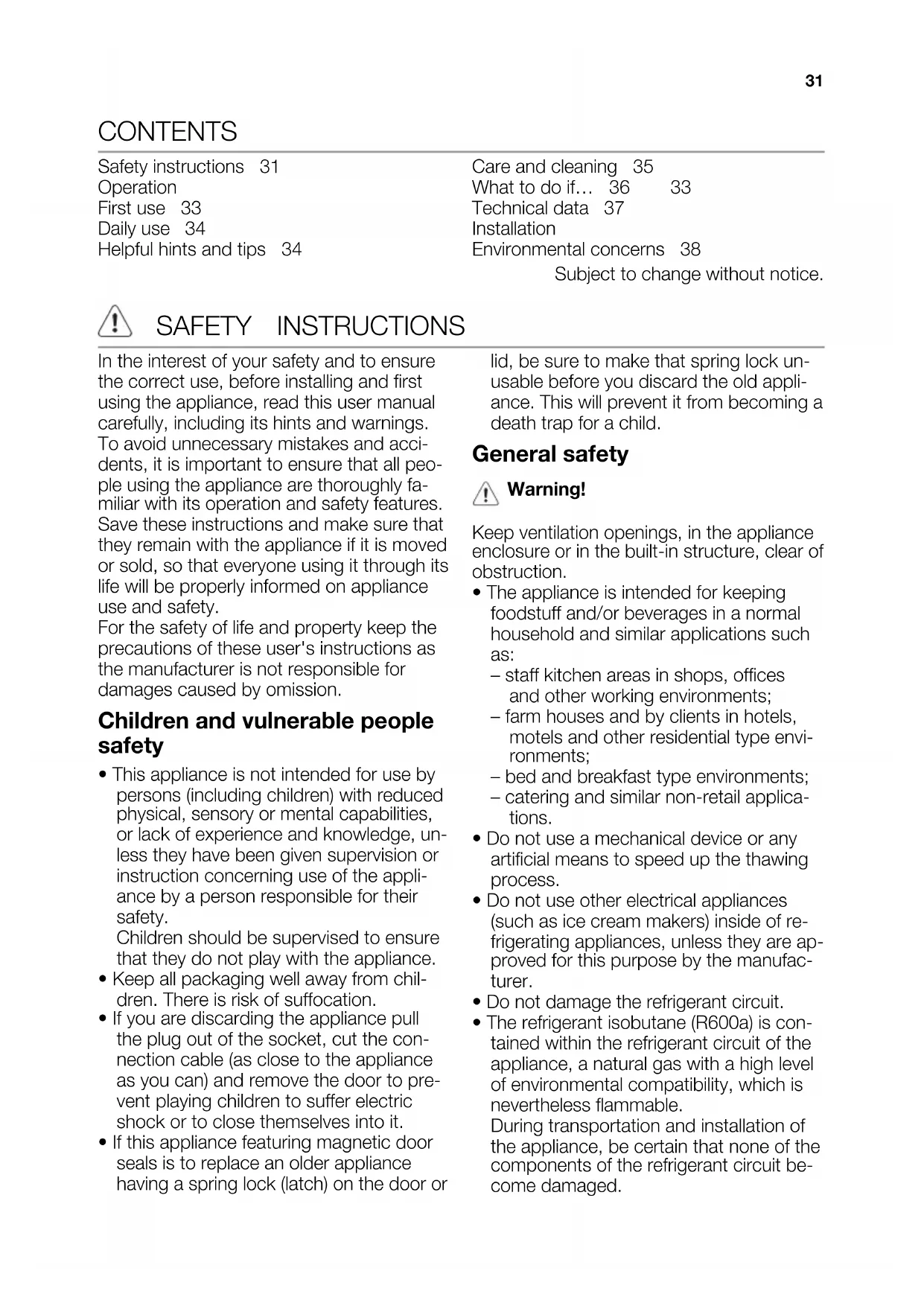

USER MANUAL OKO 1020.2IB Novamatic

Safety instructions 31

Operation

First use 33

Daily use 34

Helpful hints and tips 34

Care and cleaning 35

What to do if... 36 33

Technical data 37

Installation

Environmental concerns 38

Subject to change without notice.

SAFETY INSTRUCTIONS

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings.

To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.

Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or

lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications.

• Do not use a mechanical device or any artificial means to speed up the thawing process.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition
• thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.

• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraph.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.

• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban

refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

OPERATION

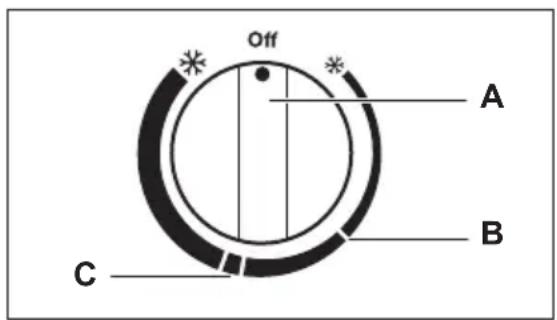

Switching on

A Temperature Regulator
B Half Loaded position
C Full Loaded position

Switching off

To turn off the appliance, turn the Temperature Regulator to the "OFF" position.

Temperature regulation

The temperature within the appliance is controlled by the Temperature Regulator situated on the control panel. To operate the appliance, proceed as follows:

• turn the Temperature Regulator toward lower settings to obtain the minimum coldness.

FIRSTUSE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Insert the plug into the wall socket.

Turn the Temperature Regulator to the Full Loaded position and let the appliance run for 24 hours to allow the correct temperature to be reached before placing food inside.

Adjust the Temperature Regulator according to the quantity of the stored foods.

• turn the Temperature Regulator toward higher settings to obtain the maximum coldness.
  i In case of freezing less food volumes, the Half Loaded setting is the most suitable. In case of freezing much food volumes, the Full Loaded setting is the most suitable.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

DAILYUSE

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate 4)

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the

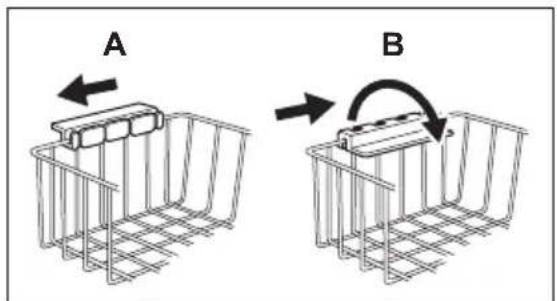

Storage baskets

HELPFUL HINTS AND TIPS

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;

compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

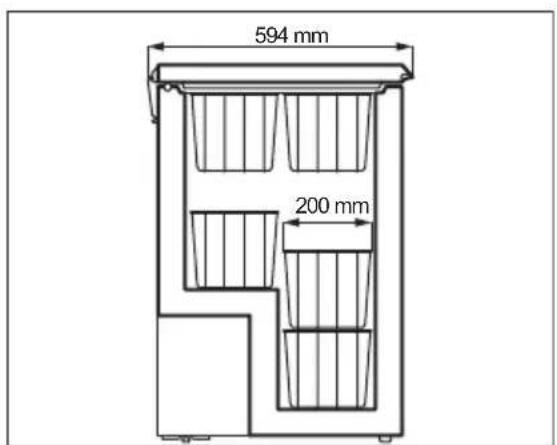

Hang the baskets on the upper edge of the freezer (A) or place them inside the freezer (B). Turn and fix the handles for these two positions as shown in the picture.

The baskets will slide into each other. The following picture shows how many baskets can be placed inside the freezer. You can purchase additional baskets from your local Service Centre.

only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

CARE AND CLEANING

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
  not open the lid frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

Defrosting the freezer

Defrost the freezer when the frost layer reaches a thickness of about 10-15 mm.

The best time to defrost the freezer when it contains no or only a little food.

To remove the frost, do these steps:

1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.
3. Leave the lid open until ice starts melting. Use a scraper to remove ice quickly.
4. When defrosting is completed, dry the interior thoroughly. Close the lid.
5. Switch on the appliance.
6. Set the temperature regulator to obtain the maximum coldness and run the appliance for two or three hours using this setting.
7. Reload the previously removed food into the compartment.

Important! Never use sharp metal tools to scrape off frost as you could damage the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Switch off the appliance.
2. Disconnect the mains plug from the mains socket.
3. Remove all food.

4. Defrost and clean the appliance and all accessories.

5. Leave the lid open to prevent unpleasant smells.

Important! If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF...

Caution! Before troubleshooting, disconnect the power supply.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible	cause Solution
The appliance is noisy	The appliance is not supported properly	Check if the appliance stands sta-ble (all the four feet should be on the floor)
The compressor oper-ates continually	The temperature is not set cor-rectly.	Set a warmer temperature
The lid has been opened too	frequently	Do not leave the lid open longer than necessary
	The lid is not closed properly	Check if the lid closes well and the gaskets are undamaged and clean
Large quantities of food to be frozen were put in at the same time		Wait some hours and then check the temperature again
Food placed in the appliance was too warm		Allow food to cool to room tem-perature before storing
The temperature of the room that contains the appliance is too high for efficient operation		Try to reduce the temperature in the room where the appliance stands
There is too much frost and ice	Products are not wrapped prop-erly	Wrap the products better
The lid is not shut properly or do not close tightly		Check if the lid closes well and the gaskets are undamaged and clean
The temperature is not set cor-rectly.		Set a warmer temperature
The lid doesn't close completely	There is excessive frost Eliminate excess frost
	The lid gaskets are dirty or sticky	Clean the lid gaskets
Food packages are blocking the lid		Arrange the packages in the right way, see the sticker in the appli-ance
The lid is difficult to open	The lid gaskets are dirty or sticky	Clean the lid gaskets
It is too warm in the freezer	The temperature is not set correctly.	Set a lower temperature
The lid does not close tightly	or it is not shut properly	Check if the lid closes well and the gasket is undamaged and clean
Before freezing the appliance	was not precooled sufficiently	Pre-cool the appliance for enough time
Large quantities of food to be frozen were put in at the same time		Wait some hours and then check the temperature again. Next time insert smaller quantities of food to be frozen at any one time.
Food placed in the appliance	was too warm	Allow food to cool to room temperature before storing.
Products to be frozen are	placed too closely to each other	Place the products in a way so that cold air could circulate among them
	The lid has been opened often	Try to not open the lid often
The lid has been opened for a long time.		Do not leave the lid open longer than necessary
It is too cold inside the freezer	The temperature is not set correctly.	Set a warmer temperature
The appliance does not work at all. Neither cooling nor lighting works	Plug is not connected to the mains socket properly	Connect the mains plug properly
Power does not reach the appliance		Try connecting another electrical device to the power outlet
The appliance is not switched on		Switch on the appliance
The thermostatic control is not on		Check setting of thermostatic control
There is no voltage in the mains socket (try to connect another appliance into it)		Call an electrician

Customer Service

If your appliance is still not working properly after making the above checks, contact the nearest service centre.

To obtain fast service, it is essential that when you apply for it you specify the model

and serial number of your appliance which can be found either on the guarantee certificate or on the rating plate located on the external right side of the appliance.

TECHNICAL DATA

Dimensions	Height × Width × Depth (mm): Further technical information are situ- ated in the rating plate on the external right side of the appliance.
850 × 550 × 593
Rising Time 26 hours

INSTALLATION

Positioning

Warning! If you are discarding an old appliance that has a lock or catch on the lid, you must ensure that it is made unusable to prevent young children being trapped inside.

Important! The appliance shall have the plug accessible after installation.

This appliance can be installed in a dry, well ventilated indoor (garage or cellar), but for optimum performance install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C

Rear spacers

Ventilation requirements

1. Put the freezer in horizontal position on a firm surface. The cabinet must be on all four feet.
2. Make sure that the clearance between the appliance and rear wall is 5cm

ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose

Climate class	Ambient temperature
T +16°C to	+ 43°C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

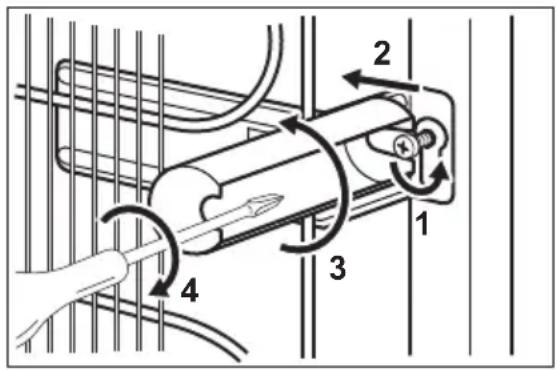

You can find the two spacers in the bag with documentation.

Do these steps to install the spacers:

1. Release the screw.
2. Engage the spacer below the screw.
3. Turn the spacer to the right position.

4. Tighten again the screws.

5. Make sure that the clearance between the appliance and the sides is 5cm .

The airflow behind the appliance must be sufficient.

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Warranty / customer service

For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).

The guarantee covers the costs of materials, labour and travel.

The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.
