USER MANUAL HTC 2232D XORO

LCD TV with DVD, DVB, 2x HDIII, U5β, PVR Ready, Time Shift and MultiMedia-Player HTC 2232D

U.S. Patens Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448 and 6,516,132

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited."

Dolby

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

DVD DVD Player (intern)

PC VGA Anschluss

HDMI1 HDMI Video/Audio-Eingang

HDMI2 HDMI Video/Audio-Eingang

AV CVBS (FBAS) Videoeingang

USB Multimedia-Player

Input Source

DTV

ATV

SCART

YPBPR

DVD

PC

HDMI1

HDMI2

AV

USB

Move Select Quit

Zeitzzone (Time Zone)

Safety information's 5

Notes

Compatibility of Discs 9
Recycling 9
In the box 10
Features 10

Mounting the Stand 11

Quick Start Guide 12

Connectors

Rear Side 13
Right Side. 14
Top Side 14

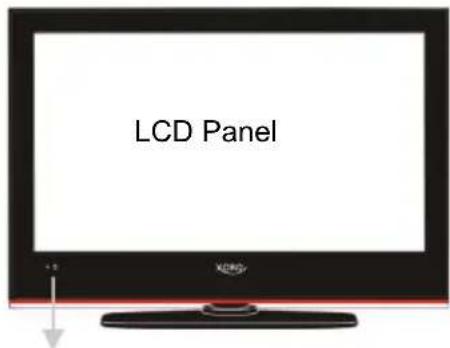

Front Side. 14

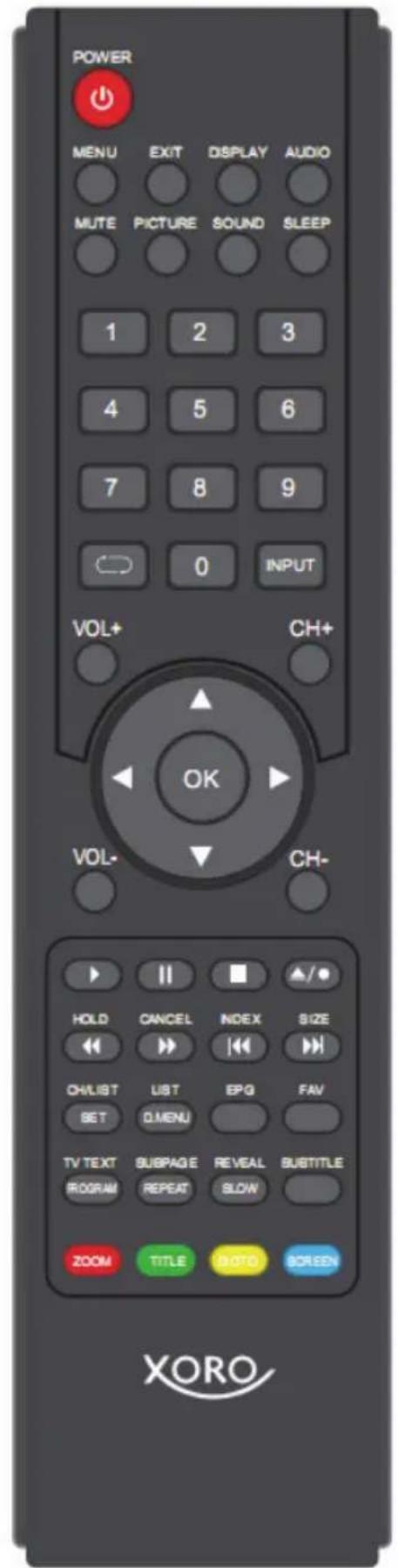

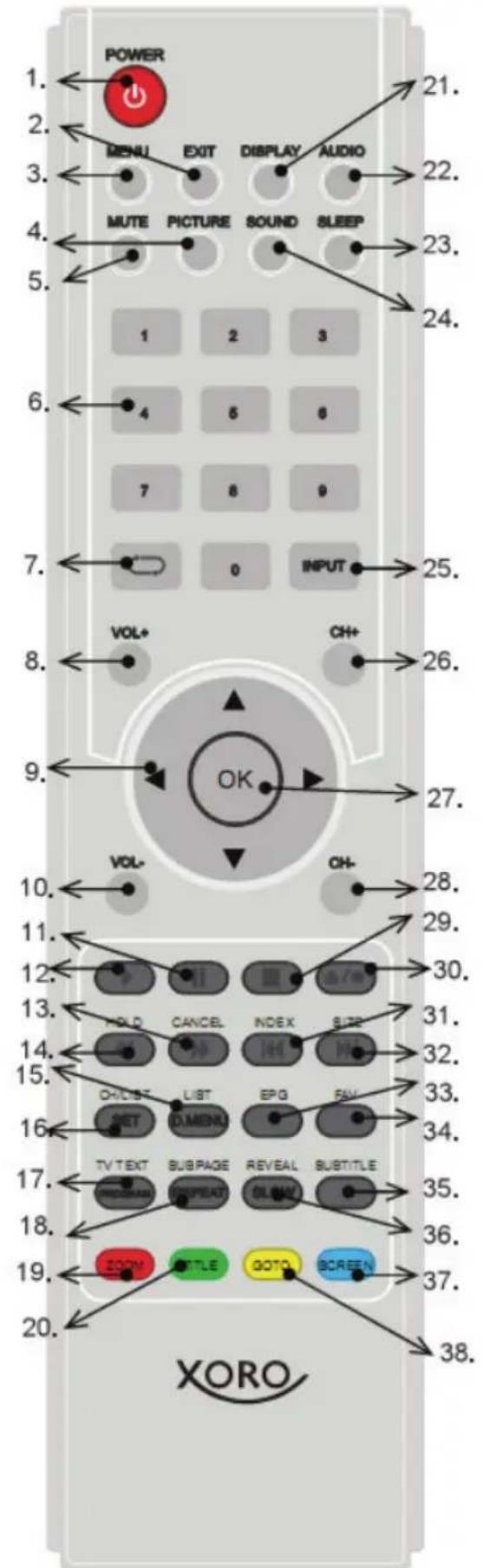

The Remote Control

Insert Battery. 15
Operation range 15
Buttons 16

Connection

Power 18
Antenna 18
SCART 18
HDMI 18
YUV 19
CVBS 19
USB Port 19
VGA 20
Coaxial 20
Headphone 20

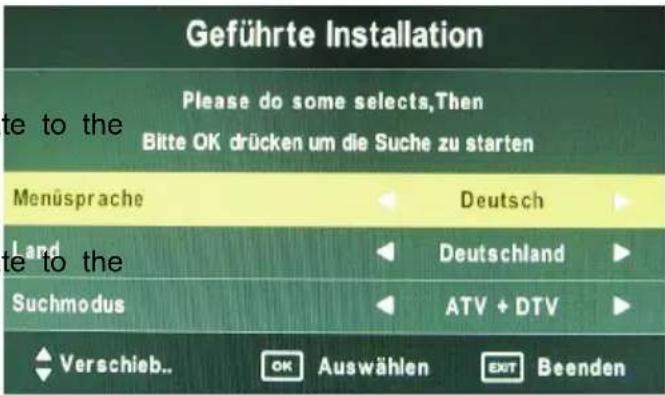

First Time Installation 21

Sources 22

DVB-T Mode

Getting into DVB-T mode 23
Important buttons and there functions 23

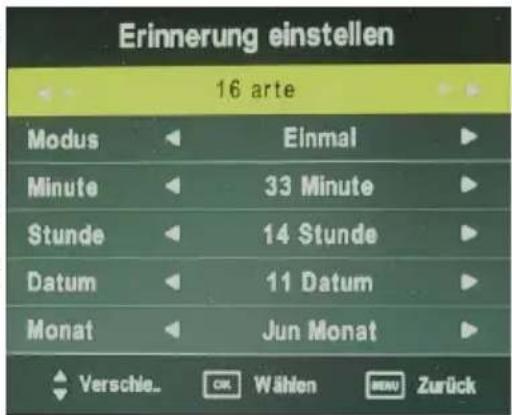

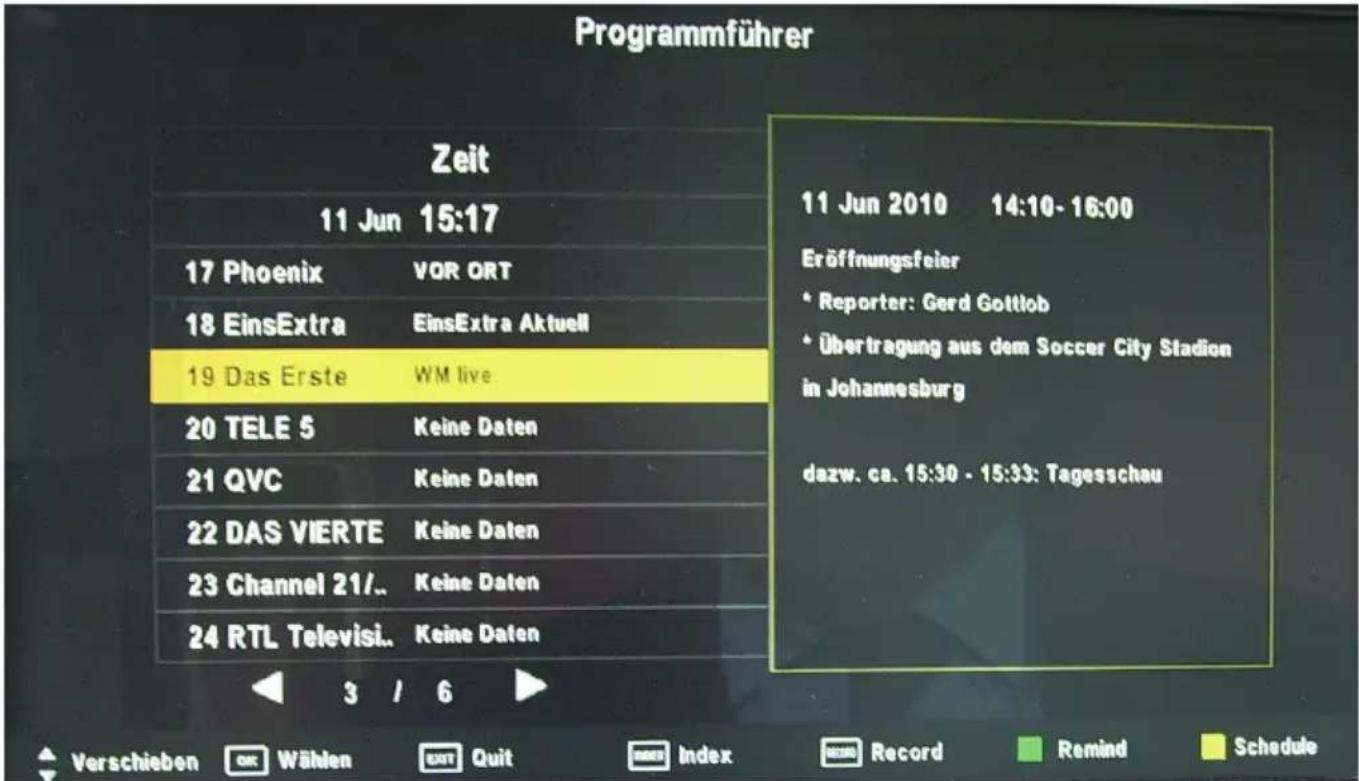

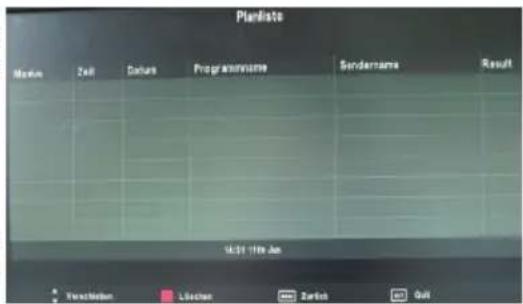

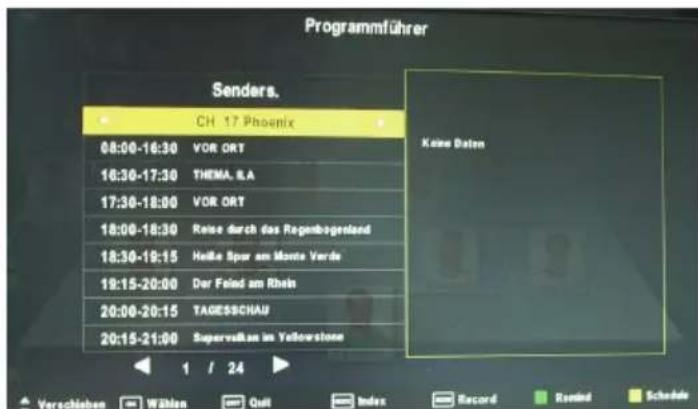

EPG 26

Analog TV Tuner

Getting into analog TV mode 28
Important buttons and there functions 28

Contents

RECORDER

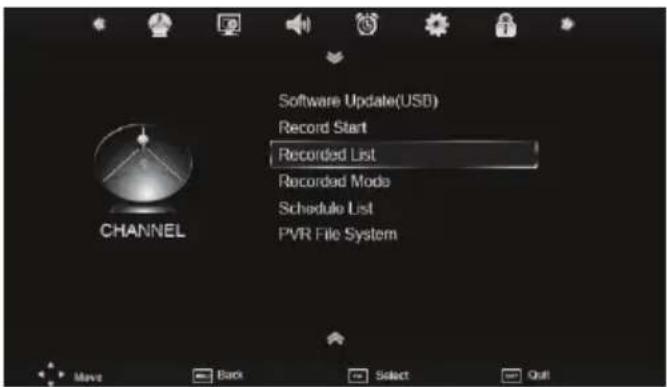

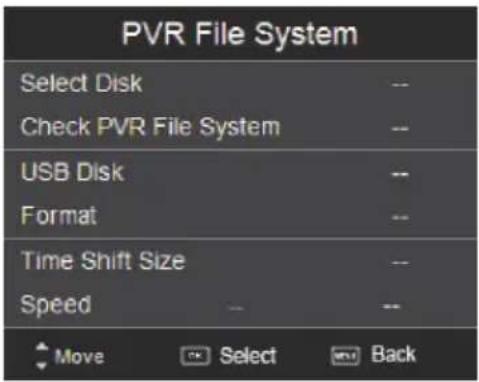

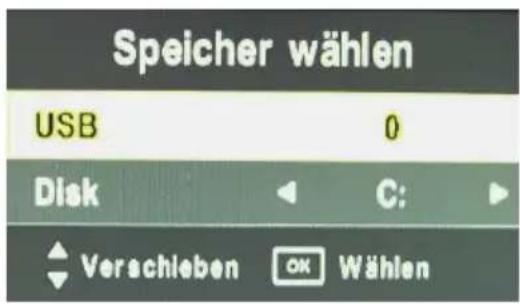

Preparing the USB storage 29
Format 30
Time Shift Size 30
Direct Recording 31

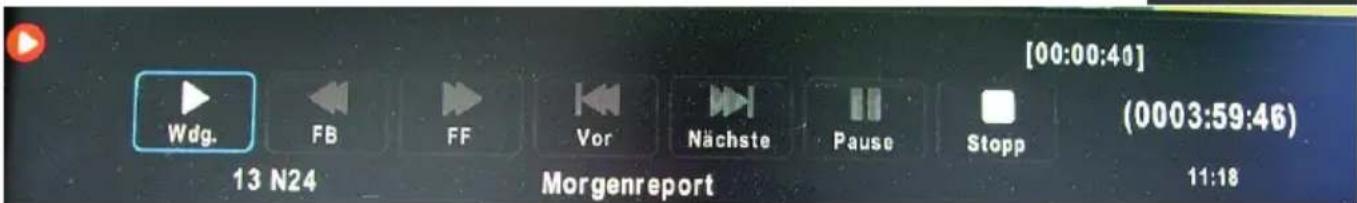

Time Shift Function 31

Media-Player

Connecting USB 33

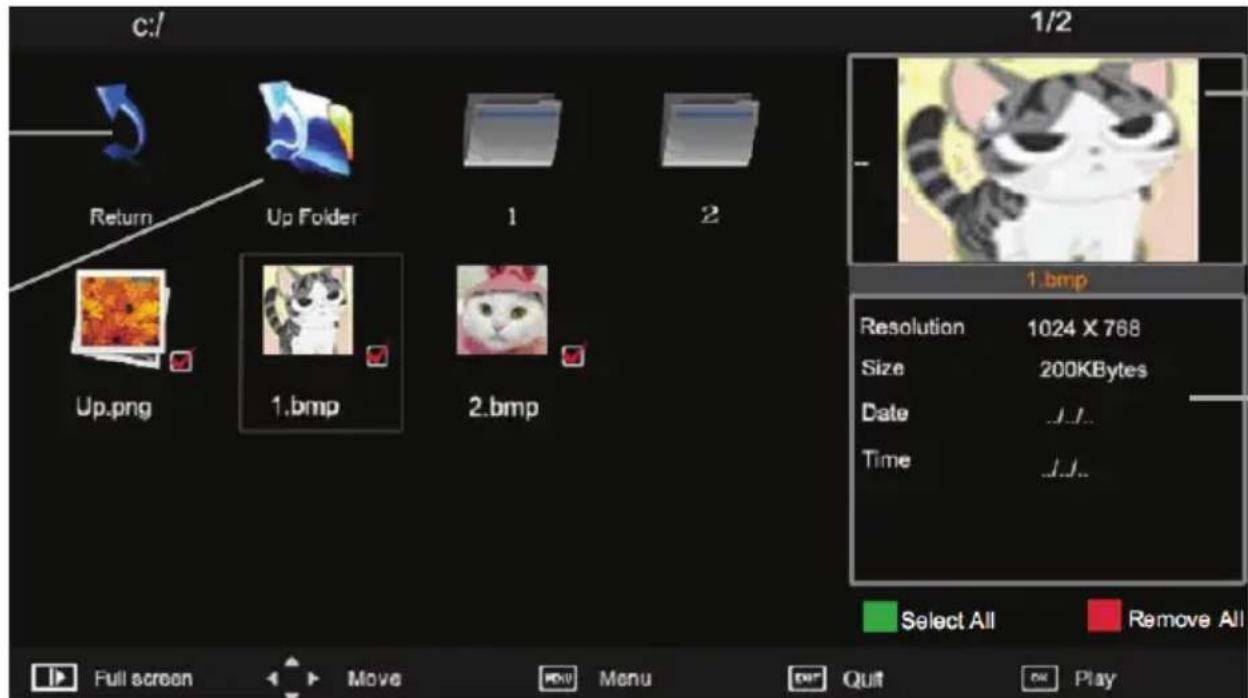

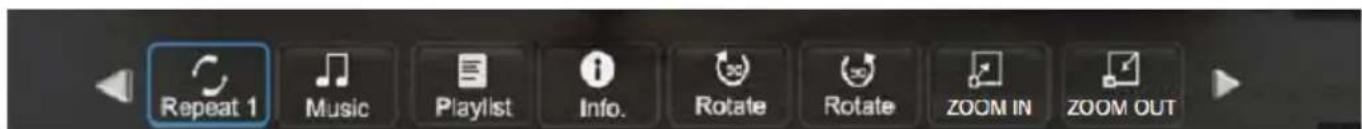

Photos 34

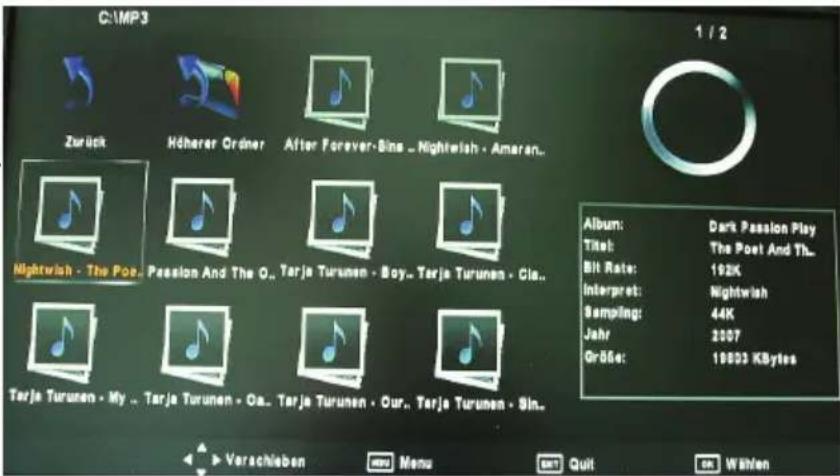

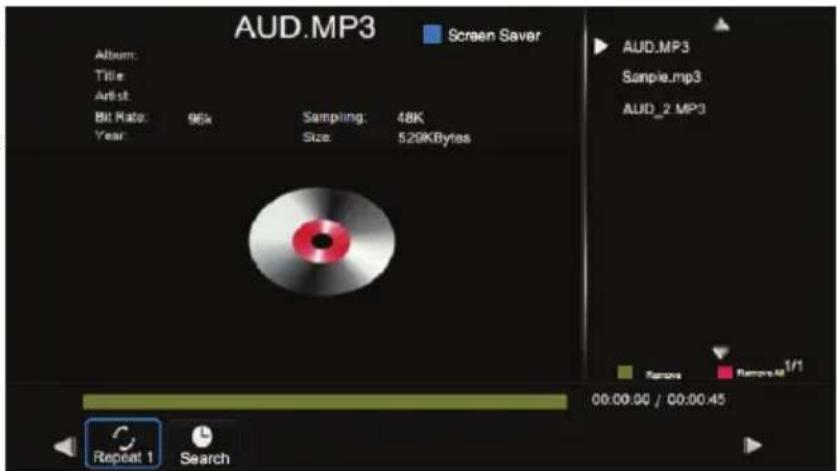

Music 35
Video 36

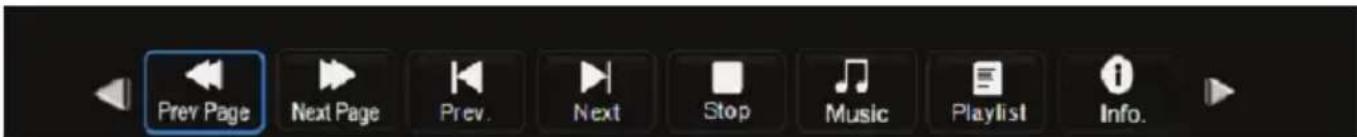

Text 37

LCD Settings

General 38

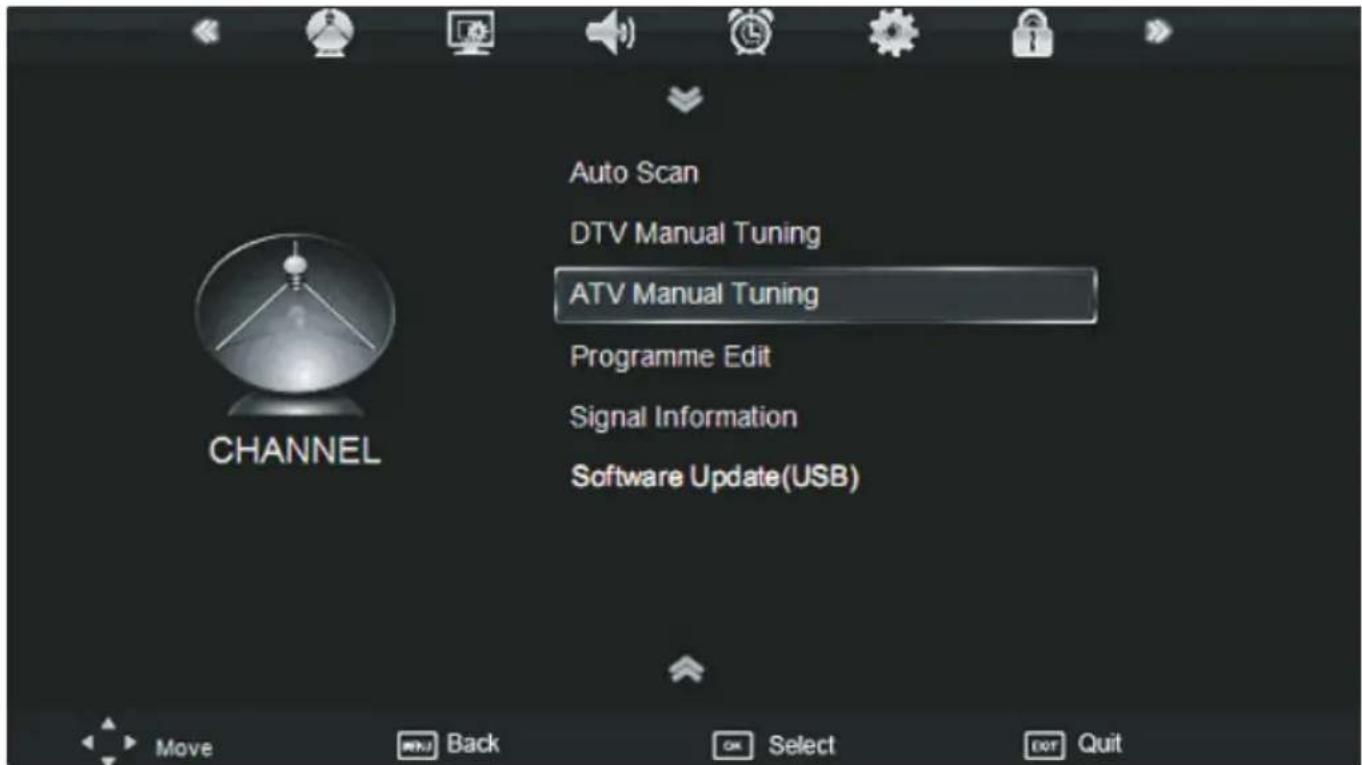

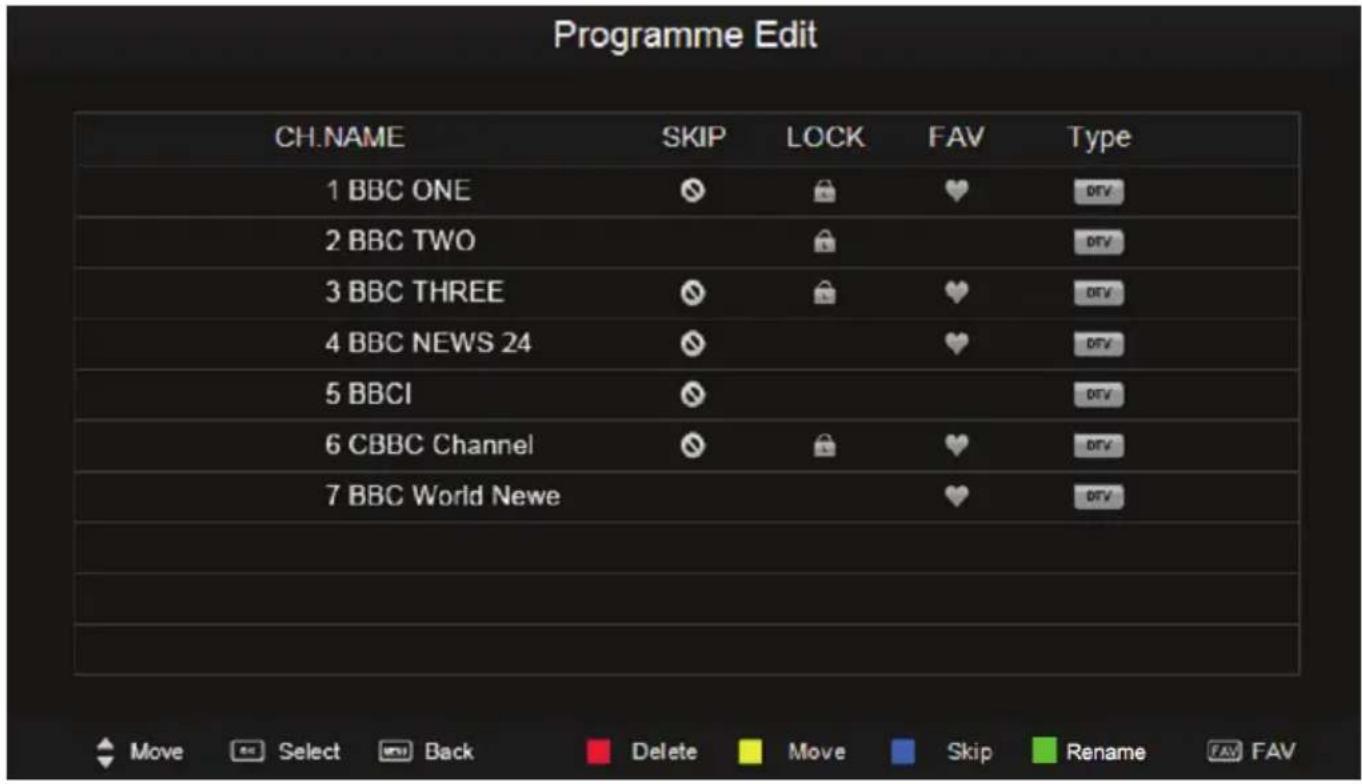

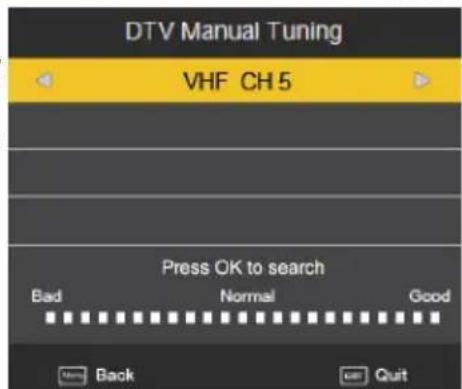

Channel Setting 39

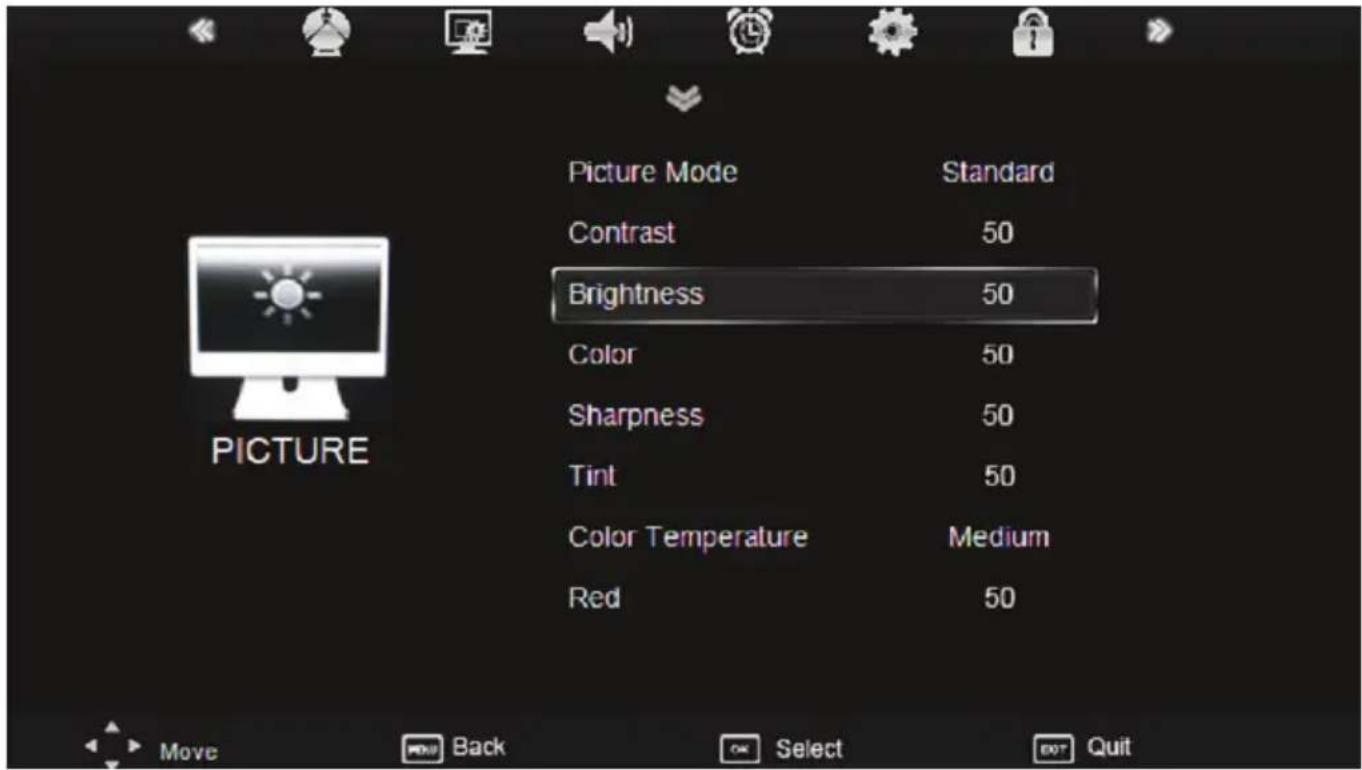

Picture Setting 43

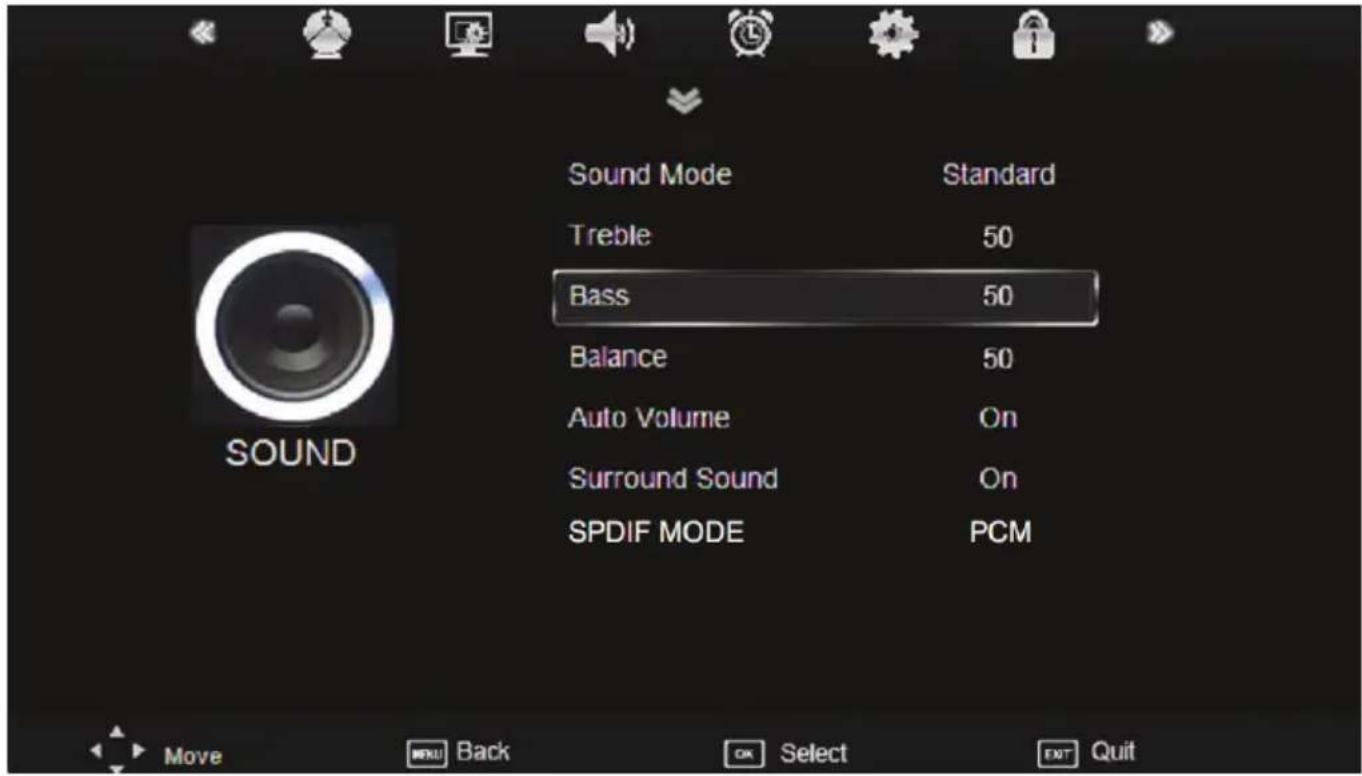

Sound Setting 46
Time Setting 47

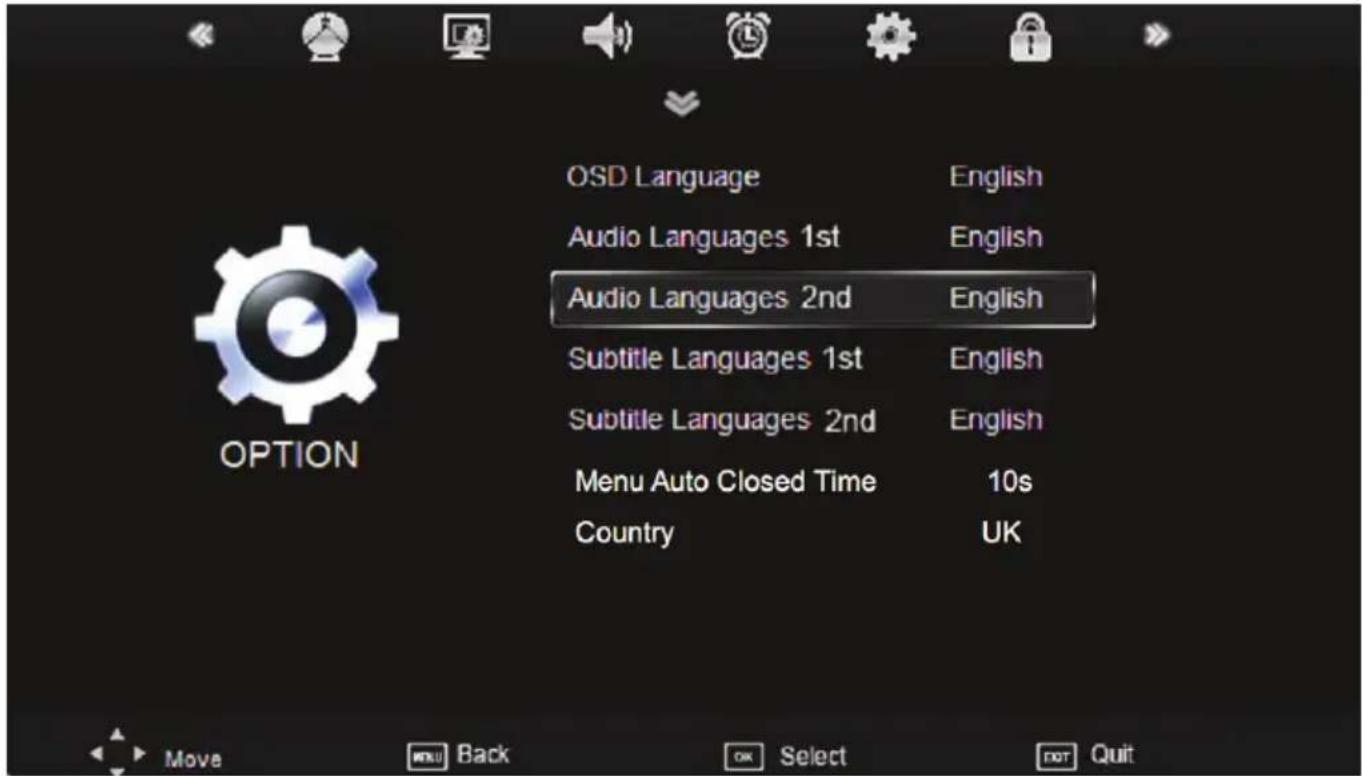

Options 49

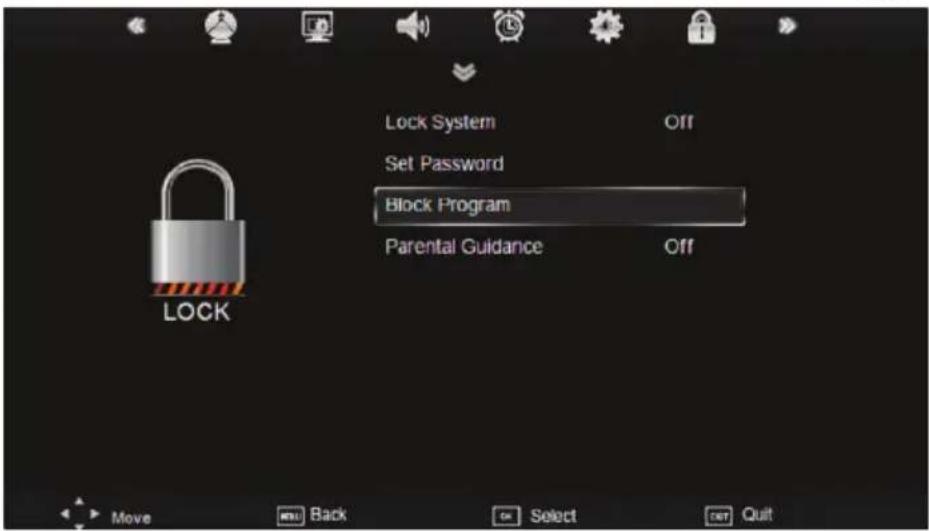

Lock Setting 50

Troubleshooting LCD, ATV & DVB-T 51

DVD Player

Getting into DVD mode 54
Important buttons and there functions 54

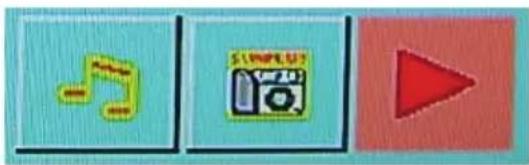

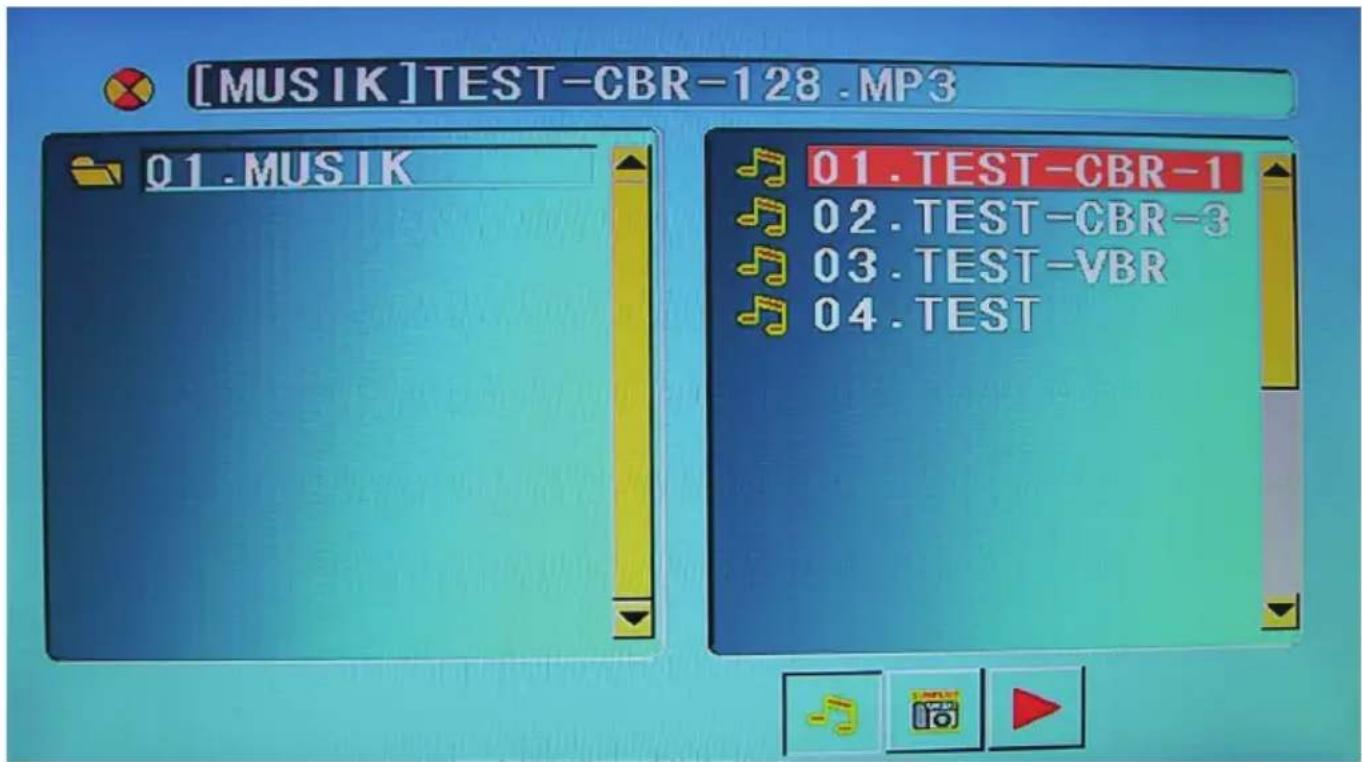

Data memories with Music-, JPEG or Video files 59

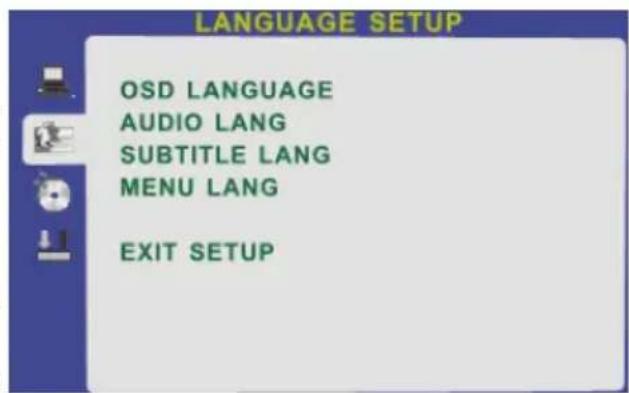

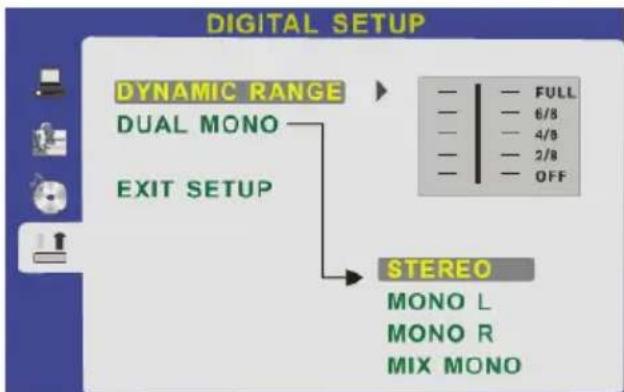

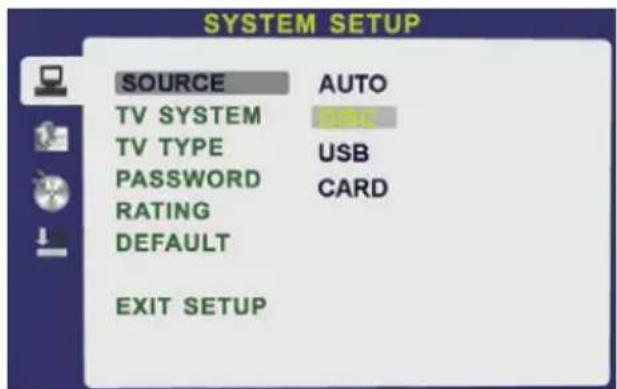

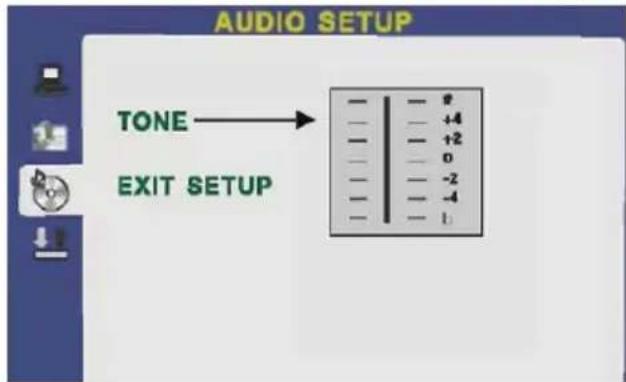

DVD Setup 61
Troubleshooting DVD 64

Specification

General Specifications 66
Pixel Errors 66

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

User Manual

1. All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. All warnings on the product and in the operating instructions should be adhered to.
4. All operating and use instructions should be followed.

Laser

This Digital Video Disc Player employs a Laser System of the class 1.

1. Make sure the device is shut down prior to opening player lid.
2. Do not open the appliance. Do not attempt to dismantle the appliance.
3. In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop.
4. Visible laser radiation when open and interlocks defeated.
5. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Operation

1. Receiving analogue or digital TV broadcast.
2. Playing of Video DVD, Video CD or Audio-CD. USB and card reader are part of the internal DVD-Player.
3. Connecting external devices by HDMI, video components (YUV), SCART, VIDEO or VGA.
4. Record DVB-T broadcast on USB storage.
5. Using Time Shift function with connected USB storage.
6. Playback of media contents from USB storage, supports HD resolutions until 720p
7. No other operation are allowed.

Power Supply

1. Never touch the plug with wet hands.
2. The device can be operated only with the number of voltage described on the back. If you do not know the current you ask an electrician.
3. To prevent overloading, you have many more devices on the same wall.
4. If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
5. Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
6. Make sure that the power cable is not wound around the device while in operation.
7. Never place the machine on the power cable while it is being operated.
8. Only use extension cables that are designed for the power consumption level of the machine.
9. Keep the appliance away from rain and any moisture.
10. Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
11. Do not stand vases etc. on the appliance.
12. Water could seep into the appliance.
13. Do not open the appliance.
14. Pull out the mains plug if the appliance is not to be used over a longer period of time.
15. Take care that nobody can trip over the power supply cable.

Antenna

The device can be connected to an antenna.

1. Unplug the power cord cable from the mains outlet before connecting or disconnecting the DVB-T to/from the antenna, otherwise both might be damaged.
2. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
3. Pull out the antenna connection if the appliance is not to be used over a longer period of time.

Operation and Position

1. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product
2. Protect the device against weather influences, moistures and high temperature.
3. Never spill liquid of any kind on the product.
4. During playback, the disc rotates very fast. Do not open or do not move the player during playback. Otherwise the disc can be damaged.
5. Do not connect accessories on the player which are not defined by the manufacture.
6. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
7. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
8. The internal player or a connected DVD-Player is able to show a still image on the TV screen or monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver. Or switch the player off, if the device is not in use.
9. Do not uses the device permanent in the 4:3 mode. This can cause damage to the screen.
10. Do not increase the volume when the device is just playing very quiet sections. This cold damage the speaker if very loud passages starts all of a sudden after the quiet section.
11. Place only 12 cm CDs or DVDs into the tray.
12. Switch the device off by the Off/On switch if it is not going to used for a longer period of time.
13. Disconnect the main plug during thunderstorms.
14. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.
15. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
16. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
17. Do not expose the device and the remote control to direct sunlight.
18. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.

USB port

1. Due to legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.
2. The USB port can be supported up to 8 GB flash memory size. In order to the many different USB-Sticks and the build-in electronics components a support of all USB-Sticks can not guaranteed.
3. Please format the USB-Sticks only with FAT 32 or NTFS file system. Other file systems are not supported and can not recognize by the USB port.
4. The USB-Sticks will be prepared for recording. Thereby the storages needs to be formatted. All data's will be loosed. Please uses every time the same USB stick for recording or Time Shift.
5. Save all data's from the USB memory before you connect to the TV set.

Defect

1. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way, and

1. When the product exhibits a distinct change in performance this indicates a need for service.
2. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
3. Please read in the section Troubleshooting our service address and phone number.
4. Nicotine can be destroyed the electronically components and can pollute the LCD TFT panel.

Pixel Errors

The pixel errors (bright, dark pixel, line defects and brightness differences) defined in the specifications describe the maximum allowed defects in type and number, which are excluded from coverage.

Dolby

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Macrovision

U.S. Patens Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448 and 6,516,132

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited."

Disc Compatibility

1. Do you uses only 12 cm disc.
2. Depending on the conditions of the recording equipment or the CD-R/RW (or DVD -R, DVD +R, DVD -RW, DVD +RW) disc itself, some CD-R/RW (or DVD -R, DVD +R, DVD -RW, DVD +RW) discs cannot be played on the unit.

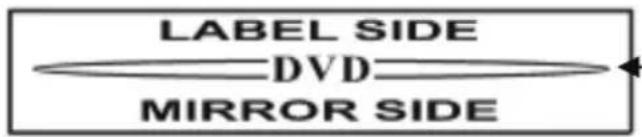

3. Do not attach any seal or label to either side (the labelled side or the recorded side) of a disc.
4. Do not use irregularly shaped CDs (e.g., Heart shaped or octagonal) since they may result in malfunctions.
5. Some playback operations of DVDs and Video CDs may be intentionally programmed by software manufacturers. This unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, therefore some playback features may not be available or other functions may be added.

Recycling Information

Recycling of electronic devices

This product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!

Recycling of paper and carton

The material recycling symbol on the carton and user manual denotes that they are recyclable. Dispose them not with the normal household waste.

Recycling of plastic parts

The material recycling symbol on the plastic parts denotes that they are recyclable. Dispose them not with the normal household waste.

Green Dot

1. The batteries can be returned free of charge after use in the shop or in their immediate vicinity.
2. The consumer is legally obliged to return of used batteries.
3. The icons on batteries are with one of the two following characters, consisting of a strikethrough trashcan and the chemical symbol of heavy metals decisive for classification as contaminant-laden.
4. Both symbols have the same meaning.
5. Batteries that contain pollutants are characterised by chemical symbols: Pb = battery contains lead, Cd = battery containing cadmium, Hg = battery contains mercury.

Every consumer is legally obliged to make these batteries with a collection of his church or in the trade so that they can be conveyed to an environmentally sound disposal. We discard used batteries for you free of charge and environmentally. Simply return them to us.

In the box

Following accessories should be in the box:

• HTC 2232D LCD-TV
  Remote Control with Battery
• Manual
  Video adapter cable phone jack to RCA for video components input
• Main adapter
• Wire for the main adapter
  Warranty card

If any of the accessories are missing, then contact your dealer as soon as possible. Keep all the original packaging in case you need to return the set to the dealer.

Features

LED Edge backlight for high picture quality and low power consumption.
Full-HD Resolution of 1920 x 1080 Pixel with 16:9 aspect ratio
Many Connections: VGA, RF, Y Pb Pr with progressive scan, Composite, SCART and 2x HDMI
HDMI 1.3 with HDCP support
- HDMI supports up to 1080p input resolutions
- 2x Stereo audio inputs for composite, video components and VGA
- USB 2.0 High Speed port
- PVR Ready - Records DVB-T broadcast on USB storage
- Time Shift function when USB Stick is connected
- HD Media-Player - Supports high definition videos in MPEG-2
- Plays videos (MKV, AVI, MP4, MPG, TS), music (MP3, AAC, WMA) and pictures (JPEG, BMP, PNG) from USB storage
- Integrated analog TV Tuner with videotext
- Integrated digital terrestrial TV Tuner (DVB-T) with EPG and videotext
Automatic or manual channel search
- Auto-shutdown to save power when no signal input
DVD-Player inside with Slot-in technology

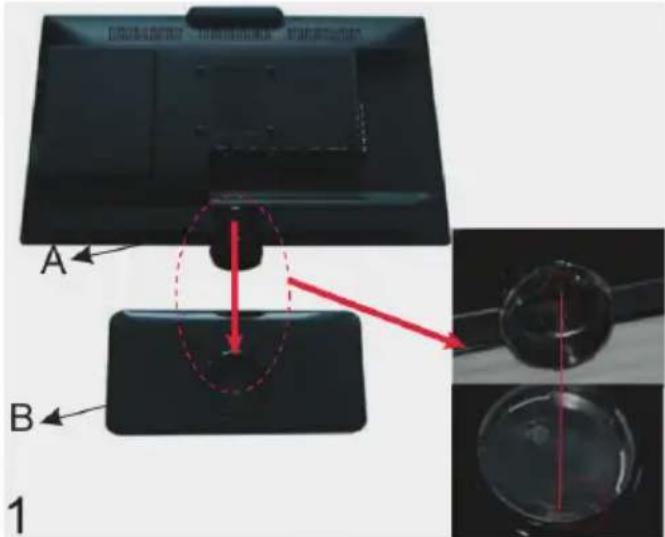

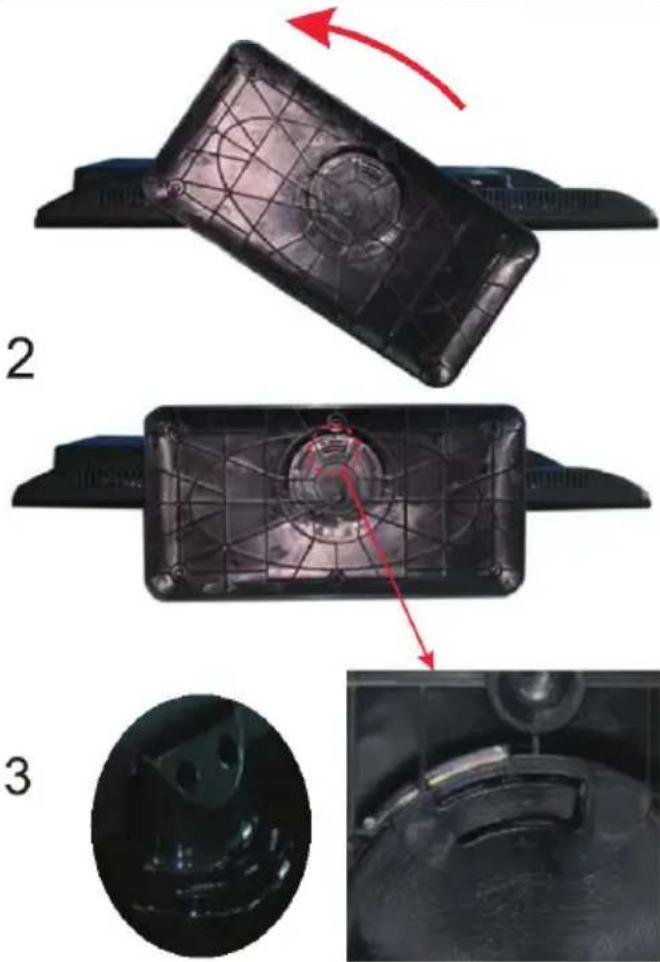

The HTC 2232D is delivered with an un-mounted stand. Before you uses the TV set, please mount the stand.

1. Unpack carefully the TV set from the gift box. The bracket for the stand is premounted. On the bottom side you can find two plugs.
2. Place the TV on a stable surface and cover the piano black front panel with a piece of cloth to avoid scratches.

1. Place the stand in the correct position on the leg retainer and insert them carefully with the bracket (refer picture 2). Rotate the stand in the bracket counterclockwise (to left direction).
2. The bracket click into the place with a clack noise. Rotate the stand carefully to control the correct fitting. Refer in picture 3 for details.

Set up at the TV again and lift them slightly. If the wrong foot drops or sitting on the stand operator, repeat the process again.

Notes:

• Please mount the stand carefully.
  Control the fitting of the stand after the mounting.

Quickstart Guide

1. Mount the stand.
2. Connect the aerial or input source to the appropriate input socket at the rear of the set.
3. Connect the small round plug on the power adaptor cable to the power input socket at the rear of the set.
4. Connect the main cable between the power adapter and the main supply. The LED will show a red light.
5. Switch the power on by pressing the POWER button on the front panel or the remote control. The LED will show a green light.
6. Use the INPUT button on the front panel or the remote control and a popup window with the sources appears on the screen. You can select following sources: ATV, VGA, YUV, AV, HDMI1, HDMI2, SCART, DTV, USB or DVD. You can use the front panel control to adjust the volume or select a channel, as shown below, or you may use the remote control and confirm by OK button.

A. Analog TV tuner (for example: cable system)

After switched on and press the INPUT button and choose "ATV" by pressing the navigation button UP/DOWN and confirm by the OK button. Now the HTC 2232D is in analogue TV Mode. By the first using of the TV set, the systems starts automatically the menu for searching the TV channels (please refer page 21).

B. DVD-Player:

Switch on the unit and press the INPUT button and choose "DVD" by pressing the navigation button UP/DOWN and confirm by the OK button. Now the HTC 2232D is in DVD Mode.

C. DVB-T mode:

Switch on the unit and press the INPUT button and choose "DTV" by pressing the navigation button UP/DOWN and confirm by the OK button. Now the HTC 2232D is in DVB-T mode. By the first using of the TV set, the systems starts automatically the menu for searching the TV channels (please refer page 21).

1. To switch the set off a short time, press the POWER button, the set will go into stand-by and the LED will show red. If you are not going to use the set for some time, switch the power off completely by unplugging the mains cable.

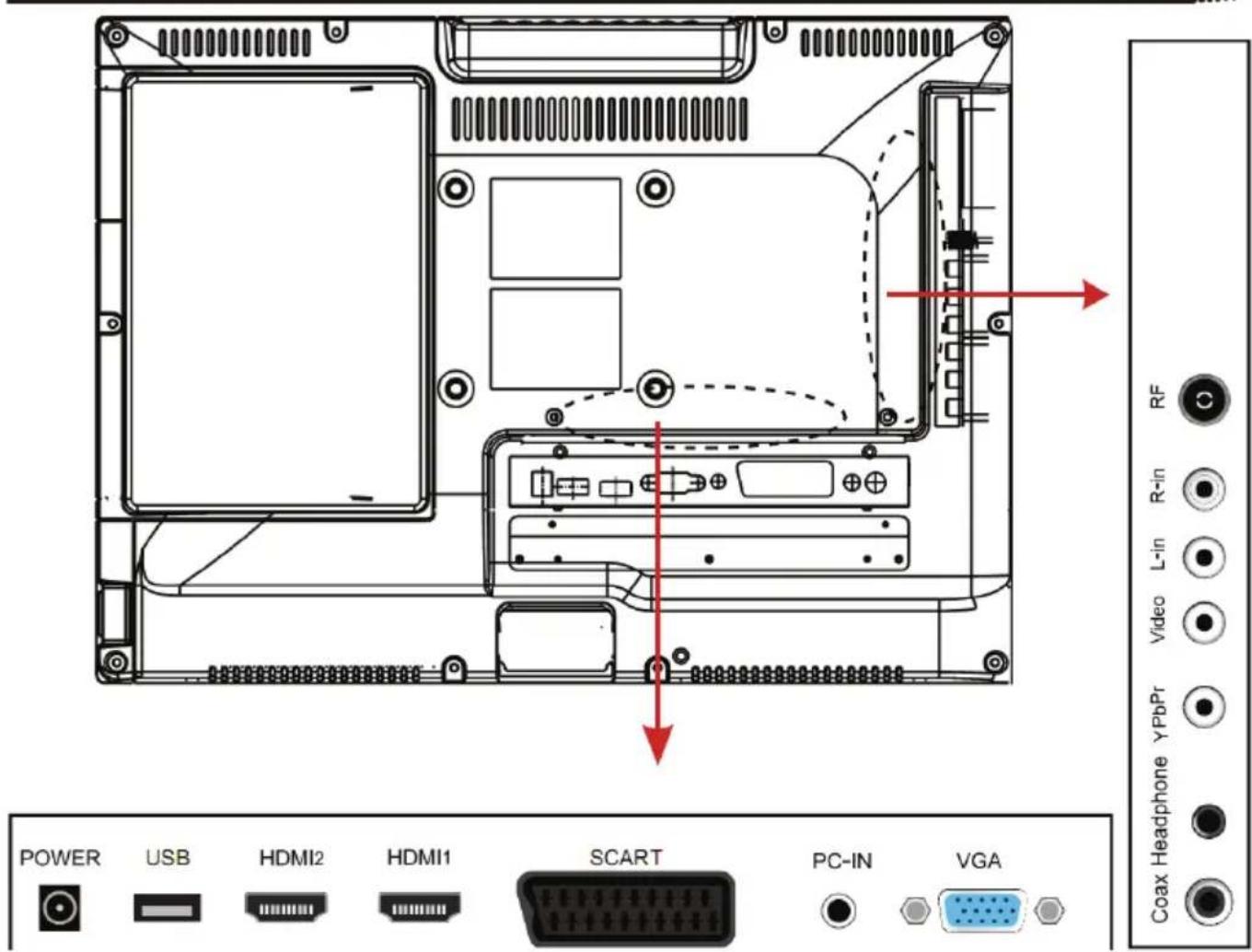

Rear Connection Panel

Name	Function Description
POWER	Connect to Power Adapter
USB	USB port for playback of audio, video and picture files
HDMI2	Second HDMI input
HDMI1	First HDMI input
SCART	Euro AV (Audio/Video) input
PC IN	Audio signal input for VGA (jack plug)
VGA	VGA signal of computer input
Coax	Digital Audio Output by coaxial (RCA)
Headphone	Headphone (jack plug)
Y Pb Pr	Video components signal input (jack plug)
Video	CVBS video input (RCA)
L-in + R-in	Audio signal input for YPbPr and Video (RCA)
RF	Connect to cable or air

Control Elements

Right Side

On the right side you can find the DVD-Player.

Notes:

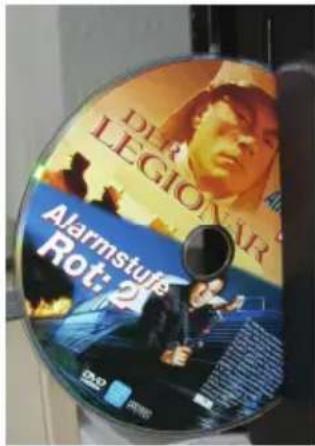

1. The DVD-Player has a Slot-In loader.
2. Insert the disc into the loader so that the label side shows backwards and the mirror side to the front.
3. Do you uses on 12 cm disc.

Buttons on the top side

MENU

CH-

CH+

VOL-

VOL+

INPUT

PLAY

EJECT

POWER

On the top side you can find following buttons:

Button	Function
Menu	LCD Settings
CH+ / CH- Change TV channel
VOL+ / VOL- Change volume
INPUT	Select Source
PLAY Play button (DVD-Player)
EJECT Open/Close of the DVD loader
POWER On / Off button

Front Side

IR = Receiver for the Remote Control LED (Red = Stand-By / Green = On)

LED

The LED shows the status of the device. Red indicates the Stand-By mode and Green indicates that the device is ON.

IR

Infrared receiver

Speaker

Right and left speaker

LCD Panel

LCD TFT Panel

Insert battery into the remote control

Insert the batteries in the remote control:

1. Open the cover.
2. Insert the batteries. Make sure to match - and +.
3. Close the cover

Notes on batteries:

Improper use may cause battery leakage and corrosion.

Please follow the instructions below:

• Do not insert the batteries in the wrong direction
• Do not use different types of batteries together
• If you do not use the remote control for a long time, remove the batteries
• If the remote control operates not correctly, replace the batteries
  If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries
  Make sure that the used batteries are disposed properly according to you local regulations.

Operation range

Point the remote control at the IR:

1. Within about 5m
2. With an angle about 30 grade in both direction.

Notes:

• Do not expose the IR of the device to a strong light source or direct sunlight.
• Direct the remote control at the infrared receiver (IR) of the player
• Do not drop the remote control.
• Do not spill water or put anything wet on it.
• Do not disassemble the remote control.

Remote Control

To display in a better view the picture of the remote control is inverted.

Buttons of the remote control:

ATV: Analogue TV Tuner

DTV: Digital TV Tuner

DVD: DVD Player

REC: Recorder

USB: Media-Player

1. POWER button
2. Exit button
3. MENU button for LCD settings
4. Picture mode button (PICTURE)
5. MUTE button
6. Numeric buttons (0..9)
7. ATV + DTV: RECALL button
8. Increase Volume (VOL+)
9. Navigation cross (Up, Down, Left, Right)
10. Decrease Volume (VOL-)
11. DVD + USB: Pause button (||); REC: Time Shift button
12. DVD + USB: Play button (>
13. ATV + DTV: Hide Videotext (CANCEL); DVD + REC + USB: Fast Forward button ()
14. ATV + DTV: Hold Videotext (HOLD): DVD + REC + USB: Fast Rewind button (<<)
15. REC: Recording list button (LIST); DVD: Video-DVD Menu button (D.MENU)
16. ATV + DTV: Channel list button (CH/ LIST); DVD: Setup setting button (SET)
17. ATV + DTV: Videotext button (TV TEXT); DVD: Program Play button (PROGRAM)
18. ATV + DTV: Videotext subpage button (SUBPAGE); DVD + USB: Repetition button (REPEAT)
19. Aspect Ratio button (RED) for sources; ATV + DTV: Red function button for Videotext; LCD: Function button; DVD: Zoom function button
20. DTV: Schedule list button (GREEN);
    ATV + DTV: Green function button for Videotext; LCD: Function button; DVD: Video DVD Title button (TITLE)

More button description on the next row.

Buttons of the remote control:

ATV: Analogue TV Tuner

DVB-T: Digital TV Tuner

DVD: DVD Player

REC: Recorder

USB: Media-Player

1. Information button (DISPLAY)
2. Audio button for DTV + USB + DVD
3. Sleep Timer button (SLEEP)
4. Sound mode button (SOUND)
5. Sources button (INPUT)
6. ATV + DTV: Channel up button (CH+)
7. Confirmation button (OK)
   28.ATV ^+ DTV: Channel down button (CH-)
8. DVD + USB: Stop button; REC: Stops recording
9. REC: Record button; DVD: Open/ Close the tray
10. ATV + DTV: Videotext Index Page button (INDEX); DVD + USB: Previous file or Chapter button (|< < )
11. ATV + DTV: Zoom of Videotext (SIZE); DVD + USB: Next file or chapter button ( |)
12. DTV: EPG button
13. ATV + DTV: Favourite button (FAV)
14. DTV + DVD: Subtitle button (SUBTITLE)
15. ATV + DTV: Shows hidden Videotext pages (REVEAL); DVD + USB: Slow motion button (SLOW)
16. ATV + DTV: Blue function button for Videotext; LCD: Function button; USB: Screen off button
17. ATV + DTV: Yellow function button for Videotext; LCD: Function button; DVD: Goto button (GOTO)

Connection

Power connection

Connect the cable mounted female connector (IEC C13) of the power cable to the male connector (IEC C14) of the power adapter. Connect the female coaxial power connector to the power plug of the TV set. Connect the CEE 7/7 plug with the wall mounted power outlet.

On the front side you can see a red LED light. The TV set is now in Stand-By mode. By pressing the POWER button on the remote control or on the top side of the device the red LED changes to a green light.

Antenna

The TV set has an analogue and a digital TV Tuner inside. For receiving analogue TV signals please connect the antenna cable with the RF connector on the HTC TV set and with the VHF/UHF roof antenna or with a CATV antenna plug.

For receiving digital terrestrial TV signals please connect the HTC TV set with the RF plug and also with the roof antenna. If no roof antenna is available, please use indoor aerial.

For activating the analogue TV Tuner, please switch with the INPUT button and choose in the popup window "ATV" or "DTV" for digital terrestrial TV and confirm by the OK button.

Note:

For getting the best DVB-T reception please uses the roof antenna. If not possible, than you can connect the HTC TV set with an active indoor aerial.

SCART Input

Audio- and Video signals from a VCR or a setup box can be transmitted by SCART. Please connect a SCART cable with the SCART input on the HTC TV set and with the SCART output on the VCR or setup box.

Press the INPUT button, choose "SCART" in the popup window and confirm by the OK button.

SCART

HDMI 1 and 2

If you want connect a multimedia device with HDMI like a game console "PS3" or a Setup box with the HTC TV set, you can establish a HDMI connection. Please connect the HDMI cable on the HDMI1 or HDMI2 interface on the TV set and the HDMI output of the multimedia device.

HDMI2

HDMI1

Please press the INPUT button, choose "HDMI1" or "HDMI2" in the popup window and confirm by the OK button.

Component Y Pb Pr Video- and Stereo Audio input

If you uses more than one multimedia terminals and the SCART, HDMI and Video connection are used, than you connect the next device by the audio/video component input (Y Pb Pr). Please connect the video adapter cable with the phone phone jack into YPbPr jack plug of the TV set. Connect the 3-wire video component cable to the RCA jack of the adapter cable and the other end to the multimedia device. Please pay attention to the coloured coding of the

YPbPr

L-in

R-in

cable, inputs jacks (adapter cable) and the video output jacks (source):

• "Y" with the green wire or RCA plug
• "Pb" with the blue wire or RCA plug
• "Pr" with the red wire or RCA plug

With this kind of connection only video signals are transmitted. For listening sound on the TV you should establish also a sound connection. Please connect the white and red wire of the 2-pin component cable with the AUDIO OUT (source) and the RCA jack with the "L-in" and "R-in" of the TV set.

Please press the INPUT button, choose "YPbPr" in the popup window and confirm by the OK button.

Video- and Stereo Audio input

If you uses more than one multimedia terminals and the SCART, HDMI and YPbPr video connection are used, than you connect the next device by composite. Please connect the CVBS cable with the CVBS input of the TV set and with the CVBS output of the multimedia device. With this kind of connection only video signals are transmitted. For listening sound on the TV you should establish also a sound connection.

Please connect the white and red wire of the 2-pin component cable with the AUDIO OUT (source) and the RCA jacks "L-in" and "R-in" of the TV set.

Video

L-in

R-in

Please press the INPUT button, choose AV^ in the popup window and confirm by the OK button.

USB Port

The USB port has different functions:

1. PVR function
2. Time Shift Function
3. Playback of recorded TV programs

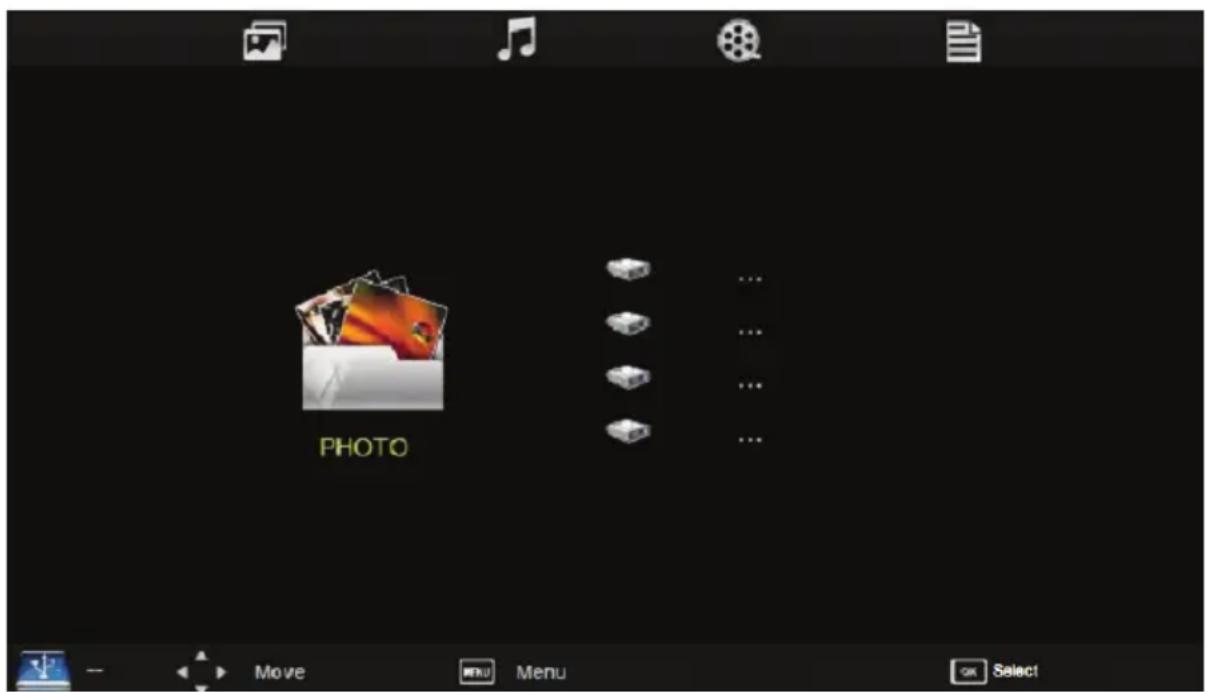

4. Playback of Video, Audio and Picture content from USB storage
5. Install new firmware version

Please press the INPUT button, choose "USB" in the popup window and confirm by the OK button.

Connection

VGA

You can use the TV set as a PC monitor by using the VGA interface. Please connect a VGA cable with the VGA input of the TV set and with the PC.

With this kind of connection only video signals are transmitted. For listening sound on the TV you should establish also a sound connection. Please connect the white and red wire of the 2-pin component cable with the AUDIO OUT (source) and the stereo jack with the "PC IN" plug of the TV set.

Please press the INPUT button and choose "VGA" in the popup window. The VGA input is active.

Notes:

1. Before you connect the HTC TV set with the PC, please change the graphic resolution of the PC to: 640 × 480 , 800 × 600 or 1024 × 768 .
2. Please establish the connection and switch to "PC-VGA" input.

3. For displaying the best results, please uses the native resolution of the TV LCD panel:

4. HTC 2232D 1920 x 1080 Pixel

Digital Coaxial Sound output

The specifications of DVB broadcast allows to transmit Stereo and/or Dolby Digital sound. To output the Dolby Digital sound you can connect the TV set with a digital amplifier and listen the sound by a connected speaker set.

Headphone

You can connect the a headphone on the TV set. Please insert the 3.5 phone jack into the headphone connector.

Headphone

First Time Installation

When you start the HTC 2232D TV set the first time and choose TV or DTV, than appears the installation guide on the screen. With this guide you can search analogue and digital TV channels. The search routine includes the frequencies of the analogue and digital broadcaster.

1. Please select the OSD language. You can choose the pre-installed languages by pressing the or buttons.
2. Press the button and navigate option „Country". Please choose the suitable country by pressing the or buttons.
3. Press the button and navigate option "Search Mode". Please choose by pressing the or buttons the search mode. The options are: ATV + DTV, DTV or ATV. If you want to search only DVB-T broadcast, then choose the option DTV.
4. Press the OK button and the sea immediately.

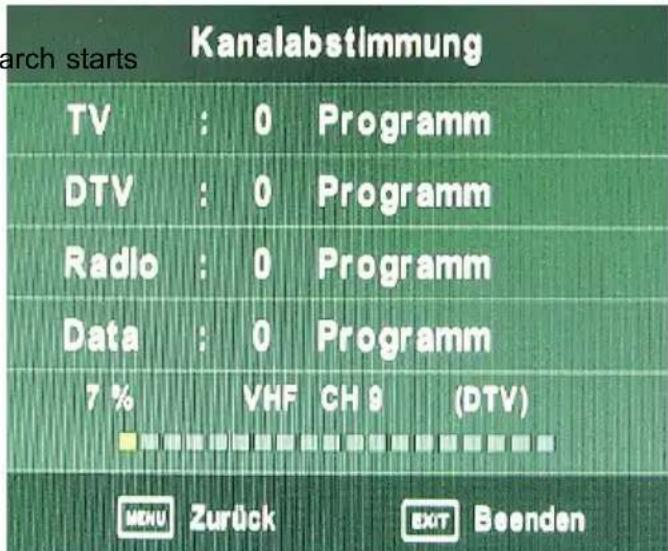

5. A new window opens on the screen, where the status of the searching is documented. The values of the found TV broadcast stations of analogue, digital and Radio are listed.
6. After finishing of the searching, all found TV broadcast station will be saved into the channel list. You can look at the TV channel list by pressing the CH/List button.

Note:

The complete searching needs a couple of minutes.

The single sources and inputs of the HTC2232D TV set can be choose by pressing the INPUT button on the remote control or the INPUT on the top side of the TV set. A popup window appears on the screen. The sources are:

DTV	DVB-T	TV	Tuner
ATV	Analogue TV Tuner
SCART	SCART Video/Audio Input
YPBPR	Video component input
DVD	Internal DVD Player
PC	VGA	port
HDMI1	First HDMI input
HDMI2	Second HDMI input
AV	CVBS Video Input
USB	USB	port

Input Source

DTV

ATV

SCART

YPBPR

DVD

PC

HDMI1

HDMI2

AV

USB

Move Select Quit

There you can choose the source by pressing the / button. Confirm the selected source with the OK button.

Important buttons and there functions

Starts DVB-T Mode

If you want to use the terrestrial digital TV (DVB-T), than you need to change the source into DTV. Press the INPUT button and navigate to DTV with the / button. Confirm the selection DTV by pressing the OK button.

Channel List

Press the CH/LIST button on the remote control and you gets the provided and receives TV broadcast stations. By using the / buttons you can select the TV station, which you like. To disappear thee channel list, press the EXIT button.

Change TV channel

To change to TV channel you can press the CH- or CH+ button.

Select TV Channel

You have also quick access to the different TV channels by using the numeric buttons.

Last TV channel

Press the RECALL button to go back to the last TV channel.

Change the Volume

By pressing the VOL- or VOL+ buttons you can adjust the volume of the speaker.

TV/Radio

Press the CH/LIST button to bring up the channel list. To switch between TV and radio, then press the button repeatedly until the radio list appears. Select using the / keys to select the radio transmitter and confirm the selection with the OK button.

Note:

Digital Radio will be not transmitted in every country.

EPG

Press EPG button to show the EPG information. For detailed information about the EPG please refer the section about EPG.

Favourite list

If you had defined some TV or Radio into a favourite list, than you have a quick access to the favourite list by pressing the FAV button.

Important buttons and there functions

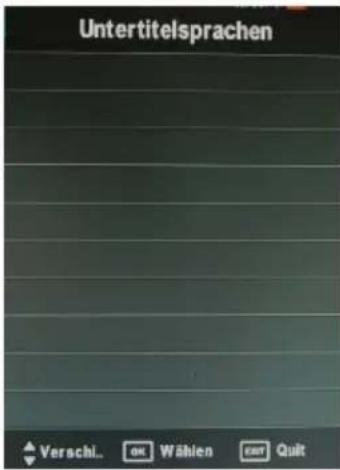

Subtitle

Press SUBTITLE button to turn on or off the subtitle on the screen. This function can be activated, if the service is provide by the TV channel and program. In case that subtitles are supported, than they will be listed into the popup window. You can choose the subtitle and start them with the OK button.

Note:

Subtitles are not supported in every country.

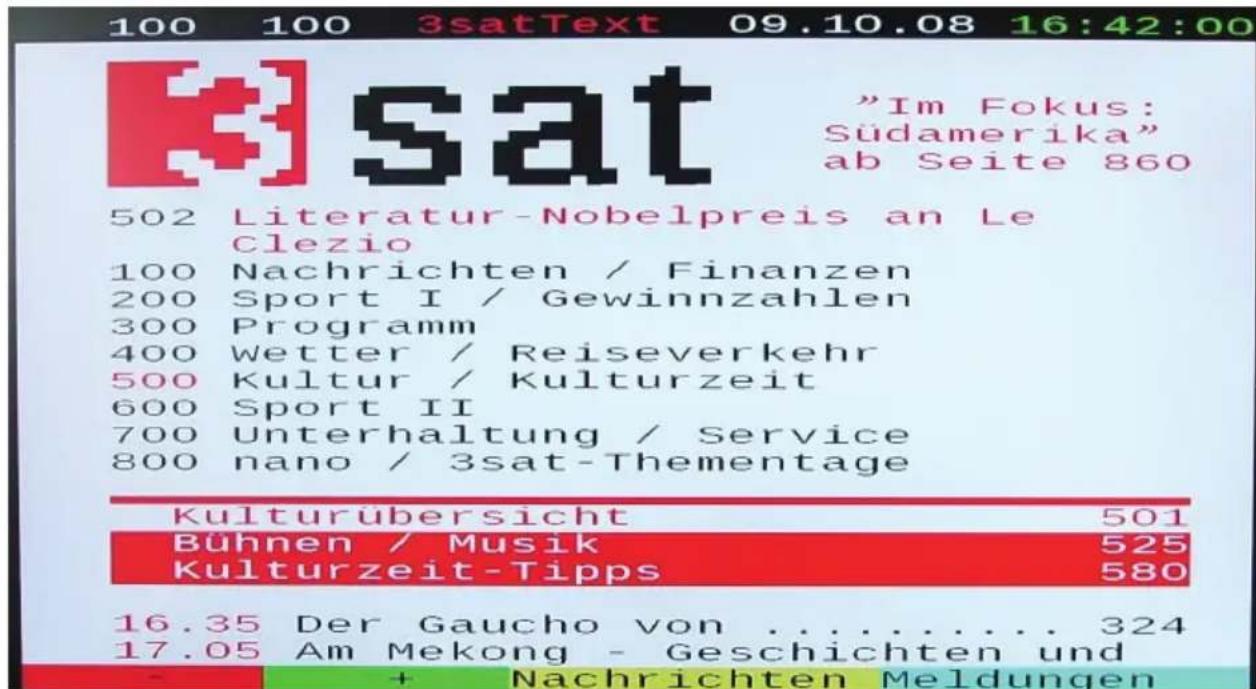

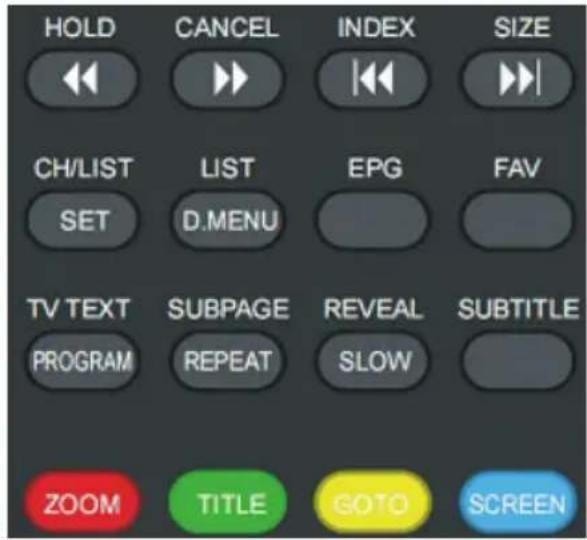

Tele-/ Videotext

Press TV TEXT button to view the videotext information of the current TV program.

1. TV TEXT button starts and ends the Videotext window
2. CANCEL button fades out the Videotext window and hidden them in the background.
3. REVEAL button shows hidden Videotext pages
4. HOLD button holds on the Videotext page during the scan.
5. SIZE button zooms the Videotext window.
6. SUBPAGE button shows the subpages of Videotext
7. INDEX button makes a quick access to the index page (normally page 100)
8. RED button goes one page backward
9. GREEN button goes on page forward
10. YELLOW and BLUE button allows the quick access to specific page

Important buttons and there functions

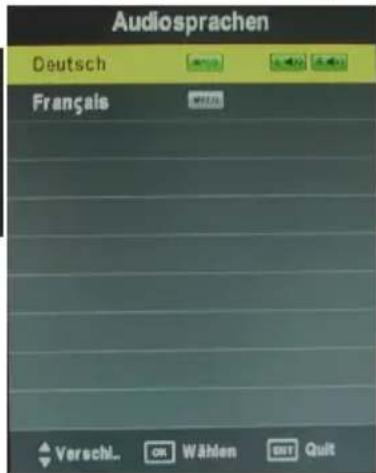

Language or another Audio

Press AUDIO button to change the audio language or the audio track output. After pressing the AUDIO button a popup window appears on the screen, where you can select the preferred audio language or sound mode by using the / buttons. Confirm the selection by pressing the OK button.

Note:

Some broadcaster supports different languages or sound modes.

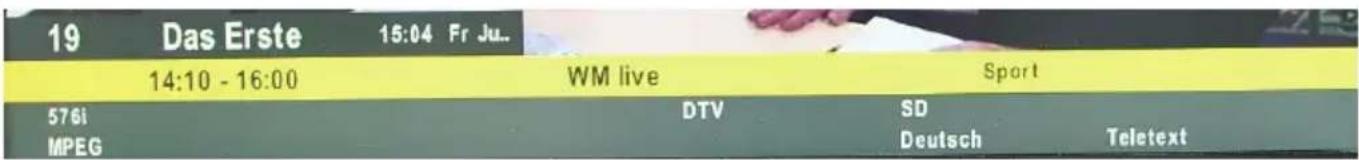

Quick-Information

Press the OK button during the live picture and a popup window appears on the screen. The information in the window are TV program title, current date, current time, duration of the actual TV program, resolution of the transmission (for example 576i) and if videotext is available.

On the right side you can find an arrow sign. By pressing the button you gets information about the next TV program.

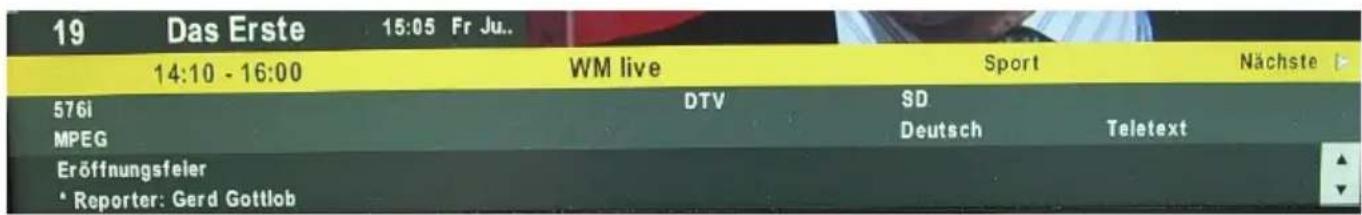

Information

Press the DISPLAY button during the live picture and detailed information are appears on the screen. Beside the TV program title, time, date, duration time of the current program title, resolution of the broadcast and if videotext is available, you can see the detailed EPG information of the current TV program. With the / buttons you can browse all EPG information, if more than one page is available. By pressing the button you gets information about the next TV program and there EPG information.

EPG

The electronic program guide (EPG) can be activated by pressing the EPG button as well and the EPG window appears on the screen.

The EPG window is organized in three sections:

LEFT Sort mode (current Time), Date with Time and Channel List

RIGHT Detailed EPG information to on TV Program

BOTTOM Buttons for operation

Sort Mode

The TV set sorts the EPG by Time or Channel.

Time

The EPG list is now sorted by time. To each TV broadcaster the actually TV programs is listed. With the / buttons you can change to the TV channel. With the or buttons you can display the previous or next page in this view.

TV channel

The EPG list is now sorted by TV channels. All TV programs of the next 7 days are listed. If the TV channel is marked with yellow, than you can change them by using the or buttons.

With the / buttons you can browse into the TV programs. If one TV program is marked yellow bar, than you can goto the next or previous page with the or buttons.

EPG

The operation buttons are listed in the bottom line.

INDEX Switch the sort mode between Time and Channel RECORD Starts the Timer programming on a marked TV program GREEN Programs the starting of the TV set in the DVB-T mode YELLOW Shows the Timer Programming list on the screen

The INDEX button to change the sorting sequence. The cursor is on the top box (left), so that is time or station deposited yellow. Now go to the or keys to sort sequence.

Would you like to schedule a recording, then press the RECORD button. On the TV set appears a window in which are the parameters of the recording. Detailed information are on page 33.

Want to watch a particular program regularly, you can activate the alarm. Press the GREEN button on a mail and then you can set the parameters.

The figure shows the Options pop-up window. If necessary, change the setting in which change with the or buttons on the options. These are "Mode", "Minute", "Hour", "Date" and "Month".

The options can be customized using the or keys to your wishes.

The YELLOW button have access to the timer settings. There, all scheduled events are listed. Within this list, you can also delete events. Select an appropriate program and press the RED button to delete from the list.

With the MENU button turn back a lever higher. Press the EXIT button to exit the EPG window completely and you get to the live image of the active channel.

Switch to ATV

If you want to use the analogue TV Tuner (Cat TV), than you need to change the source into TV. Press the INPUT button and navigate to TV with the / button. Confirm the selection TV by pressing the OK button.

Channel List

Press the CH/LIST button on the remote control and you gets the provided and receives TV broadcast stations. By using the / buttons you can select the TV station, which you like. To disappear thee channel list, press the OK button.

Change TV channel

To change to TV channel you can press the CH+ or CH- button.

Select TV Channel

You have also quick access to the different TV channels by using the numeric buttons.

Last TV channel

Press the RECALL button to go back to the last TV channel.

Change the Volume

By pressing the VOL- or VOL+ buttons you can adjust the volume of the speaker.

Videotext

Please refer the description on page 24.

Preparing of the USB Storage

In DTV Mode Only

PVR function allows the unit to record live DTV program and make it available for reviewing at any time.

NOTE:

• When PVR function is in progress, please don't unplug the power and the external USB device at will.
• When PVR function is active, the power indicator will blink with red and blue consecutively.
• Before start recording a program, please make sure the external USB device is connected.
• While recording, if the available storage space becomes low, the recording will be automatically stopped.

Preparation of USB Storage for Recording

After connecting the memory, press the MENU button on the remote control and select with the arrow keys to select the menu Channel entry with the arrow buttons / . Press DOWN arrow key until you reach the sub PVR File System. Press the button to open the menu. The menu PVR File System appears on the screen.

The submenu PVR File System include the option for Select Disc, Check PVR File System, USB Disc, Format, Time Shift Size and Speed.

Select Disk

Select a disk to store the recorded file. Press the button to select Select Disk and press the or OK button to prompt a sub-menu.

Check PVR File System

Press the button to select Check PVR File System and press the or OK button to start them.

After checking the file system, the item "USB Disk" will display "Success" indicating the file system in the USB disk connected has been checked and ready to use.

If the USB disk does not have a PVR File System, then unit will prompt a message asking user to format it.

Format

Press the button to select Format and press the or OK button to prompt a sub-menu which occurs only when the USB device is plugged in for the first time, as shown.

WARNING

• All data on the connected device will be lost if you confirm to format.
• It is strongly recommended that the USB device is dedicated only for this unit. Various external data contain in the USB device might cause DVR file system corrupt and requires formatting.
• Once USB device is formatted, unit will create a unique file system on it. Therefore, it is not advisable to connect USB device to a computer to export data.

PVR File System Type

The item PVR File System Type is highlighted and press the button to choose the File System to be format and press the OK button.

FAT32

This file system is compatible with all computers, so that the disc be read after admission.

Hi Speed FS

This is a proprietary file system, which while browsing speed of the recording is optimized.

Once selected, you can define the partition size that is for the Hi Speed FS file system used. We recommend a size of 50% of the disk in Hi Speed FS file system. The partition is formatted and occupied.

After recording the file in the FAT32 partition will be stored so that they can also be read and edited on a computer.

Time Shift Size

After the disk format is finished, the menu as shown on the right will appear.

The item Time Shift Size is highlighted, press the button to choose a size to be allocate for time shift. The maximum value is 8 GB.

Press the button to highlight OK and press the OK button to confirm and return.

Speed

Once USB device is checked, this item will display the USB data transfer rate and the remaining space in it.

The last picture shows the ready USB storage.

1. Connect an USB storage to the USB port
2. Make sure, that the USB storage is prepared for recording. Otherwise the storage will be not accept.
3. Only in DVB-T mode can be record a TV program.
4. The system records a transport stream with the suffix TS.

Select the desired program then press the RECORD button on the remote control to start recording and the progress bar will be displayed.

The operations are STOP for cancel the recording and PLAY for activates the trick modes. The trick modes are similar than during Time Shift.

Press PLAY button to start the trick mode. The device starts the playback of the recorded file from the beginning. The recording continues in the background.

To change the operation please use the button to choose one option and confirm them with the OK button.

PLAY Starts the playback of the recording from the beginning

PAUSE Pause of playback

STOP Stops the playback (not the recording itself). Two times STOP ends the recording.

<< Fast Rewind with the speeds of x2, x4, x8 and x16 times

Fast Forward with the speeds of x2, x4, x8 and x16 times
Jumps 30 seconds backward
Jumps 30 seconds forward

Time Shift Function

This function allows you to pause and fast forward/rewind normal Live DTV viewing at any time without missing any of the live broadcast, provide that a USB storage device is connected. During viewing a DTV program, press the PAUSE button on the remote control to pause live TV. A progress bar is displayed on the screen.

PLAY Starts the playback of the recording from the beginning

PAUSE Pause of playback

STOP Stops the playback (not the recording itself). Two times STOP ends the recording.

<< Fast Rewind with the speeds of x2, x4, x8 and x16 times

Fast Forward with the speeds of x2, x4, x8 and x16 times
Jumps 30 seconds backward
Jumps 30 seconds forward

RECORDER

Playing recorded program

You can play the selected program in the recorded list.

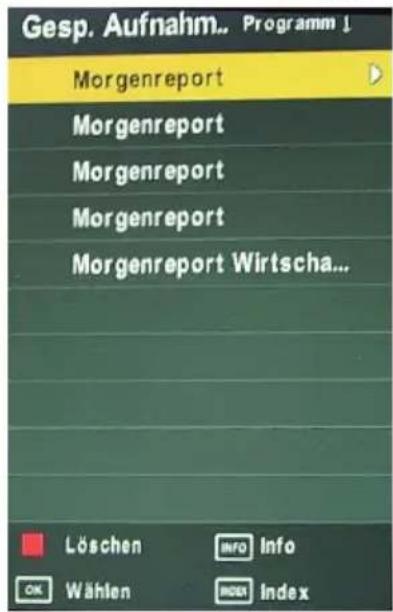

Press the LIST button on the remote control to enter the Recorded List, as shown:

Press the LIST button repeatedly to list the files by named Program, Channel or Time.

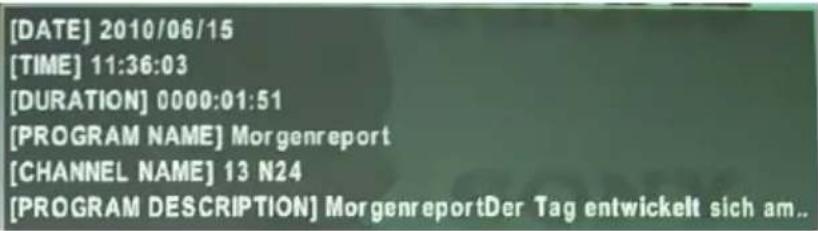

Information about a recorded file

Press the button to select desired file and press the INFO or

direction button to display the information of the file.

Playback

Press the button to select desired file and press the OK button to playback selected file.

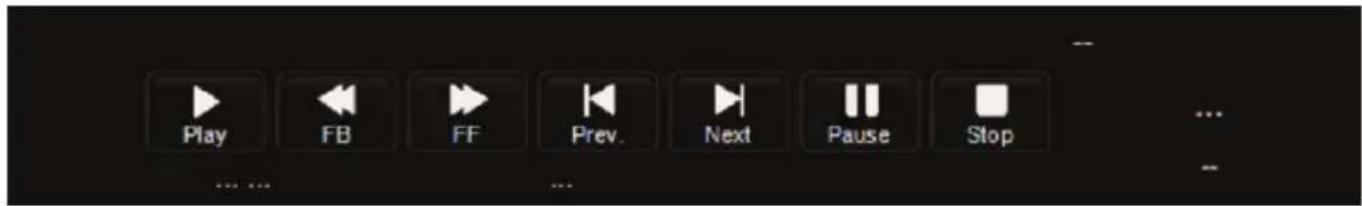

While playing, you can see a playback progress bar as shown below.

Playback function

<</>> Fast Rewind or Forward

|<|/>>| Jumps 30 seconds backwards or forwards

STOP Stops the playback

PAUSE Pause of the playback

This unit is designed with a USB port so that you can connect your USB device and playback the files in the USB device.

The recognition speed of a USB storage device may depend on each device.
- Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
- Please do not connect the USB storage device which was artificially manoeuvred on the PC. The device may cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files or image files.
- Please use only a USB storage device which was formatted as a FAT32 file system provided with the Windows operating system. In case of a storage device formatted as a different utility program which is not supported by Windows, it may not be recognized.
- Some USB storage devices may not be supported or operated smoothly.
If the name of a folder or file is too long, it will not be displayed or recognized.
- Please backup the important file because a data of USB device may be damaged. Data management is consumer's responsibility and in consequence the manufactures does not cover the product bearing data damage.

Connecting the USB device

Enjoy the photo, music, movie and text stored in the USB device. In USB device, you can not add a new folder or delete the existing folder.

1. Connect the USB device to the USB PORT on the unit.
2. Turn on the unit and press the INPUT button to enter the source menu.
3. Press the button to select USB and press the OK button to enter the menu.
4. Within this menu, press the button to select PHOTO, MUSIC, MOVIE or TEXT and press the OK button to enter.
5. Press the EXIT button to return to the previous menu.

USB

Playing Photos

It's available to playback the photo file(*.jpg,*.bmp,*.png) in the USB device.

The On Screen Display may be different from your set. Images are an example to assist with the TV operations. Optimal resolution of the pictures are resolutions of 1280x720 or 1920x1080 pixel. Other resolutions are displayed according the they aspect ratio.

1. Press the button to select PHOTO and press the OK button to enter.
2. Press the button to select the desired folder and press the OK button to enter, as shown.
3. Press the button to navigate photo file and the photo selected can be previewed on the right window, as shown below.
4. To create a playlist, press the OK button on each picture. All selected picture showing a tick mark.
5. Press the Play (> button to appear the picture in full screen mode. If you created a playlist, than all files of them appears step by step on the screen.
6. Press the STOP button to end the full screen mode and the TV goes back to the file browser view.

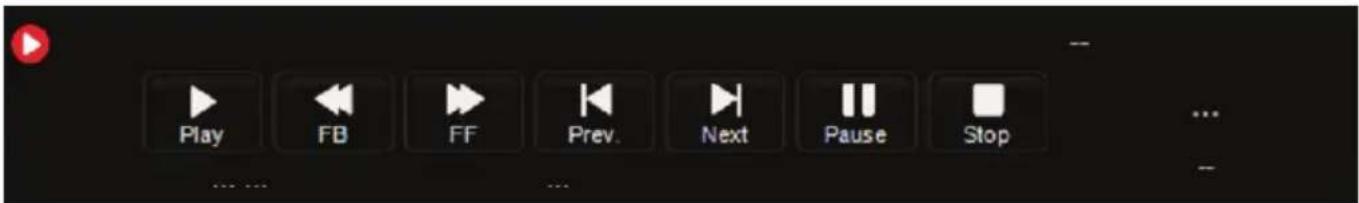

In full screen mode appears a navigation bar. Press the button to select on of the function in the

bar and execute them with the OK button. To fade out the navigation bar press the EXIT button on the remote control.

If you press the button in full screen mode, than the playlist or the complete files list appears on the screen. Here you can select a picture and display them by pressing the OK button.

Enjoying Music

It's available to playback the music files in the formats MP3, WMA, WAVE and AAC from the USB device.

1. Press the button to select MUSIC and press the OK button to enter.
2. Press the button to select the desired folder and press the OK button to enter, as shown below.
3. Press the button to select music file and the music selected can be played automatically, as shown below.
4. You can create a playlist when you press the OK button on each selected music file. Press the (PLAY) button to start displaying the music in full size.
5. When one or more music files are marked, the marked music will be played in sequence. For example, if you want to listen to only one music repeatedly, just mark the music only and play it.
6. If no music files are marked, all the music in the folder will be played in sequence.
7. During playing in full size, press the || button to pause playback and press the (PLAY) button to resume. Press the |<< or>>| button to select previous/next file.
8. During playing in full size, press the << or button to activate fast backward or forward playback and press the (PLAY) button to resume.
9. Press the STOP button to stop playback and go back to the music file list from the full sized screen.

Overview after reading the folder of the USB storage. If the cursor waits a couple of seconds on one music file, than the playback starts automatically.

Full screen view after pressing the PLAY button on a selected music file.

On the right side of the window you can see the playlist or the whole folder.

Note:

During the music playback you can switch off the screen. Press the BLUE button (SCREEN) on the remote control

Enjoying Movie

You can playback the movie files in the formats AVI, MPG, MP4, VOB, MOV, MKV, TS, M2T, and TRP) in the USB device.

Limitations:

1. The media player supports the playback of popular MPEG-2 codices (MPG, M2T) up to a resolution of 1920 × 1080p .
2. Please pay attention on the bit rate when you want to playback files, the bit rate is limited to 15,000 kbps. File with higher bit rates can be playback, but mostly with some troubles.

Operation:

1. Press the button to select MOVIE and press the OK button to enter.
2. Press the button to select the desired folder and press the OK button to enter.
3. Press the button to select movie file and the movie selected is playing automatically on the right window.
4. When a movie is selected, use the OK button to mark or unmark the movie. Press the (PLAY) button to start displaying the movie in full size.
5. When one or more movie files are marked, the marked movie will be played in sequence.
6. If no movie files are marked, all the movie in the folder will be played in sequence.
7. During playing in full size, press the || button to pause playback and press the (PLAY) button to resume. Press the |<< or>>| button to select previous/next file.
8. During playing in full size, press the << or >> button to activate fast backward or forward playback and press the (PLAY) button to resume.
9. Press the STOP button to stop playback and go back to the movie file list from the full sized screen.

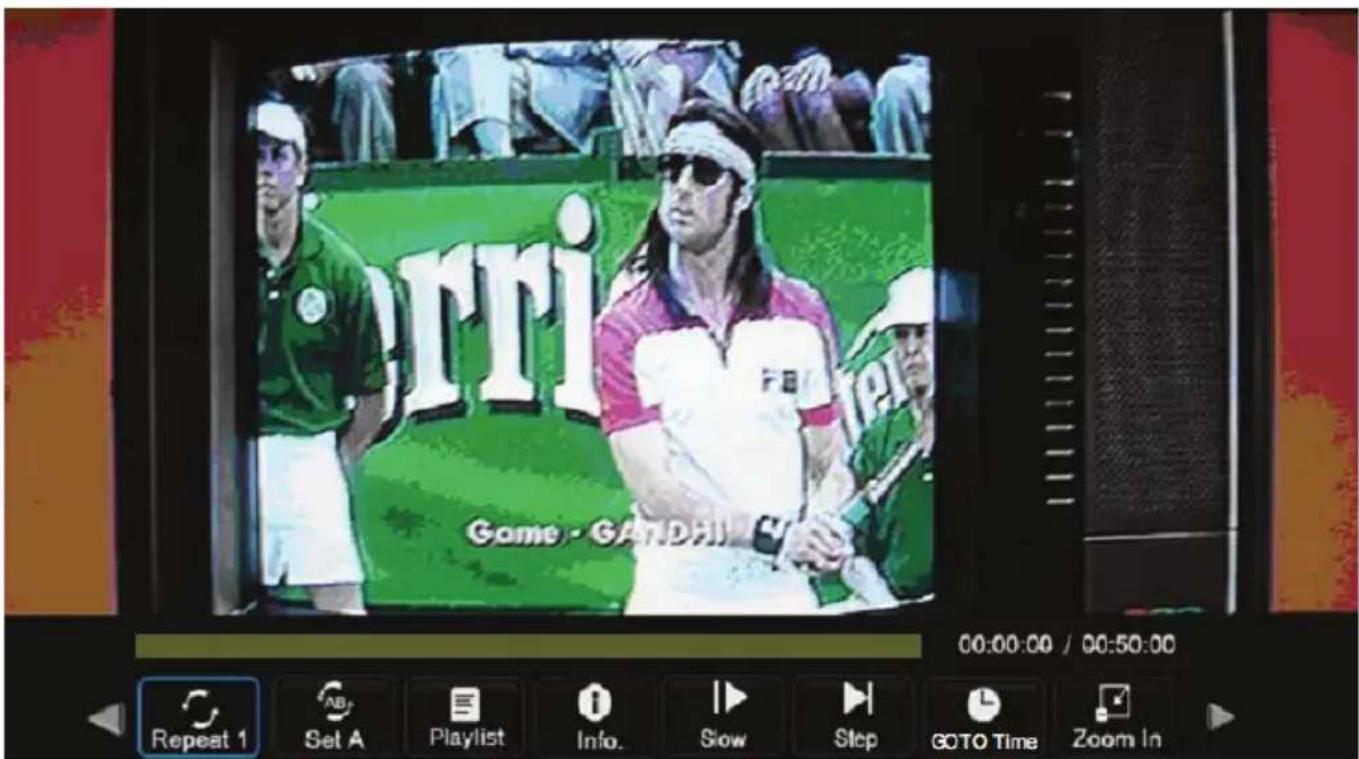

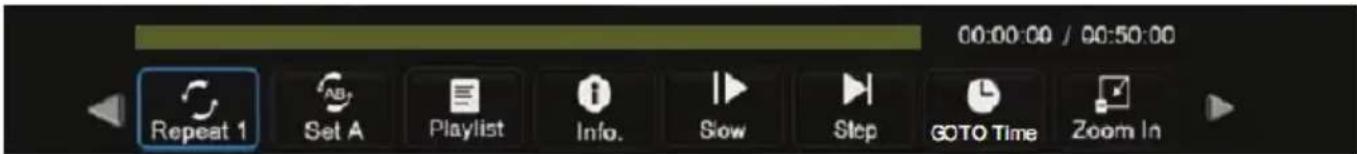

During the playback of a video in full screen mode a navigation bar with many options appears on the screen.

Navigation bar

Press the button to select one option in bar and execute the function with the OK button.

REPEAT Activates the repetition mode

A-B Segment repetition

[ \text{Playlist} ] Shows the playlist

Info Appears information of the current file on the screen

Slow Slow motion playback

Step Stepwise playback

Goto Time Go to a time index which you can insert

Zoom In Increases the size of the video

Zoom Out Decrease the size of the video

Aspect Ratio Switches the aspect ratio

Display Displays all video files in the folder

Repeat mode

Here you can change the repetition mode. The options are Single, All or off.

Information

Shows information about the current video file on the right side of the screen.

A-B Segment

Start the segment playback in a loop function. Press OK button to set the first pint (A) and wait a while to press again the OK button to mark the second point (B). The segment will be playback in a loop function. To exit the segment playback press the OK button again.

Goto Time

Here you can insert a time index and than by execute the device jumps to this time index.

Aspect Ratio

If the video appears in full screen with a wrong aspect ration, than you can fix them with this option.

Text playback

The LCD Tv can playback text files. The navigation bar helps to navigate into the text files.

LCD Settings

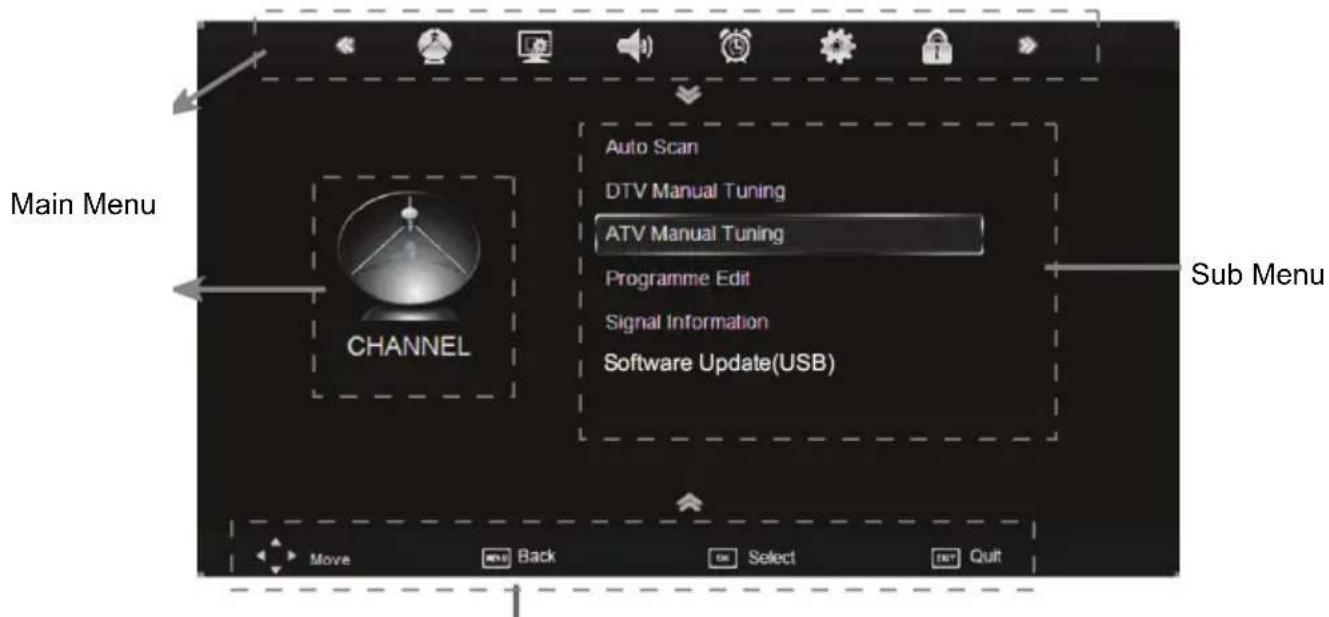

Press the MENU button and you gets access to the different LCD settings. The beside picture shows the different categories which characterizes with symbols.

After starting the LCD settings you can change the category by using the or buttons. You can enter in each category by pressing the button and this category is active. Each option or setting can be change by or buttons. To exit the active category please press repeatedly the button.

The options are:

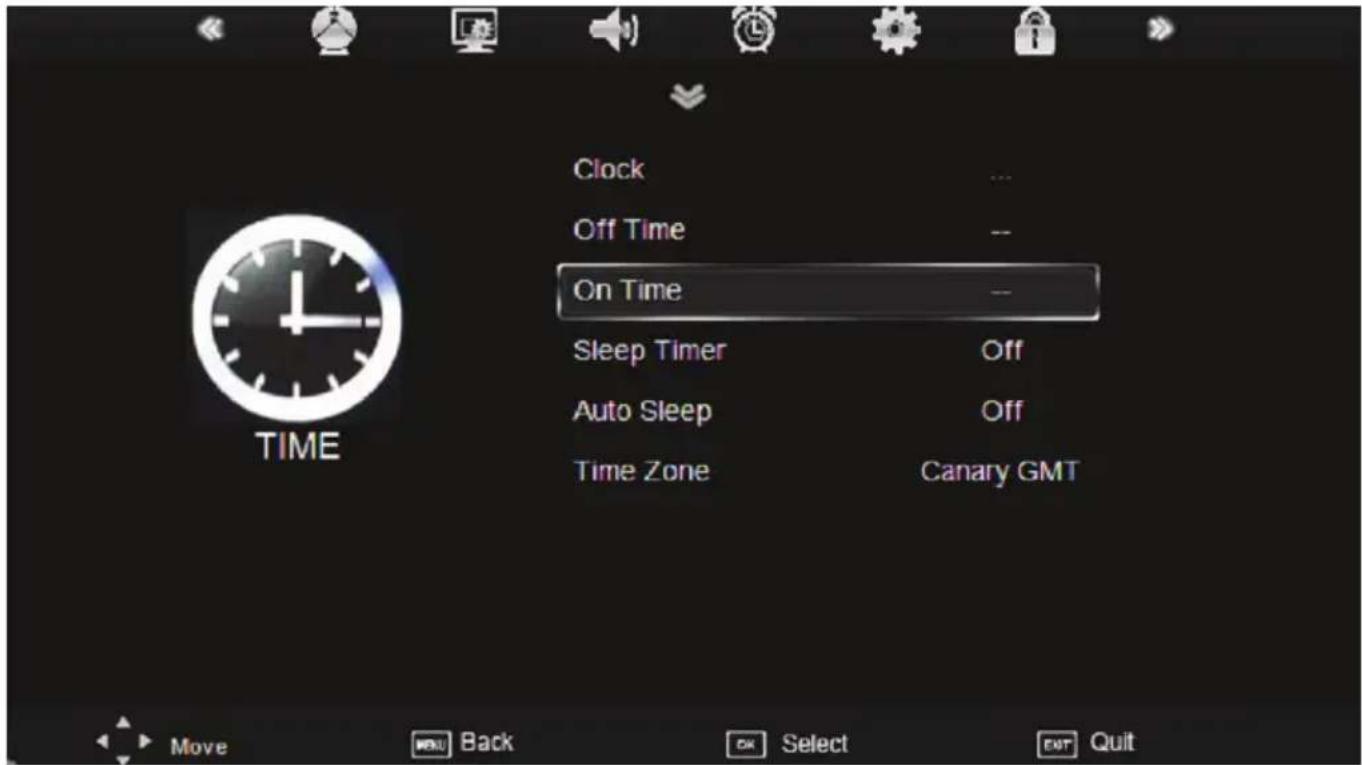

Time

Clock, On Time, Off Time, Sleep timer, Time zone and Auto Sleep

Sound

Sound mode, Treble, Bass, Balance, Auto Volume, Surround Mode and SPDIF


Picture Mode, Contrast, Brightness, Colour, Sharpness, Tint, Colour Temperature, Aspect Ratio, Noise Reduction and Screen (only by VGA mode)

Channel

Auto Search, DTV manual search, TV manual search, Programme Edit, Signal Information, Software Update, Start Record, Recorded List, Timer Programming, Timer List and PVR File System

Lock

Lock Channel, Password, Block Channel, Parental Control

Options

Language, Audio language, Subtitle language, Country, Default

To leave the TV settings, press the EXIT or MENU button.

Channel setting

The channel settings include the options for Auto Scan, DTV Manual Tuning, ATV Manual Tuning, Programme Edit, Signal Information, Software Update, Start Record, Recorded List, Timer Programming, Timer List and PVR File System

Auto Scan

With this setting you can search the TV broadcast station for analogue and digital TV programs.
1. Press the button and navigate to the option „Auto Scan".
2. Please choose the suitable country by pressing the or buttons.
3. Please choose the suitable Tune Type by pressing the or buttons.
4. Press OK button to start the search run.
5. A new window opens on the screen, where the status of the searching is documented. The values of the found TV broadcast stations of analogue, digital and Radio are listed.
6. After finishing of the searching, all found TV broadcast station will be saved into the channel list. You can look at the TV channel list by pressing the CH/LIST button.

Note:

The complete searching needs a couple of minutes.

LCD Settings

Channel setting

DTV Manual Tuning

Press the button and navigate to the option "DTV manual Tuning". The search starts when you press the button.

1. You can change the channel by using or buttons. So you can define, on which channel shall be runs the search.
2. Starts the searching by the OK button.

To leave the DTV manual tuning, press the EXIT or MENU button.

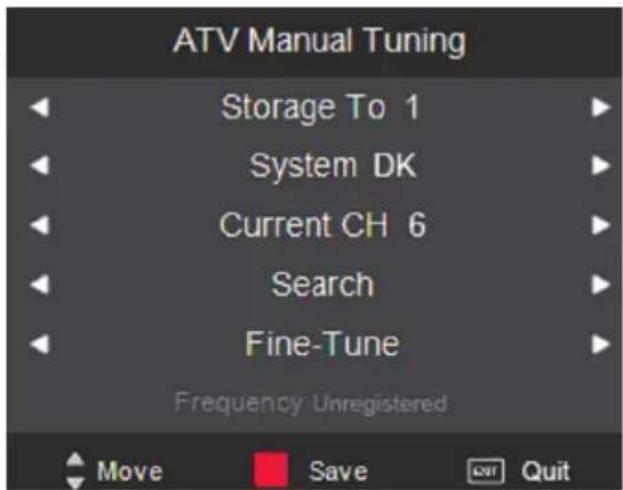

ATV Manual Search (ATV Manual Tuning)

Press the button and navigate to the option "ATV manual Tuning". The search starts when you press the button. The options are:
Storage To
- System (B/G for West Europe, I for UK, D/K for Eastern Europe and France, L or LL for part of France)
- Current TV channel
Search
- Fine Tuning

1. With the / buttons you can browse to each setting.
2. With the or buttons you can choose the position in the channel list, where the found TV channel is stored.
3. Go to "Audio" and choose the Audio system by using the or buttons.
4. Go to "Search" and start them by the button.

Fine Tuning

By using the or buttons you can start the fine tuning of each TV channel, if the signal is too weak or distorted.

With the RED button you can save the changes, if you for example has changes the Audio system.

To leave the ATV manual tuning, press the EXIT or MENU button.

Channel setting

The option "Programme Edit" includes settings for Moving and sorting, Skip and define Favourites.

Move a TV channel

This option is responsible for sorting the TV channel, so that you can define your personal view of the TV channel list.

1. With the / buttons you can choose the TV channel, which shall be edit.
2. Press the YELLOW button and beside the chosen TV channel you can see now an arrow symbol.
3. Move the TV channel with the / buttons on the position which you like.
4. Press the OK or YELLOW button to confirm and save the moving.
5. To leave the setting press the EXIT button.

Define TV Channels into Favourites

Here you can define your preferred TV channels into a favourite list. You can activate the list by pressing the FAV button.

1. With the / buttons you can choose the TV channel, which shall be edit.
2. Press the FAV button and beside the chosen TV channel you can see now heart symbol.
3. To leave the setting press the EXIT button.

Note:

If you want to delete a favourite TV channel from the favourite list, than browse the TV channel which is marked by a heart symbol and press the FAV button. The heart symbol is deleted and this TV channel can not seen anymore in the favourite list.

Channel setting

Skip a TV Channel

With this option you can define single TV channel which can not dial anymore by using the numeric buttons.

1. With the / buttons you can choose the TV channel, which shall be skipped.
2. Press the BLUE button and beside the chosen TV channel you can see now aVBbden symbol.
3. To leave the setting press the EXIT button.

Rename a TV Channel (only by analogue TV channel possible)

With this option you can rename single analogue TV channel and define a new label.

1. With the / buttons you can choose the TV channel, which shall be skipped.
2. Press the GREEN button and beside the chosen TV channel you can see now green symbol.
3. With the / buttons you can browse the letters on each place.
4. With the or buttons you can go to the next position.
5. Save the new label of the TV channel by pressing the MENU button.
6. To leave the setting press the EXIT button.

Delete a TV Channel

With this option you can delete single TV channel from the TV list.

1. With the / buttons you can choose the TV channel, which shall be skipped.
2. Press the RED button and the TV channel will deleted directly.
3. To leave the setting press the EXIT button.

Note:

The selected TV channel is now deleted from the TV channel list.

Signal Information

Displays some signal information of the current TV Channel

Software Update

Install with this option a new software.

Start Record

Starts immediately the recording of the current channel, when an USB storage is connected.

Recorded List

Shows the recordings in a list.

Recording Timer

Appears the timer programming on the screen.

Schedule List

Appears the timer programming list on the screen.

PVR File System

Prepaes the USB storage for recording. The detailed description you can find on page 29.

Picture setting

The picture settings include option for "Picture Mode", "Contrast", "Brightness", "Colour", "Sharpness", "Tint", "Colour Temperature", "Aspect Ratio", "Noise Reduction" and "Screen".

Picture Mode

With the or buttons you can choose the picture mode. The live picture changes to the preset settings. The presets are Dynamic, Standard, Mild and User. You can define you own settings if you uses the USER options.

Brightness

With the or buttons you can select the level of brightness. This option is only than active, when you use the USER option by the picture mode.

Contrast

With the or buttons you can select the level of contrast. This option is only than active, when you use the USER option by the picture mode.

Colour

With the or buttons you can select the level of contrast. This option is only than active, when you use the USER option by the picture mode.

Sharpness

With the or buttons you can select the level of sharpness. This option is only than active, when you use the USER option by the picture mode.

Tint

With the or buttons you can select the level of hue. This option is only than active, when you uses the USER option by the picture mode.

Picture setting

Colour Temperature

With the or buttons you can select the level of colour temperature. The three preset options are Cool, Warm, Medium and User.

You can define you own settings if you use the USER options. Than you can get access to the three colours "Red", "Green" and "Blue". Select the level of each colour by using the or buttons.

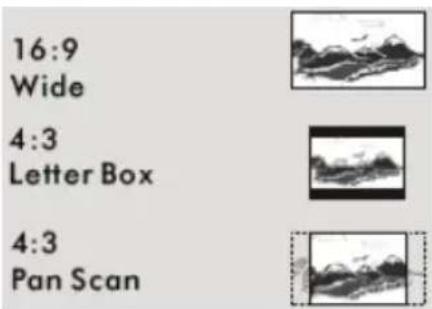

Aspect Ratio

With the or buttons you can select the aspect ratio and changes the view on the screen. The options are:

16:9 - The picture is every time in full screen mode, independent from the supported aspect ratio.
- 4:3 - The picture view is 4:3 and shows on the left and right side a black bar, independent from the supported aspect ratio.
- Auto - The view is defined by the supported aspect ratio and the adjustment is automatically. By 16:9 is the picture in full screen and by 4:3 show the screen the black bars on the right and left side.
- Zoom 1 - This option can be used for an 4:3 aspect ratio. The picture is zoomed into full screen by keeping the aspect ratio. Parts of the picture will be cut-off (specially on the top or bottom side) and can not seen anymore.
- Zoom 2 - This option can be used for an 16:9 widenscreen or cinemascope picture. The picture is zoomed into full screen by keeping the aspect ratio. Parts of the picture will be cut off (specially on the right and left side) and can not seen anymore.
Panorama - Good option if film will be in CinemaScope format. The image is enlarged until The black edges vanish above and below. However, on the right and left side are also image information is lost.

By every source except the internal DVD-Player you can change the aspect ratio by pressing the RED button on the remote control.

Note:

Do not uses the 4:3 aspect ratio every time, because you can damage the TFT LCD screen.

Noise Reduction

With the or buttons you can activate or deactivate the noise reduction. The option are:

• Off Noise reduction is off
• Low The TV set produces a little noise reduction
• Middle Middle strength of noise reduction
  High Strong strength of noise reduction - often with too much sharpness
• Default Standard option for noise reduction

Note:

Adjust the noise reduction in order your own impression.

Picture setting

When you use the VGA input, than you have several additional options for the adjustment of the picture. These options are behind the setting SCREEN.

Press the button to get access to the SCREEN options. The sub-options are:

• Auto Position
  Horizontal Position
  Vertical Position
  Size
• Phase

Auto Position

You can uses the Auto adjust option to synchronizes the picture from the PC VGA port in an optimal way. Press the button to synchronizes the screen display.

Horizontal and Vertical Position

With these option you can adjust the VGA picture manually on the screen. Press the or buttons and the picture shifts to high and width.

Size

Press the or buttons to change the size of the VGA picture on the screen, until a stable image is obtained.

Phase

Use or buttons to adjust the phase of the ADC sampling clock relative to the H-sync signal, until a stable image is obtained.

Save the new settings by pressing the MENU button.

To leave the setting press the EXIT button.

Sound setting

The sound settings include options for "Sound Mode", "Treble", "Bass", "Balance", "Auto Volume", "Surround" and "SPDIF".

Sound Mode

With the or buttons you can select the sound mode. The preset options are Music, Movie, Sport and Standard. You can define you own settings if you uses the USER options. Than you have access to the settings of treble and bass.

Treble and Bass

With the or buttons you can select the level treble and bass. These option are only than active, when the USER option by sound mode is set.

Balance

With the or buttons you can select the balance.

Auto Volume

With this option you can activate an automatic damping of the volume, if very loud sound passage are happened. This mode is like a Night Mode. With the or buttons you can activate or deactivate the damping.

Surround Sound

This option activates the surround effects by the sound output. With the or buttons you can activate or deactivate the surround sound.

SPDIF Mode

Here you can switch off and on the digital sound output. If on, than you can choose between AUTO and PCM output.

Time setting

The Time settings include the options for "Clock", "Off Time", "On Time", "Sleep Timer", "Auto Sleep" and "Time Zone".

Clock

Choose the clock setting with the button and start to change the clock by pressing the OK button. An additional popup window appears on the screen.

With the / buttons you can choose every sub-option. With the or buttons you can change the options. The sub-options are Date, Month, Year, Hour and Minute.

Press the OK button for the saving the changes.

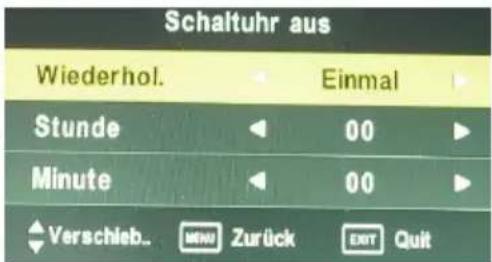

Off Time of the TV

With this option you can program the TV set for automatically switch off. Start the option by pressing the button and a new popup window appears on the screen. There you can define each setting to program the off time. The settings are:

Repeat

Here you can define the cycle of the off time Once, Every Day, Monday-Friday, Monday-Saturday, Saturday-Sunday, Sunday or Off.

• Hour - Define the clock in hour (e.g. 18 o'clock)
• Minute - Define the clock in minutes (e.g. 15 minutes)

Time setting

On Time of the HTC TV set

With this option you can program the TV set for automatically switch on. Start the option by pressing the button and a new popup window appears on the screen. There you can define each setting to program the on time. The settings are:

Activate

Here you can define the cycle of the on time Once,
Every Day, Monday-Friday, Monday-Saturday,
Saturday-Sunday, Sunday or Off

• Hour - Define the clock in hour (e.g. 18 o'clock)
• Minute - Define the clock in minutes (e.g. 15 minutes)
  Volume - Here you can define the volume level by switch on the HTC TV set
  Source - Here you can define the source, in which the HTC TV set starts by On Time. You can choose DTV, ATV and Radio.
• Channel - Here you can define the channel which shall be starts

For example, you define the settings to Monday-Friday, 8:05 o'clock, Volume 40 and DTV. Then the HTC TV set starts between Monday and Friday at 8:05 o'clock with the second TV channel (DVB-T) by a volume of 40.

Sleep Timer

With the option you can program the Sleep Timer to switch off the HTC TV set. The preset steps are defined in minutes.

Note:

You can also start the Sleep Timer by pressing the SLEEP button on the remote control. By repeatedly pressing the SLEEP button you can change the presets minutes.

Auto Sleep

With this option you can program the HTC TV set for automatically switch off, when after several minutes no active signal provided by the source (HDMI, DVD, VGA, ect.).

Time Zone

With this option you can set the Time Zone. If you had chosen by the first time installation the country, than the Time Zone is defined already.

Option

The Option Settings include the "Language", "Audio language", Subtitle language", "Country" and the "Factory Default".

You can change each setting by using the or buttons.

OSD Language

Here you can select the language for the OSD.

Audio language

This option is important in DVB-T mode and you can select the audio language. Some broadcast TV stations supports multi-lingual TV programs.

Subtitle language

This option is important in DVB-T mode and you can select the subtitle language. Some broadcast TV stations supports subtitles in TV programs.

Country

Here you can define the country. The country setting has influence by other options, like Time Zone or the searching of ATV and DTV channels.

With this option you can load and reset the factory default settings. All personally settings are deleted.

LCD Settings

Lock setting

The LOCK settings include the option for "Lock Channel", "Set Password", "Block Program" and the "Parental Guidance".

Before you can change the settings, you have to insert the preset password if you enter into the menu. The password is "0 0 0 0"

Lock Channel

With this option you can lock a channel.

Set Password

With this option you can change the preset password. Please insert the new password and confirm the new password again.

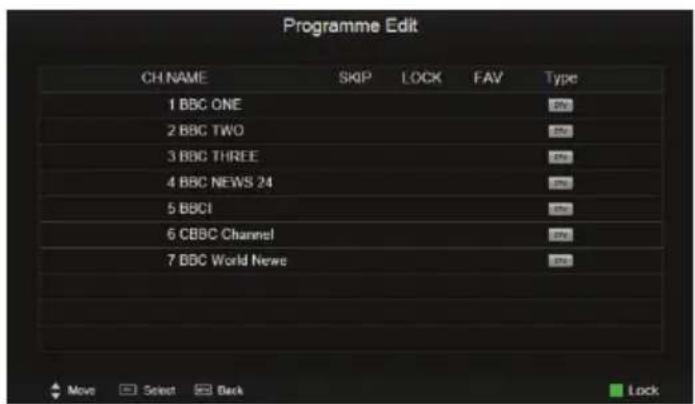

Block Program

With this option you can block single TV channels. After starting the option the channel list appears on the screen. With the / buttons you can choose TV channel which you want to block. To block a channel please press the GREEN button on the remote control. On the chosen TV channel appears a lock symbol. Save the settings by pressing the MENU button.

The block TV channel can not choose anymore.

Parental Guidance

With this option you can define the level of the parental control. The parental control can be only than active when the TV broadcaster supports this function.

Check the following guide for the possible cause of a problem before contacting service.

Technical Support of Xoro/MAS:

Problem Solution
TV won't switch on	·Check the mains cable is connected properly to both the mains supply and the mains adapter ·Check the cable from the mains adapter is connected properly to the set. ·The electronic circuit may have reset. Pull the plug out, wait for 60 seconds, then plug back again.
No picture	·Check the aerial or other input is connected properly. ·Check that the correct input is selected, using the INPUT button. ·Check the brightness and contrast settings in the Picture Setting.
No sound	·Check that the VOLUME isn't turned down, or the MUTE button pressed. ·Check that the audio cables are connected to the correct inputs.
Picture is wrong colour	·Check that the correct input is selected, using the INPUT button.
The picture is unstable when used with a PC	·Check the Picture Setting and adjust the view by Auto Adjust match the video output settings of the PC.
There are a few coloured spots on the screen	·High resolution LCD screens often have a small number of faulty pixels. ·This is normal and within the bounds of our quality control checks.
Picture with wrong scaling	·The LCD has the wrong aspect ratio. Please press the RED button to switch the aspect ratio from 16:9 to 4:3.

LCD Troubleshooting

Symptom	Correction
No DVB-T reception	• Switch the player into the DVB-T mode. • No DVB-T reception in your region. • Realign the antenna. Please pay attention to the direction of the antenna tower. • Please use an active indoor aerial or a roof antenna. • Retry the Auto Scan.
Picture freezes	• Realign the antenna. Please pay attention to the direction of the antenna tower. • Please use an active indoor aerial or a roof antenna.
Strong mosaics or artefacts	• Realign the antenna. Please pay attention to the direction of the antenna tower.
No searching possible	• Realign the antenna. Please pay attention to the direction of the antenna tower. • Control the Country selection
No Audio or no second audio language	• Press the AUDIO button. Many TV broadcaster supports just only one language.
No subtitles	• Press the SUBTITLE button. Many TV boradcaster does not support subtitles.

Picture Quality

Die picture quality by DVB-T depends on the different areas and the different conditions. Some parameters are important for the picture quality, the bit rates, the resolution and the reception of the transmitted DVB-T signals.

Bit rate

The bit rates is fixed by the TV broadcaster and can be different between each TV program. Also the different TV broadcaster define the bit rate different to each others. If you see by watching DVB-T strong mosaics structures, artefacts or an un sharp picture, than you can try to increase the Signal strength and Signal quality by searching a better position of the indoor aerial. Maybe you can try also to change a passive indoor aerial to an active indoor aerial. But, if you can realizes optimal condition by receiving the DVB-T signals and you have anymore the artefacts or mosaics structures, than is the transmitted bit rates to low.

In Germany the values are very different by the bit rates:

ZDF 2700 until 4500 kbps

ARD 2000 until 4500 kbps

HR 1800 until 3500 kbps

Private TV Stations 1800 until 2700 kbps

If the bit rate is higher, than the picture quality is mostly better and the picture is more than less by artefacts or mosaic structures.

Resolution

The second influence by the picture quality is the transmitted resolution. If the resolution is higher than you can see a more sharper picture. For example:

ARD/ZDF 720x576 or 704x576 (that's PAL Full D1 resolution)

Other 544x576or 528x576

Receiving Condition

If you see by the information Signal strength and Signal quality some low values, you can try to find another antenna position to increase the reception quality. Visible indicators for a worst reception of the DVB-T signals is for example the a freeze picture or the message "No Signal".

The reception quality depends for example on the kind of the antenna. Three different kind of antenna are available, the passive and active indoor aerial and the roof antenna. Realign your indoor aerial in this way, that you get the best reception as possible. Helpfully it to know in which direction are the public antenna power and than you can adjust the antenna to this direction.

If a passive indoor aerial can not receive the DVB-T signal strong enough, please try an active indoor aerial. The best reception results are by the roof antenna possible.

Press the INPUT button on the remote control and choose DVD for using the internal DVD Player.

The DVD Slot-In loader opens and produces now some noise. The Slot-In loader is on the left side of the HTC 2232D. Place the disc with the printed side to the rear into the loader and push very slightly to the right side. You can see the silver side. The loader moves in the disc automatically and reads the disc information.

Notes:

• If the disc is inserts with the wrong side, than the loader tries to read the disc. This procedure needs more time than in a normal way. The loader can not read the disc content and displays the message "No disc" and moves out the disc.
• To be able to eject a CD or DVD it is necessary to enable the DVD mode. Otherwise the pressing of the OPEN/CLOSE button (▲) will be without function. Switch on the unit and press the SOURCE button and choose "DVD" in the source menu. Now the HTC 2232D is in DVD mode.

Functions

An On Screen Display (OSD) indicator will be displayed at the upper part TV screen when certain functions are executed, or when pressing the OSD button on the remote control.

The OSD indicator is a user friendly interface designed to display the status of playback type. When a different disc is loaded (DVD, CD, Music ready); the OSD indicator bar will be different.

The OSD bar will appear automatically if it is activated by pressing the DISPLAY button, Press the DISPLAY again and a new status bar

will appear. Press DISPLAY a third time and the OSD bar will disappear. When OSD indicator bar appears, press other button, the OSD indicator bar will disappear automatically.

TT 1/2

CH

33/3

00:00:02

By pressing the DISPLAY button again the following picture is shown by Video-DVD:

1. Active sound track
2. Format of sound track DD 5.1 CH (channel)
3. Subtitle (not included in this example) (OFF)
4. More aspects (in this example there are no aspects activate at moment)

1/1

5.1CH

OFF OFF

By MPEG-4 video files the information is a bit different than with a video DVD.

Important information for a ISO Data disk with MPEG-4 files are:

1. Disc Format (here CDROM)
2. Number of tracks and which one is just played
3. With or without sound
4. Running time

CDrom

TRK 1/

00:00:41

Functions

Open/Close

To open and close the disc tray. Press OPEN/CLOSE button on the front panel or the remote.

Notes:

• Player will not skip forward or backward during "WARNING" section of a DVD disc.
• Single chapter DVD or single track CD cannot skip
  Please pay attention that the silver side of the disc is in front of you.
• Please insert only 12cm disc into the DVD-Player

Play/Pause

Press PLAY button to play the disc.

Pause

Press PAUSE button again to pause (still picture). Press PLAY button to playback the content.

Stop

Press STOP button to stop in two modes:

• Press STOP button once. Stop memorizes the interrupt position and the OSD shows PRESTOP. Resume play by pressing PLAY button.
• Press STOP button twice completely stop disc. The OSD shows "STOP" and the PLAY button will resume disc.

Next Chapter / Track

Press this button skip advance DVD chapter or CD track.

Previous Chapter / Track

Press this button skip backward DVD chapter or CD track.

Fast Backward/Fast Forward

Press this button to fast backward through the disc. Repeatedly press the button.

Press this button to fast forward through the disc. Repeatedly press the button will increase the search speed.

Notes:

• The changes in speed by fast backward or fast forward are from Normal -> x2 -> x4 -> x8 -> 20 -> Normal
• The player is muted in fast forward or fast backward this mode.
  Player will not fast forward or fast backward during WARNING section of a DVD disc

Function

Video-DVD Title

While playing a DVD, press the TITLE button return to the DVD disc title menu.

DVD Menu

While playing a DVD, press the D.MENU button return to the DVD disc menu.

Numeric Buttons

Numerical key pad (Random Program access)

1. To direct access a DVD chapter or a CD track, input the desired DVD chapter or CD track number using the numerical key pad.
2. Input data for the DVD disc start menu or the player's setup menu.

Audio Track

While playback a DVD disc, press AUDIO button repeatedly to select the desired audio sound track. A DVD disc may contains up to 8 selectable audio sound tracks.

Subtitle

While play a DVD disc, press SUBTITLE button repeatedly to select the desired subtitle, A DVD disc may contains up to 32 selectable subtitles.

Note:

DVD disc start menu may contains set up of angle, Subtitle and Audio soundtrack selection. You may do the selection in the disc start menu.

Search / Goto

1. Press the GOTO button (Yellow) and than you get access to the GOTO function.
2. Select with the Cursor buttons (or) the desired menu point. You can select Title, Chapter/Track or Time. Uses the numeric button to choose for example the time index.
3. Press the OK button to confirm them.
4. The playback continues from the insert time index, chapter/track or title.

Function

Repeat Mode

Press PEPEAT button repeatedly to select the repeat mode. Press more than one times the REPEAT button and the repetition mode changes depding of the kind of content.

In Video-DVD mode

REP. CHAPTER Repeat chapter

REP. TITLE Repeat title

REP. OFF Repeat off

In Data mode (JPEG, MP3, WMA, Video files)

REP. Track Repeat track

REP. FOLDER Repeat folder

REP. ALL Repeat disc

REP. OFF Repeat off

VCD, SVCD, AUUDIO CD

REP.1 Repeat track

REP. ALL Repeat disc

REP. OFF Repeat off

Note:

Some DVD discs do not allow repeat function.

Zoom

Press the ZOOM button repeatedly TV Screen display:

ZOOM x2 -> ZOOM x3 -> ZOOM x4 -> ZOOM x1/2 -> ZOOM x1/3 -> ZOOM x1/4 -> ZOOM OFF

When playback the JPEG. Press the ZOOM button display the zoom x1/2, x1/3, x1/4, press direction button to rotate picture. While display the zoom x2, x3, x4, press direction button to move picture position.

Slow Motion

Press the SLOW button and the playback speed decreases. Pressing more than one times the SLOW button and the DVD-Player reduces the speed in following kind:

Normal -> x1/2 -> x1/3 -> x1/4 -> x1/5 -> x1/6 -> x1/7 -> Normal

Function

Program

Press PROG button to quit the program menu.

In DVD mode

When the program menu appears input the Title and Chapter Number

PLAY: Press PLAY button to start program play.

CLEAR: Navigate to the CLEAR button if you want to cancel the wrong information you input. Press OK again to cancel all the tracks.

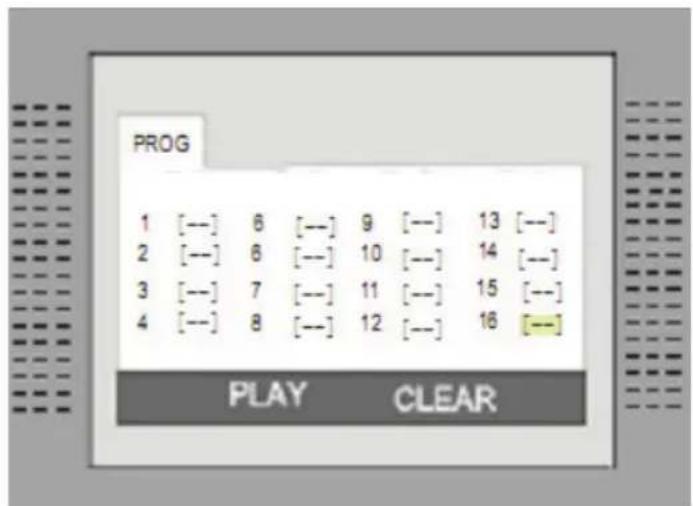

In CD mode

When the program menu appears, input the Track number, press OK, when the programming is completed.

Mute

Press the MUTE button and the device switches off the sound. Press again the MUTE button to activate the sound.

Volume

Press the VOL+ or VOL- buttons to change the volume.

Data memory with Music, JPEG or Video files

Insert the a disc and the player will auto search the directories saved Video/Music/JPEG files. After searching, it will auto go to the first directory saved Music files (to the disc containing both Music and JPEG files. To the disc containing single type of files, it will go to the first directory) and play the first song in the directory (File name is highlighted). The screen displays as the picture below:

The DVD-Player includes a install filter function, so that you get a better overview of the files by misc disc. The device filters the content to Music, Pictures and Videos.

If music files on the disc, than the DVD-Player starts the playback with the first music file.

If picture files on the disc, the DVD-Player starts with the browser view and shows all pictures files.

If video files on the disc, the DVD-Player starts with the browser view and shows all video files.

By misc disc (Music, Pictures and Video) the player starts the playback of the first music file. When you want to watch pictures or videos from misc disc, than you shall change the filter function. Navigate with the button three symbols on the bottom of the screen. Choose on the symbol by the (or

• button and confirm them with the OK button.

The symbols represent:

Music Files
	Picture Files
Video Files

Data memory with Music, JPEG or Video files

Data Disc with Pictures, Music or Videos

1. The DVD Player supports pictures in JPEG format.
2. The DVD-Player supports music files in MP3 and WMA formats.
3. The DVD-Player supports video files in various formats.

Video files compatibility with this player is limited as follows:

1. Available resolution size of the MPEG-1, MPEG-2 and MPEG-4 file is under 720x576 (W x H) pixel.
2. The file name of the MPEG-1, MPEG-2 and MPEG-4 file subtitle is available by 10 characters.
3. If there is impossible code to express in the MPEG-1, MPEG-2 and MPEG-4 file, it may be displayed as " _ "mark on the display.
4. If the number of the screen frame is over 30 per second, this unit may not operate normally.
5. If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
6. Playable MPEG-1, MPEG-2 and MPEG-4 file are ".avi ", ".mpg ", ".mpeg".
7. Different MPEG-4 codices are supported. There must be encoded with are MPEG-4 part 2 (MPEG-4 SP/ASP) standard.
8. No video files with a codec VC-1, H.264 or any container of MP4, MKV, 3GP or QT not supported by the player.
9. Supported Audio formats in MPEG-x files are:

MPEG-4:

AC3,

MP3

MPEG-1/2:
- Sampling Frequency: 8 - 48 kHz (MP3)
Bit rate: 8 to 320 kbps (MP3)

Press the SET button to enter the player's setup menu. Setup menu is a facility for the owner to adjust the detail setting of the player. For the detail of Setup menu see "SET UP MENU" of this instruction manual. Various features of the player can be adjusted in the SETUP menu.

1. Press SET button SETUP menu appears.
2. Press the UP/DOWN button to highlight the desired menu.

In STOP mode, press SET button Highlight SYSTEM SETUP. Press UP/DOWN button to select the subtitle. Press ENTER button, the screen displays submenu.

• Press UP/DOWN button to highlight the desired time
  Press the button to enter the language settings.
  Press OK confirm your selected item.

System Setup:

TV System

There are NTSC / PAL / AUTO three modes, and choose one mode according your TV mode.

If the TV mode is not suitable as the DVD player screen will blink and become colorless.

The default setting: PAL

TV Type

1. 4:3 Pan Scan: It is suit to the common size TV. When playing, the picture will be cut. so that the TV screen is filled with the picture.
2. 4:3 Letter box: when the player connect to the commonly size TV, please select the type. The top and bottom of TV screen will display black frame.
3. 16:9 Wide Screen: When the player connects to the wide screen TV.

The default setting: 4 : 3 Pan Scan.

Password

Move the cursor the PASSWORD item and press OK button to confirm and then input the secret code "0 0 0 0" (if it is the first use). After confirmation, you are required to input new secret code and then press OK button to confirm.

Warning:

Please remember the new secret code, otherwise you will not be able to change the parental control. Please contact the agent or our company if you forget the secret code.

DVD Player Setup

System setup

RATING

There are total eight levels of this control. Eight levels as follow:

1. KID-SAFE
2. G
3. PG
4. PG13
5. PG-R
6. R
7. NC-17
8. ADULT

The first level discs are open to people of average and eight level only suitable for the adult. If you want to change the Parental control setting, enter the user's age control item and then enter four digital secret code. The default secret code is 8357(if you are using this player for the first time, just input this code). If the input code has been confirmed, the level setting up menu will appear. Move the cursor to choose the expected level and press ENTER button to confirm and store it.

Default

This is the factory default setting up. When choose "RESTORE", the previous setting up, by the user will be cancelled and the player will come to the factory setting up state.

Language Setup

In STOP mode, press SET button and Highlight LANGUAGE.

Here you can choose the OSD language for the DVD Player, the preferred AUDIO, Subtitle and Menu languages during the playback of Video-DVD.

Press UP/DOWN button
Press UP/DOWN button to highlight the desired item in the LANGUAGE menu.
- Press the button to enter the language settings.
- Press OK to confirm your selected item.
- Press SETUP button SET to quit.

Audio setup

The setting "KEY" adjust the bass audio output.

Positive values for decreasing the bass. Negative values for increasing the bass.

In STOP mode, press SET button

• Press UP/DOWN button and Highlight DIGITAL SETUP.
  Press the button to enter.
• Press UP/DOWN button to highlight the desired item in the DIGITAL SETUP menu.
• Press OK to confirm your selected item.
• Press SETUP button SET to quit.

Dynamic Range

Here you can change the audio compression. If you choose the setting "FULL" than the audio gets the biggest limitation. A kind of "NIGHT MODE". By using the setting "OFF", the audio gets no compression.

Dual Mono

The options here are Stereo, Mono L, Mono R and Mix Mono.

If you have Dolby digital output your amplifier/decoder, you may select stereo, left, right and mixed sound accordingly.

Our custom service will help you. Did you already read the Troubleshooting pages?

Technical custom service of Xoro/MAS:

Phone: [phone]
Internet: www.xoro.de/support.htm

Symptom Check and Action
Does not play	No disc, load a disc.Disc has been loaded upside down. Place the disc with the label side up.Disc's region code does not match to the player.Disc's rating level is higher than the player's rating level setting.Disc is not correct type for the player.Disc is damaged or power on for one or two hours.Moisture may be condensed inside the player. Remove the disc and leave the unit power on for one or two hours.
No Picture	Check the system connection is proper and secure.Check if the connection cables are damagedCLEAN the disc.
Picture Noise /distorted	The disc is dirty or damaged. Clean the disc or try another disc.
Picture not full screen	Select the screen format from the player's SETUP MENU.See "SETUP MENU" of this manual.Select the screen format from DVD disc menu.
Problem message display on screen	Following message will display when there is a problem with the loaded disc"1. "WRONG REGIONAL DISC": Disc's region code is not match to the player.2. "WRONG PASSWORD": The player refuse to play a disc with rating level higher than the player's rating level setting.3. "WRONG DISC": The player is equipped with automatic disc quality detection software. When the player detects a problem disc or a damaged disc, the player may keep playing the disc at lower quality or stop playing, depending on the damage level of the disc.
Cannot SKIP or SEARCH	Some discs are programmed that do not allow users to SKIP or GOTO a some sections, especially at the beginning WARNING sectionSingle Chapter disc cannot apply SKIP function.
Remote control des not function	Remove the obstacles between the remote control and the player.Point the remote control towards the remote sensor on the playerCHECK if the batteries of the remote control have been loaded with correct polarities.Replace the batteries of the remote control.

General data

Power AC 100-240 V, 50/60 Hz

Consumption < 55 Watt / Stand-By < 1 Watt

TV Norm PAL/SECAM, NTSC (only playback)

Audio System B/G, D/K, I, L/L

Stereo Sound NICAM/A2

Dimension 535× 165× 396mm (incl. stand)

Weight 4.8 kg (incl. stand)

Operating conditions

Temperature 0-40°C

Humidity 5 - 90% (non condensing)

DVB-T TV Tuner

Modulation COFDM,2k/8k,QPSK,16QAM,64QAM

Video System MPEG-2 Video MP@ML

Audio System MPEG-1 Layer 2, AC-3

Connection

Video 2x HDMI 1.3 with HDCP, Video components, SCART, CVBS, VGA

Audio Stereo IN, PC Audio IN, Coaxial digital out, Headphone

TV Tuner BVB-T, Analogue (CATV RF)

Others USB 2.0 High Speed, DVD-Player

Panel

Type TFT LCD Panel

Panel Size: 21.6 inch (54.8 cm)

Resolution 1920 x 1080 with 16:9 aspect ratio

Backlight LED (Edge)

Contrast Ratio 1000:1

Brightness 250 cd/m²

Response Time 5 ms (Tr + Tf)

Audio

Speaker 2x3Watt

Audio System B/G, D/K, I

Stereo Sound NICAM/A2

Pixel Error

The pixel errors (bright, dark pixel, line defects and brightness differences) defined in the specifications describe the maximum allowed defects in type and number, which are excluded from coverage.

Bright Dot 2

Dark Dot 5

Bright + Dark Dots

Line defects No

Mura No

CONSIGNES DE SECURITE IMPORTANTES 3

Notes 10
Recyclage 10

CHARACTERISTIQUES 11

11

MONTAGE DU PIED 12
DEMARRAGE RAPIDE 13
PANNEAU 14
Panneau arriere 14
Face droite 15

TELECOMMANDE 16

Selection DES SOURCE 23

Modes repetition. 58

Zoom 58

Ralenti. 58

Programme 59

Sourdine 59

Volume. 59

Luminosite (Brightness)

Fuseau hora (Time Zone)

OSD Langue (OSD Language)

Langue audio (Audio Language)

Support technique Xoro/MAS:

Normal -> x1/2 -> x1/3 -> x1/4 -> x1/5 -> x1/7 -> Normal

Fonction

Programme

1. Enfants
2. G
3. PG
4. PG13
5. PG-R
6. R
7. NC-17
8. Adultes

Configuration language

Panel Size: 21.6" (54.8 cm)

FREE TO CHOOSE INNOVATIONS

XORO by MAS Elektronik AG

Pollhornbogen 19

21107 Hamburg

Deutschland

Tel: [phone]

Fax: [phone]

[e-mail]

www.xoro.de
