WK 2638 - Kettle CLATRONIC - Free user manual and instructions

Product type	Electric kettle
Brand	Clatronic
Model	WK 2638
Power supply	230 V ~ 50 Hz
Power	2200 W
Capacity	1.7 L
Dimensions (approx.)	22 x 15 x 25 cm
Weight (approx.)	0.8 kg
Material	Plastic and stainless steel
Main functions	Automatic shut-off at boiling, power indicator light, water level indicator, lockable lid, pouring spout
Limescale filter	Removable, cleanable
Base	Base with connector, 360° rotation
Safety	Automatic shut-off, overheat protection, locked lid, unplug before cleaning
Maintenance and cleaning	Clean the exterior with a damp cloth without detergent, descale every 3-4 months with a citric acid-based product
Descaling	Frequency: every 3-4 months, use a citric acid-based descaler
Spare parts and repairability	Removable limescale filter available, repair by an authorized professional
Warranty	24 months from date of purchase
Included accessories	Base, limescale filter (built-in)
Noise level	Approximately 75 dB (estimate)
Color	White and black (depending on model)

Frequently Asked Questions - WK 2638 CLATRONIC

How to use the kettle for the first time?

Before first use, boil pure water (without additives) twice, then discard the water. This cleans the interior of the appliance.

How much water can I put in the kettle?

The water level should be between the MIN and MAX marks on the water level indicator on both sides of the appliance. Do not exceed the maximum mark.

How to clean the kettle?

Always unplug the appliance before cleaning. Clean the exterior with a slightly damp cloth without detergent. The limescale filter can be removed by pressing and pulling the upper tab to clean it separately.

How often should I descale the kettle?

It is recommended to descale the appliance every 3 to 4 months, or more frequently if the water is very hard. Use a citric acid-based descaler, not vinegar.

What to do if the kettle turns off before the water boils?

This is a sign that descaling is needed. Descale with a citric acid-based product following the recommended quantities.

Can I open the lid during operation?

No, the lid must be securely closed during heating to avoid burns. The appliance stops automatically when boiling.

How to remove and clean the limescale filter?

To remove the filter, press and pull the upper tab of the filter. Clean it under running water or with a soft brush. Put it back by clipping it in place.

Does the kettle stop automatically?

Yes, the appliance stops automatically as soon as the water boils. You can also stop it manually by pressing the button on the inside of the handle.

What to do if the kettle stops heating?

First check that the base is properly plugged in and the button is pressed. If the indicator light does not come on, the appliance may be defective. Contact an authorized after-sales service for repair.

Can I use the kettle without the limescale filter?

The filter is designed to retain limescale particles. It is not recommended to use it without the filter, as this may affect water quality and the appliance's lifespan.

USER MANUAL WK 2638 CLATRONIC

White CMTRONC water heater with black control panel and brand logo (no visible text or symbols on body)

WK 2638

Inhalt

Inhoud • Inhold • Sommaire • Indice • Índice • Indice

Contents • Spis treści • Obsah • Tartalom • Содержание

D Übersicht Bedienelemente . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

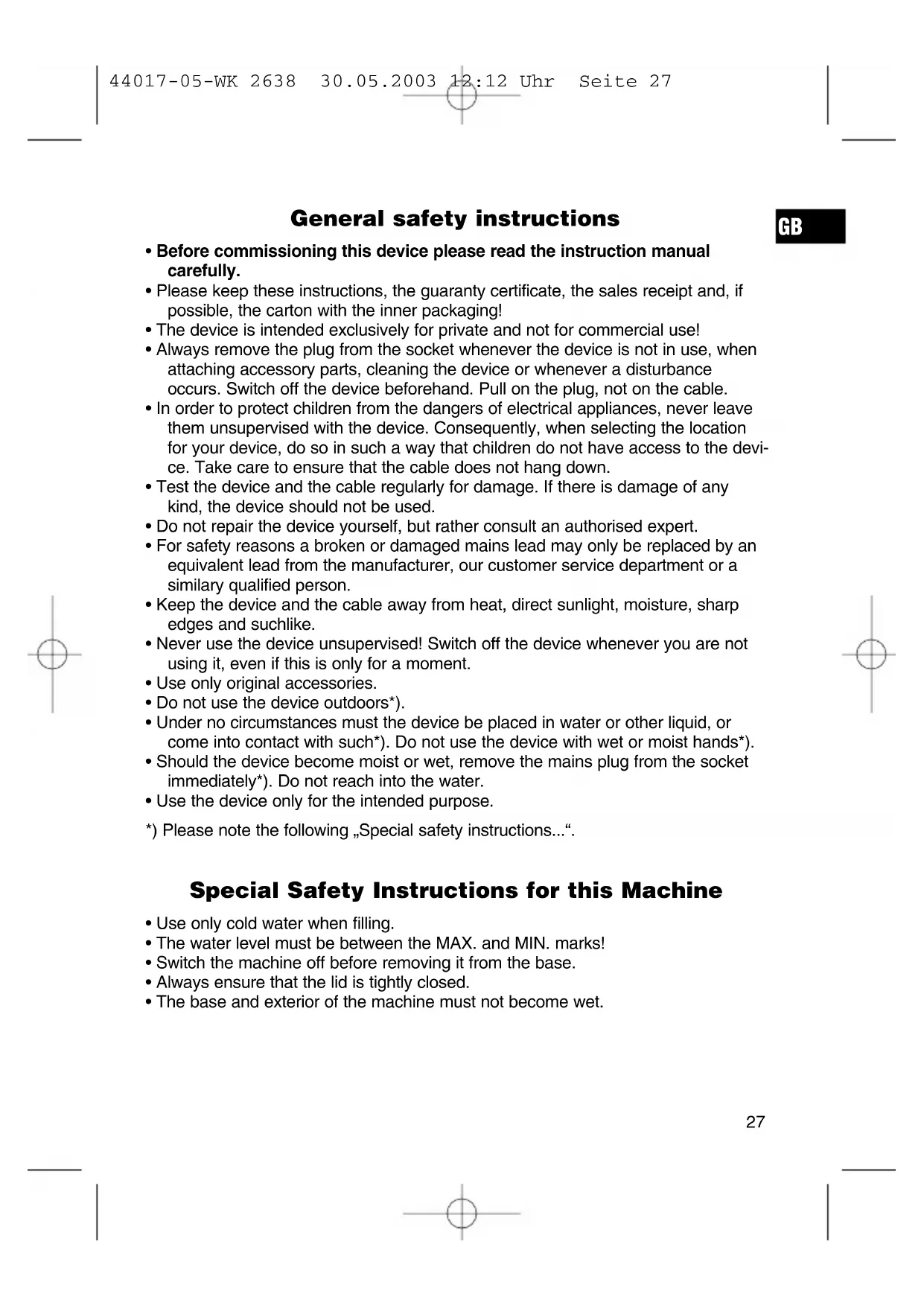

General safety instructions

GB

- Before commissioning this device please read the instruction manual carefully.

- Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!

- The device is intended exclusively for private and not for commercial use!

• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.

- In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.

- Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.

- Do not repair the device yourself, but rather consult an authorised expert.

- For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.

- Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.

- Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.

- Use only original accessories.

- Do not use the device outdoors*).

- Under no circumstances must the device be placed in water or other liquid, or come into contact with such*). Do not use the device with wet or moist hands*).

- Should the device become moist or wet, remove the mains plug from the socket immediately*). Do not reach into the water.

- Use the device only for the intended purpose.

*) Please note the following „Special safety instructions...“

Special Safety Instructions for this Machine

- Use only cold water when filling.

- The water level must be between the MAX. and MIN. marks!

- Switch the machine off before removing it from the base.

• Always ensure that the lid is tightly closed.

• The base and exterior of the machine must not become wet.

GB

First Use of the Machine

Numbering of the Controls

1. Base 4. Control lamp
2. ON/OFF switch 5. Spout
3. Water level indicator 6. Lid lock

Please read the operating instructions carefully and keep them in a safe place. Before using the appliance for the first time sterilize the appliance by boiling water in it twice – use only clear water without any additive.

Operation

1. Place the machine on a flat surface.
2. Push the safety lock upwards. The lid opens automatically. Fill the water boiler with water. Please do not exceed the maximum (max) mark. Look at the water level indicator on both sides of the appliance.
3. Please lock the lid firmly. Place the kettle flush on its base.
4. Electrical connection
5. Check whether the electrical voltage that you intend to use is the same as that of the machine. Details are to be found on the label on the base.
6. Only connect the machine to a properly installed 230 V, 50 Hz safety socket.
7. Press down the button on the handle. The LED in the button lights up.
8. After boiling the machine switches off automatically.
   Disconnect the machine from the mains electricity supply.

Switching ON and OFF

The appliance is on when the button is pressed down. The LED in the button lights up. To switch the appliance off, press the button on the inside of the handle. The LED is shut off.

Cleaning

Always remove the plug from the mains supply before cleaning the machine! The exterior of the machine should be cleaned, if necessary, with a slightly damp cloth without additives.

The lime filter can be removed for cleaning by pulling out the filter on the upper joint first downwards and then up.

Decalcification

GB

The decalcification intervals depend on the hardness of the water and the frequency of use. Decalcification should be carried out every 3 to 4 months.

If the machine switches off before the water boils, it probably needs to be decalcified.

Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice!

Warranty

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

Within the guarantee period we rectify faults to the machine free of charge which result from material or manufacturing faults, either by repairing the machine or, or our discretion, by replacement. Any such repair or replacement associated with the guarantee shall not cause the guarantee period to be extended, nor be deemed to be the start of a new guarantee period!

Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

Defects to the accessories do not entitle to the change of the appliance. These will be replaced free of charge. In this case do not send back the appliance. Just order the faulty accessory! Broken glass parts are replaced at the expense of the owner!

Neither defects to consumables and wearing parts (e.g. motor pistons, kneading hooks, drive belts, spare remote controls, spare toothbrushes, saw blades, etc.) nor the cleaning, maintenance or change of wearing parts fall under this warranty and hence are subject to payment of costs!

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.
