Product type	Micathermic heater
Brand	DOMO
Model	DO7312M
Heating power	800 W / 1200 W / 2000 W (3 levels)
Power supply	230 V ~ 50 Hz
Heating element type	Micathermic
Adjustable thermostat	Yes, with indicator light
Anti-freeze function	Yes, maintains temperature above freezing
Overheat protection	Coverage sensor, automatic shut-off
Child protection	Additional protective cover
Mobility	Casters (4) with brackets
Transport handle	Yes
Cord storage compartment	Yes, at the back
Silent	Yes
Weight	Approximately 5 kg
Dimensions (W x H x D)	Approximately 60 x 40 x 15 cm
Recommended use	Indoor, living rooms, bedrooms
Warranty	2 years
Maintenance	Vacuum on grille, dry/damp cloth, do not immerse
Noise level	Silent

Frequently Asked Questions - DO7312M DOMO

How to install the wheels on the Domo DO7312M heater?

Attach 2 wheels to each wheel bracket. Then slide the brackets into the slots provided under the heater. Unroll the cord from the storage compartment.

How to adjust the heating power?

Use the two buttons: left for minimum power (800 W), right for medium (1200 W). For maximum power (2000 W), press both buttons simultaneously.

What does the anti-freeze function mean?

The anti-freeze function maintains the ambient temperature above 0°C to prevent pipes from freezing. To activate it, turn the temperature control knob to the 'snowflake' symbol.

The heater turns off by itself, is this normal?

Yes, the heater is equipped with a coverage sensor that detects overheating and cuts off the power automatically. It turns back on once cooled down.

How to clean the micathermic heater?

Before cleaning, turn off and unplug the appliance, then let it cool down. Use a vacuum cleaner for the metal grille, then a dry or slightly damp cloth (not wet) for the surfaces. Do not use detergents.

Can I use the heater in a bathroom?

No, this heater is not designed for damp rooms like bathrooms or laundry rooms. Use it only in dry places.

The power cord is damaged, what to do?

The cord must be replaced by the manufacturer, its service agent, or a qualified person to avoid any risk of accident.

What safety distance should be maintained from flammable objects?

Keep flammable materials (curtains, fabrics) at least 0.90 m from the front of the heater and away from edges.

Is the heater suitable for a child's room?

Yes, the heater is equipped with an additional protective cover for children and a coverage sensor. However, adult supervision is recommended.

Can I use an external timer with this heater?

No, the appliance should not be used with an external timer or remote control, as this presents a fire risk if the heater is covered or improperly positioned.

USER MANUAL DO7312M DOMO

MICATHERMISCHEVERWARMING

CHAUFFAGE MICATHERMIQUE

MICA THERMIC HEATING

CALENTADOR MICA

DO7312M

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

ZÁRUKA

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. L'emballage est recyclable. Traiter l'amballage ecologiqueement.

The packaging materials are recyclable. Treat the packaging according to environmental regulation.

ATTENTION :

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

INFORMACE O RECYKLACI ODPADU

MICATHERMISCHE VERWARMING

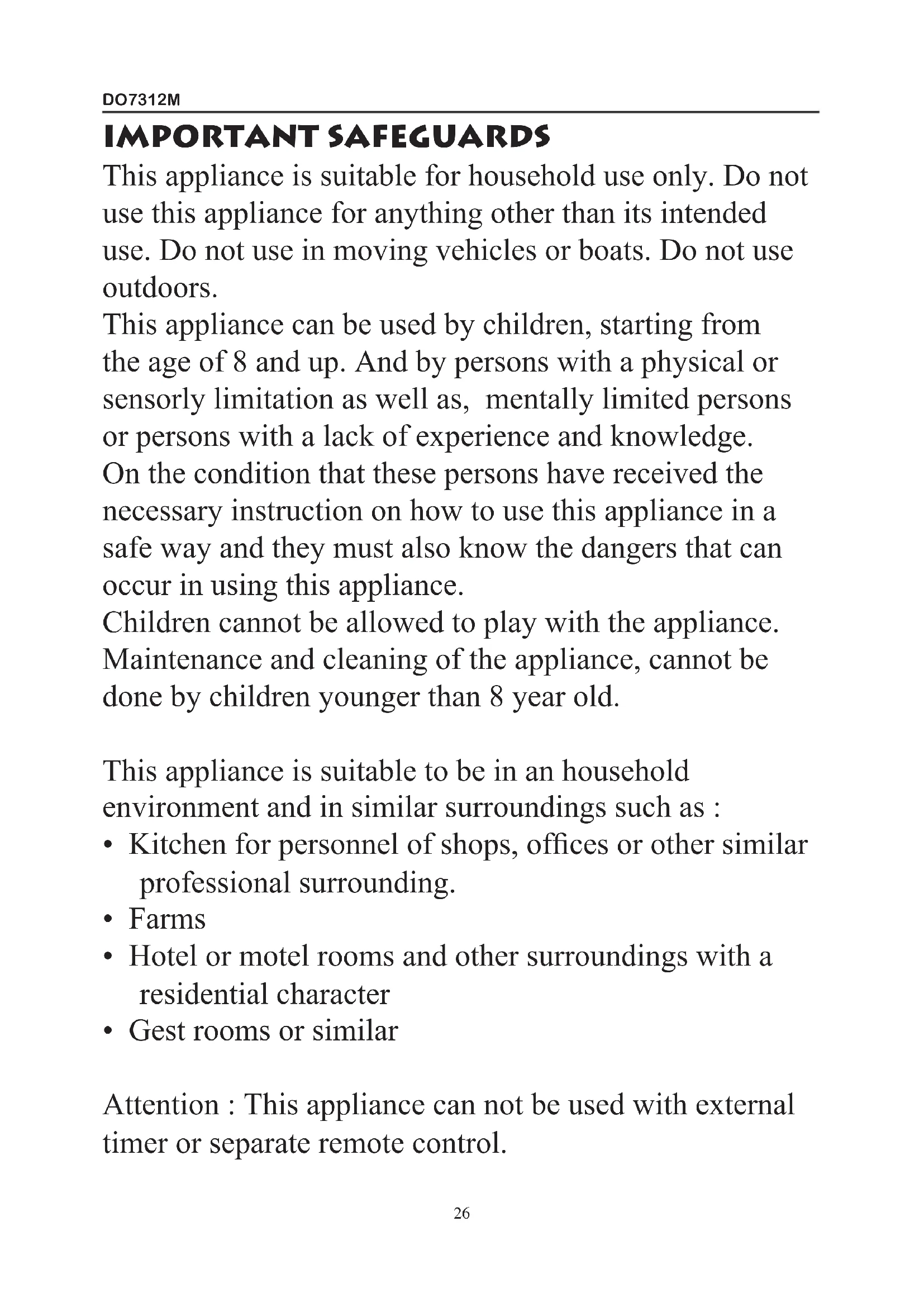

This appliance is suitable for household use only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.

This appliance can be used by children, starting from the age of 8 and up. And by persons with a physical or sensorly limitation as well as, mentally limited persons or persons with a lack of experience and knowledge.

On the condition that these persons have received the necessary instruction on how to use this appliance in a safe way and they must also know the dangers that can occur in using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance, cannot be done by children younger than 8 year old.

This appliance is suitable to be in an household environment and in similar surroundings such as :

• Kitchen for personnel of shops, offices or other similar professional surrounding.
  Farms
• Hotel or motel rooms and other surroundings with a residential character
• Gest rooms or similar

Attention : This appliance can not be used with external timer or separate remote control.

• The heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. Use handles when moving this heater.
• Keep combustible materials, such as drapery, and other furnishings at least 3 feet (0.9m) from the front of the heater and away from the side and rear.
• Extreme caution is necessary when any heater is used by children, near children or invalids, whenever the heater is left operating as well as unattended.
• Do not use outdoor.
• This heater is not intended for use in bathrooms, laundry area and similar indoor locations.
• Never locate heater where it may fall into a bathtub or other water container.
• A heater has hot and arcing or sparking parts inside. Do not use in area where gasoline, paint or flammable liquids are used or stored.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not operate this appliance on a soft surface because the inlet openings can be blocked.
• Always unplug heater when not in use. To disconnect heater, remove plug from outlet.
• Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire.
  However, if this heater is used with an extension cord,

the conductor wire inside the cord should be at least 1 mm in diameter and rated not less than 13AMP.

• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like.
• Arrange cord away from traffic area and where it will not be tripped over.
• Do not operate any heater with a damaged cord or plug, If the supply cord is damaged, it must be replaced by the manufacturer or its service agent of a similarly qualified person in order to avoid hazard.
• Connect to properly grounded outlets only.
• Use this heater only described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

MICATHERMIC HEATER

This new type of heater is used the "Micathermic Heating Element" which is the leading heating technology in the 21th Century. It is not heating up the heater itself but to radiate the surroundings as to warm up the room temperature and about to replace the traditional oil - filled heaters.

SPECIAL FEATURES

1 minute to full power of heating
Power (Minimum)/ (Medium)/ (Maximum) switch
3-way heat setting of 800W/1200W/2000W
Covering sensor (overheat detector)
On/Off switch with light indicator
Temperature setting indicator
Anti - frost design
Light weight

Quiet

No burning nearby objects

No oil - leakage

No dehumidifying

Back panel storage room for attach

power cord

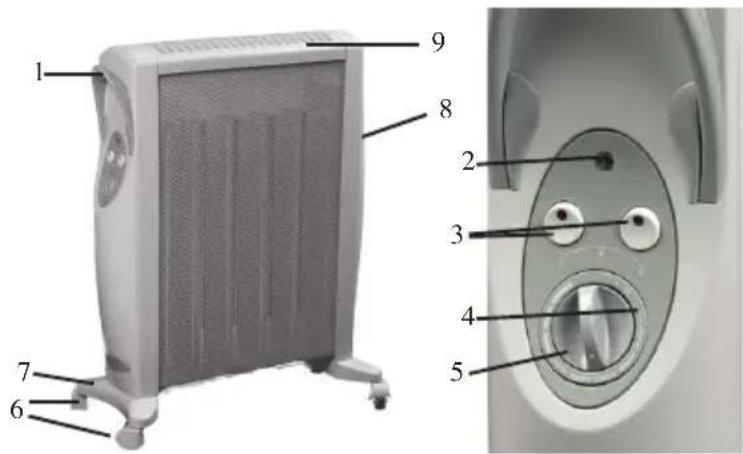

UNIT LAYOUT

1. Handle
2. Temperature control light indicator
3. Switches min, med, max.
4. Anti - frost function
5. Temperature control knob
   6.Wheel
6. Wheel mounting
7. Cord storage room (Back Panel)
8. Top cover (extra protection for babies & young kids)

REMOVE PACKAGING

PLEASE READ ALL THE INSTRUCTION BEFORE USING THIS HEATER

Take the heater and the packaging out of the gift box.

Spread the paper inserts at two ends of the heater.

Remove the polybag (CAUTION: THIS BAG IS NOT A TOY. Keep away from children).

Take the wheels and wheel mountings out of the paper inserts and the cord storage room of the heater.

Save the packaging for storing the heater, while not using the heater or in the summer season.

INSTALLATION OF WHEELS AND WHEELS MOUNTINGS

PLEASE READ ALL THE INSTRUCTION BEFORE USING THIS HEATER

Insert the castor plastic shaft into the hole of the feet support until it clicks.

Carefully slide the wheel mountings into the heater.

Take the power cord out from the cord storage room

• The Temperature control knob at [DOT] position.

• Also both the (Minimum) and (Medium) switches at off position.

Plug in power cord to a suitable electrical outlet. (Rated not less than 13 AMP)

• For low temperature, press left hand side (Minimum) button.

• For medium temperature, turn off left-hand side (Minimum) button, press right-hand side (Medium) button.

• For high temperature, press both buttons on.

Then turn the temperature control knob clock - wise until the light indicator turns on.

At this moment, the temperature control is starting to work.

According to personal needs, you can adjust the temperature control knob to increase or decrease the room temperature in a clock - wise or anti - clockwise direction as shown in the figure.

ANTI-FROST FUNCTION

It will keep the surrounding temperature above "Freezing Point". To do this, simply plug in the power cord, and turn the Temperature Control Knob to the "Snowflake" position, fear of pipe breakage by ice is evitable.

TOP COVER AND COVERING SENSORS

Even though a warning label "DO NOT COVER" has been placed on the unit, some users accidentally cover the unit by means of towels, blankets or the like. So, a safety top cover is placed on the top of heater to give an extra protection for young kids and babies. Once the covering sensors of the heater sense overheat, power will be cut off. When the unit temperature falls again, power will be resumed.

CLEANING

Before cleaning, turn off the heater, unplug the power cord and allow the heater to cool. Do not immerse power cord, plug, or heater in water or other liquid, or pour water or other liquid over the heater.

Use a vacuum cleaner to remove dust and lint at the metal grill of the heater.

Wipe the heater with a dry cloth to remove dust and a damp cloth (not wet) to clean off stains. Do not use detergents, abrasive cleaning powder or any kind of polishing material on the body of the heater, as these can damage the finish.

STORAGE

Store the heater in cool dry location and preferably covered to prevent the dust and dirt. Or use old packaging to repack the unit.

Unplug the heater and store the mains lead in the storage room at the back panel. Ensure that the plug does not trail to cool before cleaning.
