DO9108W - Scale DOMO - Free user manual and instructions

Product Type	Multifunction Kitchen Scale
Brand	DOMO
Model	DO9108W
Maximum Capacity	10 kg
Functions	Weighing, tare, timer, alarm, volumetric weighing, temperature and humidity measurement, clock
Display	Digital LCD with temperature and humidity
Temperature range	0 to 50°C with precision of 0.5°C
Humidity range	30 to 95% with precision of 5%
Power supply	2 AAA 1.5V batteries (not included)
Maintenance	Clean with a damp cloth; do not immerse
Safety	Do not use on soft surfaces; do not drop
Warranty	2 years
Extendable hook	Allows weighing suspended objects
Support	Included for stabilization
Non-slip bases	Ensure stability
Unit of measurement	kg, lb, oz (selectable)
Tare function	Zeroes weight for successive weighing
Zero function	Resets to zero for total loads ≤ 4% of capacity
Volumetric mode	Weighing water and milk in milliliters
Built-in clock	Adjustable time display
Timer	Timer up to 99:55 minutes with alarm

Frequently Asked Questions - DO9108W DOMO

How to set the time and date?

After inserting the batteries, the year blinks. Use the arrows to change, then press T-SET to confirm. Repeat for month, day, hour, and minutes. To modify later, hold T-SET for more than 3 seconds in time mode.

How to use the tare function?

Place the first object on the scale, read the weight, then press the Z/T key to reset the display to zero. Then add the second object; only its weight will be displayed. You can repeat this for multiple objects. The zero function activates if the total weight is ≤ 4% of capacity, otherwise the tare function applies, reducing the remaining capacity.

What to do if the screen displays 'Lo'?

'Lo' means the batteries are low. Replace both AAA batteries with new ones.

What to do if the screen displays 'Err'?

'Err' indicates overload. Remove the object immediately to avoid damaging the scale. The maximum capacity is 10 kg.

How to clean the scale?

Clean the scale with a slightly damp cloth. Never immerse the scale in water and do not use chemical or abrasive cleaners. Immediately clean any traces of grease, spices, vinegar, or colored foods.

Can the scale weigh liquids?

Yes, in volumetric mode. Place a bowl or cup on the scale, press Z/T to zero the weight, then pour water or milk. The volume is displayed in milliliters on the LCD. Make sure you are in volume mode by briefly pressing UNIT.

How to use the timer?

Press T-SET, then set the time with the arrows (max 99:55 minutes). Confirm each step with T-SET. Press T-SET again to start the countdown. To stop before the end, press T-SET. The alarm signal sounds 60 times at the end.

Is the scale suitable for children?

This appliance can be used by children aged at least 8 years old under supervision. Do not let children play with the appliance. Cleaning and maintenance must not be carried out by children under 8 years old.

What is the maximum capacity of the scale?

The maximum capacity is 10 kg. If exceeded, the display shows 'Err' and you must remove the load to avoid damage.

How to change the weight unit?

Hold the UNIT key to toggle between available units: kg, lb, and oz. The selected unit is displayed on the screen.

USER MANUAL DO9108W DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTIA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

NUL-(Z) OF TARRAFUNCTIE (T)

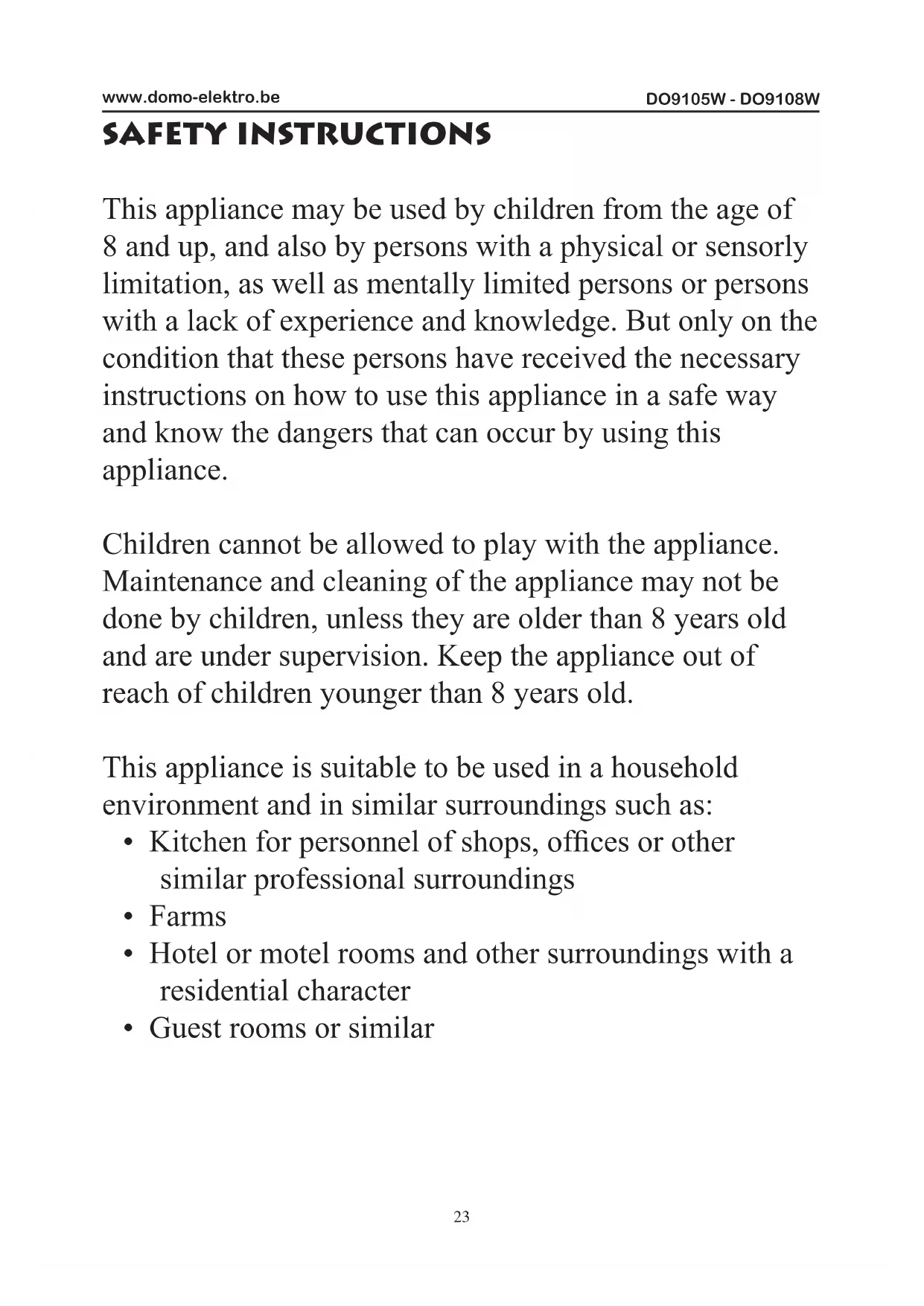

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

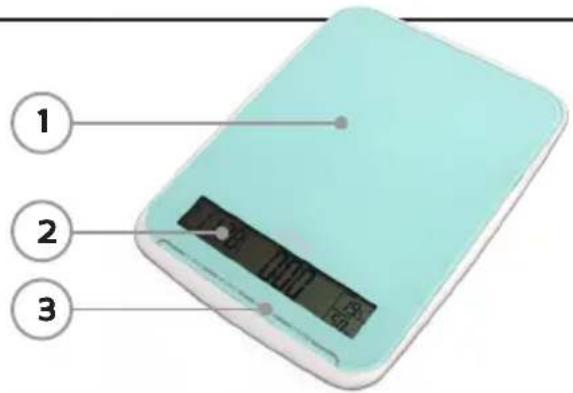

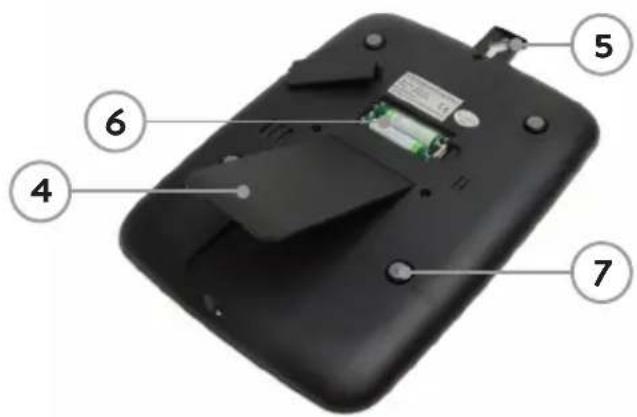

PARTS

1. Weighing surface
2. LCD display
3. Touch buttons
4. Stand
5. Hook for hanging, slides out
6. Battery compartment with lid for 2 AAA batteries (not included)
7. Antiskid feet

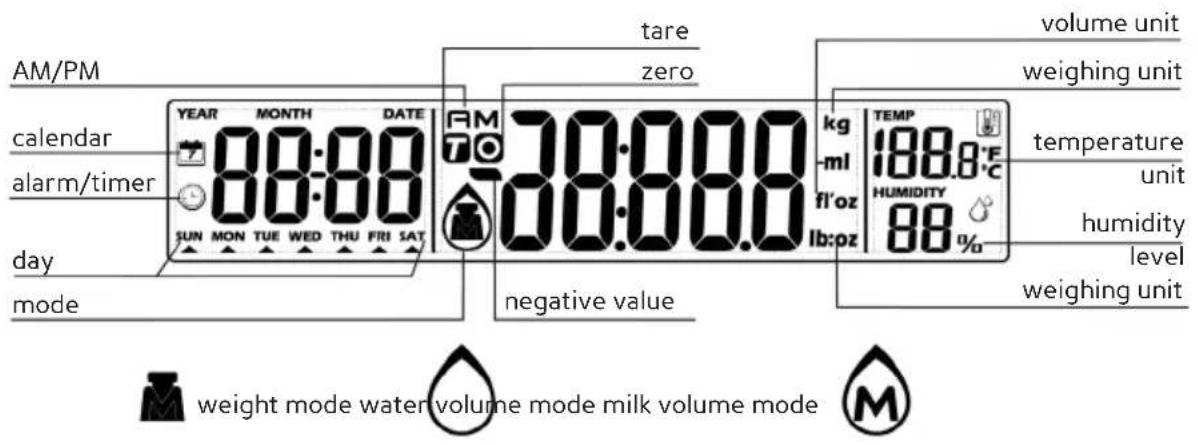

LCD DISPLAY

Temperature range: 0 - 50^ up to 0,5^ accurate Humidity range: 30 - 95% up to 5% accurate

BUTTONS

set

selecting weighing unit/ down

zero/tare/up

switching between weighing and time mode

PLACING THE BATTERIES

Open the lid of the battery compartment at the bottom of your scale.

Place 2 × 1.5V AAA batteries in the compartment, with the plus side at the + sign. First place the flat side of the battery against the spring and then push the other side down. The batteries are not included.

SETTING TIME ANDCALENDAR

1. Install the batteries
2. The year will start to blink. The year is automatically set to 2012. To change, press the up arrow (or down arrow). To confirm, press T-SET.
3. The month will start to blink. Use the arrows to set the month and press T-SET to confirm.
4. The day will start to blink. Use the arrows to set the day and press T-SET to confirm.
5. The hour will start to blink. Use the arrows to set the hour and press T-SET to confirm.
6. The minutes will start to blink. Use the arrows to set the minutes and press T-SET to confirm.

If you want to adjust the year, date or time afterwards, press and hold the T-SET button for 3 seconds when in time mode (not weighing mode). As described above, use the arrows to change and the T-SET button to confirm.

WEIGHING

1. Place the scale on a stable and flat surface.
2. Press the MODE button to switch from time mode to weighing mode. The display will indicate 0
3. Make sure that the scale is set to weight mode, not volume mode, to weigh the weight. If this is not the case, press the UNIT button shortly to switch.
4. Make sure that the scale is weighing in the right weighing unit. Press and hold down the UNIT button to change the weighing unit.
5. Place the item on the weighing platform. You can now read the weight from the display.
6. If nothing is being weighed for 2 minutes, or if there is no other activity during this period, the scale will automatically switch back to time mode.

ZERO (Z) OR TARE (T) FUNCTION

You can weigh different items consecutively without removing any items from the scale.

1. Place the first item onto the weighing platform and read the weight.
2. Press the Z/T button, so that the display indicates 0 . The scale could also first display - - - - , followed by 0 .
3. Now place the next item onto the weighing platform to read the weight of this item.

This means you can first place a bowl on the scale, press the Z/T button and then add ingredients into the bowl. This way you can only weigh the ingredients.

Zero function (O): when the total sum of all items is smaller than or equal to 4% of the maximum capacity (10kg) . The maximum capacity remains unchanged.

Tare function (T): when the total sum of all items is larger than 4% of the maximum capacity (10kg) . The maximum weighing capacity is reduced by the total weight of all items.

WEIGHING VOLUME

1. Place the scale on a stable and flat surface.
2. Press the MODE button to switch from time mode to weighing mode. The display will indicate 0
3. Make sure that the scale is set to volume mode, not weighing mode. If this is not the case, press the UNIT button shortly to change.
4. Place a bowl, cup,... onto the weighing platform to catch the liquid.
5. Press the Z/T button to set the weight to zero.
6. Now pour the water or milk into the bowl, cup,... The LCD display will indicate the volume of the liquid.

ALARM/TIMER

1. Press the T-SET button and use the arrows to set the desired time (maximum timer time: 99:55). Confirm with the T-SET button.
2. After setting the time, press the T-SET button to start the countdown. If you want to cancel the countdown prematurely: press the T-SET button.
3. The timer will count down to 00:00, after which an alarm signal will go off 60 times. After the signal, the scale will automatically return to the time mode.
4. Press any button to stop the alarm signal.

WARNING

Lo: replace the battery

Err: overload, remove the item from the scale to avoid damage. Maximum capacity: 10kg

CLEANING AND MAINTENANCE

• Clean the scale with a slightly damp cloth. Never immerse the scale in water or never use any chemical/abrasive cleaning products.
• All plastic parts need to be cleaned immediately after contact with grease, spices, vinegar or strong flavoured or coloured foods. Avoid contact with acidic citrus juices.
• Always use the scale on a hard, flat surface. Do not use the scale on a carpet.
• Do not drop the scale, do not shake it or shock it.
• Handle the scale with care, it is a precision instrument.
• Keep the scale dry.
• If the appliance does not work, first check the batteries.
• Not suited for commercial use.
