USER MANUAL 7148 JOCCA

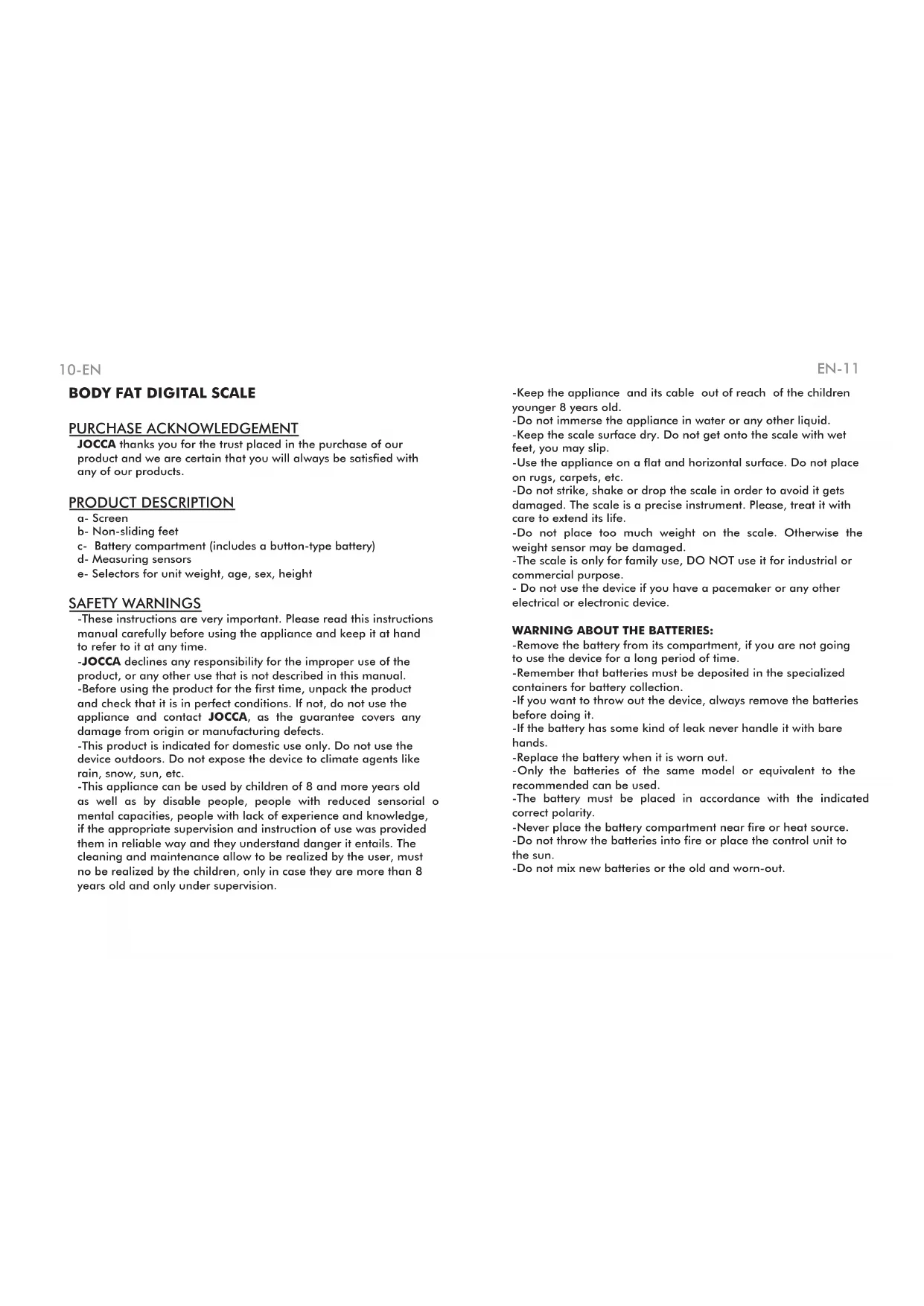

PURCHASE ACKNOWLEDGEMENT JOCCA thanks you for the trust placed in the purchase of our product and we are certain that you will always be satisfied with any of our products. PRODUCT DESCRIPTION a- Screen b- Non-sliding feet c- Battery compartment (includes a button-type battery) d- Measuring sensors e- Selectors for unit weight, age, sex, height SAFETY WARNINGS -These instructions are very important. Please read this instructions manual carefully before using the appliance and keep it at hand to refer to it at any time. -JOCCA declines any responsibility for the improper use of the product, or any other use that is not described in this manual. -Before using the product for the first time, unpack the product and check that it is in perfect conditions. If not, do not use the appliance and contact JOCCA, as the guarantee covers any damage from origin or manufacturing defects. -This product is indicated for domestic use only. Do not use the device outdoors. Do not expose the device to climate agents like rain, snow, sun, etc. -This appliance can be used by children of 8 and more years old as well as by disable people, people with reduced sensorial o mental capacities, people with lack of experience and knowledge, if the appropriate supervision and instruction of use was provided them in reliable way and they understand danger it entails. The cleaning and maintenance allow to be realized by the user, must no be realized by the children, only in case they are more than 8 years old and only under supervision. -Keep the appliance and its cable out of reach of the children younger 8 years old. -Do not immerse the appliance in water or any other liquid. -Keep the scale surface dry. Do not get onto the scale with wet feet, you may slip. -Use the appliance on a flat and horizontal surface. Do not place on rugs, carpets, etc. -Do not strike, shake or drop the scale in order to avoid it gets damaged. The scale is a precise instrument. Please, treat it with care to extend its life. -Do not place too much weight on the scale. Otherwise the weight sensor may be damaged. -The scale is only for family use, DO NOT use it for industrial or commercial purpose. - Do not use the device if you have a pacemaker or any other electrical or electronic device. WARNING ABOUT THE BATTERIES: -Remove the battery from its compartment, if you are not going to use the device for a long period of time. -Remember that batteries must be deposited in the specialized containers for battery collection. -If you want to throw out the device, always remove the batteries before doing it. -If the battery has some kind of leak never handle it with bare hands. -Replace the battery when it is worn out. -Only the batteries of the same model or equivalent to the recommended can be used. -The battery must be placed in accordance with the indicated correct polarity. -Never place the battery compartment near fire or heat source. -Do not throw the batteries into fire or place the control unit to the sun. -Do not mix new batteries or the old and worn-out. EN-11

10-ENINSTRUCTIONS FOR USE

-Before you start using the device, remove the plastic from the battery position to allow the batteries contacting the device and it starts working. For good conductivity and proper use of the scale, to obtain correct results for determining body fat, body water, muscle mass as well as body weight and bone. proportion, it is important to weigh always barefoot and make sure your feet are in contact with 4 metal points for maximum precision. -The excess of liquid, taking some medicine or the menstrual cycle can affect the results. -To get the weight results, you just need to stand on it directly, in a few seconds you will get the weight in kg. If you want to select the weighing unit, you just need to press the arrow down to change kg / lb / st: lb. -To use the functions of body fat, body water, muscle mass as well as body weight and bone proportion, you must enter your data. To do this, follow these steps:

• Press the square. P0 will appear on the display (remember that this device has 10 memories for 10 different users, with different points P0 to P9, this will appear in the lower left side of the screen), you can select the memory for each user by the arrows, the memory digits (PO .... P9) will blink until you select the one you need.

• After selecting the memory, press again the square and arrows to select the sex: the following man or woman silhouettes will flash till you select the sex.

• When the sex is selected press again the square and arrows to select your height. 3 digits will flash until you select your height by the arrows.

• When the height is selected press again the square and arrows to select age. 2 digits will flash until you select your age by the arrows. -When the memory data are set, the use of the scale is simple: just switch it on pressing the square, selecting your memory by the arrows, and once the scale marks 0.0 stand on it barefoot on the metal sensors. -The information will be shown on the displayed discontinuously, indicating first your weight, following with the body fat %, TBW is body hydration, muscle mass , bone proportion , Kcal and BMI. -When you get off the scale, it will be disconnected automatically. If there is no weight and the display shows zero, the scale will automatically turn off after in about 6 seconds. RESULTS: The body fat % is measured by the following parameters displayed on the screen

• Under fat: Below normal.

10-17 1300 1610 18-29 1210 1550 30-49 1170 1500 50-69 1110 1350 >70 1010 1220 Messages that may appear -Install a new battery when the message is LO. -“Err” means overload, remember that this scale can not exceed 150kg. -“Err2” means that the measurement has been calculated incorrectly.

CLEANING AND STORAGE

-Do not use abrasive detergents or products that may damage the appliance. -NEVER IMMERSE ThE APPLIANCE IN WATER OR ANY OTHER LIQUID. -Use a damp cloth or sponge to clean the applicance. -Do not place vertically, even when not in use. TECHNICAL SPECIFICATIONS -3V DC (1 x CR2032 3V)-Strengthened glass. -Maximum effective weighing capacity: 150 Kg. (24 st/330 lb). -Minimum effective weighing capacity: 5 Kilos. -Weighing divisions: 100g/0.2 lb, 50g/0.1 lb. This device conforms to the safety requirements and provisions of directive 2004/108/EC on Electromagnetic Compatibility. EN-15

14-ENPROTECTION OF THE ENVIROMENT – DIRECTIVE

2002/96/EC This product has been designed and manufactured with high quality materials and components that can be recycled and reused. When you see the symbol of a crossed out litter bin on wheels next to a product, this means that the product conforms to the European Directive 2002/96/EC. Please obtain information about the local recycling system for electric and electronic products. Follow the local rules and do not dispose of used products by throwing them in the normal bins at home. Proper recycling of your used product will help avoid negative impacts on the environment and people’s health. PESE-PERSONNE NUMERIQUE
