USER MANUAL 50 Oxygen Plus ARCHOS

Package contents....2
Description of the phone....3
Inserting the SIM card....6
Getting started....8
3G & WiFi connection....10
Google account & Contacts....12
Hints & tips with Android ^TM ......14
Troubleshooting....16

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents

Check your product box for the following items:

-ARCHOS 50 Oxygen
-Headset
-USB cable
-USB host cable
-Charger
-Quick start guide
-Warranty Legal & Safety notices

The items supplied with your device and available accessories may vary depending on your region or service provider.

The supplied items are designed only for your device and may not be compatible with other devices.

Unapproved accessories may cause your device to malfunction.

Description of the phone

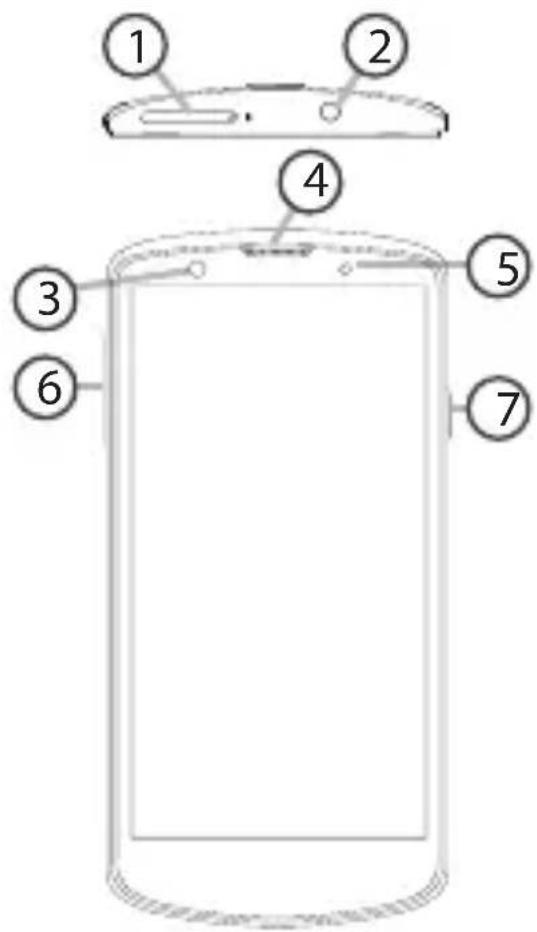

① Micro-SIM slot
② Headset jack
③ Flashlight
4 Phone speaker
⑤ Webcam
⑥ Volume buttons
⑦ ON/OFF button

Diagram of a smartphone with numbered parts for identification and labeling

Description of the phone

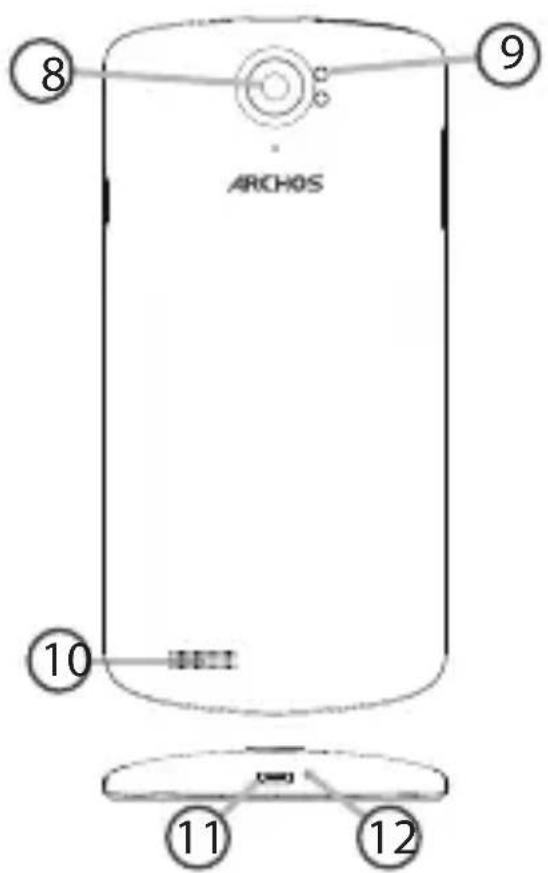

⑧ Camera
⑨ Flashlight
10 Loudspeaker
⑪ Micro-USB port*
12 Microphone

*Charge your device with the USB cable. Connect external devices with the USB host cable.

ARCHOS ⑧ ⑨ ⑩ ⑪ ⑫ ⑫ ⑫ ⑫

13 Menu
14 Home/Recent apps
15 Back

13 14 15

Menu: open the list of options available on the current screen.

Home/Recent apps: short press to return to the Home screen; long press to open the list of recent applications.

Back: return to the previous screen.

Inserting the SIM card

1. Remove the cover by using the provided tool that you insert in the cover hole.
2. Lift up the cover to remove it completely.
3. Insert the micro-SIM according to the direction shown.
4. Use the provided tool to press it in. When the SIM card is well inserted, a click happens and the SIM card stays fixed.
5. Replace the cover. A magnetic system holds the cover into place.

Tip:

Before using your device for the first time, charge completely its battery.

1

Diagram of a device with a top view and bottom view showing internal components (no text or symbols)

2

Simple line drawing of a smartphone with an antenna and scroll (no text or symbols)

3

Simple line drawing of a smartphone with a square icon and downward arrow, no text or symbols present

4

Simple line drawing of a device with a handle and arrow indicator (no text or symbols)

5

Simple line drawing of a smartphone with a screen and a pointer (no text or symbols)

Getting started

Turn ON

1. Press and hold the ON/OFF button to turn on the device.
   When you turn on your device, a PIN code may be requested.
2. Type the PIN code supplied with your SIM card.
   Beware of typing a wrong PIN code.
3. Select 'OK'.

Turn OFF

To turn off your device, press and hold the ON/OFF button, and then select Power off > OK.

Sound & Notification profiles

1. When the device is turned on, press and hold the ON/OFF button.
2. Select an option.

Silent Vibrate Sound

Three icons: a pen, a microphone, and a speaker on a dark background (no text or symbols)

Tip:

Your device goes in standby mode when you do not use it for a specified period of time. To wake up your device, press the ON/OFF button. To set the duration, go to Settings > Display > Sleep.

Through the wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Location consent
  -Language
  -Google account
• Location service options
  -Date & time

Touch screen actions:

Tap: touch once to select or launch a menu, option, or application.

Tap and hold: tap an item and hold it for more than 2 seconds.

Drag: tap an item and move it to a new location.

Double-tap: tap an item twice quickly.

Flick: briskly scroll up, down, left, or right to move through lists or screens.

Pinch: place two of your fingers far apart, and then pinch them together.

3G & WiFi connection

3G connection

With your 3G micro-SIM card, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your 3G provider's 3G or EDGE network. When connected to the 3G network, the 3G icon is displayed in the status bar.

Activating the mobile data

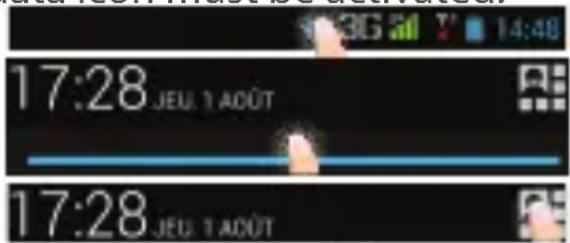

To be able to access Internet, the mobile data icon must be activated.

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the blue line down to display the status dashboard.
3. Touch the status dashboard icon
4. Touch the mobile data icon to activate it.

17:28 JEU 1 ACOÛT 17:28 JEU 1 ACOÛT

Image showing a device interface with icons and a transformation arrow, indicating replacement or conversion.

Tip:

When you encounter connection problem's, see the FAQs on www.archos.com or contact your 3G network connection provider.

WiFi connection

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

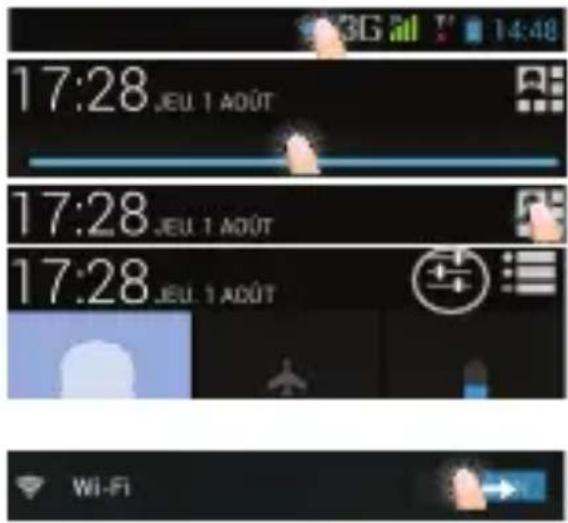

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the blue line down to display the status dashboard.
3. Touch the status dashboard icon
4. Touch the "Settings" icon to open the settings menu.
5. In the "Wireless & networks" section, if the WiFi is off, slide the WiFi switch to the "ON" position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.
6. Touch "WiFi" to display available networks.
7. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

17:28 JEU.1 ADÜT 17:28 JEU.1 ADÜT 17:28 JEU.1 ADÜT Wi-Fi

Google & Contacts

Adding a Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

1. Go to "Settings" > "Accounts" > "Add account".

2. Select the account type "Google" to add.

3. Follow the onscreen instructions to enter information about the account. Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Synchronizing info

Information must be sync to be saved. Your data are backed up on Google servers.

1. Go to "Settings" > "Accounts" > "Google".

2. Select your account.
   The list of information that can be sync are displayed.

3. Check all information in order to sync them.

You can get them back in case of loss of your device or micro-SIM card. When your Google account is added to a new device, all your saved information are collected.

Saving your contacts

When your contacts are saved, they are always available on the web and can be synced to any Android phone that's set up with your Google account.

1. Install the micro-SIM card with your contacts in your phone.
2. From a Home or All Apps screen, select the People app.
3. Touch the Menu button > "Import/Export".
4. In Import/export contacts, select "Import from SIM card".
5. Select your Google account.
6. Check contacts to be imported and validate.
7. Once the contacts are imported in the Google account, go to "Settings" > "Accounts" > "Google".
8. Select you Google account. Make sure "Contacts" is checked.
9. Select the Menu button, then "Sync now".

Your contacts are saved to your Google account.

Hints & tips with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Home button

Short press the Home button to go back to the main screen.

Double press the Home button to display all the apps you have opened.

Swipe any app left or right to close it.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Touch the "All Apps" icon on your home screen. Touch "Widgets" at the top of the screen. From the main Widget screen, you can move around widgets just as you do for app icons.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list.

Locking the touchscreen:

From the quick settings dashboard in the status bar, touch "Settings". In "Settings", scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Troubleshooting

My phone is frozen or cannot switch on

Press the ON/OFF & Volume + buttons for 10 seconds.

Charge your device for at least 10 minutes.

My phone cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

To configure a new 3G network:

On your device, tap Settings.

Select Wireless & networks > More... > Mobile networks.

Select Network settings. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters provided by your 3G provider.
