AMPLIFIER MANUAL MANUEL DE L'AMPLIFICATEUR

Model: SD1300.1, SD1300.5

• High Efficiency Class D Topology
- Compact Size for Easy Installation
• High and Low Pass Crossovers
• Robust Unregulated Power Supply
• Surface Mount Component Technology
- Panel Mounted RCAs
- Direct Insert Power and Speaker Terminals
• Audio Precision Quality Control Verification
• High Temperature Plexiglass cover
• Remote subwoofer level control included

Frequency Response:	±1dB from 20Hz to 300Hz	RMS Power 14.4Vdc ≤ 1% THD	900 x 1 @ 2 ohms
Signal to Noise Ratio:	>90dB		1300 x 1 @ 1 ohm
Low Pass Crossover:	18dB per Octave
Subsonic Filter:	12dB per Octave	Dynamic Power 14.4Vdc >1% THD	1200 x 1 @ 2 ohms
Low Pass Crossover Range:	30Hz to 300Hz		1600 x 1 @ 1 ohm
Subsonic Crossover Range:	10Hz to 55Hz
Bass Boost @ 45Hz:	0 to +18dB	Recommended Fuse Size:	120 amp
Low Level Input Range:	200 millivolts to 8 volts	Power/Ground Wire Size:	4 Gauge
Lowest Recommend Load:	1 ohm	Dimensions (Includes Mounting Feet):	14.33" L x 6.93" W x 2.0" H
Typical Efficiency:	70%		364mm L x 176mm W x 51mm H
Damping Factor:	Greater than 200	Dimensions (Includes Terminals):	14.96" L x 6.93" W x 2.0" H

SD1300.5 SPECIFICATIONS

Frequency Response:	±1dB from 20Hz to 20kHz	RMS Power 14.4Vdc ≤1% THD 80 x 4 @ 4 ohms Stereo
Signal to Noise Ratio:	>100dB	125 x 4 @ 2 ohms Stereo
High Pass Crossovers:	12dB per Octave	250 x 2 @ 4 ohms Bridged plus
Low Pass Crossover:	18dB per Octave
High Pass Crossover Range:	15Hz to 250Hz	500 x 1 @ 4 ohms
Low Pass Crossover Range:	30Hz to 300Hz	800 x 1 @ 2 ohms
Bass Boost @ 45Hz:	0 to +18dB
Low Level Input Range:	200 millivolts to 8 volts	Dynamic Power 14.4Vdc >1% THD 95 x 4 @ 4 ohms Stereo
Front and Rear Channels Lowest Load:	4 ohms Bridged or 2 ohms Stereo	150 x 4 @ 2 ohms Stereo
Subwoofer Channel Lowest Load:	2 ohm	300 x 2 @ 4 ohms Bridged plus
Typical Efficiency:	70%
Damping Factor	Greater than 200	700 x 1 @ 4 ohms

Note: All SD amplifiers operate correctly up to 14.4 volts. Do not operate the amplifier above 14.4 volts. The amplifier will engage its overvoltage protection, the result is no audio output on one or more channels.

Recommended Fuse Size:	100 amp
Power/Ground Wire Size:	4 Gauge
Dimensions (Includes Mounting Feet):	14.33" L x 6.93" W x 2.0" H
	364mm L x 176mm W x 51mm H
Dimensions (Includes Terminals):	14.96" L x 6.93" W x 2.0" H
	380mm L x 176mm W x 51mm H

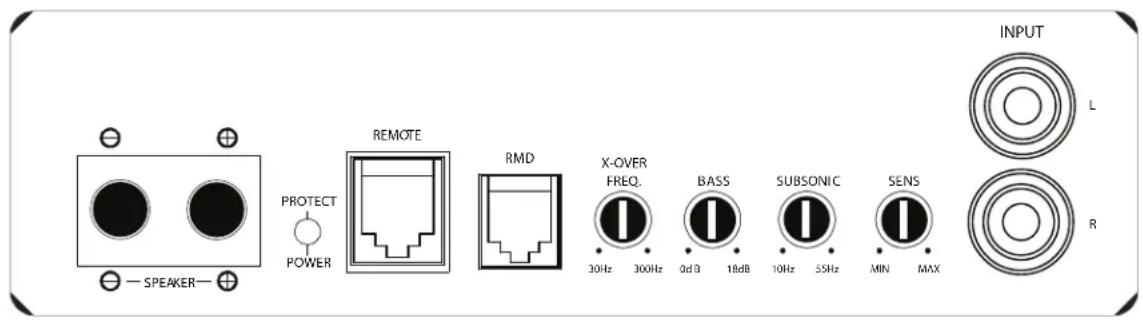

INPUT

Connect preamp signal cables from the head unit to these terminals.

CROSSOVER FREQUENCY

Controls the lowpass crossover point for the speaker outputs.

BASS BOOST

Variable bass boost from 0 to +18dB @ 45Hz.

REMOTE LEVEL CONTROL

This port is for connecting the subwoofer remote level control. This allows up to 20dB of volume adjustment. This is not a bass boost, it controls the level of the low pass signal.

NOTE: This control is not compatible with the Phoenix Gold LPL44 level control.

SENS

Used to reach maximum amplifier power with a wide variety of headunits.

Controls the highpass crossover point for the speaker outputs to eliminate extreme low frequencies.

RMD

Optional RMD Voltage Display plugs into this port. Sold separately.

SPEAKER PROTECT POWER REMOTE RMD X-OVER FREQ. 30Hz 300Hz BASS 0dB 18dB SUBSONIC 10Hz 55Hz SENS MIN MAX INPUT L R

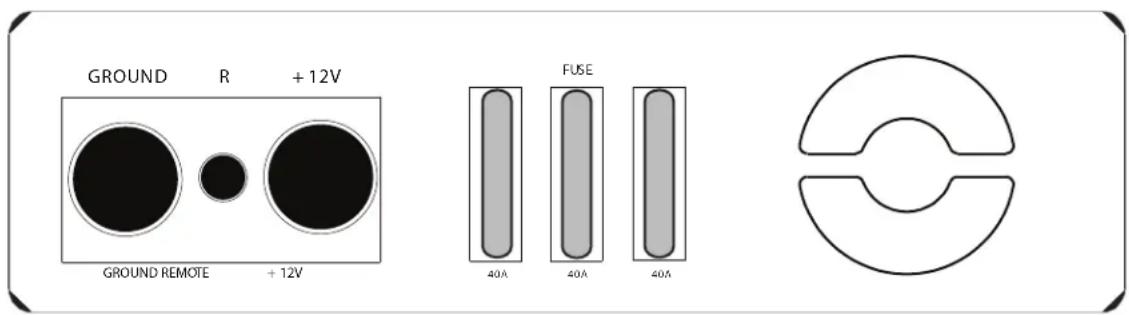

GROUND R +12V GROUND REMOTE +12V FUSE 40A 40A 40A

+12V

This must be connected to the fused positive terminal (+12V) of the car's battery. The fuse must be located within 18 inches of the battery.

REMOTE

This must be connected to switched +12V, usually a trigger wire coming from the head unit or ignition.

GROUND

This must be connected to the negative terminal of the car's battery or bolted to a clean, unpainted part of the chassis of the vehicle.

NOTE: Visible through the plexiglass cover, a single blue power LED is located in the lower corner of all SD amplifiers.

SPEAKER OUTPUTS

Used to connect the amplifier to speakers. SD1300.1 minimum impedance is 1 ohm.

SD1300.5

5 CHANNEL POWER AMPLIFIER

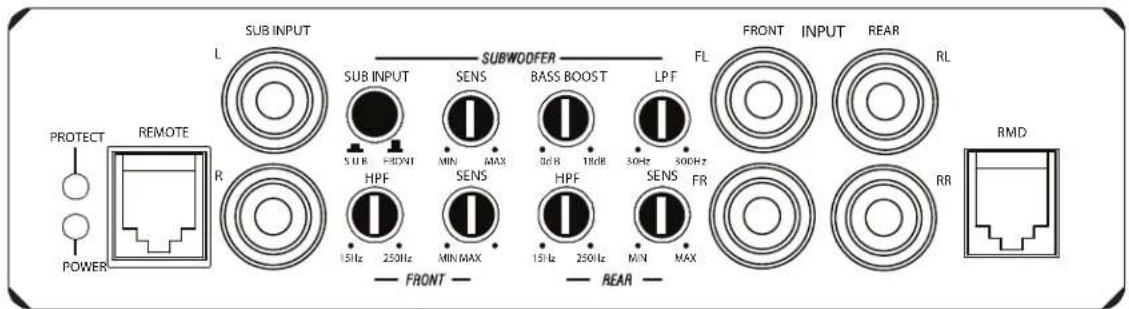

FRONT, REAR AND SUB INPUTS

Connect preamp signal cables from headunit to these inputs. The front AND rear inputs must be used, if only the front input is used then the rear speaker outputs will have no output signal. The Sub Input may or may not be used see SUB INPUT SWITCH for more information.

HPF AND LPF CROSSOVER FREQUENCY

Controls the crossover point for the speaker outputs.

REMOTE LEVEL CONTROL

This port is for connecting the subwoofer remote level control. This allows up to 20dB of volume adjustment. This is not a bass boost, it controls the level of the subwoofer channel only.

NOTE: This control is not compatible with the Phoenix Gold LPL44 level control.

BASS BOOST

Variable bass boost from 0 to +18dB @ 45Hz for the subwoofer channel only.

SENS

Used to reach maximum amplifier power with a wide variety of headunits.

SUB INPUT SWITCH

IN: Subwoofer speaker output is fed by the sub Input. If the headunit or processor has a subwoofer low level output use this setting.

OUT: Subwoofer speaker output is fed by the front input and the sub Input is not used. If the headunit or processor only has front and rear low level outputs use this setting.

RMD

Optional RMD Voltage Display plugs into this port. Sold separately.

PROTECT POWER REMOTE L SUB INPUT SUB WOOFER FL FRONT INPUT REAR RL RMD FRONT FRONT INPUT REAR RR MIN MAX MAX BASS BOOST 30Hz 18dB 30Hz 300Hz HPF 15Hz 250Hz SENS MIN MAX HPF 15Hz 250Hz SENS MIN MAX FR

GROUND ND + 12VR GROUND REMOTE + 12V BRIDGED (4 Ohms) FL FR SUB RL RR SUB

+12V

This must be connected to the fused positive terminal (+12V) of the car's battery. The fuse must be located within 18 inches of the battery.

REMOTE

This must be connected to switched +12V, usually a trigger wire coming from the head unit or ignition.

GROUND

This must be connected to the negative terminal of the car's battery or bolted to a clean, unpainted part of the chassis of the vehicle.

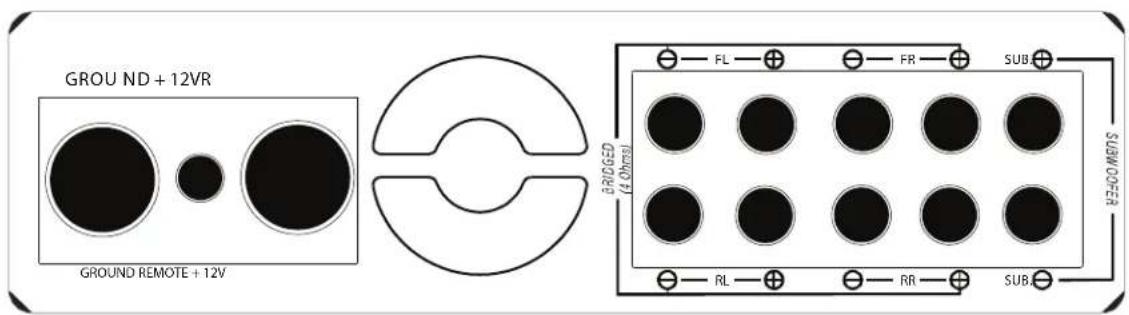

SPEAKER OUTPUTS

Used to connect the amplifier to speakers. Front and Rear Channel minimum impedance is 4 ohms bridged or 2 ohms stereo. Subwoofer channel minimum impedance is 2 ohms. Use Right + and Left - to bridge the front or rear channels, the subwoofer channel is not bridgeable.

NOTE: Visible through the plexiglass cover, a single blue power LED is located in the lower corner of all SD amplifiers.

1. Install all system fuses.
2. Set the amplifier's input sensitivity controls to their minimum positions (full counterclockwise).
3. Set all amplifier crossover switches according to your system's design.
4. Make preliminary adjustments to the crossover frequency, usually 80Hz is good starting point for high and low pass. It may be necessary to fine tune the crossover frequency later for the best overall sound quality.
5. If using a Remote Subwoofer Level Control, set it to maximum (full clockwise).
6. Turn the headunit on with the volume set to minimum.
7. Visually check the amplifier's has turned on by the power LED.
8. Check the condition of all other components to make sure they are powered up.
9. Set the headunit's tone controls, balance, and fader to the center (flat) position. Turn off any loudness or other signal processing features.
10. Set the volume control of the headunit for maximum undistorted output (on most headunits this will be approximately 7/8 of maximum volume). Use a very clear and dynamic recording.
11. Turn up the sensitivity or input level control on the amplifier until the speakers reach maximum undistorted output.

12. Repeat sensitivity level adjustments for all other amplifiers.

13. Reduce the headunit's volume to a comfortable level.

14. Listen to various musical selections to check overall system balance. Compare front to rear, midbass to midrange, etc. If one speaker set is too loud compared to another, then its level must be lowered to blend correctly with the other speakers.
    Note: For subwoofers controlled by the Remote level control, keep the level setting from step 11 or 12. Use the control to blend subwoofers with the rest of the system. The correct subwoofer volume will change depending on road noise and differences in recordings.
15. Fine tune crossover frequencies to achieve the smoothest possible blending of each speaker set.
16. Adjust the Bass Equalization Controls on the amplifier, headunit or processor upstream if necessary to increase output.
    Note: Use these controls sparingly. Every 3dB of boost requires double the power at 45Hz. If your subwoofer system requires a lot of boost to sound good, there may be a problem. Look for out-of-phase woofers, a leaking subwoofer box, or incorrect box size.
17. With all levels set correctly, the system will reach overall maximum undistorted output at the volume level set in step 10.

TROUBLESHOOTING

OVERVOLTAGE WARNING - If the voltage is above 14.4V across the +12V and ground terminal this will cause the amplifier to go into protection mode. The result is no audio output from one or more channels. Voltage must be between 11.5V to 14.4V for the amplifier to operate correctly.

No power: Check voltage at the amplifier with a DMM (volt meter), +12v and R (with head unit on) the voltage should register between 11.5V and 14.4V when using the attached ground lead of the amplifier. Check fuse at amplifier and at the battery. Use a meter to verify connection from one end of the fuse to the other, breaks may not always be visible. If the fuse is blown, check the power wire and also the amplifier for a short. If the short is in the amplifier itself, see your Phoenix Gold dealer. If no short is present, replace the fuse.

Power without sound: Turn the amplifier off and check all input and output signal cables and power connections. Check the speakers for shorts with a DMM (volt meter) or by connecting them to another audio source. After making sure everything is correct, turn the amplifier on again.

Power without sound and the PROTECT LED is lit: The red PROTECT LED lights when the amplifier shuts down for either thermal or over-current protection. A high internal amplifier operating temperature will trigger thermal shutdown: after it cools about 5°C, the amplifier will restart. A shorted speaker lead or operation into unusually low impedance loads will trigger over-current shutdown: cycle power at the amplifier R terminal to restore operation. Check for shorted speaker wiring or damaged speakers or crossover systems if over-current shutdown occurs.

No sound from one or more channels: Check for overvoltage on +12V and ground terminals. Check the balance control in the head unit. Check speaker connections. Check signal input connection.

Very low output: Check your head unit's fader control or the amplifier's input sensitivity level. Make sure subsonic frequency control is not set too high and LP frequency control is not set too low at the same time.

Frequent amplifier shutdown with automatic recovery: This indicates chronic amplifier thermal shutdown because of operation at consistently high internal temperatures. High operating temperature can be caused by inadequate ventilation. Make sure you are not running a lower than recommend impedance. Also check for damaged speakers or passive crossover systems. Finally, chronic thermal shutdown may result from otherwise normal operation of the amplifier at elevated output power levels, which can be resolved by providing additional amplifier cooling, installing a higher-power amplifier, or reducing amplifier output level.

"Motor Boating" - the power indicator going off repeatedly when the audio system is on: Check the amplifier's connection to the battery. Check battery voltage. If low, recharge or replace the battery. Check all ground connections.

SPÉCIFICATIONS

CARACTÉRISTIQUES SD1300.1:

14.33" L x 6.93" W x 2.0" H

364mm L x 176mm W x 51mm H

Dimensions (Comprend terminaux):

380mm L x 176mm W x 51mm H

14.96" L x 6.93" W x 2.0" H

CARACTÉRISTIQUES SD1300.5:

Puissance Power 14.4Vdc ≤1% THD

80 x 4 @ 4 ohm Stereo

125 x 4 @ 2 ohm Stereo

250 x 2 @ 4 ohm Bridged

et

500 x 1 @ 4 ohms

800×1@2ohms

95 x 4 @ 4 ohms Stereo

150 x 4 @ 2 ohms Stereo

300 x 2 @ 4 ohms Bridged

et

800 x 1 @ 4 ohms

1000 x 1 @ 2 ohms

14.33" L x 6.93" W x 2.0" H

364mm L x 176mm W x 51mm H

Dimensions (Comprend terminaux):

14.96" L x 6.93" W x 2.0" H

380mm L x 176mm W x 51mm H

ENTRÉE

Amplifier Owner's Manual

INSTALLATION NOTES:

OWNER INFORMATION

Owner's Name: ____

Serial Number: ____

Purchase Location: ____

Purchase Date: ____

Installer:

PHOENIX GOLD.

Phoenix Gold

A Division of AAMP of America™

13190 56th Court

Clearwater, Florida 33760

P:888-228-5560

[e-mail]

www.phoenixgold.com

© 2011 AAMP of Florida, Inc

Designed and Engineered in the USA

LIMITED WARRANTY ON AMPLIFIERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

INTERNATIONAL WARRANTIES:

Products purchased outside the United States of America are covered only by that country's Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country's reseller for information.
