USER MANUAL BSS 7500 Efbe-Schott
- Manual power regulator
- Telescopic tube
- Holder for accessories
- Floor brush
- Switch to adjust the floor type
- Dust container
- Lid of the dust container
- Flexible hose
- Release button of dust container
- Carrying handle
- Automatic cord rewind button
- Electronic power regulator
- On-off switch
- Grid for HEPA filter
- Parquet floor brush
- Upholstery brush
- Crevice tool
FR
Please read these instructions carefully before using the appliance. Only use the appliance in the way indicated in this instruction man
q Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.
q Check that your mains voltage corresponds to that stated on the appliance. As your vacuum cleaner is very powerful, make sure to connect it to a power socket of at least 16 amp. Moreover, please make sure that there are not several powerful electric devices connected to the same electric circuit simultaneously.
q People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person.
q Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy.
q From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
q Only use the appliance for domestic purposes and in the way indicated in these instructions.
q Never immerse the appliance in water or any other liquid for any reason whatsoever.
q Never use the appliance near hot surfaces.
q Should the cord be damaged, it must be replaced by a competent qualified electrician.
q Before cleaning, always unplug the appliance from the power supply.
q All repairs should be made by a competent qualified electrician ().
q Never use the appliance outside and always place it in a dry environment.
q Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
q Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
q Before plugging in the cord, make sure the switch is set to the off position.
q Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters.
This appliance is not a toy, it is not supposed to be sat on.
q Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance.
q Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ( ).
q Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
q Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
q If you use the appliance with a damaged air filter, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filter.
q Never operate the appliance without dust container! Always insert the dust container before use.
q Only put the filter and dust container back in place when they are completely dry.
q If your appliance no longer vacuums correctly or if the maximum indication is reached in the dust container, clean the filter and empty the dust container. Otherwise the appliance might overheat. Guarantee claims will not be accepted if this occurs.
(Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.
IMPORTANT INFORMATION
To avoid unnecessary overheating of the engine, switch off the appliance after 30 minutes and let it cool off for approximately 20 minutes. In the meantime you can wash out the air filter and empty the dust container if necessary, but be careful not to use the appliance when the filter is not dry! If you respect these guidelines, you will enjoy the use of this appliance for a long time.
ASSEMBLING THE VACUUM CLEANER

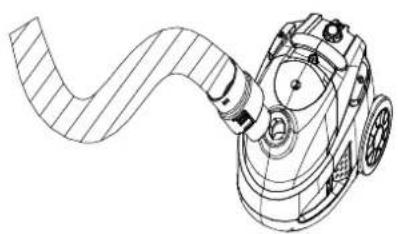

Insert the flexible hose into the opening on top of the dust container
Assemble the flexible hose and the telescopic tube
SC BSS 7500-090304
You can adjust the length of the telescopic tube by pressing its lever
NO2
Fit the telescopic tube to the floor brush as indicated
NO4
OPERATIONS
-
When your appliance is assembled, you just need to pull out the power cord up to the desired length. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark, as this would damage the cord rewind mechanism. Should you exceed the red mark, no guarantee claims will be accepted. Put the plug in the power socket and switch on the appliance by pressing the ON/OFF switch with your foot.
-
You can adjust the suction power by using the wind-force adjuster on the handle. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.
-You can also adjust the suction power with the electronic power regulator (12).
AFTER USE
- Stop the vacuum cleaner by pressing the ON/OFF switch.
- Unplug the appliance from the power supply.
- Simply press the cord rewind button down to activate the cable rewind mechanism. Guide the power cord in order to prevent it from becoming entangled.
12
SC BSS 7500-090304
CARE
Cleaning of dust container & filters

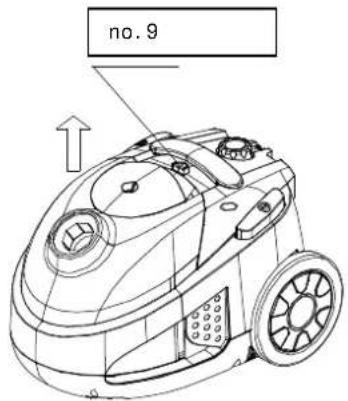

To take the dust container out of its housing, press release button no. 9 and pull the dust container upwards.

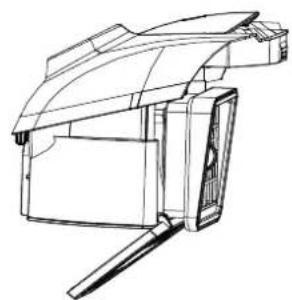

When you have taken the dust container out of its housing, press the small lever on the front side. The hatch of the container opens up and the collected dust falls down.

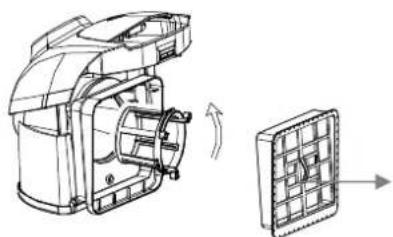

Your vacuum cleaner is equipped with a HEPA filter. To clean it, pull it out of the container housing. Behind the HEPA filter there is a filter sieve which you can take out by turning it slightly to the left.
SC BSS 7500-090304

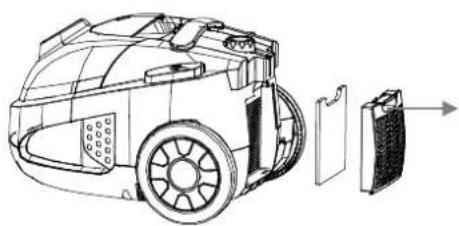

At the back side of the appliance there is an outlet filter which has to be cleaned regularly. To pull it out, just press the plastic protrusion.
GUIDELINE
After cleaning, assemble the appliance again in reverse order. Please make sure that all filters are dry before using the appliance again.
MALFUNCTION
Astringency of the brushes, of the flexible hose or of the telescopic tube can cause a malfunction of the unit (unusual sound or lower suction power). Full filters or defective electrical parts can also cause a malfunction.
- Check the brushes, the flexible hose and the telescopic tube regularly for this matter.
- Check the fill level of the dust container and check if the filters are muddied.
If there is no apparent reason for the malfunction, please contact the customer service.
PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
TERMS OF GUARANTEE
For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.
If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.
Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg.
In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces (telescopic tube, flexible hose, floor brush and possibly permanent filter) are not covered by the guarantee and will thus be charged!
AFTER THE LEGAL PERIOD OF GUARANTEE
Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
